80mm Panel Kiosk Thermal Printer P80H
|
Product Description
It is used for financial self-service terminals, communication self-service terminals, coupons self-service terminals, ticketing self-service terminals, power self-service terminals, medical self-service terminals, insurance self-service terminals, tax kiosks, self-service terminals such as kiosk terminal equipment, tanker, Queuing machines and so on
|

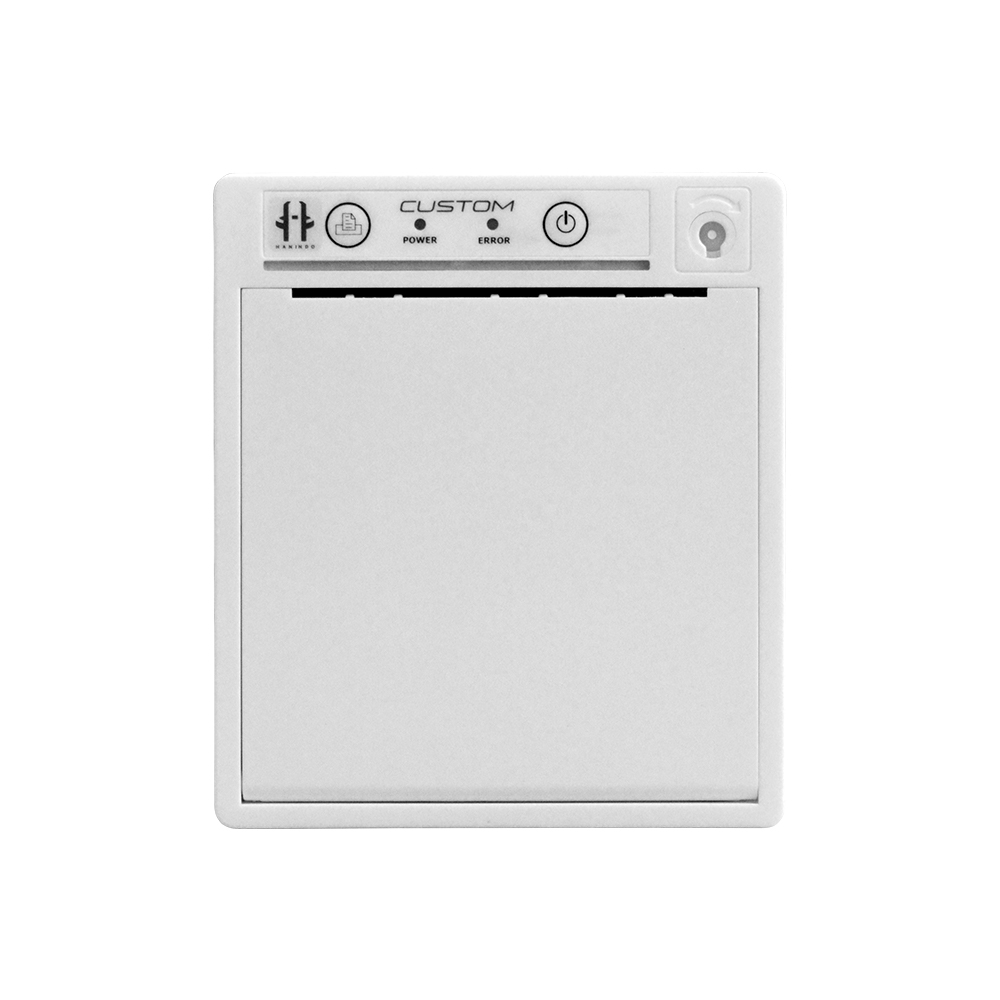

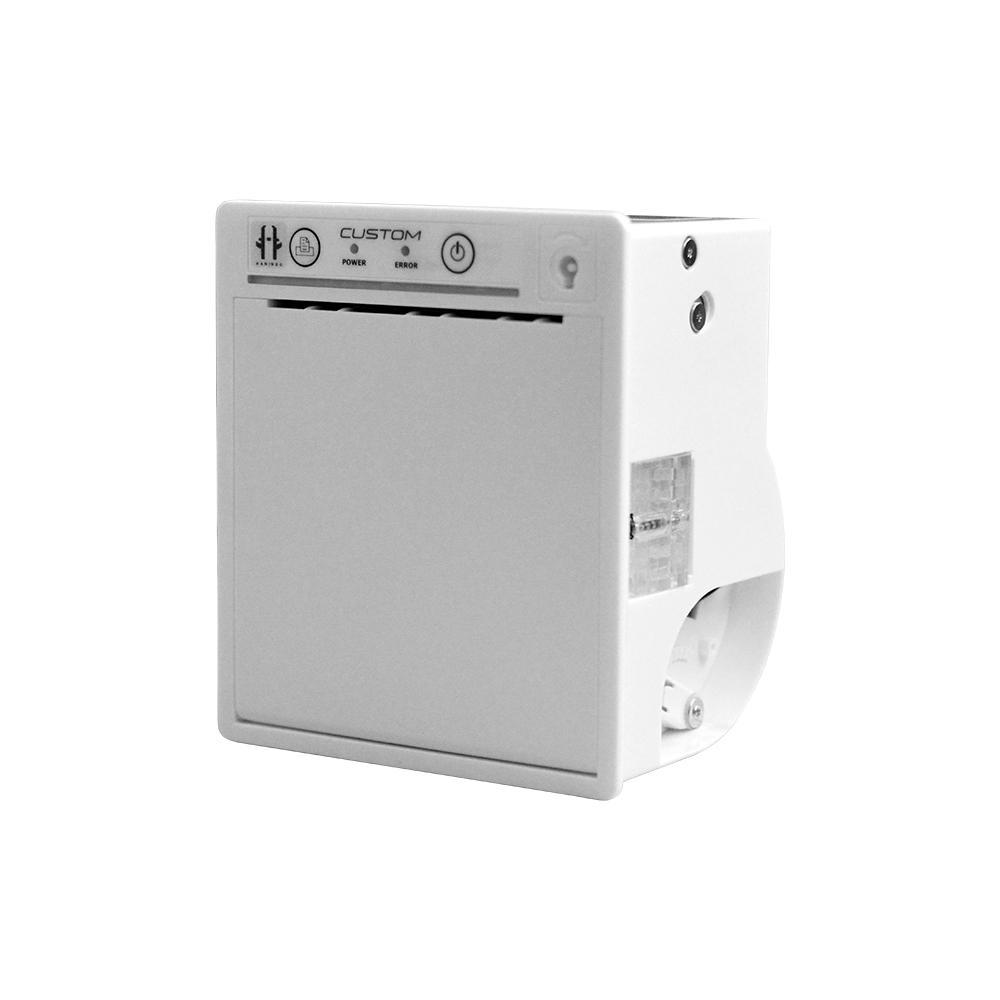

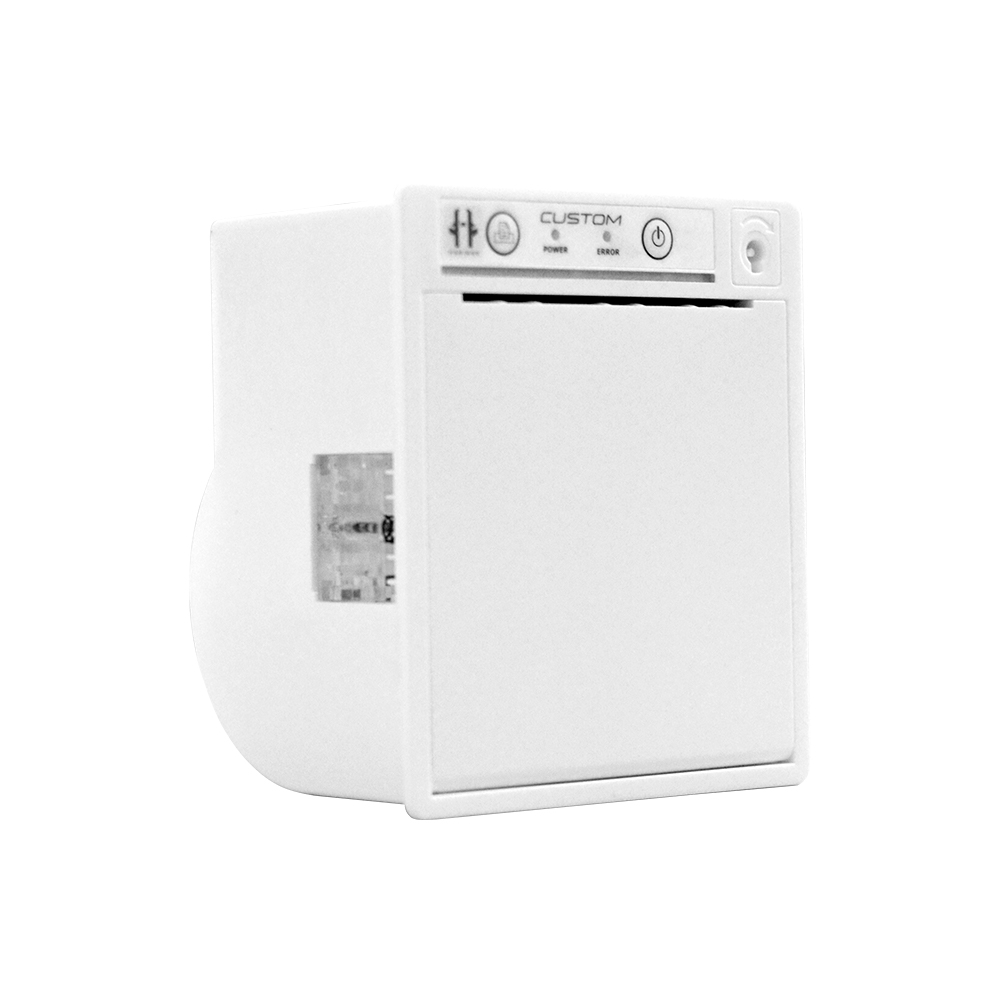

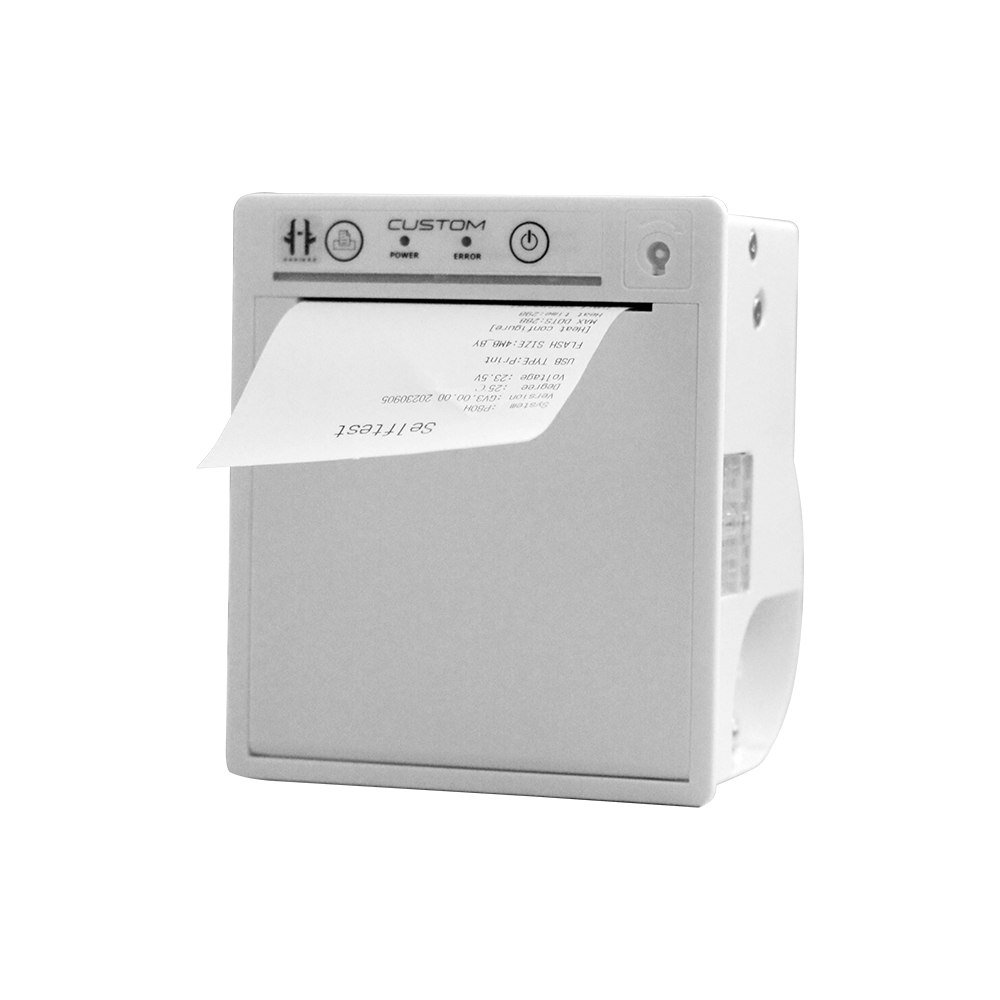

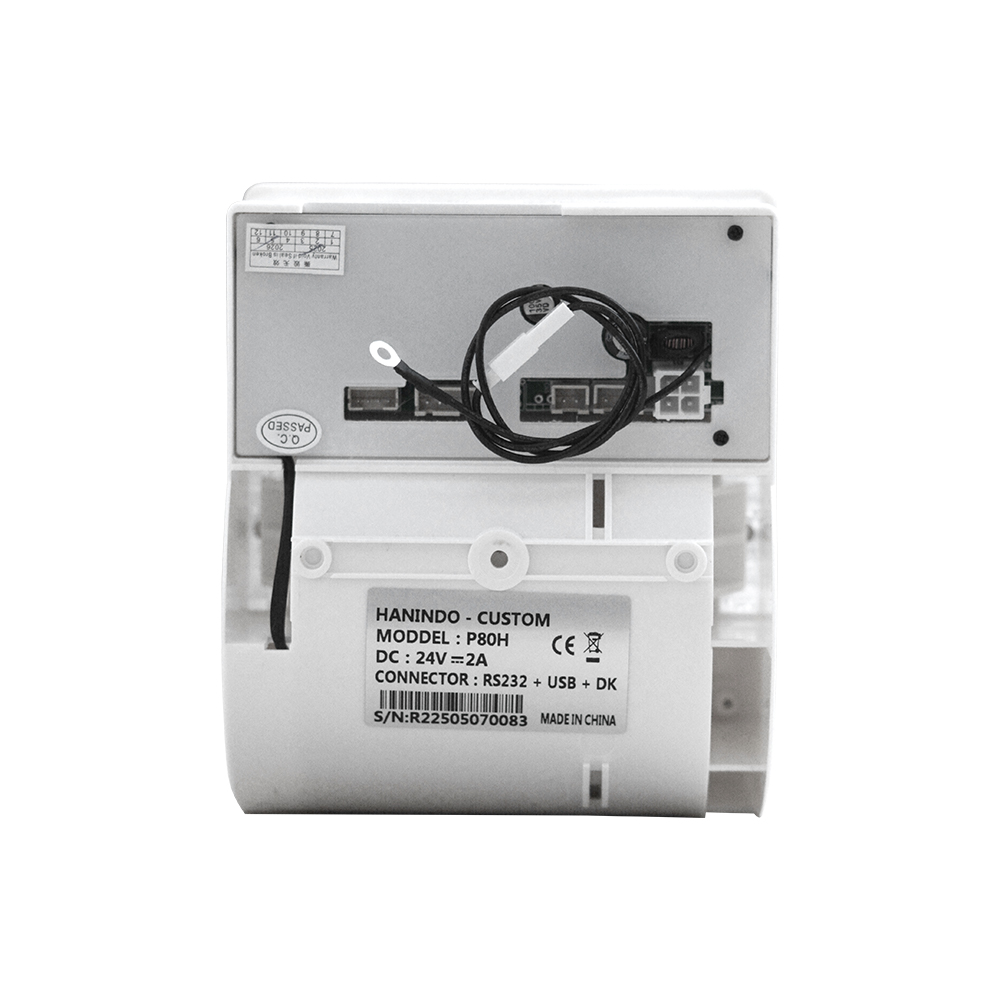

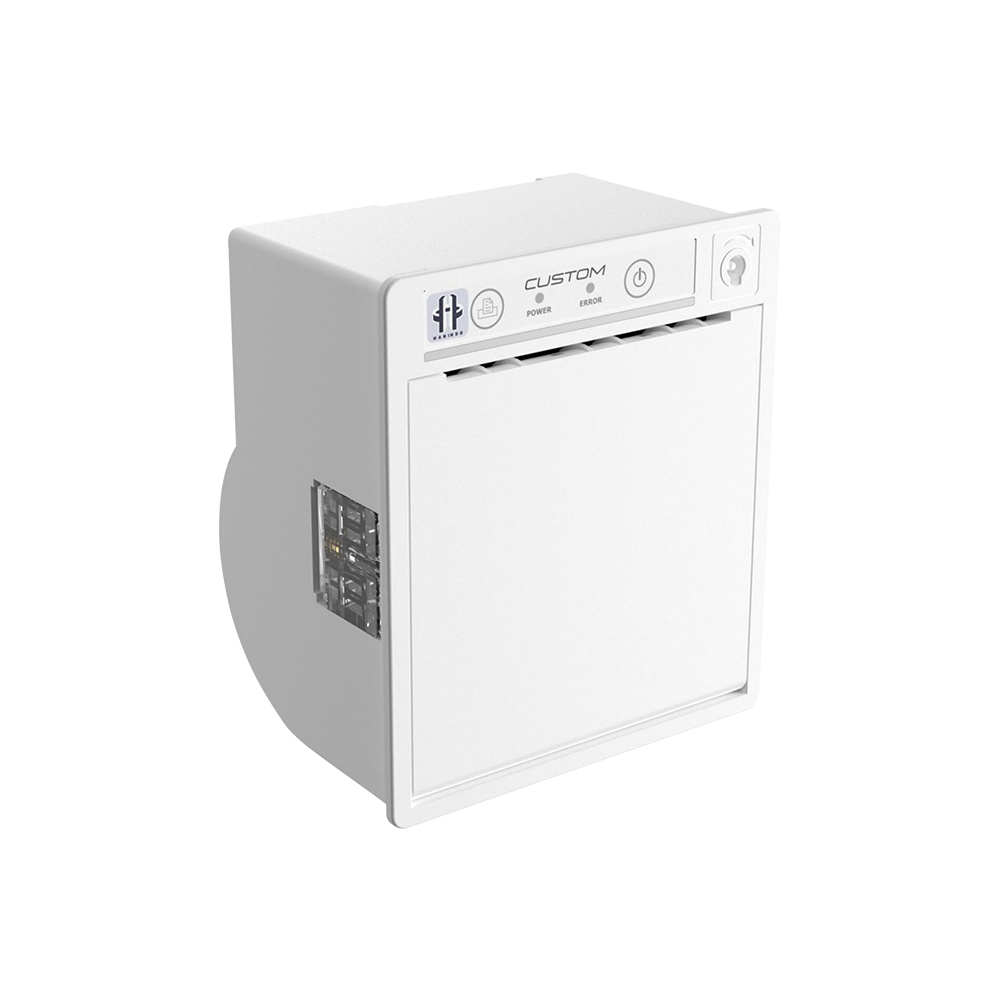

Product Show
|
Feature
1.Smart appearance;
2.Easy paper loading;
3.Low noise thermal printing;
4.Different interfaces optional;
5.Front panel make paper replacement easily;
6.Support graphic and text printing;
7.Support 80 mm diameter paper roll;
Easily embedded to any kinds of instruments and meters;
|
Specifications
Print Method | Thermal-line dot method |
Print Speed | 200 mm/s |
Resolution | 203dpi (8dots/mm) |
Effective Printing Area | 72 mm |
Character Set | ASCII, GBK, BIG5 and so on ANK: (9 * 17,12 * 24) Chinese: (24 * 24) |
Print Font | Font A(12 * 24): 48 Font B(9 * 17): 64 GBK: 24 |
Paper Type | Thermal paper roll |
Paper Width | 79.5±0.5mm |
Paper Thickness | Paper Thickness |
Max Paper Roll Diameter/Paper Roll Inner Diameter | Max: 80mm Min: 13mm |
Head Temperature Detection | Thermistor |
Paper Out Detection | Photoelectric detection |
Paper Near End Detection | Photoelectric detection |
Paper Taken Out Detection | Photoelectric detection + Flashing lights |
Baud Rate | 9600bps-115200bp |
Interface | Serial RS232 + USB + Cash Drawer |
1D Code | UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
2D Code | QR code |
Print Life | >100 km |
Cutter Life | >1000000 cuts |
Paper Cut Mode | With auto-cutter |
Power Supply | DC24V/1A |
Driver
| Windows Driver, Linux Driver |
Working Temperature | Temperature: 0°C~50°C Humidity: 20%RH ~85% RH |
Storage Temperature
| Temperature: -20°C~60°C Humidity: 5% ~90%RH |
Product Size | 118.7 * 136.1 * 87.5 mm |
