P80D
HCCTG

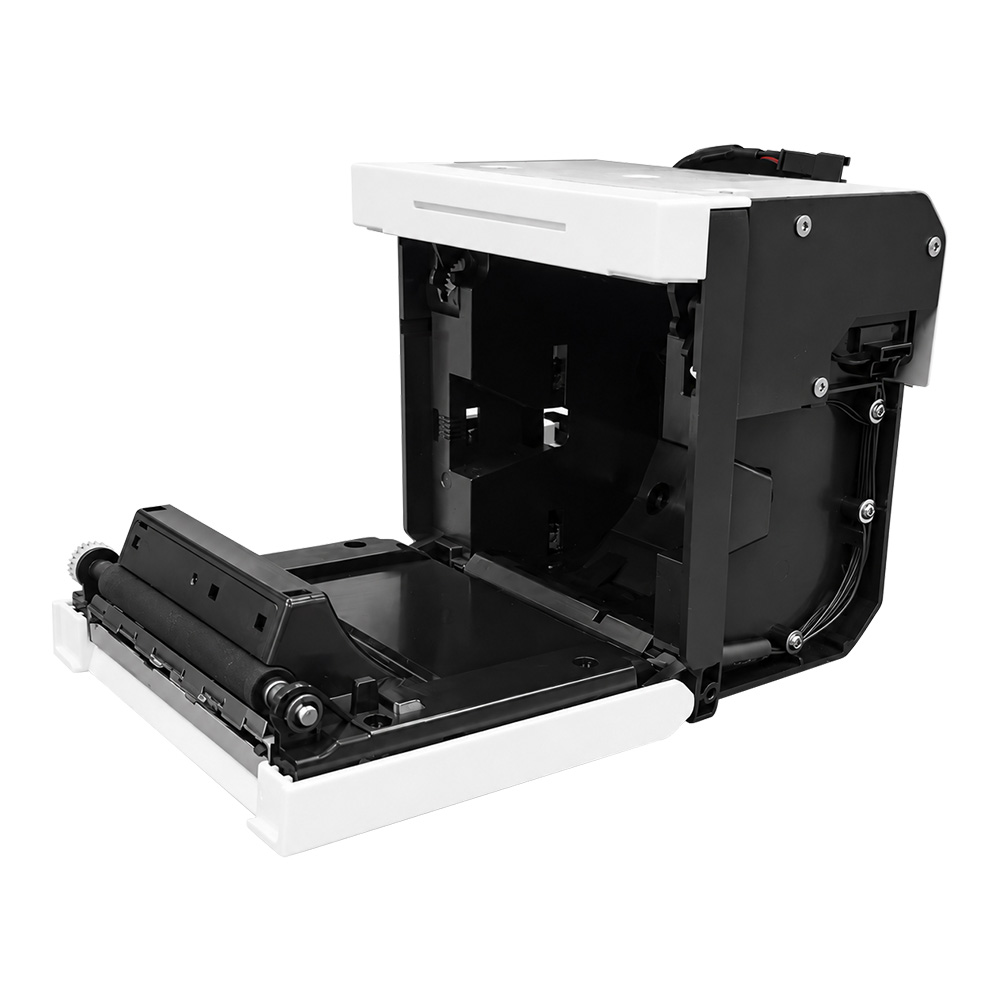

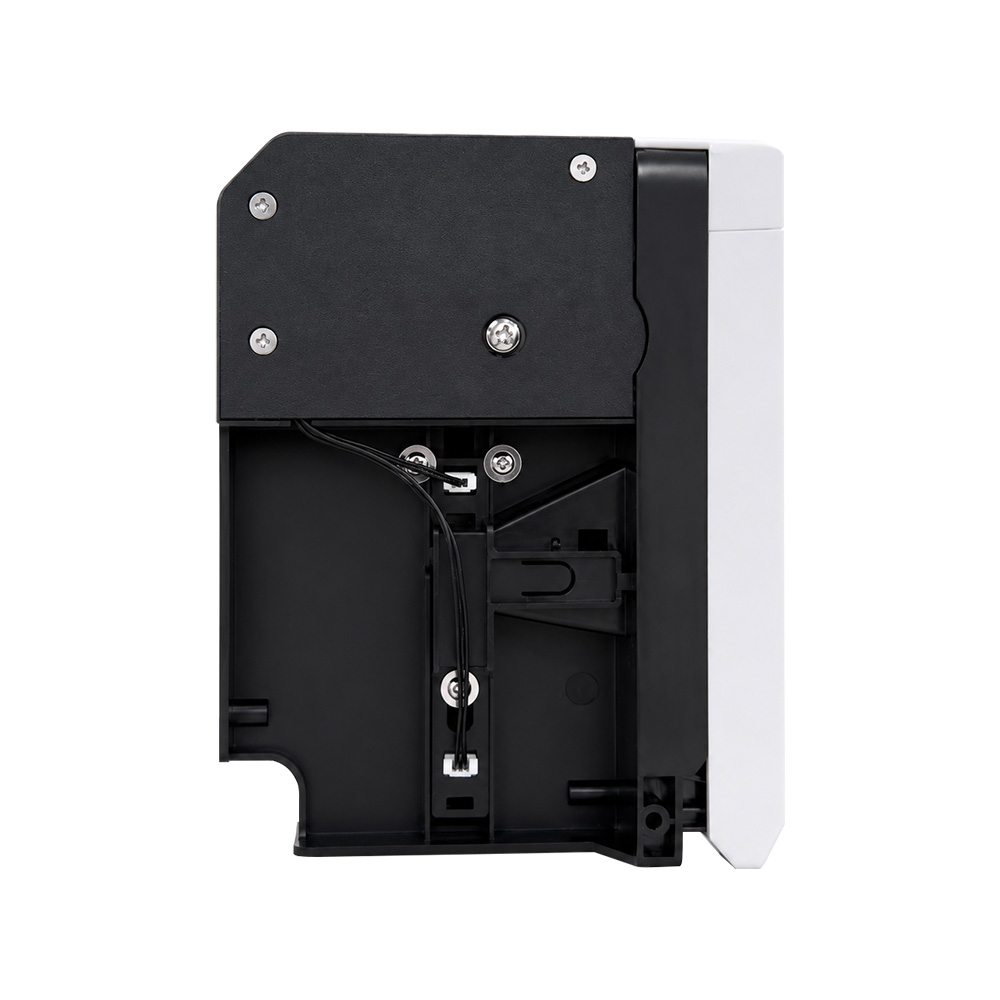

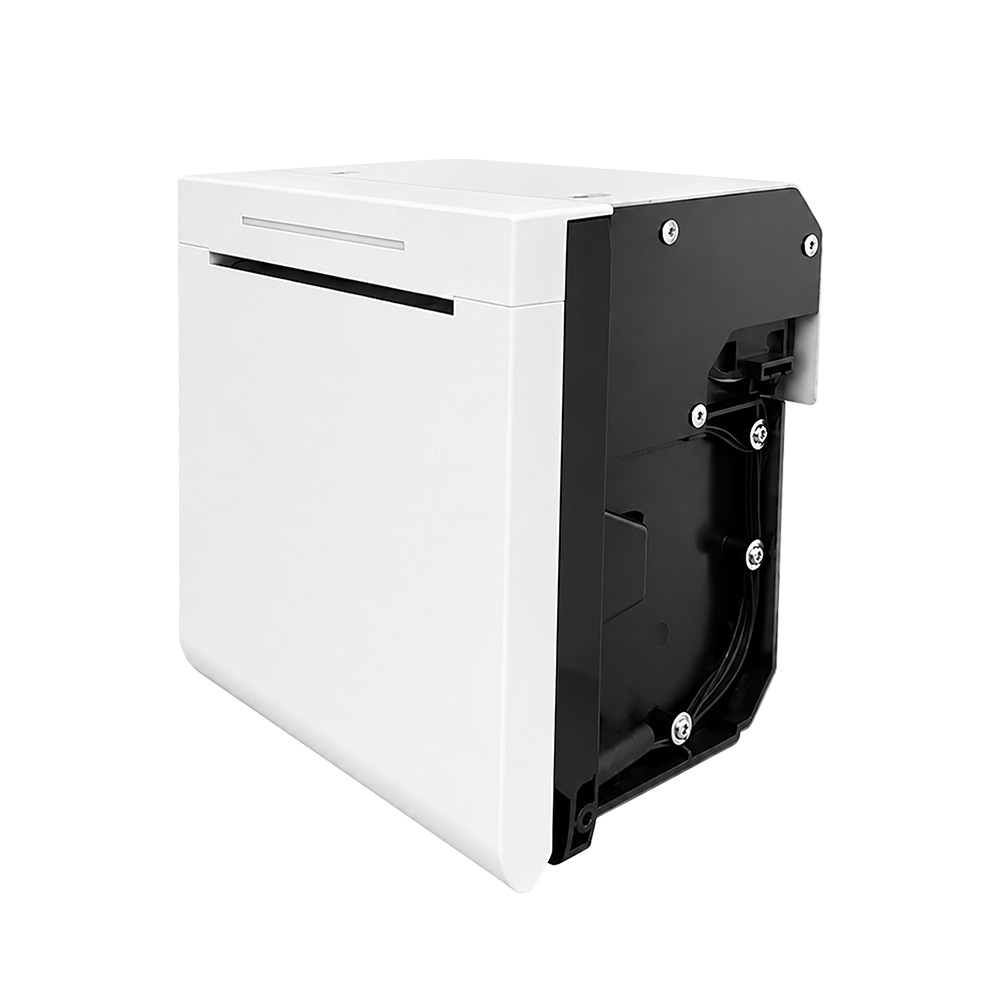

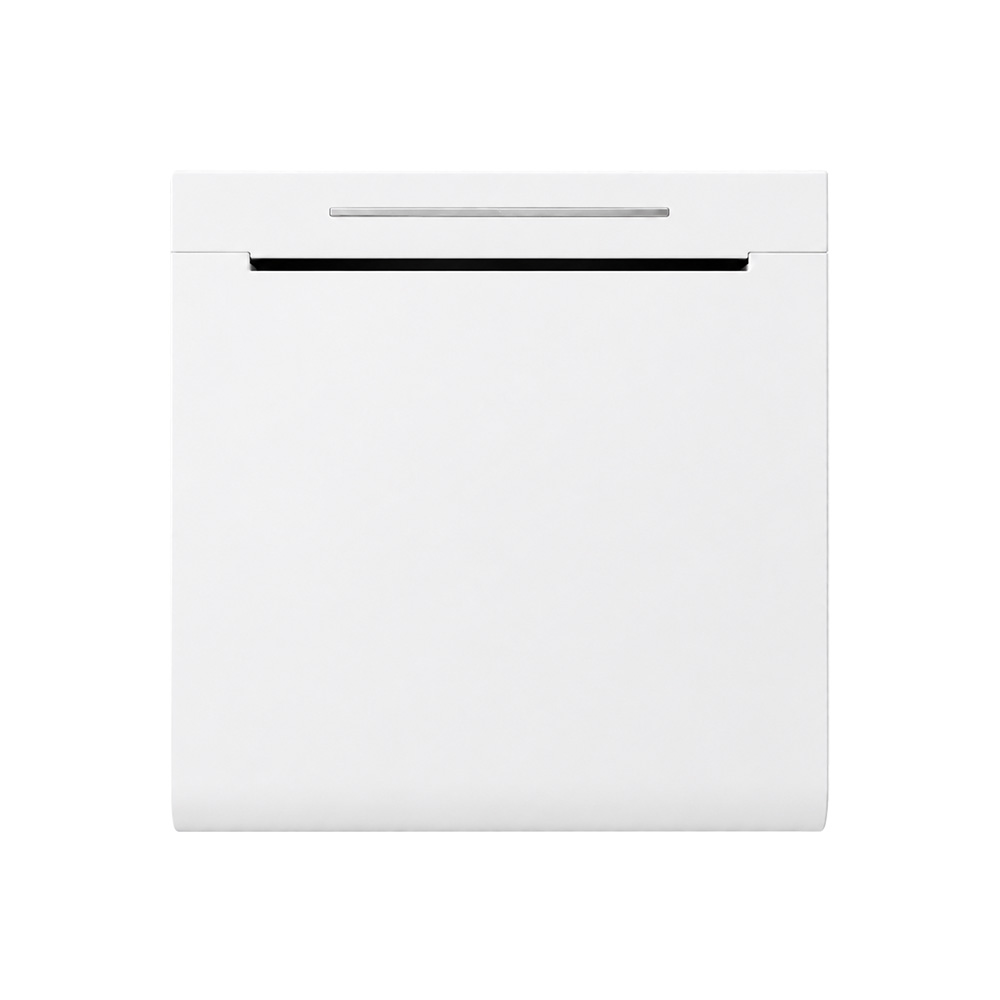

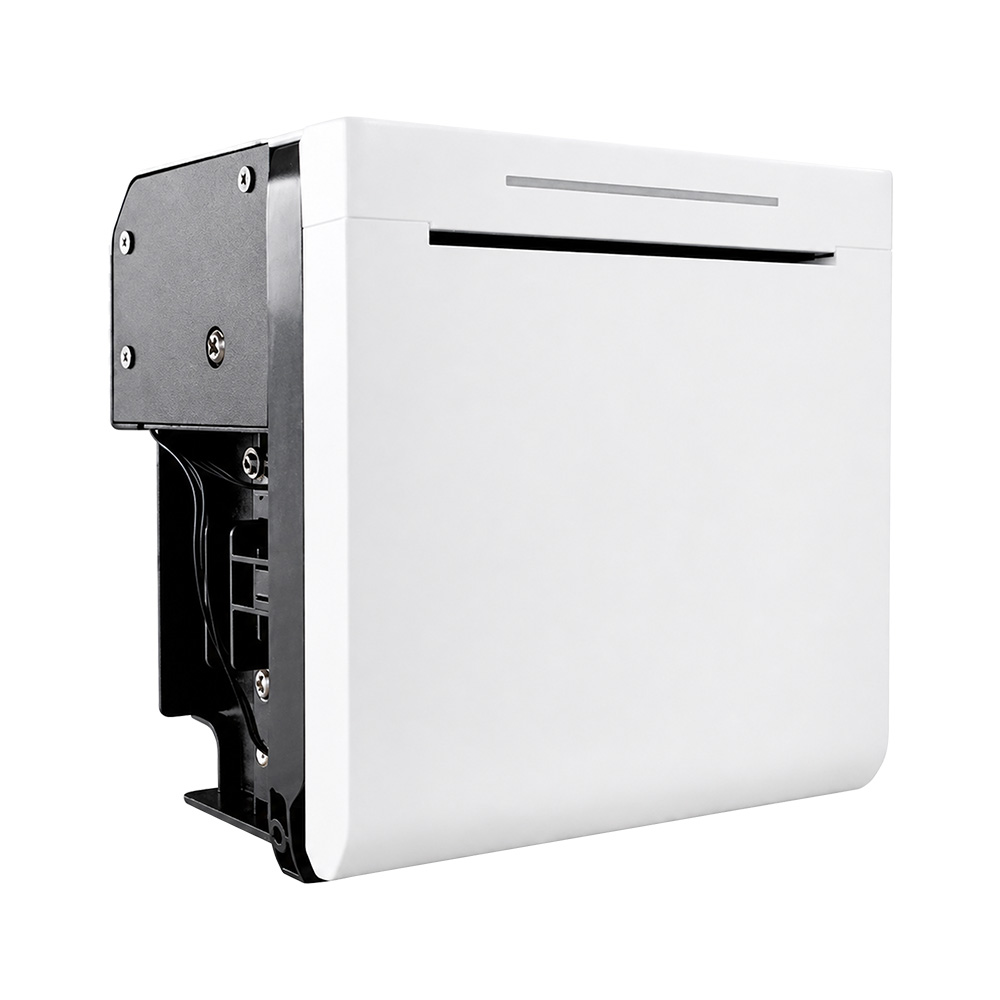

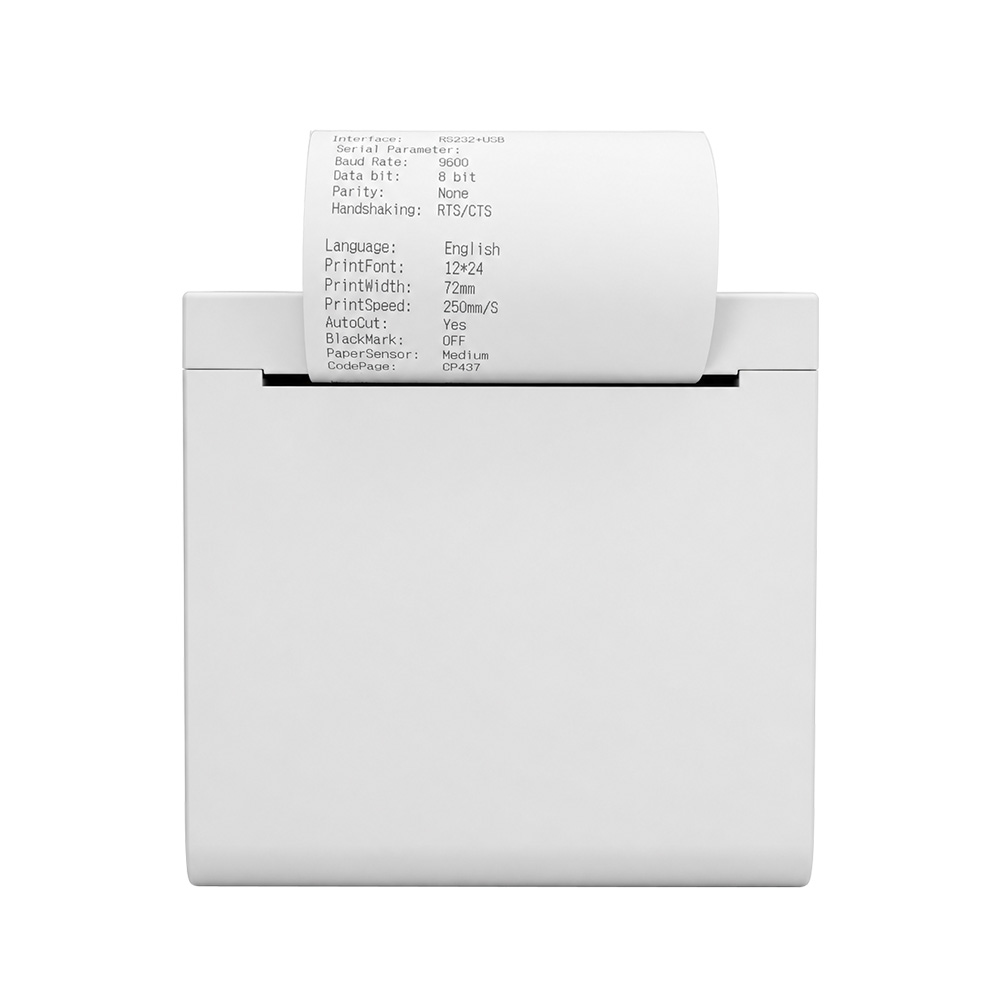

The P80D is a panel thermal printer module, which support thermal line directly printing, It has the characteristics of high-speed printing, low noise, strong reliability, high printing quality, high speed, high stability, and compact structure, making installation and maintenance more convenient and quick. Which is widely used in POS cash register equipment, self-service calling equipment, etc. in banks, cinemas, hospitals, finance, restaurants, supermarkets, etc
Easy to install and maintain
Low noise, 250mm/s printing speed
Support 80 * 80mm thermal paper
USB + RS232/TTL + Cash Drawer
Thermal receipt paper, black mark paper and label paper
a.Opening with spanner
b.Electronic cover opening
c.Computer commanding opening
| Print Method | Thermal-line dot method |
| Resolution | 203dpi, 8dot/mm |
| Print Speed(Max) | 250mm/s (Max) |
| Effective Print Width(Max) | 48mm/58mm; 72mm/80mm |
| Print Life | 100KM (Max)(15%printing rate) |
| Paper Type | Thermal receipt,thermal label, black mark paper |
| Paper Width | Max: 79.5±0.5mm |
| Paper Thickness | 0.06-0.15mm |
| Diameter | Max: 80mm |
| Cutter Method | Auto cutter |
| Cut Thickness | 0.06-0.15mm |
| TPH Temperature | Thermistor |
| Cutter HOME PointDetection | Mechanical Sensors |
| Platen Position Detection (Cover up) | Mechanical Sensors |
| Paper End Detection | Reflective photoelectric sensor (located on the paper roll holder) |
| Paper Near End Detection | Reflective photoelectric sensor (located on the paper roll holder) |
| Black Mark Detection | Movable reflective sensor |
| Gap Mark Detection | Through-beam sensor (the main sensor needs to be moved to the center for through-beam) |
| Anti Paper Jam Detection | Mechanical Sensors |
| Input Voltage | DC 24V 2A |
| Average Current | 2.5A-3.0A(25%printing rate) |
| Peak Current | 7.6A |
| Fonts | 4M fonts, supporting simplified/traditional Chinese, English, Korean, Japanese, etc. |
| Character Set | Font A: 12 * 24 Font B: 9 * 17Chinese: 24 * 24 |
| Print Front | Normal, 1~8 times of height and width, highlight, inverse, underline, italic, bold |
| 1D Code | UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Code | QR Code, PDF417 |
| Receipt | ESC / POS (Page mode optional) |
| Label | TSPL |
| Wear Resistance | 100km (Max) |
| Number of Pulses | 100 million |
| Cutter Life | 1 million cuts |

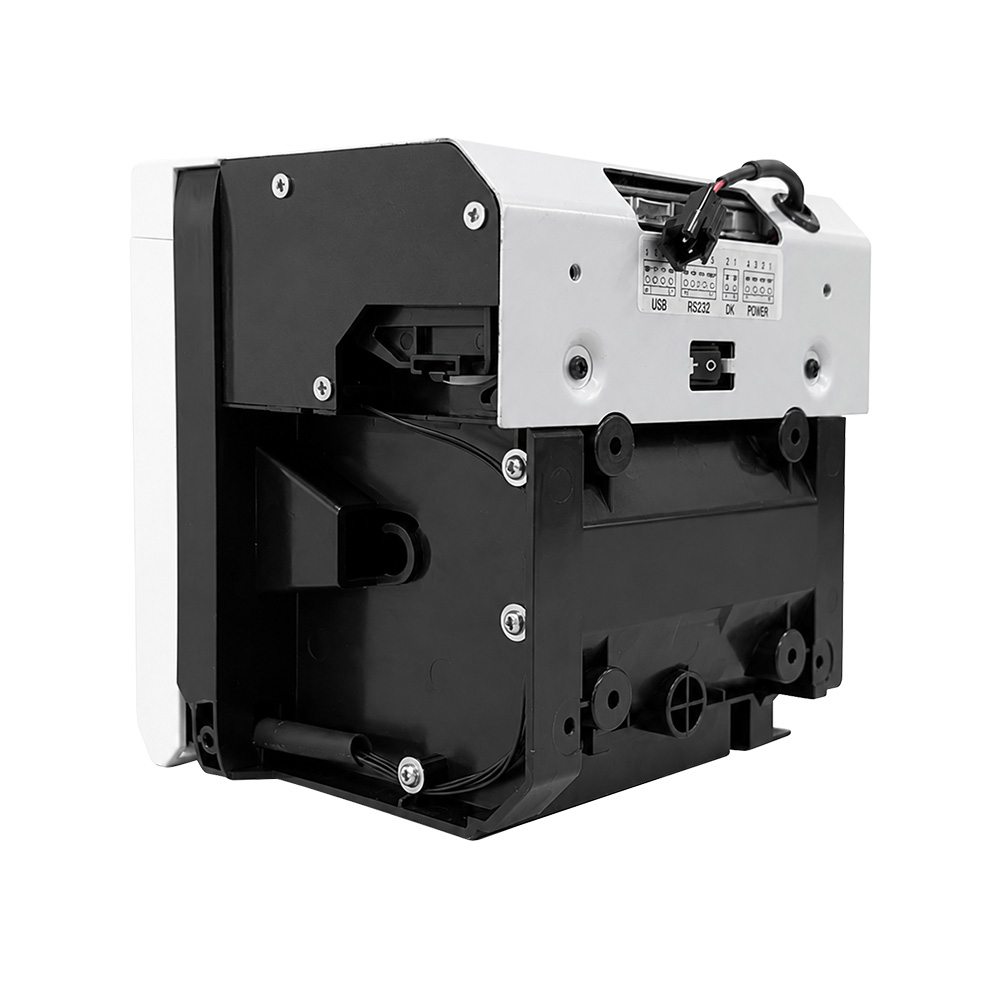

| Standard | USB + RS232/TTL + Cash Drawer |
| Optional | DK driver RJ11 24V |
| Indicator Light | Power Green LED +Error Red LED +PaperNear End Yellow LED |
| Button | FEED button * 1 |
| Power Switch | Ship type switch * 1 |
| Physical Opening | Opening with spanner |
| Electronic Opening | Electronic cover opening |
| Command Opening | Computer commanding opening |
| Operating Temperature | -10℃~50℃ |
| Operating Humidity | 20-80%RH(No condensation) |
| Storage Temperature | -20℃-60℃ |
| Electrostatic Protection | Contact ± 6KV, Air ± 8KV |
| Storage Humidity | 10-90%RH(No condensation) |
| Dimension | 127 * 127 * 100 mm (L * W * H) |
| Weight | 756.9 g |
