HCC-TL51 supports OEM/ODM thermal label printing, printing speed up to 127mm/s.
Item No.:
HCC-TL51Product origin:
Guangdong, ChinaColor:
WhiteGoods_stock:
2000Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

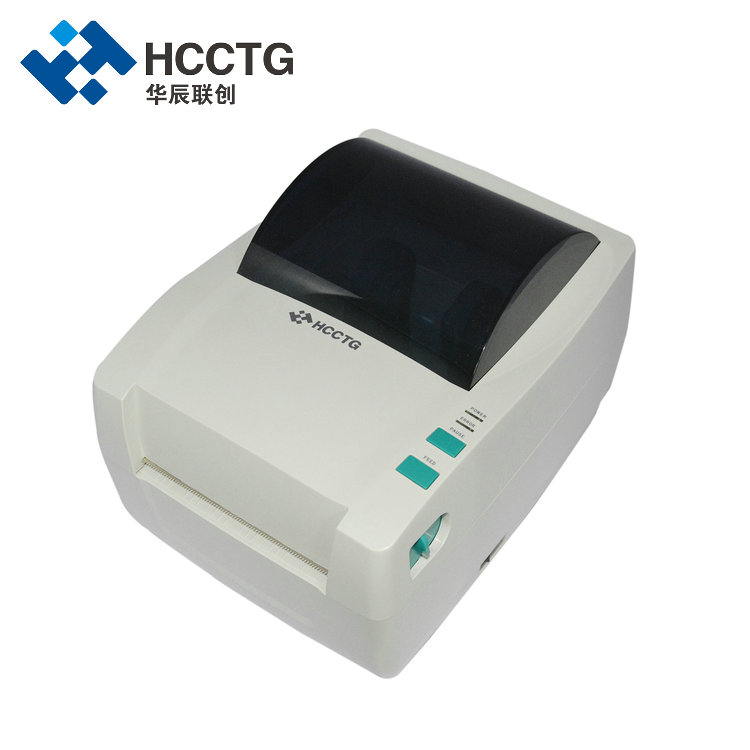

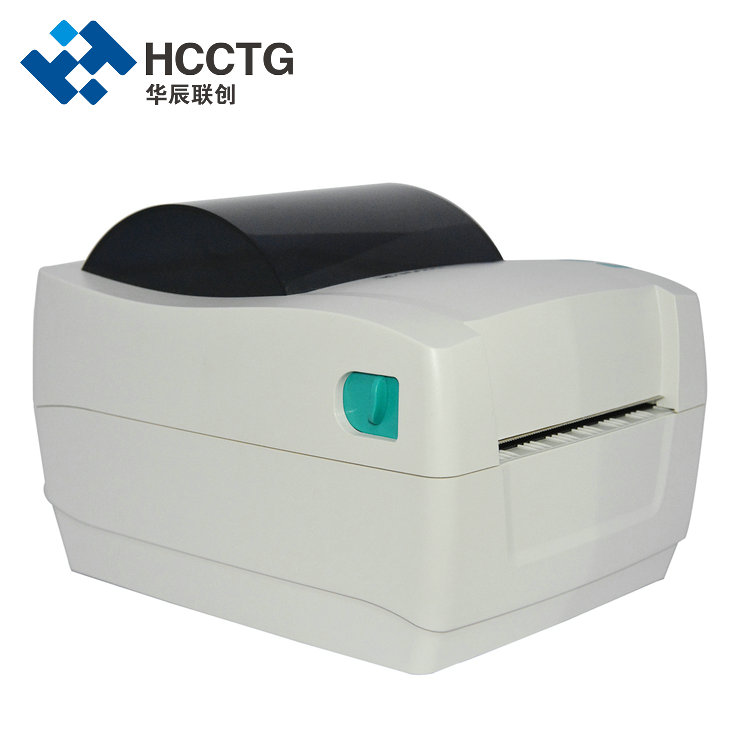

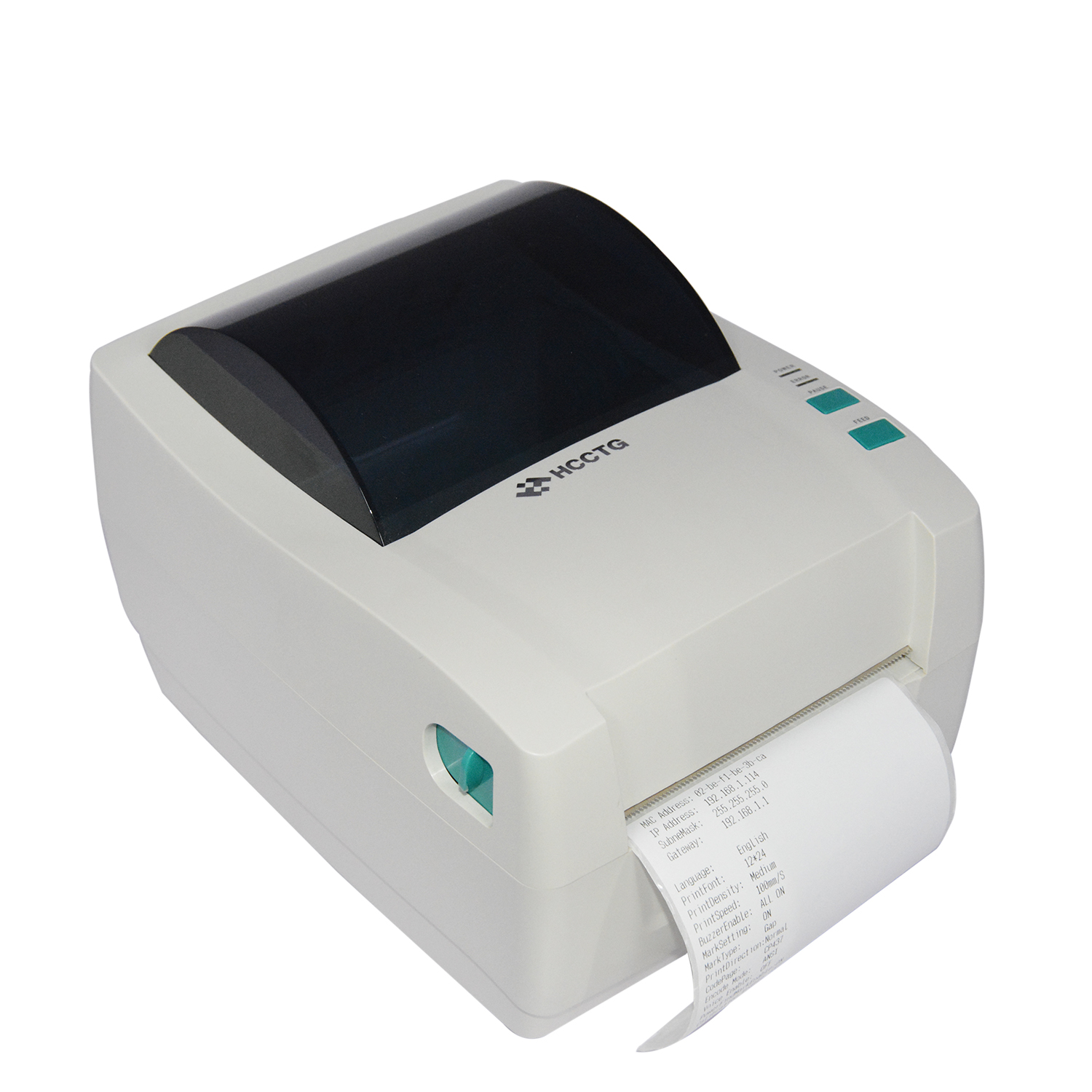

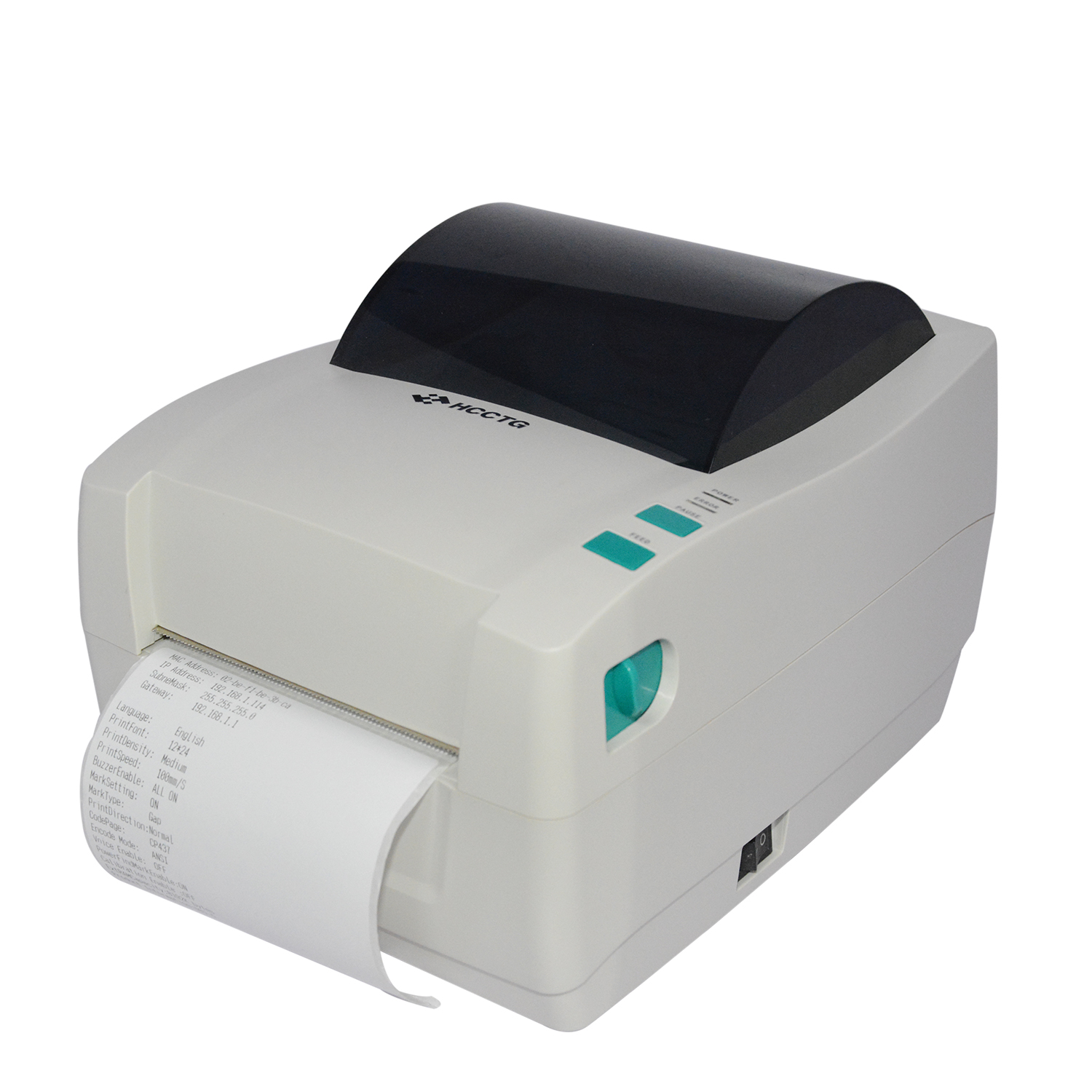

OEM/ODM Desktop RS232 LAN 4 Inch Label Size Printer HCC-TL51
HCCT company supply 12months for printer and long-lasting technical support.
Multiple operating system: Windows 98 / ME / 2000 / NT / XP / 2003 Server/Vista/Win7/Win8,8.1/Win10/Linux/OPOS
OEM/ODM supported Different standard power can be chosen.
Specifications
| Printing Method | Thermal Line |
| Resolution | 8 dots/mm(203dpi),384 dots/line |
| Printing Speed | 150mm/s (Max) |
| Effective Printing Width | 106mm |
| TPH | 100km |
| Paper Width | 112±0.5mm |
| Paper Type | Normal Thermal Paper/ Thermal Label Paper/ Black mark Paper |
| Paper Size | Max 112×Ø127mm,Min 112×Ø13mm |
| Paper Thickness | 0.06mm～0.20mm |

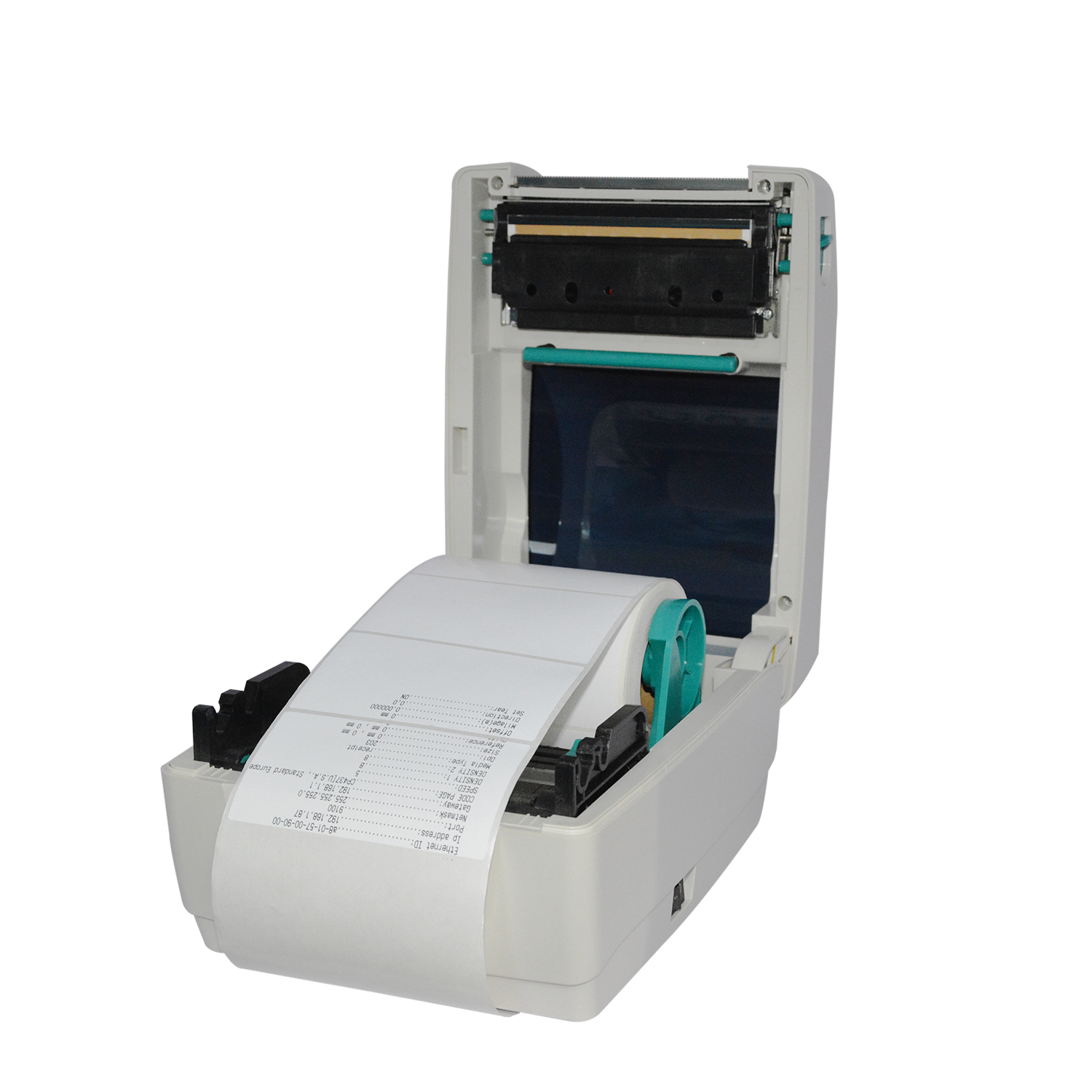

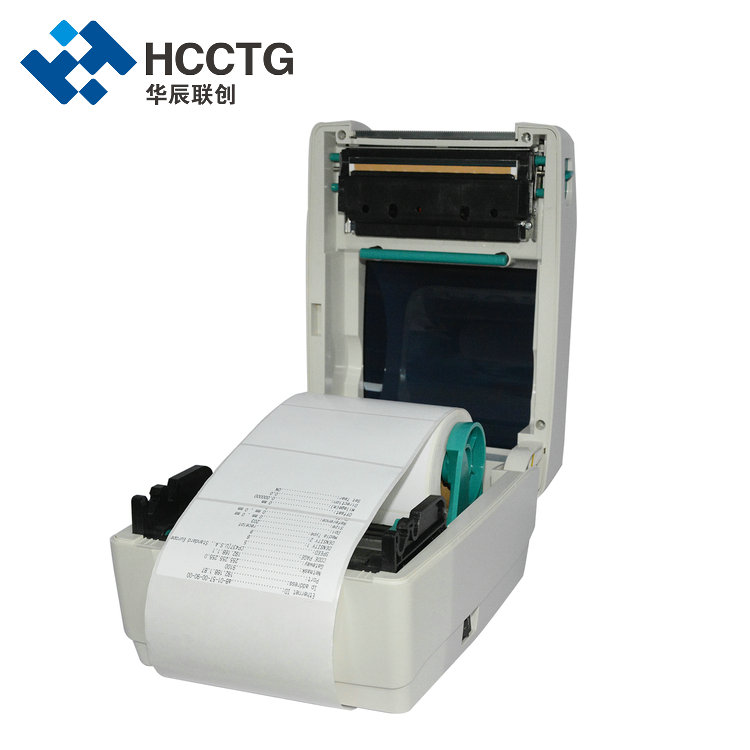

| Paper Supply Method | Drop-in easy paper loading |
| Paper Cutting Method | Manual peel |
| Print Font | Code page: ANK: 9 x17 / 12 x24; Chinese: 24 x 24 |
| Barcode | UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF25,CODABAR,CODE93,CODE128,PDF417,QR Code,DATA Matrix |

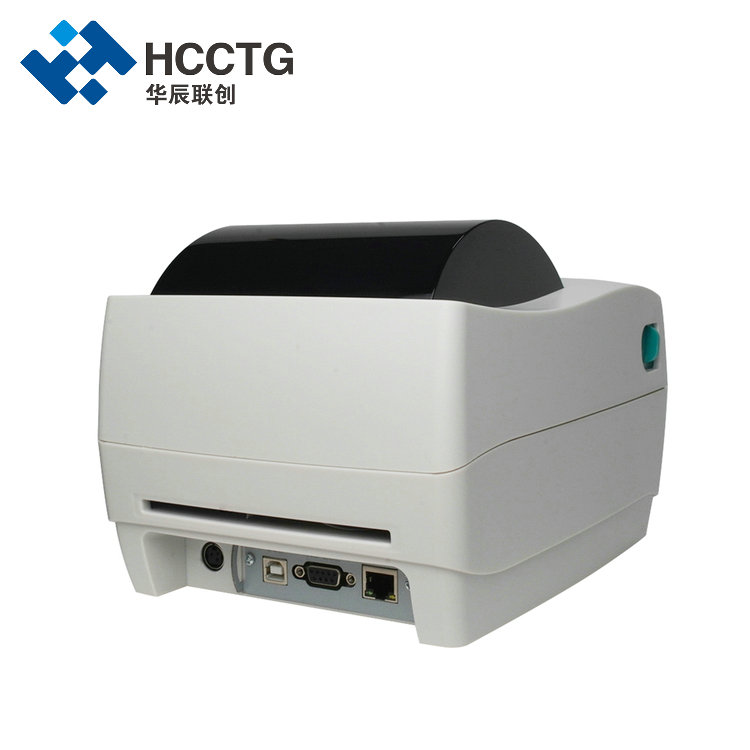

| Interface | RS232+USB+LAN |
| Power supply | DC24V±10%, 2.5A, A-1009-3P socket |
| Operating Temp/Humidity | 5～50°C/10～80% |
| Storage Temp/Humidity | -20～60°C/10～90% |
| Outline Dimension | 240x180x157 (mm) |
| Printing Size | 4” Label Size Paper |
