ACR39T-A1 is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows, Linux, and Mac OS.
Availability: | |
---|---|
Quantity: | |
ACR39T-A1
HCCTG

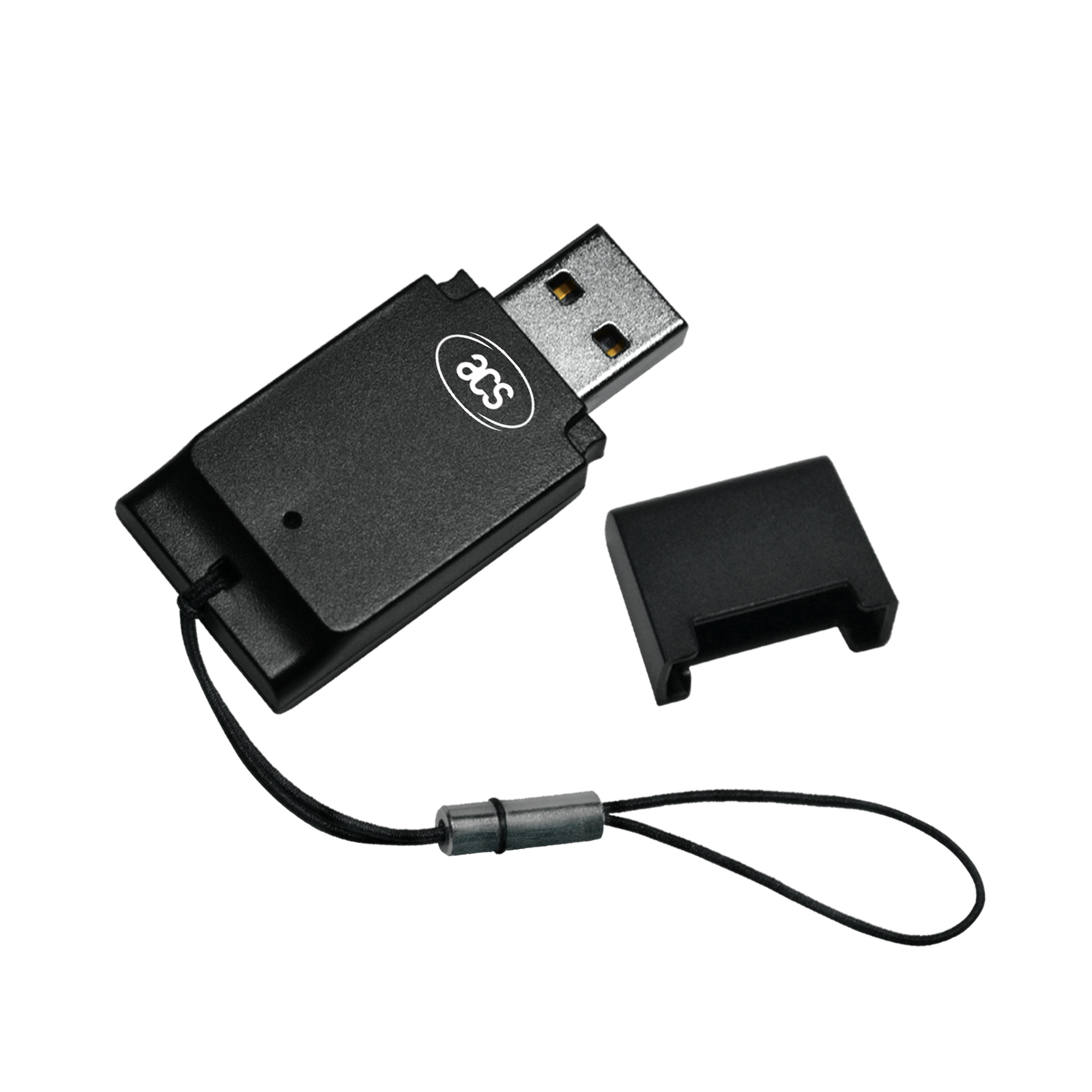

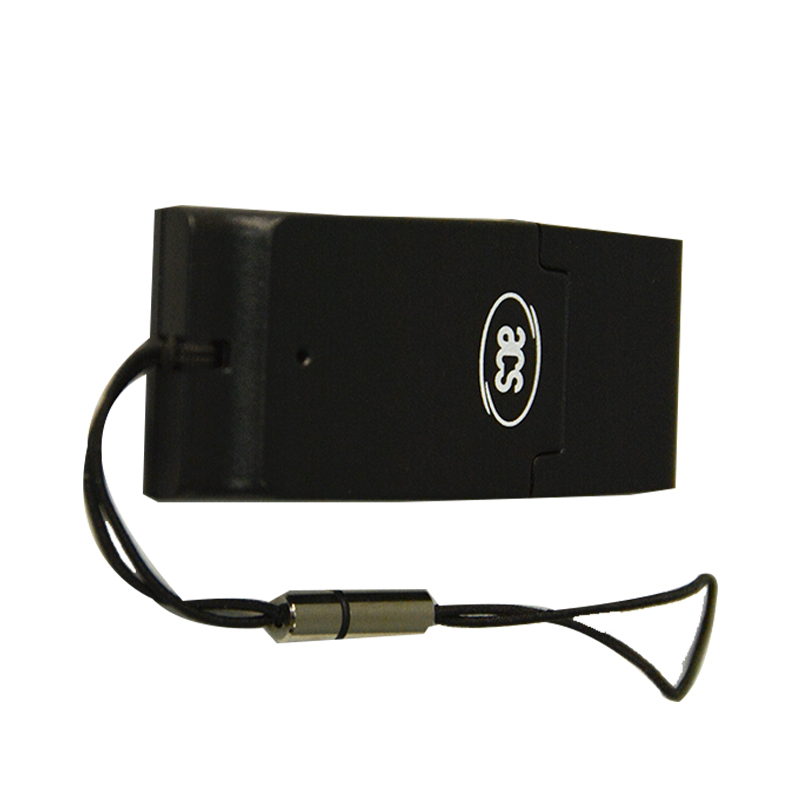

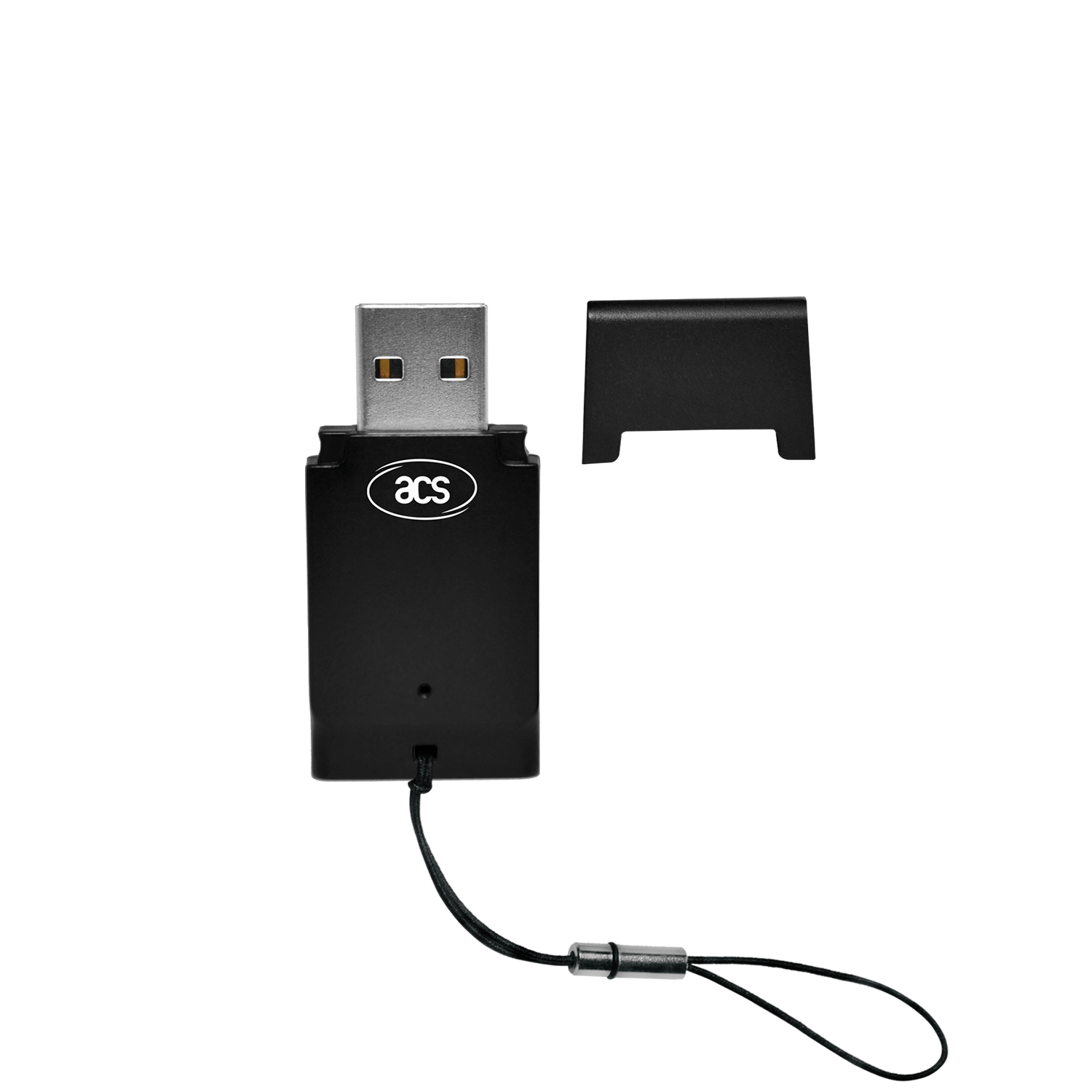

ACR39T-A1 USB Smart Card Reader is a device that you can bring anywhere to keep smart card technology right at your fingertips. Additionally, it may also be used on mobile devices running on Android platform versions 3.1 and above, it's small but packs in a lot of features.
Features
Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards such as:
Cards following the I2C bus protocol (free memory cards) with maximum 128 bytes page with capability, including:
Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024
SGS-Thomson: ST14C02C, ST14C04C
Gem plus: GFM1K, GFM2K, GFM4K, GFM8K
Cards with intelligent 1k bytes EEPROM with write-protect function, including:
Infineon: SLE4418, SLE4428, SLE5518 and SLE5528
Cards with intelligent 256 bytes EEPROM with write-protect function, including:
1. Infineon: SLE4432, SLE4442, SLE5532 and SLE5542
2. Supports PPS (Protocol and Parameters Selection)
Features Short Circuit Protection
Application Programming Interface:
1. Supports PC/SCSpecification
Dimensions | 49.5 mm (L) x 21.5 mm (W) x 9.0 mm (H) |
Weight | 8.5g |
Color | Black |
Protocol | USB CCID |
Connector Type | Standard Type A |
Power Source | From USB port |
Speed | USB Full Speed (12 Mbps) |
Supply Voltage | 5 V |

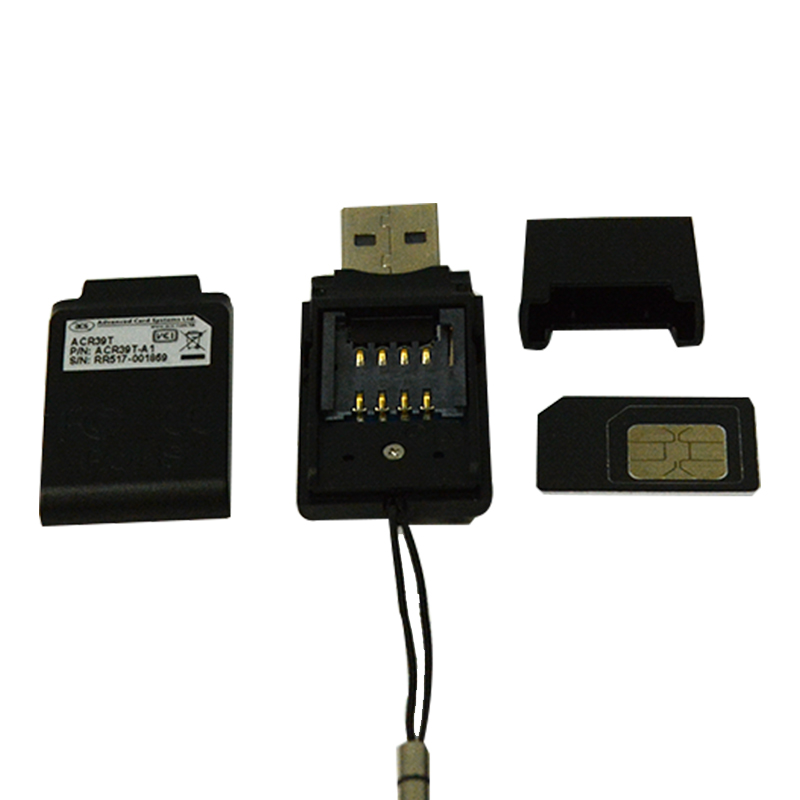

Number of Slot | 1 SIM-sized Card Slot (optional with MicroSIM-sized) |
Standard | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
Protocol | T=0; T=1; Memory Card Support |
Supply Current | Max. 50mA |
Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps |
Short Circuit Protection | (+5) V/GND on all pins |
Clock Frequency | 4.8 MHz |
Card Connector Type | Contact |
Card Insertion Cycles | Min. 100,000 |
LED | Green |
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) |
Temperature | 0 °C – 60 °C |
Humidity | Max. 90% (non-condensing) |
MTBF | 500,000 hrs |
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft WHQL |
Device Driver Operating System Support | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10 Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 Linux, Mac OS, Solaris, Android 3.1 and later |
