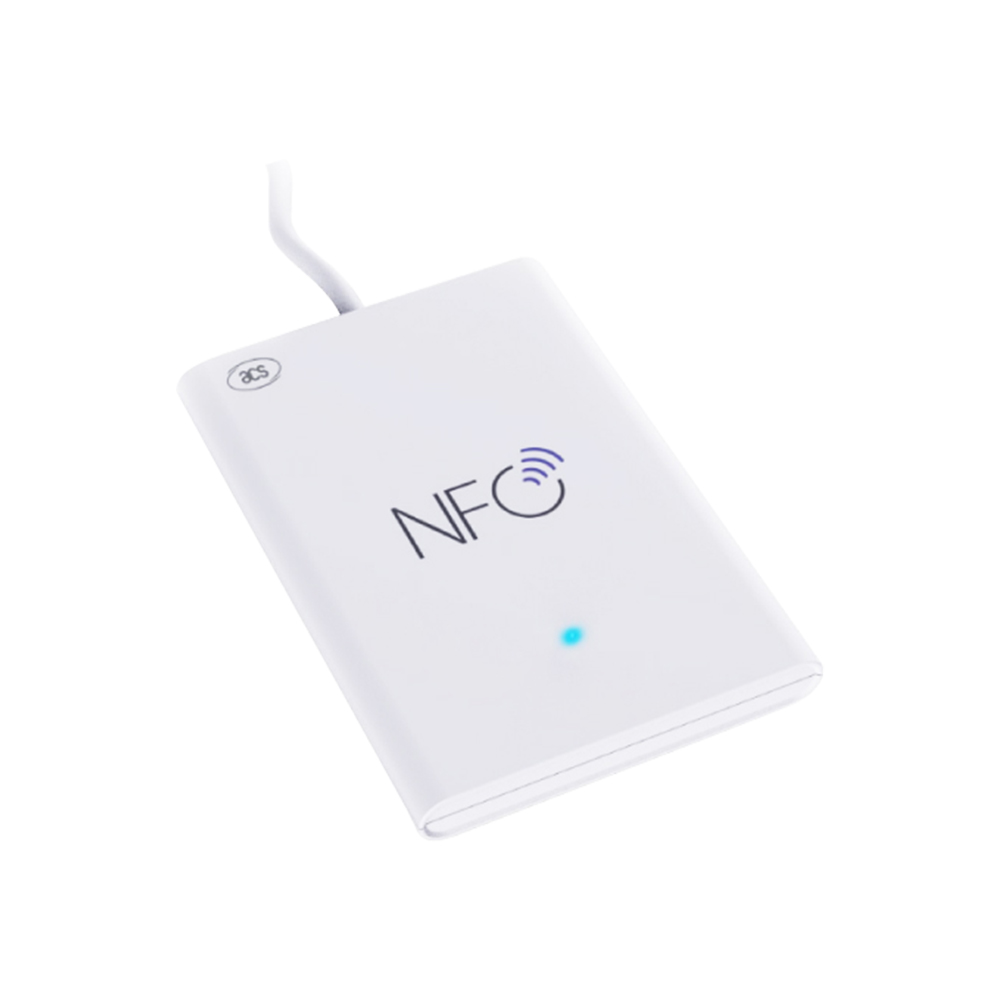

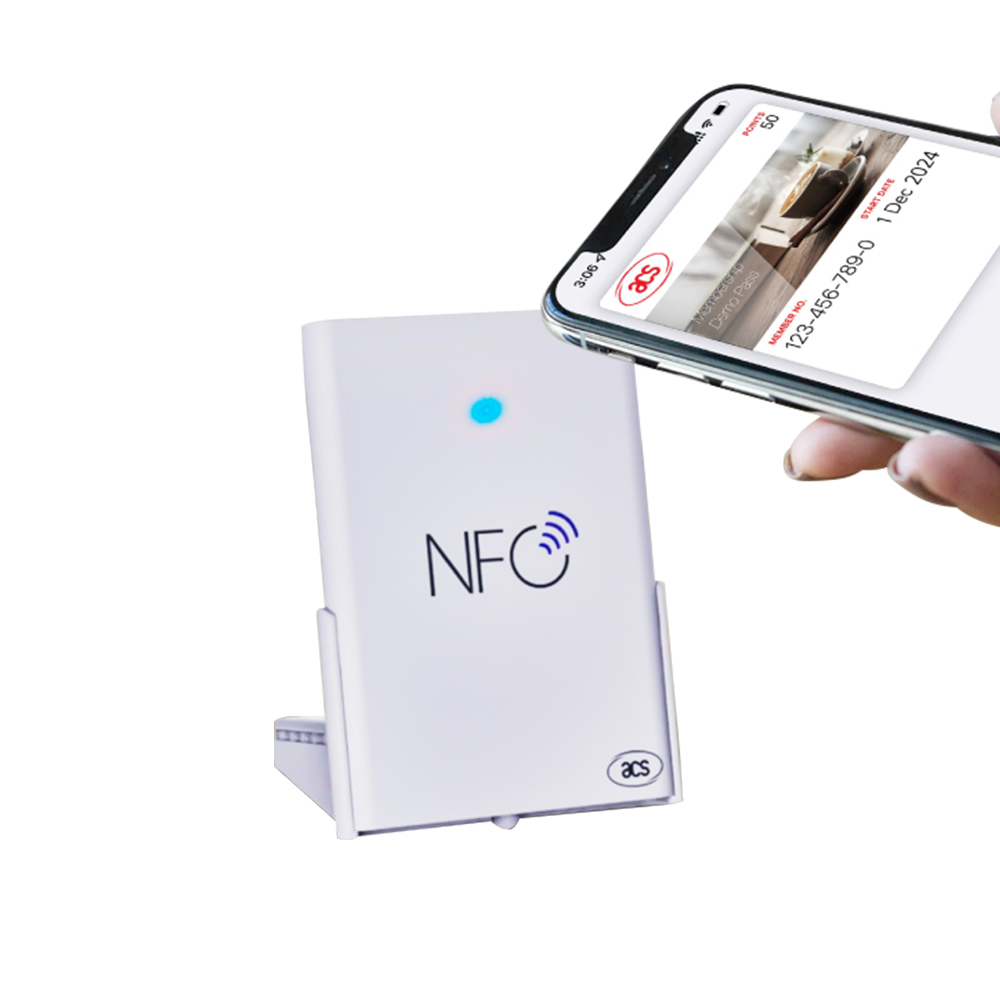

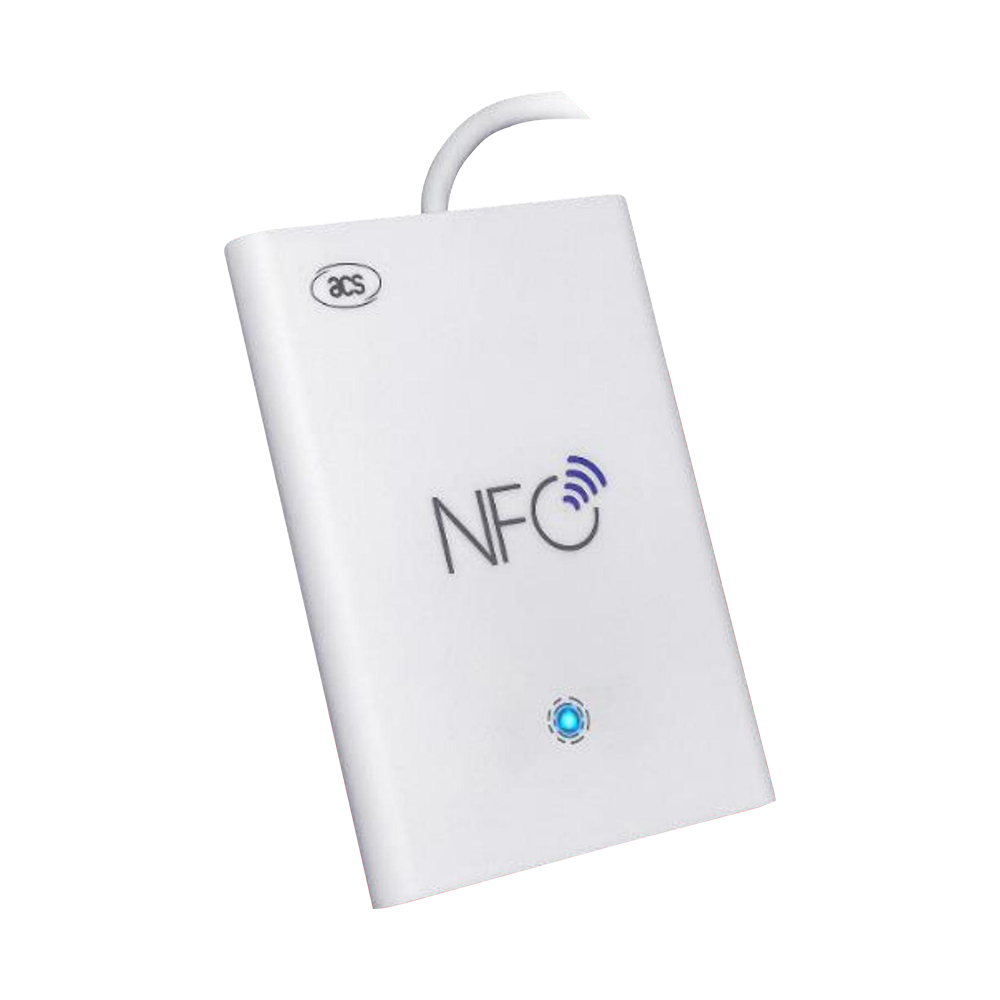

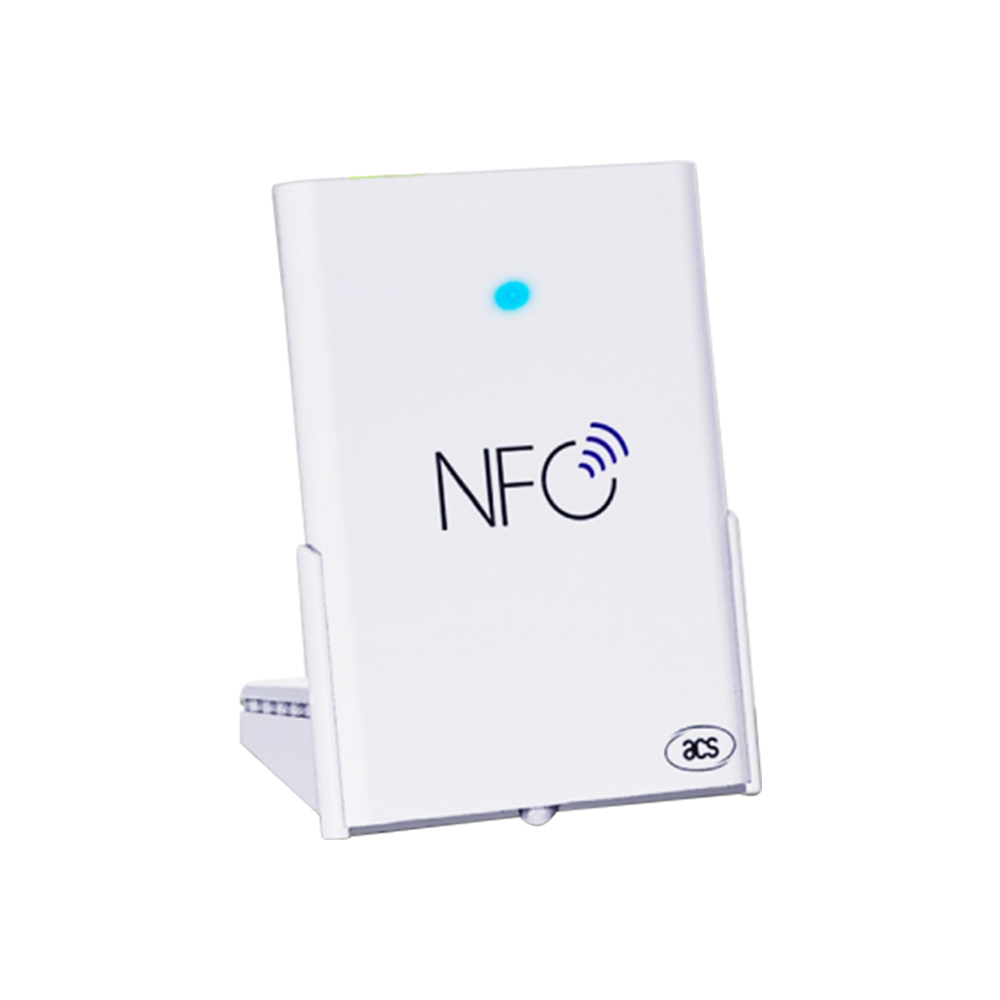

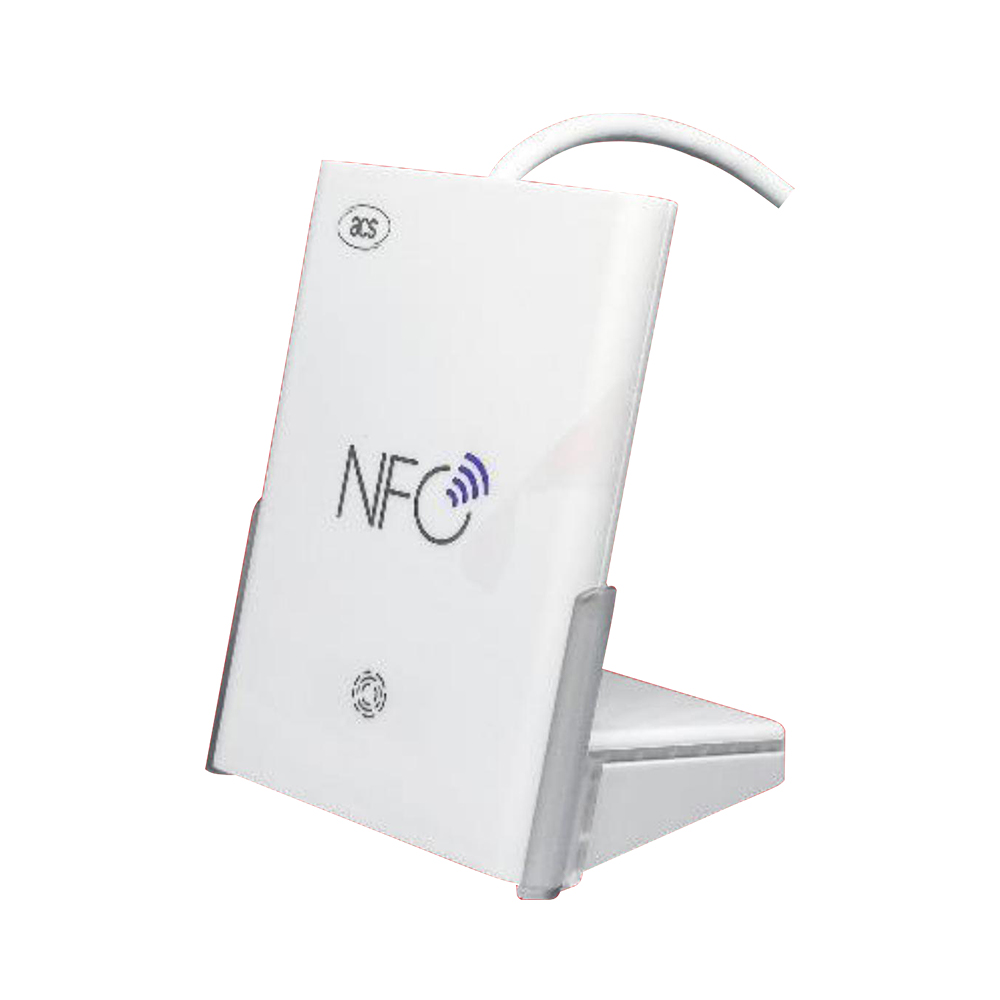

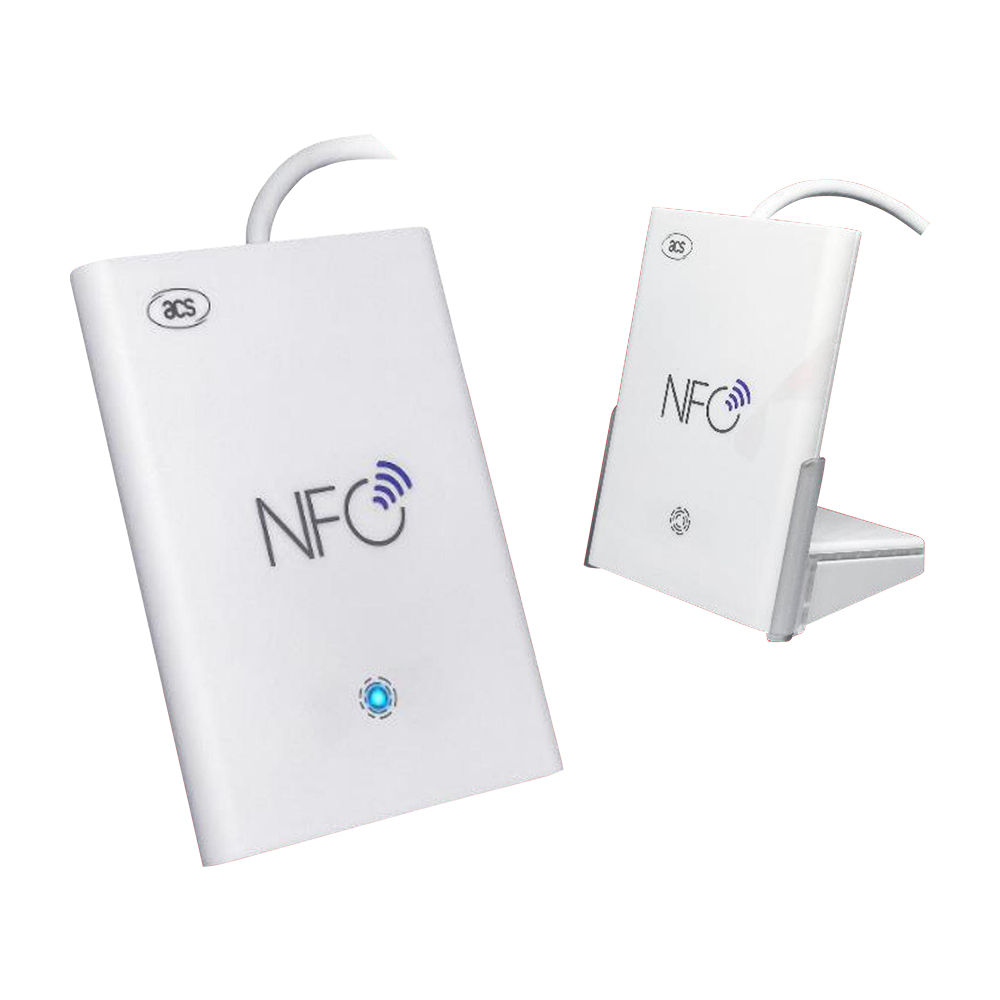

IP67 Contactless USB CCID Smart RFID Card Reader for Self Service Payment ACR1552U-A2

ACR1552U-A2 operates with contactless cards and devices adhering to ISO 14443 Type A and B, ISO 15693, and ISO 18092 standards. The IP67 rating signifies its exceptional resistance to dust and water, ensuring uninterrupted operation even under challenging conditions

Operating Frequency:	13.56 MHz
Reading Distance:	Up to 70 mm
Protocol:	USB
Supply Voltage:	5V DC
OS:	Windows, Linux, macOS, Android
Availability:

Quantity:



Inquire Add to Basket

Model:
ACR1552U-A2
Brand:
ACS

Product Description

NFC Smart Card Reader Writer Manufacturer HCCTG -- ACS Authorized Supplier

|

Product Description

1）In compliance with both CCID and PC/SC standards, Aqua Guard NFC USB Reader offers high-speed communication of up to 848 kbps. The reader's IP67-certified shell houses USB firmware upgradable features, extending its versatility and cost-effectiveness across numerous sectors, including finance, healthcare, and government.

2）This IP67-rated NFC reader intelligently supports three modes of NFC: reader/writer, card emulation, and keyboard emulation. Its robustness and versatility open up a wide array of potential applications such as, loyalty program, access control systems, and transportation ticketing. The AquaGuard Reader, with its IP67 support, stands as a resilient and dependable choice in NFC technology.

|

Product Show

|

Specifications

Contactless Smart Card Interface
Supported Card Types	ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card
Operating Frequency	13.56 MHz
Reading Distance	Up to 70 mm (Depending on tag type)
Read/Write Speed	106/212/424/848kbps (ISO14443) 26/53kbps (ISO15693)
Supported NFC Mode	Card Reader/Writer, Keyboard Emulation, Card Emulation
Standard	1 * ISO 7816 Class A (5V) Standard SIM size slot
Host Interface	12.8
Protocol	USB
Connector Type	USB Type-A
Speed	USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0
Supply Voltage	5V DC
Current Consumption	Max.300mA
USB Firmware Upgrade	Supported
Certifications/Compliances
Standards	USB CCID, PC/SC, Microsoft^® WHQL, JLIS, IP67
Regulatory/Environmental	CE, UKCA, FCC, VCCI, KC, RoHS, REACH, WEEE
Libraries & Tools
Libraries	CT-API
Tools	Software Development Kit
Drivers & Support
Driver Supported OS	Windows^®, Linux^®, macOS, Android
Warranty	1 Year
Physical Characteristics
Dimension	Main Body: 85.0 * 60.0 * 9.0 mm With Stand: 86.6 * 62.6 * 62.4 mm
Available Colour	White
USB Cable Length	1 m(Non-detachable)
Peripherals
Buzzer	1 * Programmable Buzzer(Mono-tone)
LED	1 * Programmable RGB(Blue & Green& Red)
Operating Condition
Temperature	0 - 60°C
Humidity	90% (Non-condensing)
MTBF	500,000 Hours
