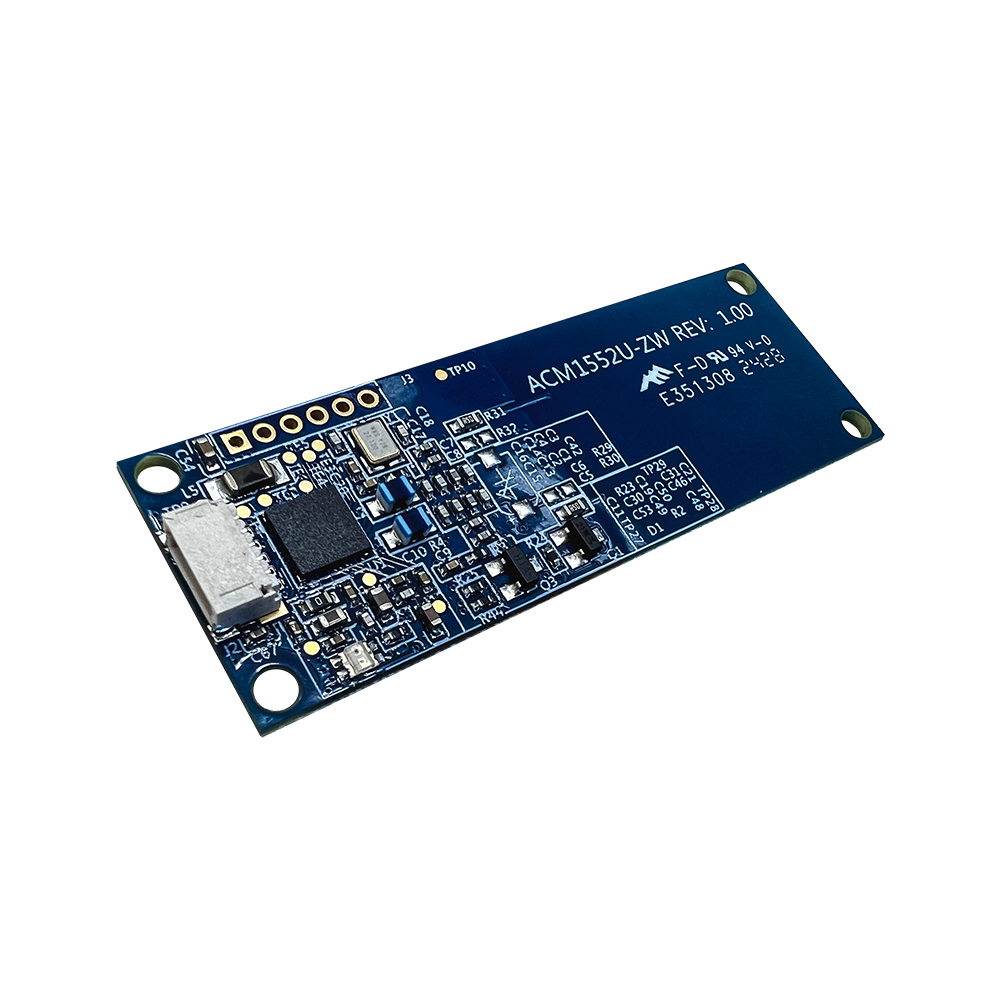

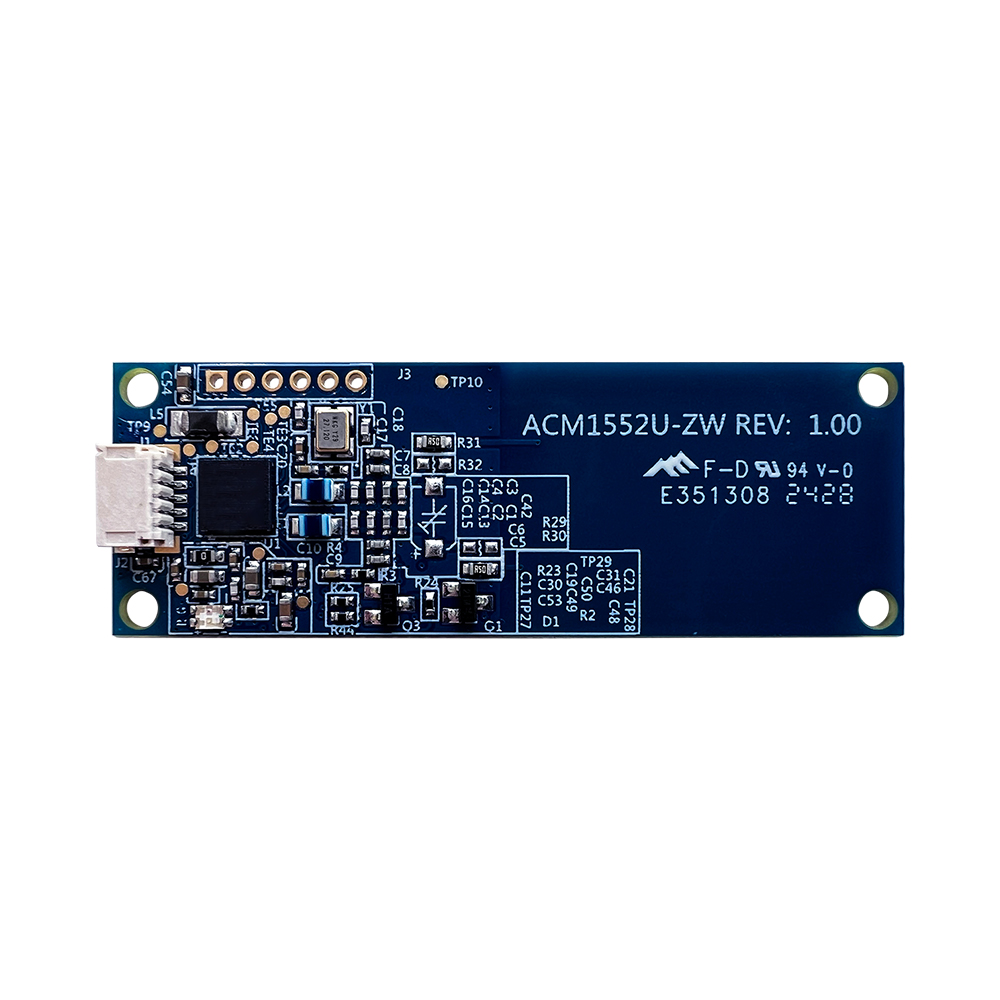

ACM1552U-ZW
ACS
The WalletMate II Mini's compact design ensures it fits perfectly into small devices.This small-sized module is ideal for integration into a wide variety of applications, including handheld devices, kiosks, and IoT devices, without sacrificing their functionality or user experience.
Specifications
Contactless Smart Card Interface | |
Supported Card Types | ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE®, FeliCa, SRI/SRIX, CTS, Innovatron, Picopass, Topaz Card |
Operating Frequency | 13.56 MHz |
Reading Distance | Up to 50 mm (Depending on tag type) |
Read/Write Speed | 106/212/424/848 kbps (ISO 14443) 26 kbps (ISO 15693) |
Anti-Collision | Yes |
Supported NFC Mode | NFC Reader / Writer, Keyboard Emulation, Card Emulation |
Host Interface | |
Protocol | USB CCID |
Connector Type | 5pin, JST SH series compatible |
Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB3.0 |
Supply Voltage | 5V DC |
Current Consumption | Max. 200mA |
USB Firmware Upgrade | Supported |
Physical Characteristics | |
Dimension (L * W * H) | 57 * 20 * 6.9 mm |
Weight (±1g) | 3.9 g |
LED | 1 * Programmable LED (Blue & Green) |
MTBF | 500,000 Hours |
Compliance | USB CCID, PC/SC |
Libraries | Apple VAS API, Google Smart Tap API, CT-API |
Tools | ACS VAS Test Tools with API Software Development Kit |
Supported OS | Windows®, Linux®, macOS, Android™ |
Temperature | 0 - 60°C |
Humidity | Max. 90% (Non-condensing) |
