ACM1552U-Z2
ACS

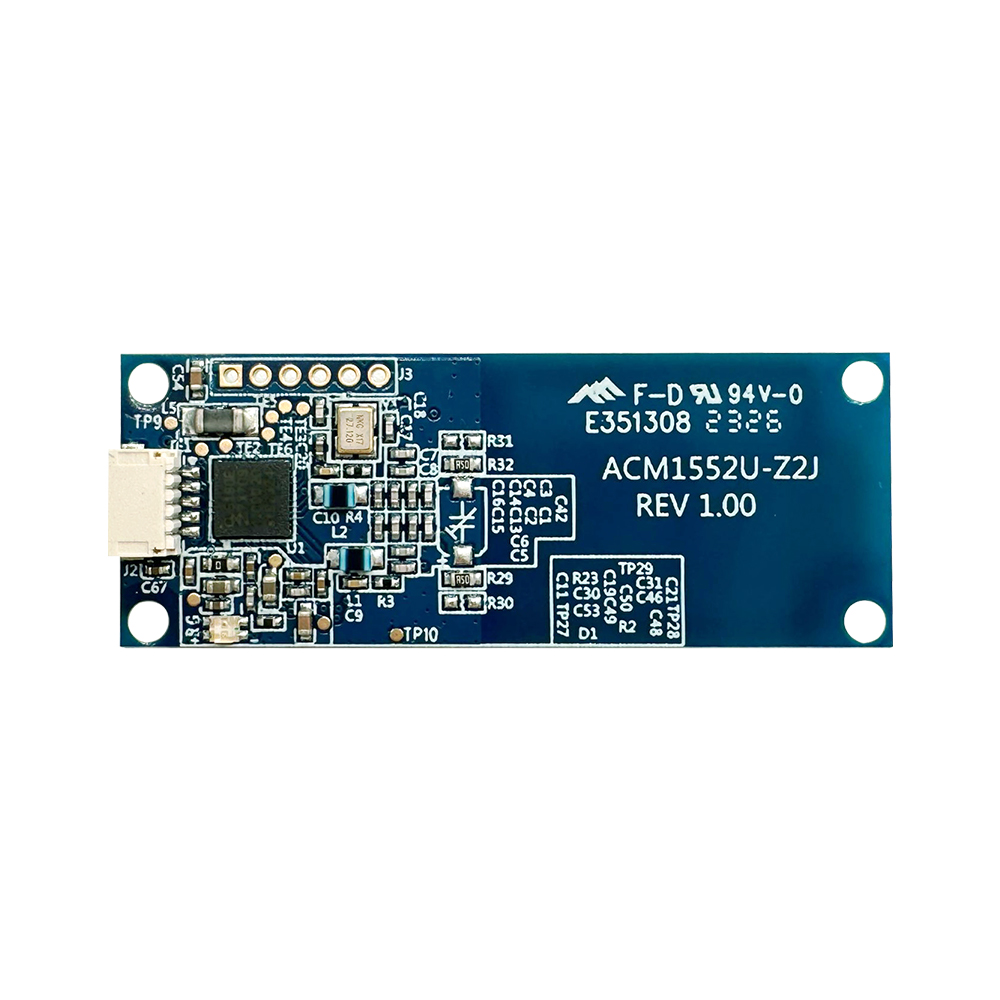

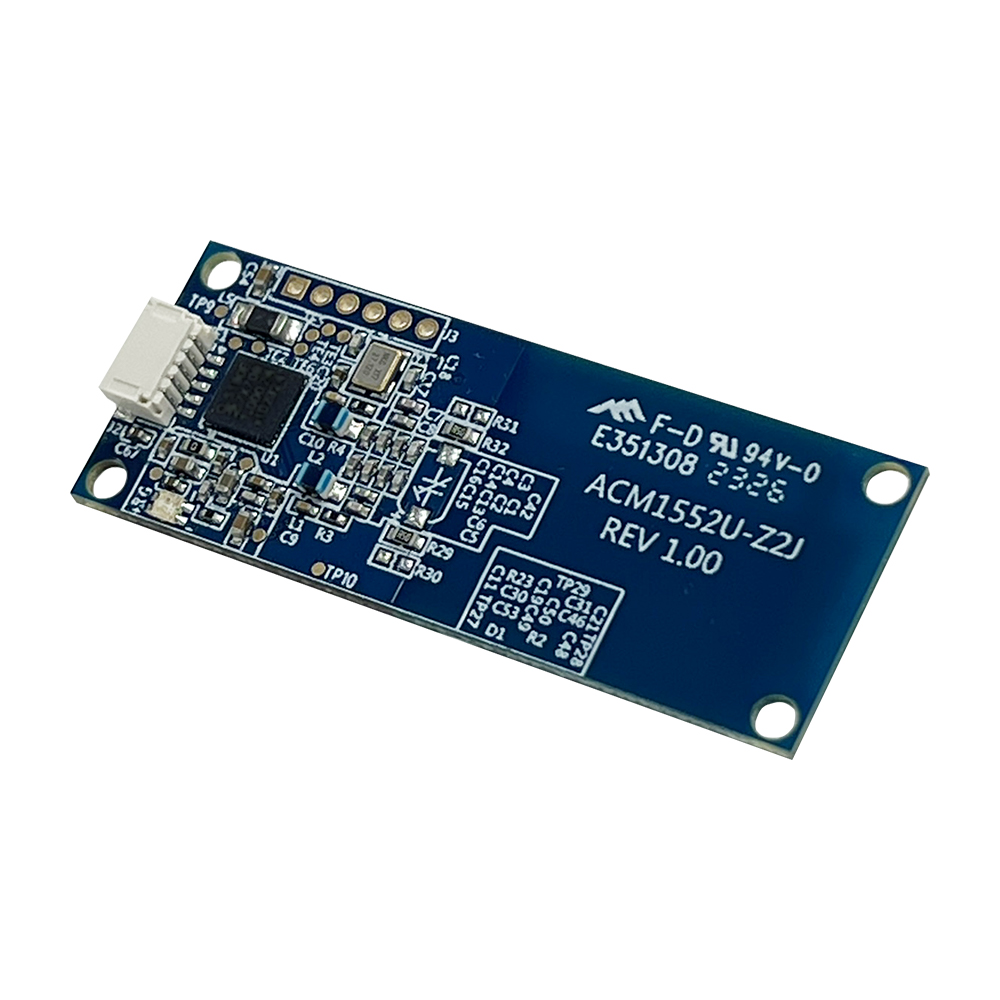

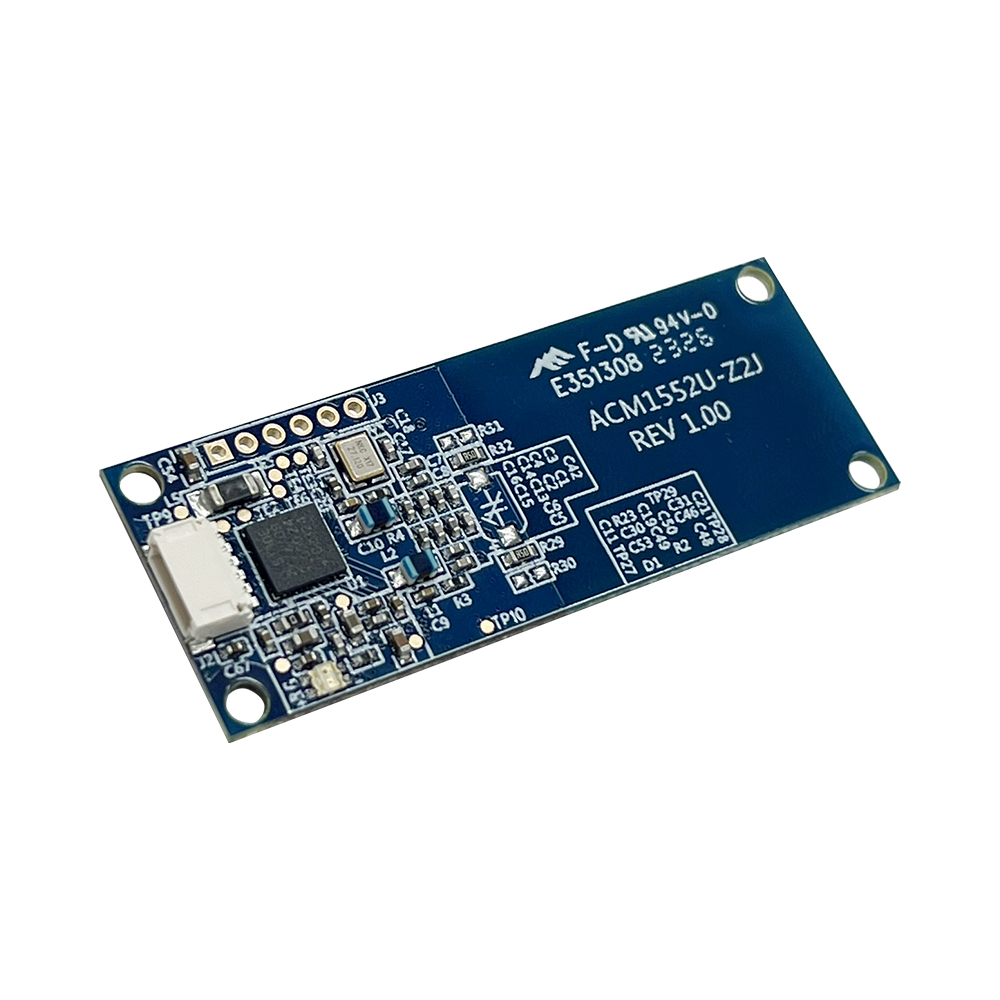

Small 13.56 MHz CCID NFC Reader Module for Access Control ACM1552U-Z2
ACM1552U-Z2 is a CCID & PC/SC compliant reader, this plug-and-play NFC reader makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications.
The compact size of the ACM1552U-Z2 module makes it an excellent choice for integration into small machines. Its small form factor offers flexibility and seamless integration into various applications, such as handheld devices and kiosks without compromising their functionality or usability.
Specifications:
USB Interface | |
Protocol | USB CCID |
Connector Type | 5 pin, 1 mm pitch, JST SH series compatible |
Power Source | From USB port |
Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0 |
Cable Length | 1 m, Detachable(Upon Request) |
Contactless Smart Card Interface | |
Standard | ISO 18092 NFC, ISO 14443 Type A & B, ISO 15693, MIFARE®, FeliCa |
Protocol | ISO 14443-4 Compliant Card, T=CL |
Support OS | Windows®, Linux®, macOS, Android™ |
Physical Characteristics | |
Dimensions | 2.0 * 20.0 * 5.7 mm |
Firmware Upgrade | Support |
Certifications | IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, WEEE, Microsoft® WHQL |
