The Z500C is handheld payment POS for GMS certified Android11 based safe OS, supports NFC contactless, BT5.0 and WIFI.This product is designed for customers with development capabilities.
Item No.:
Z500CPrice range:
1000 - 4999/$145Price range:
500 - 999/$150Price range:
100 - 499/$155Price range:
50 - 99/$160Product origin:
Guangdong, ChinaColor:
Black, support OEM/ODMMin order:
50Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
Z500C
HCCTG
What is POS?
POS stands for "Point of Sale." It refers to the place where a transaction occurs between a customer and a merchant, typically using a computerized system to process the payment.

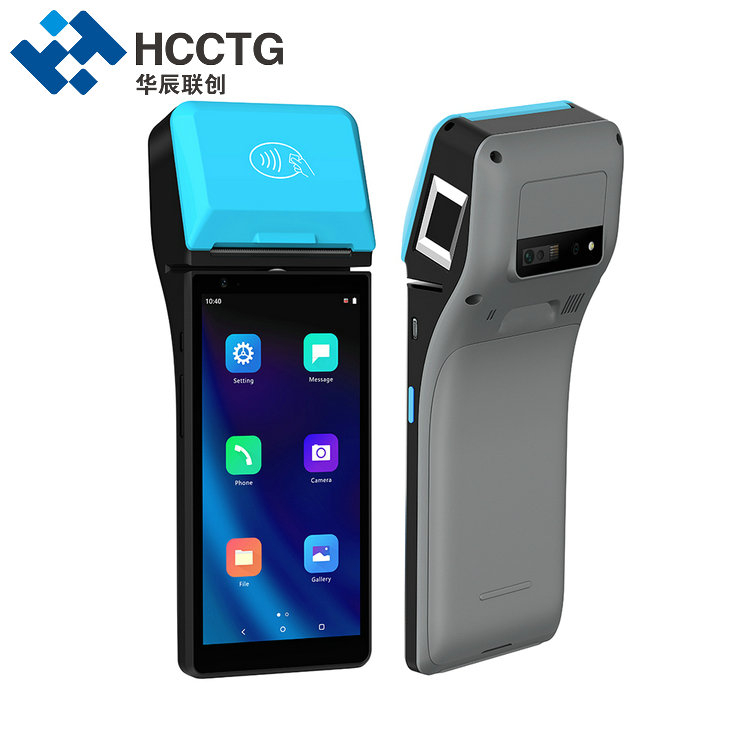

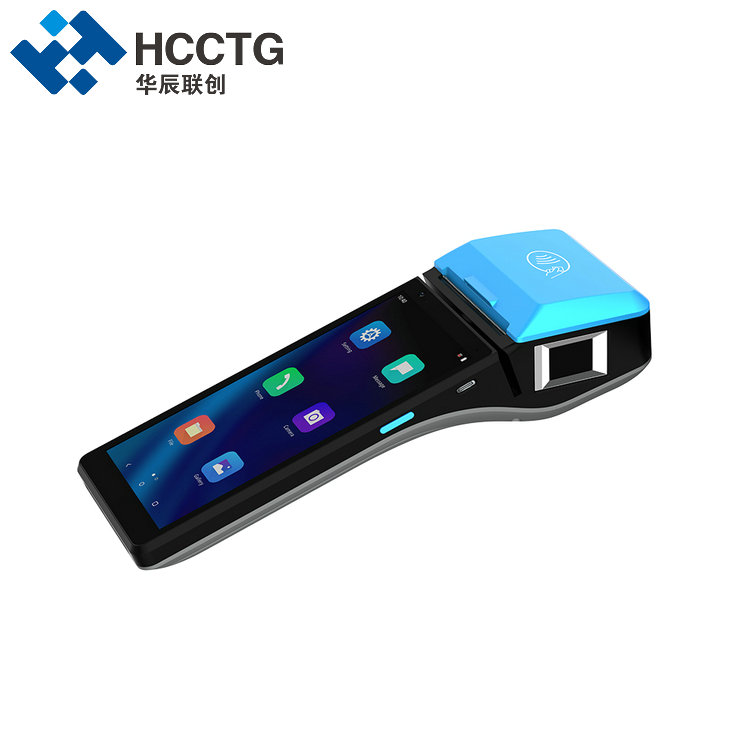

6 Inch MSR/NFC/Contact Card Reader Handheld POS Machine With Printer Z500C

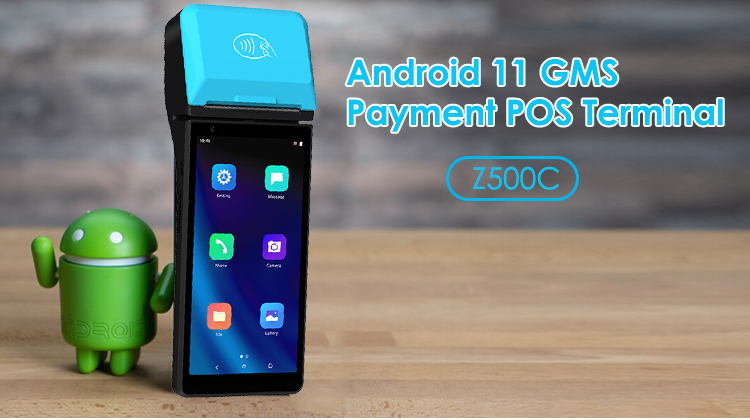

Z500C GMS handheld POS is the ultimate solution for seamless payment and service experiences. With its 6.0 inch TFT IPS LCD capacitive touch screen display, you can easily navigate and interact with the device. The industrial level thermal printer ensures quick and reliable printing, while the flexible configuration accommodates various scenarios for your convenience.
The Z500C handheld payment terminal is powered by a Quad-core CPU and massive memory, enabling lightning-fast processing of applications. You can customize the device to your needs with additional features like a fingerprint scanner and fiscal module. Whether you're running a small business or a large enterprise, the Z500C android POS machine is the smart choice for a one-stop payment and service solution.
And the most important thing is that this portable POS terminal is hardware only!
Features
2.0GHz Quad-Core ARM Cortex-A53;
GMS certified Android 11.0 Safedroid OS;
Massive memory: 2GB RAM + 16GB ROM ( up to 3GB RAM + 32GB ROM);
6.0 inch TFT IPS LCD, resolution 1440*720;
Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth 5.0, VPN;

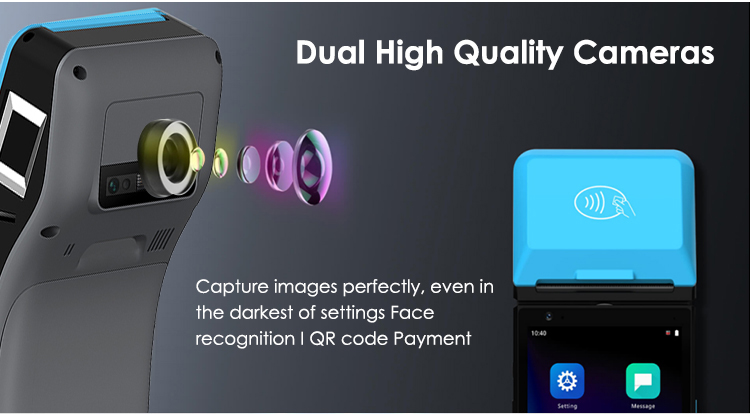

Dual cameras & Symbol 2D scanner for comprehensive scanning scenarios;

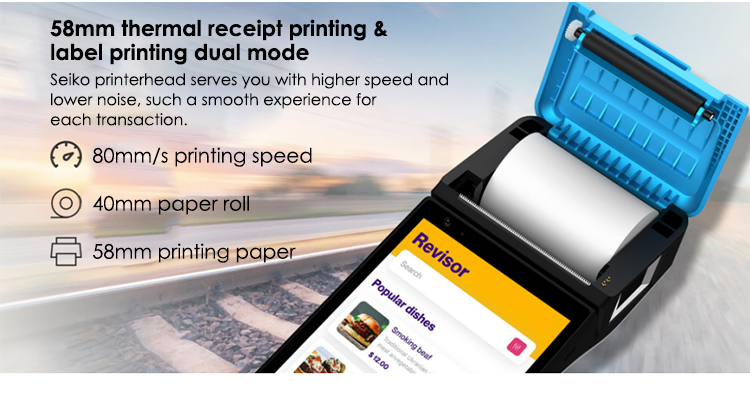

58mm thermal receipt printing & label printing dual mode;
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 11.0) GMS certified |
CPU | 2.0GHz Quad-Core ARM Cortex-A53 | |
ROM | 32GB ROM EMMC | |
RAM | 2GB RAM LPDDR | |
Display | 6.0 inch TFT IPS LCD, resolution 1440*720 | |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |

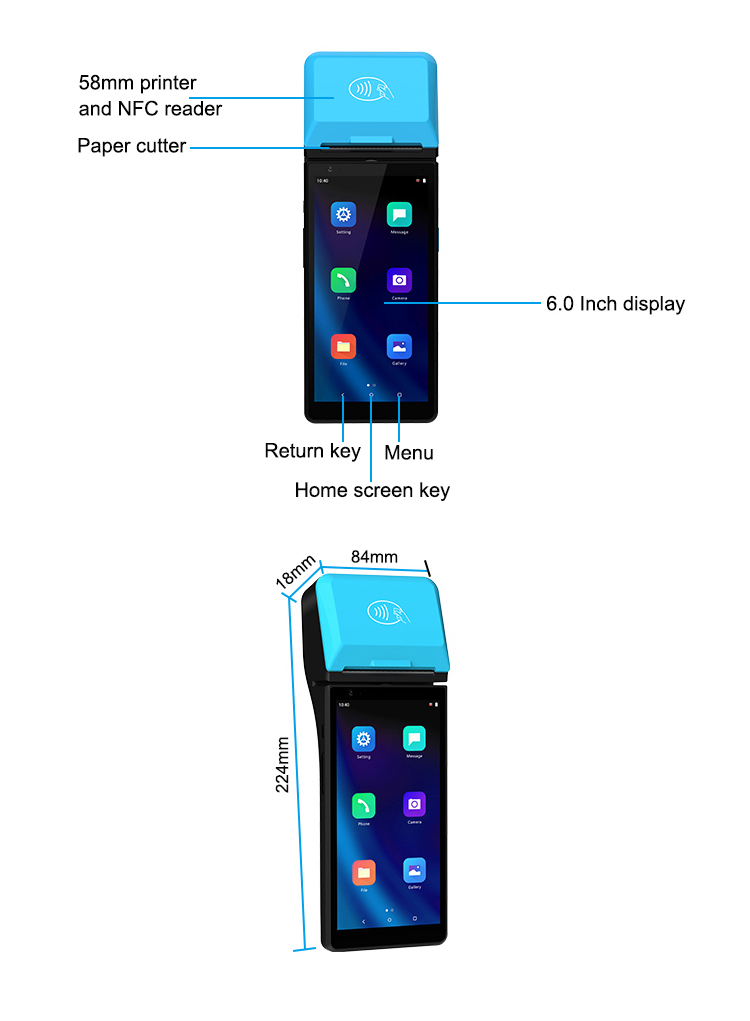

Dimensions | 224mm X 84mm X 18mm (max 51mm) | |
Weight | 410g (Battery included) | |
Keys | Physical keys: Power on/off, Volume + /-, Scan | |
Input | Chinese/English, and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz |
Bluetooth | BT 5.0 and earlier | |
4G | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 | |
3G | European version(Default): WCDMA: B1/B8 | |
2G | European version(Default): GSM/GPRS/EDGE: 900/1800MHz | |
Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |

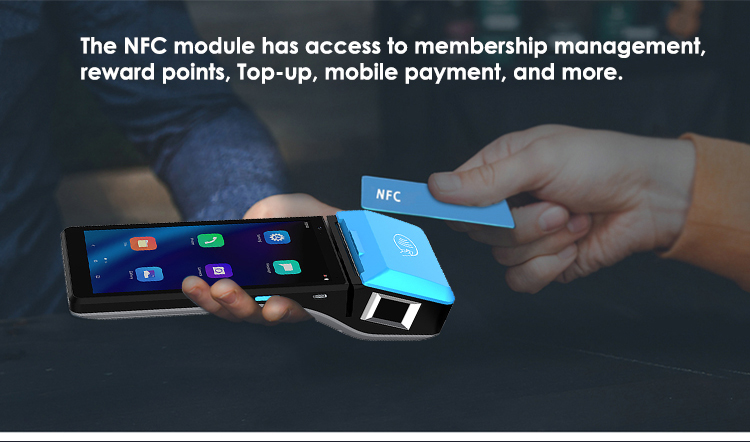

Contactless Card reader | Supports 14443A/ 14443B | |

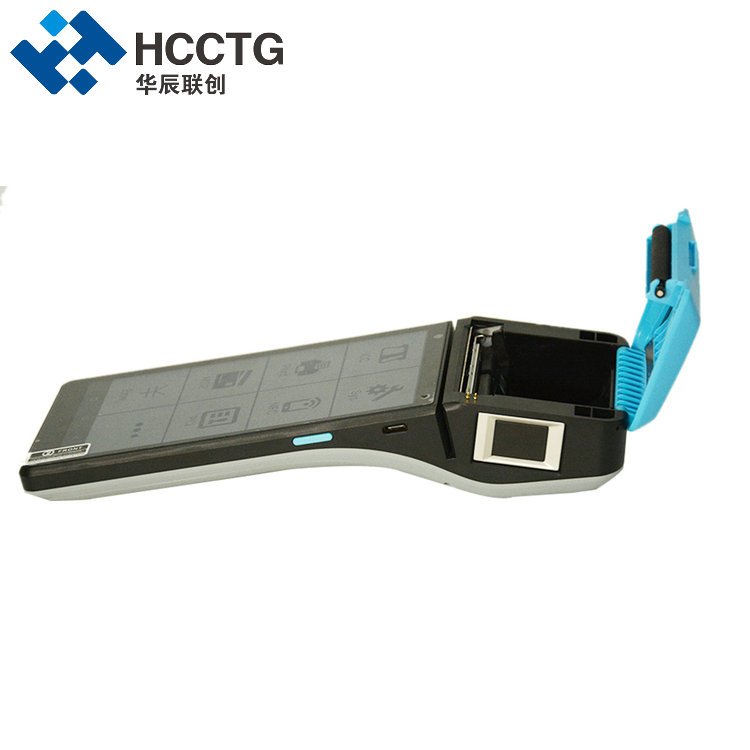

Expansion and peripherals | Printer | High-Speed Thermal Printer; 58mm printing paper ; 40mm paper roll |

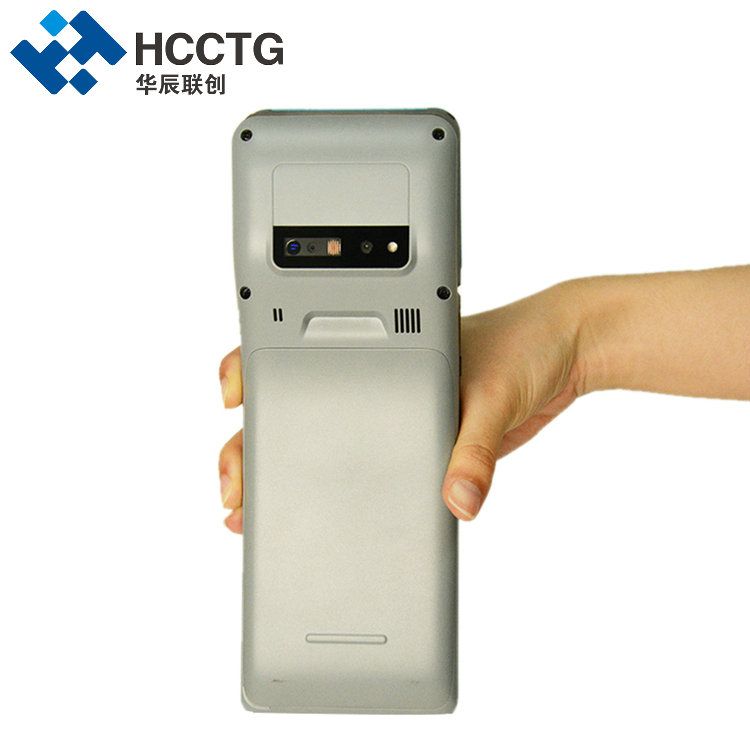

Rear Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
LEDS | 3 colors are used to indicate | |
Audio | Speaker, Microphone, Buzzer | |
Interfaces | Micro SD Card Slot | 1 Pcs |
SIM Card Slot | 1 Pcs Micro SIM | |
PSAM Card Slot | 2 Pcs Conforms to ISO7816 standard | |
USB Port | 1 Pcs Type C USB | |
Power | Battery | Li-ion battery, 7.6V/2600mAh |
Charging Port | Type C USB Port, 5V DC/2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE, RoHS, FCC |

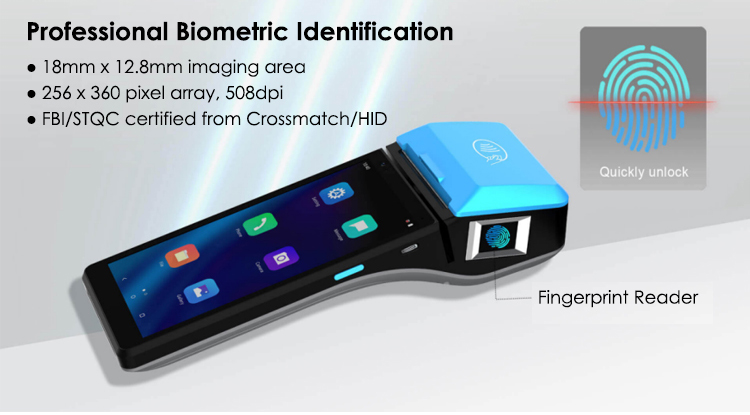

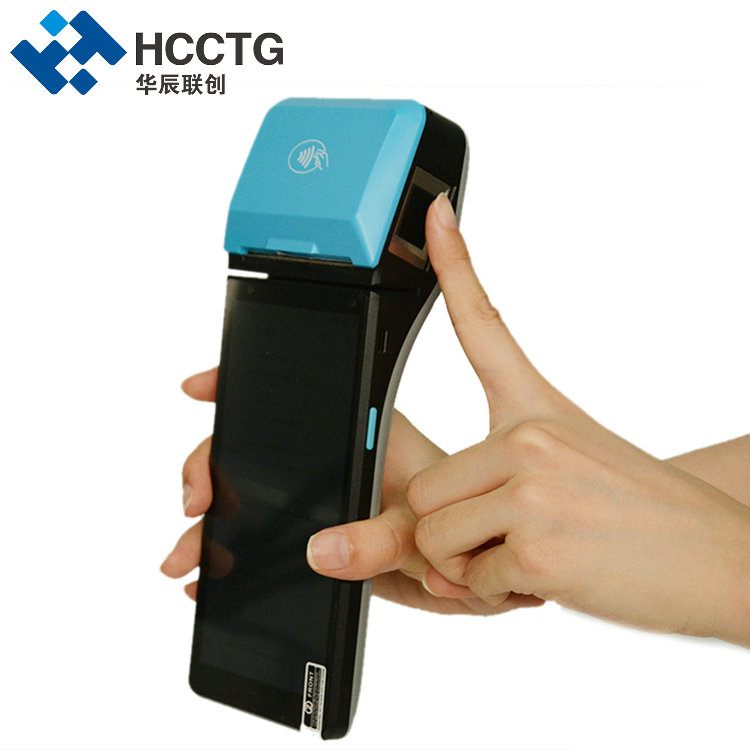

Optional | Fingerprint | Semiconductor capacitance,18mm x 12.8mm imaging area 256 x 360 pixel array, Crossmatch FBI certified 508dpi |
Fiscal Module | Russian Format | |

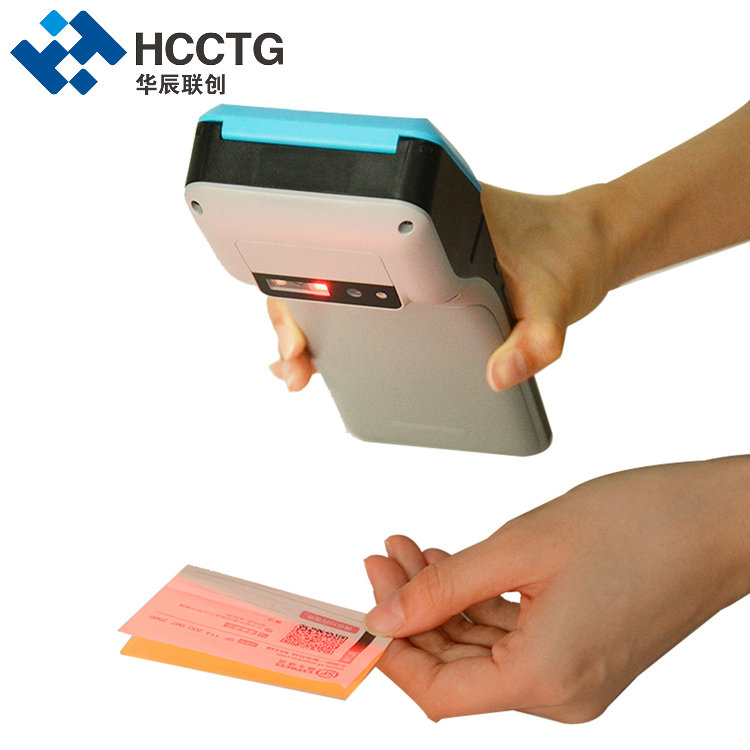

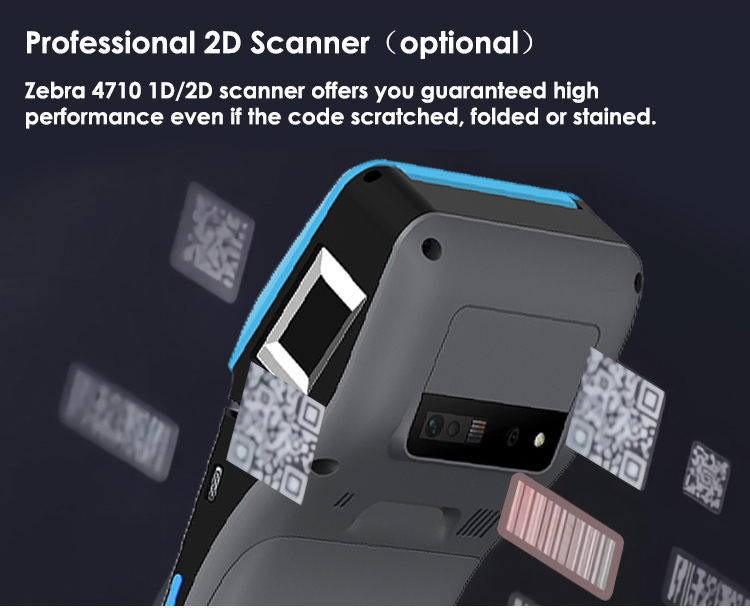

Barcode Scanner | Symbol 4710 2D Image Engine, Support 1D and 2D symbologies |
