The Z100 is a cutting-edge device equipped with advanced technology, offers robust support for EMV Level 1 (L1) and Level 2 (L2) compliance, ensuring seamless and secure payment transactions for users. Additionally, it boasts compatibility with the latest PCI certification standards, underscoring its commitment to meeting the stringent security requirements of the payment industry.
| Availability: | |
|---|---|
| Quantity: | |
Z100
HCCTG
All In One Smart Card Reader Android POS Machine With Fingerprint HCC-Z100
|
Product Description
1）HCC-Z100 Android POS machine is an exceptional POS solution designed to meet the needs of modern businesses. This cutting-edge payment terminal offers unrivaled connectivity options, such as global 2G/3G/4G network support, built-in NFC contactless technology, BT4.2, and WIFI, ensuring seamless connectivity worldwide;
2）Not only does this POS equipment provide extensive connectivity, but it also offers local customization options, making it ideal for restaurants. Enhancements include a fingerprint scanner and fiscal module, empowering you to personalize your POS system while safeguarding your valuable data;
3）Elevate your business today by embracing the HCC-Z100 POS machine. Explore the forefront of payment processing technology, optimize your operations, and increase efficiency. Take advantage of this powerful payment device to revolutionize your business transactions and streamline your payment processes
|
Features
1. Safedroid OS, Based on Android 11.0 OS;
2. 5.5 inch TFT IPS LCD, resolution 1280*720;
3. Full bands for global coverage: 4G/3G/2G,WLAN,VPN;
4. Front camera for quickly QR code scan;
5. 2600mAh * 7.4V High capacity version battery optional
|
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 11.0) |
CPU | Quad-Core 1.3GHZ | |
ROM | 8GB ROM EMMC | |
RAM | 1GB RAM LPDDR | |

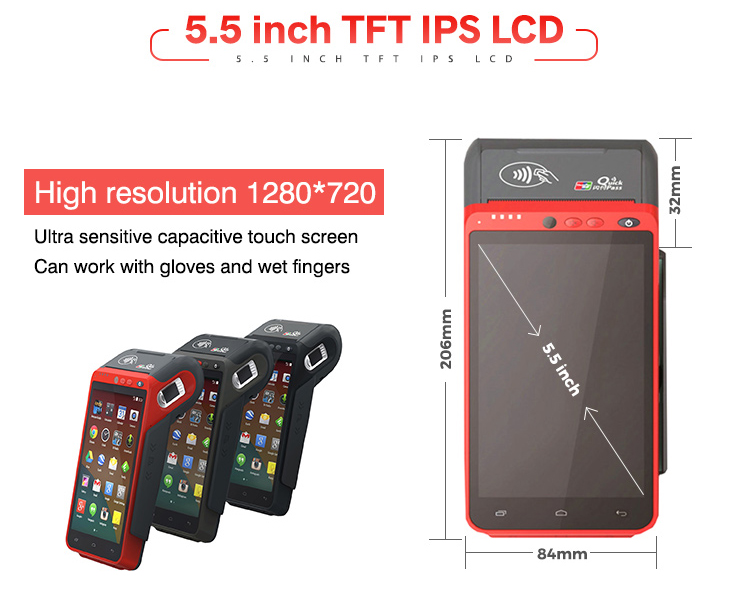

Display | 5.5 inch TFT IPS LCD, resolution 1280*720 | |
Panel | Multi-Point capacitive touch screen | |
Dimensions | 206 * 84 * 32 mm(max 56mm) | |
Weight | 530 g (Battery included) | |
Keys | 3 * Physical keys: 1 * ON/OFF KEY, 2 * Shortcut keys 3 * Virtual keys: Menu, Home, Back | |
Input | English | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
Bluetooth | BT 4.2 LE and earlier | |
4G | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 | |
3G | European version(Default): | |
2G | European version(Default): GSM/GPRS/EDGE: 900/1800MHz | |
Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card Reader | Supports 14443A/ 14443B | |

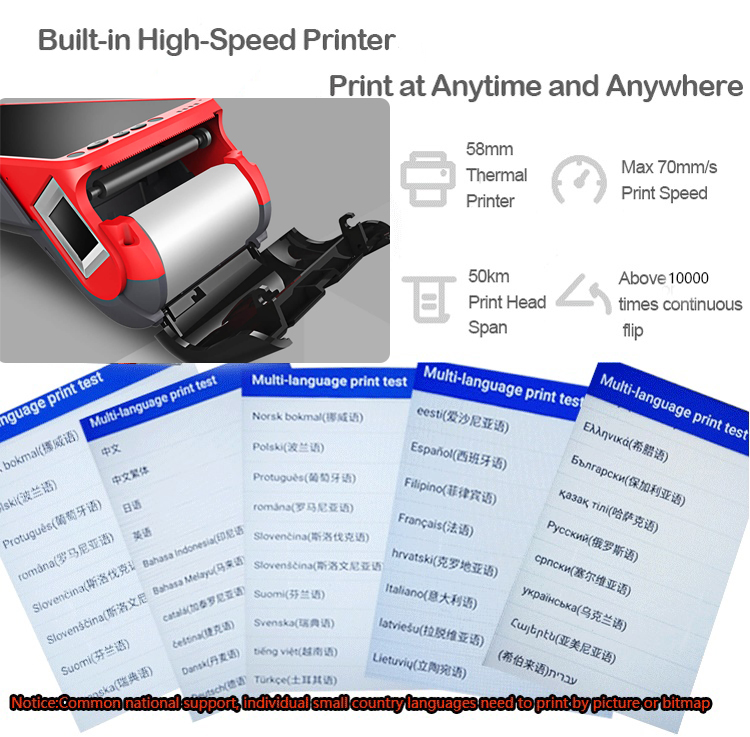

Expansion and Peripherals | Printer | High-Speed Thermal Printer; 58mm printing paper; 40mm paper roll; |
Rear Camera | 5MP Rear camera with LED flash and auto-focus function | |
Satellite Positioning | Support GPS(A-GPS) / Bei-Dou / Glonass | |
Audio | Speaker | |
Interfaces | Micro SD Card Slot | 1 PCS |
SIM Card Slot | 2 PCS MICRO SIM | |
PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
USB Port | 1PCS TYPE C USB2.0 | |
Power | Battery | Li-ion battery, 2600mAh * 7.4V |
Charging Port | Type C USB Port, 5V DC/2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidit | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE, RoHS, FCC |
Payment | PCI PTS 6.X, EMV L1&L2, EMV CL L1, Paypass, Paywav, Amex, CUP qUICS, TQM | |

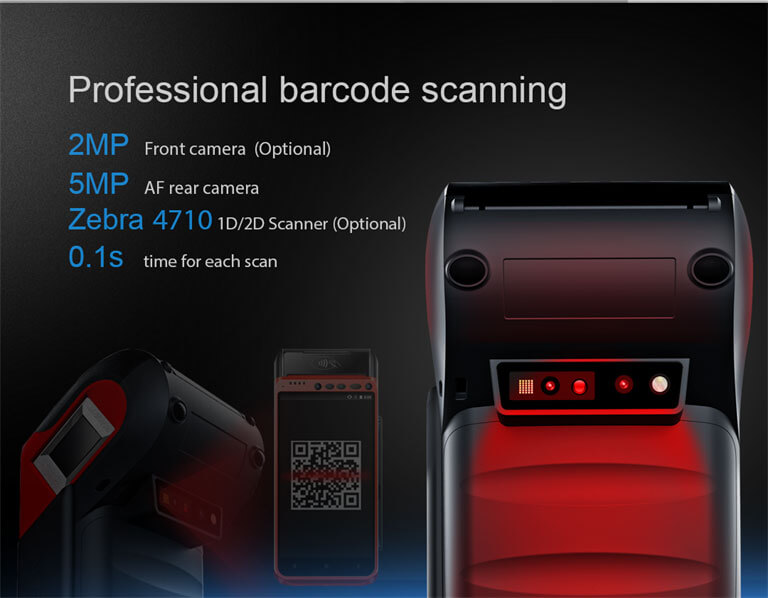

Optional | Front Camera | 2MP Front camera for QR code |

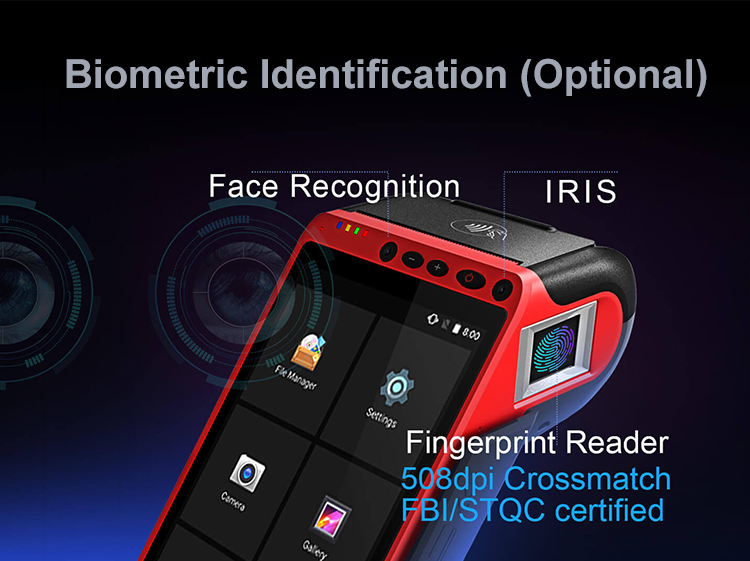

| Fingerprint | Semiconductor capacitance,18mm * 12.8mm imaging area 256 * 360 pixel array, Crossmatch FBI certified 508dpi | |
| Barcode Scanner | Symbol 4710 2D Image Engine, Support 1D and 2D symbologies | |
Charging cradle | ||
Rubber protective cover | ||
| USB Hub | TYPE-C TO USB * 2+RI45 + Type-C chargig port | |
| Charge | Power adapter | |
| Li-ion battery | 3300mAh * 7.4V | |
|
Picture Show
