High quality
Anti-drop material makes it easy to use in various extreme scenarios
 |
| OS: | |
|---|---|
| CPU: | |
| Memory: | |
| Screen Size: | |
| Resolution: | |
| Quantity: | |
PDA603
HCCTG

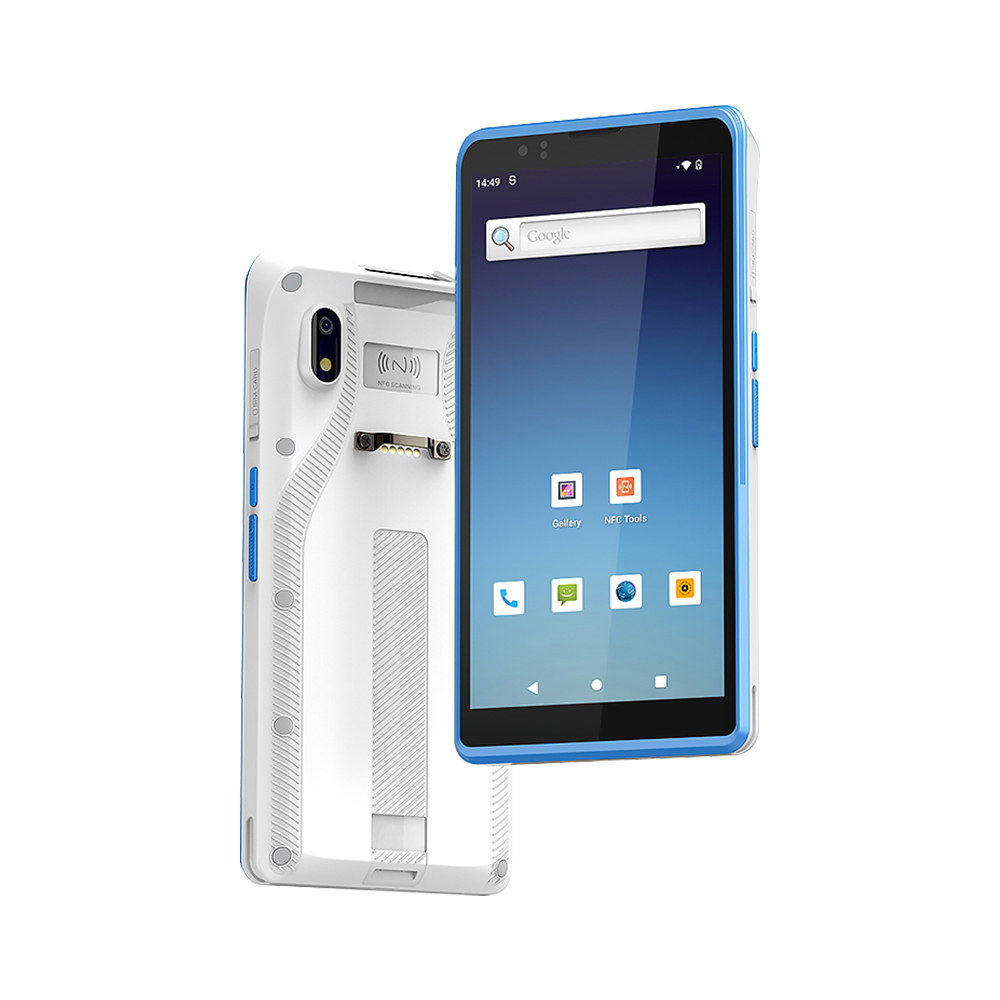

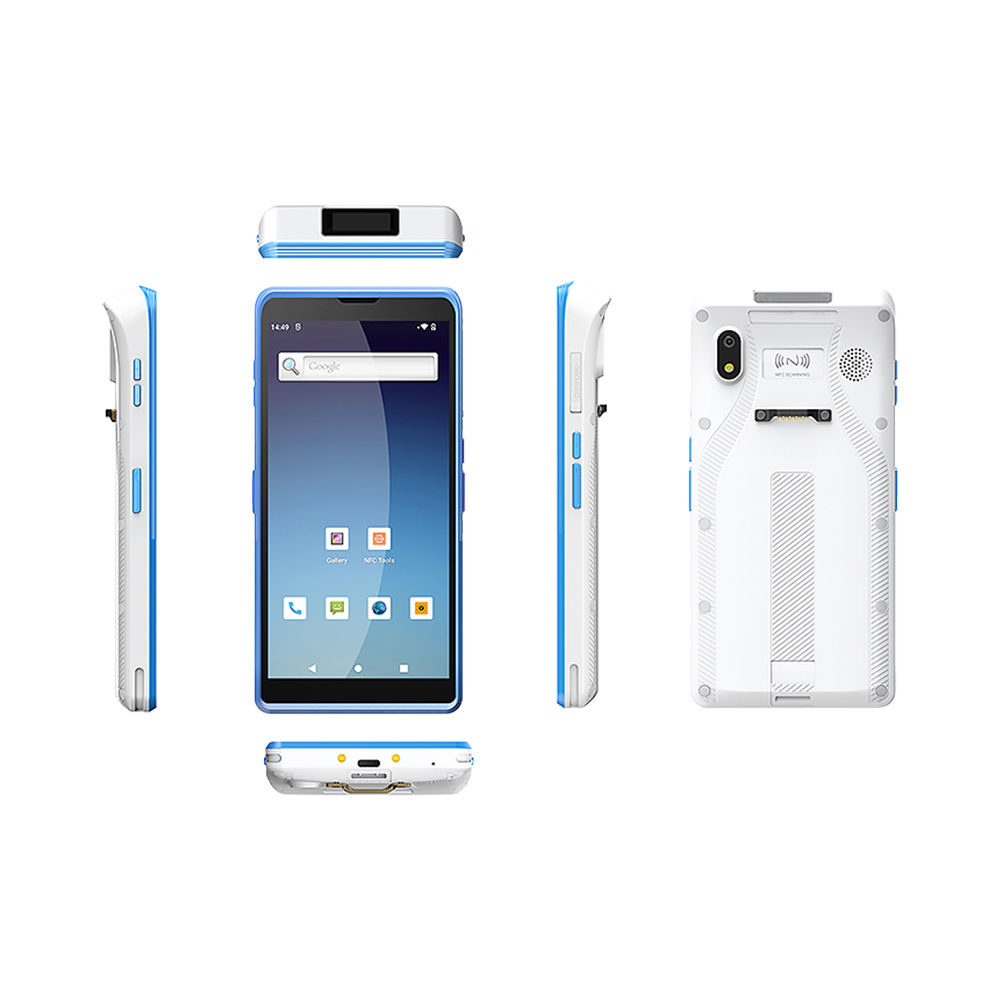

Medical Antibacterial Measures Handheld Smart Terminal
Specification:
System Hardware Configuration | |
OS | Android 12.0 |
CPU | 8-core 64-bit 2.0GHz CPU |
Memory | 4GB RAM+64GB ROM |
Screen Size | 6.0-inch large screen |
Screen Resolution | 1440 * 720 pixs |
Touch Screen | Industrial grade capacitive screen |
Charging Indicator Light | The red light flashes when the battery is low, the red light stays on when charging, and the green light stays on when the battery is fully charged. |
Gyro | Gyroscope *1 |
Gravity Sensor | Gravity sensor *1 |
Vibration Motor | Vibration motor *1 |
Internet Connection | |
WIFI | Wi-Fi 802. 11a/b/g/n/r/ac (2.4G+5G) Dual Band Wi-Fi |
Bluetooth | Bluetooth 5.0 with BLE support |
WWAN | 2G (GSM): B2/B3/B5/B8 3G (WCDMA) : B1 /B5/B8 4G (FDD-LTE): B1/B3/B5/B7/B8/B20 4G (TDD-LTE): B34/B38/B39 /B40/B41 |
GNSS | GPS/AGPS/beidou/galileo/glonass/qzss |
NFC | 13.56MHz, ISO/IEC 14443A/B,ISO15693, NXP PN557 |
Interface | |
TF Card | Supports TF * 1 max: 128G |
SIM Card | Sim card slot * 2 |
USB Type-C | *1 |
USB Cable | Support |
Standard Configuration | |
Size | 164 * 81 * 20 mm |
Weight | 290 g (battery included) |
Internal | 1*power button + 1*scan button + 1*volume button(+-)+custom keys |
Camera | Front: AF 5.0 MP Back: AF 13.0 MP |
Speaker | Support |
Microphone | Support |
Support | Built-in 3.7v 5000mAh polymer lithium-ion battery Working time>12h, Charging time: 3.5h, Standby time>300h |
Power Adapter | Input voltage 110~220v, supports DC3.7V charging |

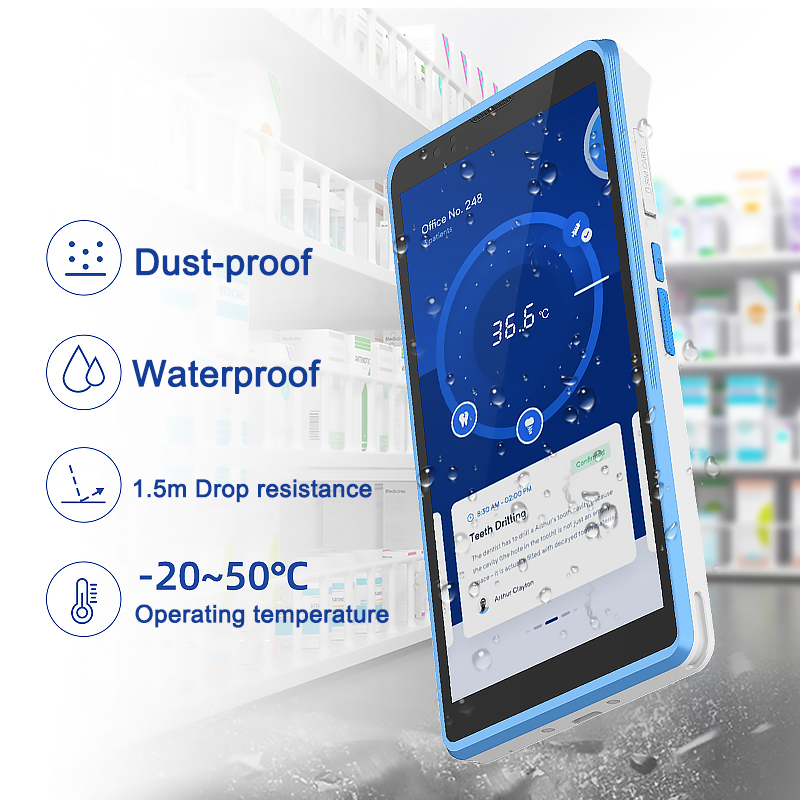

Certified | IP67, CE, FCC |
Medical Antibacterial Certification | Support |
Drop Height | 1.5 meters drop resistance |
Operating Temperature | -20°C~50 |
Storage Temperature | -40°C~70°C |
Humidity Temperature | 0%RH~95%RH (no condensation) |
Electrostatic Discharge | ±15kv air discharge, 8kv direct discharge |

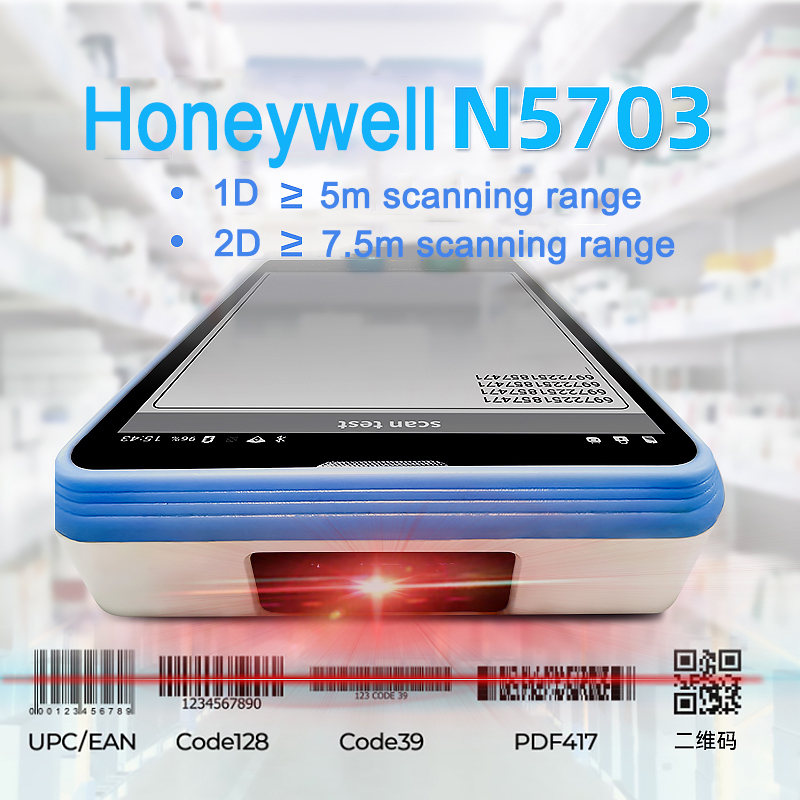

Optional | 1D/2D code scanning |
Temperature measurement | |
Medical Antibacterial Measures Handheld Smart Terminal
Specification:
System Hardware Configuration | |
OS | Android 12.0 |
CPU | 8-core 64-bit 2.0GHz CPU |
Memory | 4GB RAM+64GB ROM |
Screen Size | 6.0-inch large screen |
Screen Resolution | 1440 * 720 pixs |
Touch Screen | Industrial grade capacitive screen |
Charging Indicator Light | The red light flashes when the battery is low, the red light stays on when charging, and the green light stays on when the battery is fully charged. |
Gyro | Gyroscope *1 |
Gravity Sensor | Gravity sensor *1 |
Vibration Motor | Vibration motor *1 |
Internet Connection | |
WIFI | Wi-Fi 802. 11a/b/g/n/r/ac (2.4G+5G) Dual Band Wi-Fi |
Bluetooth | Bluetooth 5.0 with BLE support |
WWAN | 2G (GSM): B2/B3/B5/B8 3G (WCDMA) : B1 /B5/B8 4G (FDD-LTE): B1/B3/B5/B7/B8/B20 4G (TDD-LTE): B34/B38/B39 /B40/B41 |
GNSS | GPS/AGPS/beidou/galileo/glonass/qzss |
NFC | 13.56MHz, ISO/IEC 14443A/B,ISO15693, NXP PN557 |
Interface | |
TF Card | Supports TF * 1 max: 128G |
SIM Card | Sim card slot * 2 |
USB Type-C | *1 |
USB Cable | Support |
Standard Configuration | |
Size | 164 * 81 * 20 mm |
Weight | 290 g (battery included) |
Internal | 1*power button + 1*scan button + 1*volume button(+-)+custom keys |
Camera | Front: AF 5.0 MP Back: AF 13.0 MP |
Speaker | Support |
Microphone | Support |
Support | Built-in 3.7v 5000mAh polymer lithium-ion battery Working time>12h, Charging time: 3.5h, Standby time>300h |
Power Adapter | Input voltage 110~220v, supports DC3.7V charging |
Certified | IP67, CE, FCC |
Medical Antibacterial Certification | Support |
Drop Height | 1.5 meters drop resistance |
Operating Temperature | -20°C~50 |
Storage Temperature | -40°C~70°C |
Humidity Temperature | 0%RH~95%RH (no condensation) |
Electrostatic Discharge | ±15kv air discharge, 8kv direct discharge |
Optional | 1D/2D code scanning |
Temperature measurement | |
