Z240
HCCTG
Features:
1.10.1 inch FHD IPS: support multi-touch;

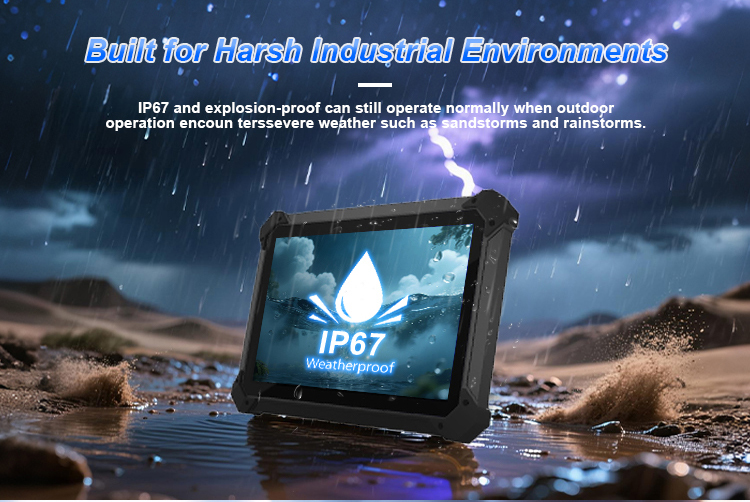

2.IP67 Industrial protection: water-proof design, rubber stopper on each port to prevent water in.
3.Support Explosion-proof.

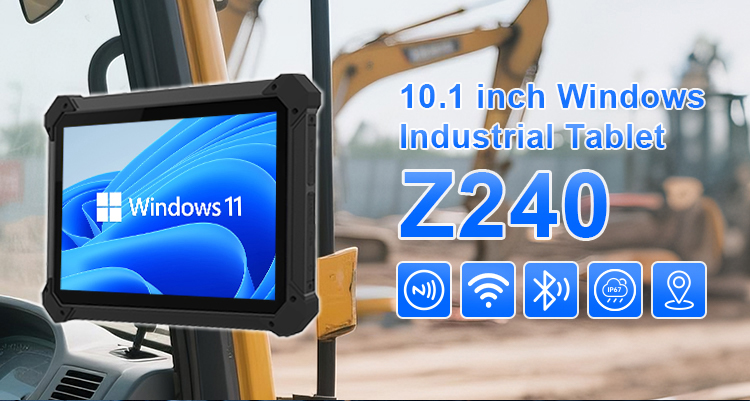

The Z240 Industrial Tablet PC (for Windows) is rugged, lightweight and portable. It supports NFC and fingerprint reader functions, providing usage options for different scenarios. The Z240 10.1-inch tablet is an ideal solution for mobile operators who need a rugged device. It runs on the Windows operating system and has the highest level of protection against dust and moisture, IP67. It is also an economical model with excellent performance.
Specifications:
System Configuration | |
O.S | Windows 10/11 |
CPU | N100 3.4GHZ |
GPU | Intel® UHD Graphics 750MHZ |
Memory | 8GB RAM + 128GB ROM |
Charging Instructions | The red light flashes when the battery is low |

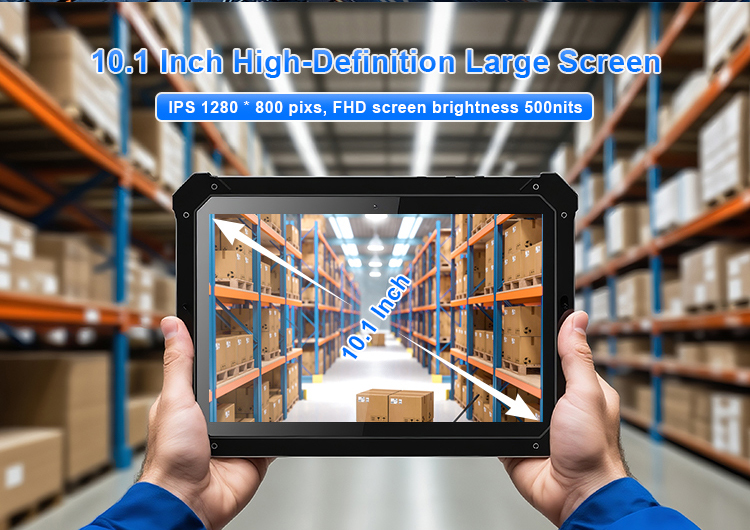

Screen Size | 10.1 inch IPS 1280 * 800 pixs |
Brightness | 500nits |
Camera | Front: AF 5.0M Back: AF 13.0M |
Gyro | Gyroscope * 1 |
Gravity Sensor | Gravity sensor * 1 |

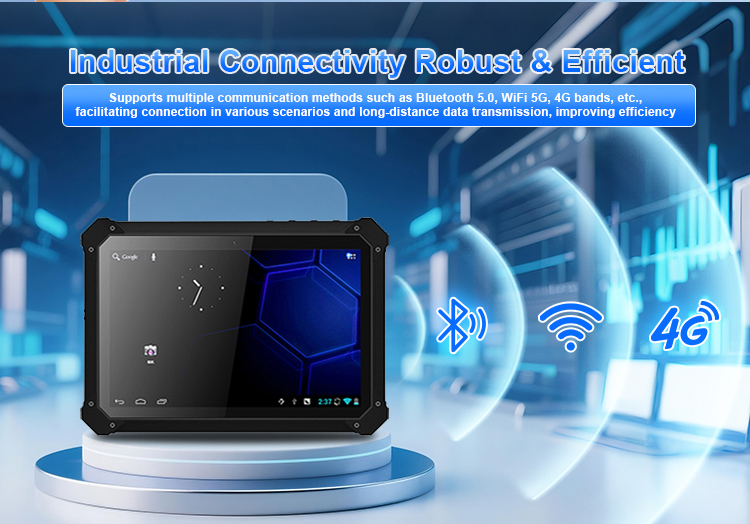

WIFI | WiFi 802.11a/b/g/n/ac, frequency 2.4G/5G |
Bluetooth | Bluetooth 5.0 transmission distance Max: 10m |

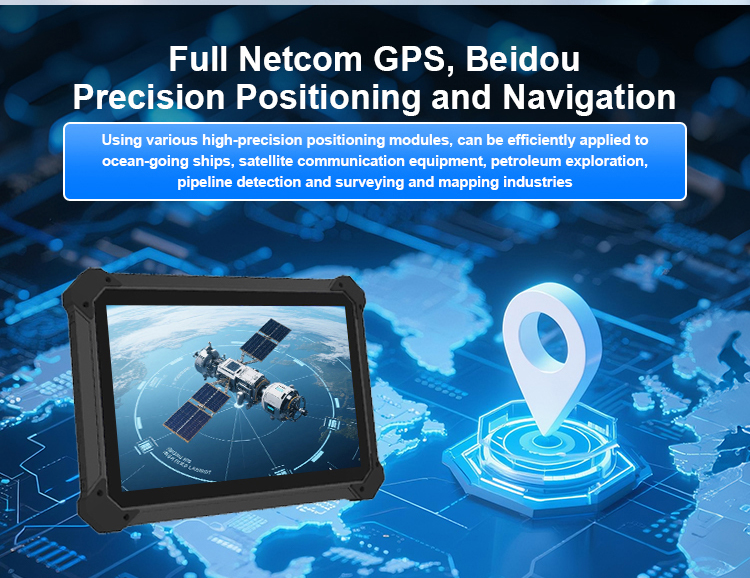

GPS | Support |

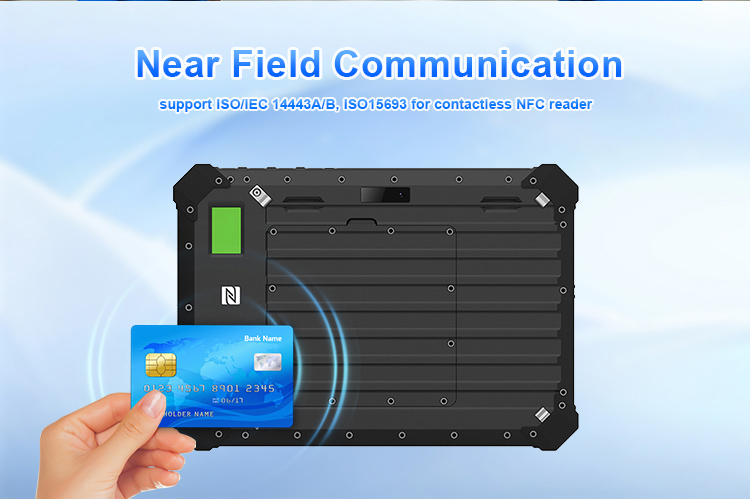

NFC | ISO/IEC 14443A/B, ISO15693 |
Speaker | Support |
Microphone | Support |
Battery | Built-in 5000 - 6000mAh/7.4V polymer lithium-ion battery |
Battery Life | Working time> 12H Standby time> 500h Charging power: 15W |

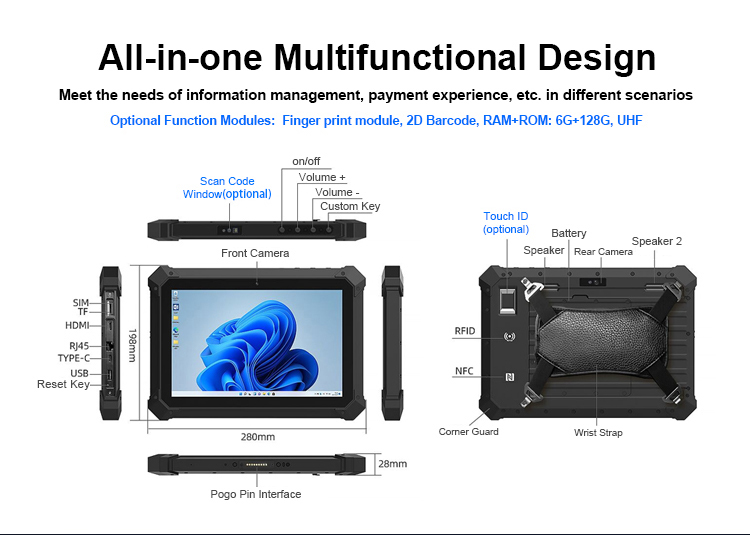

Interface | |
TF card | Supports TF * 1 max: 128G |
Sim Card | SIM card slot * 1 |
USB Interface | USB 2.0 Type-A * 1, Type-C * 1 |
RJ45 | 100MB/S transfer rate speed |
HDMI | HDMI * 1 |
Pogo Pin | 9 pins Pogo Pin * 1 |
Certified | IP67, CE , FCC, IEC62133 |
Drop Height | 1.2 meters drop resistance |

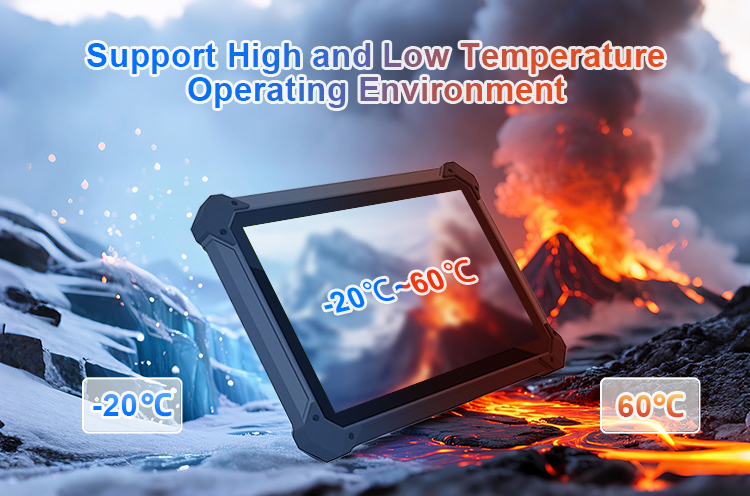

Operating Temperature | -20°C ~ 60°C |
Storage Temperature | -30°C ~ 70°C |
Humidity Temperature | 95%, non-condensing |
Optional modules | Finger print module (General/FBI certificated) |
2D Barcode Scanner(General/Newland N1) | |
Upgraded: O/S: Android: 11.0 ARM Cortex A53 8-core 2.0GHz Memory: 64GB ROM+4GB RAM/6GB+128GB | |
Camera: Front: AF 8.0M + Back: AF 13.0M | |
IPS 1200 * 1920 | |
UHF (902Mhz-928Mhz, 865MHz-868MHz) |
