HCC-S70 is with android 13 system and 5.5-inch HD durable large display, which also supports printing.
| RAM+ROM: | |
|---|---|
| Communication: | |
| Printer: | |
| Camera: | |
| Quantity: | |
HCC-S70
HCCTG

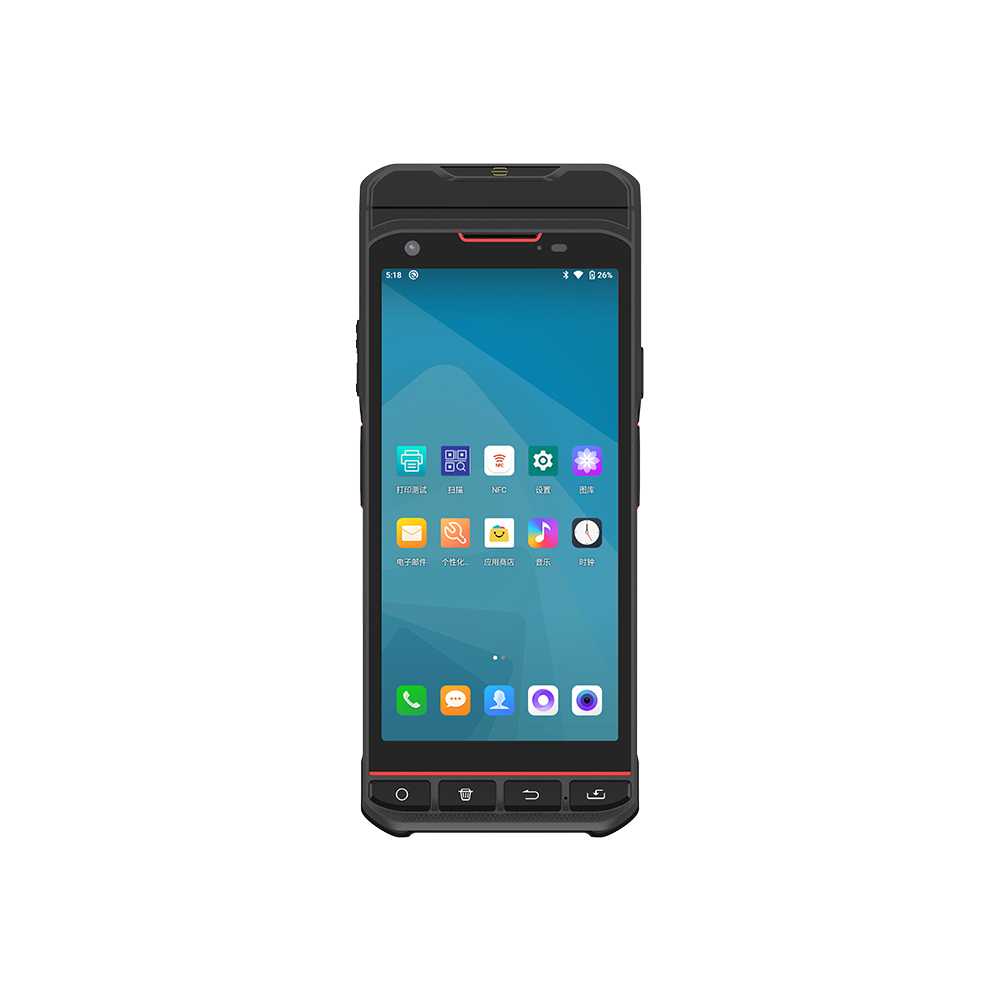

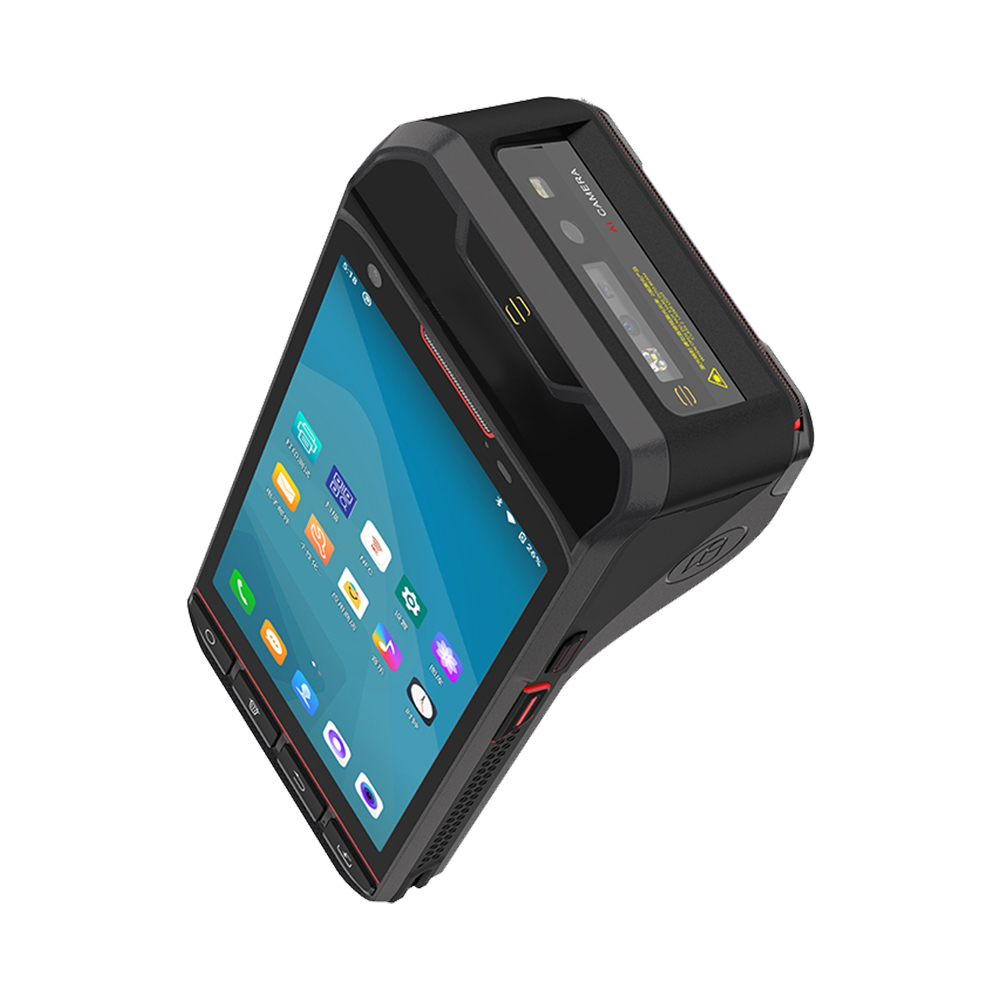

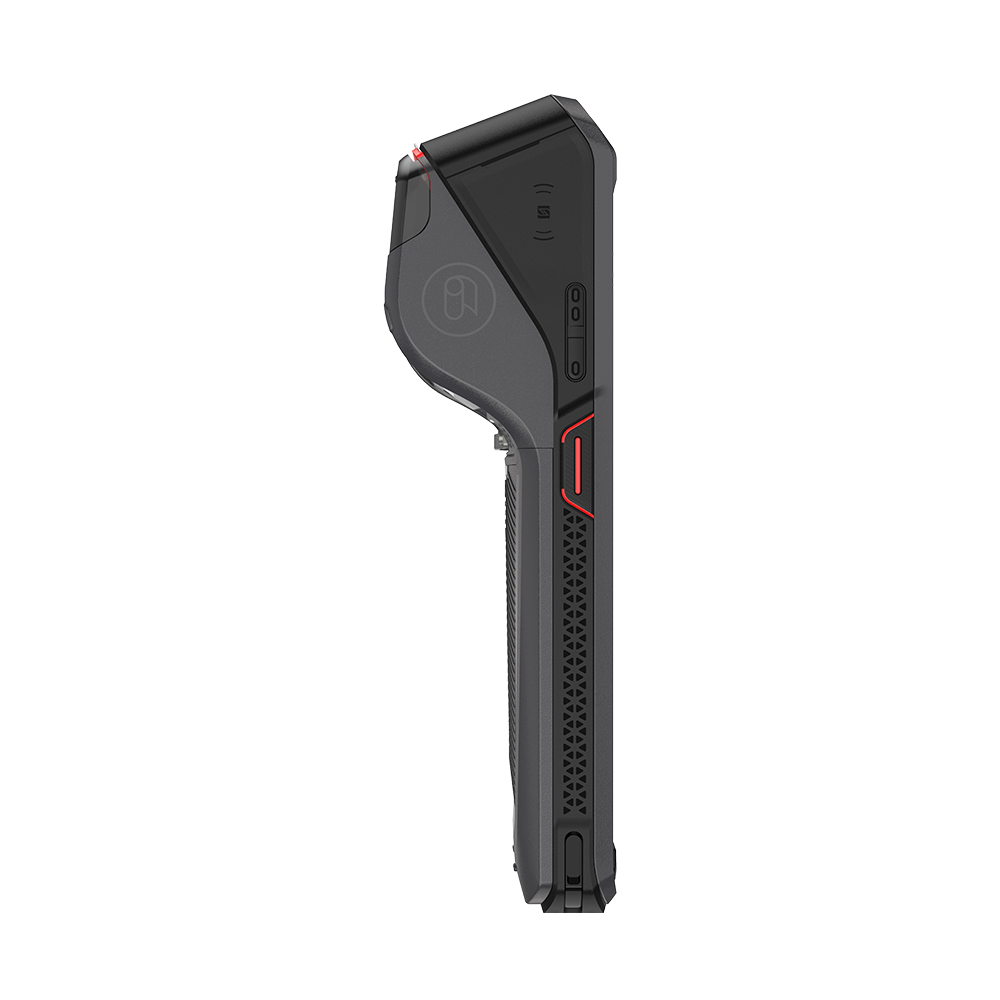

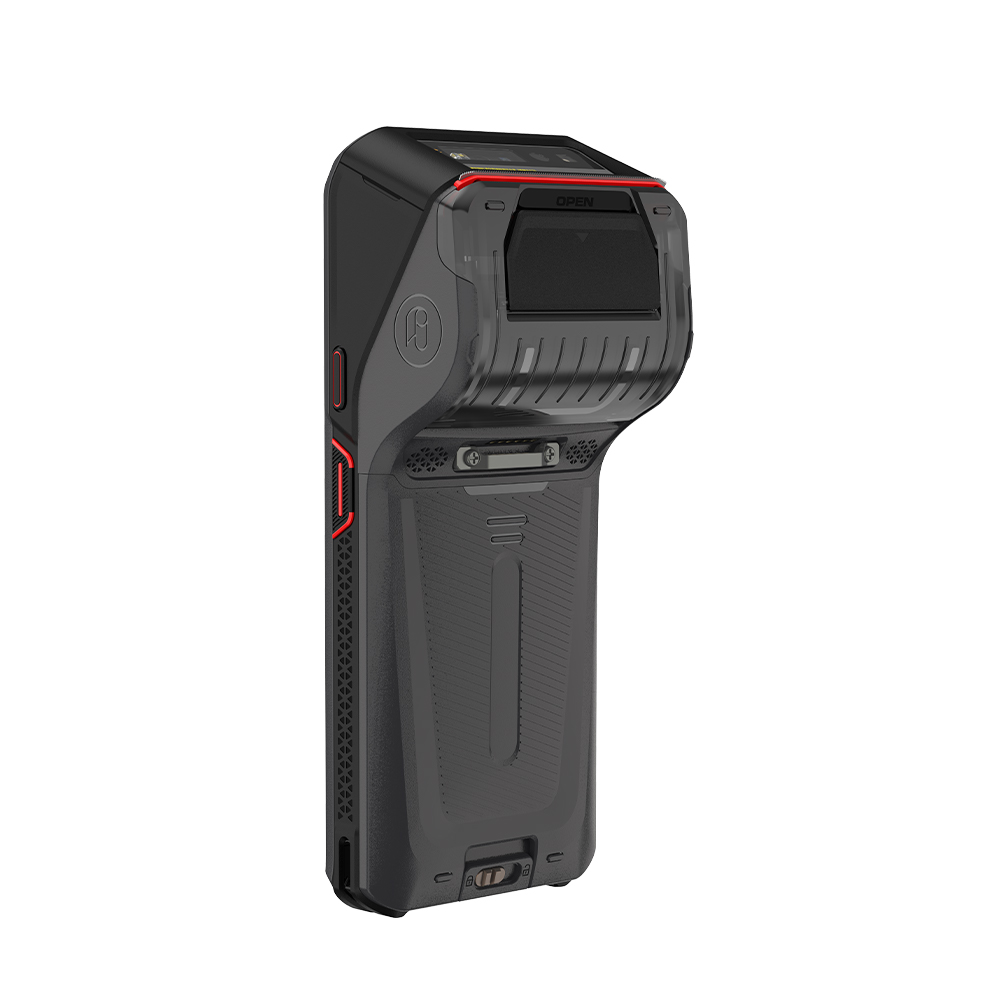

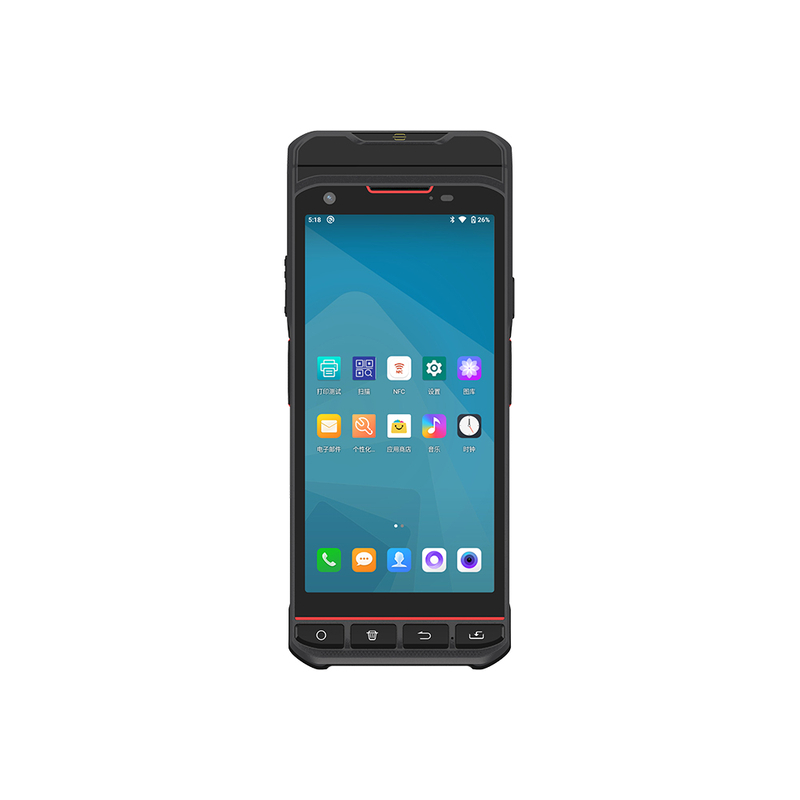

Android 13 NFC 4G Label Printer Intergrated Handheld Terminal PDA HCC-S70
HCC-S70 handheld PDA is a smart payment terminal machine, perform well just like receipt printer, 2D scanner and camera. It has good performance, small size, wireless design, easy to carry, and very convenient to use. Besides, this PDA product comes with Android 13, which runs smoothly and stably. Very suitable for warehouse management and small businesses.
Specifications
Performance | |
CPU | Cortex-A53 Quad-core 64-bit 2.0GHz high-performance processor |
RAM+ROM | 2GB+16GB Supports up to 4GB+64GB |
Expand memory | Micro SD(TF) Supports up to 128GB |
System | Android 13.0 OS (Android 10 at optional) |
Data communication | |
WLAN | Dual-band 2.4GHz / 5GHz, Support IEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v protocol |
WWAN | 2G:GSM (850/900/1800/1900mhz) |
3G:WCDMA (850/900/1900/2100mhz) | |
4G:FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41 | |
Bluetooth | Support Bluetooth 5.0+BLE Transmission distance 5-10 meters |
GNSS | Support Gps, Galileo, Glonass, Beidou |
Data collection | |

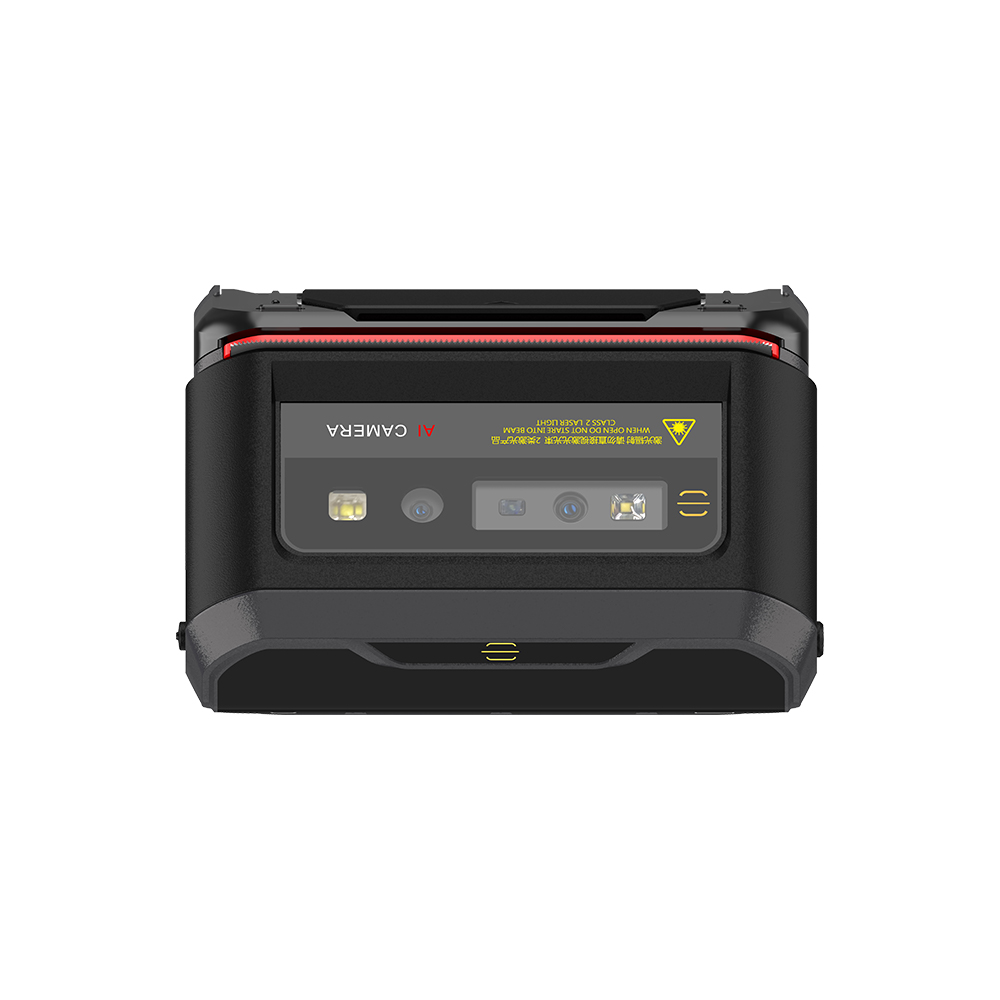

Barcode scanning(Optional) | |
2D Imager scanner | Newland E483 Honeywell N5703 N6703, 6602 |
1D Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, China post 25, ISBN/ISSN, Code93, UCC/EAN-128, GS1 Databar, HIBC, etc. |
| 2D Symbologies | PDF417, Micro PDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro QR Code, Maxicode, Hanxin Code,etc. |

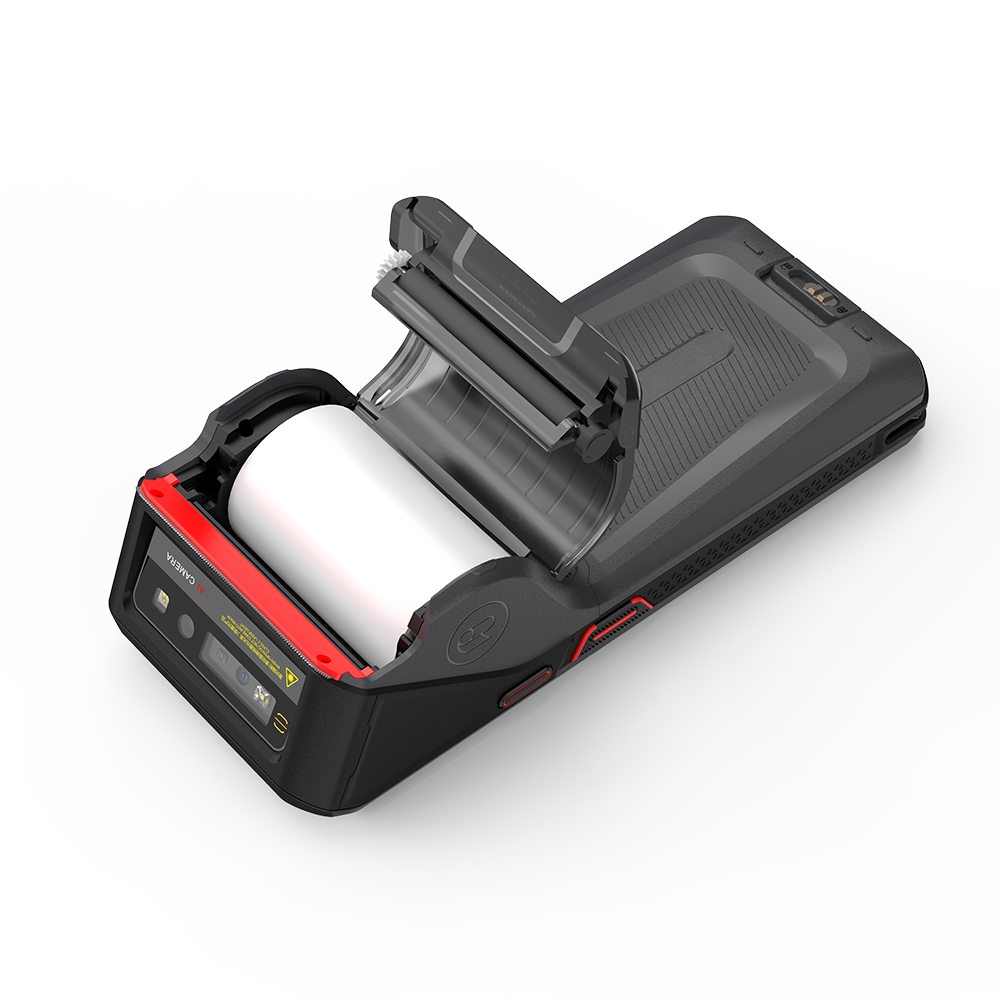

Thermal sticker printer | |
Printing speed | 70mm/s |
Print points | 384 dots |
Paper width | 58mm |
Paper diameter | 35mm |
Paper type | Support for Sticker / label Black mark printing or receipt printing |
Camera | |
Rear camera | 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting |
Front camera | 2MP color camera |
NFC (optional) | |
Frequency | 13.5MHz±7kHz |
Radio frequency technology | Comply with ISO/IEC 14443 type B standard, GA450-2003 General Technical Requirements for desktop ID card Reader, 1GA450-2003 General Technical Requirements for desktop ID Card Reader Amendment No. 1 (draft) |
Security module | Security module |
Distance | 0 ~ 5cm |
Reading time | ＜1.55s |
Language/input method | |
Input | English,Pinyin,Five strokes,Handwriting input,Support soft keypad |
Language | Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian,etc. |
Physical parameter | |
Dimensions | 179mm * 74.5mm * 22.5mm (the thinnest) 49.5mm (the printing part) |
Weight | ＜500g (Depends on device function configuration） |
Display | 5.5 inch IPS color display with resolution 720*1440 |
TP | Supports multi-touch |
Battery capacity | Rechargeable polymer battery 7.6V 2750mAh (equal to 3.8V 5200mAh), removable |
Standby time >350 hours | |
Working time > 12 hours | |
Charging time 3-4H, Using standard power adapter and data cable | |
Expansion Card slot | Nano SIM card * 1 , TF card * 1, PSAM * 2 (optional) |
Communication interface | Type-C USB x 1, OTG |
Audio | Speaker (mono), Microphone, Earpiece |
Keypad | Silicone button: Power button, Volume +/- button, Scan button × 2 |
Sensors | Gravity sensor, Light sensor, Proximity sensor, Vibration motor |
User environment | |
Operating temperature | -20℃ - 55℃ |
Storage temperature | -40℃ - 70℃ |
Environment humidity | 5%RH--95%RH(no condensation) |
Drop specification | 6 sides Supports 1.2 meters drops and 30 times to the concrete within the operating temperature |
Rolling test | 0.5m rolling for 6 sides |
Sealing | IP54 |
Accessories | |
Standard | Adapter, Data cable, Protective film, Instruction manual |
