HS-2006 has elegant appearance and strong decording capability, besides, it can also widely used in many fields.
Item No.:
HS-2006Product origin:
Guangdong, ChinaColor:
BlackShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|

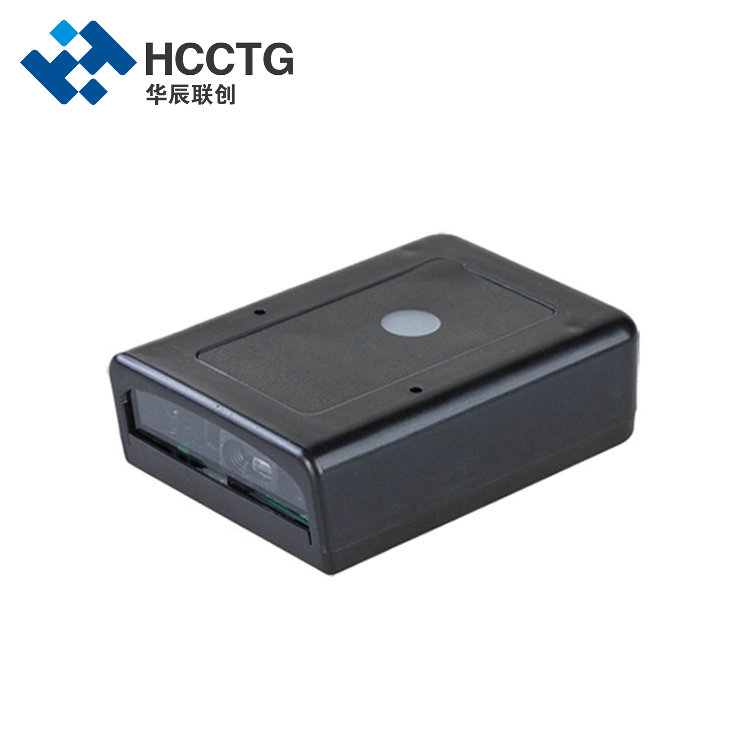

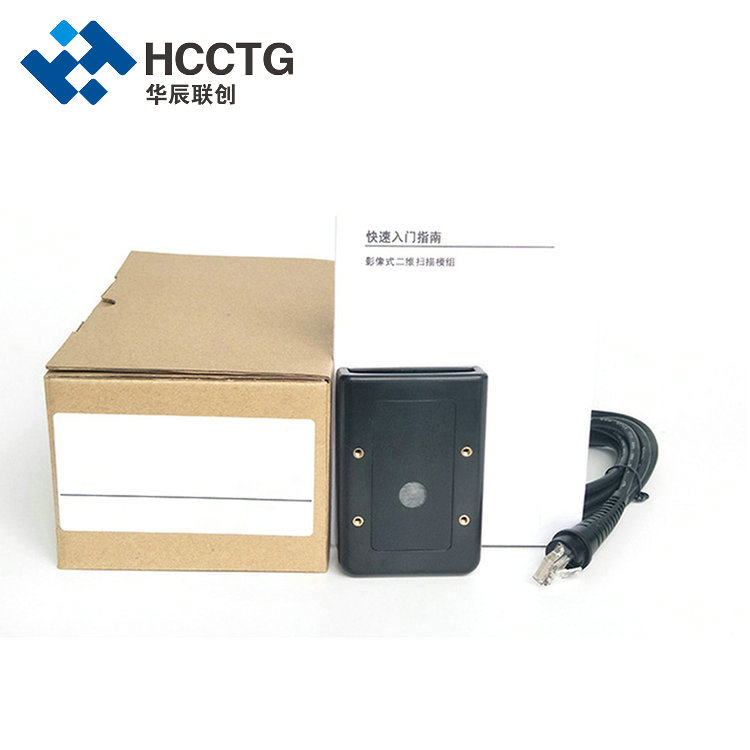

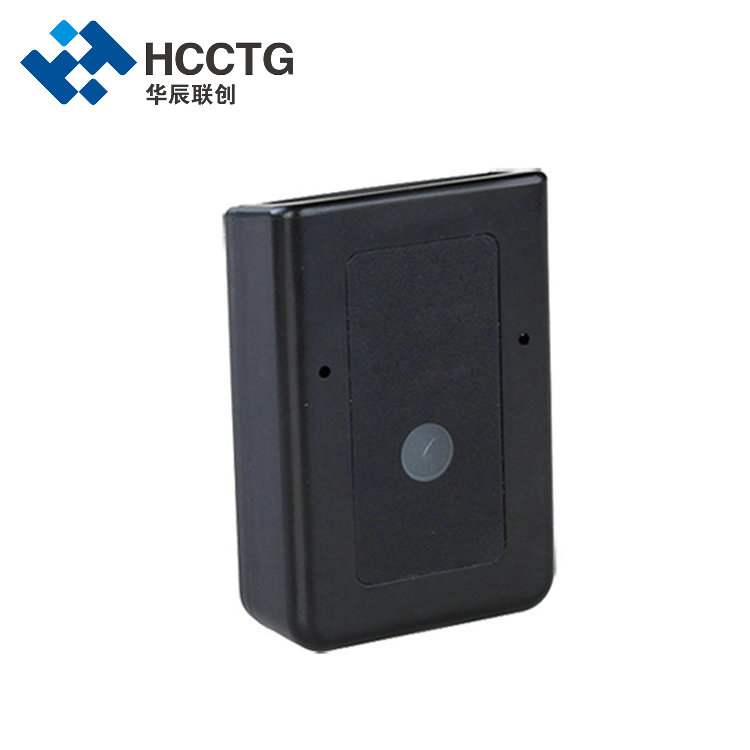

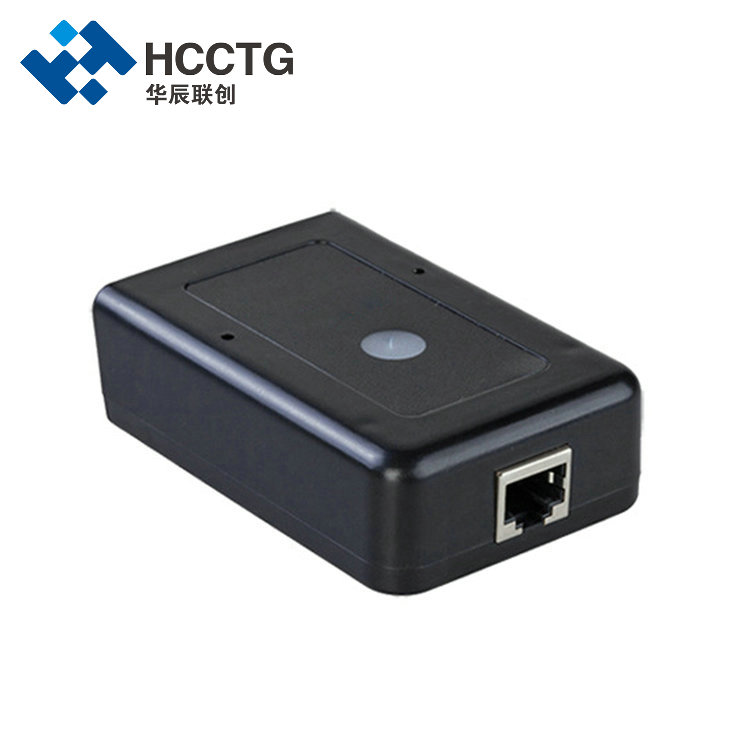

2D Fixed Scanner Barcode Reader For Ticket Production Line Embedded Use HS-2006
HS-2006 is compact area-imaging scanner which offers aggressive scanning of all 1D, PDF417，Data Matrix，QR etc 2D barcodes in a lightweight,durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.
Features
Specification
| Physical parameters | |
| Sight | RedLED，617nm |
| Safety performance | Accord with national level two laser safety standards |
| Physical dimension | L * W * H:88mm*60mm*28mm |
| Package size | L * W * H:190mm*110mm*80mm |
| Material | ABS |
| Scanner weight | 60g |
| Package weight | 180g |
| LED indicator | Red, green two-colors |
| Performance parameter | |
| Working voltage | 4 - 5.5V DC |
| DC power supply | Class 2; 5.2V DC@1A |
| Working power | 2W; 400mA@5V-The typical value |
| Standby power | 0.45W,90mA@5V-The typical value |
| Barcode type | Standard 1D, 2D bar code(PDF417, Data Matrix, QR etc) |
| Scanning type | Image type |
| The light source | White LED |
| System interface | KBW, USB, RS232 |
| Enviromental parameter | |
| Operating temperature | 0℃﹣40℃ |
| Storage temperature | ﹣40℃﹣60℃ |
| Operating humidity | 5%-95% Relative humidity, no condensation state |
| Electrostatic protection | ±15kV DC Air discharge,±8kV DC Direct / indirect discharge |
| Fall-down test | 100order/1M |
| Ambient light immunity | 0-100.000LUX |
| Exercise tolerance | 100mm /sec 13milUPC |
| IP Class | IP40 |
| LED Safety certification | IEC6247 |
| CB | IEC60950 |
| Integrated authentication | GOST-R(Russia),CE |
| EMI | AccordEN50081,part1 specifications
|
| EMC Electromagnetic compatibility | EN55022，EN55024 class B |
| Dust | Seal to resist invasion of dust particles in the air |
| Classical performance | |
| Bar code density | Depth of field |
| 5 mil Code39 | 33-95mm(1.3-3.7in.) |
| 13 mil UPC | 32-255mm(1.3-10.0in.) |
| 20 mil Code39 | 35-355mm(1.4-14.0in.) |
| 6.7 mil PDF417 | 30-95mm(1.2-3.7in.) |
| 10 mil Data Matrix | 30-100mm(1.2-3.9in.) |
| 15 mil Data Matrix | 21-162mm(0.8-6.4in.) |
| 20 mil QR | 23-200mm(0.9-7.9in.) |
