PPR100C-SCR
HCCTG
|
Product Description
1）Full-Page e-Passport Reader, Multi illumination sources: White light, Infra-red and UVA, OCR of the visual zone, RFID and Smart Card Reader.
2）This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, bank, airport, customs, embassy, government, and rental car companies.
|

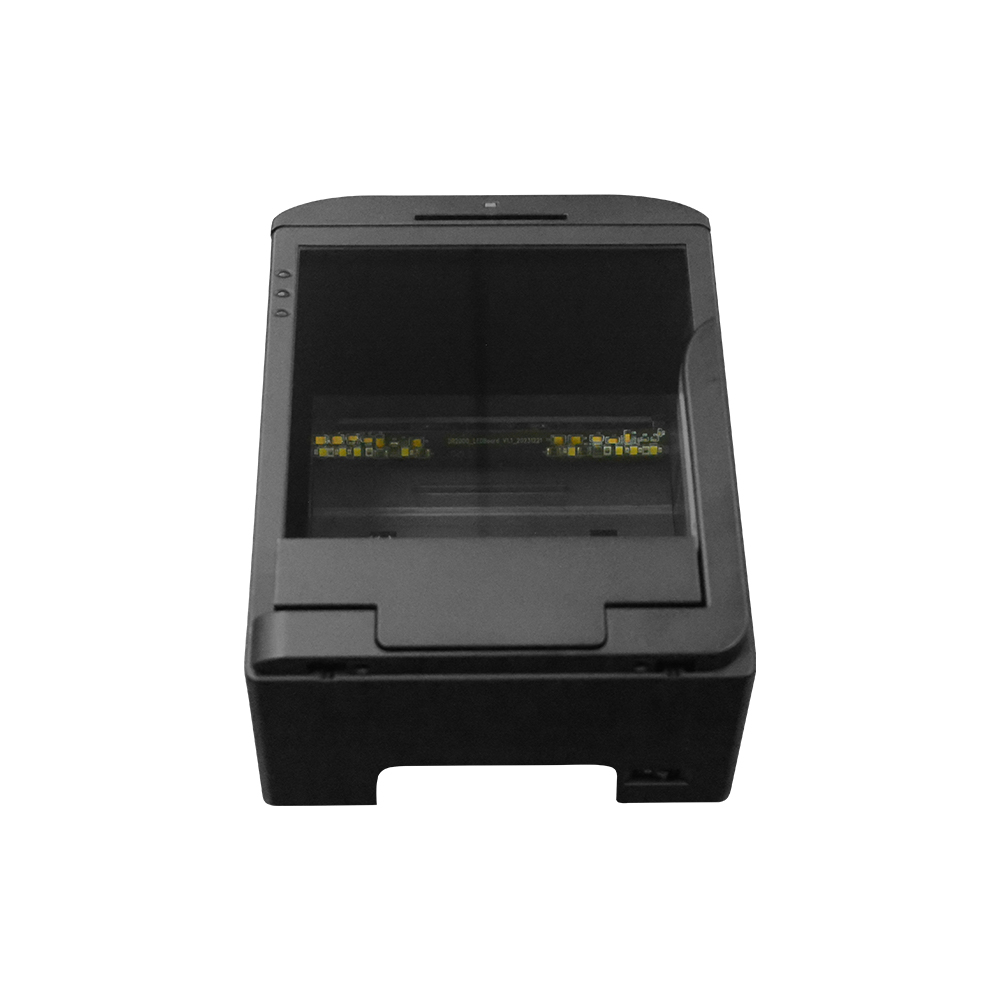

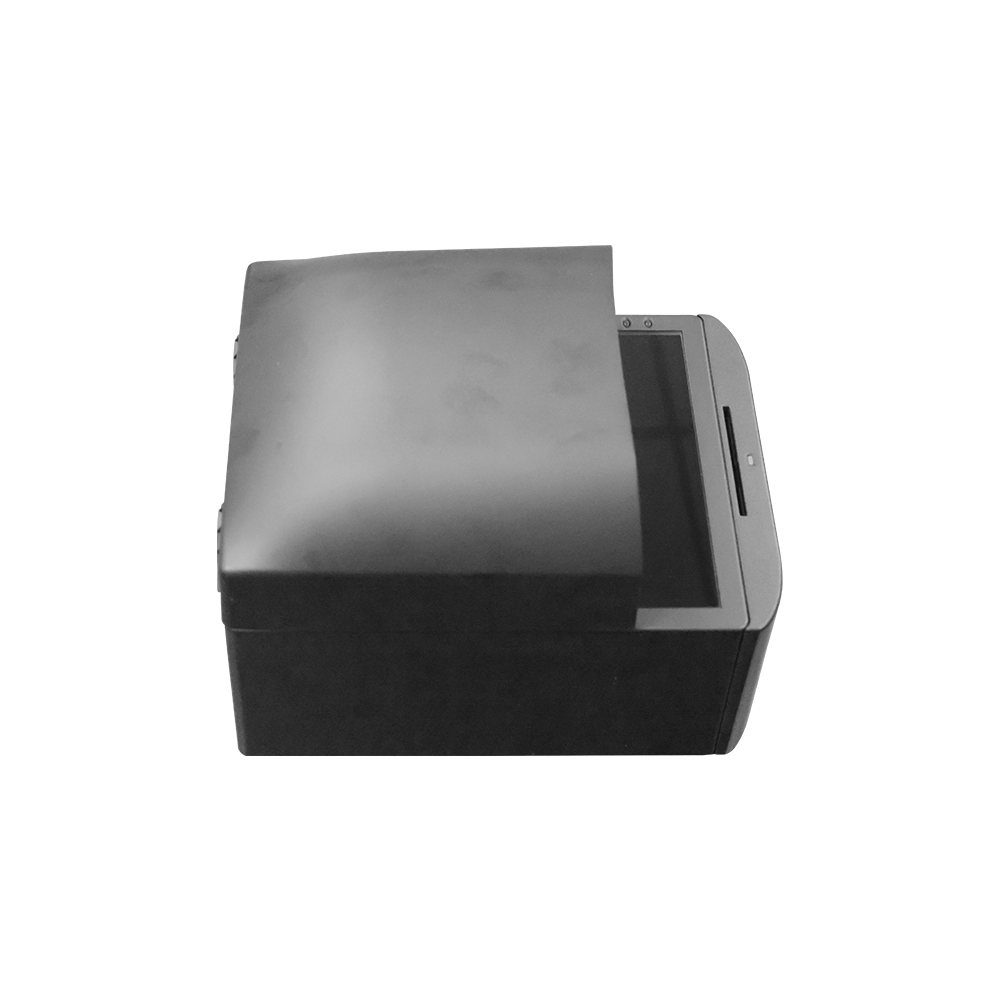

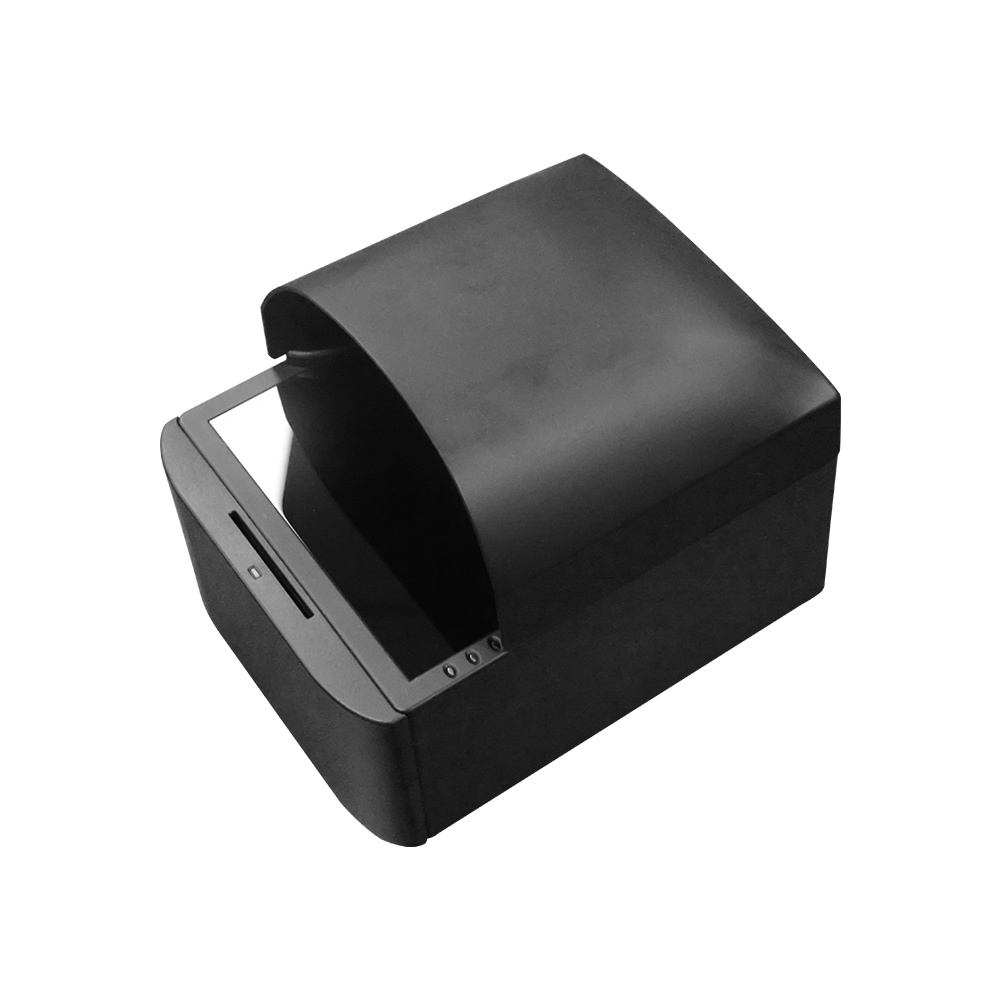

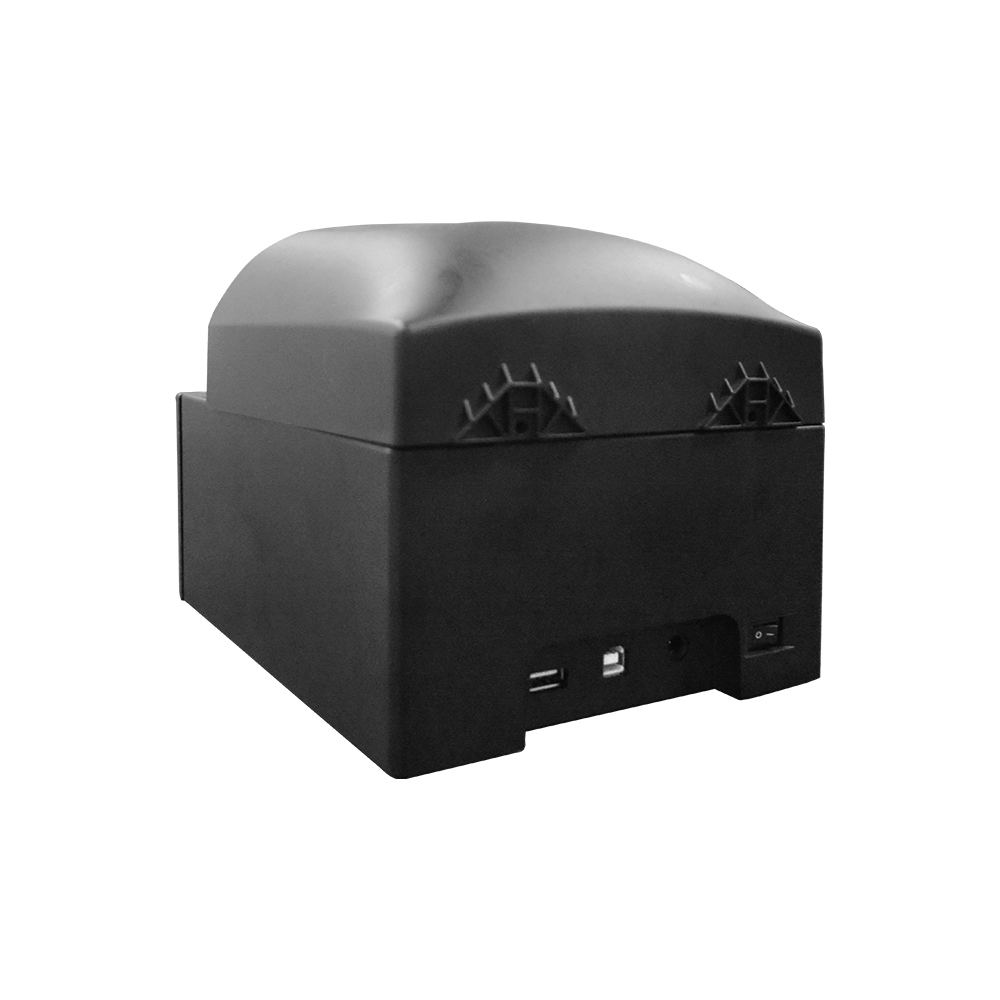

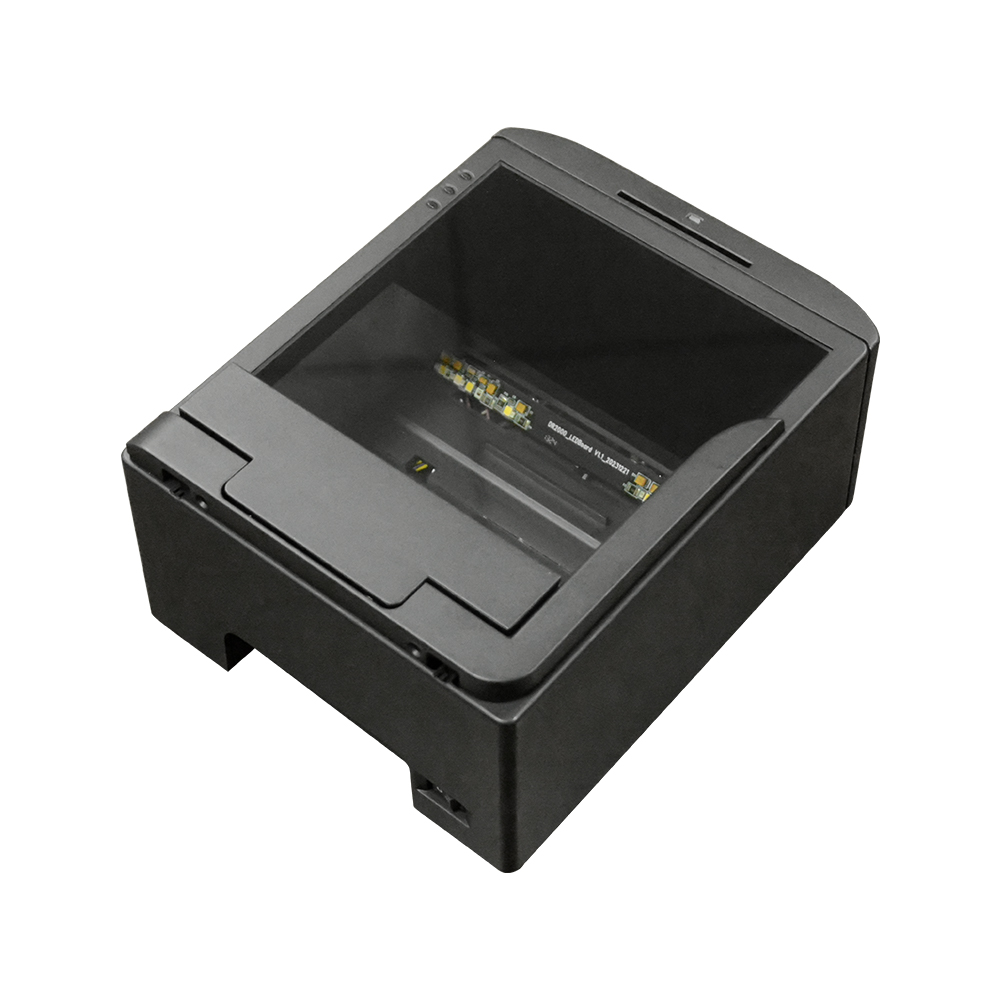

Product Show
|
Specification
Reading Capability | ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4 |
ISO 14443 Type A and B and C contactless ICs at 13.56MHz Passports, e-Passports, ID cards, visas, etc. | |
Illuminations | Near IR B900, 860nm |
White visible, 430-680nm | |
UV A 365nm | |
Resolution | Sensor: 3.1 Megapixels, CMOS, RGB 24 bit color system |
Standard 400 DPI image resolution | |
E-Passport (RFID) | ISO 14443 Type-A and B and C using a PC/SC interface |
E-Passport support for ICAO 9303 LDS and PKI using included SDK | |
All standardized rates, up to 848 Kbps, read-out times depend on RFID tag, operating system and amount of data stored in the chip | |
PC/SC interface provides support to other card types such as Mifare™ | |
Minimum PC Specification | Windows: 2.0 GHz Intel Core i3, 2 GB RAM, 100 GB of Hard Drive Android: CPU 4 core, 1.6G or better, RAM 2G or better |
Supported Operating Systems | Windows 7/8/10/11 |
Android 4.4.4 and higher | |
Linux (Recompile SDK according to computer parameters) | |
Linux (Recompile SDK according to computer parameters) | Red - Read Error LED Blue - Ready LED Green - Reading LED The reader performs a power-up self-test and indicate failure using status LEDs. |
Maximum flexibility in Systems Integration | Software development kit provides easy migration to new reader; includes demos, code samples and utilities |
Firmware Upgrade | Upgradeable firmware via USB 2.0 interface Configurable via USB 2.0 interface Non-volatile configuration |
Standard Dimensions | Length: 21.2 cm Width: 16.3 cm Height: 9.5cm (without light shield) Net Weight: < 1.3 kg Gross Weight: < 2.3 kg Packing size: 37 * 26 * 25 cm |
User Feedback | Light: programmable multicolor LEDs Sound: buzzer output with reading finish |
Operating Environment | Humidity: 20 to 95% (R.H. non-condensing) Temperature: 0°C to 50°C operating; -20°C to 50°C storage |
Power | External 5VDC 2A Input voltage: 100-240VAC Frequency: 50-60Hz |
|
Other Functions
1.Comes with an IP50 rating for dust ingress protection;
2.Enables images to be accessed as BMP and JPG format;
3.Auto-triggering of document capture – presence of document is automatically detected;
| Applications
Government
Transportation
Retail
Financial
Hospitality
|
