AIR60U
HCCTG
|
Product Description
1）Its slim, modular design integrates optical Character Recognition(OCR), RFID/NFC, and contact smart card reading into a single device, enabling rapid capture of identity data from ICAO DOC 9303-compliant e-passports and ID cards..
2）An optional QR code scanner expands support for digital identity documents, making the AIR60U a versatile choice for a wide range of applications. With its compact size, and cost-efficient architecture, the AIR60U is well-suited for deployment in hotels, car rental counters, travel agencies, transportation terminals, and other high through put service environments.
3）By automating identity data capture, the AIR60U improves processing speed, reduces manual errors, and enhances customer experience—all while fitting seamlessly into kiosks, e-gates, or desktop setups.

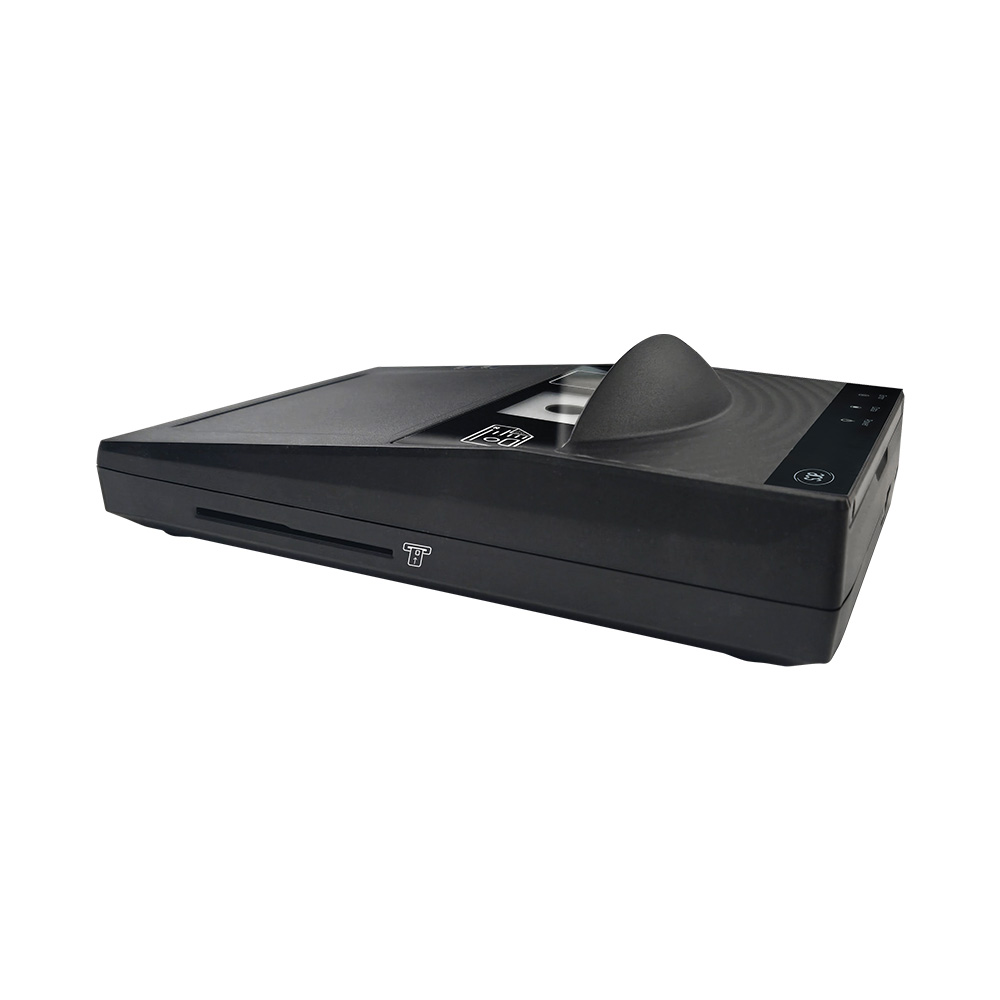

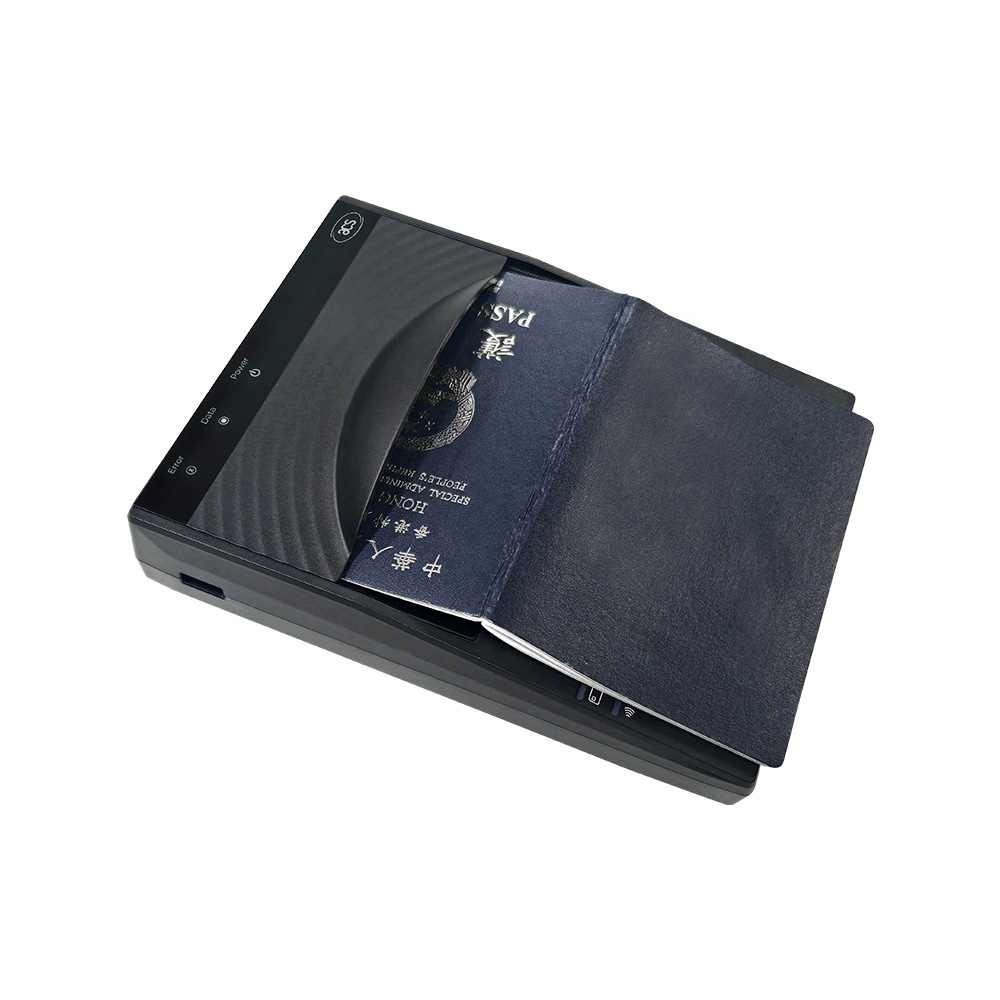

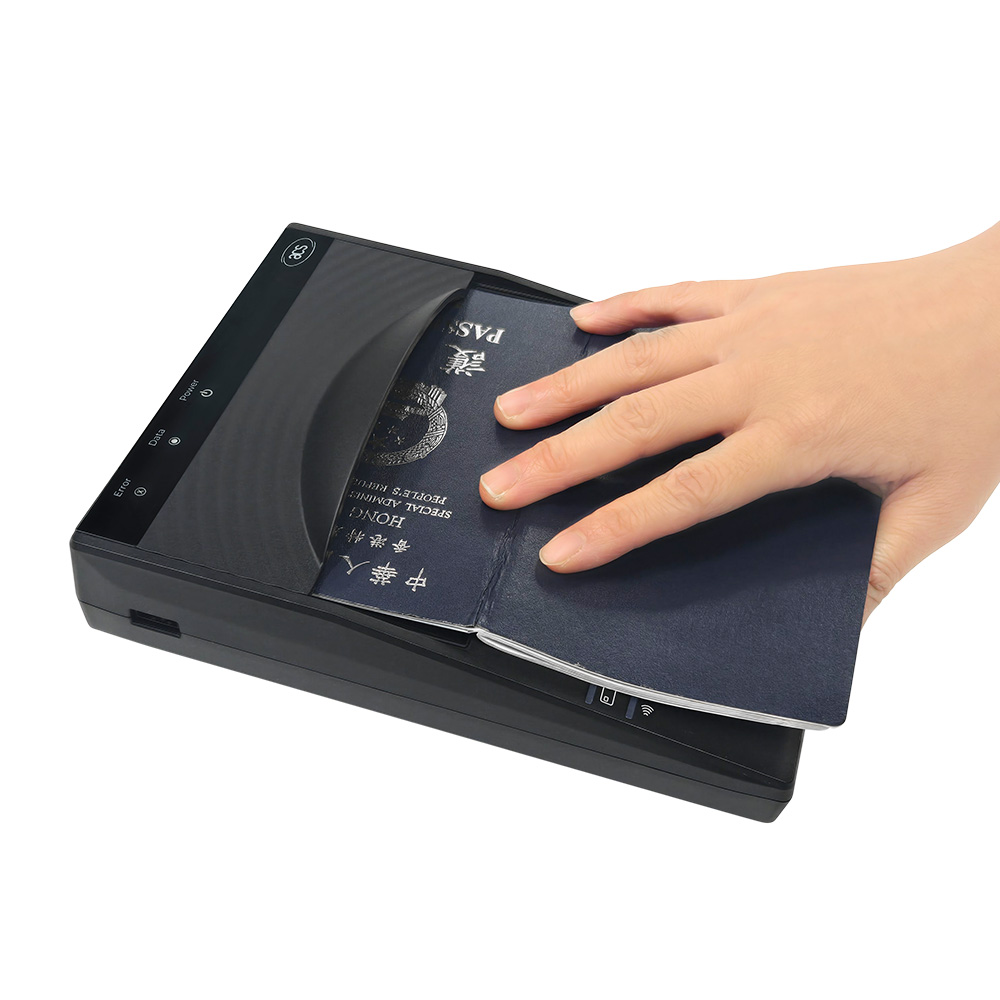

Product Show

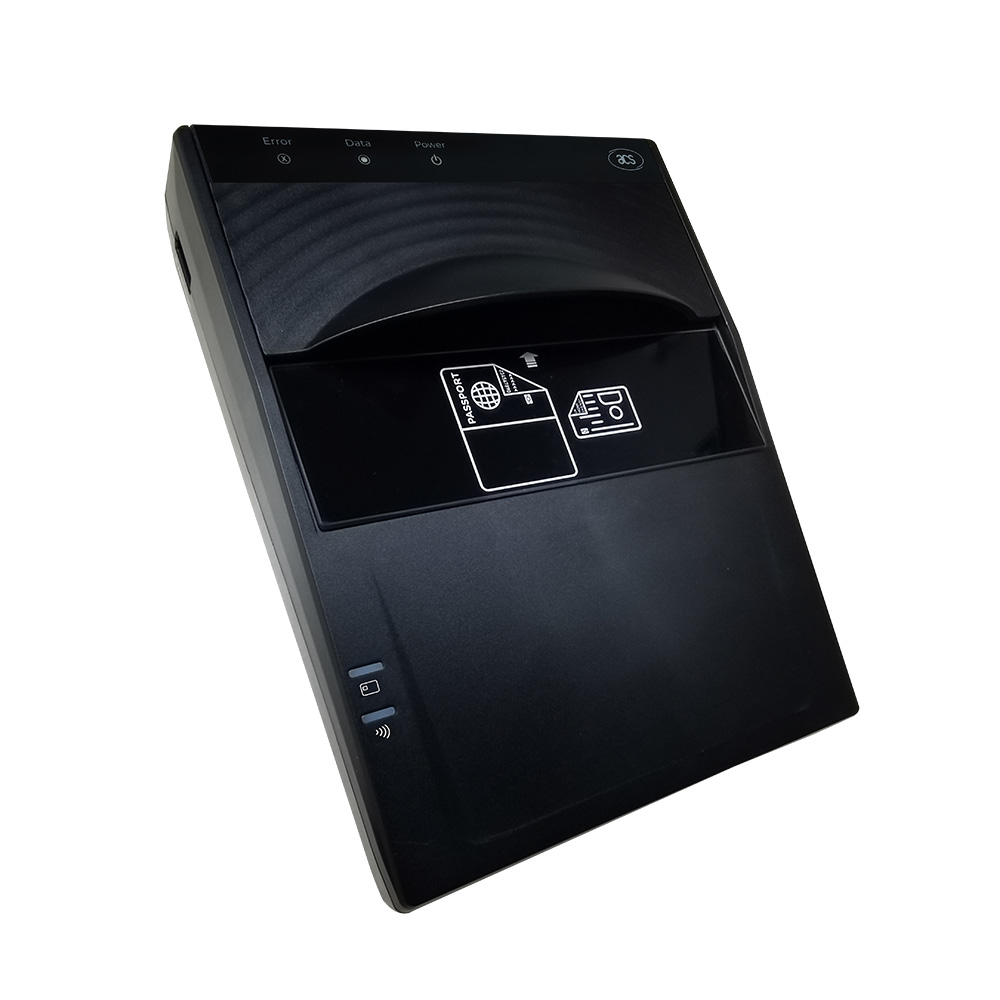

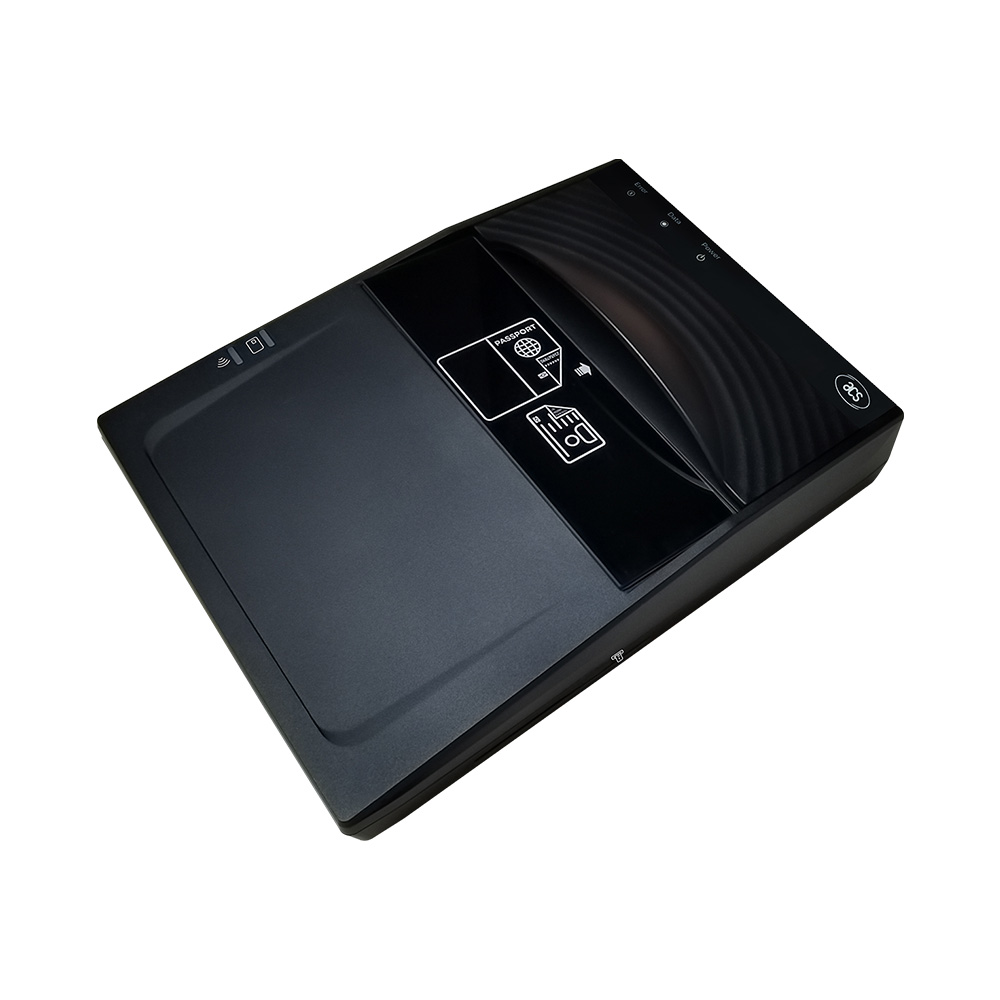

Without QR Code scanner

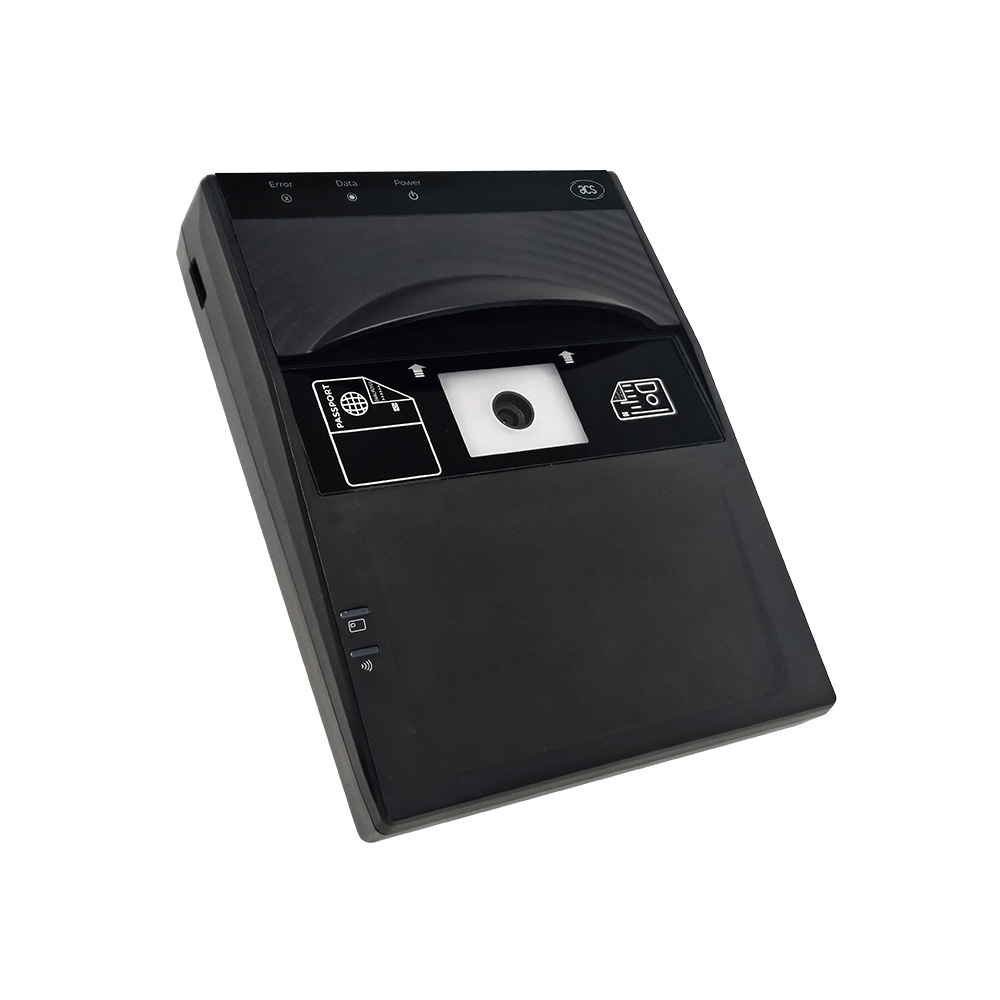

With QR Code scanner
|
Specifications
| MRZ Reading | |
| OCR Performance | ≤1 sec, 99.8% accuracy |
| ePassport Reading | |
| NFC Performance | ≤3 seconds (chip data, ICAO 9303 compliant) |
| Contactless Smart Card Interface | |
| Supported Card Types | ISO 14443 Type A & B Parts 1–4, ISO15693, MIFARE®, FeliCa, NFC, etc. |
| Operating Frequency | 13.56 MHz |
| Reading Distance | Reading Distance |
| Read/Write Speed | 106 / 212 / 424 / 848 kbps (ISO14443), 26 kbps (ISO15693) |
| Other NFC Features | Keyboard Emulation, Card Emulation |
| Contact Smart Card Interface | |
| Number of Slots | 1 full-sized card slot |
| Supported Card Types | ISO 7816 Class A, B, C (5V, 3V, 1.8V), memory cards, microprocessor cards (T=0, T=1) |
| Supply Current | Max. 60 mA |
| Read/Write Speed | 13.4 kbps – 1,250 kbps |
| Clock Frequency | 5 MHz, up to 10 MHz (upon request) |
| Card Insertion Cycles | Min. 300,000 |
| SAM Card Interface | |
| Number of Slots | 1 * ISO 7816 Class A (5V) Standard SIM size slot |
| Read/Write Speed | 13.4 kbps – 1,250 kbps |
| Clock Frequency | 5 MHz, up to 10 MHz (upon request) |
| Protocol | T=0, T=1 |
| QR Code & Barcode | |
| 1D | Code 39, Code 128, UPC-A/E, EAN/JAN-8/13, Interleaved 2 of 5, NEC 2 of 5, Straight 2 of 5, IATA, etc. |
| 2D | PDF417, QR Code, Data Matrix, MaxiCode, Aztec, etc. |
| Physical Characteristics | |
| Dimension (L * W * H) | 186.8 mm * 144.6 mm * 54.9 mm |
| Weight | 358 g (AIR60U-A1) 372 g (AIR60U-A2) |
| USB Cable length | 1 m (detachable) |
| Host Interface | |
| Protocol | USB |
| Connector Type | USB Type-C (power + data) |
| Speed | USB 2.0 full speed (12Mbps) |
| Supply Voltage | 5VDC |
| Current Consumption | 700mA (AIR60U-A1) , 1A (AIR60U-A2) |
| Expansion Port | 1 * USB Type-A |
| Firmware Upgrade | Supported |
| Peripherals | |
| LED | 5 * LED as operation indicators |
| Buzzer | 1 built-in buzzer |
| Operating Conditions | |
| Temperature | –10°C to +50°C |
| Humidity | Max. 95% (non-condensing) |
| Compliance | |
| Standards | ICAO DOC 9303, USB CCID, PC/SC |
| Regulatory / Environmental | CE, FCC, RoHS, REACH |
| Library & Tool | |
| Library | CT-API |
| Tool | Software Development Kit |
| Supported OS | Windows®, Linux® |
|
Features
Slim & Compact Design
Lightweight and space-saving form factor
Ideal for desktop use in hotel reception, office and kiosks integration
Fast & Accurate OCR
Captures MRZ data from passports/ID cards in under 1 second with up to 99.8% accuracy
High-Speed RFID Reading with Security
Automatic detection and reading of ISO 14443 Type A/B e-passports (≤3 seconds)
Supports ICAO security protocols: BAC, PA
Upon request: PACE, AA, EAC
ISO 14443 Read/write speed up to 848 Kbps
Multi-Mode Identity Capture
Combines OCR, RFID, contact card, and optional QR code technologies
Fully compliant with ICAO DOC 9303 standards for e-passports and ID cards
Clear LED Indicators
Bright LED lights show operational status and activity for intuitive user guidance
Flexible Connectivity & Integration
USB Type-C interface
USB expansion port for peripheral devices
Cross-Platform & Developer Friendly
Works with Windows® and Linux® systems
SDK available for integration
|
