Long Range Ticket Readers QR Scanner for Parking Embedded 2D Module HS-206H3

Name: Long Range Ticket Readers QR Scanner for Parking Embedded 2D Module HS-206H3
Brand: HCCTG
SKU: 595368107
Rating: 5.0 (37 reviews)

High performance ticket and contactless QR payment readers for parking pay stations, entry and exit control devices and ticket vending machines

Sensor:	CMOS
Resolution:	1280px * 800px
Floodlight:	White LED fill light
Prompt:	Beep , LED
Data Interface:	RS232,UART, USB
Availability:

Quantity:



Inquire Add to Basket

Model:
HS-206H3
Brand:
HCCTG

Product Description

|

Product Description

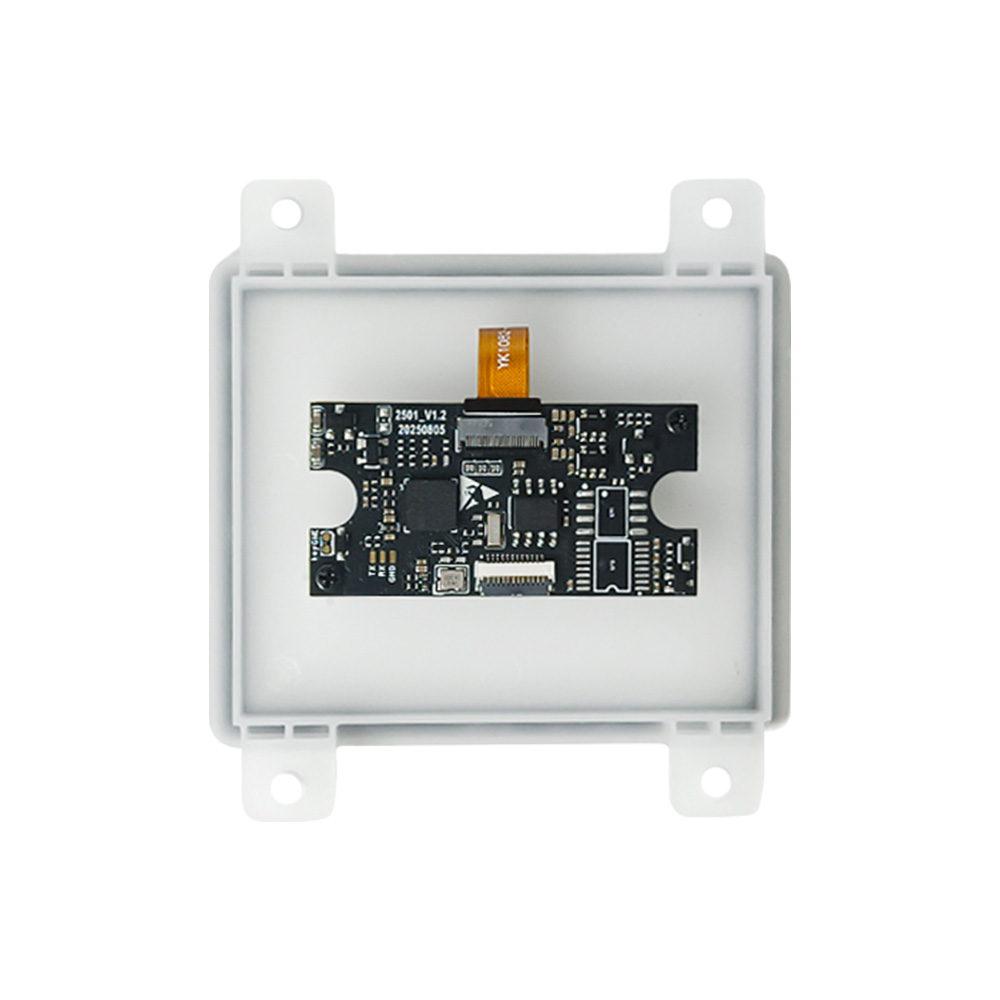

1）HS-206H3 is an embedded mega pixel 2D scanning code module developed based on the high performance decoding chip.
2）It can quickly identify all kinds of 1D codes and 2D codes, and has excellent barcode recognition ability on mobile phone screen.

3）Compact in size, it is suitable for use in all kinds of devices. Plug and play, simple and convenient to operate.

|

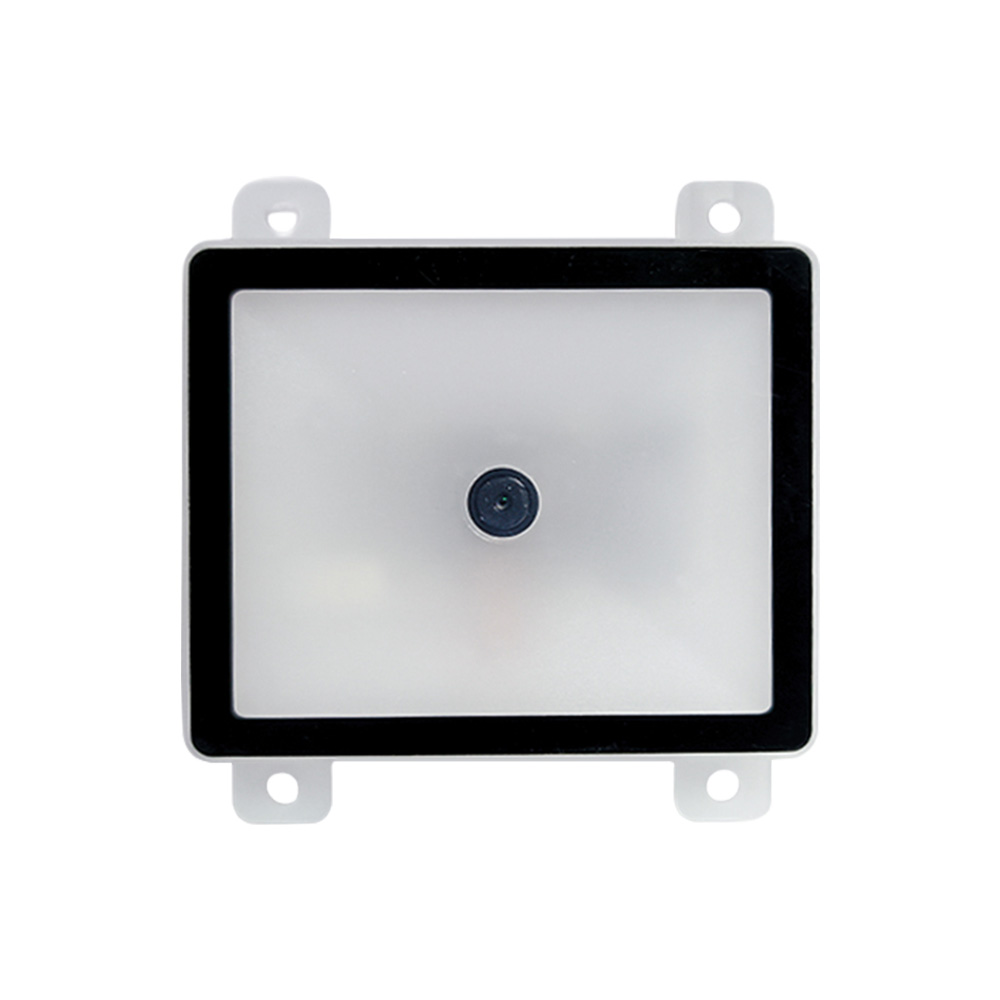

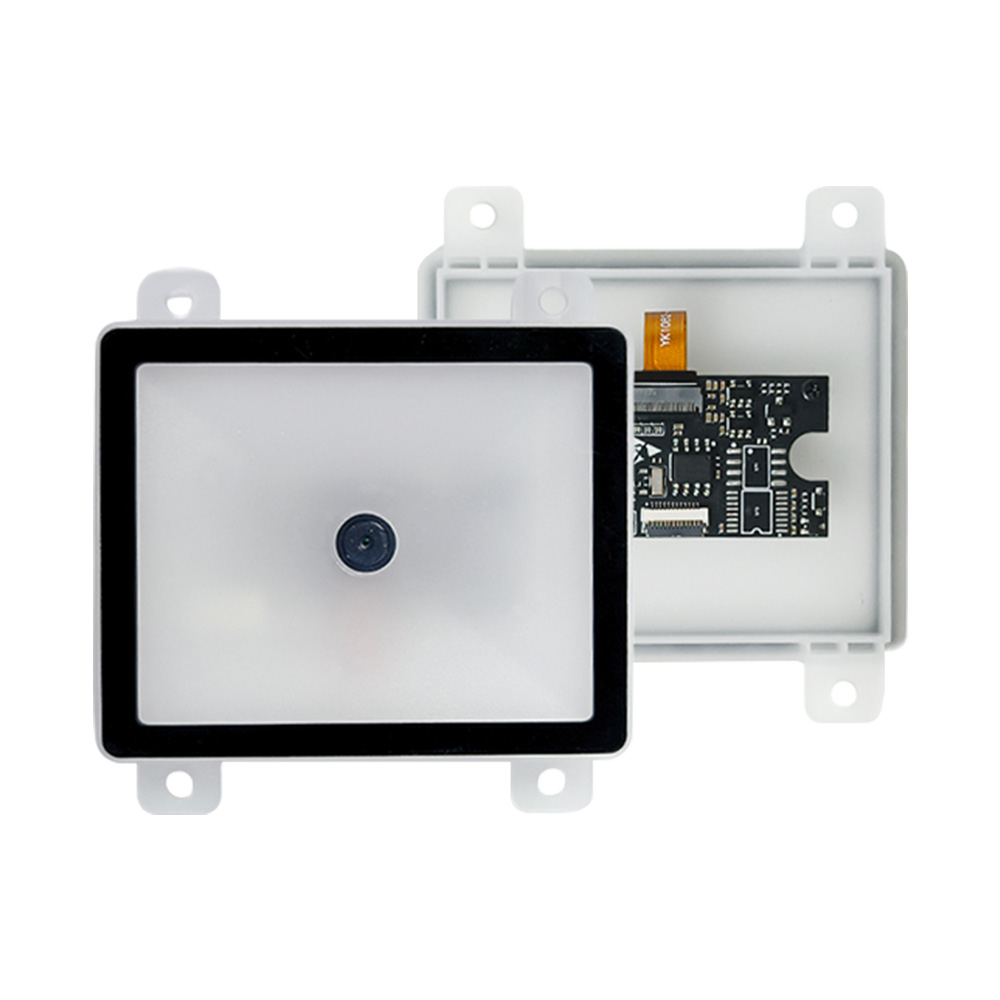

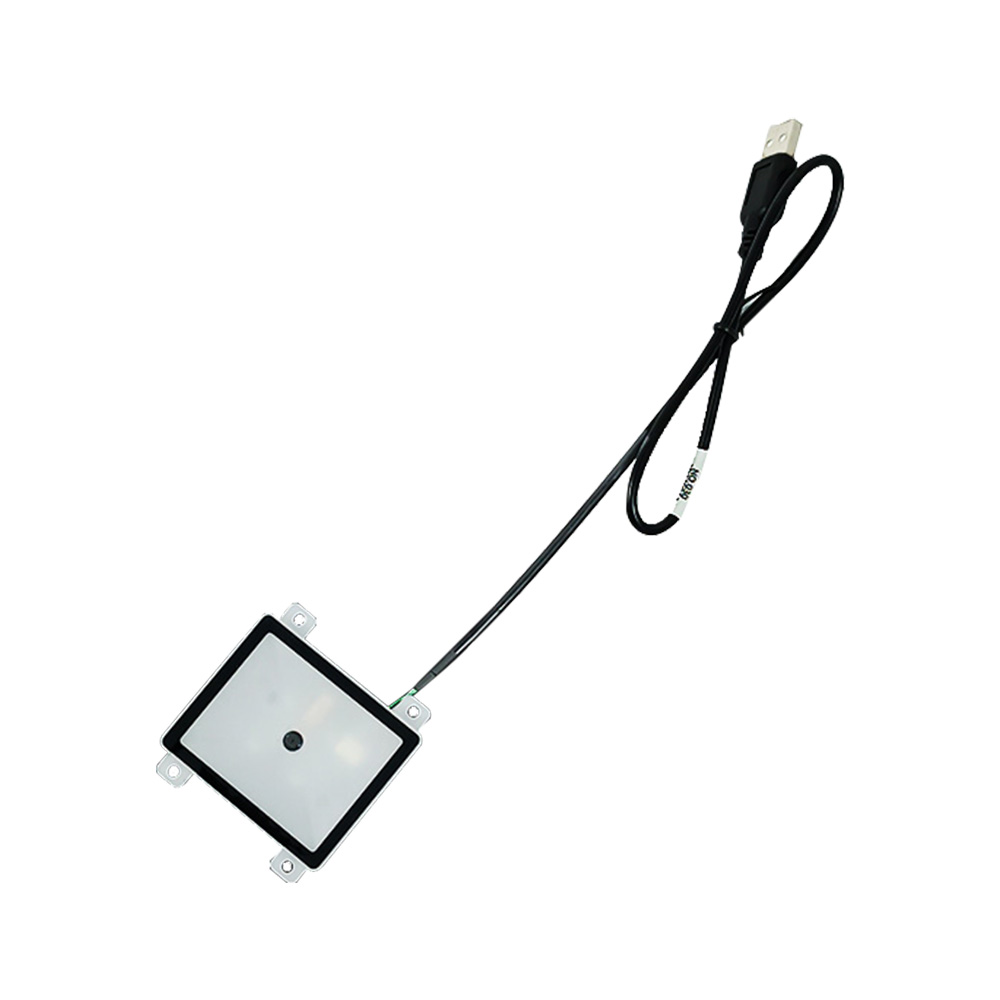

Product Show

|

Specifications

Model	HS-206H3 USB, HS-206H3 UART, HS-206H3 RS232
Performance Parameters
Sensor	CMOS
Resolution	1280px * 800px
Floodlight	White LED fill light
Symbologies	1D: Code128/AIM128/EAN128/NL128, UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93, Code 11, ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14, Industrial 25, Matrix 25, Japan Matrix 25/NEC 25, Standard 25, DataLogic 25, MSI-Plessey, Plessey, RSS-EXP/RSS_14/GS1 Data, Telepen 2D: AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code, Micro QR, Hanxin code, DOTCODE
Accuracy	≥3mil (EAN 13)
Contrast Ratio	≥20%
Rotation Sensitivity	Tilt: ±65° Rotation: 360° Yaw: ±55°
FOV	Level: 66.4° Vertical: 49.8° Diagonal: 83°
Scan Depth	EAN13: 5mil 50-90mm EAN13: 13mil 40-160mm QR code: 15mil 40-140mm QR code: 30mil 20-220mm
Prompt	Beep , LED

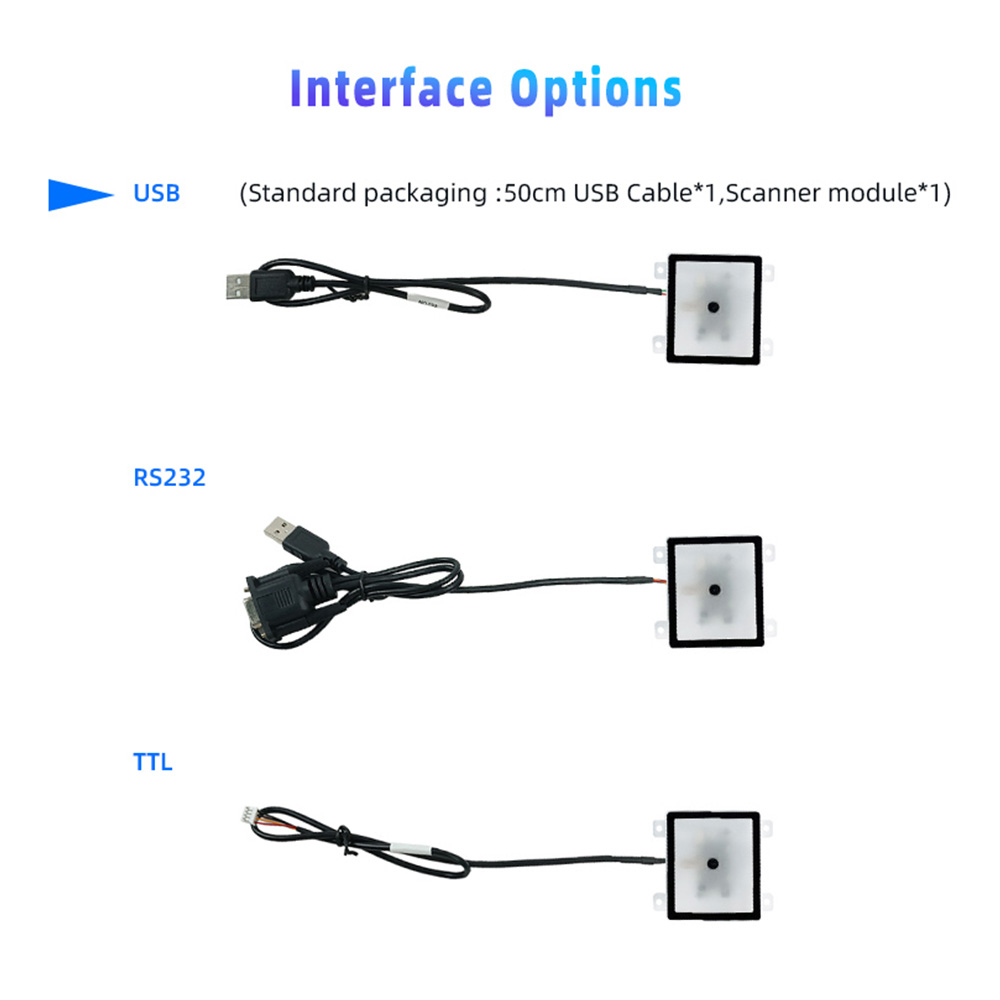

Data Interface	RS232,UART, USB
Electrical Parameters
Working Voltage	5V DC ± 10%, Optional 3.3V (12Pin * 0.5 mm FFC)
Working Current	Typical current 160mA±10mA (5V)
Environmental Parameters
Temperature	Working: 0℃ ~ +50℃ Storage: -20℃ ~ +60℃
Relative Humidity	5%~95% (RH)
Ambient Lighting	0~100,000 Lux
Physical Parameters
Size	61 * 65 * 11 mm
Weight	10.6 g (only module)
