Product Description
1）Z80-UPT is powered by Android 13 and Driven by a Cortex-A53 Processor with a Dedicated Secure Encryption Core;
2）Equipped with a 4-inch Touch Screen, It Supports Bluetooth, 4G, and Wi-Fi Connectivity;
3）The Device Boasts an IP65 Rating for Dust and Water Resistance and IK10 Mechanical Impact Protection, Making it Suitable for Applications in Self-service Supermarkets, Healthcare, and other Unattended Environments;
4）The primary characteristic is a small footprint, enabling installation in tight spaces where traditional point-of-sale (POS) systems would not fit.
|

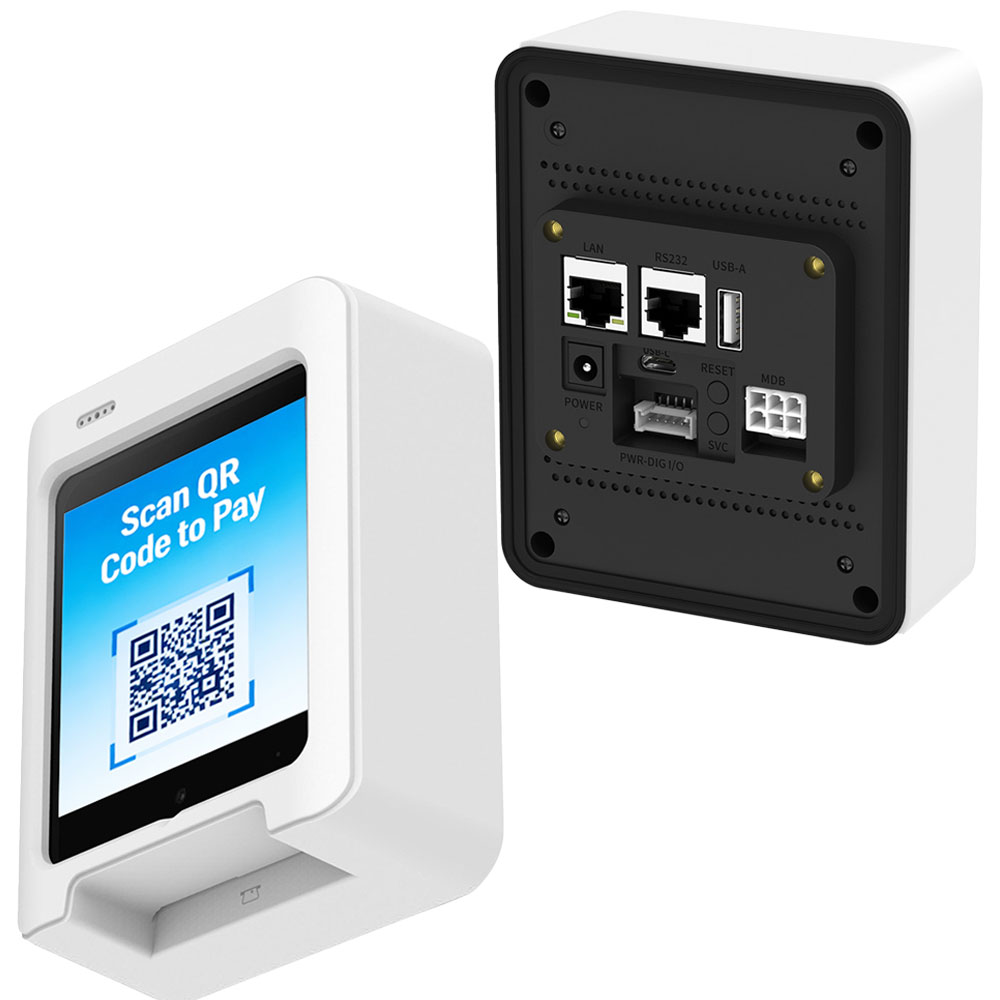

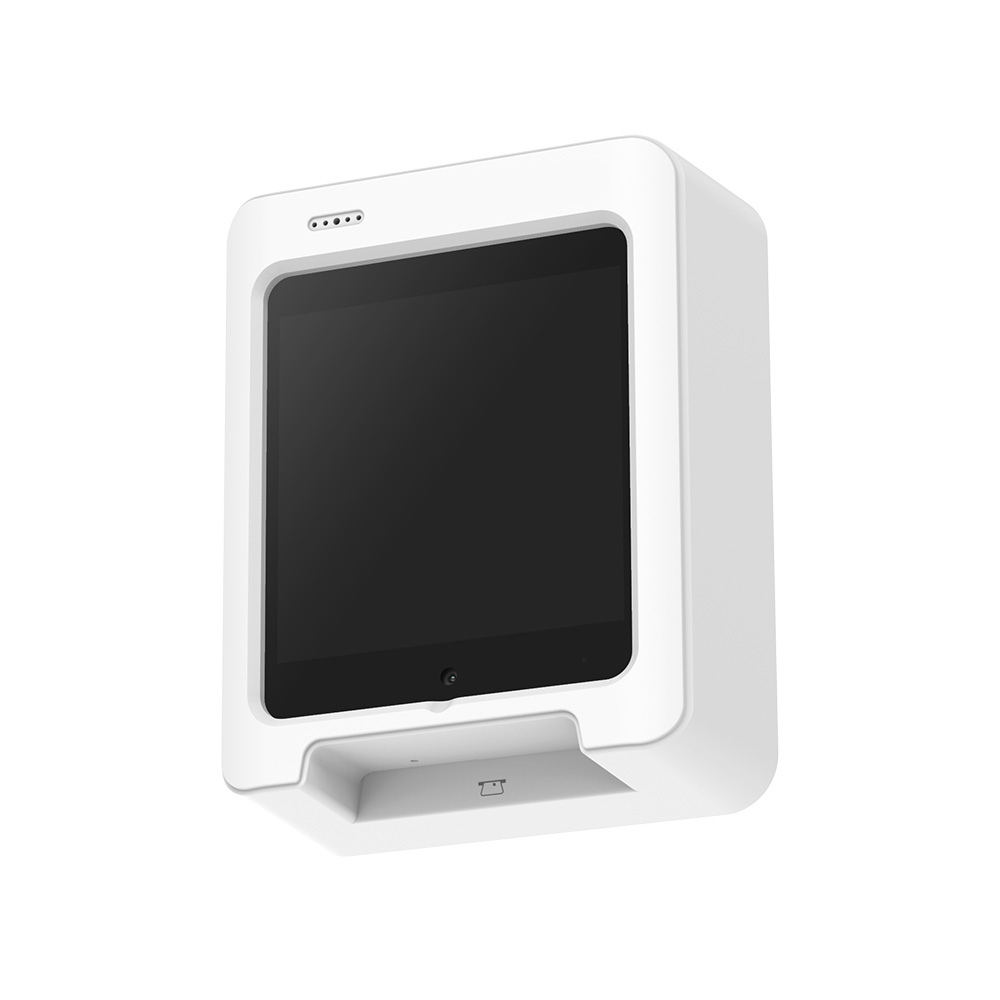

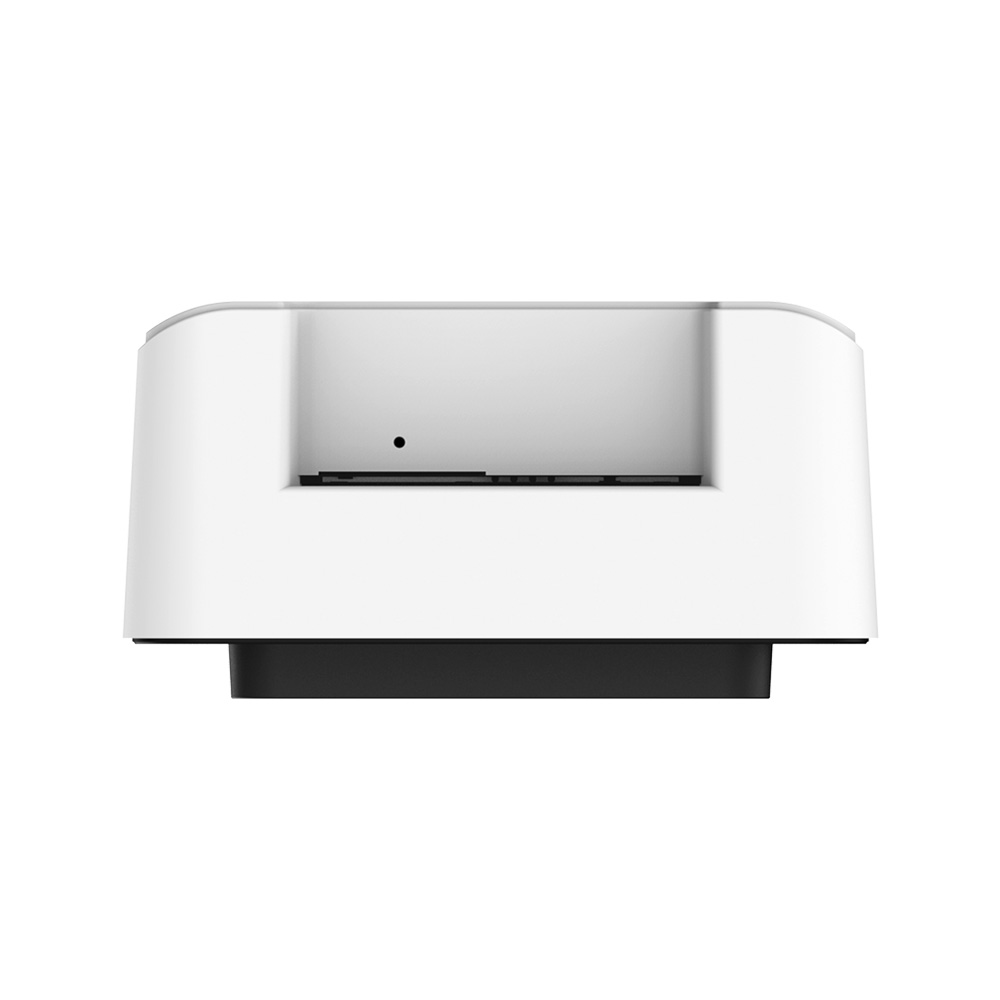

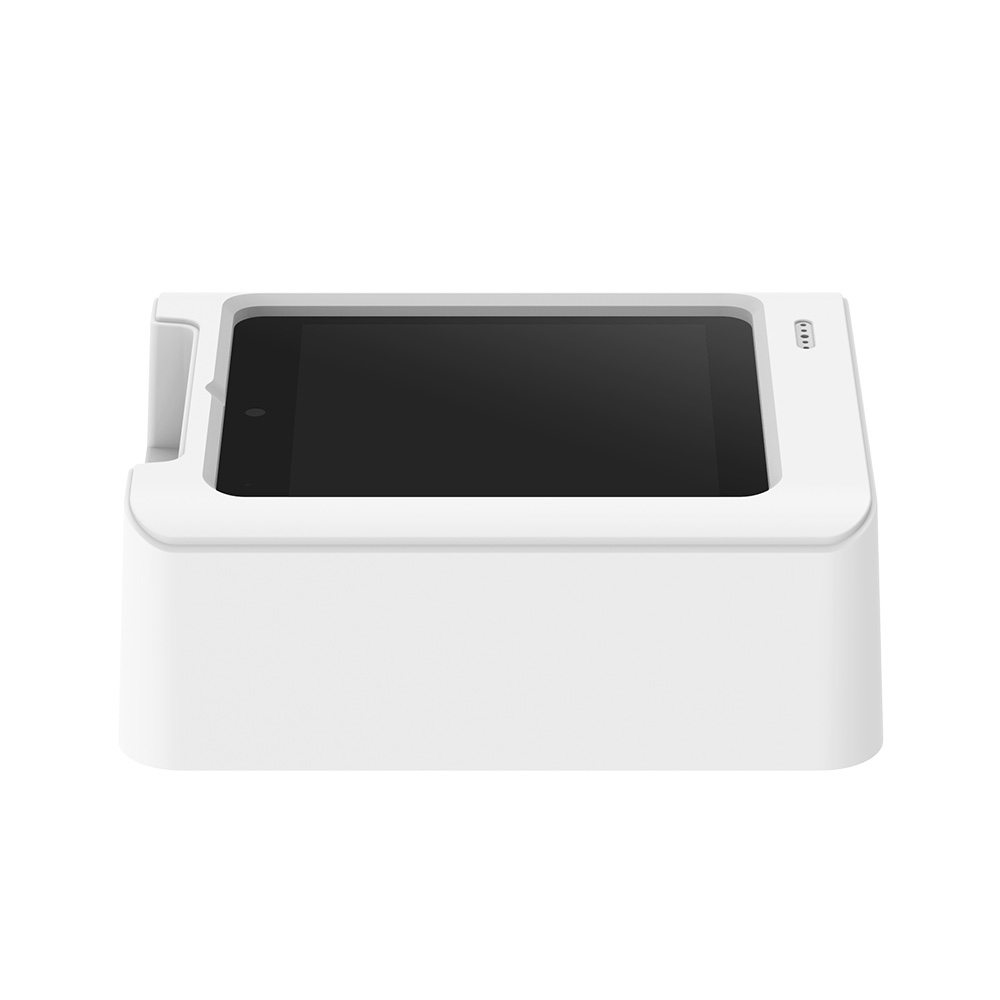

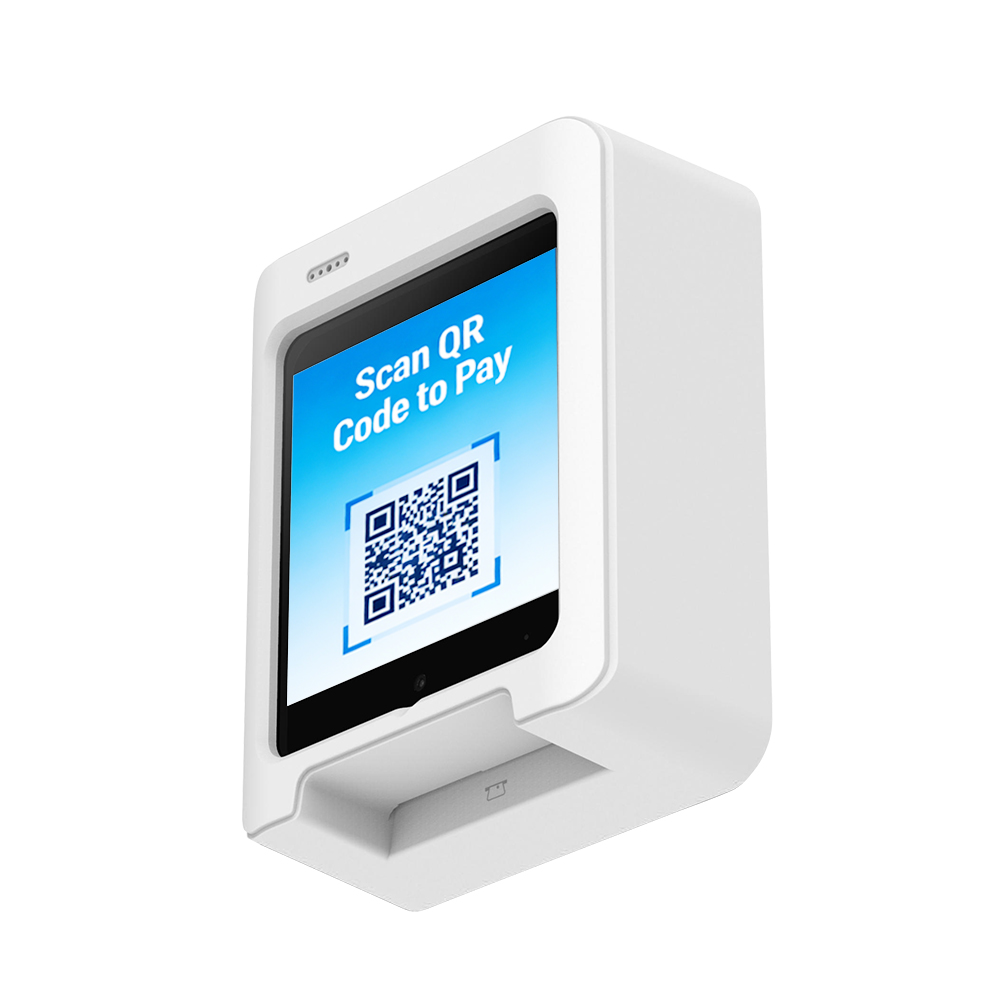

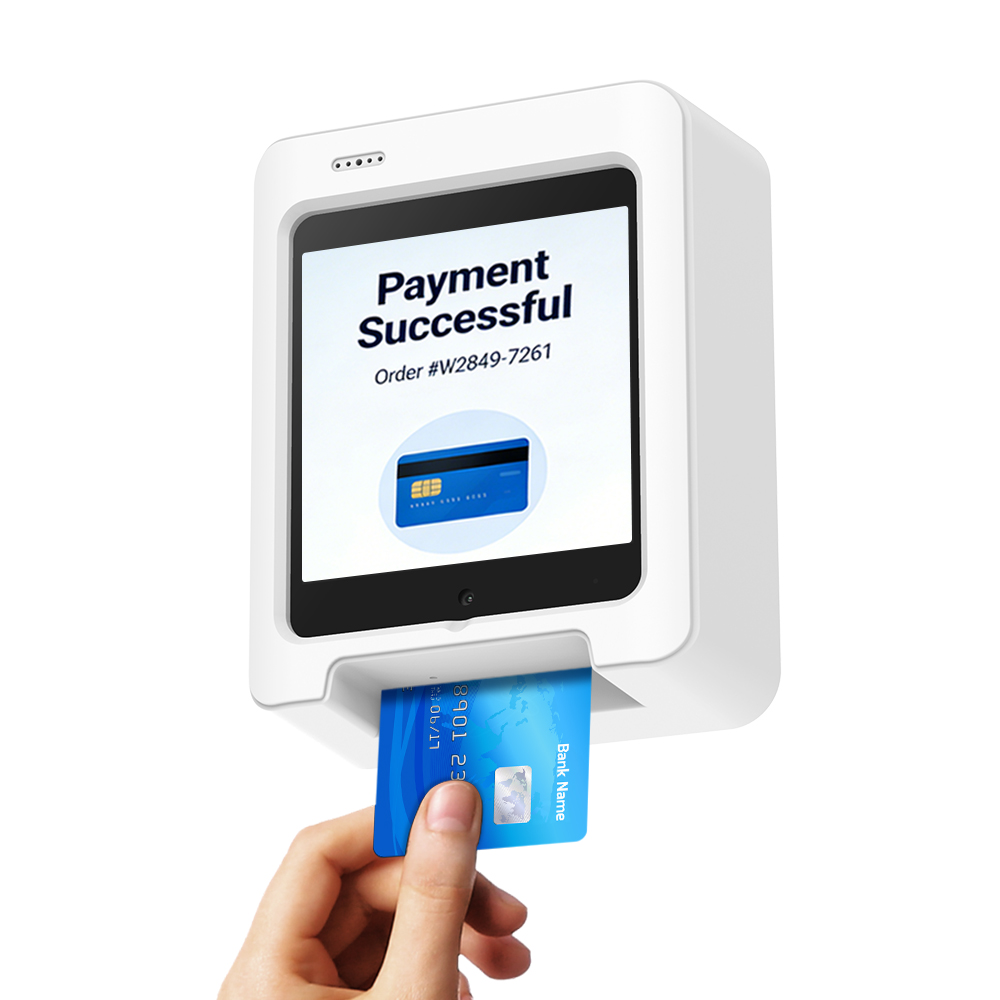

Product Show
|
Specifications
| Basic Characteristics |
| OS | Android 13 |
| Application Processor | ARM Cortex-A53, 2.0GHz |
| Crypto Processor | ARMv7-M security core, 144MHZ |
| Memory | 1GB RAM+8GB Flash, optional 2GB RAM+32GB FLASH |
| Display | 4-inch 480 * 480 IPS, capacitive multi-touch screen |
| Wireless Communication | NetWork4G/3G/2G Bluetooth 5.0 (BR/EDR + LE) WIFI 2.4&5 GHz 802.11 a/b/g/n/ac |
| Positioning | GPS / GLONASS / BDS / Galileo |
| Payment |
| Smart Card Reader | EMV L1/L2, conforming to ISO 7816, 1.8V/3V/, synchronous & asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B Mifare, Felica, Type4 Tag |
| Expansion and Peripherals |
| Camera | 2MP FF Front Camera |
| Audio | 1 * Speaker (1.5W) |
| Keypad | 1 * Reset 1 * Function |
| Indicators | 1 * Led |

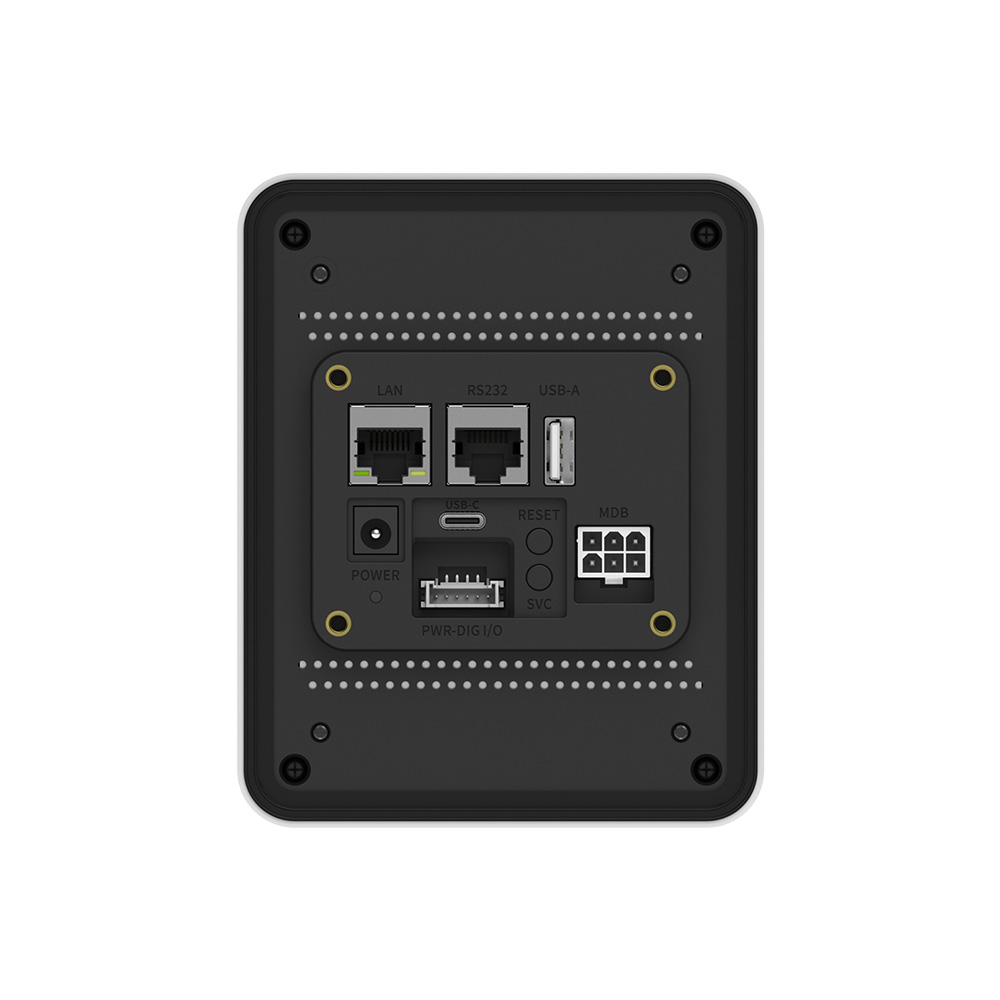

| Peripheral Ports | 1 * LAN (RJ45) 1 * RS232 (RJ45) 1 * MDB Slave 1 * USB Type-A (USB HOST) 1 *USB Type-C (USB Save) 6 * Digital I/O (2 * IN, 2 * OUT, PWR, GND) |
| Card Slots | 2 * SIM (NANO), eSlM (optional) |
| Power Supply | 7 to 48vDC (digital I/O) 7 to 48VDC (MDB Slave) 12 to 48 VDC(RS232) 12 VDC (RDC Port) |
| Environmental | Operating Temperature: -20°C~70°C(-4°F~158°F) Storage Temperature: -30°C~70°C(-4°F~158°F) Relative Humidity: 5%~95%, Non-condensing |
| Certificate | IK10 IP65 |
|
Application
Public House
Banking House
Healthy Care
Self-service Supermarket
Fresh Market
-
