Product Description
1）The Z80 POS Terminal is powered by the Android 13 operating system, delivering an open architecture and enhanced system stability. It offers extensive compatibility with third-party applications and supports flexible functional expansion, enabling tailored payment solutions for diverse business scenarios;
2）Z80 leverages a 2.0 GHz ARM Cortex-A53 application processor and a 144 MHz ARMV7-M crypto processor, enabling both high performance and robust data security;
3）This dual-core architecture ensures seamless transactions, rapid response times, and secure handling of sensitive business data
|
Product Show
|
Comment & FAQ
✅ Android 13 OS – Open platform for custom app deployment and effortless system integration

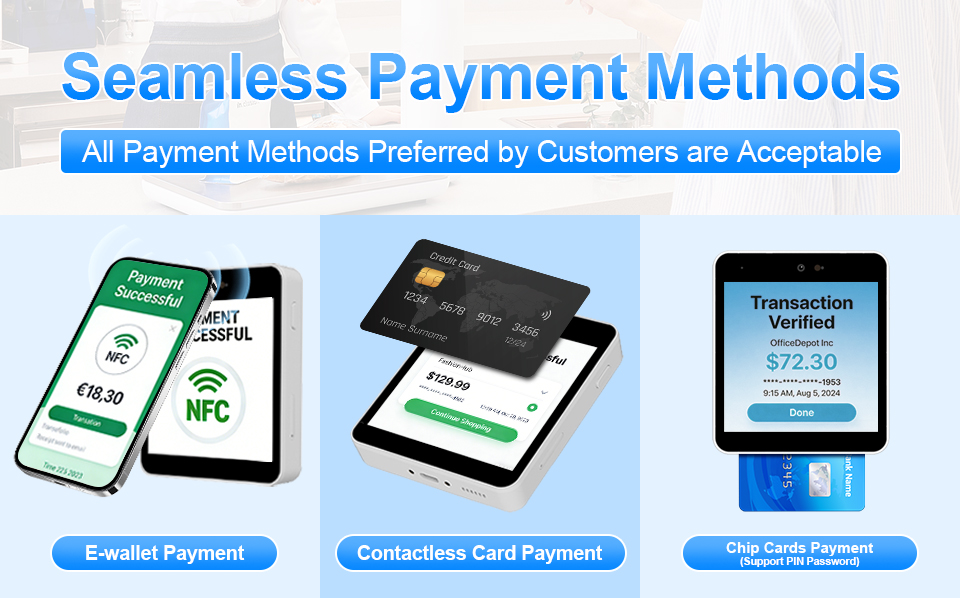

✅ Dual Payment Reading – EMV L1/L2 chip & PIN + NFC contactless support (ISO 14443 A/B)
✅ Multi-Network Connectivity – 4G, dual-band Wi-Fi, and Bluetooth 5.0 for uninterrupted operations
✅ Compact and Mobile – Lightweight (177.5g) with 4” IPS touchscreen, ideal for on-the-go payments
✅ Expandable Options – Front camera, sensors, and dual SIM slots for tailored functionality
✅ Global Compliance Ready – EMV certified and supports major positioning systems (GPS, GLONASS, BDS)
|
Specifications
Basic Characteristics |
OS | Android 13 |
Application Processor | ARM Cortex-A53, 2.0GHz |
Crypto Processor | ARMv7-M security core, 144MHZ |
Memory | 1GB RAM,8GB FLASH |

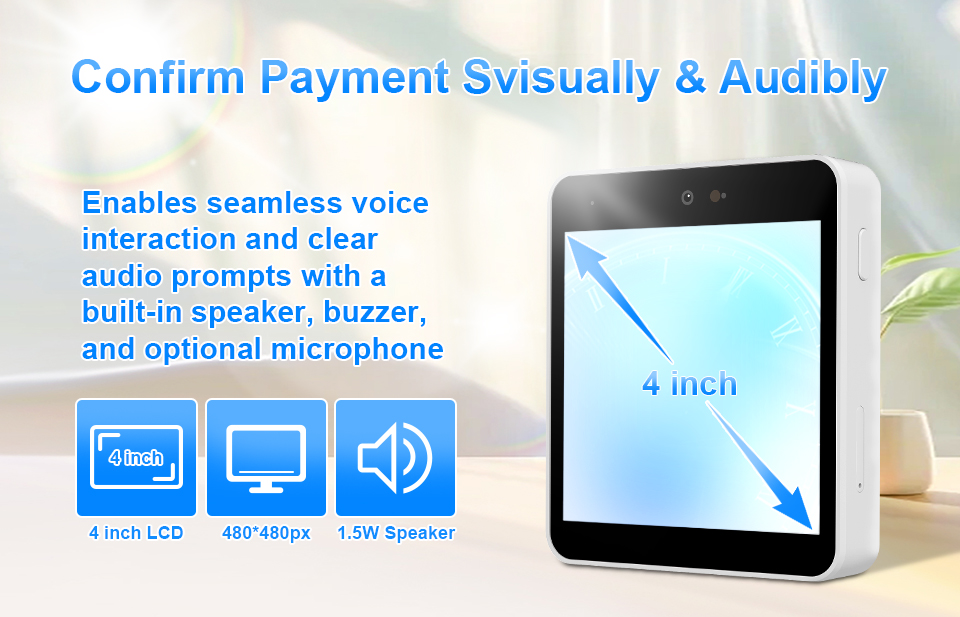

Display | 4-inch 480 * 480 IPS, capacitive multi-touch screen |
Wireless Communication | NetWork4G/3G/2G Bluetooth 5.0 (BR/EDR + LE) WIFI 2.4&5 GHz 802.11 a/b/g/n/ac |
Positioning | GPS / GLONASS / BDS / Galileo |
Payment |

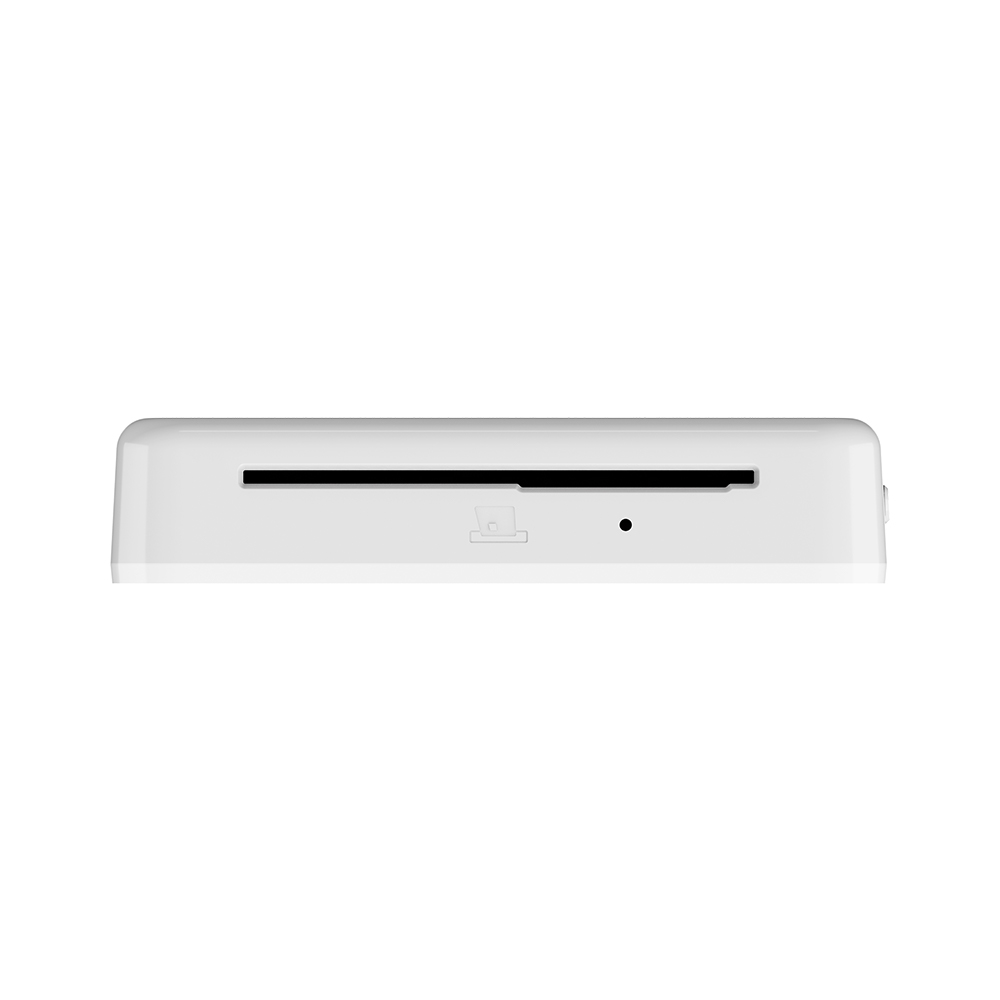

Smart Card Reader | EMV L1/L2, conforming to lSO 7816, 1.8V/3V/, synchronous & asynchronous, T=0 & T=1 |
Contactless Card Reader | EMV Contactless L1, conforming to lSO 14443 Type A/B, Mifare, Felica, Type4 Tag |
Expansion and Peripherals |

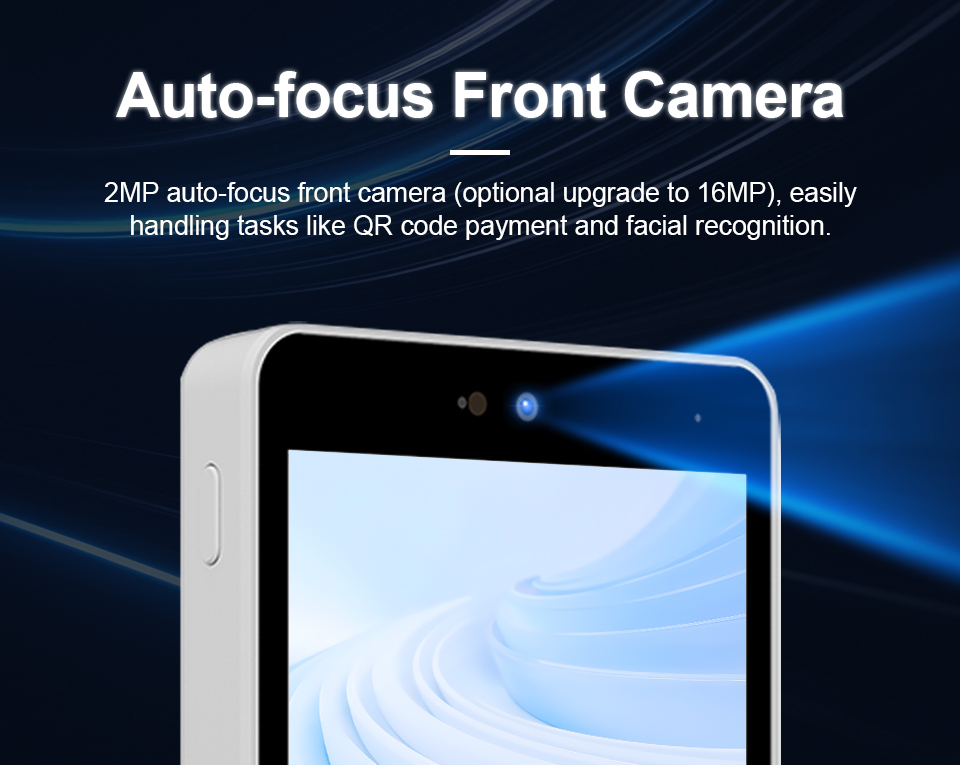

Camera | 2MP AF front camera, optional 16MP AF Front camera |
Audio | 1 * Speaker (1.5W) 1 * Microphone (optional) 1 * Built-in buzzer |

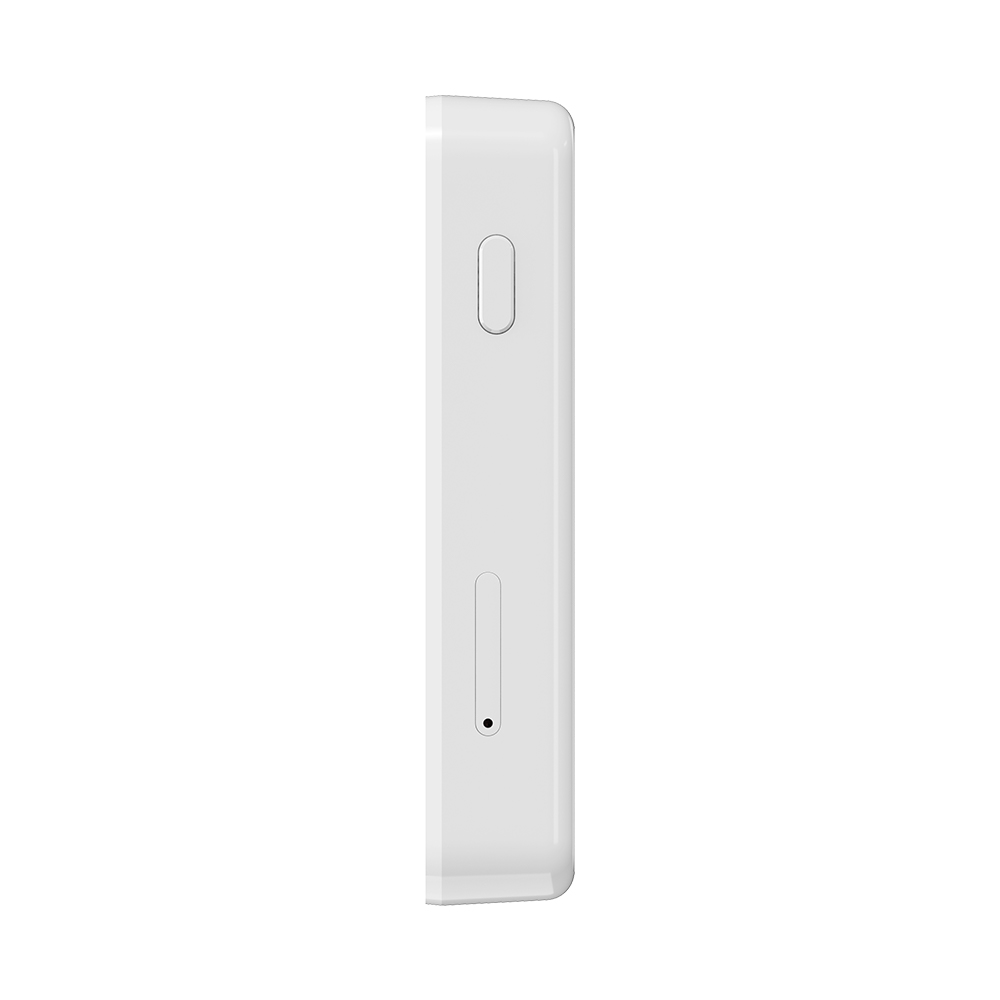

Keypad | 1 * Power Key |
Sensors | 1 * Gravity Sensor (optional) 1 * Proximity Sensor (optional) 1 * Light Sensor (optional) |
Indicators | 1 * Charging Light |

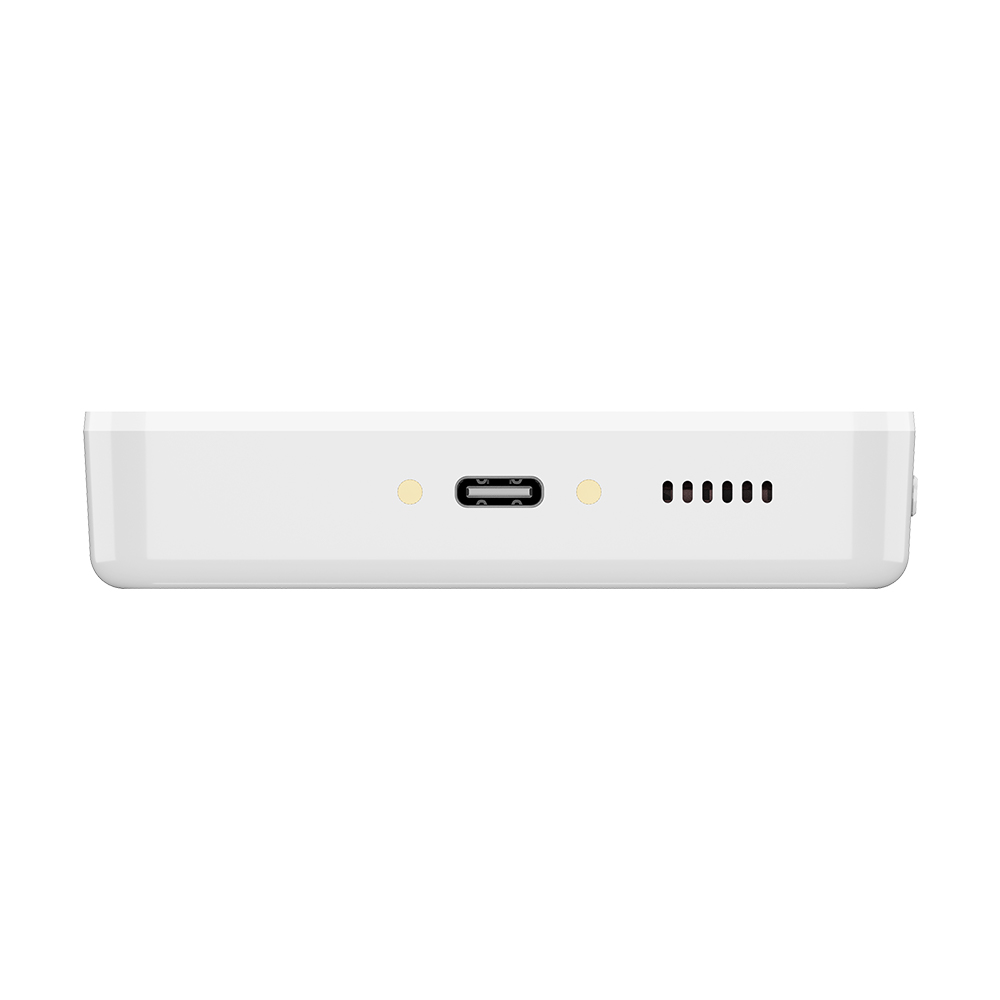

Peripheral Ports | 1 * USB Type c port, 2 * Pogo Pin |
Card Slots | 2 * SIM(NANO), eSlM (optional) |
Battery | 3.85V/1600mAh |
Power Supply | Input: 100-240V AC 50/60Hz,0.5A Output: 5.0V/1.0A |
