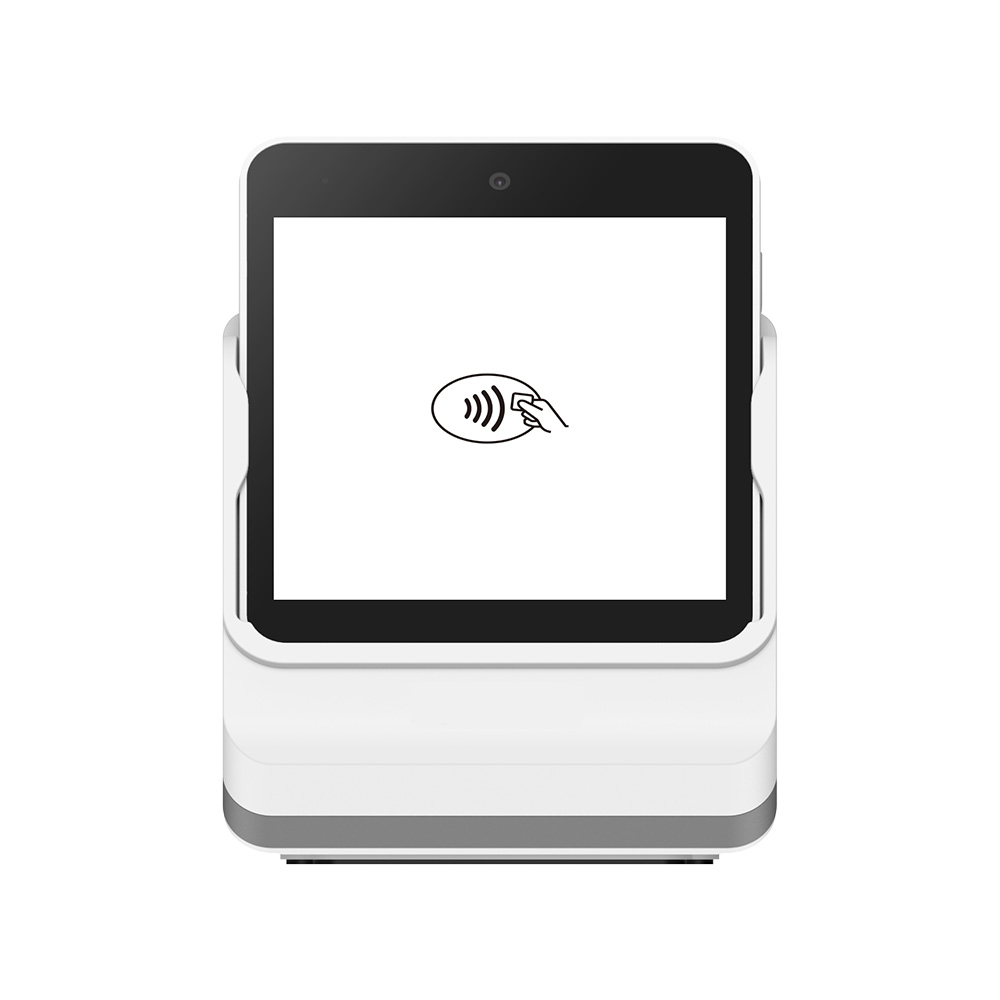

Z80-V5
HCCTG
|

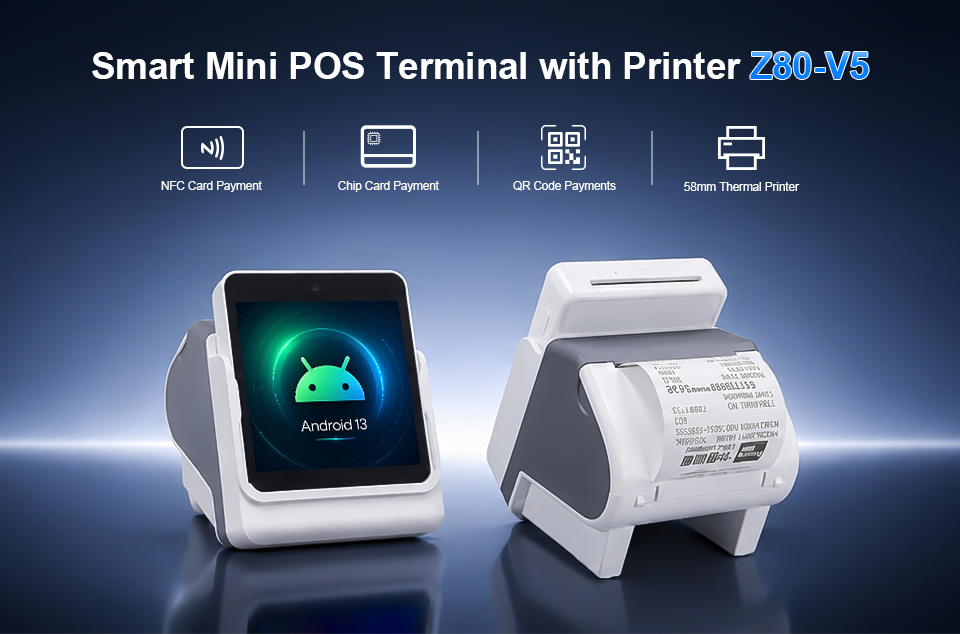

Product Description
1）The Z80-V5 POS Terminal is powered by the Android 13 operating system, delivering an open architecture and enhanced system stability;
2）Z80-V5 Handheld POS terminals are equipped with several features that allow staff to process transactions away from a fixed register;
3）Staff can carry the device to a customer's location—such as a dining table, fitting room, or festival booth—to take orders and process sales;

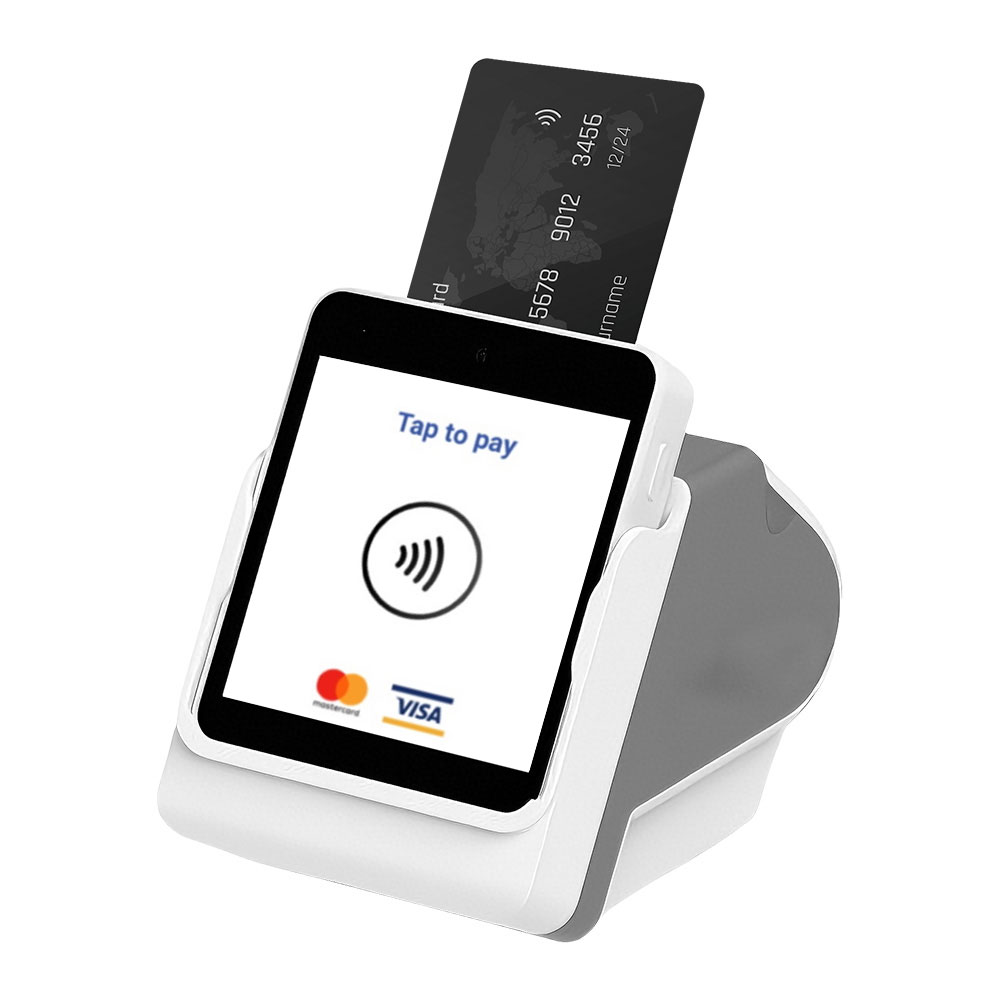

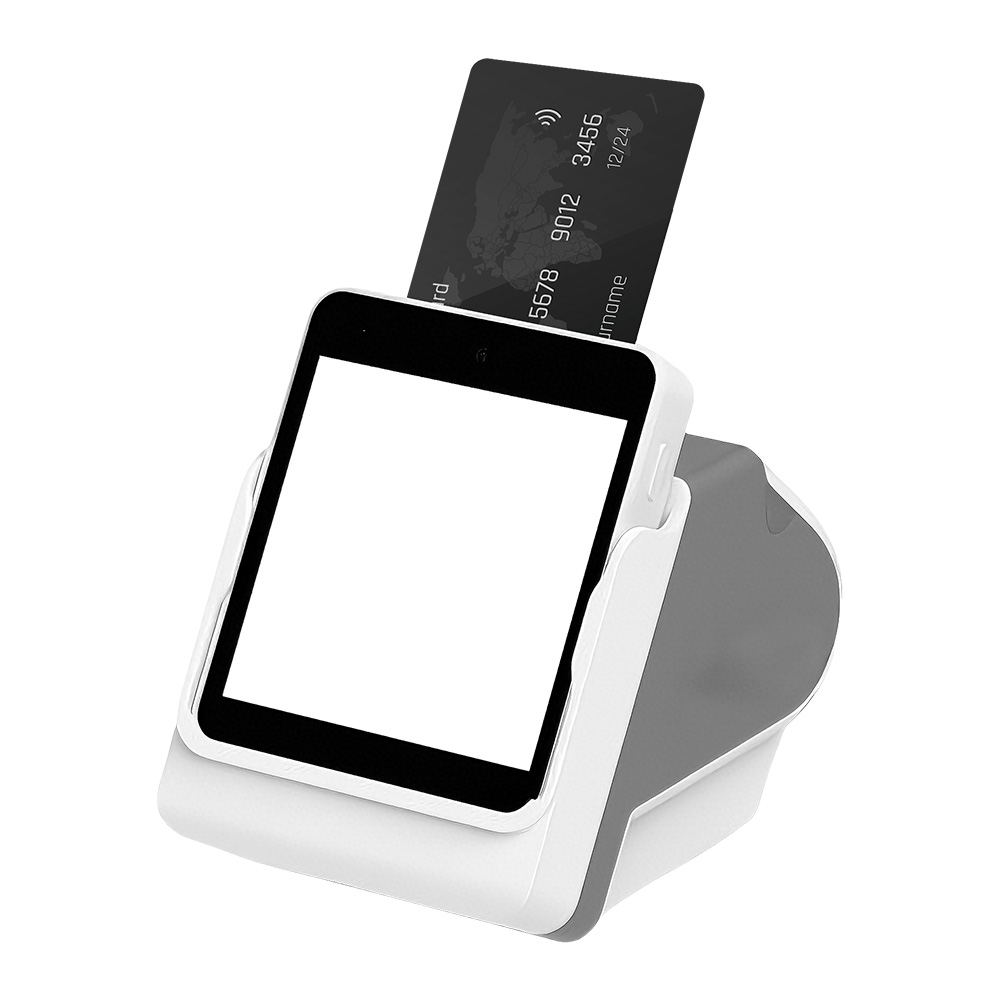

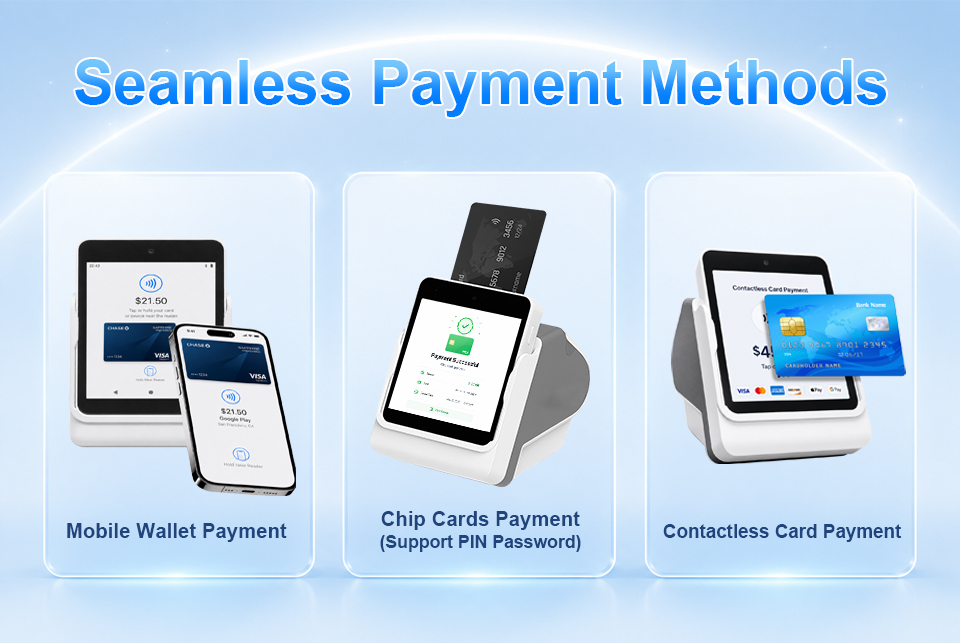

3）Payment is processed instantly using an integrated card reader that accepts EMV chip cards, contactless (NFC) payments, and mobile wallets
|
Product Show
EMV L1/L2, conforming to lSO 7816, 1.8V/3V/, synchronous & asynchronous, T=0 & T=1
EMV Contactless L1, conforming to ISO 14443 Type A/B Mifare, Felica, Type4 Tag

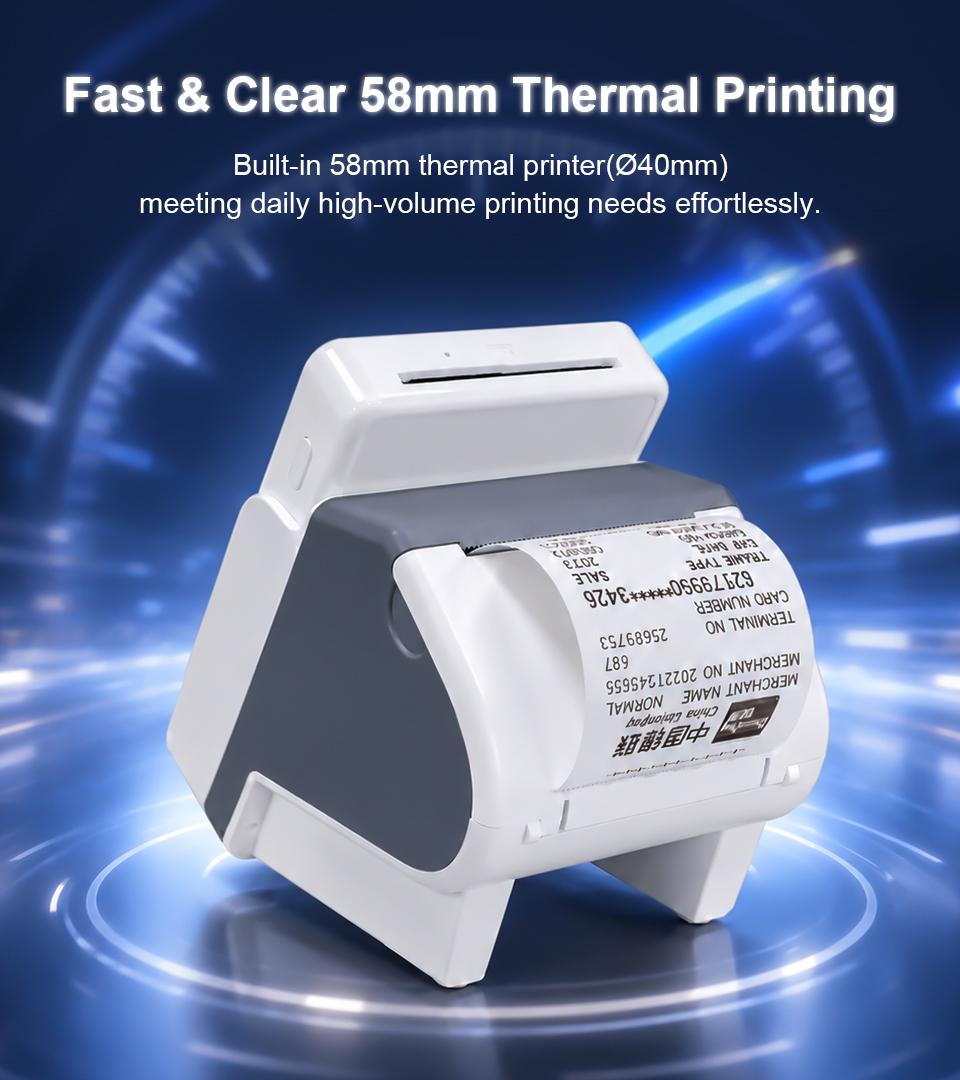

High-speed 58mm thermal printer
Paper roll diameter: 40mm Paper
|

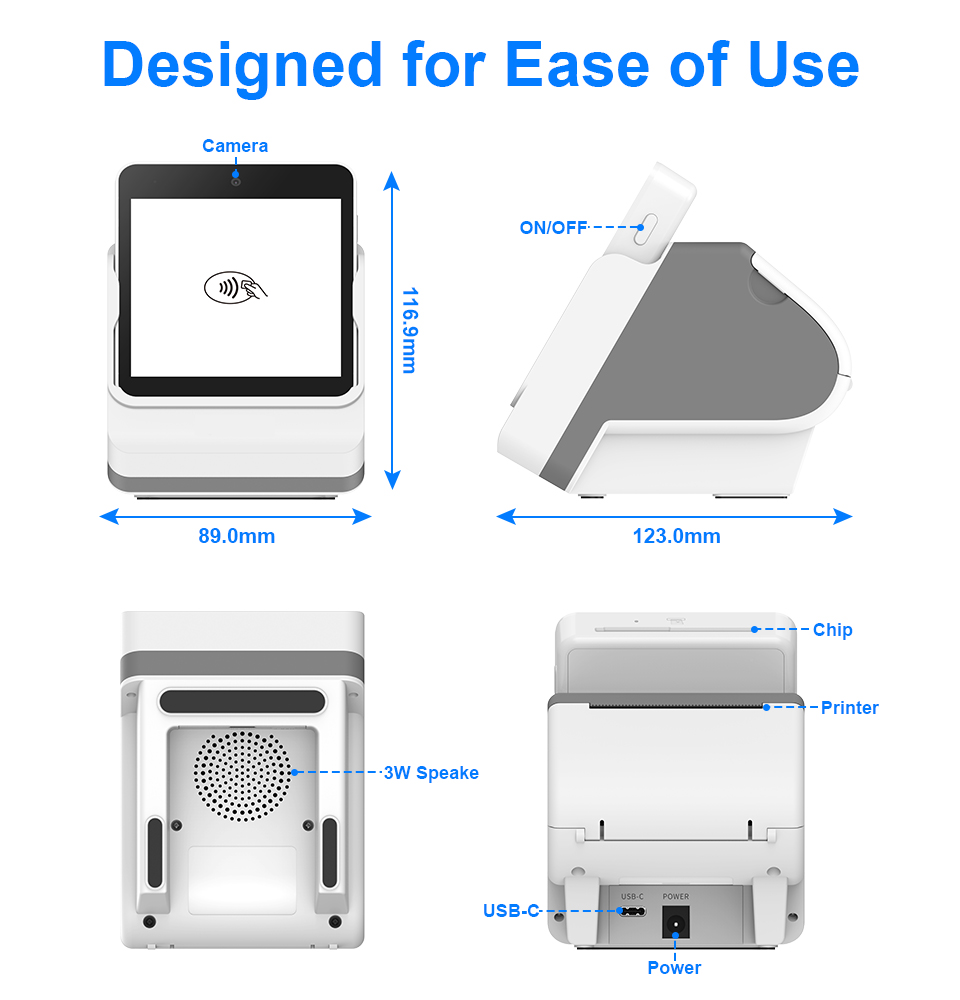

Specifications
| Multi-function Cradle | |
| Indicators | 1 * Led |
| Printer | High-speed thermal printer Paper roll diameter: 40mm Paper Width: 58mm |

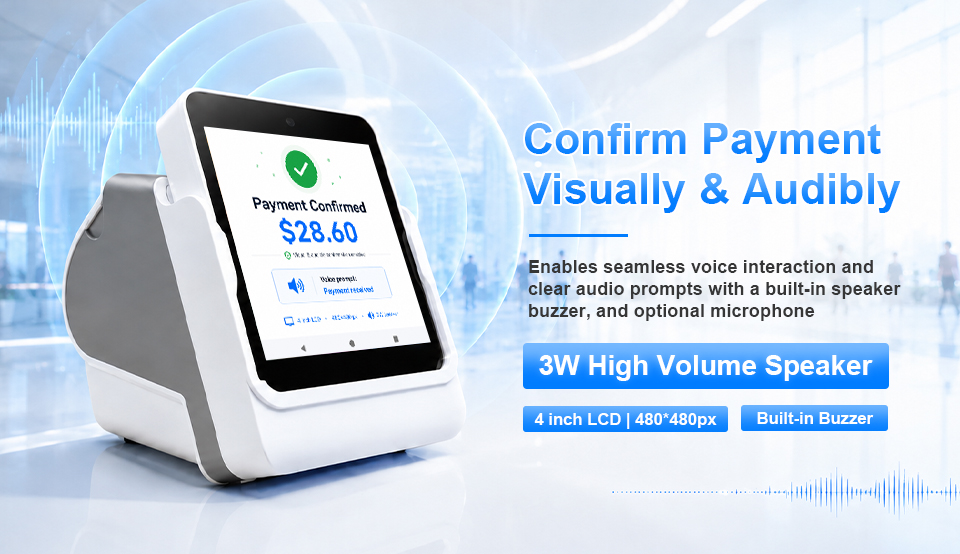

| Audio | 3W Speaker |

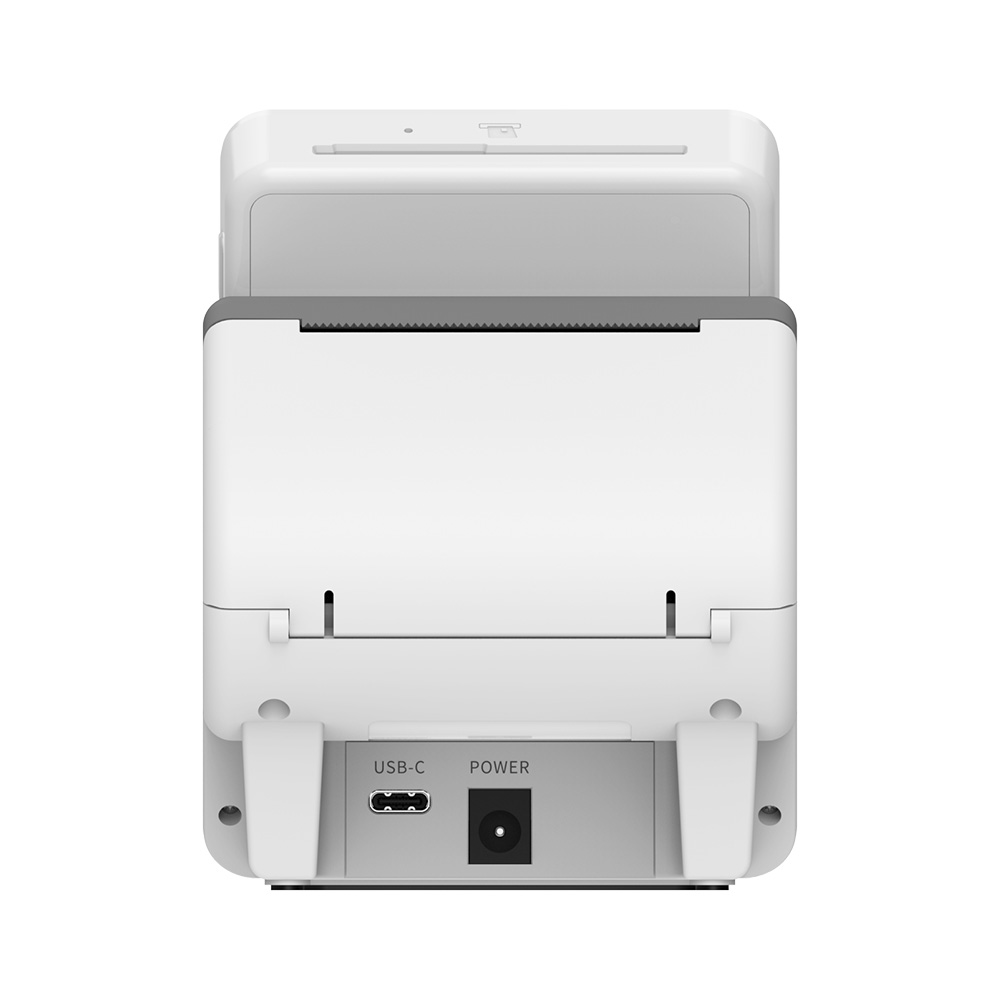

| Peripheral Ports | 1 * DC Power port (Power) 2 * Pogo Pin |
| Power Supply | Input: 100-240V AC 50/60Hz,0.5A Output: 12.0V DC, 2.0A |
| Basic Characteristics | |
| OS | Android 13 |
| Application Processor | ARM Cortex-A53, 2.0GHz |
| Crypto Processor | ARMv7-M security core, 144MHZ |
| Memory | 1GB +8GB, optional 2+16GB |
| Display | 4-inch 480 * 480 IPS, capacitive multi-touch screen |
| Wireless Communication | NetWork4G/3G/2G Bluetooth 5.0 (BR/EDR + LE) WIFI 2.4&5 GHz 802.11 a/b/g/n/ac |
| Positioning | GPS / GLONASS / BDS / Galileo |
| Payment | |
| Smart Card Reader | EMV L1/L2, conforming to lSO 7816, 1.8V/3V/, synchronous & asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B Mifare, Felica, Type4 Tag |
| Expansion and Peripherals | |

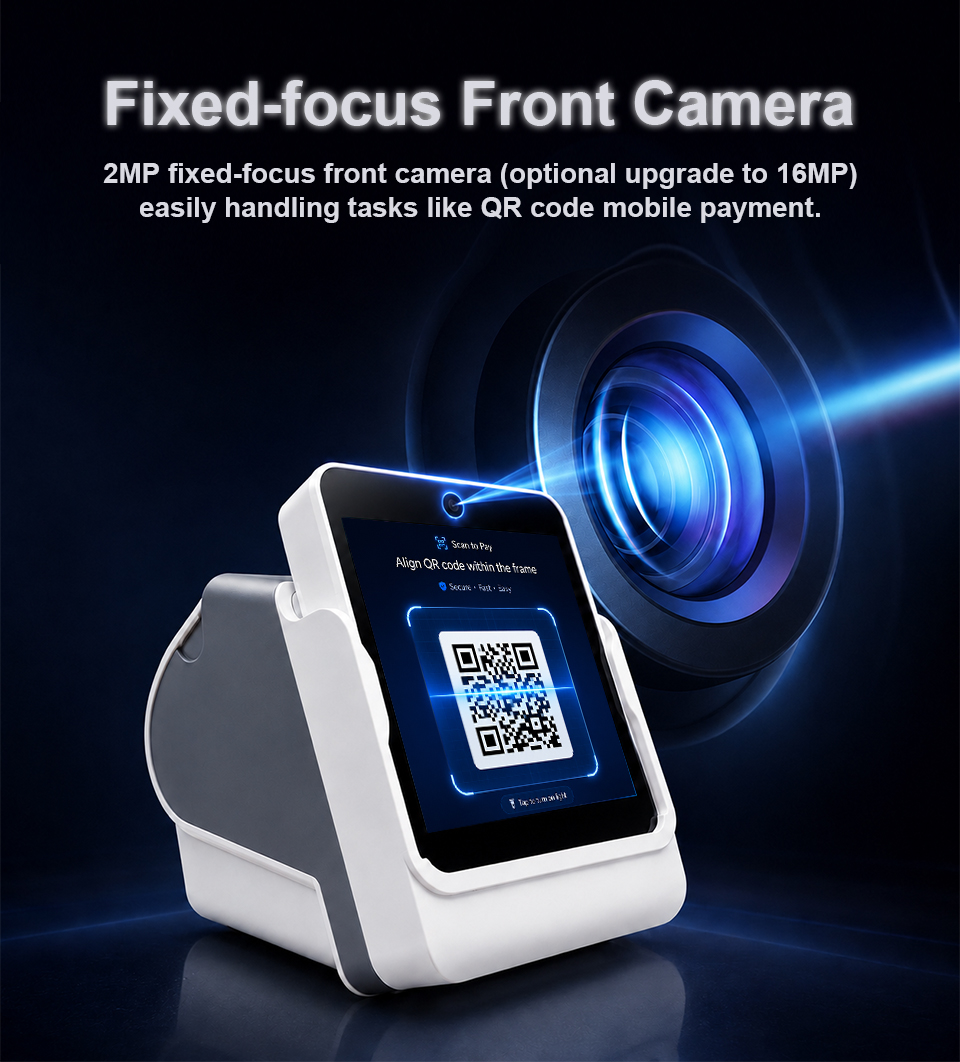

| Camera | 2MP FF Front Camera |
| Audio | 1 * Speaker (1.5W) |
| Keypad | 1 * Power Key |
| Indicators | 1 * Charging Light |
| 1 * Charging Light | 1 * USB Type C port |
| Card Slots | 2 * SIM (NANO) |

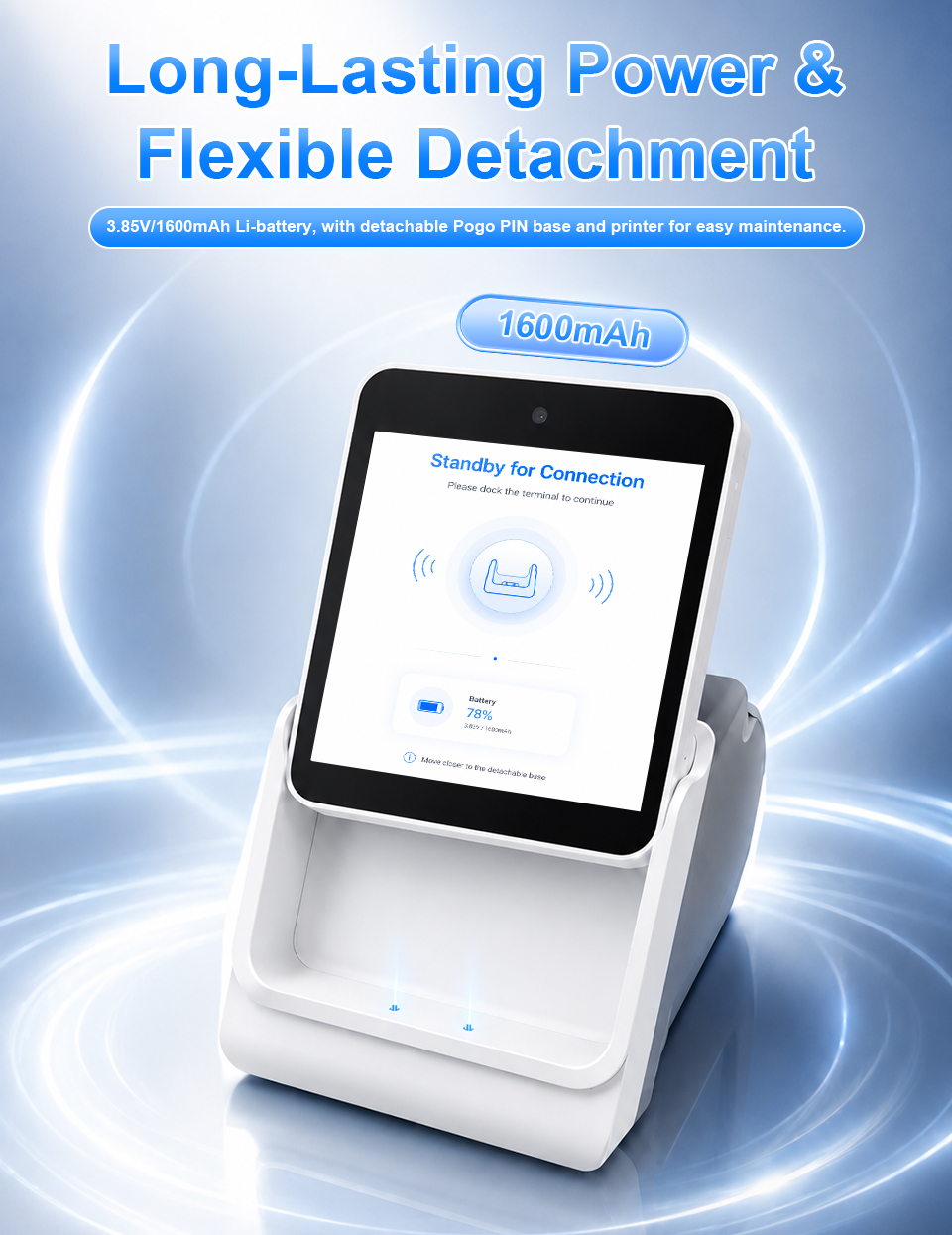

| Battery | 3.85V/1600mAh |
| Power supply | Input: 100-240V AC 50/60Hz, 0.5A Output: 5.0V DC, 1.0A |
|
Application
Public House
Banking House
Healthy Care
Self-service Supermarket
Fresh Market
Restaurant Chain
|
