Z40
HCCTG

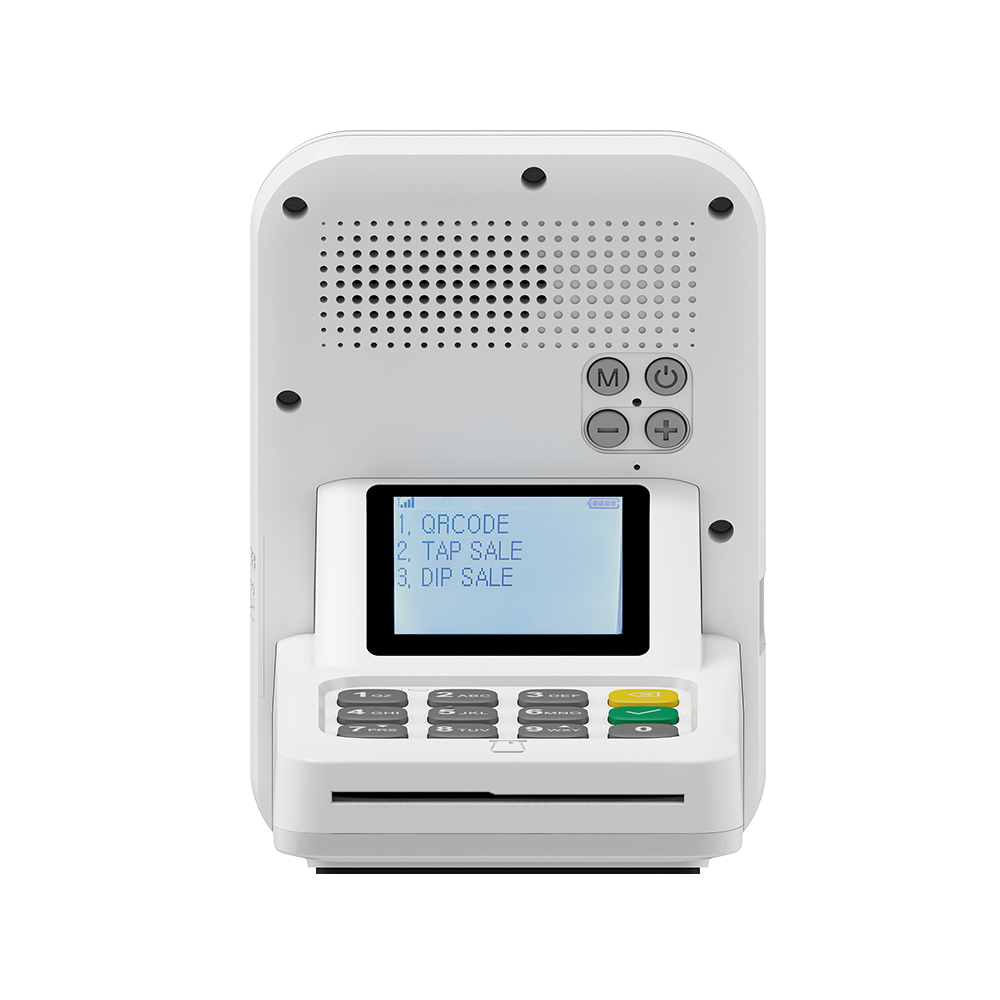

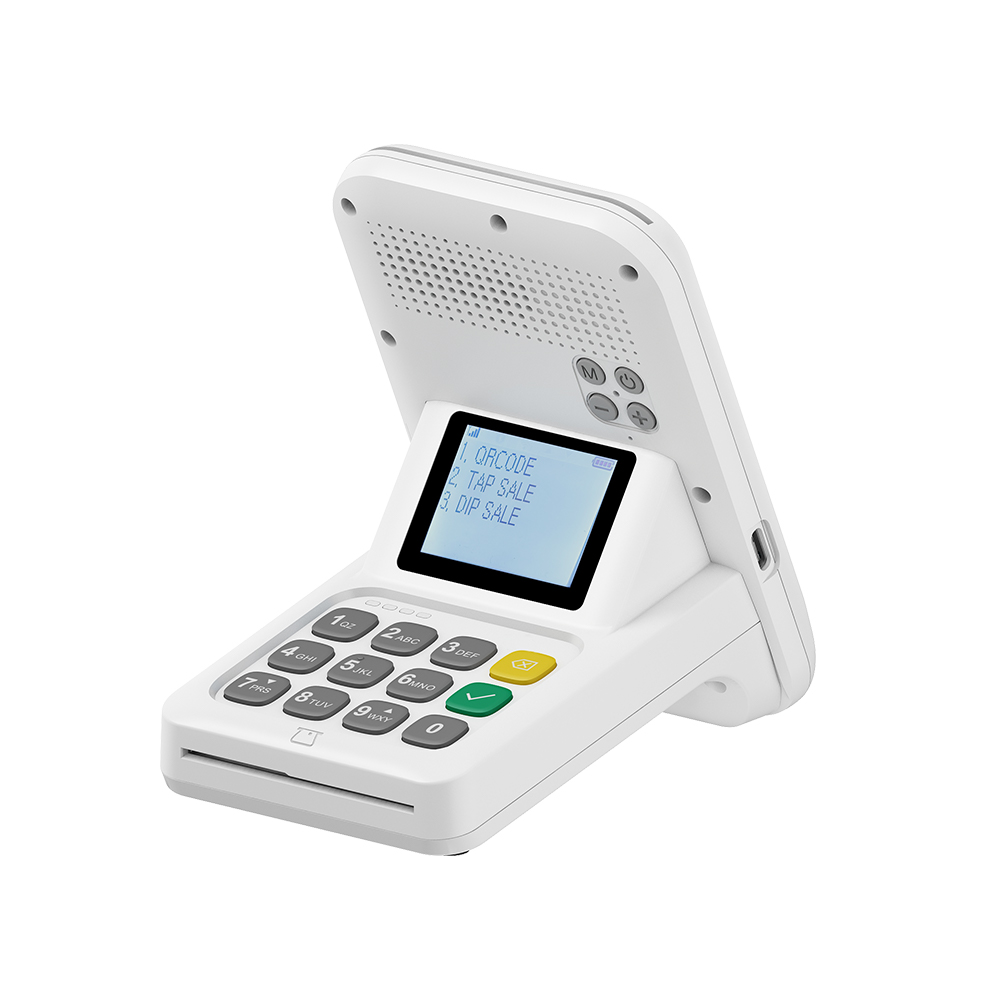

The Z40 QR code payment SoundBox is a terminal that operates on online-offline payment modules, designed to build an intelligent city in the era of mobile Internet. It aims to simplify the daily operations of traders and ensure that they can conduct their business with ease, while also safeguarding against payment fraud.
Features
Smart Card Reader Embedded
PCl 6.X Certified

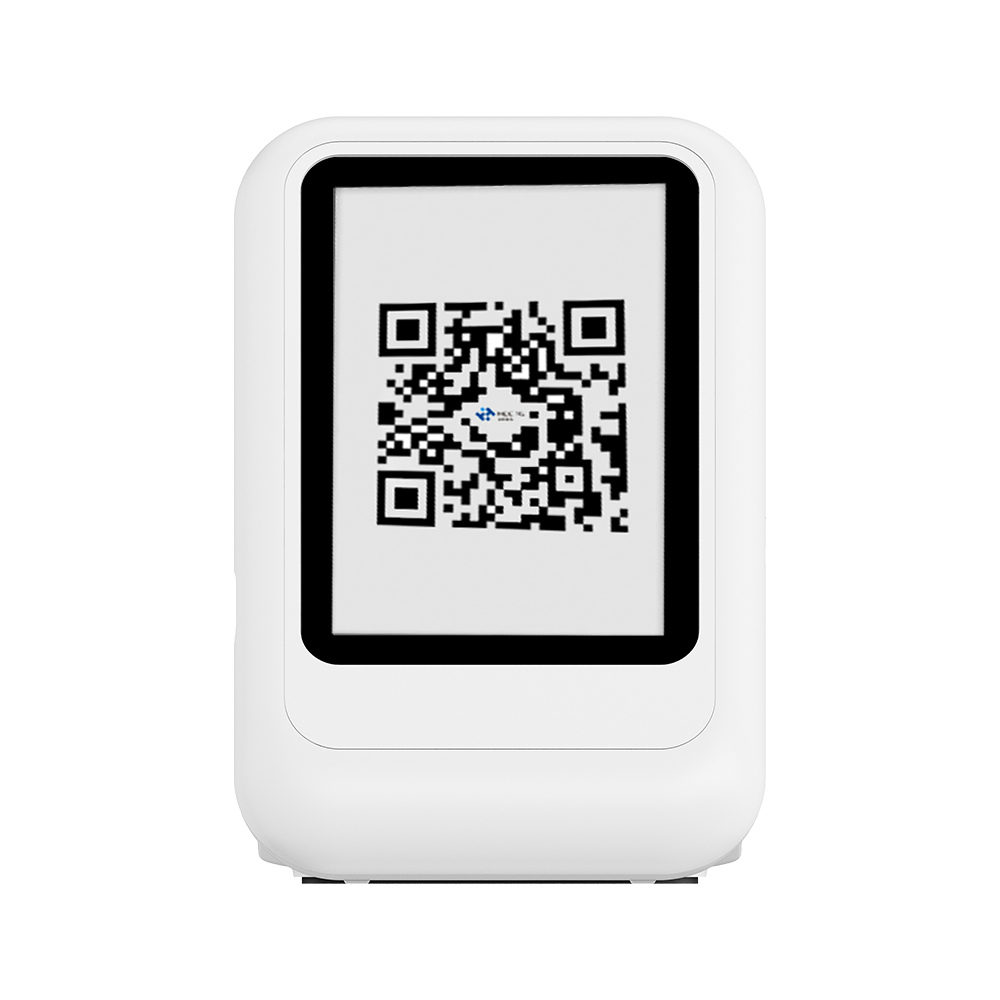

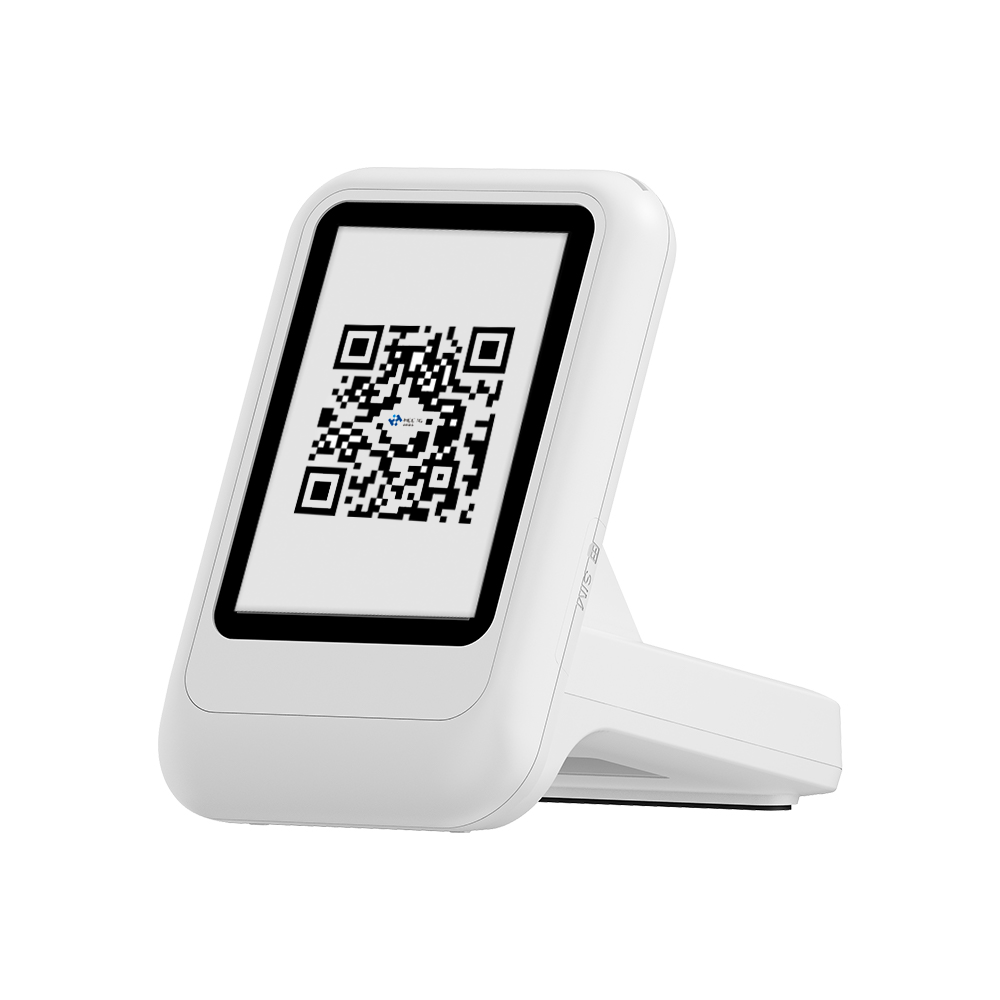

QR Code Displayed by 3.5 inch Screen
Amount Displayed by 1.7 inch Scree
Specifications
CPU | Cortex A5 500MHZ |
Memory | RAM: 16MB FLASH: 24MB / 136MB(optional) |
Communication | 2G/4G, Wi-Fi (Optional) |
Crypto Processor | MH1902T |

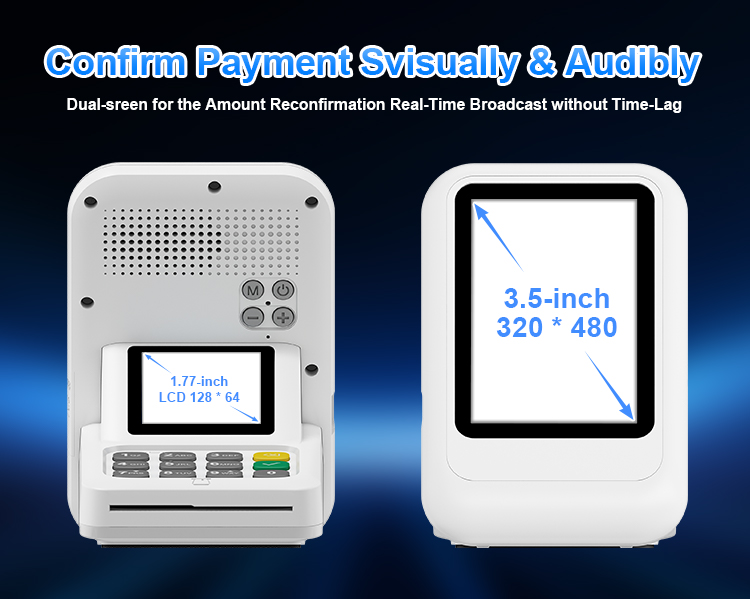

Display | Front Display: 320 * 480, 3.5 inch Color TFT LCD Rear Display: 128 * 64, 1.77 inch Black and white LCD |

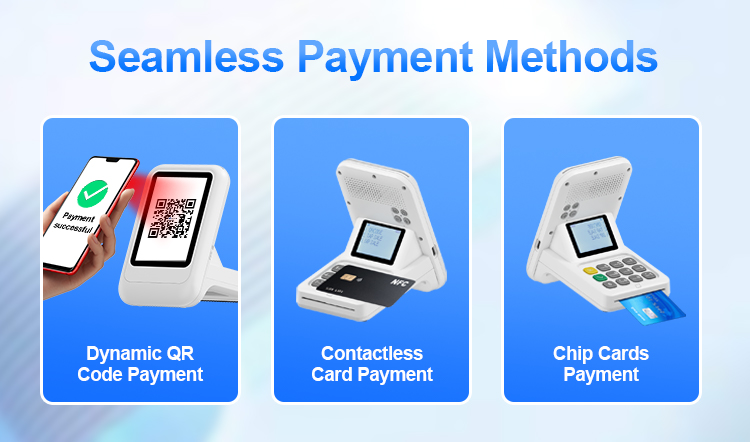

Smart Card Reader | EMVL1&L2, EMVCL1, PayPass, Paywave |
Contactless Card Reader | EMV Contactless L1, ISO/IEC14443 Type A/B |

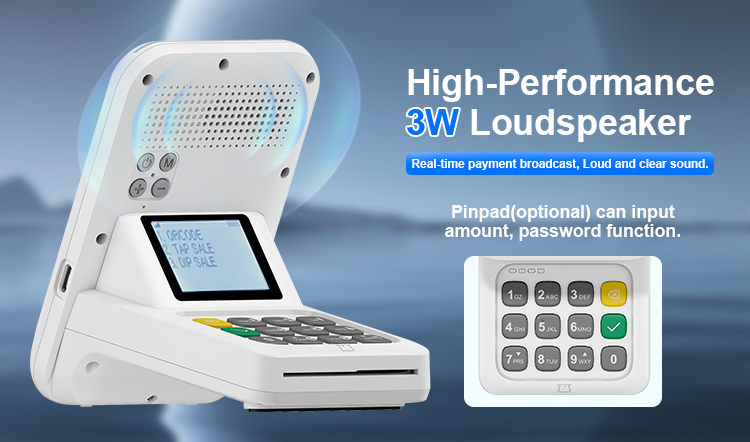

Audio | 3W speaker Volume+, Volume-, Function key ’M’, Reset, Power key |
Keypad | Password keyboard (0~9, Cancel, Enter) |
Indicators | 4 Indicator LED: Red, Blue, Green, Yellow |

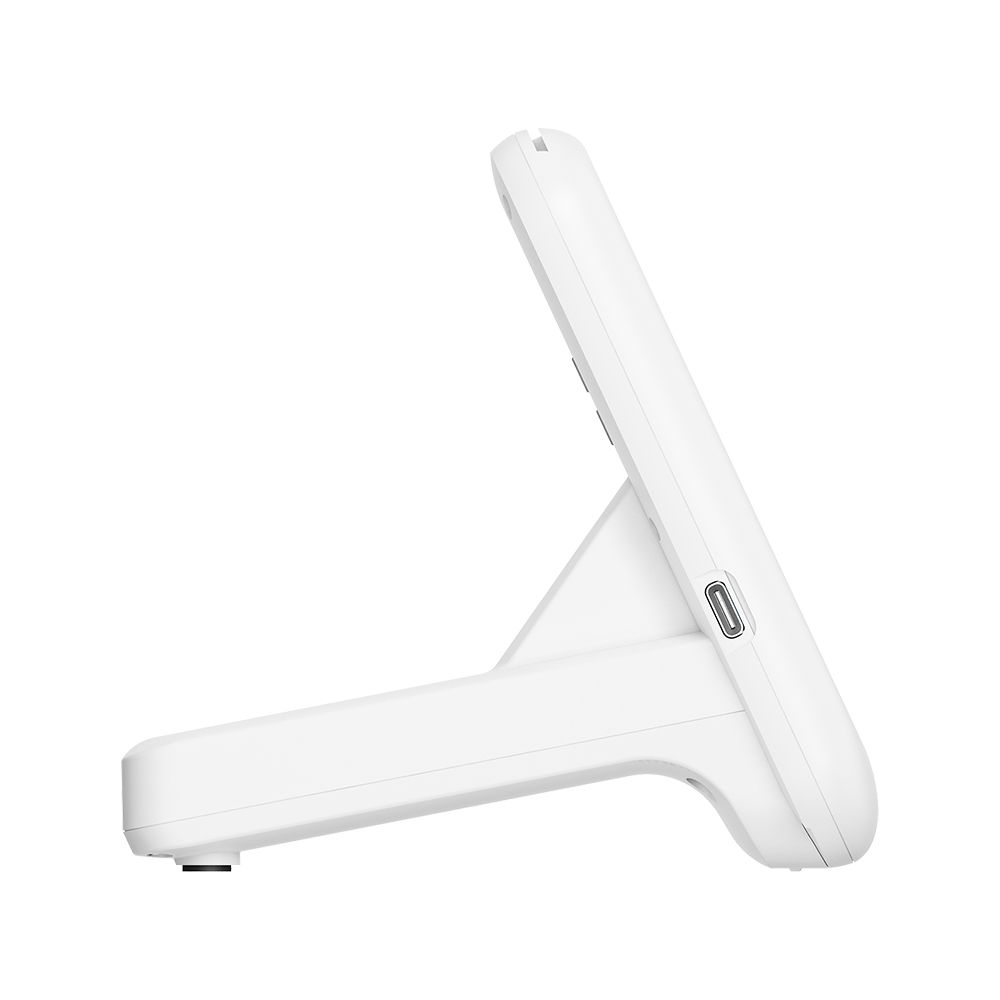

Peripheral Ports | 1 * USB Type-C |
Card Slots | 1 * Micro SlM |
Battery | 3.6V/2600mAh Rechargable Lithium battery |
Power Supply | 5V/1A |
Environment | Operating Temperature: -10°C~50°C Storage Temperature: -20°C~70°C |

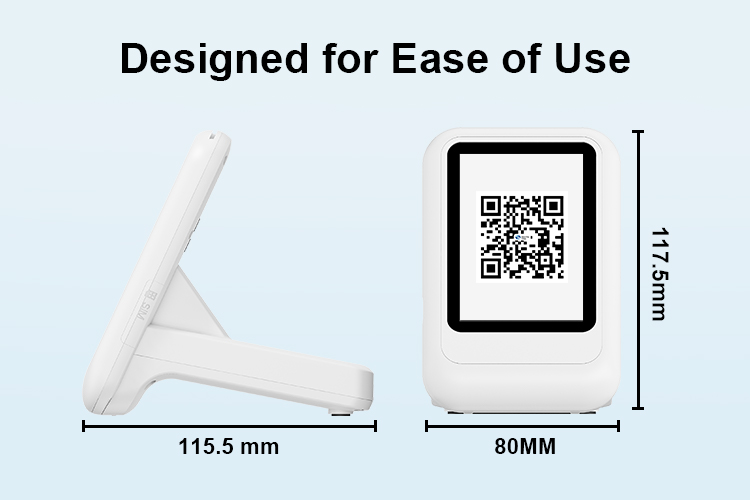

Dimensions | 117.5 * 80 * 115.5 mm |
Weight | 262 g |
