HS-2001D can quickly identify all kinds of mainstream 1D/2D barcodes and has excellent bar code reading ability on mobile phone screen.
| Availability: | |
|---|---|
| Quantity: | |
HS-2001D
HCCTG

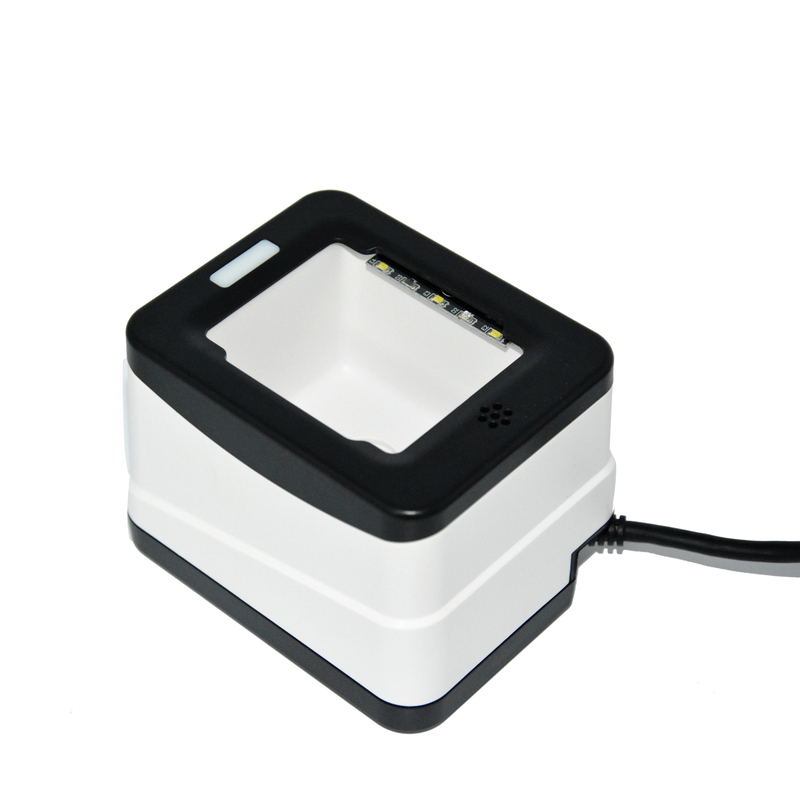

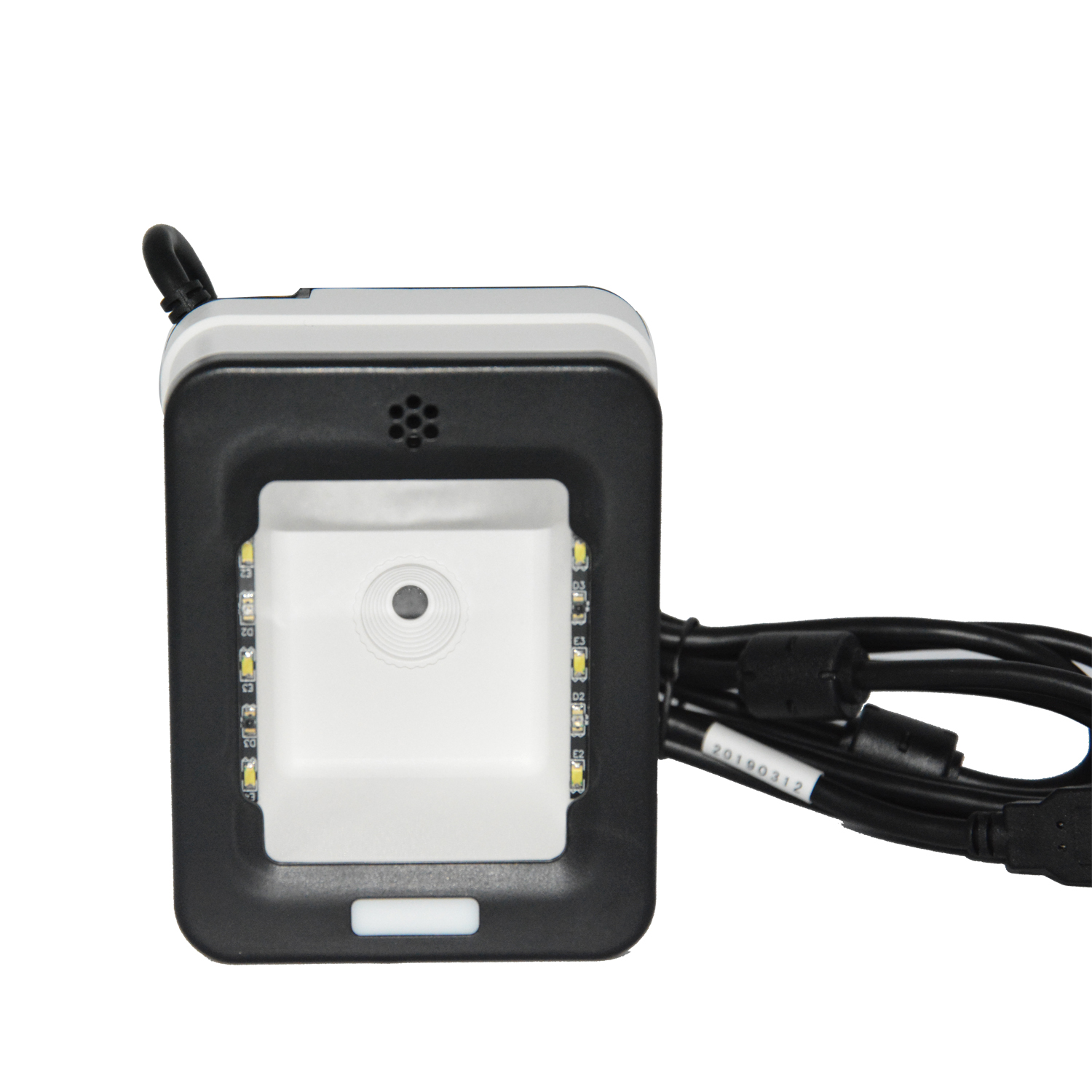

HS-2001D mobile payment box is an advanced 2D embedded code scanning module that boasts outstanding performance. It provides rapid and accurate scanning of a broad range of 1D/2D barcodes and delivers exceptional barcode reading capabilities on mobile phone screens. The module comes with a large reading window that can adapt to popular large-screen mobile phones for close reading. It requires no driver installation and offers simple plug-and-play operation for seamless convenience.
Additionally, HS-2001D 2d image platform comes with a powerful data editing function, enabling easy editing of barcode content before transmission, thus simplifying data collection. With these features, HS-2001D barcode payment machine is the perfect solution for businesses looking for a high-performance scanning module that delivers excellent results, convenience, and ease of use. With HS-2001D, you can streamline your data collection process and enhance your overall productivity.








Specifications
Performance parameters |
Image sensor |
CMOS |
DPI(W*H) |
640px*480px |
||
Read code system |
1D |
EAN-8,EAN-13,UPC-E,UPC-A,ISBN,ISSN,Code128,UCC/EAN-128,AIM-128,Code 39,Code 93,Code 11,Codabar,Interleaved 2 of 5,ITF-6,ITF-14,Matrix 2 of 5,Industrial 25, Standard2,5Plessey,MSI-Plessey,GS1-DataBar (RSS),(RSS-14,RSS-Limited, RSS-Expand) |
||||
2D |
PDF417,Data Matrix,QR,Micro QR |
|||||
Accuracy |
≥3mil |
Typical |
||||
Contrast ratio |
≥20% |
1D:EAN-13 |
(5mil) 0-40mm |
|||
Sensitivity |
tilt |
±60°@ 0°Roll and 0°Skew |
(13mil) 0-110mm |
|||
rotate |
360°@ 0°Pitch and 0° Skew |
2D:QR Code |
(15mil) 0-80mm |
|||
deflection |
±60°@ 0°Roll and 0° Pitch |
(30mil) 0-175mm |
||||
Field of view angle |
level:68° vertical:51° diagonal: 84.8° |
|||||
Reading mode |
Trigger mode, Induction mode,Continuous mode,Command trigger |
|||||
Prompt mode |
Beep、LED indicator |
Data editing |
support |
|||
Setting method |
1.Set the code 2.Command |
Program update |
Connect online updates |
|||
Data interface |
USB KBW、USB HID-POS、USB CDC、RS232、TTL |
|||||
Electrical parameters |
Working voltage |
5VDC±10% |
||||
Electric current |
work |
180mA±10% |
stand by |
150mA±10% |
||
Environmental parameters |
Temperature |
Working |
-20℃~+60℃ |
|||
Relative humidity |
5%~95%(No condensation) |
|||||
Physical parameters |
Communication interface |
USB、TTL 232、RS232 |
||||
Appearance size |
102.3*82.3*70 mm |
Weight |
250.1g(2m USB cable) |
|||
Packaging information
Product model |
USB |
HS2001D USB |
|
Package |
D*W*H |
210*105*80(mm) |
RS232 |
HS2001D RS232 |
weight |
377.2g |
|||
TTL |
HS2001D TTL |
Package box |
D*W*H |
430*230*435(mm) |
||
Boxing list |
standard |
1、Scanning 2、USBCable 2m 3、Instructions 4、Certificate |
weight |
8.2kg |
||
Net weight |
7.6kg |
|||||
radio |
Cable:USB(98g/pcs) RS232(100g/pcs) TTL(100g/pcs) |
|||||
