The MCR3521-M supports ISO/IEC 7816, USB CCID, PC/SC, and Microsoft WHQL
| Quantity: | |
|---|---|
MCR3521-M
HCCTG

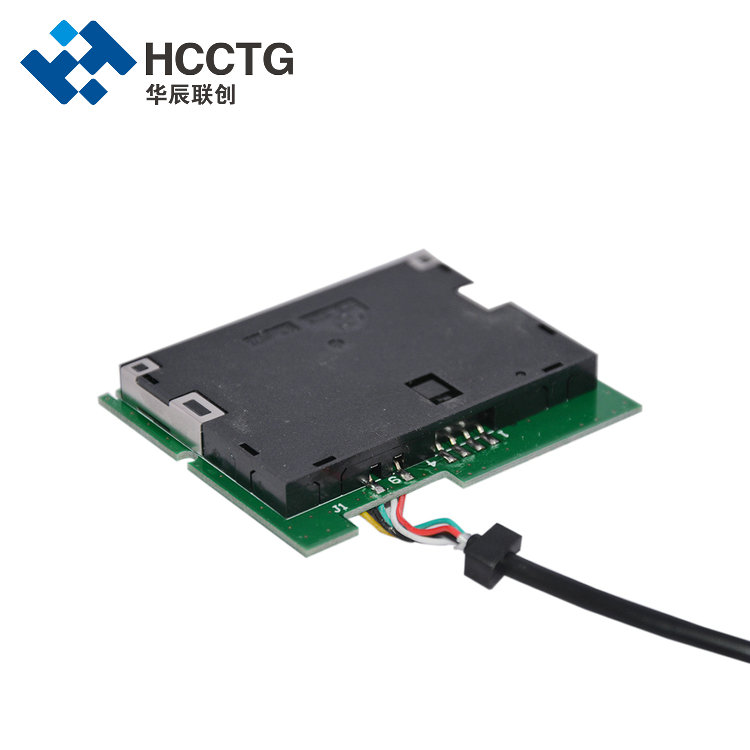

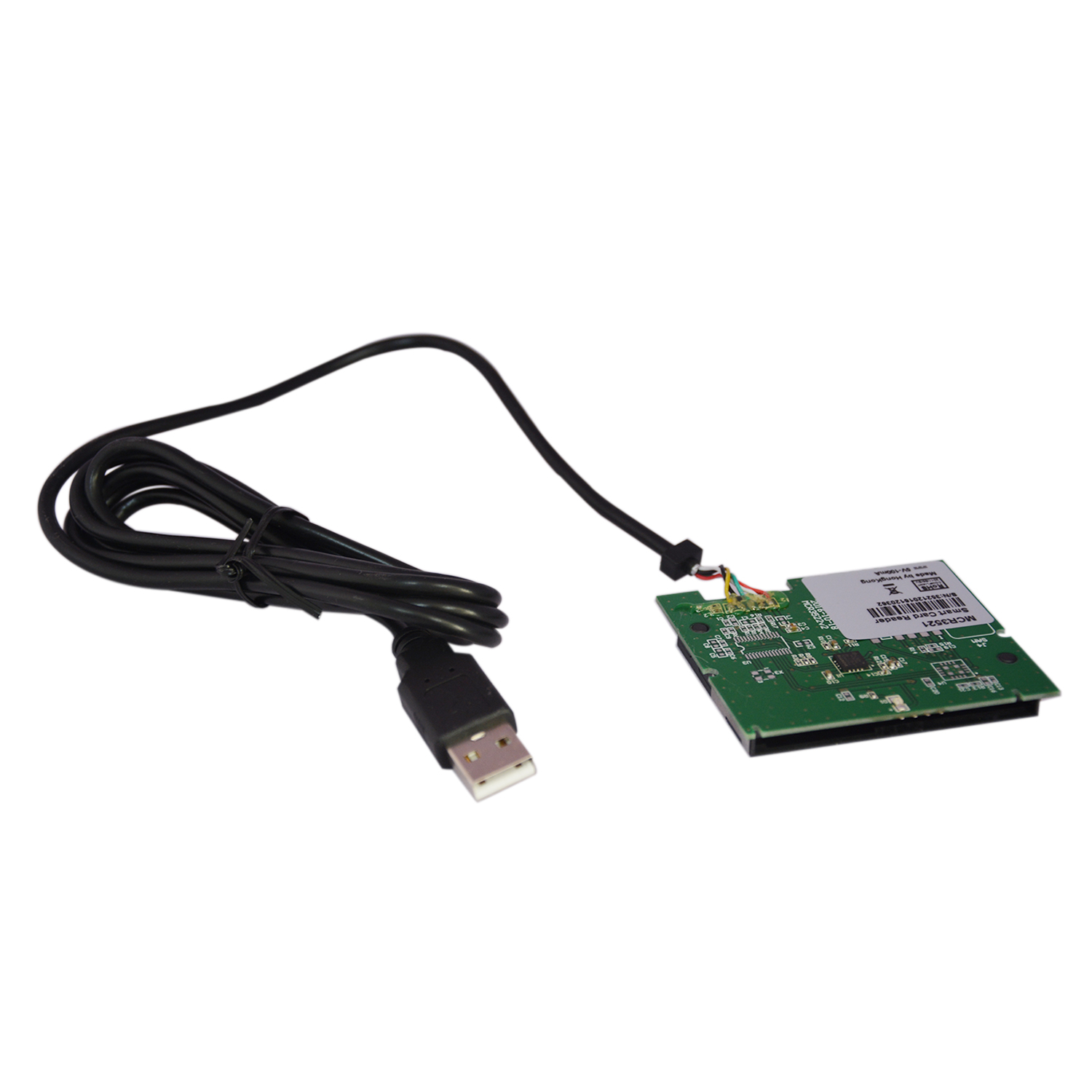

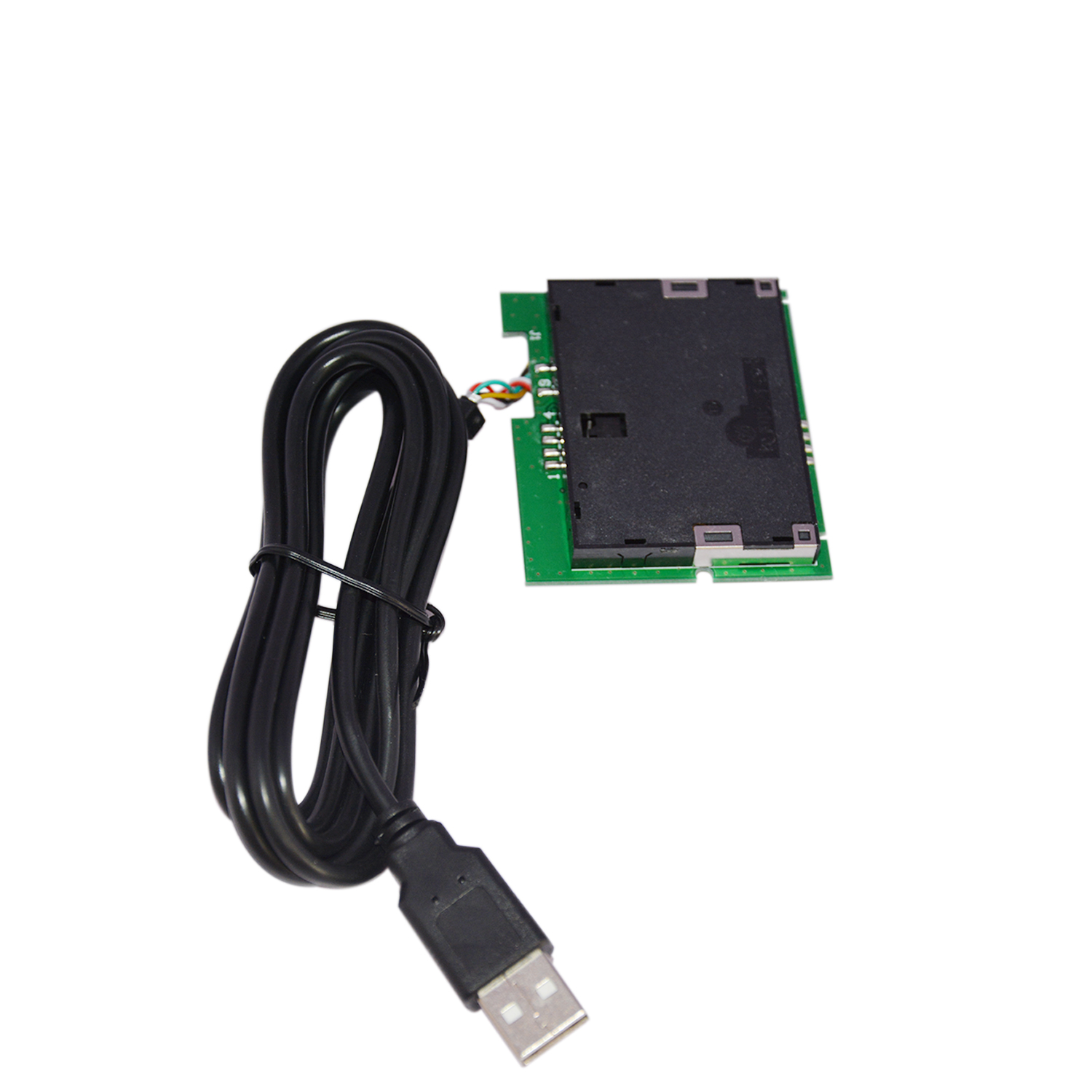

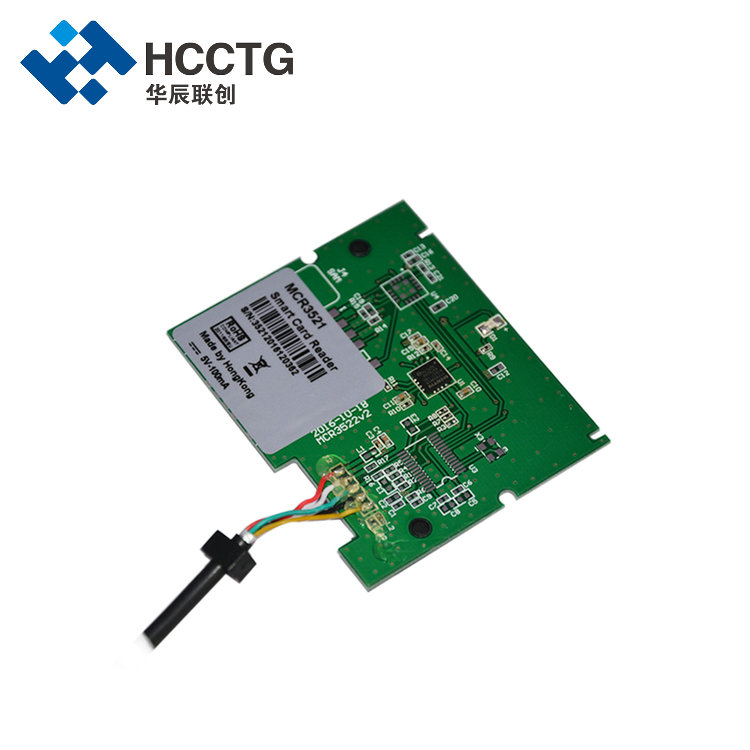

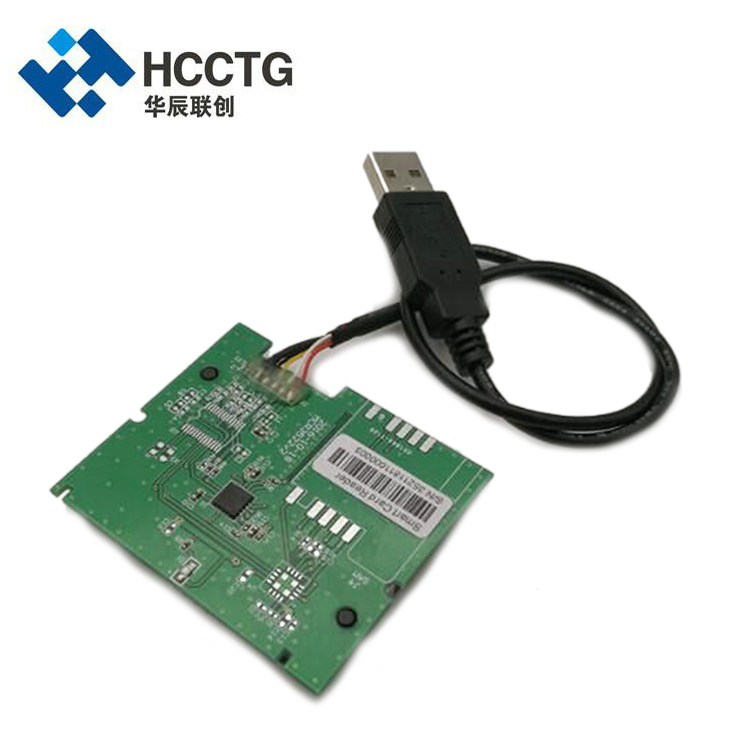

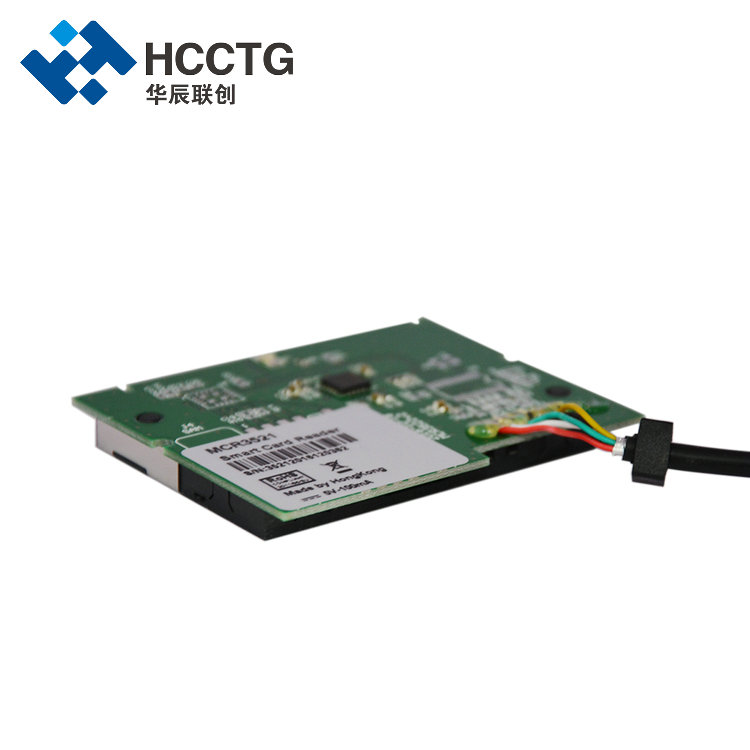

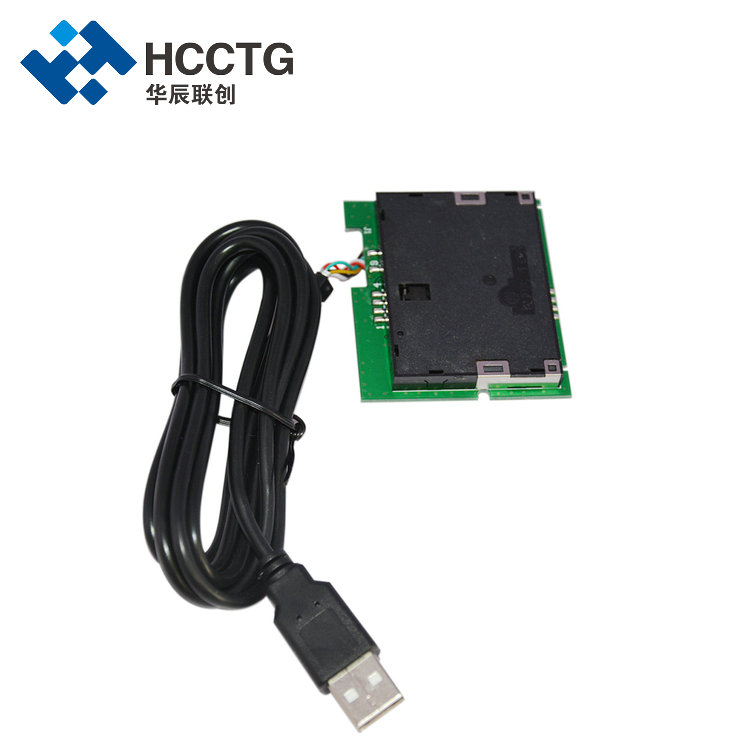

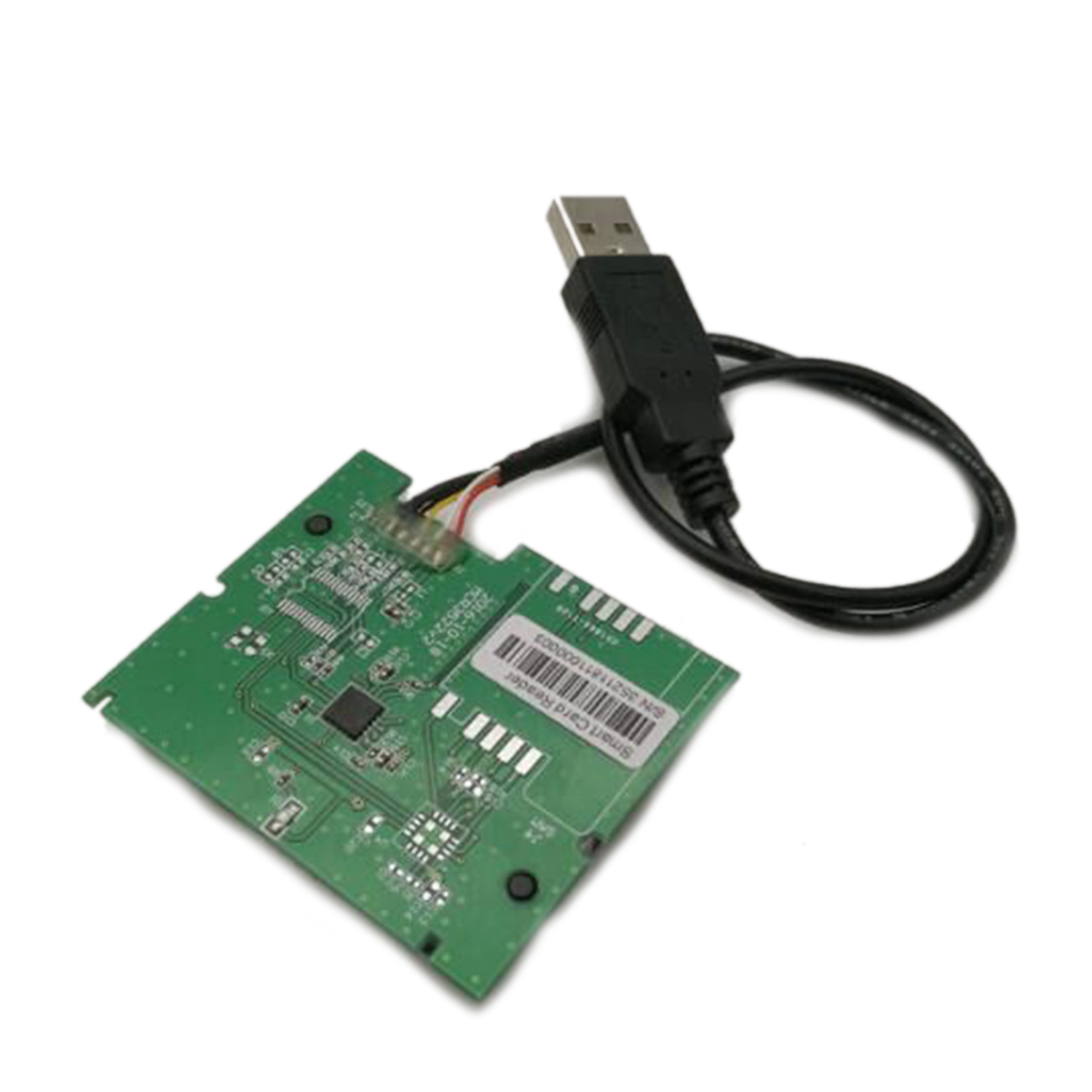

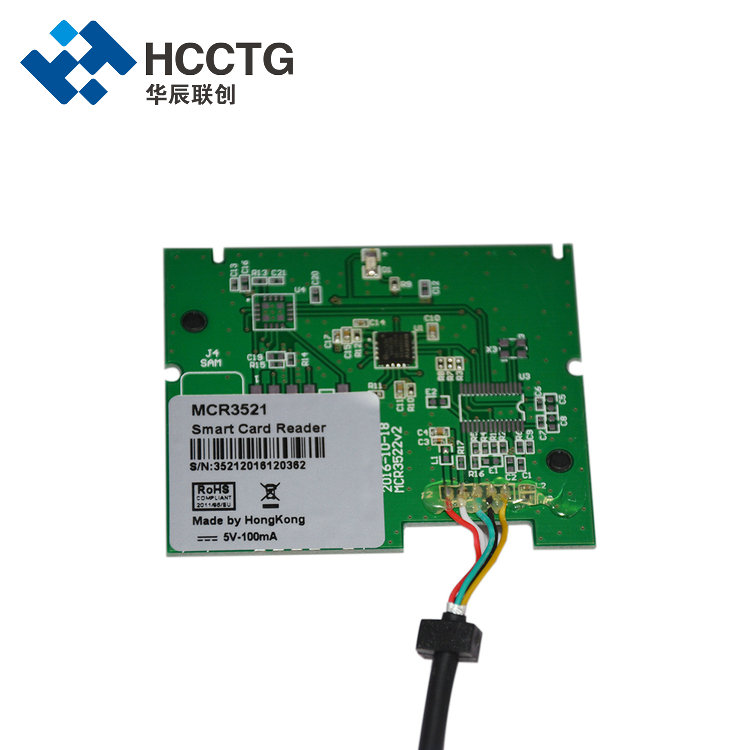

PC-Linked USB Contact Smart Card Reader Module MCR3521-M
The MCR3521-M reader module is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. The extended card data transmission rate of up to 600kBit/s with the support of TA1=97 enables shortest possible transaction times for maximum end user convenience.
The end user experiences convenience, transaction time efficiency, security and reliability for use applications like network log-in, Windows authentication & Single Sign-On (SSO), banking and cashless payment applications as well as high security use cases for federal governments.
Specification
Host Interface | USB 2.0 CCID (USB 1.1 / 3.0 compliant |
Communication Speed | 12 Mbps (USB2.0 full speed) |
Smart Card Interface | |
Supported standards | ISO/IEC 7816 Part 1 to 4 EMV 2008 Ver4.2 Level 1 |
Supported Tag ICs | All major ISO/IEC 7816 compliant Smart Card IC suppor |
Protocols | T=0, T=1 |
Interface speed | up to 600kBit/s (depending on card) TA1=97 |
Clock frequency | ISO/IEC 7816 compliant up to 5 MHz, Operates up to 12 MHz |
Supported smart card types | 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C |
Power to smart card | 60mA in Class A; 55mA in Class B; 35mA in Class C |
Smart card detection | Card present switch Automatic power on/off Short Circuit protection |
Card size | ID-1 |
Contact type | Sliding Contact Socket (8 pin) |
Driver& Software | |
PC/SC driver | PC/SC Specification Ver. 2.01.09 for Windows XP/Vista/7/8 (32&64Bit) / Windows Server 2003/2008/2012 / Windows CE 6.0, 7.0 MacOS 10.5.x, 10.6.x, 10.7.x, 10.8.x Linux 2.4.x, 2.6.x (32&64Bit) Android 4 and above |
Software | PC/SC API CT-API (through wrapper on top of PC/SC) Synchronous-API (through wrapper on top of PC/SC) M-Card API (through wrapper on top of PC/SC) |
Operating Conditions | |
Power supply | USB Bus powered |
Power consumption | < 25mA, excluding smart card; <500μA in Standby Mode |
Dimension | 60x50x8mm |
Weight | 40g |
Operating temperature range | 0° to +50°C / +32 to +122 F |
Storage temperature range | -20 to +60°C / -4 to +140 F |
Operating humidity range | Up to 95% RH non condensing |
Durability | Sliding Contacts 100.000 Card Insertions |
MTBF | 100.000 hours |
Connector | 35cm USB Cable with USB Type A Connector |
Status indicator | LED |
Firmware | SmartOS |
Systems / Standards | EMV 2008 Ver 4.2 Level 1, ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft WHQL |
