RFID Android 12 NFC Terminal Barcode Scanner UHF PDAs for Logistics HCC-WG9000S

HCC-WG9000S PDA supports UHF RFID function and provides various industrial and enterprise-level UHF RFID solutions. It can adapt to various harsh environments and outdoor environments, and can effectively improve your work efficiency.

OS:	Android 12.0
CPU:	Octa-core 2.0 GHz
Memory :	4GB + 64GB
Screen:	6.0 inch, resolution 720 * 1440
Communication:	4G+WIFI+GPS+Bluetooth
RFID:	NFC,UHF
Availability:

Quantity:



Inquire Add to Basket

Model:
HCC-WG9000S
Brand:
HCCTG

Product Description

UHF RFID Hand-held Terminal HCC-WG9000S

HCC-WG9000S data collection terminal supports electronic tag reading in harsh environments, and is compatible with all types of electronic tag identification and express identification on the market, accurate and efficient.

1.The configuration is high performance and powerful: 8-core 2.0 MHz processor, 4 + 64G storage, support barcode/QR code scanning function, support front and rear dual cameras, support the addition of national military standard RFID module, support the reading and writing of special tags such as national grid RFID.

2.Deal with all kinds of environments calmly: IP67 high protection level, dustproof and waterproof, comprehensive protection, more durable, can adapt to the working temperature of -20℃ -60℃, fearless in harsh conditions.

3.Comfortable to hold, easy to read and write: Ergonomically designed grip, fit the palm, comfortable grip, not easy to fatigue after a long time of use; Large area RFID radio frequency identification module, larger reading and writing angle, longer distance and higher identification accuracy.

4.Rapid Lightning Fast Charging All-day: Endurance Worry-free 11700 mAh large-capacity battery, long-term endurance, all-day worry-free support, optional fast charging, 3 hours can be fully charged

Specification:

Performance Parameters
OS	Android 12.0
CPU	Octa-core 2.0 GHz
Memory	4GB RAM + 64GB ROM, 8GB RAM + 128GB ROM (optional)
Development Language	Java
Development Tools	Eclipse / Android Studio
SDK	Handheld terminal software development kit
Screen	6.0 inch, resolution 720 * 1440 (support 1080*2160)
Touch	Industrial Gorilla Ten-Point Touch Screen
Backlight	Led backlight
Wireless Communication
WWAN	2G: GSM/CDMA 3G: TD-SCDMA/WCDMA/CDMA2000 4G: TD-LTE/FDD-LTE
WIFI	WIFI frequency: 2.4 GHz & 5 GHz WIFI protocol: 802.11 a/B/G/n/AC protocol
GPS	Beidou, Glonass, GPS, Galileo
Bluetooth	Bluetooth 5.1 is supported
RFID
NFC (Optional)	NFC (HF: 13.56MHZ, support ISO14443A protocol)
UHF RFID	China frequency: 920-925Mhz
	US frequency: 902-928Mhz
	European frequency: 865-868Mhz
	Protocol standard: EPC C1 GEN2/ISO18000-6C
	Antenna parameters: ceramic antenna (3dbi)
	Card reading distance: effective distance 2-25m according to different labels
Data Acquisition (Optional)
Scan Engine	QR code scanning engine, supporting Zebra, Horney and other brands
Support One-dimensional Barcode type	UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128,GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of Inverse 1D, GS1 DataBar, Coposite Codes, etc.
Supports 2D Code Type	PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code,MicroQR, QR inverse, Aztec, Aztec Inverse, Postal Codes: US Postnet, US Planet, UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc.
Physical Parameters
Cameras	Front camera: 5 megapixels Rear camera: 13MP Support autofocus and flash
Size	178 * 83 * 24 mm
Battery	Removable lithium-ion polymer battery Capacity: 11700mAh; 3.8 V Normal use time: more than 8 hours Standby time: 300 hours
Card Slot	Micro-SIM card * 1, TF card * 1
PSAM	Support for 2 PSAM cards
I/O	Type-C USB * 1 with OTG support
Notification Method	Sound, vibration
Audio	Microphone, speaker, earpiece
Key Button	Power button, volume +/-button, left and right scan button
Power Adapter	Charging time 3-4 hours, use standard power adapter and data cable to support optional fast charging, fast charging for 2.5 hours
Sensor	Gravity sensing, light sensing, distance sensing
Safety Protection
Temperature	Operating: -10℃ to 50℃ Storage: -40 ℃ to 70 ℃
Humidity	5% to 95% (non-condensing)
Drop Specification	Six sides and four corners can withstand a drop of 1.5 meters
Rolling Specifications	Continuous rolling of 1000 wheels for 0.5 m, and stable operation after rolling of 6 contact surfaces
Vibration	Random(10 Hz to 30 KHz); 60 minutes per axis, 3 axes
Electrostatic Protection	+/-15 kV air discharge; +/-8kv contact
Degree of Protection	IP67 meets IEC sealing standard
Certification	CCC/IP67/ISO9001/CE
Optional	1D (Honewell N4313)
	2D (ME5800)
	2D (Honewell 6603)
	2D (Honewell 3680)

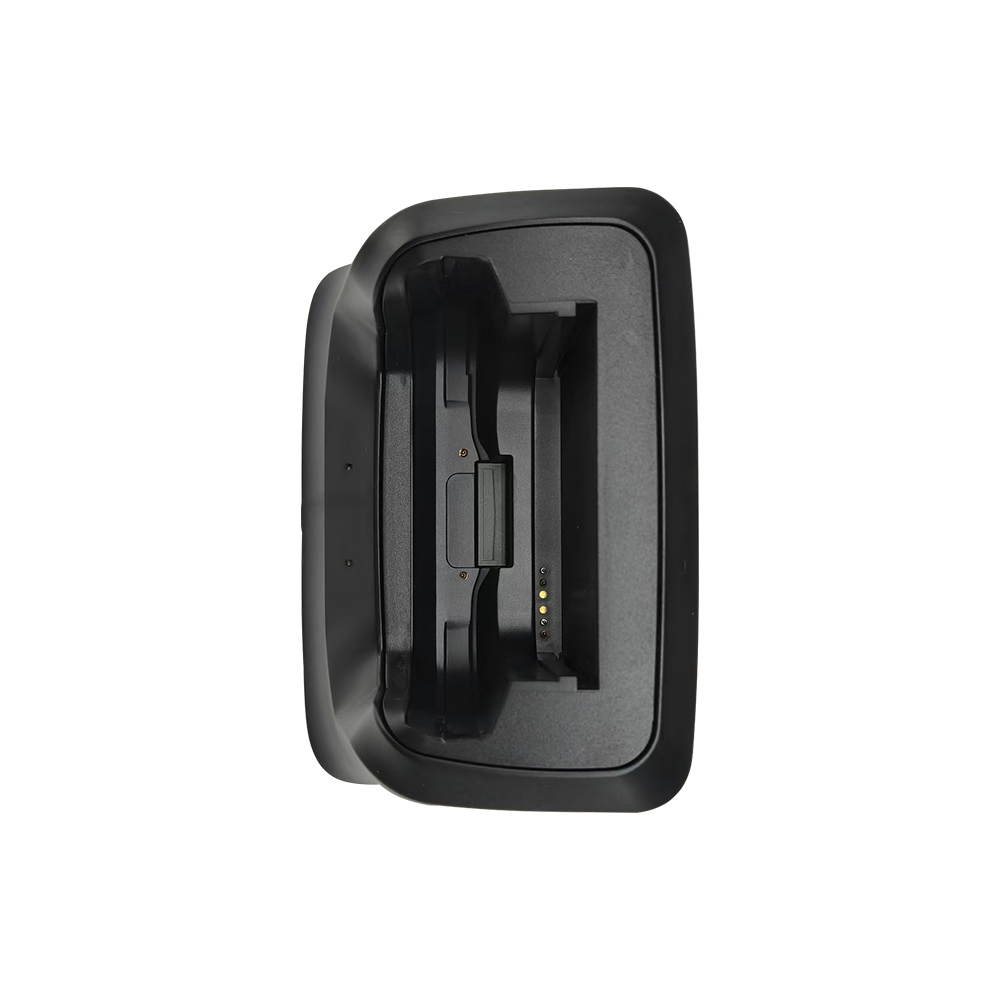

	Charge Base
