Feature:
1.Light weight stainless housing
2.Support reading and writing function
3.Compliant with EMV 4.0 Level 1 certification;
4.Compliant with PBOC 2.0 Level 1 Certification;
5.Supports USB2.0 full speed and USB-IF certification;
6.Based on ISO7816 standard, supporting PC/SC 2.0 industry standard for PC smart cards;
7.Supports Microsoft Windows smart cards and meets the requirements of Microsoft WHQL smart card readers;

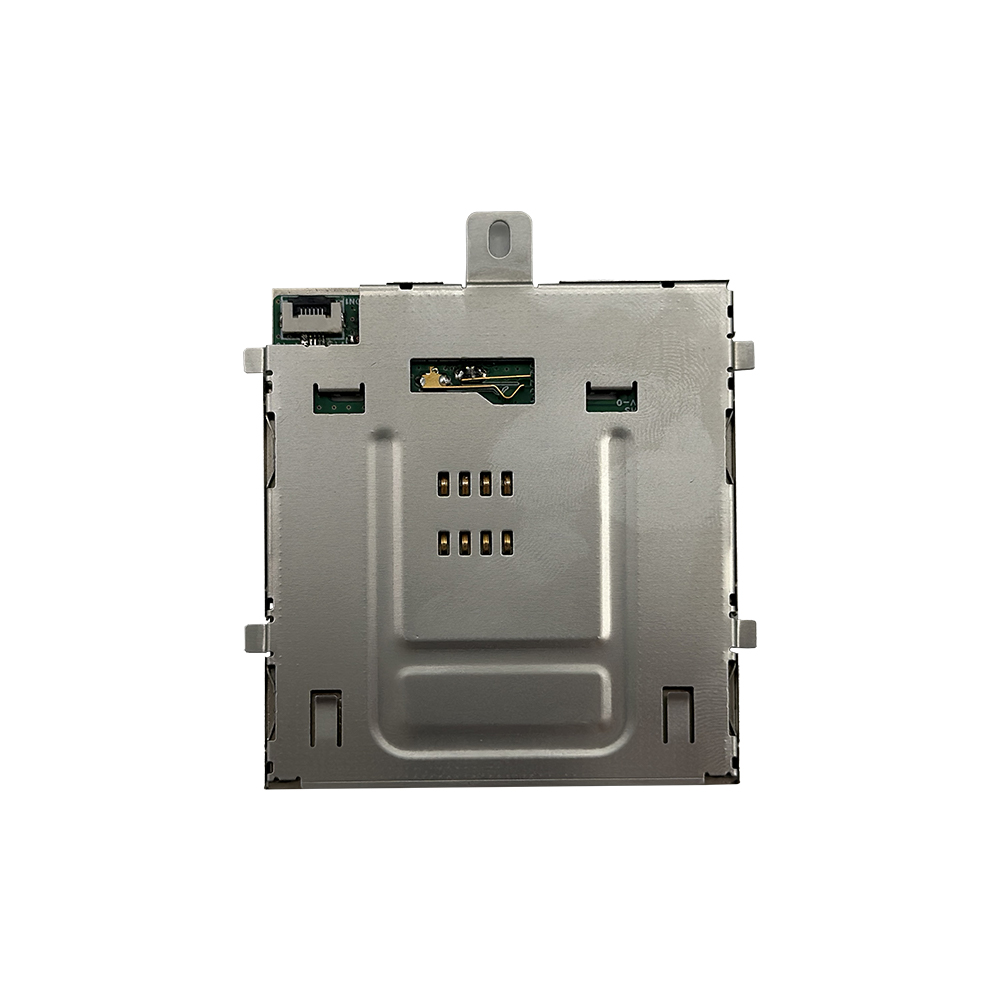

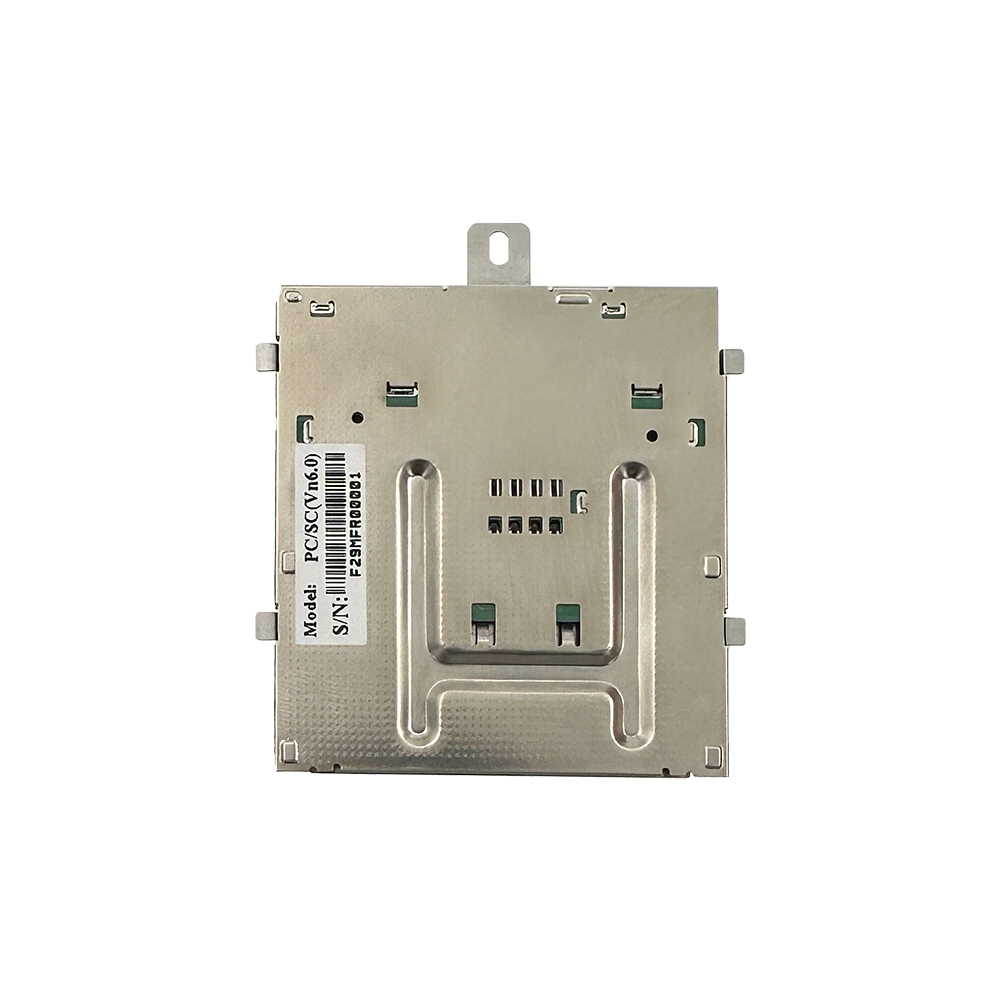

8.Using metal ultra-thin contact IC card holder, with a card insertion and removal life of over 100000 times;
Specifications:
Material | Stainless housing |
Size | 62.2 * 72.0 * 3.0 mm |
Cable | Factory default: No cable |
Standard | ISO7816, PC/SC 2. |
Working Voltage | DC 5V ± 10% |
Working Current | Less than or equal to 40mA |
Contact Resistance | More than 50MΩ |
Insulation Resistance | Less than 1KΩ |
Working Environment | Temperature: -20~50℃; Humidity: 10%~90% non-condensing; |
Storage Environment | Temperature: -20~55℃; Humidity: 10~90% non-condensing; |
Certification | ROHS |
OS | Windows, Android, Linux |
