MRD300
HCCTG

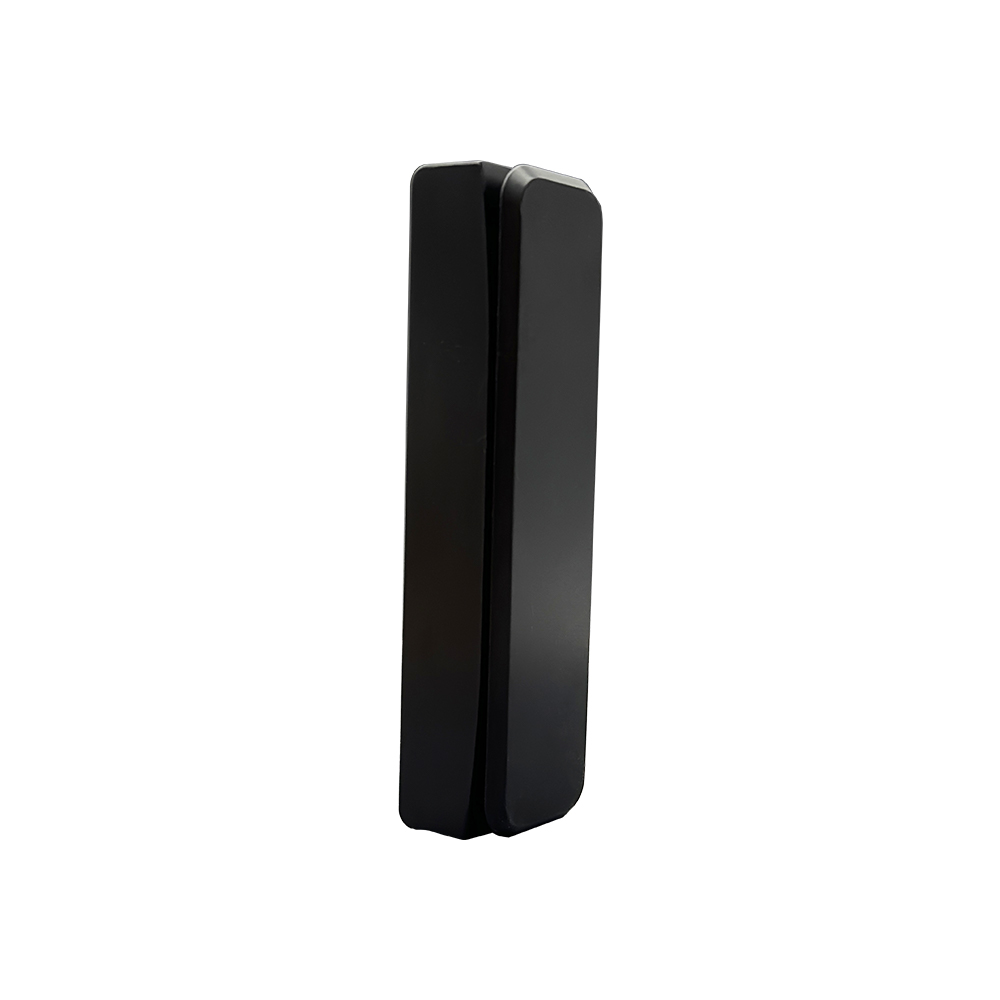

Combo Reader MRD300
Featuring compact size, aesthetic design, and easy installation. Supports Windows, Linux, Android operating systems;

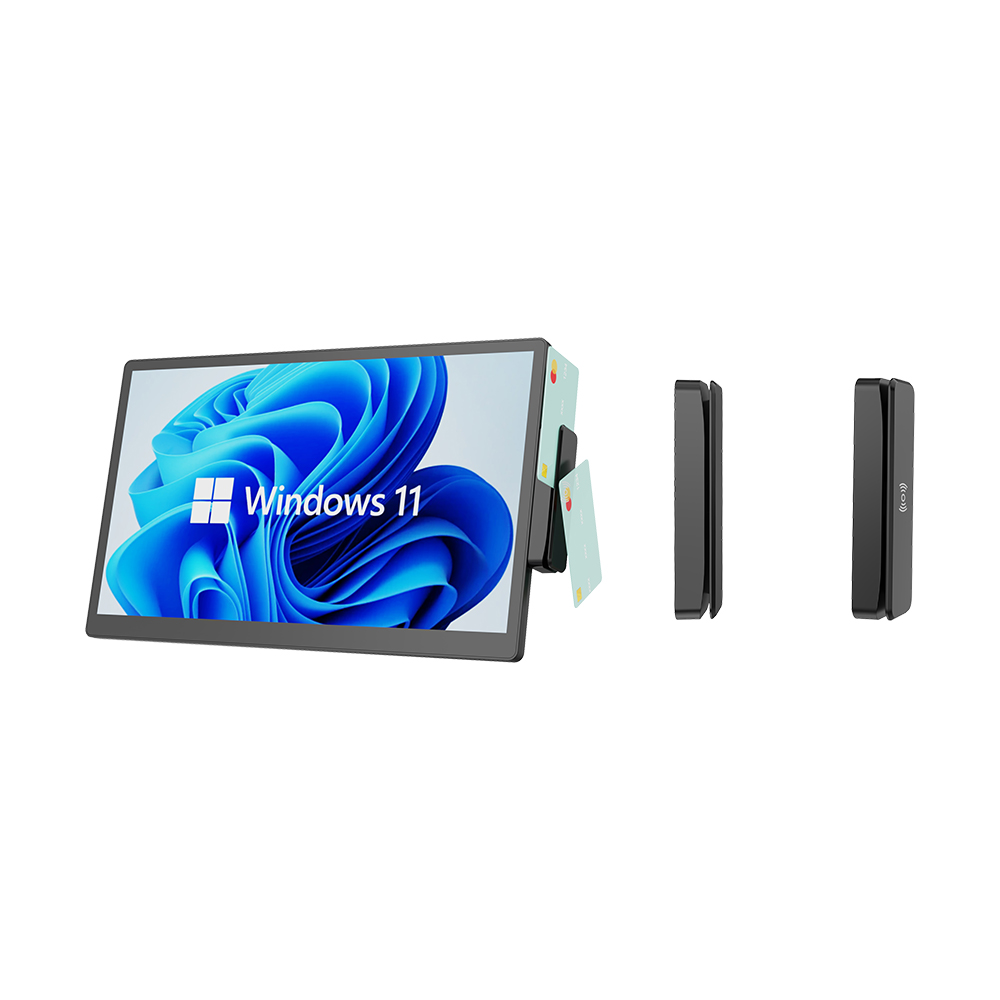

Easily mounts to any POS terminal for instant card reading capability;
1)MRD300M: MSR Only Magnetic Stripe Reader
2)MRD300: MSR+NFC —13.56KHz Combo
Specifications:
Physical | |
Material | ABS, Black |
Bracket Dimensions | 98.96 * 30.96 * 16.5mm (L * W * H) |
Net Weight | 30g (excluding communication cable) |
Cable | Default without communication cable (customizable per customer requirements) |
Magnetic Card Reader | |
Compliance | ISO7811 standards, compatible with IBM/ANSI/JS2 protocols |
Swipe Speed | 10-120cm/s |
Magnetic Head Lifespan | up to 100 0000 cycles |
Coercivity Range | 300-4000 Oe |
Bidirectional Swiping | Supported |
Track Configurations | Track 1: 210 BPI Track 2: 75/210 BPI Track 3: 210 BPI |
Configurable Tracks | 1/2/3 tracks combination |
Communication | USB-keyboard mode |
Protocol Support | OPOS/JPOS |
Power Supply | DC +5V ±10% |
RFID Reader | |
Frequency | 13.56MHz with integrated PCB antenna |
Max Read Distance | >5cm |
Supported Protocols | ISO/IEC 14443A/MIFARE, FeliCa, ISO/IEC 14443B, ISO/IEC 15693 |
Power Consumption | Sleep Mode, Active Mode |
Operating Modes | Configurable read-only/read-write (default: read-only) |
Electrical Characteristics | |
Operating Voltage | DC +5V ±10% |
Operating Current | Magnetic Card Module: ≤50mA RFID Module: ≤150mA (varies with card type and distance) |
Insulation Resistance | >50MΩ |
Contact Resistance | <1KΩ |
Environmental | |
Temperature | Operating: 0℃ to +50℃ Storage: -20℃ to +55℃ |
Humidity | Operating: 10%-90% RH (non-condensing) Storage: 5%-95% RH (non-condensing) |
Atmospheric Pressure | 86-106kPa |
