Feature:
1.Support payment apps under SOFTPOS;
2.External Flexible Antenna;
3.NCI 8PIN Communication;
4.NCI 2.0 Standard Interface with 3.3V±10% operating voltage.

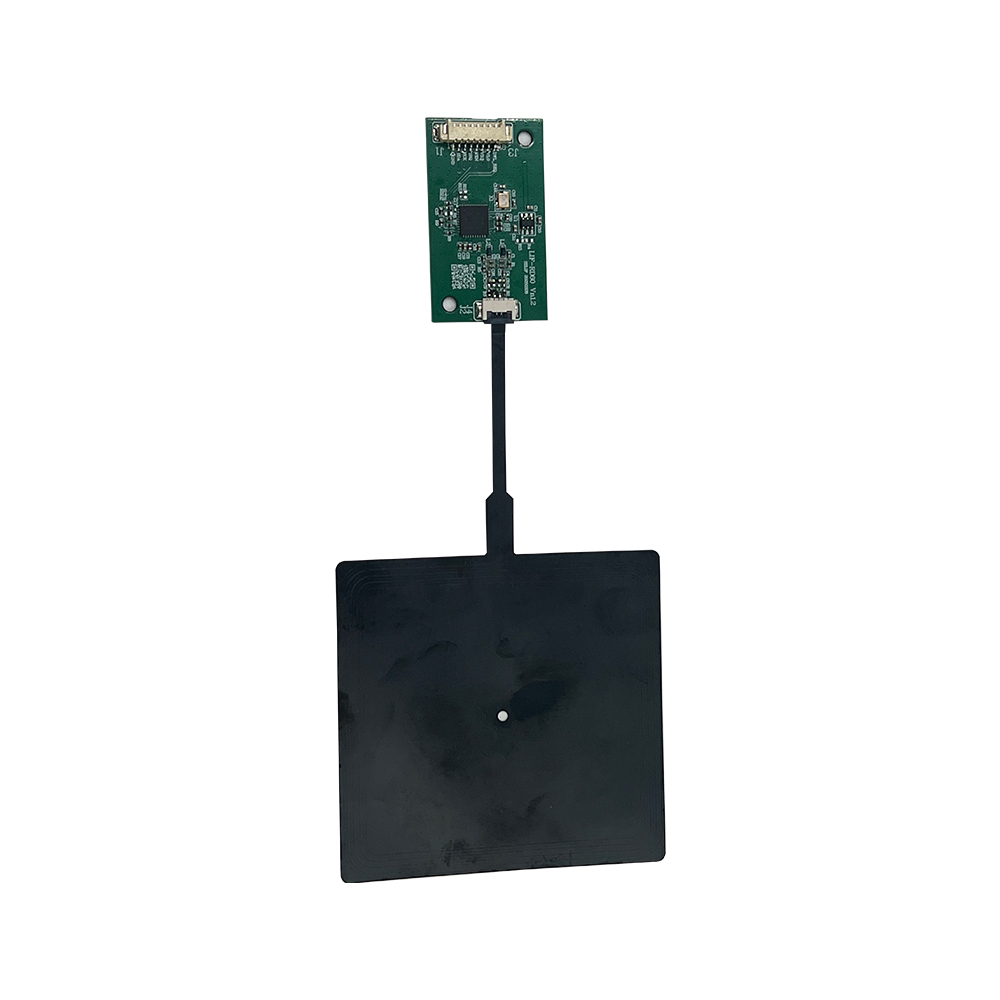

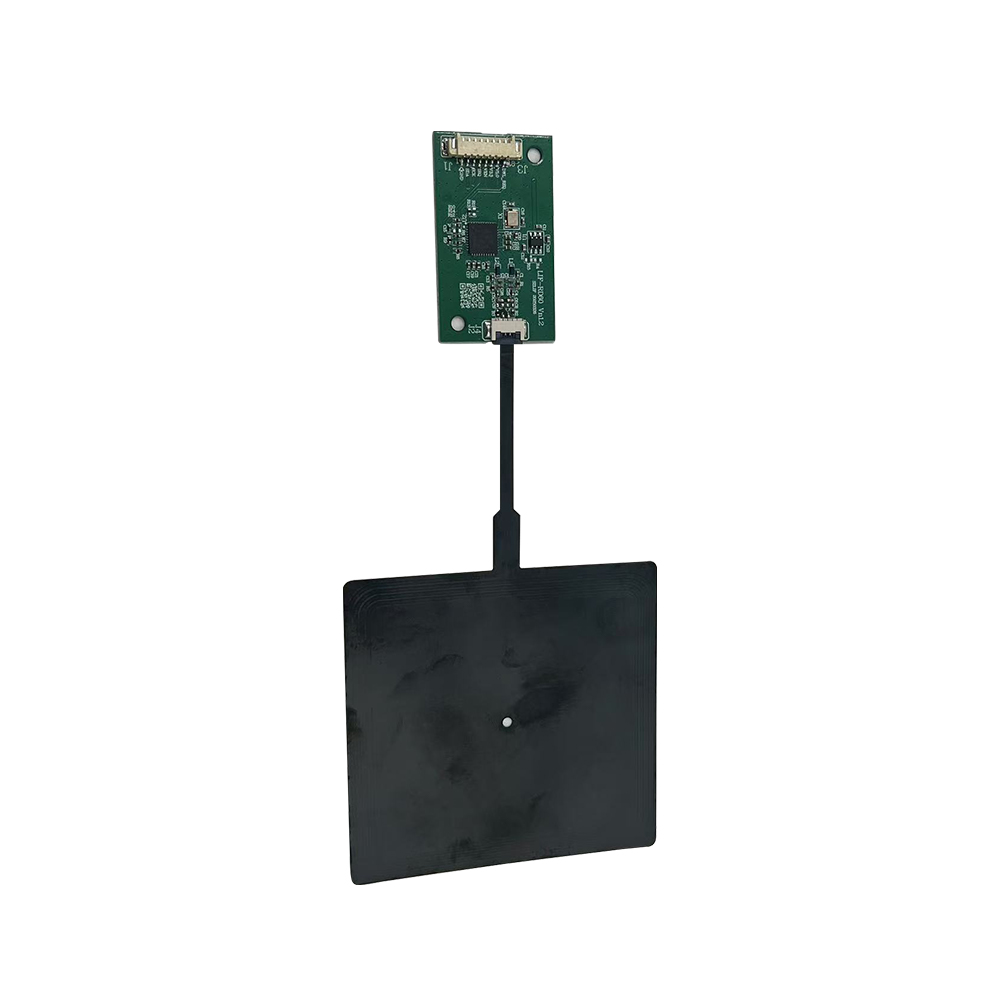

5.13.56MHz RF NFC with antenna-PCB separation design.
6.Supports ISO/IEC 14443-A/B intellectual property licenses.
7.Auto-detection of devices/cards.
8.Compact size for seamless terminal integration.
9.Extended read range: 5-15cm (varies by target device/card).
10.Supported RF Protocols
11.Base Protocols:
1 )NFCIP-1/2, ISO/IEC 14443A/B(PICC/PCD modes).
2)ISO-DEP T4T platform, ISO/IEC15693/ICODE VCD.
12.Advanced Tags:
1) NFC Forum T1T-T5T (MIFARE Ultralight, FeliCa, DESFire).
2) MIFARE Classic 1K/4K encryption, FeliCa PCD mode.
13.Certifications:
Certifications: NFC Forum P2P / Reader / Card Emulation (firmware ≥12.50.0A)
Specifications:

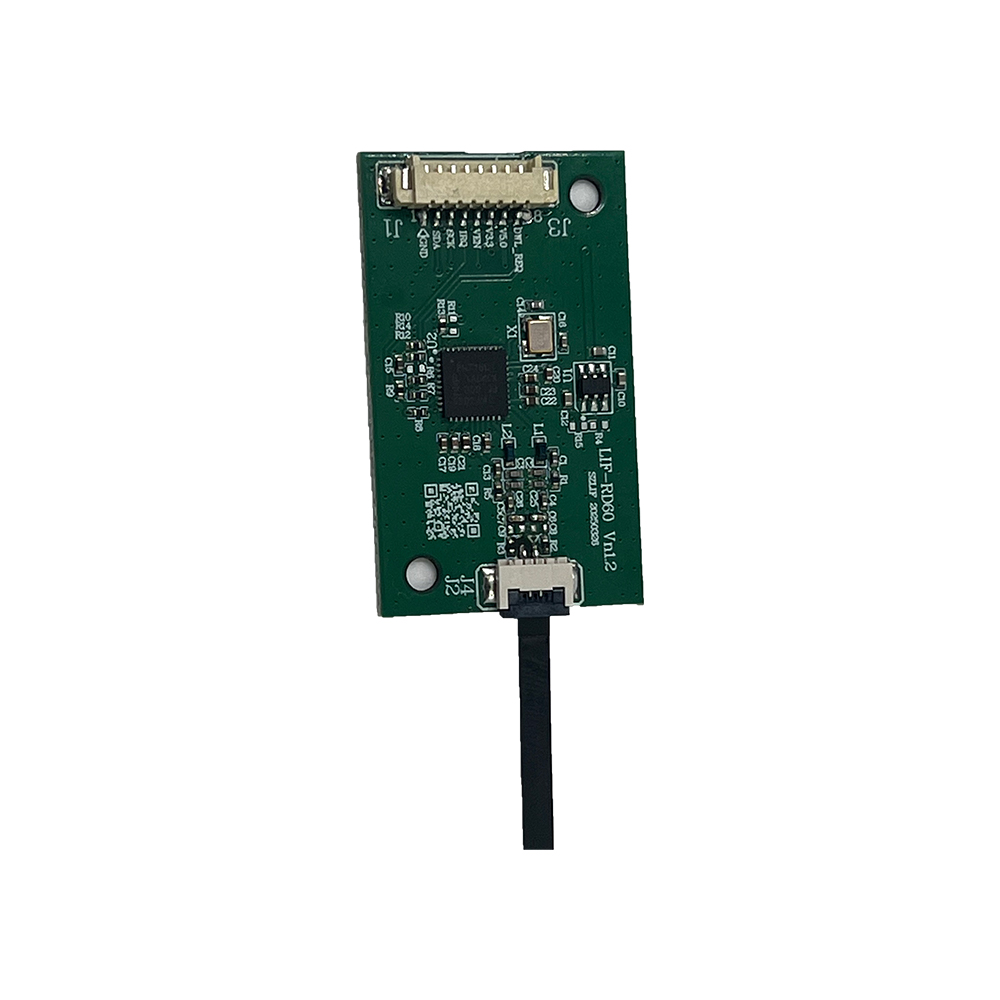

Main Control Board | 42 * 25 * 4.6 mm, ultra-slim PCB for embedded devices |

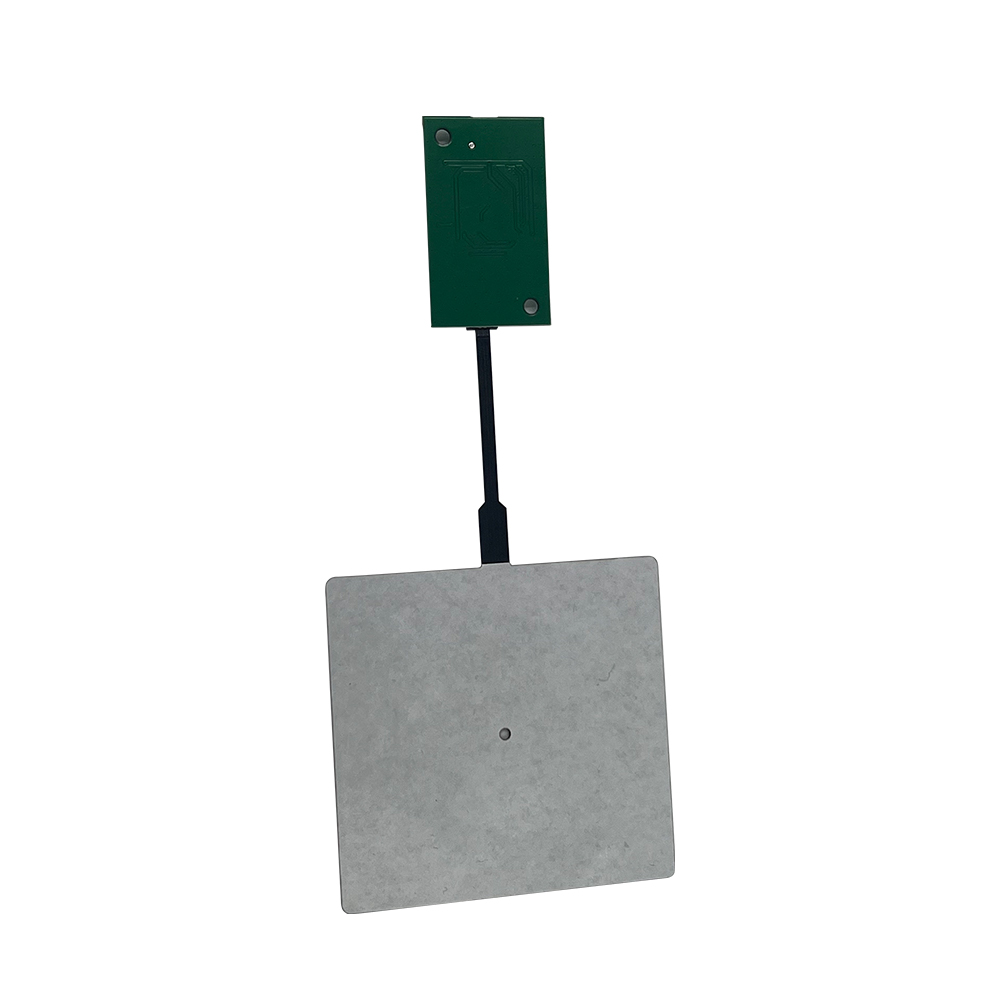

Antenna | 120 * 70 * 0.3 mm, flexible layout with high RF efficiency |
Single Unit Net Weight | Single Unit Net Weight |
Cable | Not pre-configured (customizable per client requirements) |
Voltage | DC +3.3V ±10% |
Max Operating Current | ≤350mA |
Insulation Resistance | >50MΩ |
Contact Resistance | <1KΩ |
OS | Android 11/12/13/14 |
Supported RF Protocols |
Base Protocols | NFCIP-1/2, ISO/IEC 14443A/B (PICC/PCD modes);
ISO-DEP T4T platform, ISO/IEC 15693/ICODE VCD |
Advanced Tags | NFC Forum T1T-T5T (MIFARE Ultralight, FeliCa, DESFire);
MIFARE Classic 1K/4K encryption, FeliCa PCD mode; |
Certifications | NFC Forum P2P / Reader / Card Emulation (firmware ≥12.50.0A) |
Environmental |
Parameter | Range |
Temp | Operating: 0°C to +50°C Storage: -20°C to +55°C |
Humidity | Operating: 10–90%RH (non-condensing) Storage: 5–95%RH (non-condensing) |
Atmospheric Pressure | 86–106kPa |
