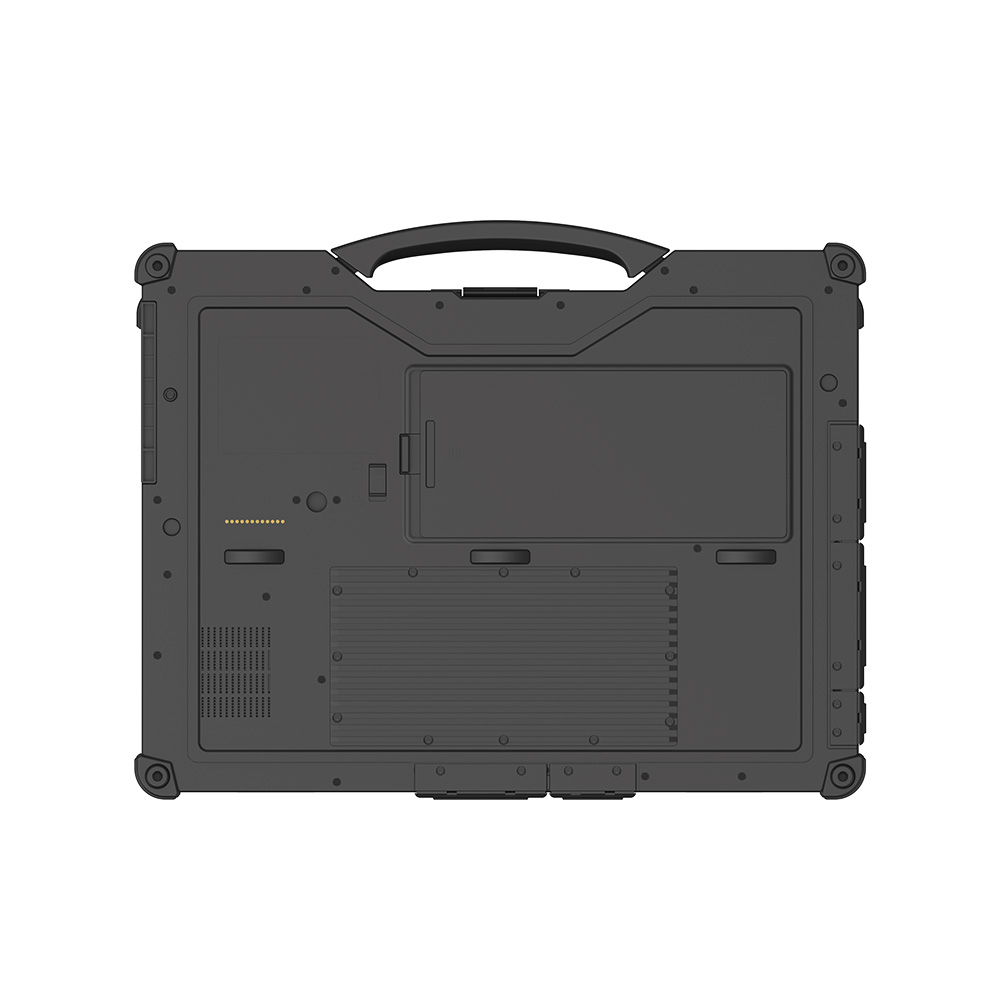

X14M
HCCTG

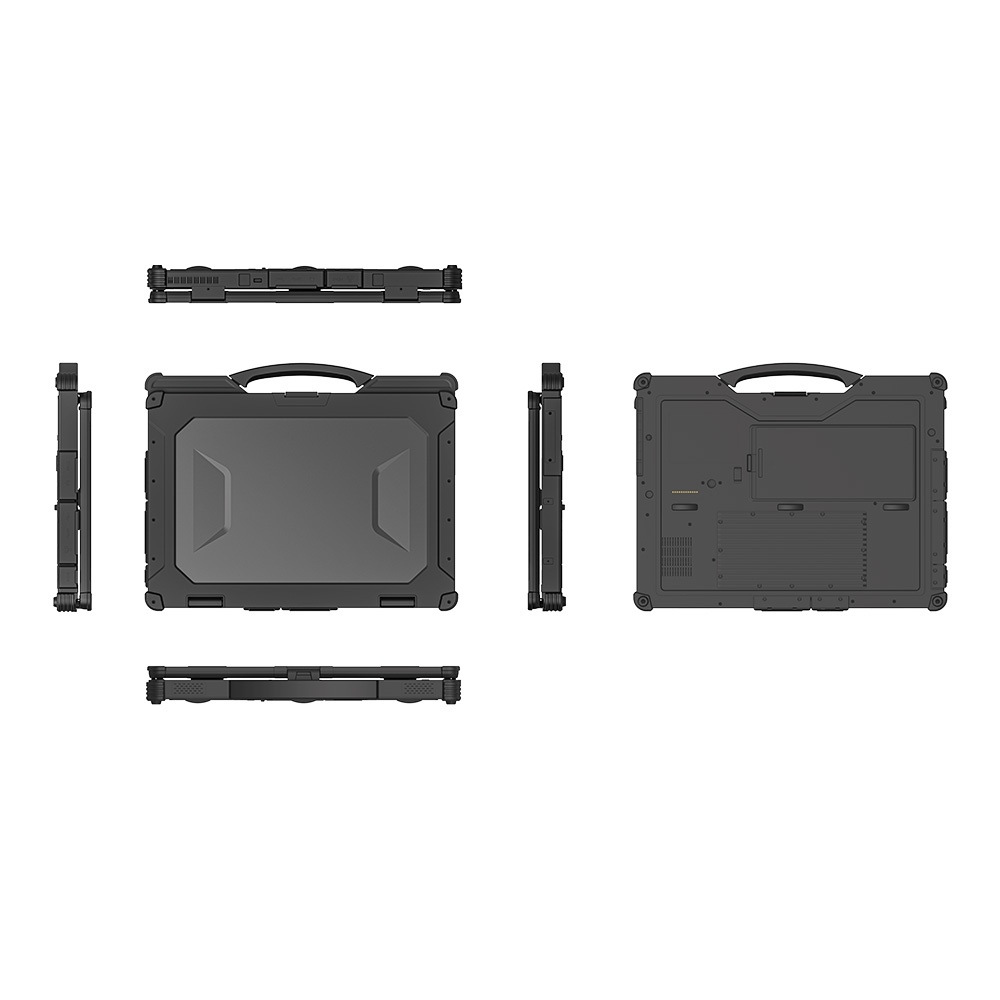

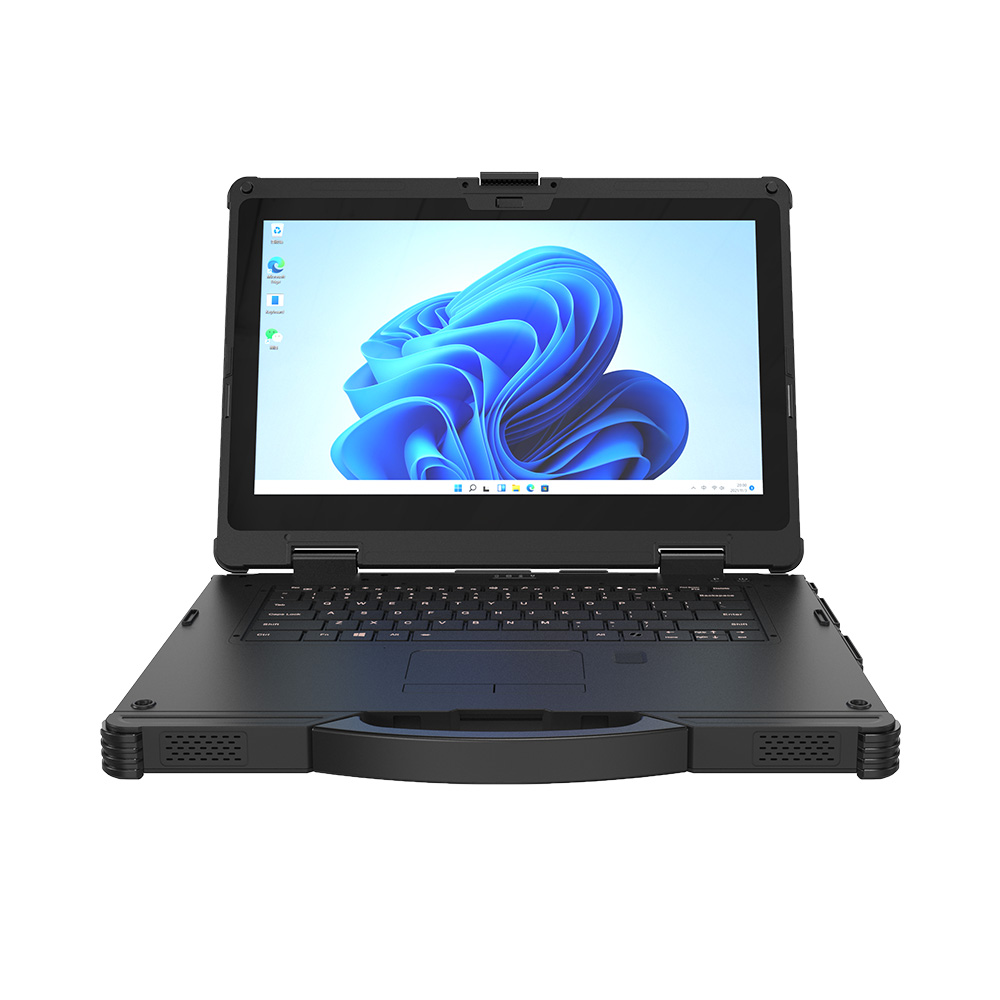

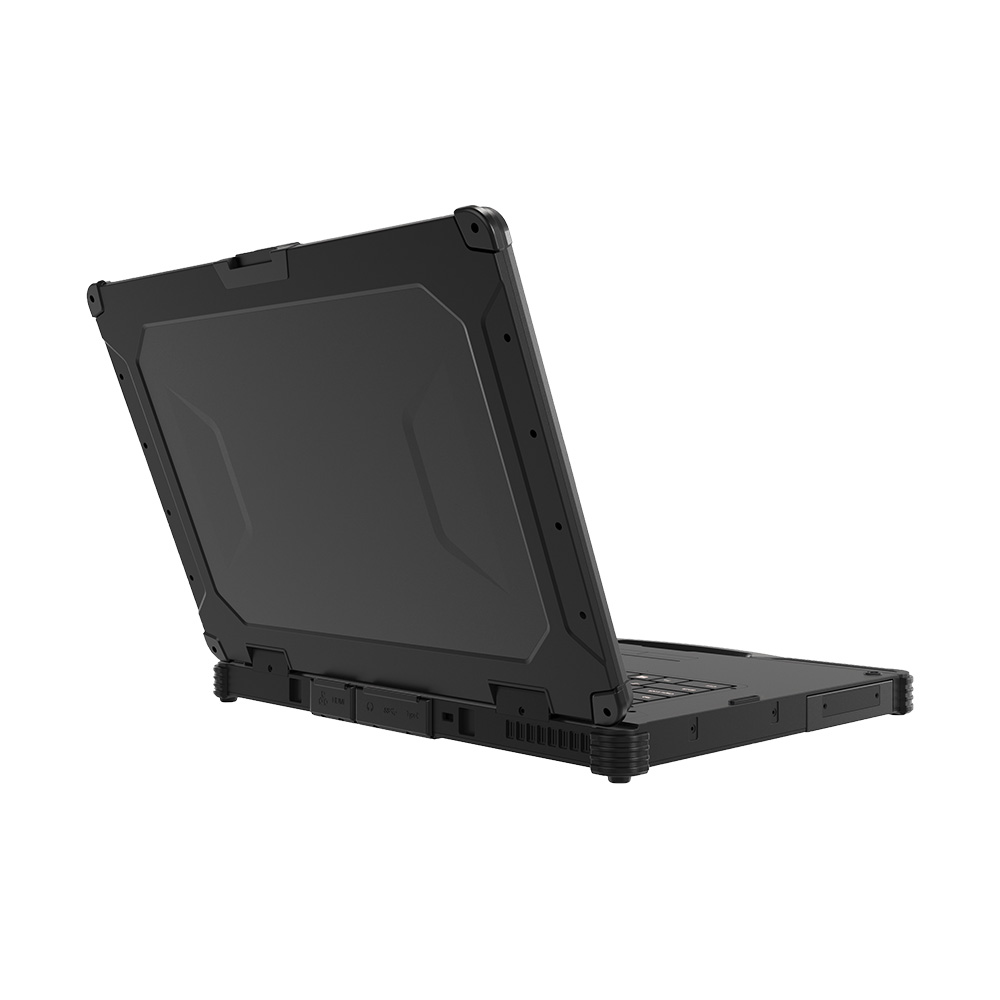

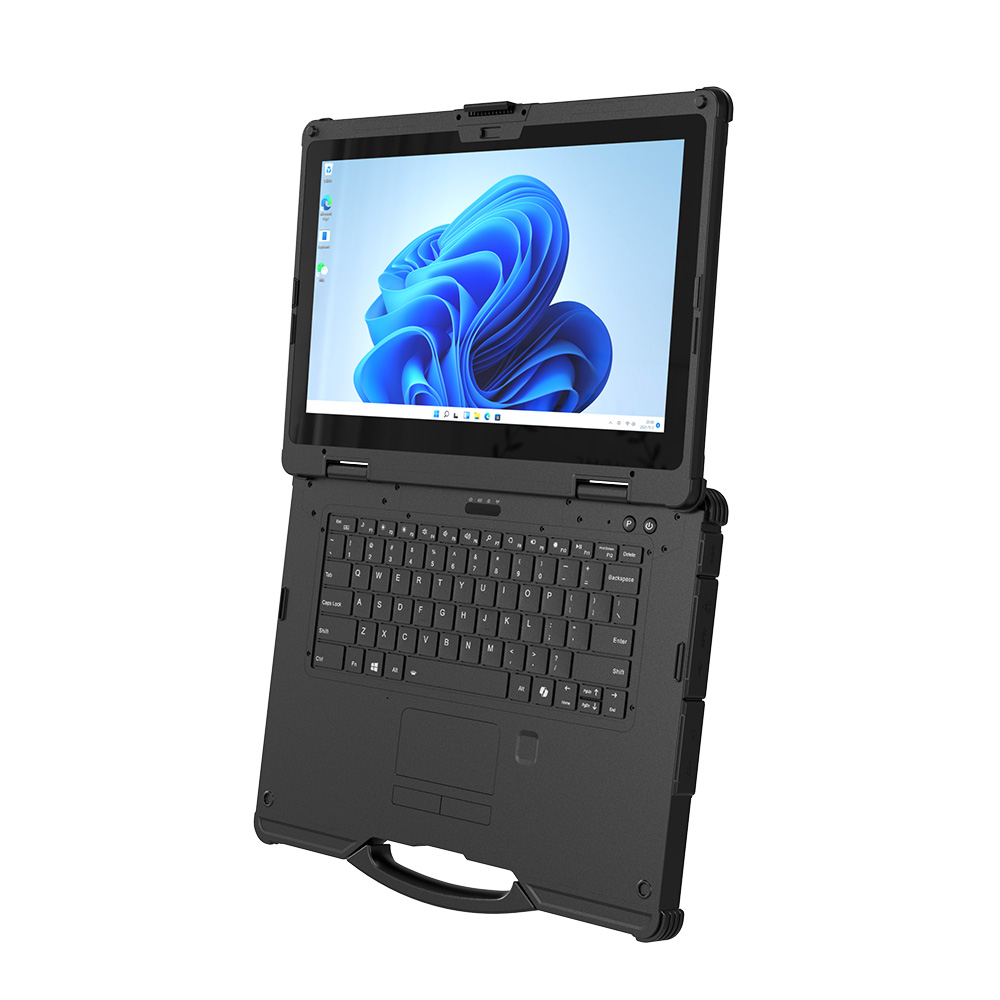

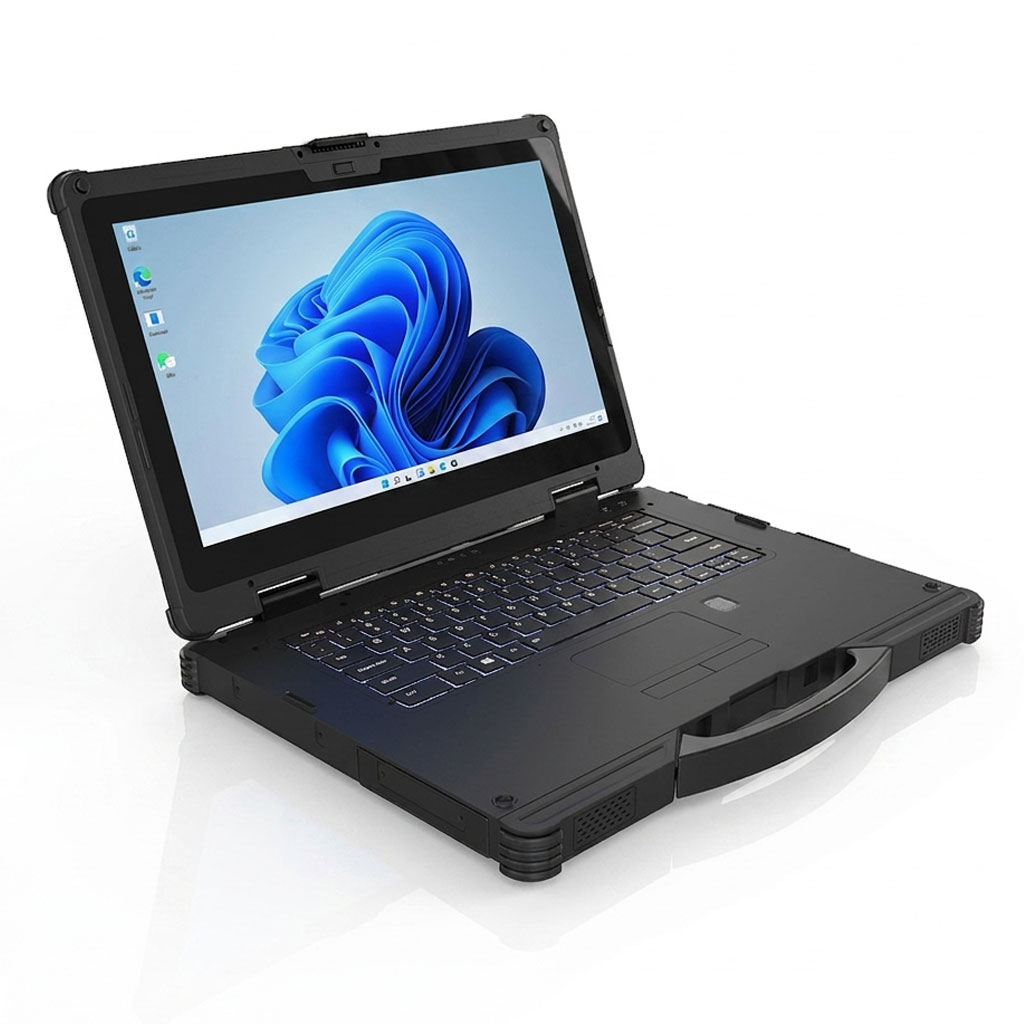

Maximize field productivity with the HCCTG X14M, a 14-inch IP65 and MIL-STD-810H certified rugged AI laptop. Powered by the Intel® Core™ Ultra processor and a hot-swappable dual-battery system , this heavy-duty industrial PC delivers advanced AI acceleration and uninterrupted uptime for mission-critical applications in field surveying, emergency response, and military or industrial inspections
Features the Intel® Core™ Ultra processor with an integrated NPU for advanced hardware AI acceleration and optimized power efficiency during intensive edge computing
Equipped with Intel® Arc™ integrated graphics on Xe LPG architecture, delivering professional-grade rendering for demanding 3D modeling and visual tasks
Comes with pre-installed Windows 11 OS, supporting dual memory and dual storage expansion slots to boost multitasking efficiency and industrial data capacity
Utilizes a hot-swappable dual-battery architecture (53Wh + 14.4Wh) with switchable modes to ensure continuous uptime for mission-critical field operations
Boasts a 14-inch fully laminated display supporting 10-point capacitive touch and glove-touch technology, ensuring reliable operation in all outdoor weather conditions

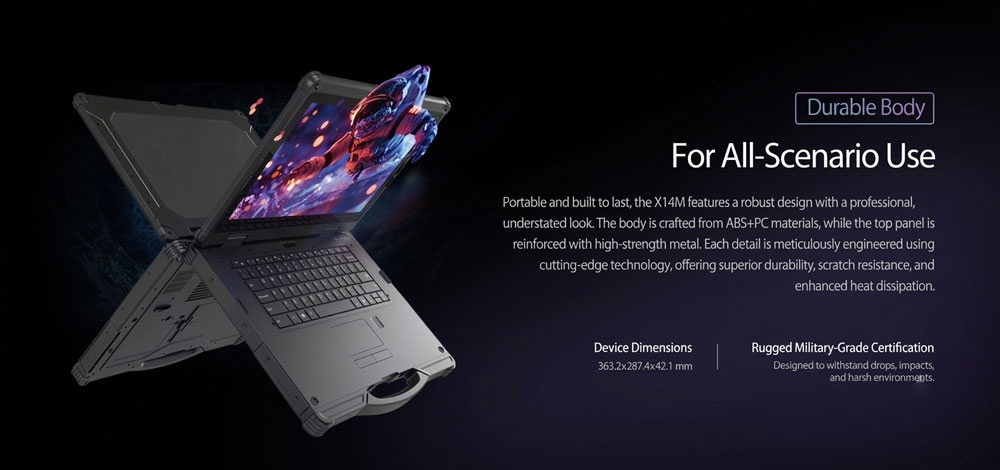

Built with an IP65 and MIL-STD-810H certified rugged chassis, providing ultimate resilience against water, dust ingress, and extreme physical shock
| OS | Windows 11 / 10 |
| CPU | Intel® Core™ Ultra 7 processor 155H Optional: Intel® Core™ Ultra 5 processor 125H |
| Memory | RAM 32GB DDR5(4800MHz), optional 16GB ROM 256GB SSD |
| LCD | 14 inch 16:9, 1920 * 1080, 1000 nits |
| Touch Panel | Optional 10-point capacitive screen, Hardness above 7H, Scratch-resistant, supports glove touch |
| WIFI | Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1(BLE) class 1 Transmission distance: 10m |
| 4G | 4G Optional M.2 European Standard LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| 5G | 5G Optional M.25G NRNSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/ 40/41/48/66/70/ 71/75/76/77/78/79/ SA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/ 40/41/48/ 66/70/71/75/76/77/78/79LTELTE-FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/ 28/29/30/32/66/71LTE-TDD B34/38/39/40/41/42/43/48 LAA B46UMTS WCDMA B1/2/4/5/8/1 |
| GNSS | Supports single GPS or single Glonass, default GPS |
| Camera | Front 5.0MP |
| Device Color | Black |

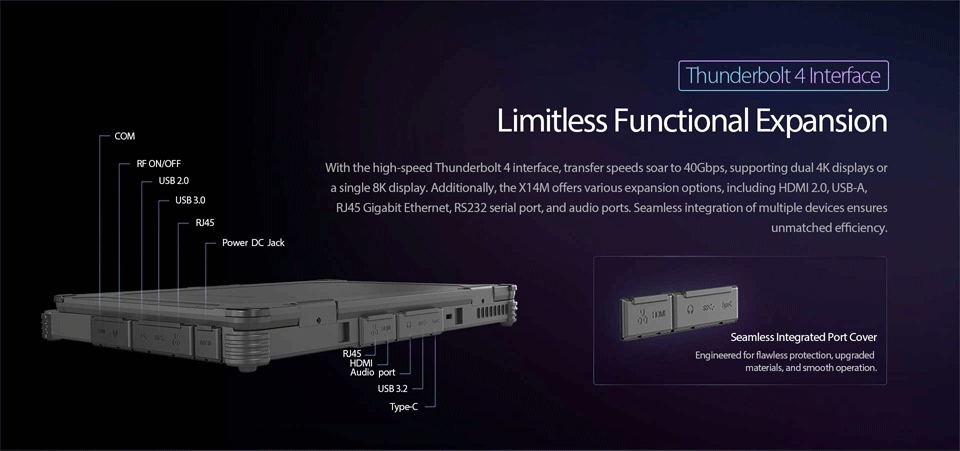

| I/O | USB3.2 * 1, USB3.0 * 1, USB2.0 * 1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack * 1 HDMI 2.0a mini * 1 SIM card * 1, TF card * 1 RJ45 * 1 10M/100M/1000M self-adaptive, RJ45 * 1 10M/100M/1000M self-adaptive(USB2.0), supports Gigabit Ethernet protocol RS232 * 1, 9 fully functional lines DC19V/3.78A ∮5.5mm power interface * 1 Anti-theft Lock Slot * 1 Right-side Cooling Vent * 1 Left-side expansion slot, optional M.2-2280 PCIe interface * 1, supports SSD; Optional: M.2 E-KEY interface * 1 for custom modules Optional: 12PIN Pogo Pin (USB & Charging) * 1 |
| Power Adapter | AC100~240V, 19V/3.78A 71.82W output US Standard Optional: EU Standard |
| Data Collection | Fingerprint, built in, used for power-on loginUS Layout Keyboard with BacklightOptional NFC |
| Dimension | 363.2 * 287.4 * 42.1 mm |
| Weight | 2.97 kg |
| Material | ABS+PC |
| Small Battery | Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5H (Default 50% volume, 200 lumens brightness, playing 1080P HD video) |
| Big Battery | Removable Li-polyment Battery, Hot-swappable 4700mAh/11.4V(53.58WH) 7 hours and 10 minutes (playing 1080P video, conditions: 300 lumens at room temperature, 70dB at 30cm) |
| Working Temperature | -20 °C ~ 60 °C |
| Storage Temperature | -30 °C ~ 70 °C |
| Humidity | 95% Non-Condensing |
| Rugged Feature | IP65 certified, MIL-STD-810H certified |
| Drop Height | 1.2m drop |
| Certification | IP65, 810H, CE |
