Views: 0 Author: Site Editor Publish Time: 2026-04-06 Origin: Site
Section | Summary |
What is a vending machine card reader? | A technical overview of the hardware that facilitates cashless transactions via a secure vending payment terminal interface. |
Before you install: key compatibility checks | Essential pre-installation steps to verify MDB protocols, signal strength, and power requirements for a payment terminal. |
How to add a card reader to a vending machine | A detailed five-step walkthrough covering mounting, wiring, and testing the new vending payment terminal hardware. |
After installation: what to monitor | Critical post-setup metrics including signal stability, transaction success rates, and telemetry data for the payment terminal. |
Do card readers increase vending sales? | An analytical look at how adding a vending payment terminal expands the customer base and boosts average transaction values. |
Is it difficult to add a card reader? | A realistic assessment of the technical difficulty involved in installing a modern payment terminal for various machine types. |
Frequently asked questions | Direct answers to common operator concerns regarding fees, security, and hardware lifespan of a vending payment terminal. |
Final thoughts | A concluding summary on the long-term ROI of transitioning to a cashless, high-efficiency vending operation. |

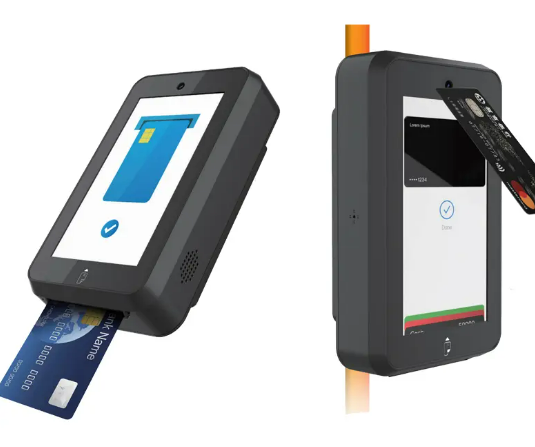

A vending machine card reader is a specialized vending payment terminal that integrates with a machine’s internal controller to process non-cash transactions, including EMV chip cards, magnetic stripes, and NFC-based mobile payments like Apple Pay.
At its core, a vending payment terminal acts as a bridge between the machine's hardware and the financial banking network. Unlike traditional coin mechs, this payment terminal requires a persistent internet connection (usually via 4G LTE or Wi-Fi) to authorize payments in real-time. It translates the digital "OK" from a bank into a physical command for the vending machine to dispense the selected item.
The modern vending payment terminal often includes a high-resolution display to guide the user through the transaction. These devices are designed to be rugged, weather-resistant, and tamper-proof to withstand the rigors of public placement. Beyond just taking payments, many units also function as telemetry devices, sending inventory data back to the operator.
For a professional operator, the vending payment terminal is the heart of a data-driven business. It provides a level of transparency that cash systems cannot match. Every swipe or tap is recorded, allowing for precise sales tracking and the ability to implement remote price changes and loyalty programs directly through the payment terminal interface.
Before beginning the installation, an operator must confirm that the vending machine supports the Multi-Drop Bus (MDB) protocol version 2.0 or higher to ensure the vending payment terminal can communicate effectively with the main logic board.
The first step in any payment terminal upgrade is a thorough hardware audit. Most machines manufactured after the late 1990s use the MDB standard, but older machines may require an MDB conversion kit. Without the correct interface, the vending payment terminal will not be able to "speak" to the machine to trigger a vend once a payment is authorized.
Signal strength is the second critical factor. Since a vending payment terminal relies on cellular data, you must test the signal at the exact location where the machine is placed. A weak signal can lead to dropped transactions, frustrated customers, and lost revenue. If the signal is poor, you may need to purchase an external high-gain antenna for your payment terminal.
Feature | Requirement | Reason |
Protocol | MDB (Multi-Drop Bus) | Standard language for vending payment terminal communication. |
Power Supply | 24V - 34V DC | Most payment terminal hardware runs on standard MDB power. |
Communication | 4G LTE / Wi-Fi | Necessary for the vending payment terminal to reach the gateway. |
Physical Space | 3" x 4" surface | Standard mounting area required for the payment terminal faceplate. |
Finally, check the firmware version of your machine’s Control Board (VMC). Some older boards require a firmware flash to recognize a modern vending payment terminal. Ensuring these technical prerequisites are met will prevent the "Device Not Found" errors that plague many DIY payment terminal installations.
Adding a card reader involves a systematic process of mounting the hardware, establishing a secure data connection with the machine board, and initializing the vending payment terminal through a cloud-based management platform.
Safety is paramount. Always turn off the main power switch before opening the machine. To install the vending payment terminal, you will typically find a knock-out plate on the front of the machine. Remove this plate and position the payment terminal in the opening. Use the provided mounting studs and nuts to secure the device firmly against the machine facade. Ensure the vending payment terminal is level and that there are no gaps where moisture could enter.
Locate the MDB cable inside the machine, which usually features a 6-pin connector. The vending payment terminal will have a corresponding MDB "T-harness." Plug the male end of the machine's harness into the female end of the payment terminal cable, and vice versa. This creates a "daisy chain" that allows the payment terminal, coin mechanism, and bill validator to all share the same communication bus.
Mount the cellular antenna. For the best performance, the antenna should be placed as high as possible inside the machine, ideally near a plastic or glass area that doesn't block radio waves. Connect the antenna cable to the back of the vending payment terminal. If you are using a Wi-Fi-enabled payment terminal, ensure the internal settings are configured to your local network credentials before closing the door.
Turn the machine power back on. The vending payment terminal should light up and begin its boot sequence. During this phase, the payment terminal will attempt to contact the server and download the latest configuration files. Most modern vending payment terminal units will display a "Testing" or "Connecting" message. Once it reaches the "Ready" or "Swipe Card" screen, the hardware handshake is complete.
Log into your operator dashboard on your computer or mobile device. You will need to "claim" the vending payment terminal by entering its unique serial number. Once claimed, perform a test transaction using a real credit card. Verify that the payment terminal authorizes the amount, the machine dispenses the product, and the transaction appears in your real-time sales log. This ensures the vending payment terminal is fully synchronized with your merchant account.
After the successful deployment of a vending payment terminal, operators must closely monitor the connection stability (DEX reports) and transaction success rates to ensure the hardware is performing at peak efficiency.
Connectivity is the lifeblood of a vending payment terminal. If the device frequently goes offline, it can result in "Communication Error" messages for customers, which severely damages brand trust. Operators should check their management portal daily to ensure the payment terminal is maintaining a steady heartbeat signal. High latency in a vending payment terminal can lead to slow authorization times, often causing users to walk away before the transaction completes.
Data accuracy via DEX (Digital Exchange) is another critical post-installation metric. A properly configured vending payment terminal should report exact inventory levels and cash-on-hand counts. If the data in your portal doesn't match the physical stock in the machine, it indicates a configuration error between the payment terminal and the VMC. Regular audits ensure your vending payment terminal is providing the "single source of truth" for your business operations.
Transaction Success Rate: Percentage of authorized vs. declined taps on the vending payment terminal.
Average Authorization Time: Ideally, your payment terminal should process a payment in under 5 seconds.
Signal Strength (dBm): Monitoring the cellular health of the vending payment terminal to prevent outages.
Firmware Status: Ensuring the payment terminal is running the latest security patches to remain PCI compliant.
Finally, keep an eye on the physical condition of the vending payment terminal. Because these devices are interactive, they are prone to wear and tear. Cleaning the contactless landing pad and checking for any signs of tampering or "skimmers" on the payment terminal should be part of every routine restocking visit.
Yes, installing a vending payment terminal typically increases total machine sales by 25% to 40% by capturing spontaneous purchasers who do not carry cash and by enabling higher-priced "premium" item selections.
The primary driver of increased revenue through a vending payment terminal is the removal of "price ceilings." When a customer is limited to the cash in their pocket, they are unlikely to buy an item priced at $5.00 or $10.00. However, with a payment terminal, the friction of payment is removed. This allows operators to stock higher-margin items like electronics, premium health snacks, or expensive beverages that would be difficult to sell via a payment terminal that only accepted coins.
Furthermore, a vending payment terminal facilitates "multi-vend" transactions. Modern systems allow a user to swipe their card once and select multiple items. This convenience significantly boosts the average transaction value. Without a vending payment terminal, a customer might only buy one drink; with the payment terminal, they are much more likely to add a snack to their purchase.
Metric | Cash-Only Machine | Machine with Payment Terminal |
Avg. Transaction Value | $1.25 - $1.75 | $2.50 - $4.00 |
Customer Reach | Only those with physical cash | 100% of potential buyers |
Item Pricing Flexibility | Low (limited by change) | High (limitless) |
Sales Growth Potential | Stagnant | 25%+ Increase |
Beyond the immediate sales lift, a vending payment terminal provides invaluable consumer insights. By analyzing the data from your payment terminal, you can identify which products sell best at specific times of the day. This allow for "dynamic merchandising," where you optimize the machine's layout based on the hard data provided by the vending payment terminal's reporting suite.
While the process is technically straightforward for modern MDB-equipped machines, adding a vending payment terminal to older, non-MDB equipment can be difficult and may require specialized conversion hardware or control board upgrades.
For a standard modern machine, the installation of a vending payment terminal is often described as "plug-and-play." Most operators can complete the physical mounting and wiring of a payment terminal in less than 30 minutes. The software side, which involves activating the vending payment terminal on a cellular network, is also streamlined through user-friendly mobile apps provided by hardware manufacturers.
The difficulty increases when dealing with "legacy" machines. These units might lack the standard mounting holes for a vending payment terminal, requiring the operator to drill into the metal cabinet. Additionally, if the machine uses an older pulse or micromech system, you will need an MDB conversion kit to bridge the gap between the old machine logic and the modern vending payment terminal.
Modern Beverage/Snack Machines: Very Easy. Standardized ports and mounts make payment terminal integration seamless.
Specialty Lockers/Amusement: Moderate. May require custom brackets for the vending payment terminal.
Legacy (Pre-1995) Machines: Difficult. Often requires board swaps to support a vending payment terminal.
Outdoor/Harsh Environments: Moderate. Requires extra sealing and specialized ruggedized payment terminal models.
Ultimately, the "difficulty" is a small hurdle compared to the long-term benefits. Most operators find that after installing their first two or three vending payment terminal units, the process becomes routine. The key is to choose a payment terminal provider that offers robust technical support and clear documentation to guide you through any machine-specific quirks.
What are the typical fees for a vending payment terminal?
Most providers charge a monthly "connection fee" (usually $5-$10) plus a transaction fee (around 3% to 5.5%).
Does the payment terminal support Apple Pay and Google Pay?
Yes, any modern vending payment terminal equipped with an NFC (Near Field Communication) reader will support all major mobile wallets.
Is the data secure?
A professional vending payment terminal is fully PCI-DSS compliant, meaning credit card data is encrypted the moment it is swiped or tapped.
Can I use my own SIM card in the terminal?
Generally, no. A vending payment terminal usually comes with a pre-installed, secure SIM card locked to the manufacturer’s payment gateway.
Will the payment terminal work in a basement?
If there is no cellular signal, the vending payment terminal will not work unless it is connected to a local Wi-Fi network or an external antenna is run to a higher floor.
Transitioning your fleet to include a vending payment terminal is the single most effective way to modernize your business and protect your margins. In an era where "contactless" is the preferred method of interaction, a machine without a payment terminal is essentially invisible to a large portion of the population. By following the five practical steps of installation—from mounting to initialization—you can transform a standard machine into a high-tech retail outlet.
Beyond the immediate revenue boost, the telemetry data provided by a vending payment terminal allows you to work smarter, not harder. You can optimize your routes, reduce "dry runs," and ensure your best-selling items are always in stock. The vending payment terminal is not just a tool for taking money; it is a comprehensive management solution that brings the power of e-commerce to the physical world of vending. Investing in a high-quality vending payment terminal today ensures your business remains competitive, scalable, and ready for whatever the future of retail holds.
