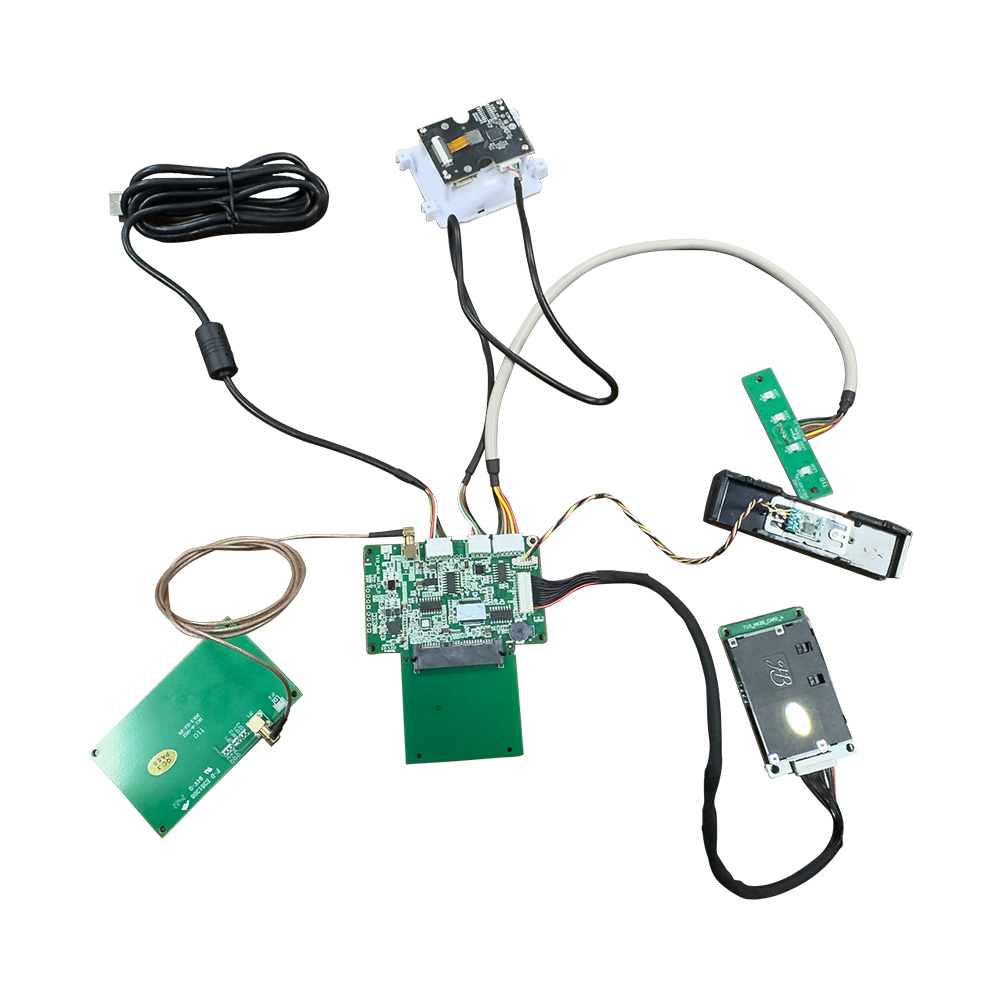

Embedded Smart RFID Card Reader Module with Barcode Reader Module PSAM HCC-T10-MX4

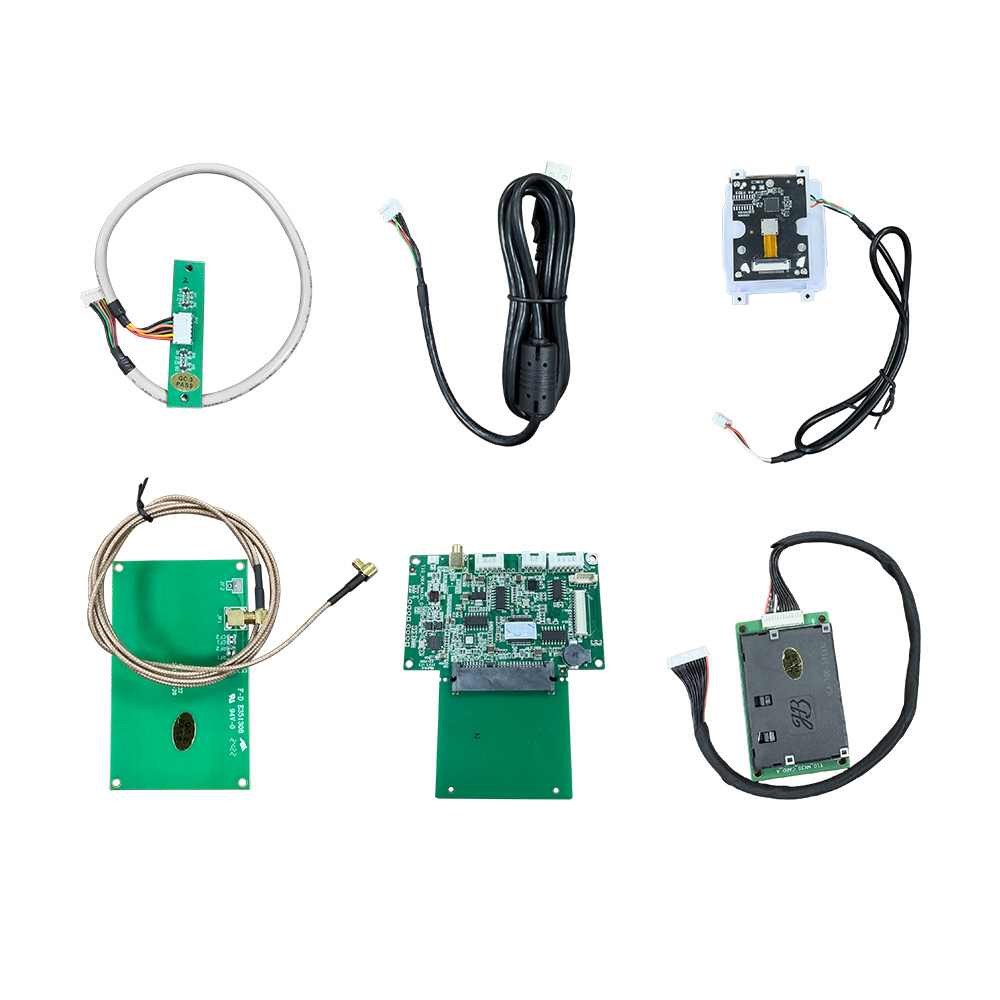

The HCC-T10-MX4 embedded multi-function module is equipped with a code scanning module on the basis of the T10 embedded module, and integrates the second-generation identity reading, contact, Contactless, magnetic stripe card and code scanning functions.

CPU:	32-bit processor
Connectivity:	USB RS232
Magnetic Stripe Card:	1/2/3track
Contactless Card:	ISO / IEC 14443A/B
SAM Card Slots:	ISO / IEC 7816 standard
Operating System:	Windows XP 7/8/10, Linux, Android
Operating Temperature:	-10°C – 50°C
Availability:

Quantity:



Inquire Add to Basket

Model:
HCC-T10-MX4
Brand:
HCCTG

Product Description

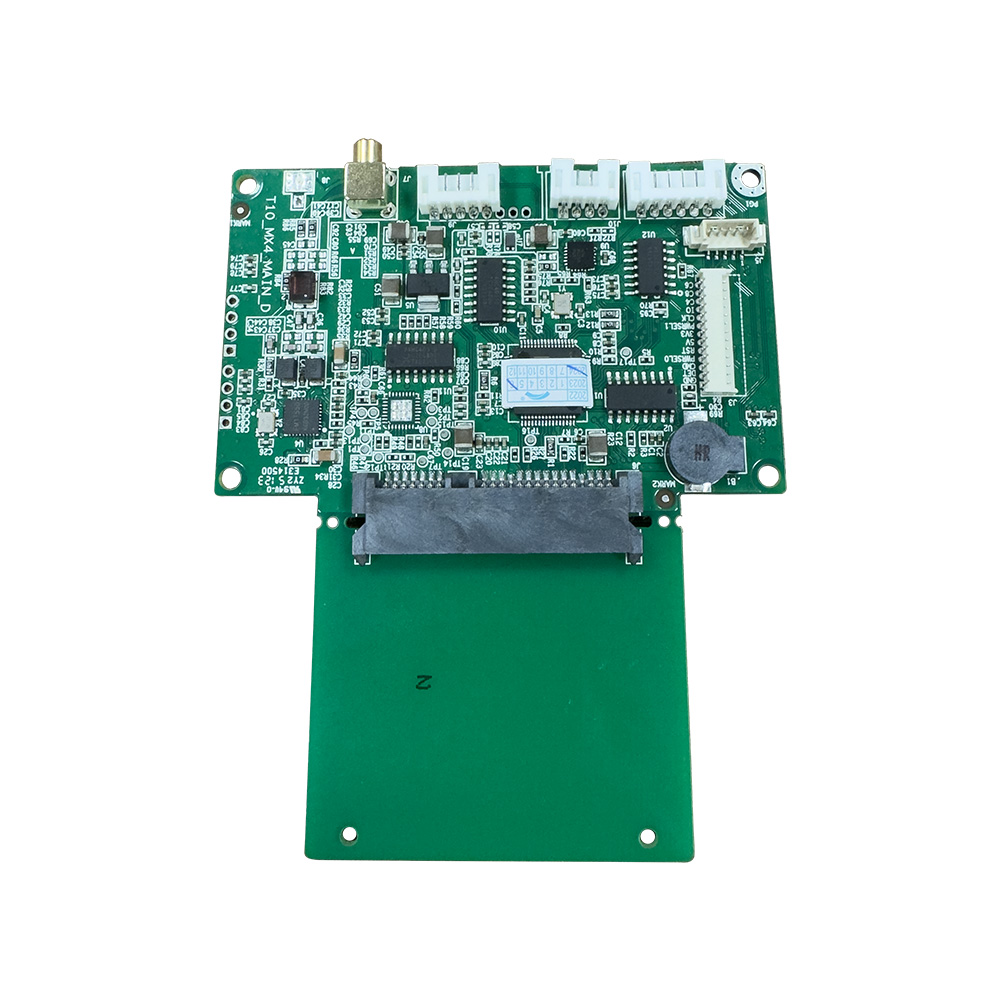

Embedded Card Reader Module with Scanning HCC-T10-MX4

HCC-T10-MX4 Embedded multi-function module has a wide range of application scenarios and is easy to install. It is suitable for embedding in self-service terminals, ATM machines, high-speed cameras, commercial POS machines and other financial IC cards, social security card applications.

Features

1.The built-in second-generation card reading module approved by the Ministry of Public Security can read the information of the second-generation card.

2.Integrate the reading function of contact smart card and contactless smart card, and support the function of reading magnetic stripe card.

3.Support scanning one-dimensional code, two-dimensional code function.

APPLICATIONS

The reader module is designed for fast and easy integration into embedded systems

Such as vending machine, secure access control, ATM, kiosks, gaming machines,scanner and POS terminal

ATM Machine

Access Control

Vending Machine

Kiosk Terminal

Product Specification

CPU	32-bit processor

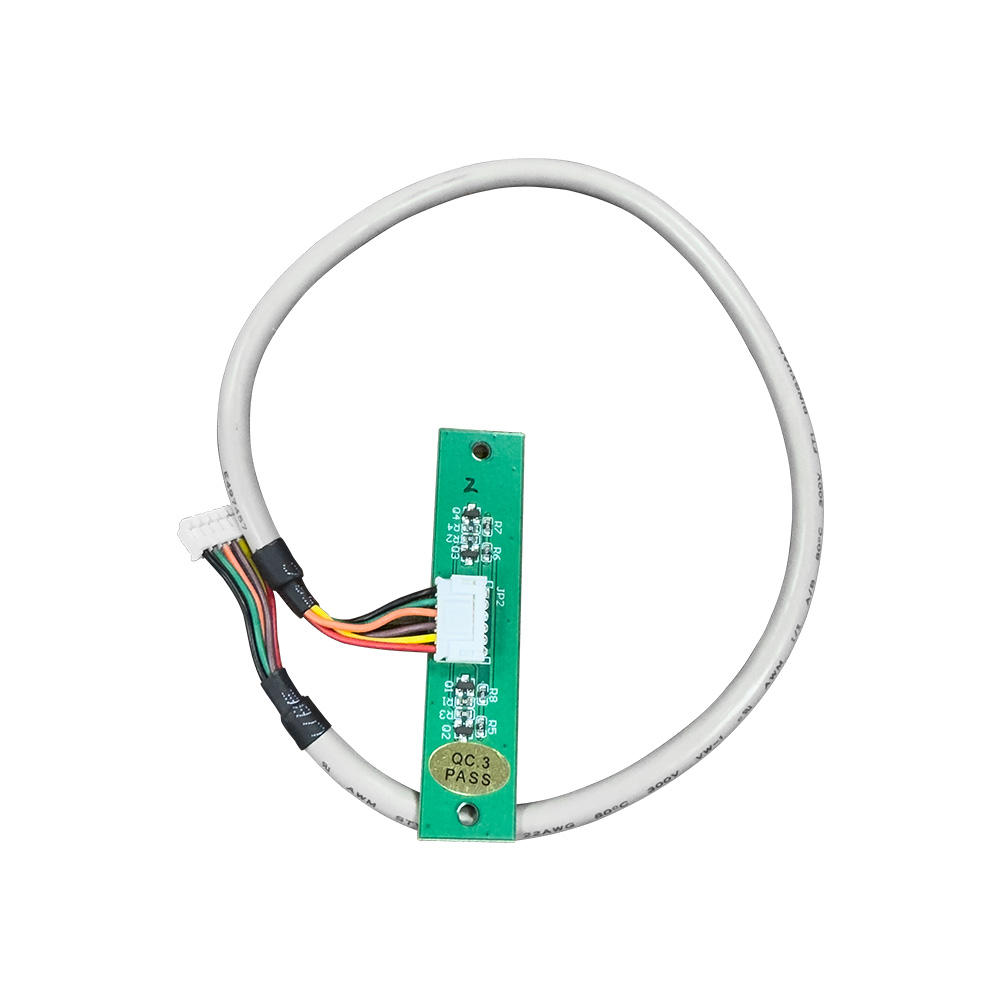

LED indicators	4 LED for indicating status (from left most: blue, yellow, green, red); Optional
Buzzer	support, passive
Connectivity	USB / RS232
Magnetic Stripe Card	1 / 2 / 3 track reading,Two-way card swiping, one-sided card swiping (optional)
IC Card	1 psc, obey IOS / IEC 7816 Protocol (optional)
Contactless Card	Support ISO / IEC 14443, Type A / B, Mifare card
		Operating Frequency: 13.56Mhz 7Khz
		Operating distance: ≥ 5 cm
Second generation ID card module	Support the second-generation resident ID card information reading, the maximum card reading distance is not less than 4 CM (Optional)
SAM Card Slots	4 pcs, Support ISO / IEC 7816 standard

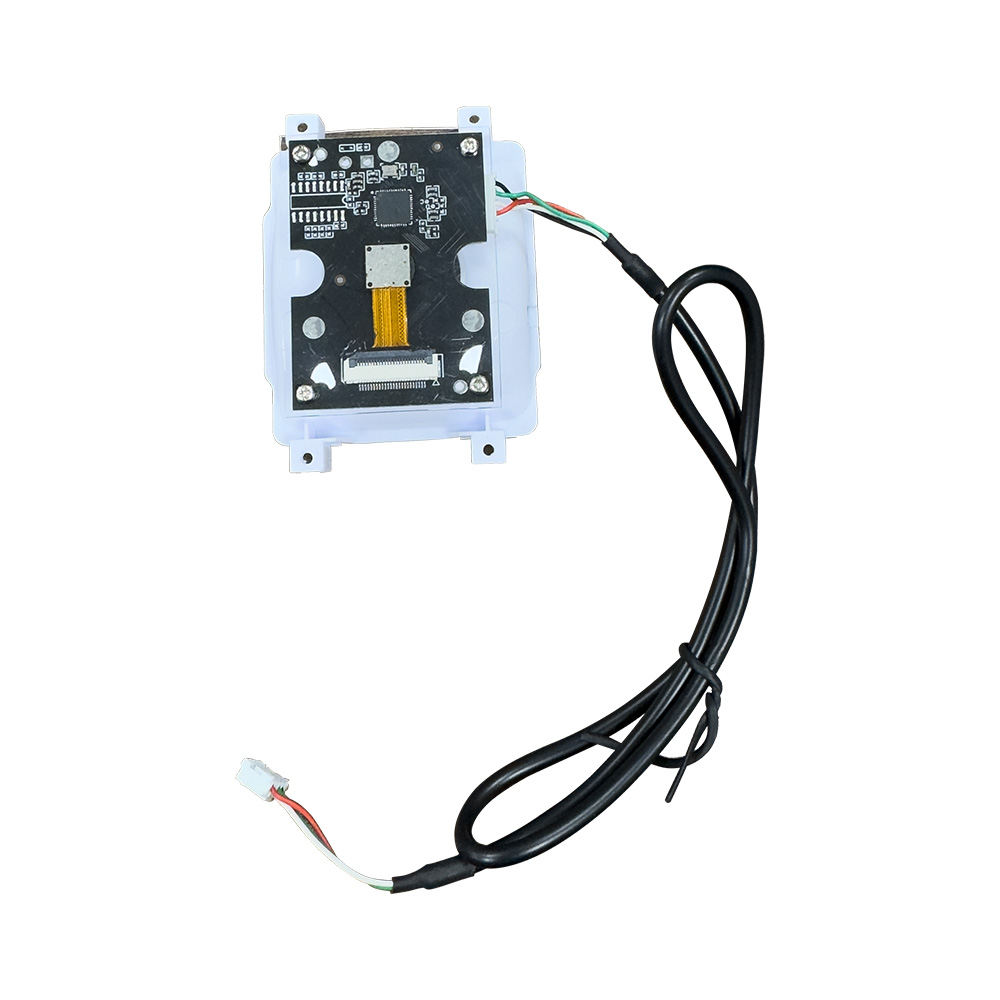

Barcode Scanner	Support international and domestic common: 1D code and 2D code
Power Supply	USB power supply, DC5V±5% Supply Current: 900MA
Operating System	Windows XP 7 / 8 / 10, Linux, Android
Operating Conditions	Temperature: -10°C – 50°C
Operating Conditions		Humidity: 5% to 93%, non-condensing
Storage Conditions	Temperature: -10°C – 50°C
Storage Conditions		Humidity: 5% to 95%, no condensing
Other Features	Provide a general interface function library, support multiple operating systems and language development platforms, provide a secondary development platform on the device side, support online upgrade tools, and support custom development.
Optional	Smart card module(Contact)
		MSR Module
		2D Barcode scanner module
