Bus Ticket Validator Barcode Scanner NFC Card Reader for Transportation System T80MC

Name: Bus Ticket Validator Barcode Scanner NFC Card Reader for Transportation System T80MC
Brand: HCCTG
SKU: 538510107
Rating: 5.0 (15 reviews)

T80MC as the start/end point or major hub for bus journeys

Display:	4.3-inch LCD screen
Connector:	RS232 Serial/USB/RS485
Contactless Reader:	ISO 14443-A&B
SAM Card:	4 * ISO 7816 SAM Sockets
Scanner:	1D,2D
Availability:

Quantity:



Inquire Add to Basket

Model:
T80MC
Brand:
HCCTG

Product Description

|

Product Description

1）T80MC Bus ticket payments offer flexibility, including contactless payments (tap-to-pay with cards, phones, watches), mobile QR (for digital tickets/passes).
2）This public transport ticketing terminal serves as a dedicated device for passengers to complete card swiping/validation during disembarkation, enabling efficient post-ride fare confirmation and check-out.

|

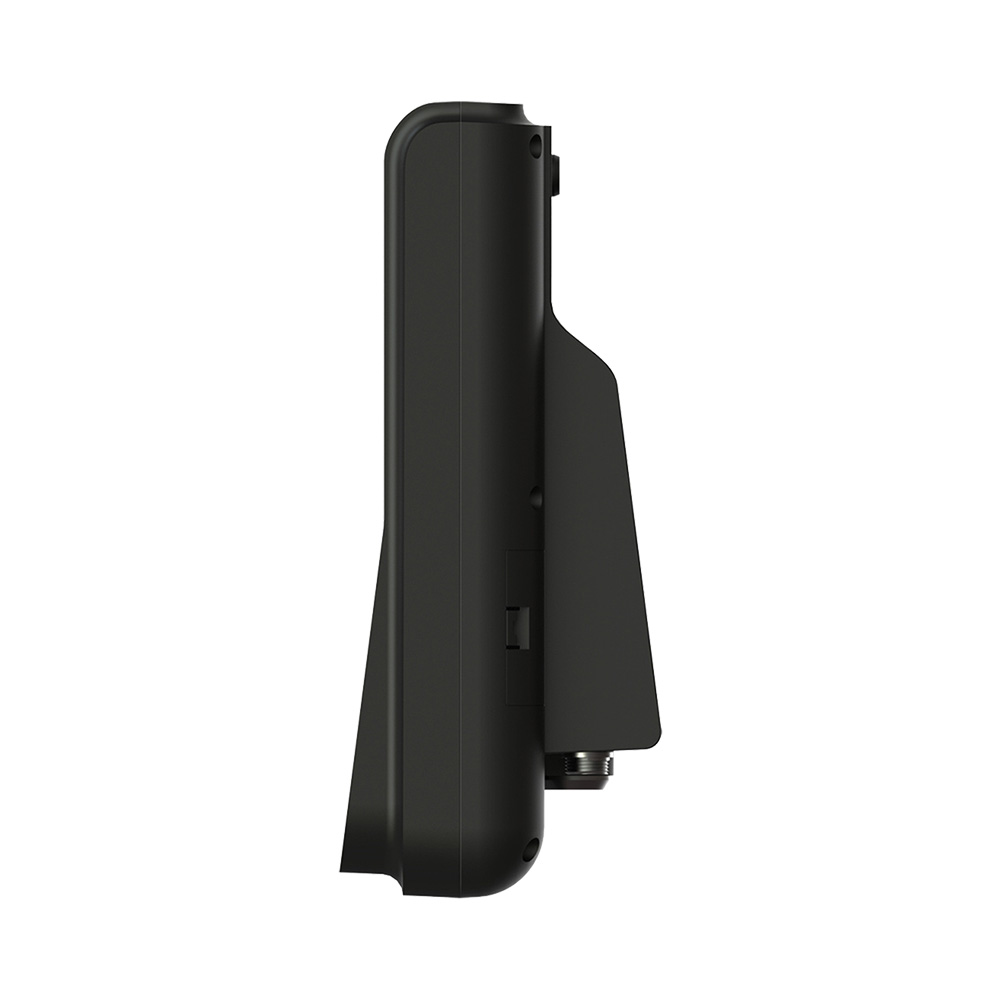

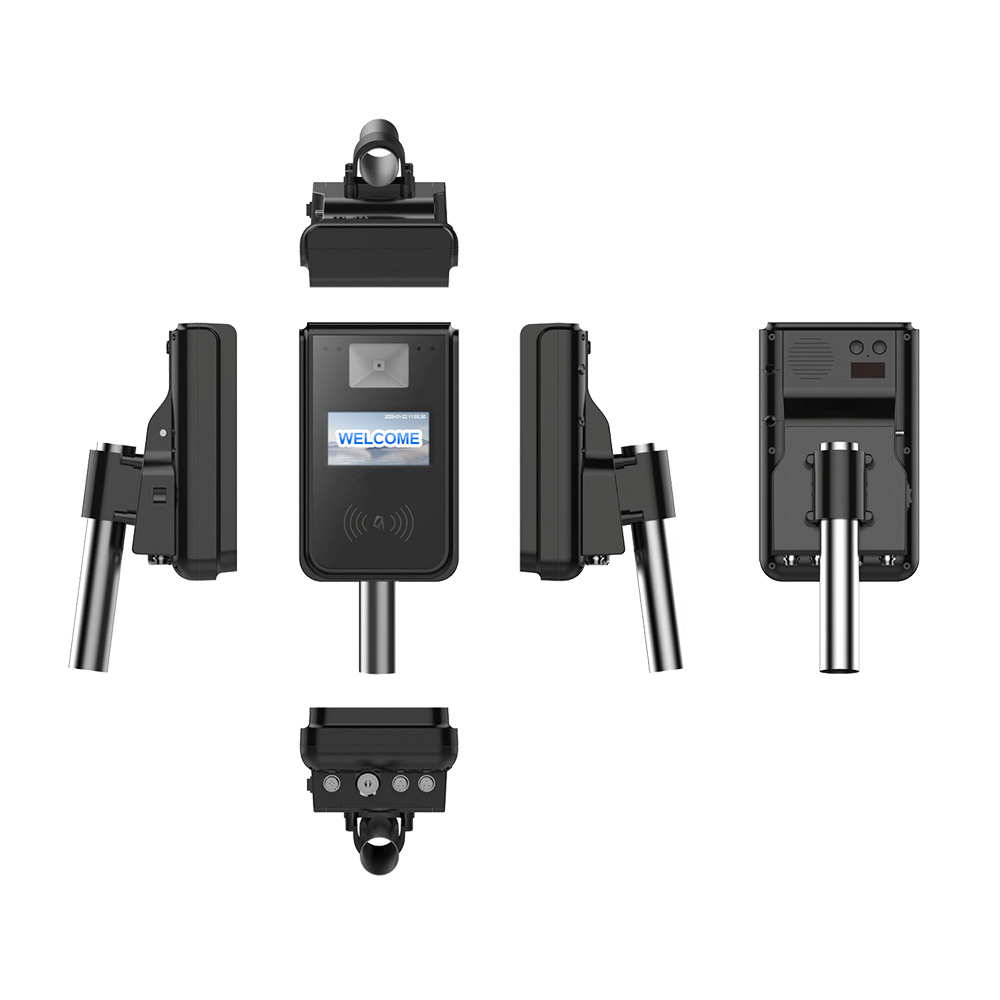

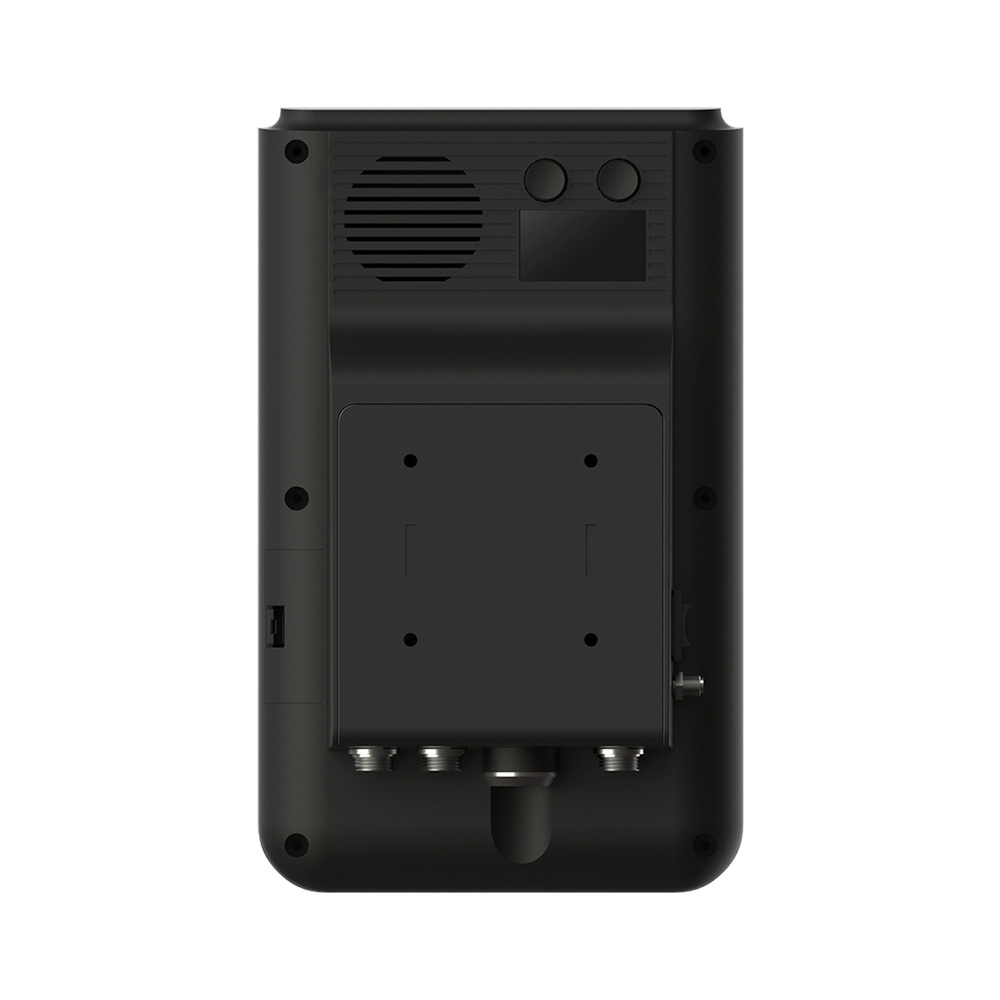

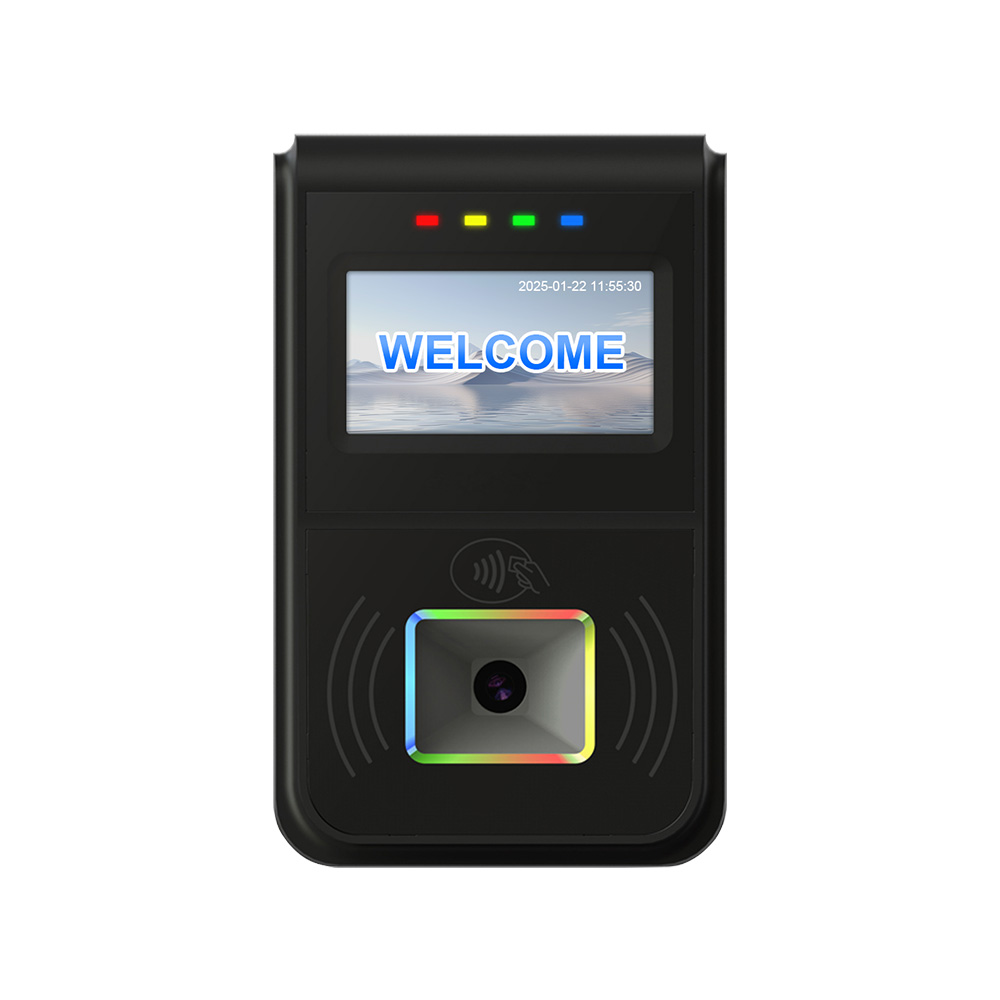

Product Show

|

Specifications

Display	4.3-inch LCD screen (front)
LED	Blue, Yellow, Green, Red
HMI	Speaker * 1 (MAX 100dB) Hard Key * 2 Power Switch * 1 Buzzer * 1
Connector	RS232 Serial/USB/RS485
RF Module	ISO 14443-A & B Miafre Sony Felica Up to 6 cm Reading Distance
SAM Card	4 * ISO 7816 SAM Sockets
RTC	Support
Bar Code Scanner	2D: PDF417, QR, Data Matrix (DM), Aztec Code, Maxi Code, Veri Code, Han Xin; 1D: EAN 13, EAN 13 with 2 Supps, EAN 13 with 5 Supps, EAN 8, EAN8 with 2 Supps, EAN8 with 5 Supps, UPC A, UPC A with 2 Supps,UPC A with 5 Supps, UPC E0, UPC E0 with 2 Supps, UPC E0 with 5 Supps, UPC E1, UPC E1 with 2 Supps, UPC E1 with 5 Supps, Code 39, Trioptic Code 39, Code 93, Code 128, Setup128, Codabar, Discrete 2 of 5, Interleaved 2 of 5, IATA 2 of 5, MSI, Bookland EAN, Coupon Code, Code11, GS1-128, GS1 DataBar-14, GS1 DataBar Limited (0x89), GS1 DataBar Expanded; Scanning Accuracy ≥ 5 mil Depth of Field EAN-13: 11mm–50mm (13 mil); Data Matrix: 15mm–35mm (10 mil); QR Code: 11mm–40mm (15 mil);
Power	3-pin circular connector * 1; 12V–36V input
Operating	Temperature: −20℃ to 70℃ Humidity: 5%–93% (non-condensing)
Storage	Temperature: −30℃ to 80℃ Humidity: 5%–93% (non-condensing)
Dimensions	227 * 140 * 99 mm
