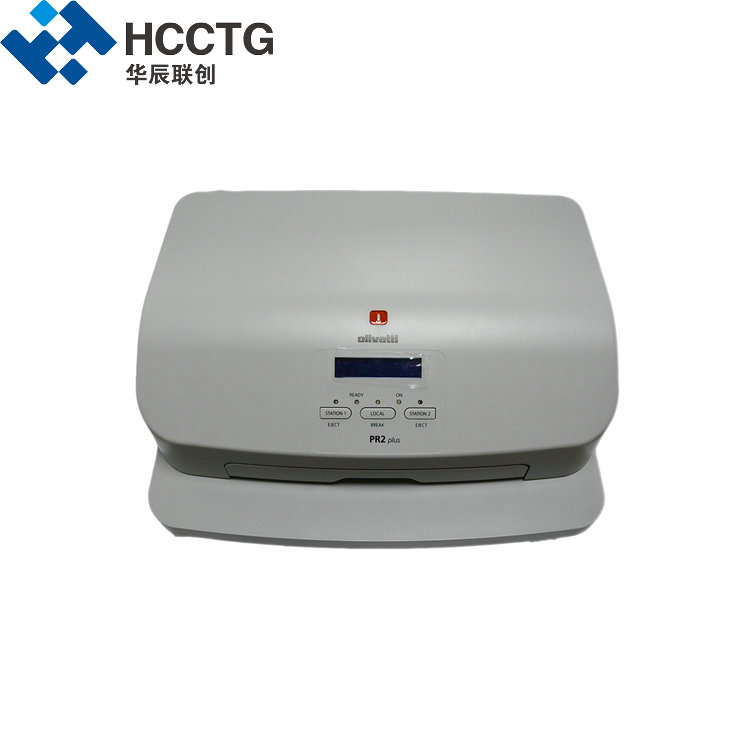

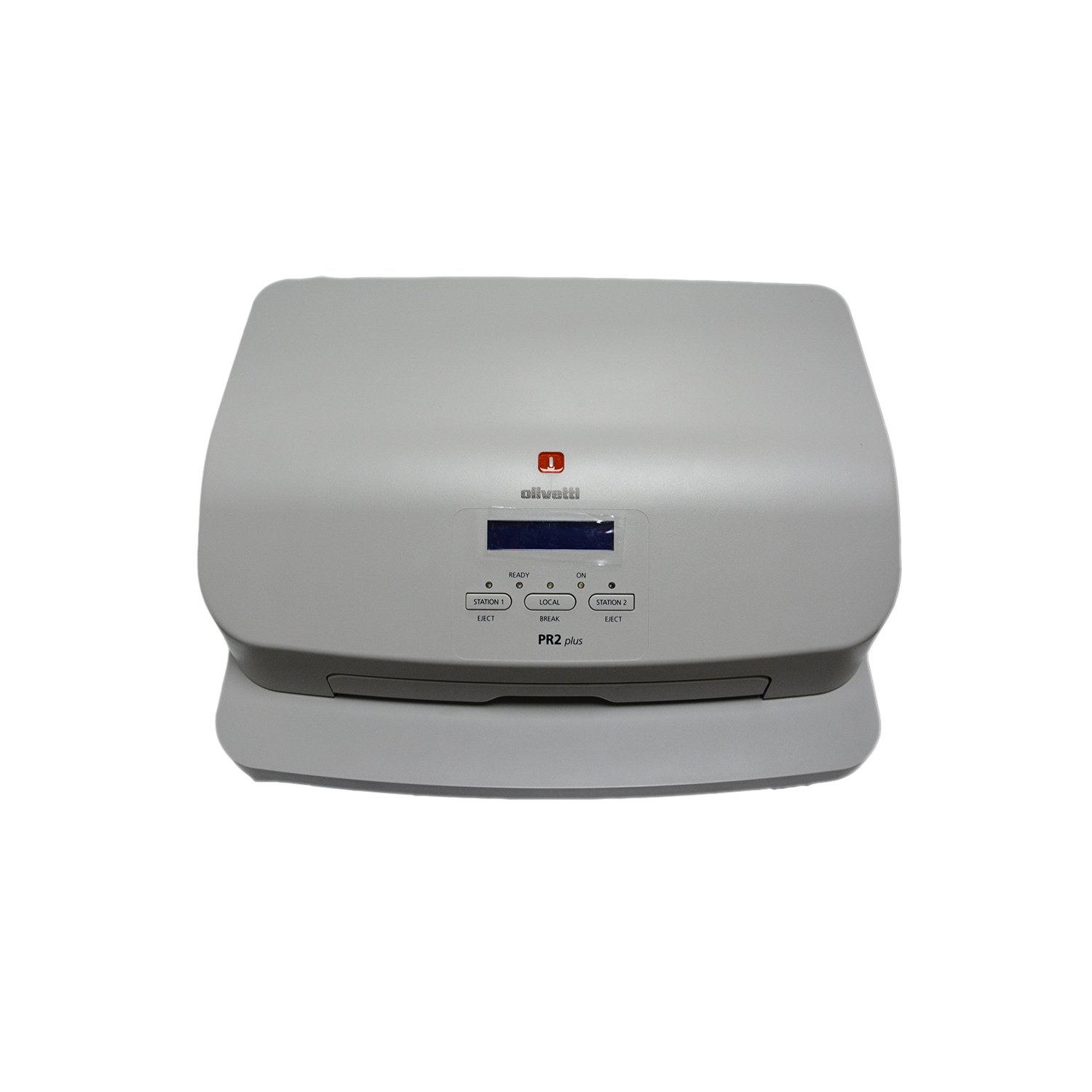

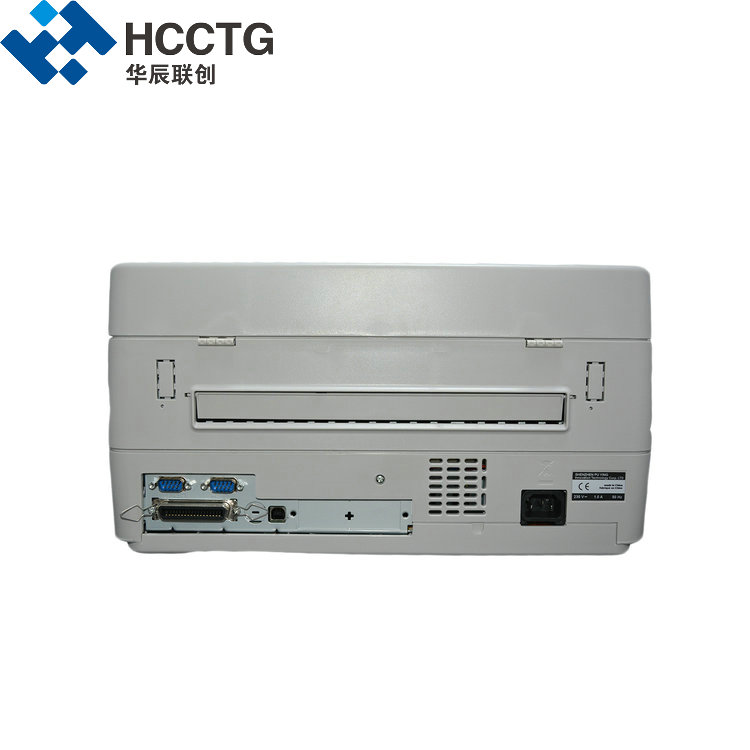

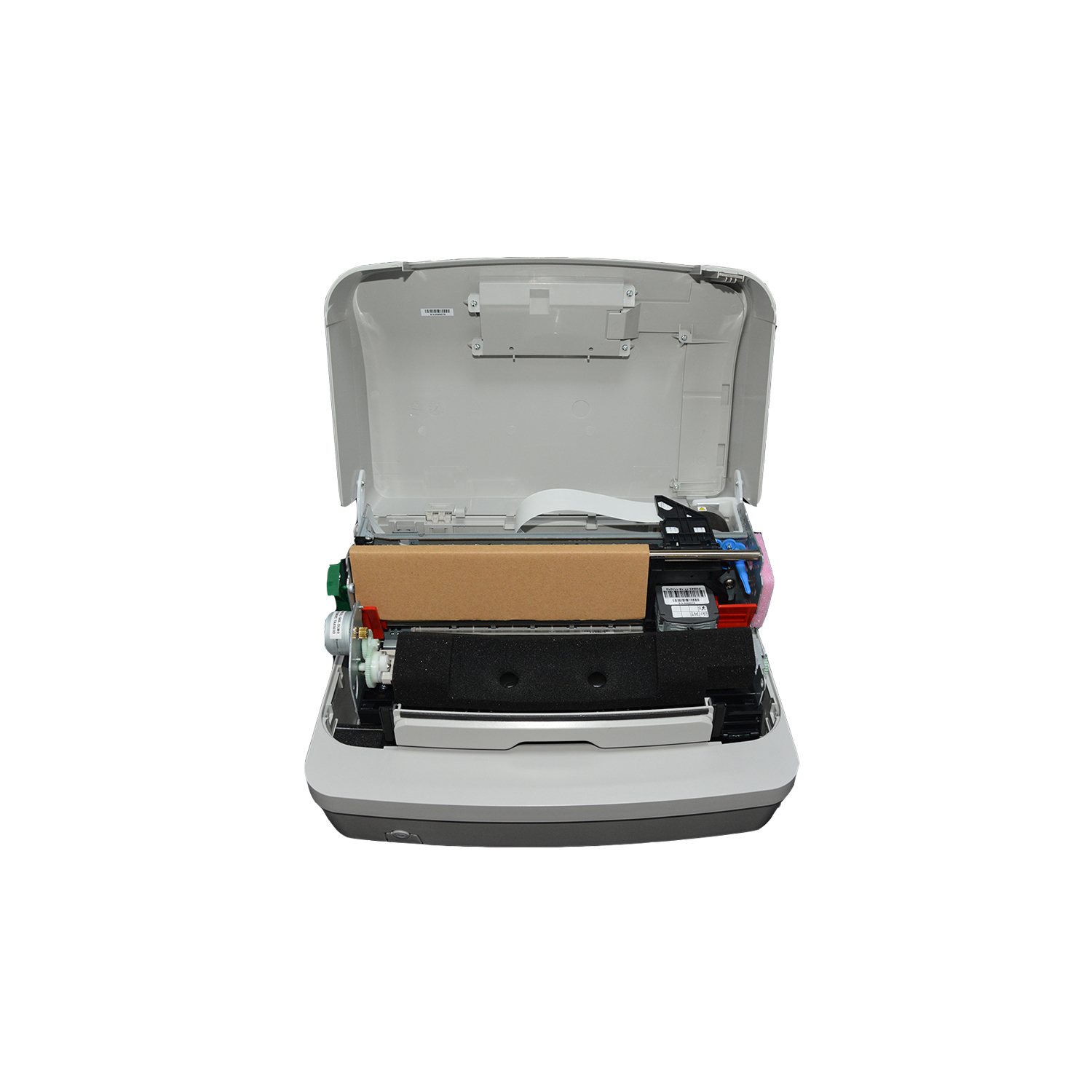

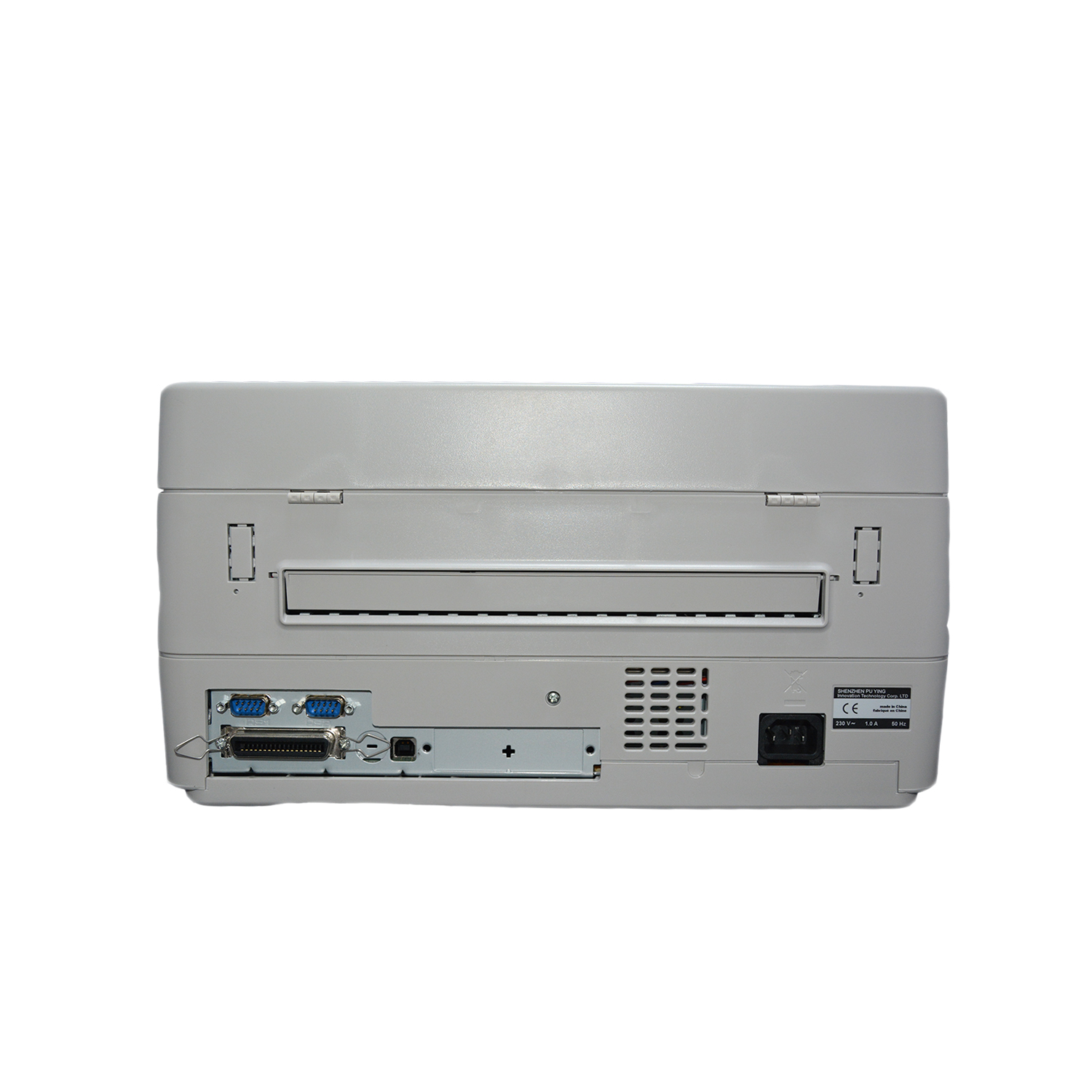

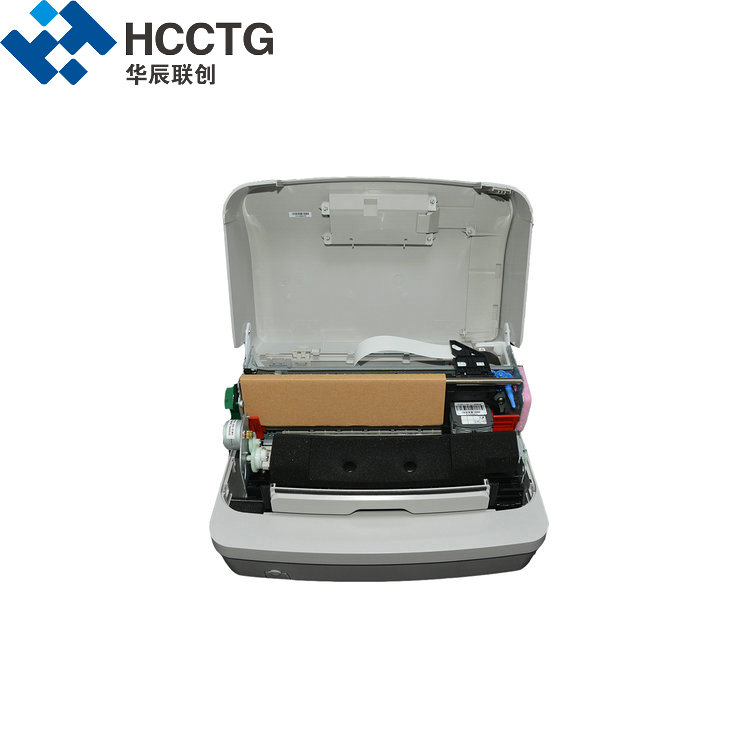

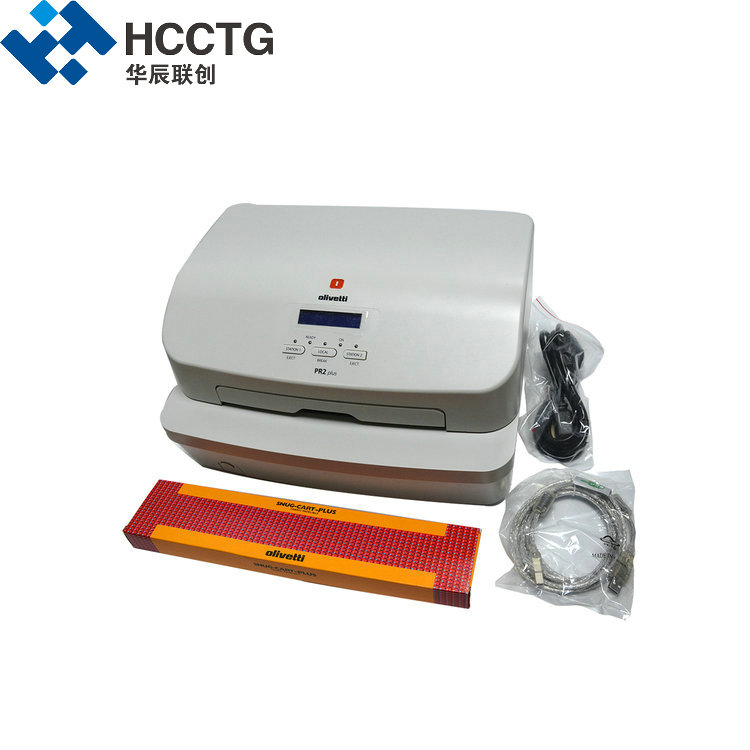

Olivetti PR2 PLUS is capable to print on all Bank forms from single-sheet and multiple-copy documents to passbooks. Besides, it offers complete solutions in bank teller environments.
Item No.:
PR2 PLUSProduct origin:
Guangdong, ChinaColor:
WhiteShipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
PR2 PLUS
Olivetti
RS232/USB Interface OCR CE Desktop Passbook Printer For Bank PR2 PLUS
Olivetti PR2 PLUS has been designed in different models from the entry-level version to the dual-side scanner model in order to satisfy multifunctional front-office applications.
Advantage
Extremely easy to use
Up to 560 character/sec in VHSD
Magnetic-stripe reading and writing, micro code line reading (CMC7 / E13B)
Can be configured as a single-side scanner or as a dual-side scanner for simultaneous front/back Scanning on A4 formats up to 600 dpi
Color casing available in black or gray
New ink ribbon of up to 10 million characters
One of the smallest and quietest models in its product class
Superior printing speeds
Management of all bank forms
Magnetic-stripe reading and writing
Single-side scanner or dual-side scanner configuration
Dual-side color scanning
Ultra-fast alignment
Specification
Technology | 24-pin dot matrix |
| OCR A-B, ROMAN, Sans Serif, Italic, Courier |
Pitch | 10, 12, 15, 16.6, 17,1 cpi |
Printing speed at 10 cpi | VHSD: 560 cps HSD: 510 cps Draft: 370 cps |
Line length | 238,76 mm (94 columns at 10 cpi) |
Line spacing | 1/5", 1/6", n/216", n/240" |
Copies | Original + 6 copies |
Interfaces | Standard: RS232 serial, IEEE 1284 parallel and USB2.0 |
Emulations | Olivetti Standard, IBM PP & X24 |
Noise level | < 54 dBA |
Document Handling | (ISO 7779 with ECMA 132 text) Feed width: 245 mm |
Power consumption | Min. 6,5 W (9 W the scanner model) |
Ribbon cartridge | 10 million characters |
Voltage | 230V / 50Hz |
Certifications & Regulatory | CE, TUV NRTL, FCC class A verified |
Options | MICR reader (CMC7, E13B) |
Dimensions (W x D x H) | 384 x 296 x 204 mm |
Weight | 10.5 Kg |
Scanner |
|
Resolution | 600 dpi RGB color 24 bit |
Scanning speed | Max 10" inch/sec. |
RS232/USB Interface OCR CE Desktop Passbook Printer For Bank PR2 PLUS
Olivetti PR2 PLUS has been designed in different models from the entry-level version to the dual-side scanner model in order to satisfy multifunctional front-office applications.
Advantage
Extremely easy to use
Up to 560 character/sec in VHSD
Magnetic-stripe reading and writing, micro code line reading (CMC7 / E13B)
Can be configured as a single-side scanner or as a dual-side scanner for simultaneous front/back Scanning on A4 formats up to 600 dpi
Color casing available in black or gray
New ink ribbon of up to 10 million characters
One of the smallest and quietest models in its product class
Superior printing speeds
Management of all bank forms
Magnetic-stripe reading and writing
Single-side scanner or dual-side scanner configuration
Dual-side color scanning
Ultra-fast alignment
Specification
Technology | 24-pin dot matrix |
| OCR A-B, ROMAN, Sans Serif, Italic, Courier |
Pitch | 10, 12, 15, 16.6, 17,1 cpi |
Printing speed at 10 cpi | VHSD: 560 cps HSD: 510 cps Draft: 370 cps |
Line length | 238,76 mm (94 columns at 10 cpi) |
Line spacing | 1/5", 1/6", n/216", n/240" |
Copies | Original + 6 copies |
Interfaces | Standard: RS232 serial, IEEE 1284 parallel and USB2.0 |
Emulations | Olivetti Standard, IBM PP & X24 |
Noise level | < 54 dBA |
Document Handling | (ISO 7779 with ECMA 132 text) Feed width: 245 mm |
Power consumption | Min. 6,5 W (9 W the scanner model) |
Ribbon cartridge | 10 million characters |
Voltage | 230V / 50Hz |
Certifications & Regulatory | CE, TUV NRTL, FCC class A verified |
Options | MICR reader (CMC7, E13B) |
Dimensions (W x D x H) | 384 x 296 x 204 mm |
Weight | 10.5 Kg |
Scanner |
|
Resolution | 600 dpi RGB color 24 bit |
Scanning speed | Max 10" inch/sec. |
