3 in 1 Smart Card Reader I9 is a versatile card reader that is capable of reading various types of cards. It features a chip card reader, which allows for secure transactions using EMV chip cards. The reader also has an optional NFC contactless feature, which allows for contactless payments using compatible cards or mobile devices
| Quantity: | |
|---|---|
I9
HCCTG
Bluetooth IC& Magnetic Stripe& NFC Card Reader Mobile POS I9

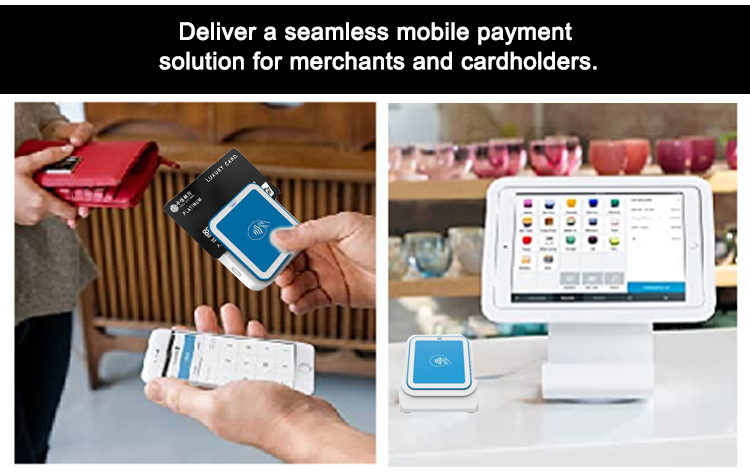

I9 connects securely via Bluetooth to Smartphones and Tablet Computers in orderto deliver a seamless mobile payment solution for merchants and cardholders.

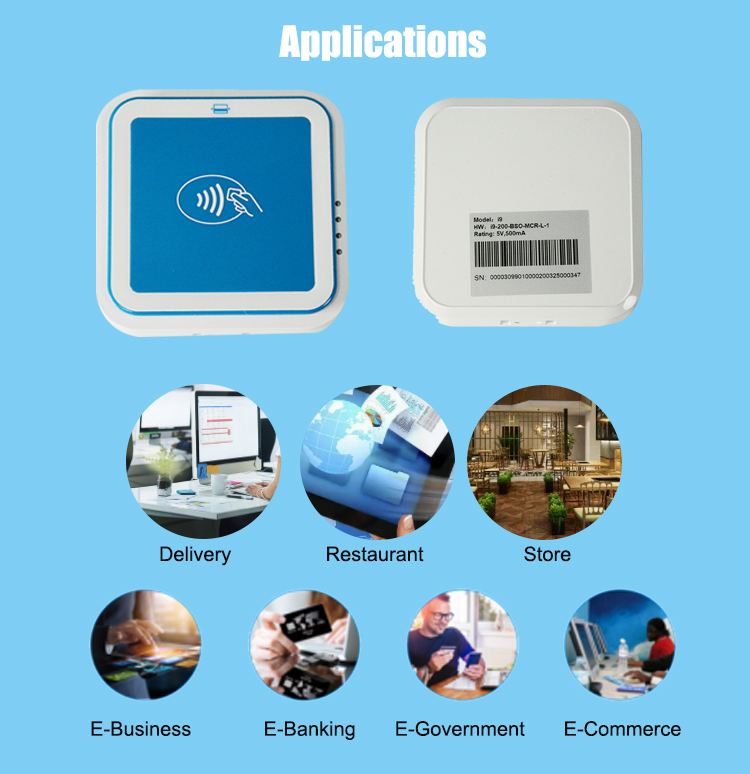

The I9 is the wireless device that performs the functions of a cash register or electronic point-of-sale terminal (POS terminal) wirelessly and it is useful for businesses that will take transactions on the go.
Specifications
Processor | Cortex M3 secure processor |
Encryption Algorithm | 3DES,DES, AES,RSA |
Memory | Built-in 512KB FLASH + 96KB SRAM External 4MB SPI Nor Flash |

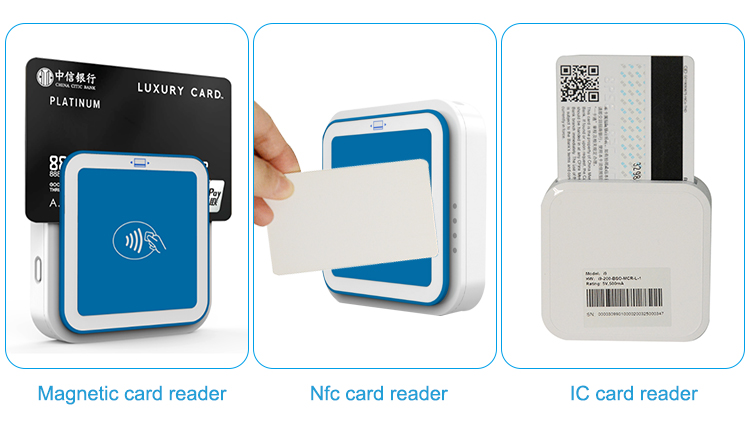

Support CardType | IC card (ISO 7816) NFC card (ISO 14443A/B) Magnetic card with track 1/2 (Track1/2/3 at optional) |

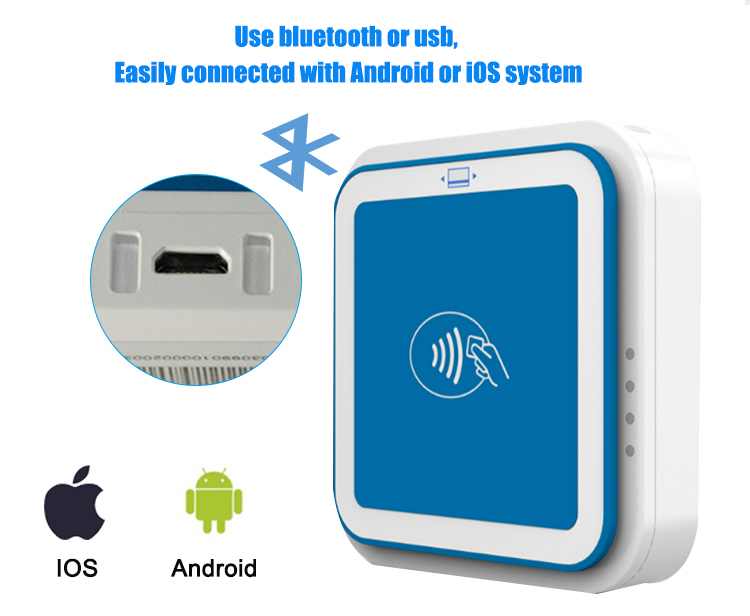

Communication Interface | Bluetooth4.2, Supports:Bluetooth Low Energy |
key Management | DUKPT, Fixed Key, MK/SK |
Supported OS | Windows (Win7 and above),iOS&Andriod |
Keys/Buttons | 1 Button: Power On/PowerOff |
Indicators | 4 RF LED Indicators (Power status indicator & Bluetooth status indicator & Card reading status indicators) |
Cable | 1 USB Cable |
Audio | 1 Buzzer |
Ports | 1 Micro USB |

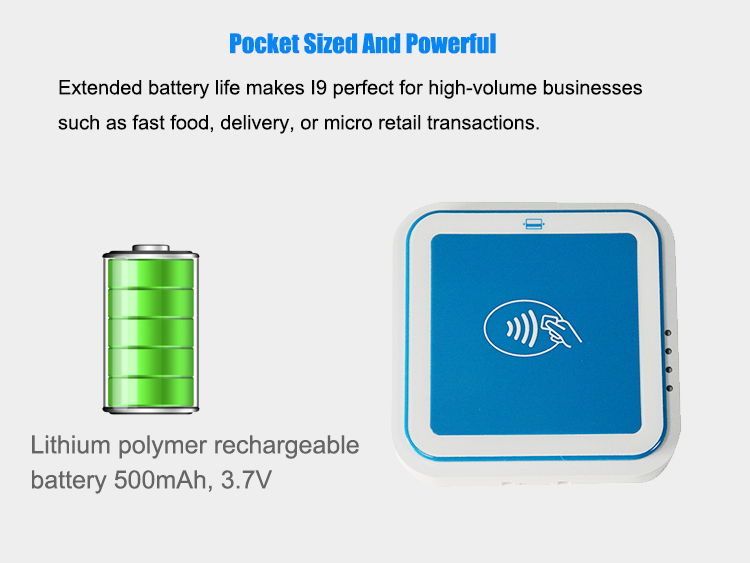

Power & Battery | Lithium polymer rechargeable battery 550mAh, 3.7V |

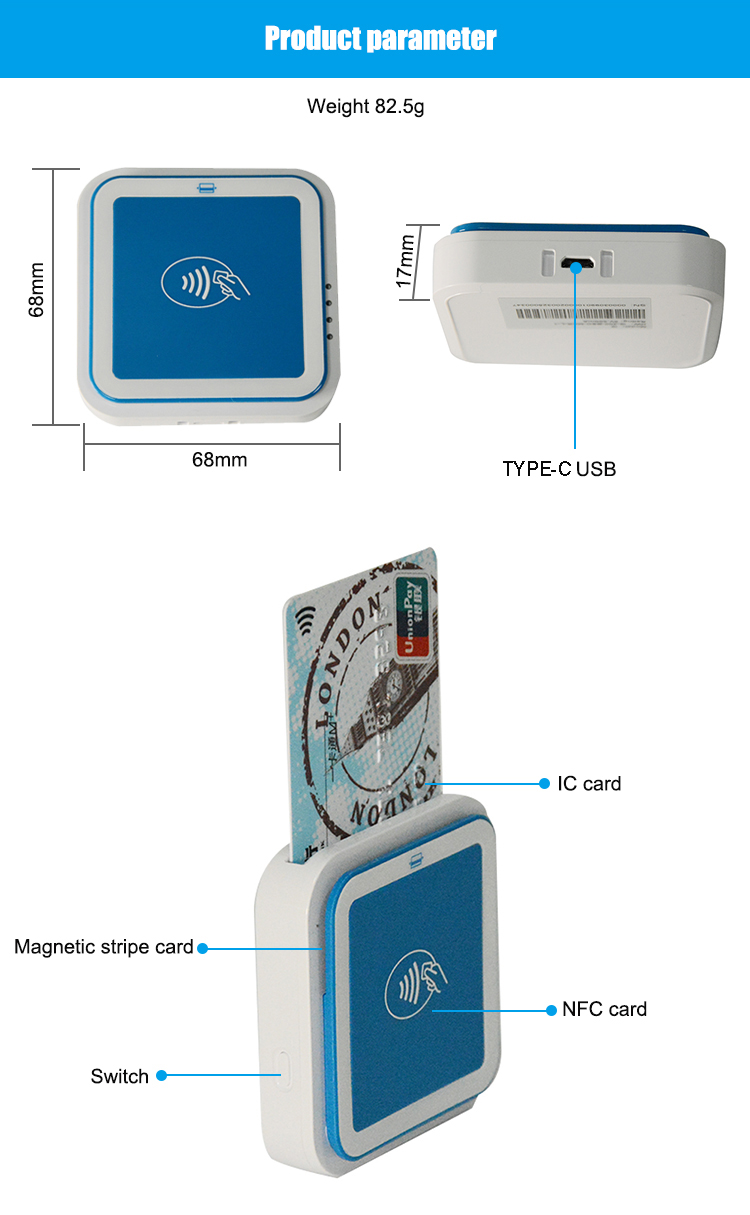

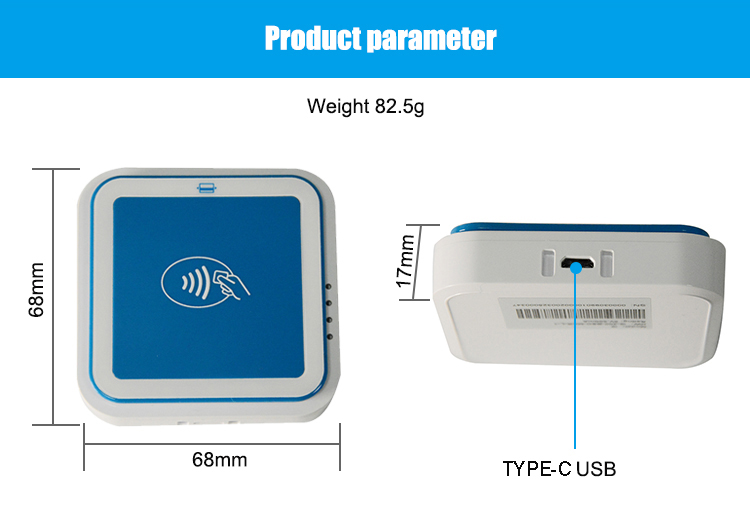

Appearance size | 68*68*17mm |
Weight | 76.5g |
Operating Temperature | 0°C ~ 50°C |
Storage Temperature | -20°C ~ 70°C |
Relative humidity | 10%-93%(Non-Condensing) |
Certifications | PCI PTS 5.x SRED EMV L1 & L2 EMV CL L1 MasterCard contactless L2 Visa payWave L2 D-PAS L2 AMEX L2 TQM CE RoHS |
