HS-S03 ring scanner allows you to wear it through finger, left or right adaptable, increasing your satisfaction and comfort and can easily read all kinds of 1D barcodes and read 2D QR barcodes at high speed.
| Quantity: | |
|---|---|
HS-S03
HCCTG
Mini Portable Finger Ring Bluetooth Barcode Scanner HS-S03
The HS-S03 is built to meet the most demanding scanning requirements, providing long-lasting battery and consistent scanning performance in a completely dark environment, as well as over an extended temperature range.
The HS-S03 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration, besides, it's also compatible with most devices, don't miss it!
Features:
It can rotate 360 degrees, so both of left hand and right hand can wear it.
It has barcode data storage function. （BLE mode / SPP mode / HID mode）
It's small, convenient for carrying.
The charging cable is durable, it's magnetic cable.
Specification
Performance parameter | |
Image Sensor | CMOS |
Pixel | 640*480 CMOS |
illumination | White light led |
Reading code system | 2D:PDF417,QR Code,Data Matrix 1D:Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar |
Reading accuracy | ≥5mil |
Barcode sensitivity | Tilt:±65°@ 0°Roll and 0° Skew Rotate:±360°@ 0°Pitch and 0° Skew Deflection:±60°@ 0°Roll and 0° Pitch |
Field of view | 28° horizontal and 21.5° vertical |
Typical reading depth of field | Code 39 5mil 6-8cm 15mil 4-15cm |

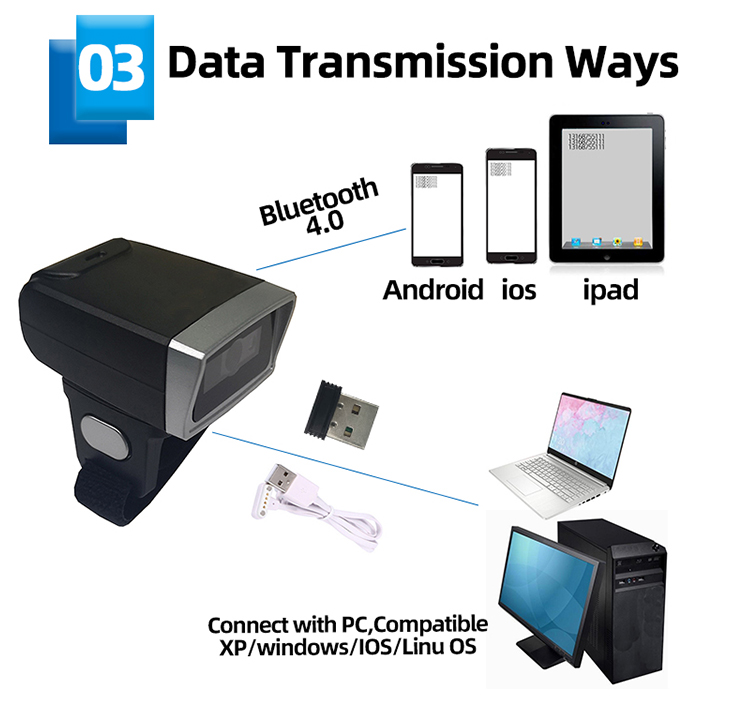

Data interface | |
Wireless 2.4G | Wireless 2.4G receiver for connecting this unit and the information receiving host with a transmission distance of up to 100 meters (open space) |
Bluetooth | HID mode, SPP mode, BLE mode (Transmission distance up to 50 meters (open space)) |
USB | USB data cable (1.5m) for connecting this unit and the information receiving host and charging |
Physical parameter | |
Size (length * width * height) | 53.2*37.5*51mm (Figure 1) |
Weight | 38g |
Prompt mode | Buzzer, led indicator |
Voltage | Working Voltage 5VDC±5% |
Current | Working current 210mA |
Stand-by current 70mA | |
Environmental parameters | |
Operating temperature | -20℃~+50℃ (-4°F~122°F) |
Storage temperature | -40℃~+70℃ (-40°F~176°F) |
Relative humidity | 5%~95% (no condensation) |
Mini Portable Finger Ring Bluetooth Barcode Scanner HS-S03
The HS-S03 is built to meet the most demanding scanning requirements, providing long-lasting battery and consistent scanning performance in a completely dark environment, as well as over an extended temperature range.
The HS-S03 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration, besides, it's also compatible with most devices, don't miss it!
Features:
It can rotate 360 degrees, so both of left hand and right hand can wear it.
It has barcode data storage function. （BLE mode / SPP mode / HID mode）
It's small, convenient for carrying.
The charging cable is durable, it's magnetic cable.
Specification
Performance parameter | |
Image Sensor | CMOS |
Pixel | 640*480 CMOS |
illumination | White light led |
Reading code system | 2D:PDF417,QR Code,Data Matrix 1D:Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar |
Reading accuracy | ≥5mil |
Barcode sensitivity | Tilt:±65°@ 0°Roll and 0° Skew Rotate:±360°@ 0°Pitch and 0° Skew Deflection:±60°@ 0°Roll and 0° Pitch |
Field of view | 28° horizontal and 21.5° vertical |
Typical reading depth of field | Code 39 5mil 6-8cm 15mil 4-15cm |
Data interface | |
Wireless 2.4G | Wireless 2.4G receiver for connecting this unit and the information receiving host with a transmission distance of up to 100 meters (open space) |
Bluetooth | HID mode, SPP mode, BLE mode (Transmission distance up to 50 meters (open space)) |
USB | USB data cable (1.5m) for connecting this unit and the information receiving host and charging |
Physical parameter | |
Size (length * width * height) | 53.2*37.5*51mm (Figure 1) |
Weight | 38g |
Prompt mode | Buzzer, led indicator |
Voltage | Working Voltage 5VDC±5% |
Current | Working current 210mA |
Stand-by current 70mA | |
Environmental parameters | |
Operating temperature | -20℃~+50℃ (-4°F~122°F) |
Storage temperature | -40℃~+70℃ (-40°F~176°F) |
Relative humidity | 5%~95% (no condensation) |
