HM20-IC supports 2D embedded barcode+Mifare/Ntag 203\213(13.56MHZ), it's perfect for access control, visitor management, supermarkets and more
| Quantity: | |
|---|---|
HM20-IC
HCCTG

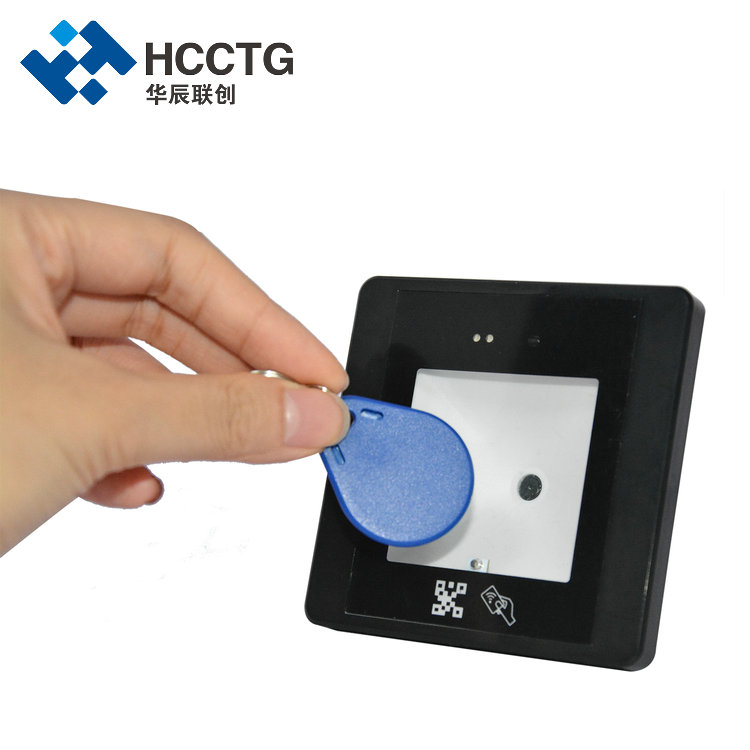

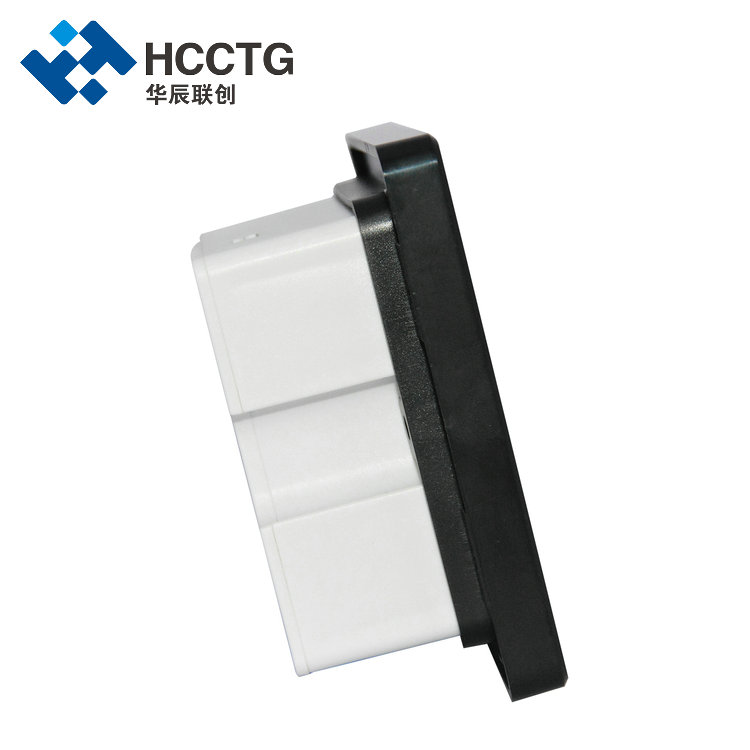

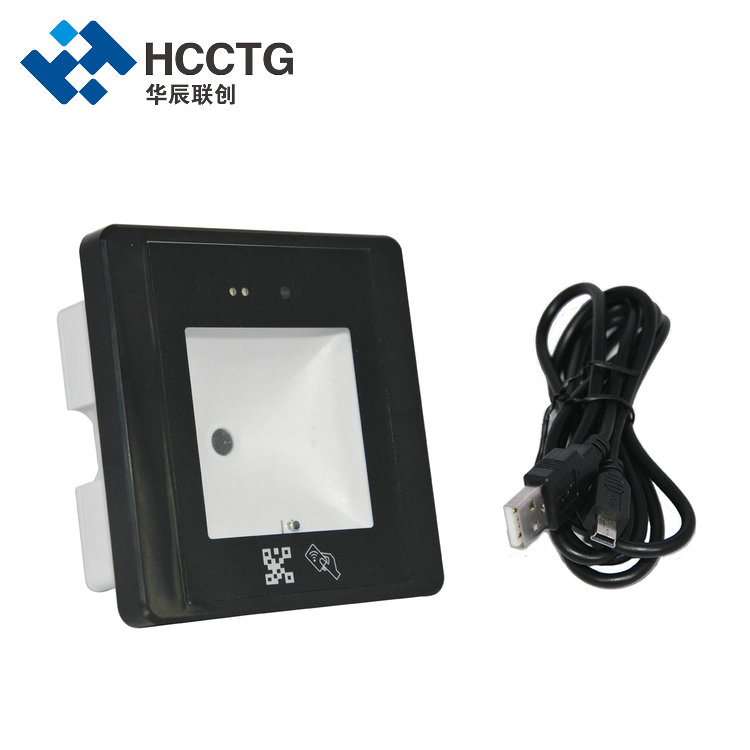

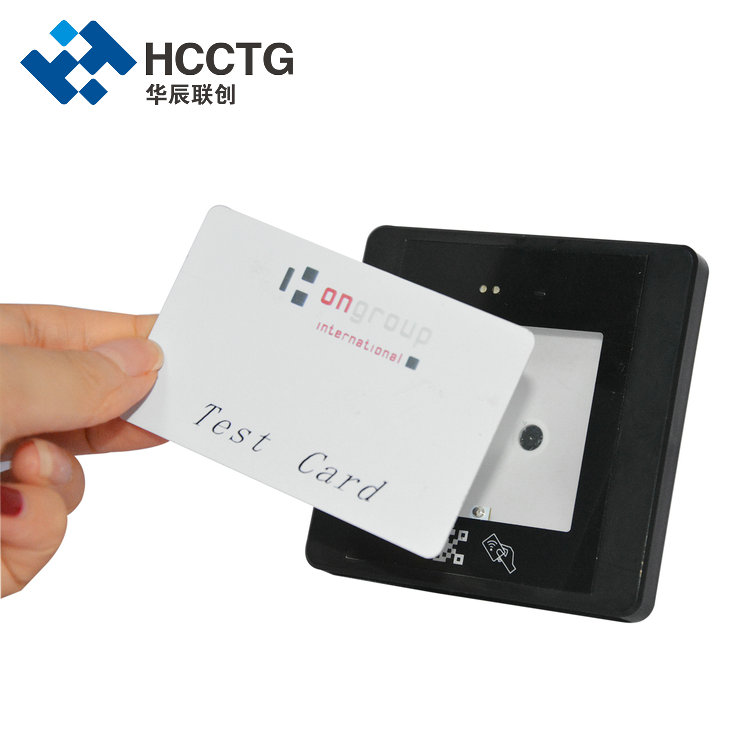

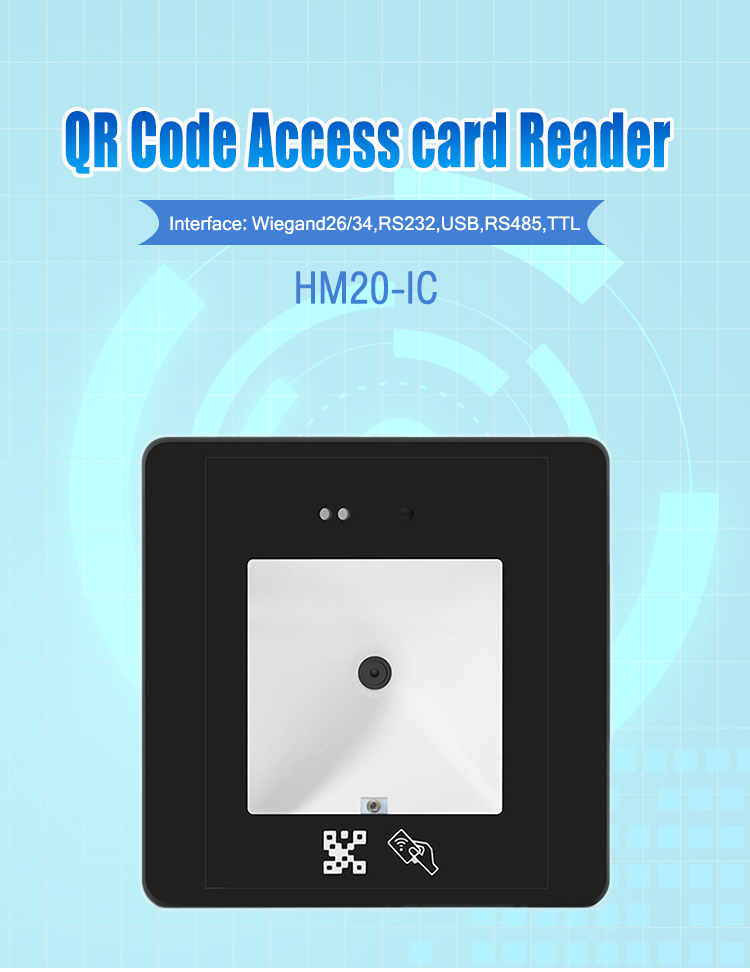

Wiegand26/34 QR Code Scanner Mifare Card Reader Access Control HM20-IC
HM20-IC QR code access card reader has fast reading speed, high recognition rate, strong compatibility, single-door access control + 2d code scanner engine + the second generation ID card reader three in one card products.

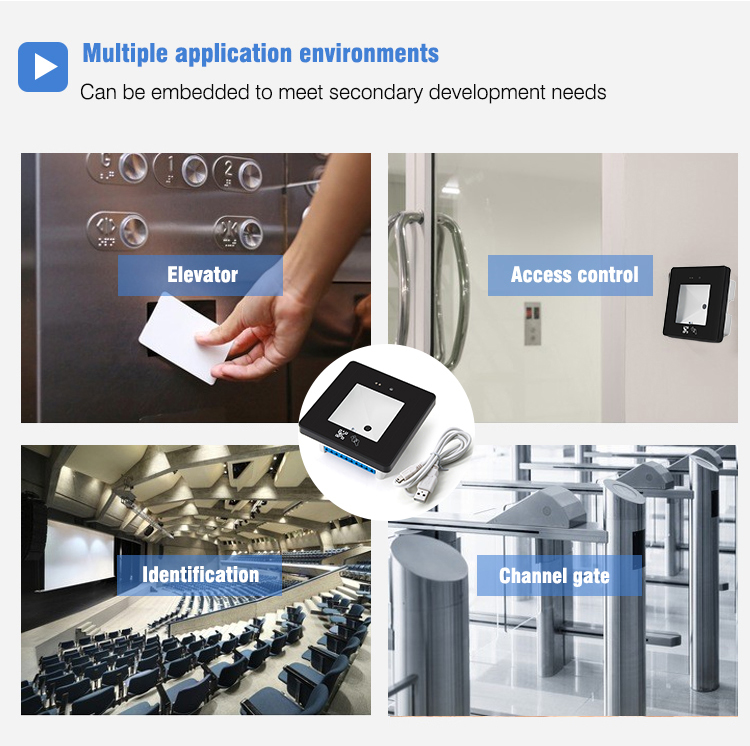

It's widely used in community visitor access management, administration service hall management, gates access control, visitors intelligent machines, etc.
Specification
Card type | EM or Mifare |
Code Type | QR Code,1D |

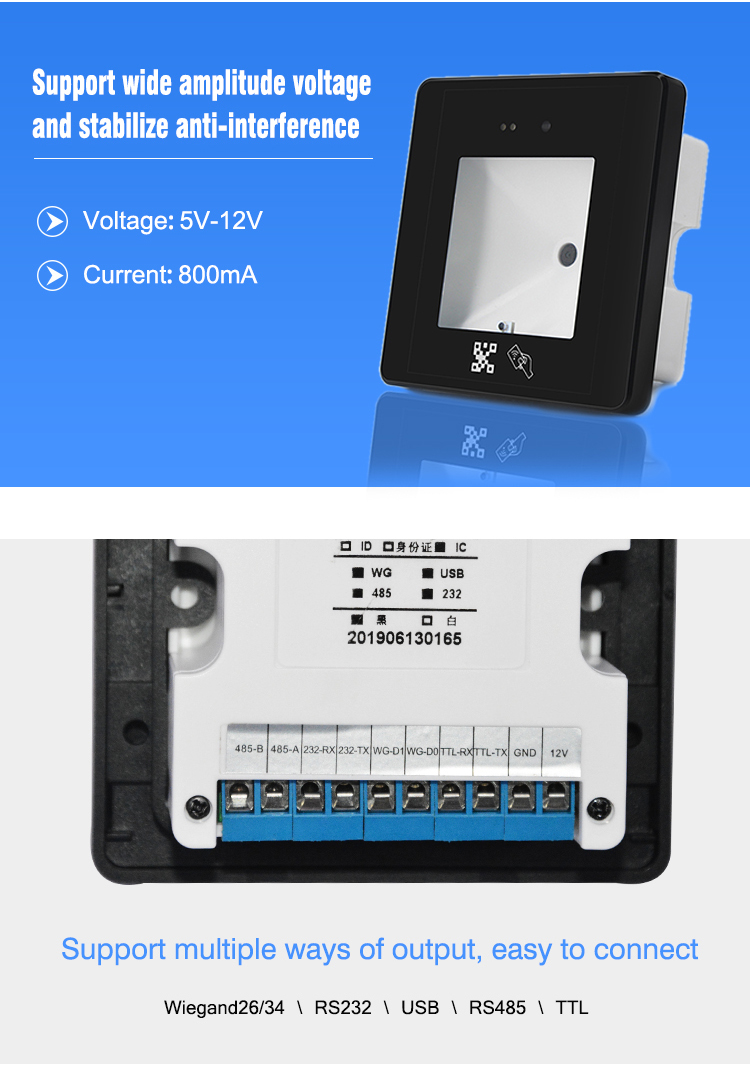

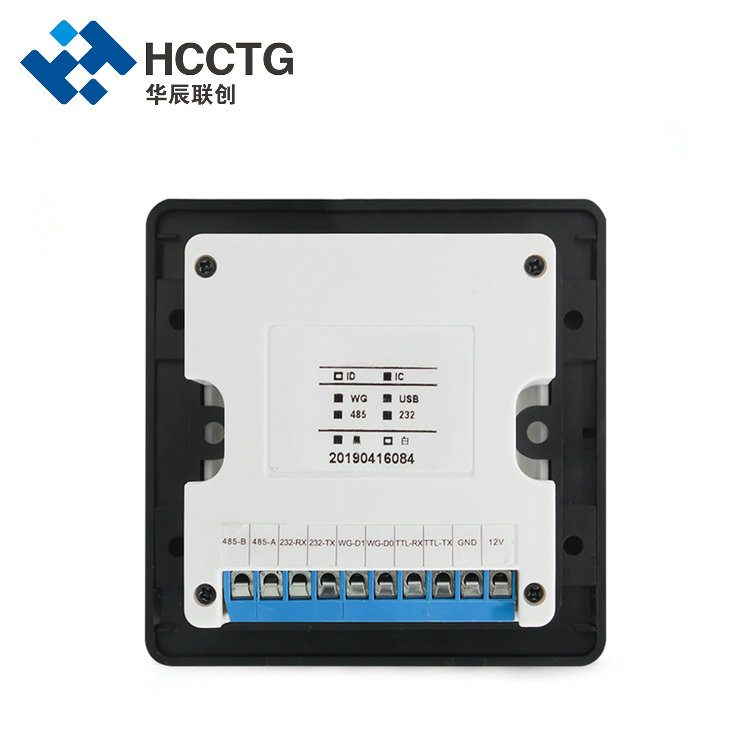

Interface | Wiegand26/34, RS232,USB,RS485,TTL |

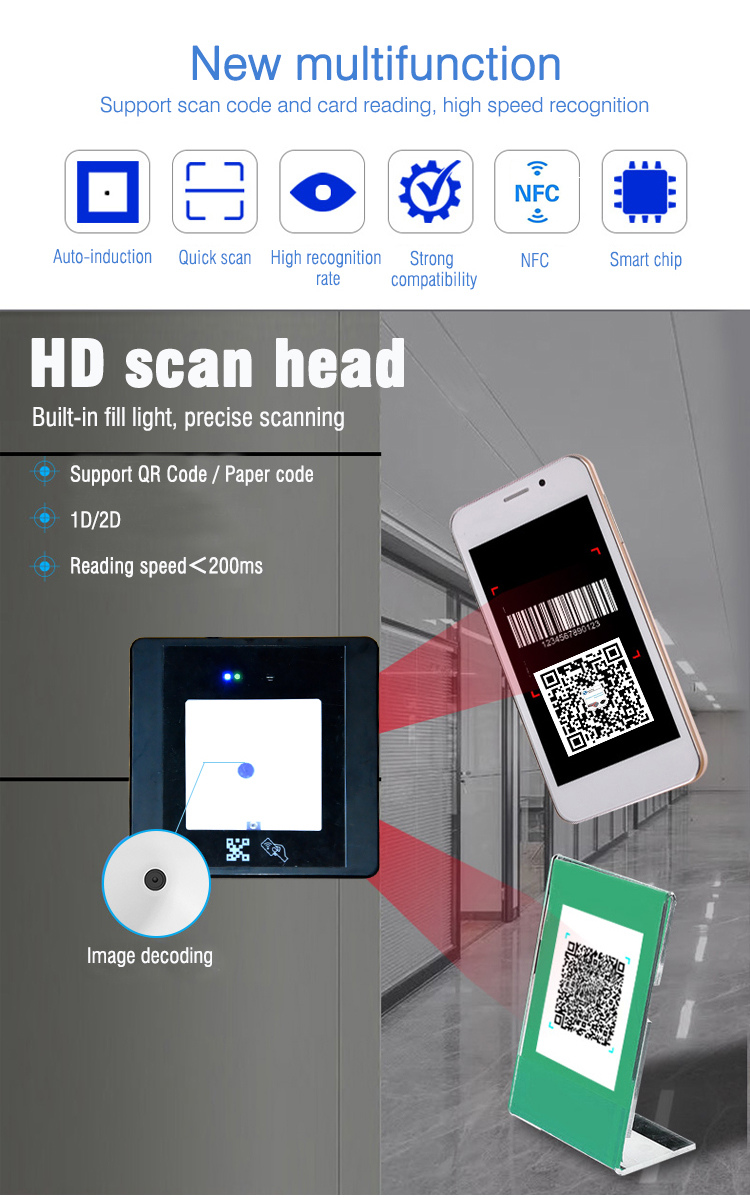

Decode mode | Image decoding |
Reading directions | Camera centric slant 45° |
Reading feature | Auto-induction & beeper |
Voltages | 4-12V Wide voltage input |
Current | 800mA |

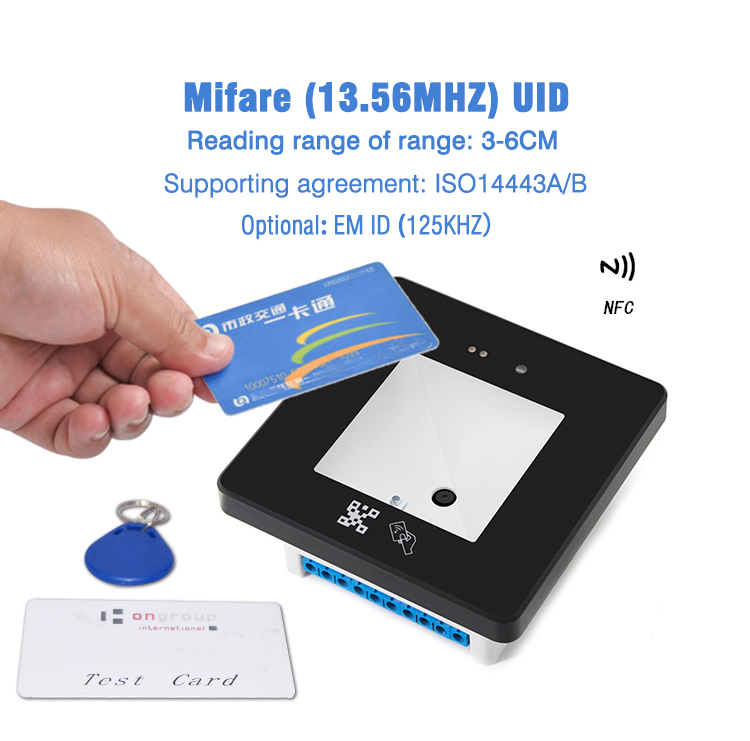

Reading range of range | 3-6CM |
Reading speed | ＜200ms |

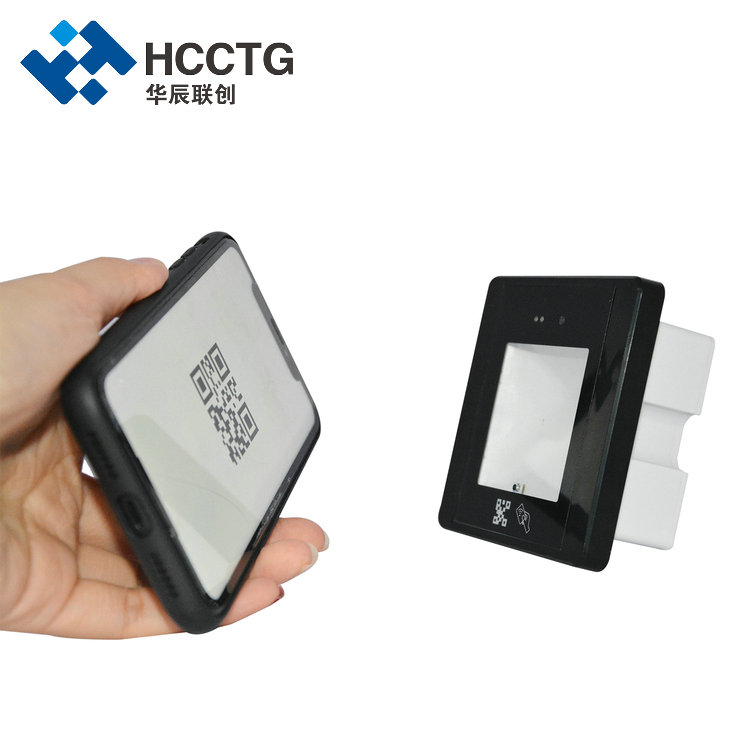

Reading range of QR | 0-20CM |
Materialcase | PC & temperrd glass |
Humidity | 10%~90% |
Temperature | -20℃~70℃ |
Operate system | Windows(XP,7,8,10), Linux |

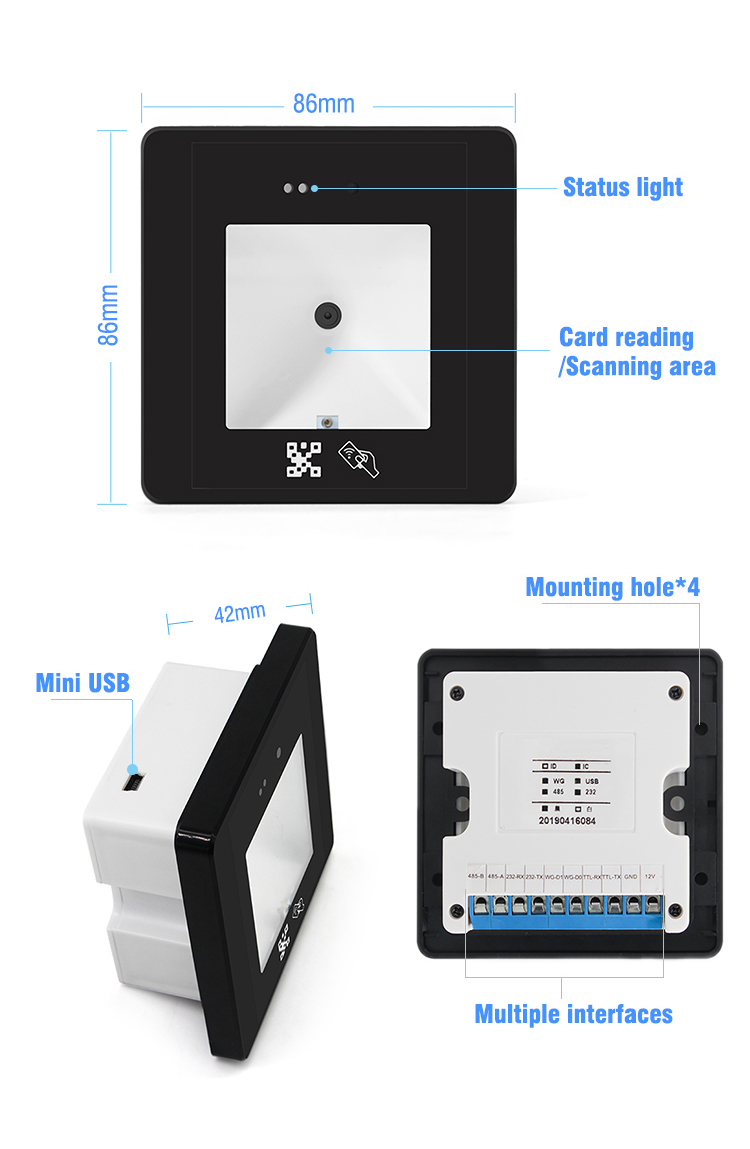

Size | 86mm×86mm×42mm |
Status light | Red-work,Green-feedback,Light Green-internet |
Wight | 150G |
Remark | Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted. |
