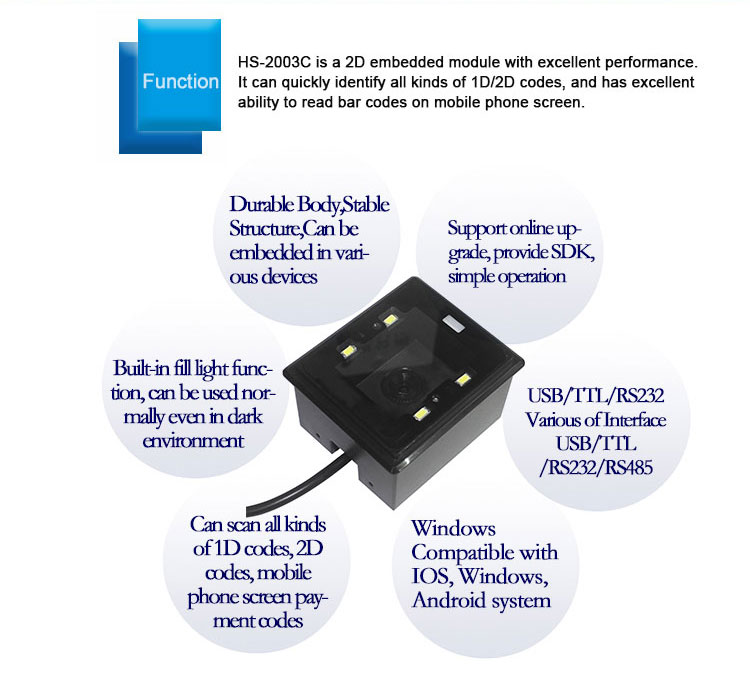

HS-2003C can quickly identify all kinds of 1D/2D codes, and has excellent ability to read bar codes on mobile phone screen.
| Quantity: | |
|---|---|
HS-2003C
HCCTG

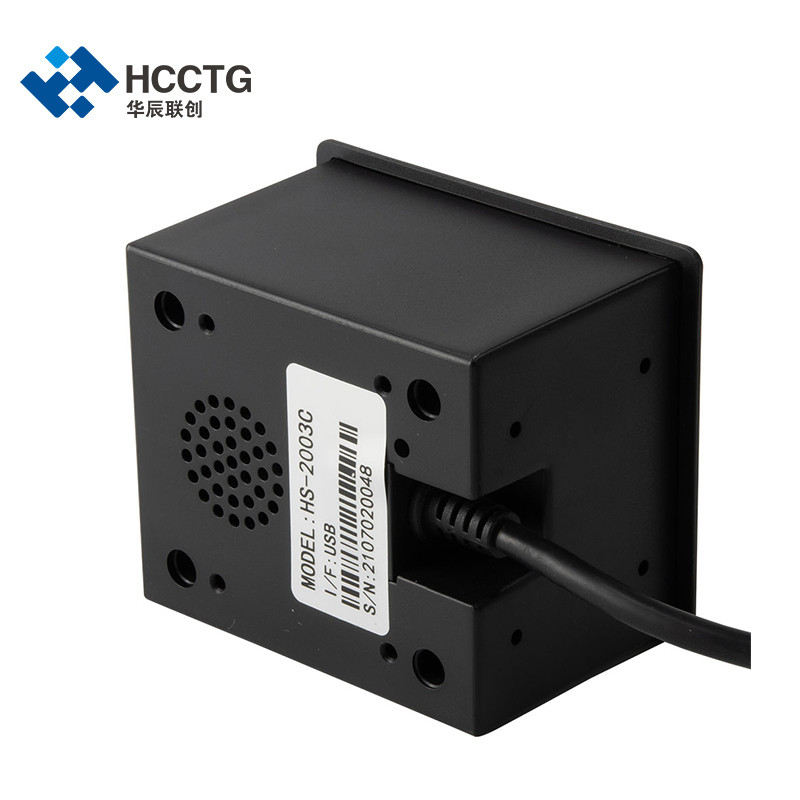

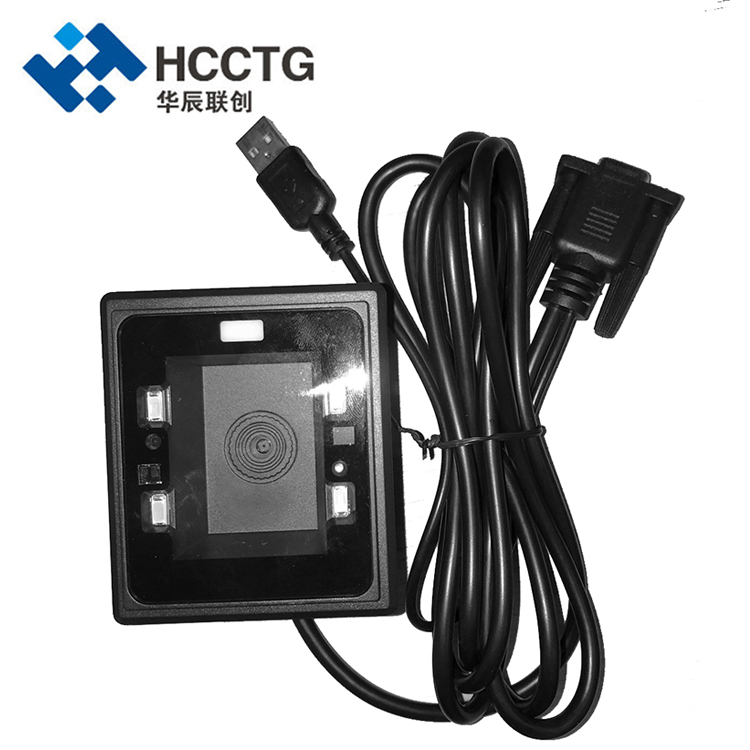

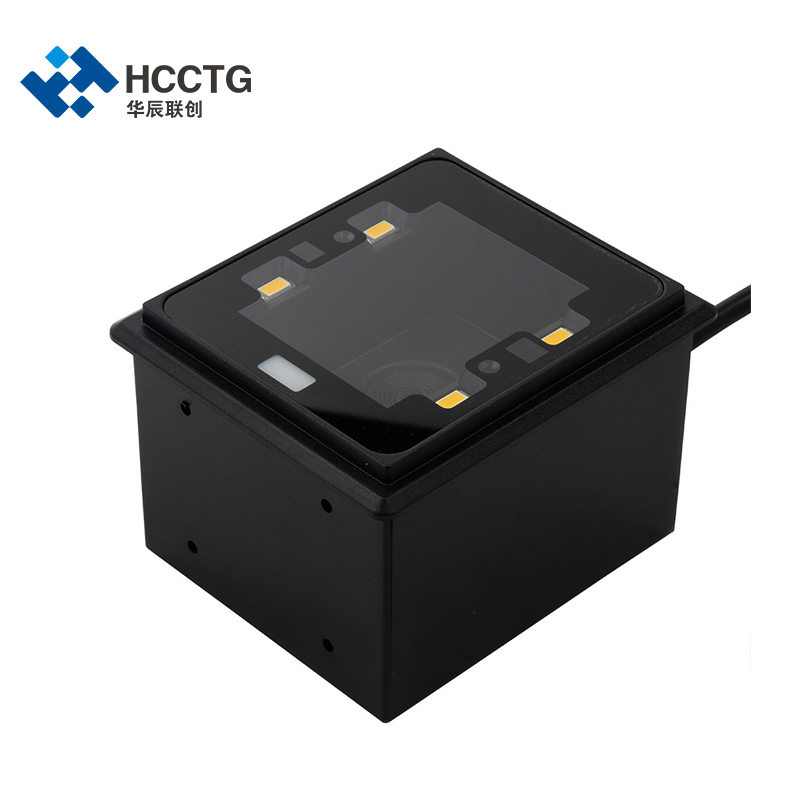

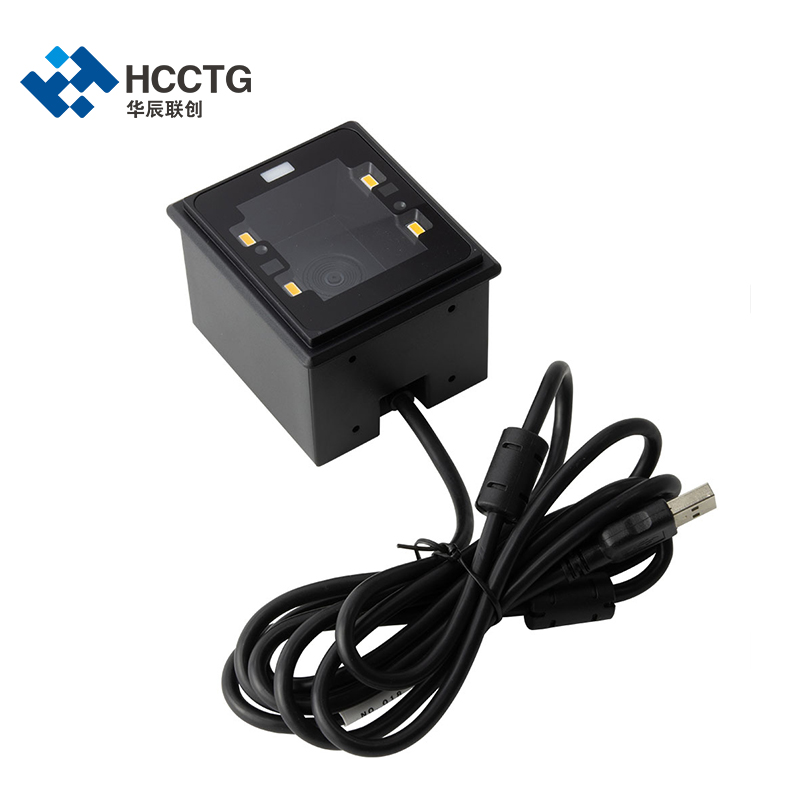

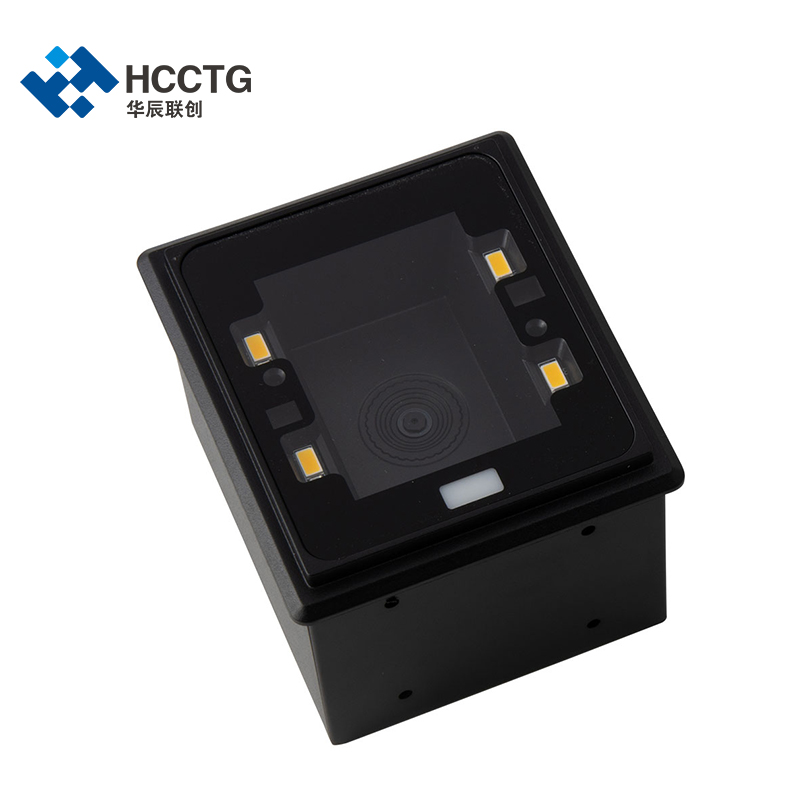

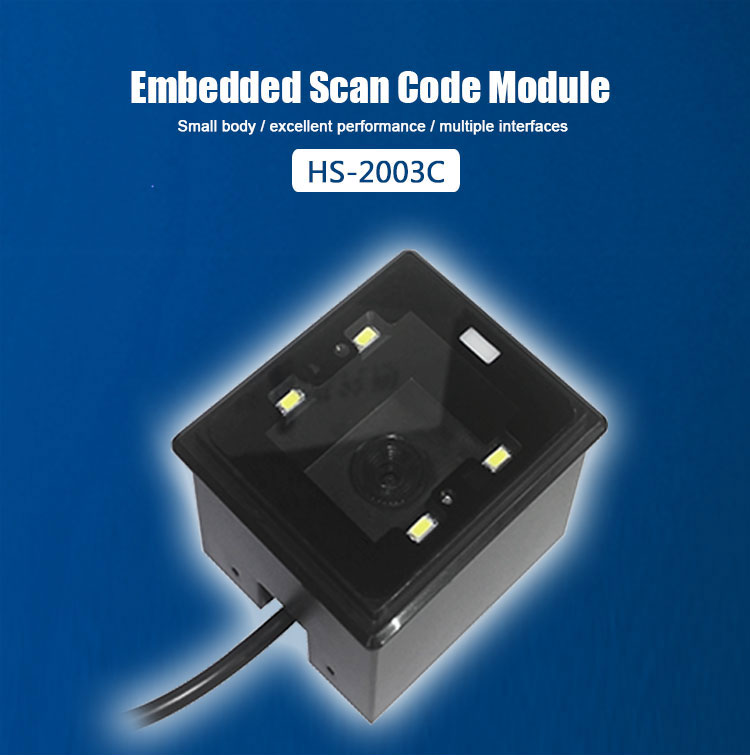

USB/RS232 2D Embedded Barcode Scanning Module HS-2003C

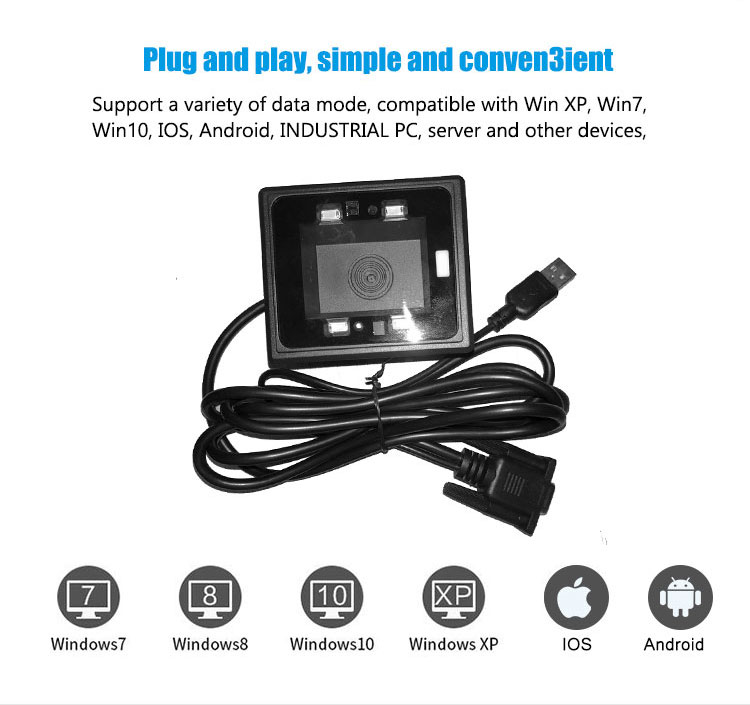

HS-2003C is a high-performance scanning module that can easily read all kinds of 1D barcodes and 2D QR barcodes at high speed. It supports a variety of data mode, compatible with Win XP, Win7, Win10, IOS, Android, INDUSTRIAL PC, server and other devices, plug and play, simple and convenient.
Specification

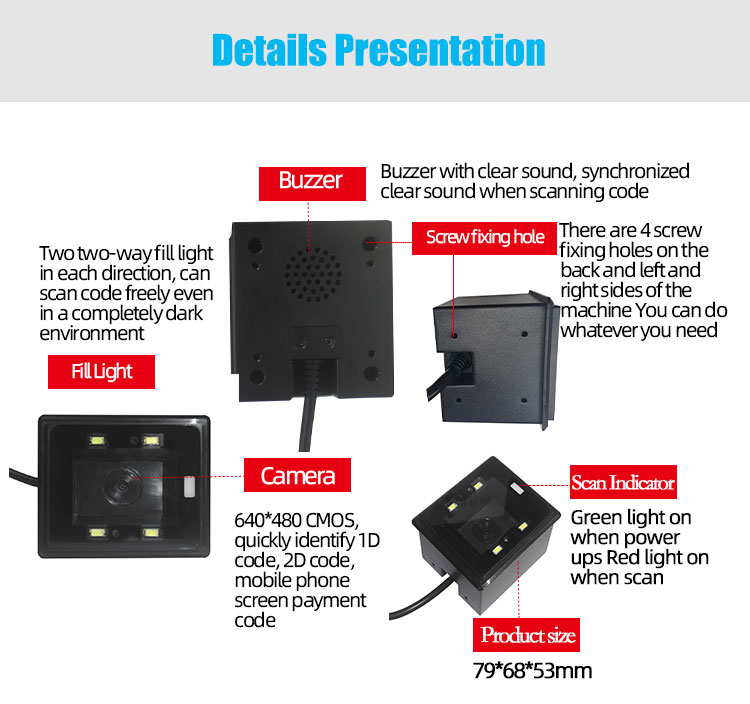

Image sensor | 640×480 CMOS | Floodlight | White LED | |
Resolution | 640px*480px | Focusing lamp | 625nm Red LED | |
Read code system | 1D | EAN-8, EAN-13, UPC-E, UPC-A, ISBN,ISSN,Code128, UCC/EAN-128, AIM-128,Code 39, Code 93, Code 11, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS-Limited, RSS-Expand) | ||
2D | PDF417,Data Matrix,QR,Micro QR | |||
Accuracy | ≥3mil | |||
Typical | 1D EAN13 | 5mil 50-160mm | ||
13mil 50-260mm | ||||
2D QR Code | 15mil 30-170mm | |||
30mil 50-270mm | ||||

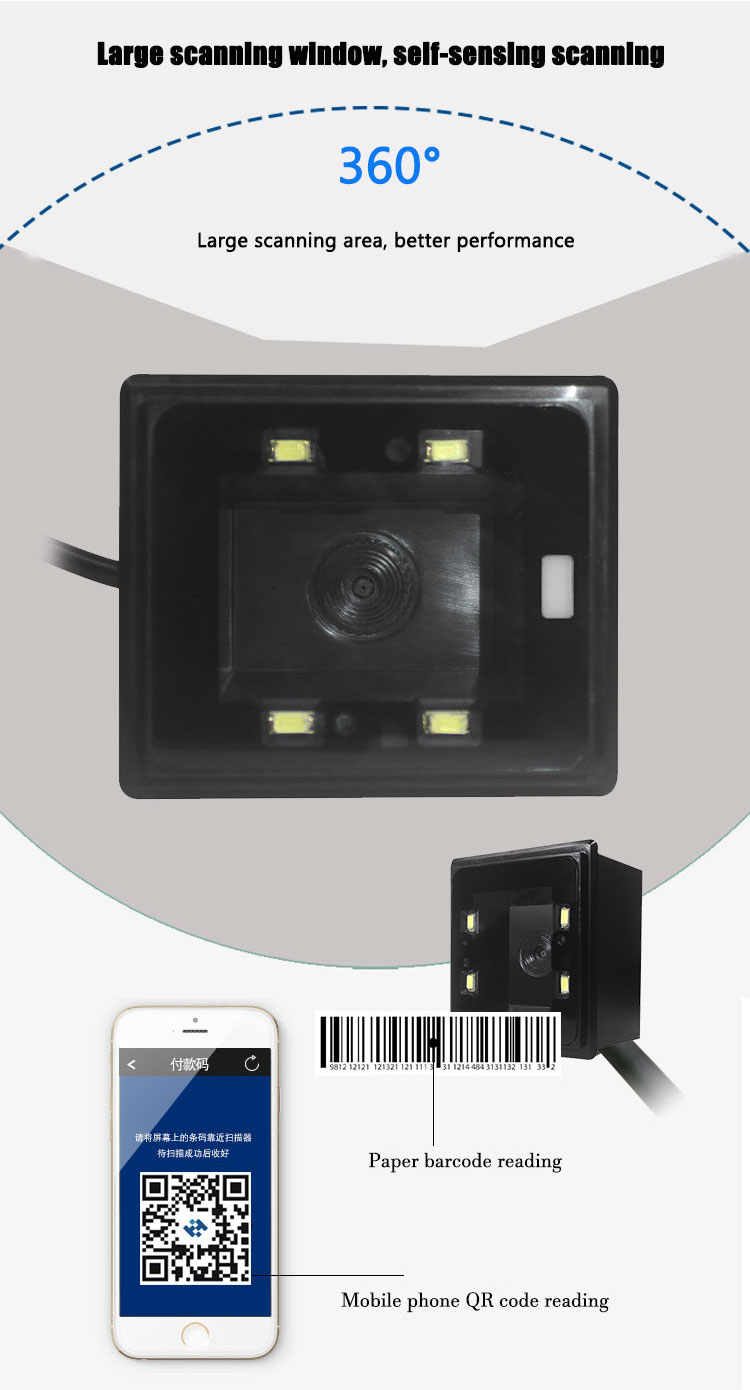

Sensitivity | Tilt | ±60° | ||
Rotate | 360° | |||
Deflection | ±60° | |||
Contrast ratio | ≥20% | |||
Prompt mode | Beep,LED | |||
Field of view angle | level:68° vertical:51° diagonal: 84.8° | |||
Read mode | Induction mode,Continuous mode,Command trigger | |||
Data interface | USB KBW,USB CDC,USB HID POS, RS232,TTL 232 | |||

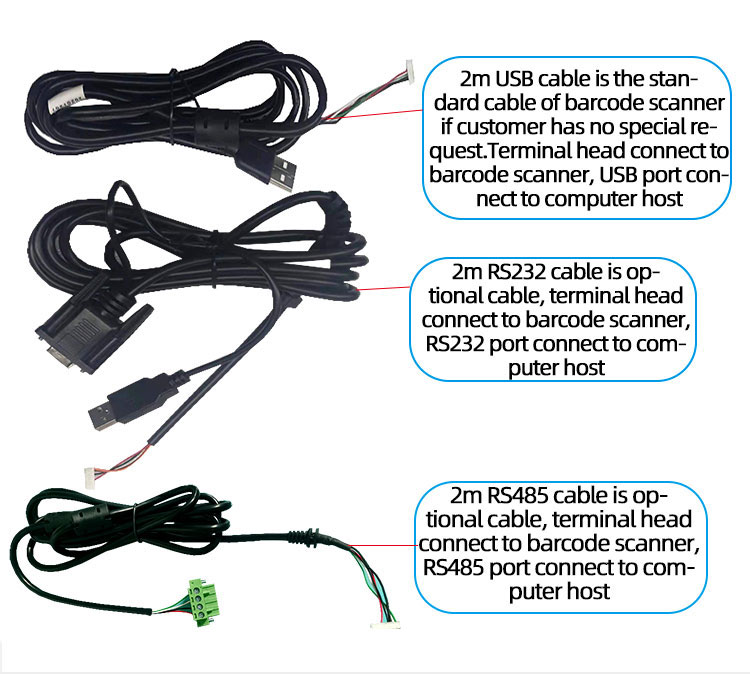

Cable standards | USB,RS232,RS485,TTL 232 | |||
Update | USB/ serial connection online | Data editing | Support | |
Working voltage | 5V±3% | Working current | 330mA | |
Standby | 234mA | |||
Board size | 78.4*67.2*53.2mm | Weight | 185.9g | |
Package size | 210*105*80mm | Weight | 255g | |
Relative humidity | 5%~95% (RH) | |||
Working Temperature | -20℃~+60℃ | |||
Storage Temperature | -40℃~+70℃ | |||
