Inside a Payment Soundbox: Key Hardware Features Explained

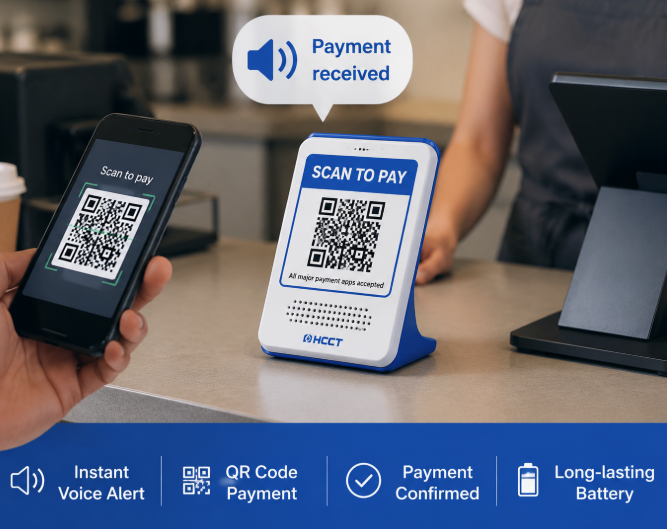

A payment soundbox is a specialized cloud-connected IoT hardware device equipped with high-fidelity acoustic speakers, multi-network cellular connectivity modules, and secure microcontroller architectures engineered to instantly broadcast transaction audio confirmations for merchants utilizing dynamic or static QR code payment structures.

To fully understand the commercial capabilities and long-term durability of these devices, corporate procurers and financial service providers must evaluate the underlying engineering specifications that dictate operational performance. This comprehensive technical analysis explores the essential hardware components, structural design principles, power optimization standards, and embedded cryptographic protocols that define the modern transactional audio broadcasting terminal.

The following technical blueprint outlines the exact engineering dimensions, interface architectures, and systemic capabilities discussed throughout this evaluation, providing high-volume buyers with a strategic framework for selecting enterprise-grade broadcasting hardware.

Speaker Quality and Audio Output

Speaker quality and audio output in a payment soundbox represent the core operational interface for transaction verification, utilizing localized acoustic wave amplification and clear voice synthesized voice chips to generate high-decibel auditory confirmations that cut through dense ambient marketplace noise.

1. Acoustic Decibel Performance and Sound Pressure Level Optimization

In high-volume B2B retail, micro-distribution, and busy open-air markets, the ambient environmental noise floor often hovers between 65 and 80 decibels. For an auditory verification system to be commercially viable, the speaker assembly must consistently deliver a Sound Pressure Level that exceeds this background interference without inducing signal clipping or total harmonic distortion. Industrial-grade hardware incorporates high-sensitivity, 4-ohm or 8-ohm neodymium or ferrite magnets coupled to a custom-molded acoustic resonance chamber. This internal spatial engineering maximizes acoustic displacement, allowing the device to emit clear transaction confirmation broadcasts at levels ranging from 85 to over 95 decibels measured at a one-meter distance.

2. Voice Optimization via Digital Signal Processing and Clear Voice Codecs

Raw volume is insufficient without vocal clarity; merchants must instantly distinguish numerical values during peak transaction hours to prevent losses. The internal audio sub-system utilizes dedicated Digital Signal Processing chips paired with specialized audio codecs tailored specifically for human speech frequencies, typically between 300 Hz and 3.4 kHz. These processing units compress and equalize the digital audio packets received from the transaction cloud, emphasizing mid-range frequencies and sharp consonants while dampening low-frequency drone. This ensures that synthesized multi-lingual phrases such as "Received Payment of One Hundred Dollars" remain distinct, intelligible, and free of metallic echo even when played through compact structural enclosures.

3. Physical Speaker Diaphragm Engineering and Environmental Durability

Because these commercial tools operate in demanding conditions, standard paper-coned acoustic speakers are highly susceptible to moisture degradation, physical tearing, and thermal warping. Enterprise-grade payment soundbox designs specify composite speaker diaphragms constructed from Polyethylene Terephthalate, Mylar, or water-resistant polyurethane materials. These membranes are sealed against the outer plastic housing using specialized rubber gaskets and hydrophobic acoustic meshes. This structural barrier allows sound waves to escape efficiently while blocking microscopic dust, oil grease, and ambient humidity from penetrating the voice coil, ensuring stable audio broadcasting performance across an extended multi-year operational lifecycle.

Industrial Design: Form Factor, Durability, and Usability

The industrial design of a payment soundbox encompasses the strategic engineering of its external enclosure, mechanical assembly, material selection, and structural layout to achieve an ergonomic form factor that balances maximum display visibility with robust impact resistance against accidental workspace drops.

1. Enclosure Material Composition and Mechanical Impact Resistance

Commercial desktop hardware in retail and logistics environments faces continuous physical stress, including high-frequency vibrations, heavy handling, and accidental drops onto concrete surfaces. To maintain structural integrity, the external shell is injection-molded using high-impact Acrylonitrile Butadiene Styrene blended with Polycarbonate. This specific polymer matrix provides superior tensile strength, rigid dimensional stability, and exceptional resistance to chemical cleaners or oil exposure. The internal frame features reinforced ribbing and isolated mounting bosses for the main printed circuit board assembly, protecting sensitive surface-mount components from the physical shocks caused by repeated operational impacts.

2. Dual-Faced Ergonomics and Strategic QR Code Angle Optimization

Operational efficiency at the point of sale requires an optimal geometric layout that satisfies both the consumer's need to scan and the merchant's need to monitor. Modern soundbox enclosures utilize a dual-faced or angled wedge structural design. The primary front-facing plane holds a high-contrast static QR placard or a dynamic liquid-crystal display angled at approximately 15 to 45 degrees relative to the counter surface. This exact geometric configuration maximizes the scanning cone for customer smartphones under varying light conditions, reducing glare from overhead store lighting. Simultaneously, status LEDs and the primary speaker grille face the merchant, ensuring immediate confirmation without requiring either party to physically reorient the device.

3. Environmental Ingress Protection and Anti-Slip Surface Stability

Outdoor wet markets, mobile street food stalls, and industrial distribution depots expose electronics to fine particulate dust, fluid splashes, and variable surface inclines. Hardware designers counter these issues by engineering the enclosure to meet IP54 or IP65 ingress protection standards, incorporating silicon seals around all physical housing seams, button arrays, and port openings. The base of the unit features heavy-duty, high-coefficient-of-friction vulcanized rubber feet. These pads prevent the lightweight electronic device from sliding when placed on wet metal, smooth glass, or polished wood surfaces, protecting the device from being accidentally pulled off the counter during rapid, high-volume customer interactions.

4. Advanced Linux-Powered Multi-Functional Payment Architecture

For large-scale retail operators requiring more than just basic audio feedback, transitioning to an advanced computational architecture is essential. Implementing a high-performance system like the Linux Real-Time Payment SoundBox allows financial networks to deploy a secure, multi-layered transaction terminal. This industrial configuration features an optimized Linux operating system capable of running robust local encryption algorithms, handling multi-thread cellular communications, and driving vibrant dynamic QR displays that update instantly per transaction. By combining a physical keypad, an integrated smart card reader, and an explicit visual-audio feedback interface, this hardware design ensures comprehensive transaction visibility while providing superior durability compared to entry-level consumer audio solutions.

Expandability and External Interfaces

Expandability and external interfaces in a payment soundbox define the total physical and wireless connectivity matrix, comprising multi-band cellular transceivers, local area wireless radios, physical bus expansion ports, and hardware input matrices that allow the unit to integrate into broader point-of-sale systems.

1. Multi-Network Cellular Transceiver Integration and Antenna Optimization

To operate reliably as a standalone cloud-connected terminal without relying on local store infrastructure, the internal mainboard must integrate a highly versatile wireless communications subsystem. This typically includes a multi-mode 4G LTE Cat 1 or Cat M1 cellular modem backward-compatible with 2G GPRS networks, allowing deployment in both technologically advanced urban centers and infrastructure-limited rural regions. The internal printed circuit board is engineered with a high-efficiency omnidirectional patch antenna optimized for cellular frequencies (700MHz to 2.7GHz). This layout ensures stable connectivity and low latency when sending data packets to financial servers, minimizing audio broadcast delays to under two seconds from the moment a customer authorizes a payment.

2. Local Area Wireless Communication and Fallback Protocols

Beyond wide-area cellular connectivity, enterprise soundboxes incorporate short-range wireless communication modules to minimize cellular data costs and provide local network redundancy. Dual-band Wi-Fi (2.4GHz and 5.0GHz) compliant with IEEE 802.11 b/g/n standards allows the device to connect directly to a merchant's local broadband router, ensuring high-speed data delivery inside indoor shopping malls or concrete structures where cellular signals drop. Additionally, integrated Bluetooth Low Energy modules allow local smartphone pairing, enabling field service technicians to easily configure network parameters, run diagnostics, and manage localized pairing utilities via a mobile application without needing specialized physical cables.

3. Physical I/O Interfaces, Card Readers, and Power Bus Architectures

Modern micro-transaction environments demand flexible hardware configurations that accept multiple payment types beyond standard static QR codes. Advanced hardware designs incorporate universal physical interfaces alongside contact and contactless card reading arrays. A standard Type-C USB interface serves a dual purpose, acting as both a high-speed data bus for factory programming and calibration, and a standardized 5V/2A power input. To support complete payment flexibility, the motherboard includes specialized peripheral buses (such as SPI, I2C, and UART) that connect to internal Near Field Communication controllers and smart card slots compliant with EMVCo standards. This allows the hardware to simultaneously serve as a dynamic QR payment audio broadcaster and a secure tap-to-pay terminal for credit cards, debit cards, and e-wallets.

4. Robust Enterprise Hardware Specifications for High-Volume Point-of-Sale

When selecting a reliable tool for high-traffic environments, evaluating the core processing hardware is critical. Enterprise deployments benefit immensely from a 4G WIFI Dynamic QR Code Payment SoundBox, which offers a highly responsive computing foundation. This device features a powerful ARM-based application processor, 256MB of flash memory, and 256MB of DDR RAM to manage concurrent data streams easily. Its advanced connectivity matrix includes 4G LTE, 2G, Wi-Fi, and Bluetooth, backed by dual SIM slots to prevent network downtime. Additionally, its hardware interface includes a built-in magnetic strip reader, an IC card reader, and a high-performance NFC transceiver, allowing merchants to accept traditional chip-and-PIN or contactless cards alongside standard mobile wallet applications.

Security and Firmware Integrity

Security and firmware integrity within a payment soundbox represent the collective hardware-level cryptographic barriers, secure boot architectures, and encrypted remote data pipelines designed to prevent unauthorized firmware alteration, financial spoofing, or device cloning by external threat actors.

1. Secure Element Co-Processors and Cryptographic Key Storage

Because these devices are connected directly to financial transaction networks and handle sensitive transaction confirmation tokens, they are lucrative targets for malicious actors seeking to intercept or spoof transaction data. To prevent hardware-level tampering, the internal architecture separates basic communications from financial processing by utilizing an independent Secure Element chip or a dedicated cryptographic co-processor embedded within the primary microcontroller. This secure island features physical security mechanisms, including reactive mesh shields that detect drilling, side-channel attack protection, and automated memory-wipe routines if a physical breach is detected. Cryptographic keys used to authenticate the soundbox to the payment cloud are injected into this hardware-protected storage during manufacturing and cannot be read by external debugging tools.

2. Cryptographic Secure Boot and Hardware Root of Trust

Ensuring the integrity of the device requires verifying every line of code executed by the microcontroller from the moment the device powers on. This is achieved by establishing a hardware Root of Trust rooted in immutable bootloader code stored within the processor's read-only memory. When the device initializes, the secure bootloader uses public key cryptography to verify the digital signature of the operating system firmware before executing it. If any unauthorized modifications are detected within the firmware image—such as compromised code injected via an exposed hardware interface—the bootloader halts execution, locks the peripheral interfaces, and displays an error code. This prevents attackers from installing malicious software to broadcast fraudulent transaction messages.

3. Encrypted Over-the-Air Firmware Updates and Fleet Management

Maintaining long-term security across a fleet of thousands of active terminals requires a secure, automated framework for deploying remote software patches and feature updates. The embedded firmware includes a dedicated Over-the-Air update client that communicates with central management servers via transport layer security (TLS 1.2 or TLS 1.3) encryption protocols. When an update is deployed, the device downloads the binary package into a secondary memory partition, verifies its cryptographic signature against the internal Root of Trust, and performs a safe dual-image boot switch. If the update process fails or detects a corruption anomaly, the system automatically rolls back to the previous stable firmware version, preventing field devices from becoming unresponsive and minimizing merchant downtime.

• Hardware Root of Trust: Ensures that only digitally signed, manufacturer-approved firmware can execute on the microcontroller, eliminating local code injection risks.

• Asymmetric Update Encryption: Utilizes public-private key pairs to secure firmware packages during transmission across public cellular networks.

• Dual-Image Memory Partitioning: Guarantees systemic fault tolerance by maintaining a backup operational system image in the event of an interruption during firmware updates.

• Cryptographic Cloud Mutual Authentication: Requires the device and the financial backend to mutually verify digital certificates before establishing a data connection, preventing man-in-the-middle spoofing attacks.

Power Management and Energy Efficiency

Power management and energy efficiency in a payment soundbox involve the precise coordination of high-capacity lithium-ion battery cells, intelligent charging regulators, and multi-tier processor sleep states designed to maximize operational runtime while maintaining instant wake-on-transaction readiness.

1. Lithium Battery Chemistry Selection and Overcharge Protection Circuits

Mobile street vendors and off-grid retail operations rely on internal battery power to maintain business continuity throughout extended shifts without access to main electrical outlets. Industrial soundboxes incorporate high-capacity Lithium-Ion or Lithium Iron Phosphate batteries, typically ranging from 2000mAh to over 5000mAh at 3.7V. Because these devices are frequently left charging indefinitely on commercial countertops or exposed to elevated temperatures in outdoor stalls, the internal battery pack features an integrated Protection Circuit Module. This hardware safety layer monitors individual cell voltages and temperatures, automatically disconnecting the charging path if it detects overcharging, over-discharging, short circuits, or thermal runaway conditions.

2. Multi-Tiered Low-Power Standby States and Smart Sleep Management

To deliver multi-day battery life on a single charge, the device's main processor must employ an intelligent power management strategy. When no transactions are occurring, the microcontroller transitions from active execution into a deep sleep or standby state, shutting down power to the audio amplifier and dimming or turning off any integrated displays. The cellular modem enters a low-power Discontinuous Reception mode, powering down its radio frequency circuits while waking briefly at pre-defined intervals to check for incoming network paging signals from the transaction server. This advanced power-saving architecture reduces idle current draw to a few milliamperes, allowing the unit to maintain standby readiness for over a week while remaining capable of waking and broadcasting an audio confirmation within milliseconds of receiving a payment notification.

3. Intelligently Integrated Power Infrastructure for Uninterrupted Retail Service

For large-scale commercial deployments, choosing a hardware platform with an optimized power subsystem is essential to reduce field failures and maintenance costs. Selecting an advanced solution like the Real-Time Cloud Payment Soundbox provides an excellent balance of longevity and operational safety. This system features a heavy-duty rechargeable lithium battery optimized for thousands of charge-discharge cycles, backed by an efficient power management integrated circuit that supports 5V Type-C fast charging. This standardized power interface allows merchants to charge the device using standard smartphone adapters, portable power banks, or point-of-sale terminal power hubs, ensuring continuous transaction broadcasting throughout long business days.
