ABK30
HCCTG
|
Product Description

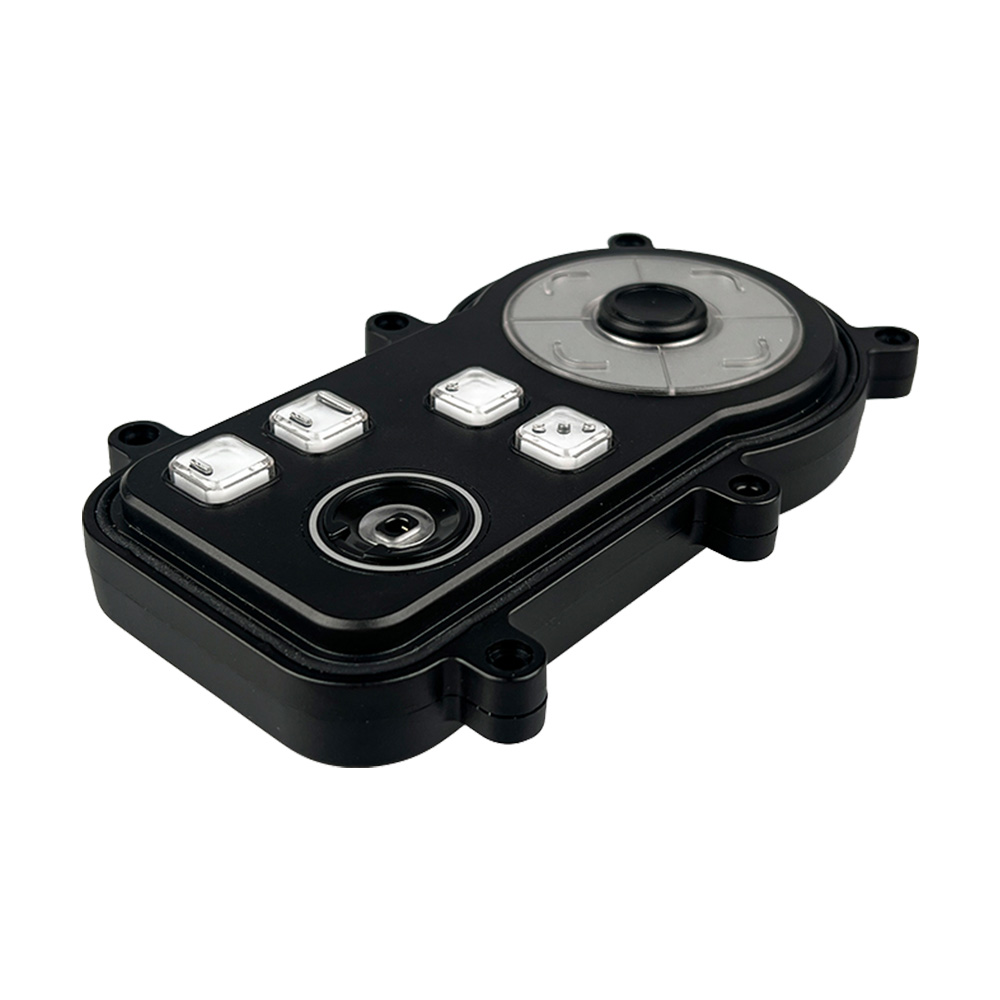

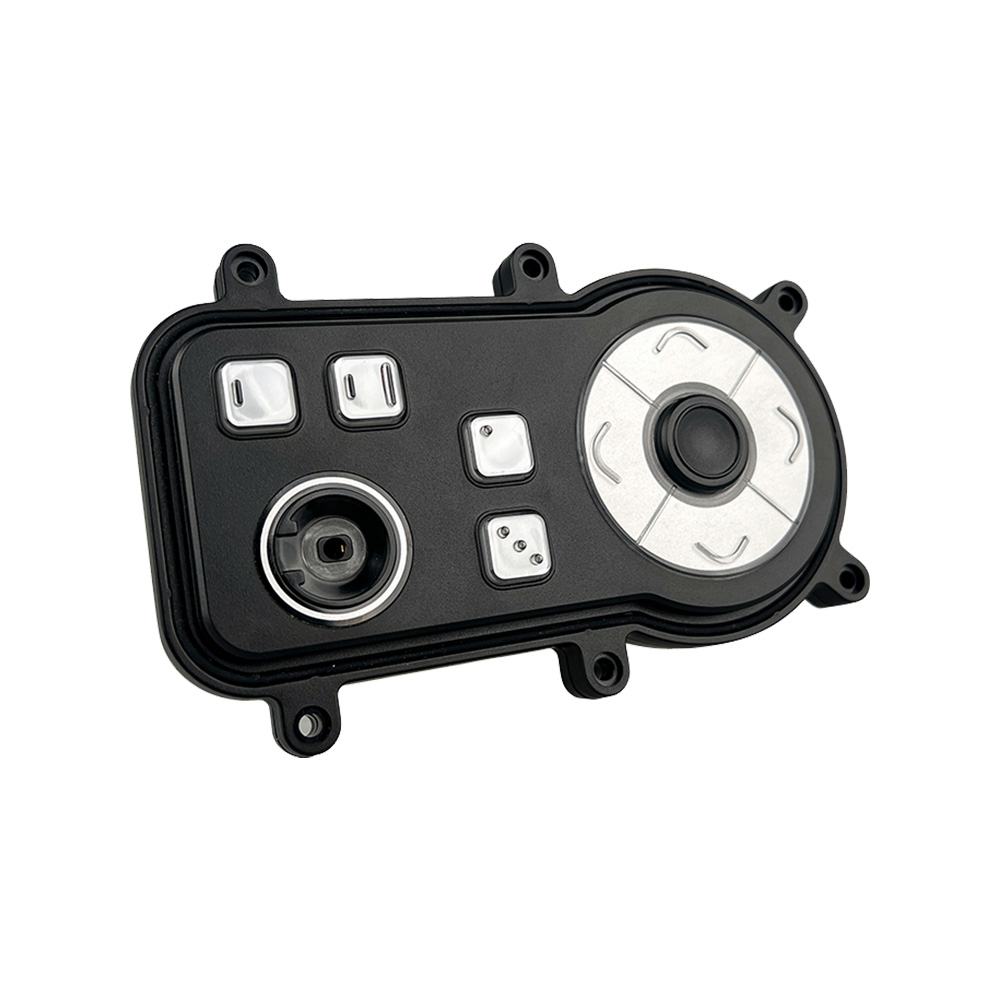

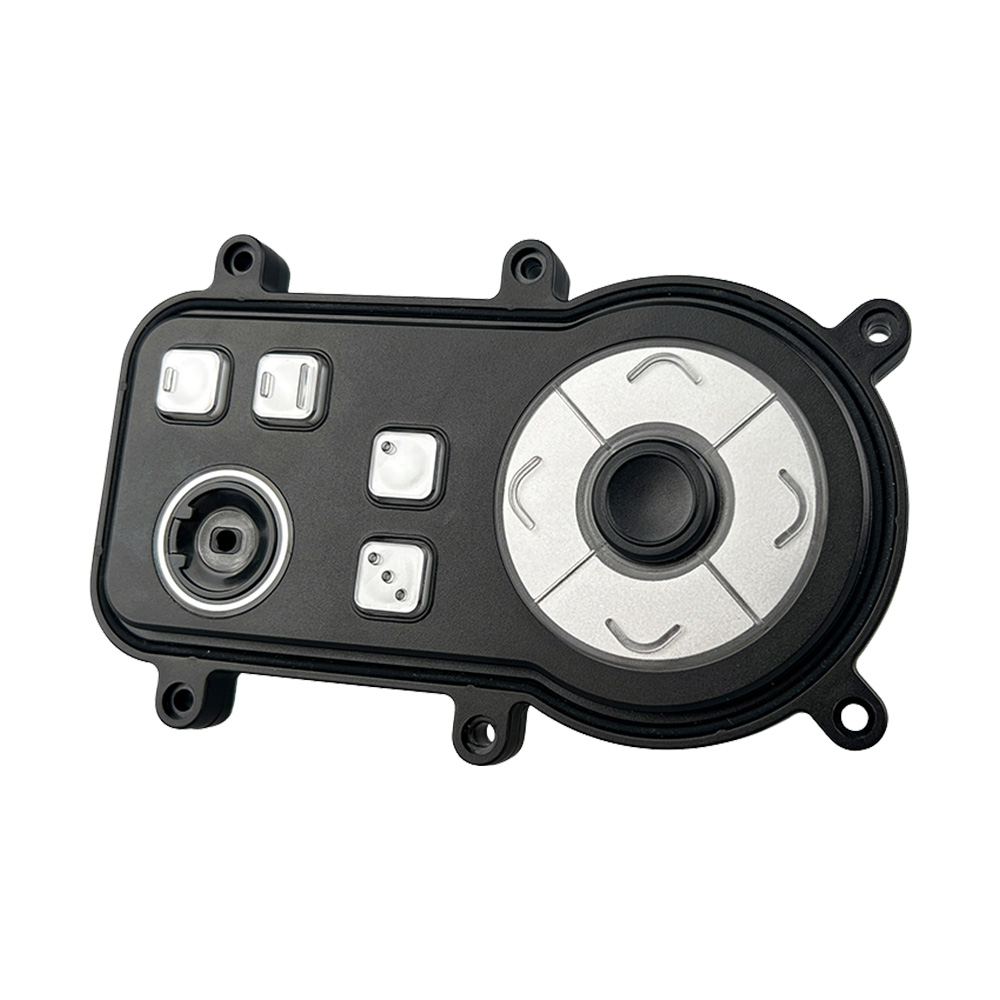

1）It features a high-strength PC+ABS housing, keycaps with raised Braille identifiers, and supports voice-guided operation. Users can receive voice prompts via the headphone jack to assist in completing processes like information inquiry and self-service operations.
2）The keyboard offers full-key programmability and seven-color backlighting, making it widely applicable in environments such as public service terminals, self-service equipment, and medical information systems.
|
Product Shaw
|
Features
Utilizes a high-strength PC+ABS housing with conductive silicone contacts; keycaps feature raised.
Braille dots for comfortable and durable tactile feel.
Integrated 3.5mm headphone jack, supports audio input and output for voice prompts.
Fully programmable keys, supports configuration of key combinations and macro functions.
Seven-color backlighting: color, brightness, and activation modes are user-definable.
Built-in non-volatile memory; no battery required for storage.
USB 2.0 communication interface, compliant with HID device standards.
Supports remote firmware updates and secondary development via SDK
Front panel protection rating: IP65 (when recessed/embedded).
Complies with EMC Class B immunity standards, equipped with ESD electrostatic protection.
|
Specifications
| Model | |
| ABK30-A | USB |
| ABK30-BT | USB+Bluetooth |
| System Compatibility & Software Support | |
| Supported OS | Windows, Linux, and Android |
| Interface Standard | USB 2.0, or USB / Bluetooth communication at optional |
| Software Tools | Provides key configuration tool, development manual, and SDK (provided upon request) to facilitate secondary development and customization |
| Physical Characteristics | |
| Panel Material | PC+ABS |
| Keyboard Dimensions | 145 * 92 * 29.7 mm(L * W * H) |
| Net Weight | Approx. 140g (without cable) |
| Cable | 1.5M USB TYPE A (USB-C to USB-A) |
| Keyboard Characteristics | |
| Key Type | PC Transparent Keycap + Conductive |
| Actuation Force | 100-150gf |
| Travel Distance | 1.7 mm |
| Key Lifecycle | >1 million presses |
| Panel Waterproof | IP65 |
| Electrical Characteristics | |
| Voltage | DC5V ±10% |
| Current | 100 - 300mA (depending on backlight status) |
| Insulation Resistance | >50MΩ |
| Contact Resistance | <1KΩ |
| Environmental Characteristics | |
| Temperature | Operating: 0℃ - +50℃ Storage: -20℃ - +55℃ |
| Humidity | Operating: 10% - 90%RH (non - condensing) Storage: 5% - 95%RH (non - condensing) |
| Atmospheric Pressure | 86 - 106kpa |
|
