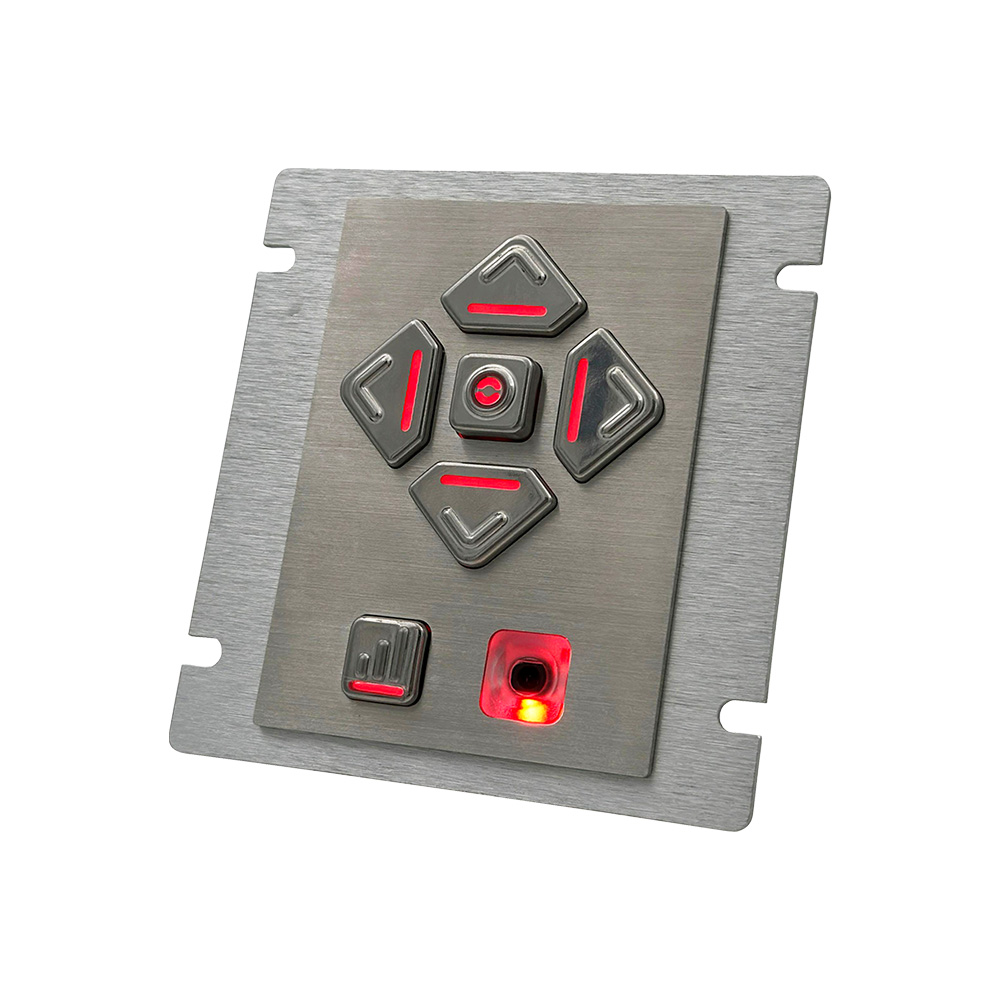

6 Keys Programmable Backlit Braille ADA DDA Audio Navigation Keyboard for POS Kiosks AKB10

ADA DDA compliant auxiliary USB device AKB10 enables voice-based menu navigation, letting users with visual, reading or fine motor function impairments operate screen/touchscreen menu/directory systems with content voiced and explained via headphones or communication devices.
Material:
Cable:
Key Life:
Waterproof & Dust-proof:
Operating Temperature:
Availability:
Quantity:
  • AKB10

  • HCCTG

|

 Product Description

1)Differential menu selection keys boost usability for visually-impaired users, while the built-in standard 3.5mm headphone jack allows direct headphone connection to receive clear voice guidance for seamless device operation;
2)Featuring flexible installation options, this device can be embedded in host terminal enclosures, walls, service desks and more, making it ideal for scenarios requiring strict compliance with current accessibility regulations;

3)A dedicated accompanying software toolkit supports customizable default backlight color, wake-up response mechanism, key value modification and remote upgrades; the device connects to hosts easily via a single USB cable.

|

 Product Show

AKB10(1)
AKB10-1

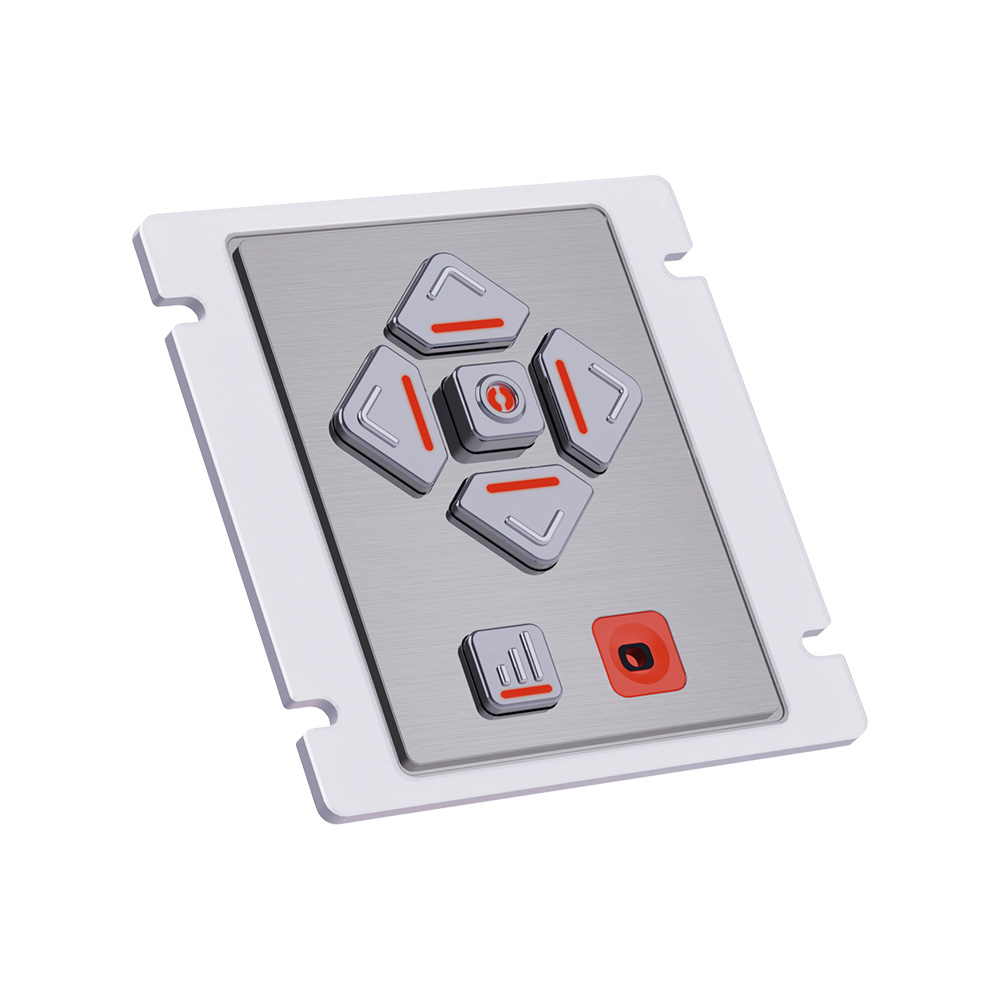

AKB10(2)

|

 Features

  • It allows for arbitrary setting of various function combination keys.

  • It provides the "True status lock" function, which enables the editing of any standard keyboard key on the audio navigation keyboard, including Num lock, Caps lock, Scroll lock, Shift, Ctrl, Alt, Esc, F1, Caps lock, etc.

  • It is equipped with RGB backlight, and users can freely define various lighting colors.

  • The surfaces of the keycaps are embossed with Braille symbols.

  • No battery is required, and data can be stored for at least 100 years.

  • It has a USB interface and supports operating systems such as Me, Win2K, XP, Win7, Win8, Win10, Win11, Linux, and Android.

  • Its EMC radiation meets Class B requirements, and the anti - static design refers to the relevant standards of GB 4933 and GB/T 17626.

|

 Specifications

Physical Characteristics
Main Body Material Stainless Steel
Keyboard Dimensions 100 * 104 * 27.1 mm(L * W * H)
Net Weight 240 g
Cable 1.8M in length(support customized length)
Keyboard Characteristics
Keys Stainless Steel keys
Actuation Force 100-150gf
Total Travel 1.5 mm
Key Life More than 1,000,000 times
Waterproof and Dust-proof IP65
Electrical Characteristics
Voltage DC+5V ±10%
Current 100 - 300mA (specifically related to the color of the backlight)
Insulation Resistance >50MΩ
Contact Resistance <1KΩ
Environmental Characteristics
Temperature

Operating: 0℃ - +50℃

Storage: -20℃ - +55℃
Humidity

Operating: 10% - 90%RH (non - condensing)

Storage: 5% - 95%RH (non - condensing)
Atmospheric Pressure 86 - 106kpa
