The Z500 supports MSR, smart card and NFC card, with 58mm thermal printer, it's the perfect solution for one-stop payment.This product is designed for customers with development capabilities.
Item No.:
Z500Price range:
1000 - 4999/$150Price range:
500 - 999/$155Price range:
100 - 499/$160Price range:
50 - 99/$165Product origin:
Guangdong, ChinaColor:
Grey, support OEM/ODMMin order:
50Shipping port:
Shenzhen/Guangzhou/HongKongLead Time:
2| Quantity: | |
|---|---|
Z500

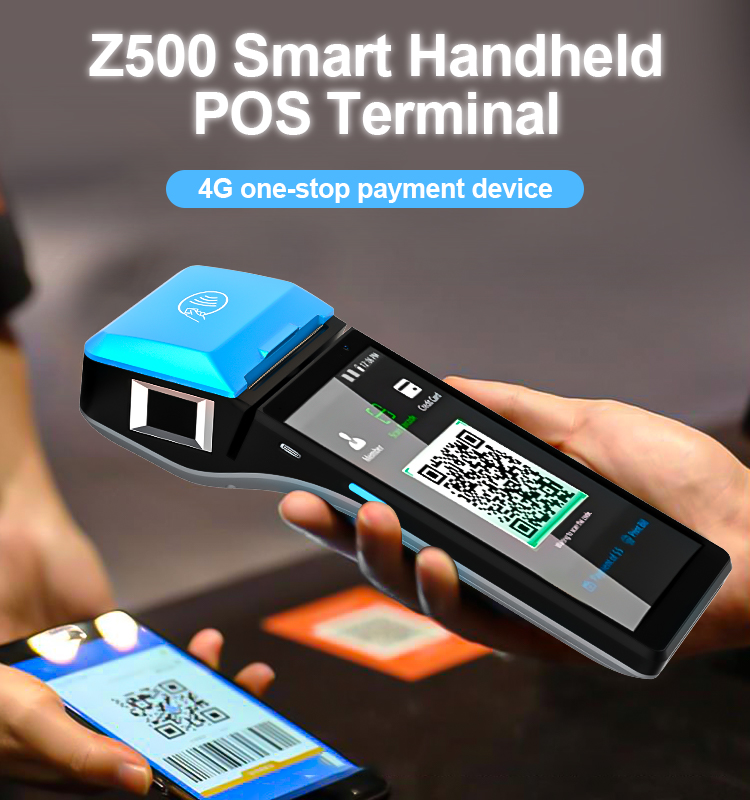

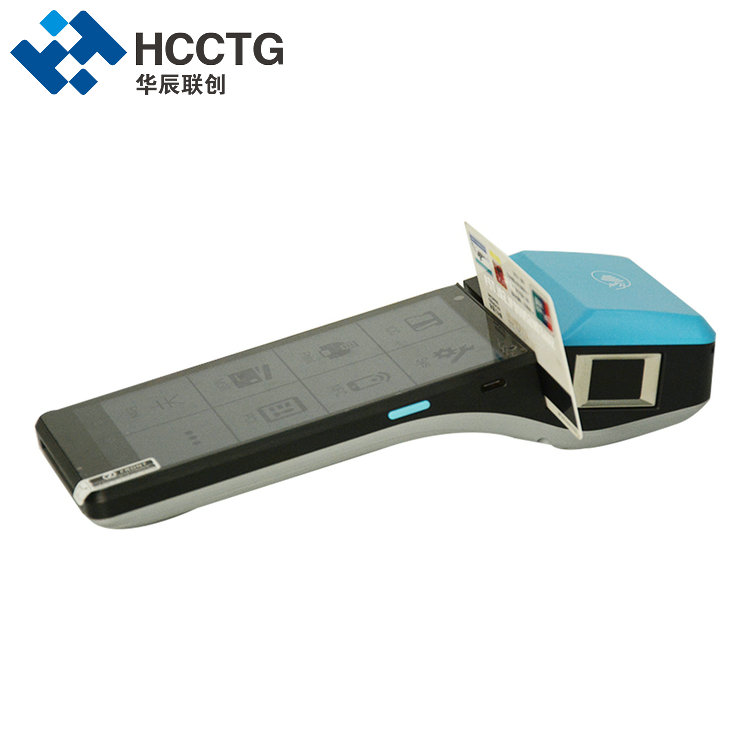

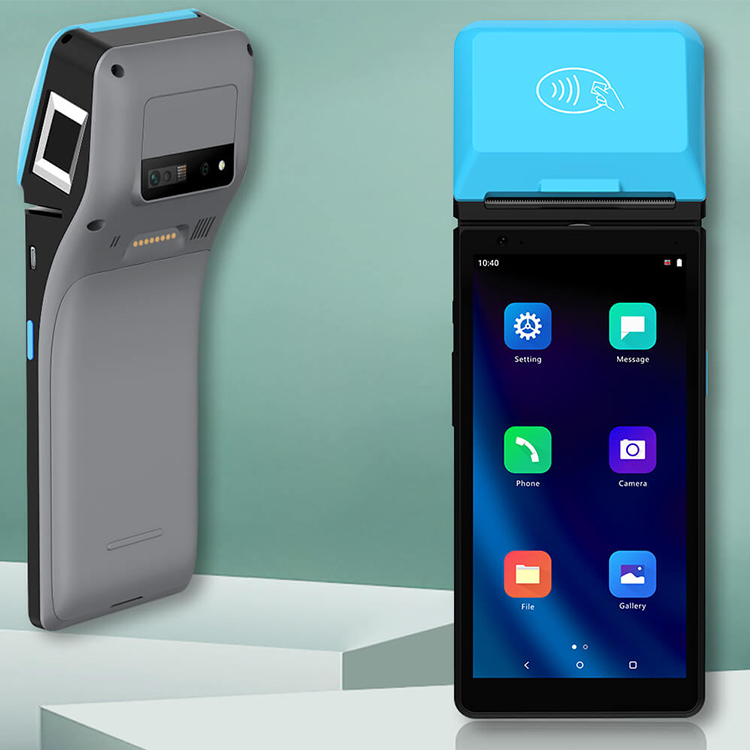

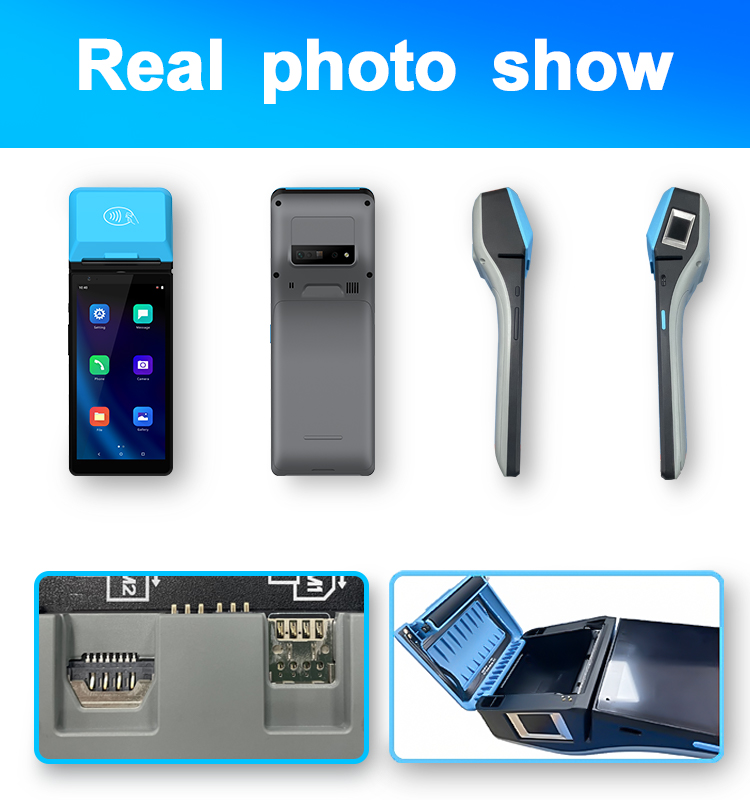

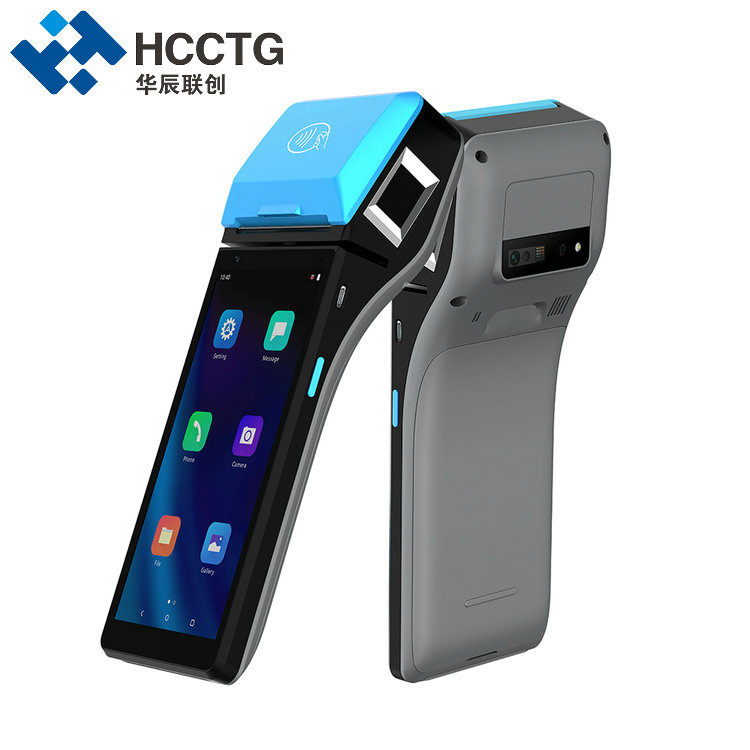

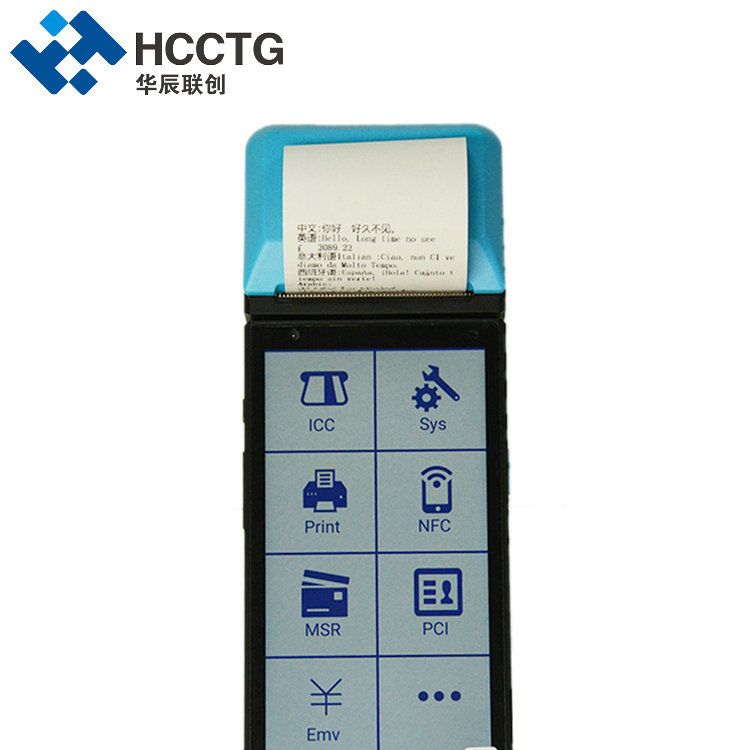

6 Inch EMV MSR/ICCR/NFC GPS Handheld POS Machine For Bank Z500

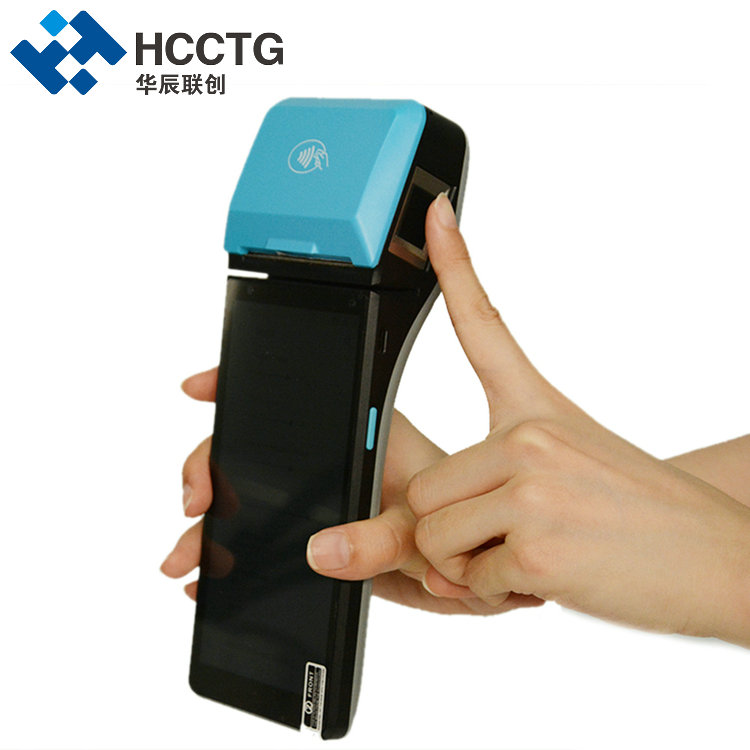

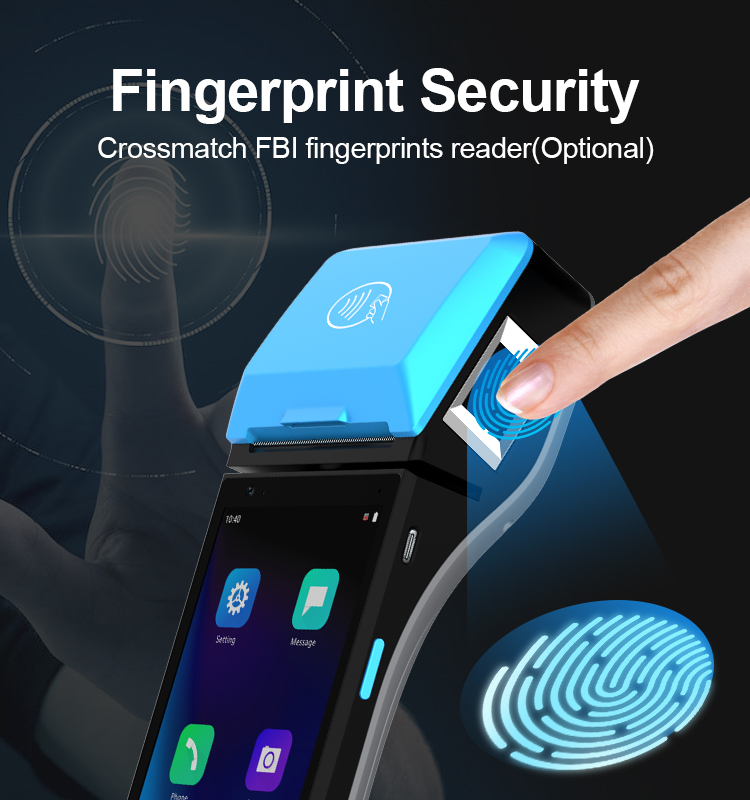

Z500 android pos machine enables exceptionally fast processing of applications, it supports additional features for local customization including fingerprint scanner and fiscal module.

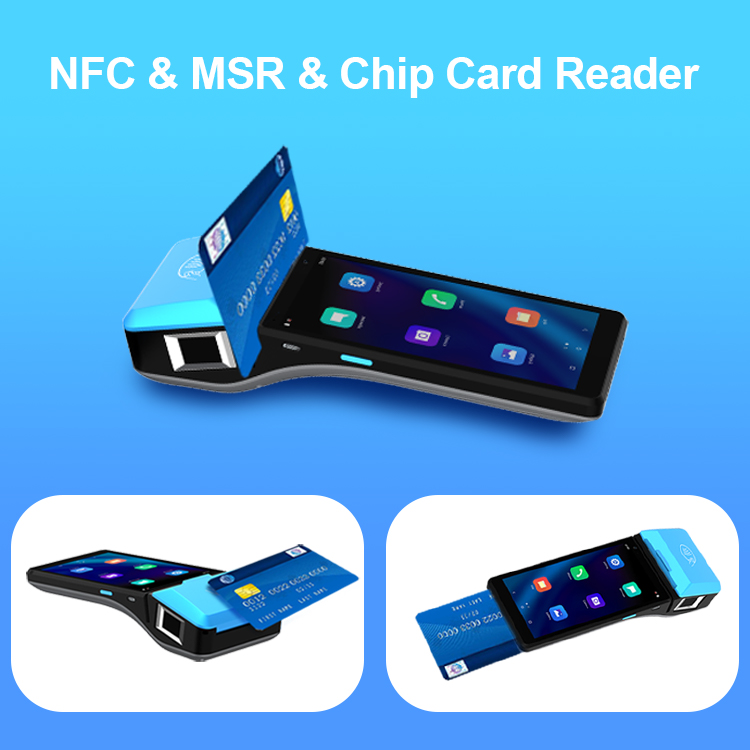

Our handheld POS terminal supports one-stop payment of MSR/ICCR/NFC, with PCI PTS 6.X, EMV L1&L2, Paypass, Paywave, Amex and TQM certified.
Features
1.8GHz Quad-Core ARM Cortex-A53;
GMS certified Android 11.0 Safedroid OS;
Massive memory: 2GB RAM + 32GB ROM ( up to 3GB RAM + 32GB ROM);
6.0 inch TFT IPS LCD, resolution 1440*720;
Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth 5.0, VPN;

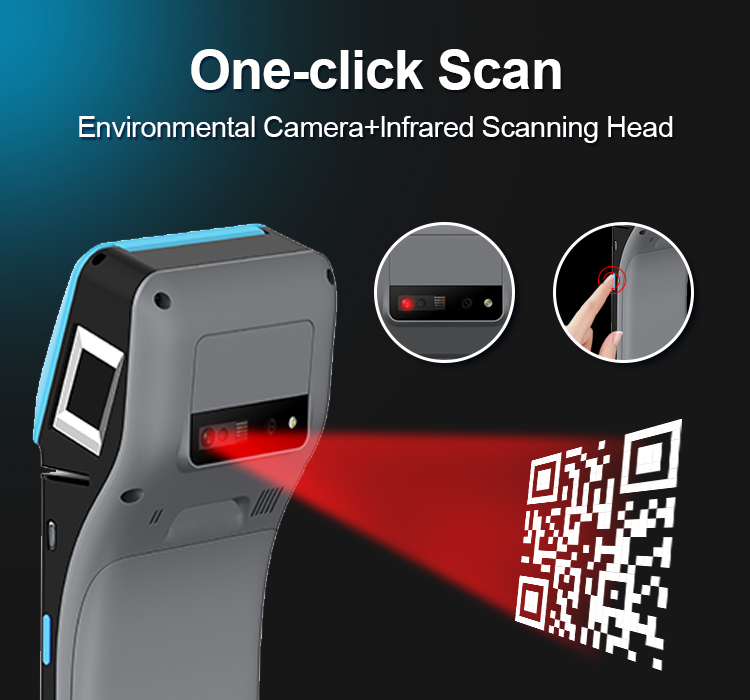

Dual cameras & Symbol 2D scanner for comprehensive scanning scenarios;

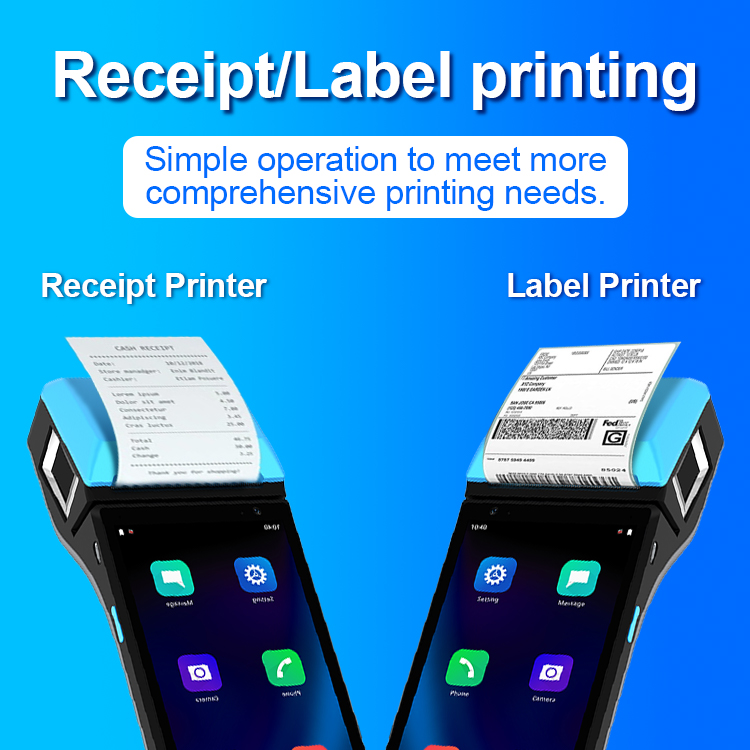

58mm thermal receipt printing;
Specifications
Basic Characteristics | OS | Safedroid OS (based on Android 11.0) GMS certified |
CPU | 1.8GHz Quad-Core ARM Cortex-A53 | |
ROM | 32GB ROM EMMC | |
RAM | 2GB RAM LPDDR | |
Display | 6.0 inch TFT IPS LCD, resolution 1440*720 | |
Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
Dimensions | 224mm X 84mm X 18mm (max 51mm) | |
Weight | 410g (Battery included) | |
Keys | Physical keys: Power on/off, Volume + /-, Scan | |
Input | Chinese/English, and supports handwriting and soft keyboard | |
Radio Communication | WIFI | IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz |
Bluetooth | BT 5.0 and earlier | |
4G | European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 | |
3G | European version(Default): WCDMA: B1/B8 | |
2G | European version(Default): GSM/GPRS/EDGE: 900/1800MHz | |
Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional |
Smart Card reader | Supports ISO7816 standard | |
Contactless Card reader | Supports 14443A/ 14443B | |
Expansion and peripherals | Printer | High-Speed Thermal Printer; 58mm printing paper ; 40mm paper roll |

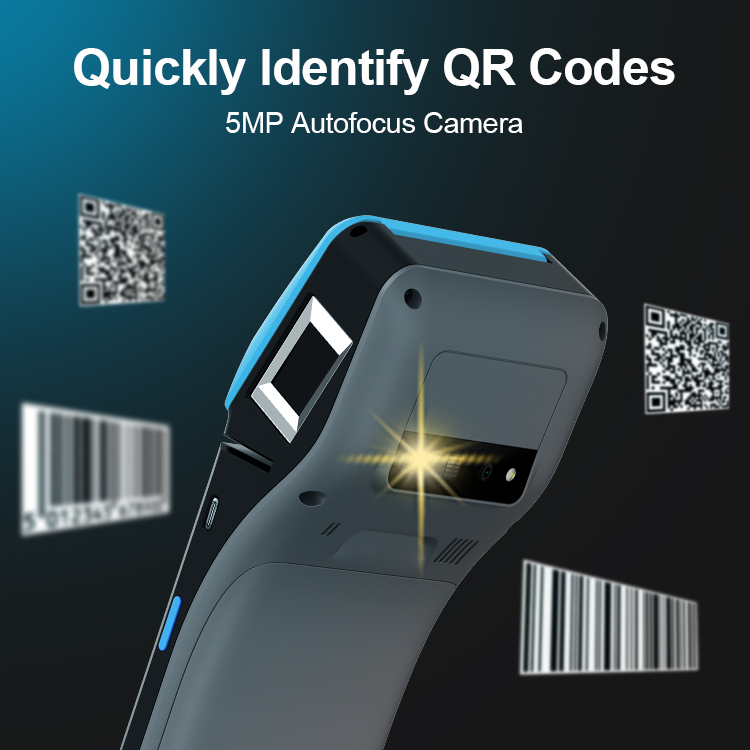

Rear Camera | 5MP camera with LED flash and auto-focus function | |
Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
LEDS | 3 colors are used to indicate | |
Audio | Speaker, Microphone, Buzzer | |

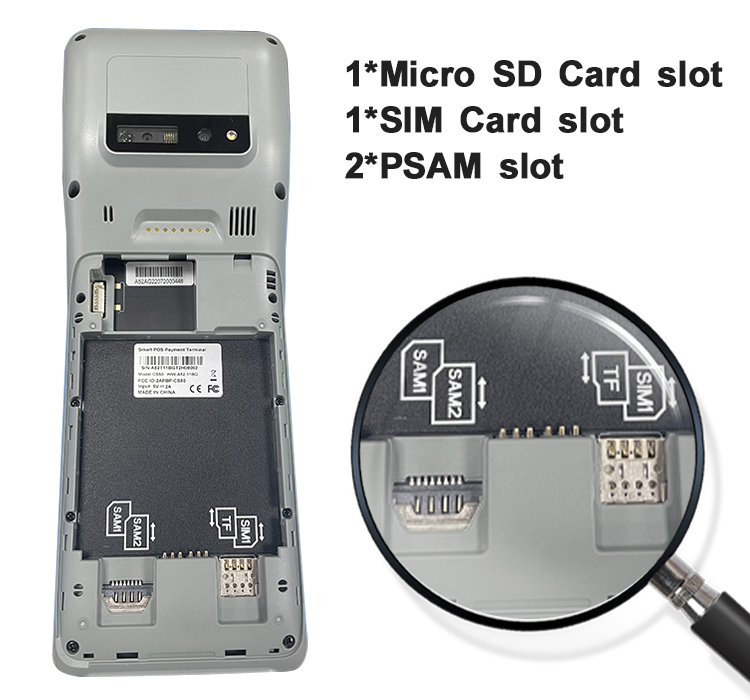

Interfaces | Micro SD Card Slot | 1 Pcs |
SIM Card Slot | 1 Pcs Micro SIM | |
PSAM Card Slot | 2 Pcs Conforms to ISO7816 standard | |
USB Port | 1 Pcs Type C USB | |
Power | Battery | Li-ion battery, 7.6V/2600mAh |
Charging Port | Type C USB Port, 5V DC/2A | |
Environment | Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 70°C | |
Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
Certification | Electromagnetic | CE, RoHS, FCC |
