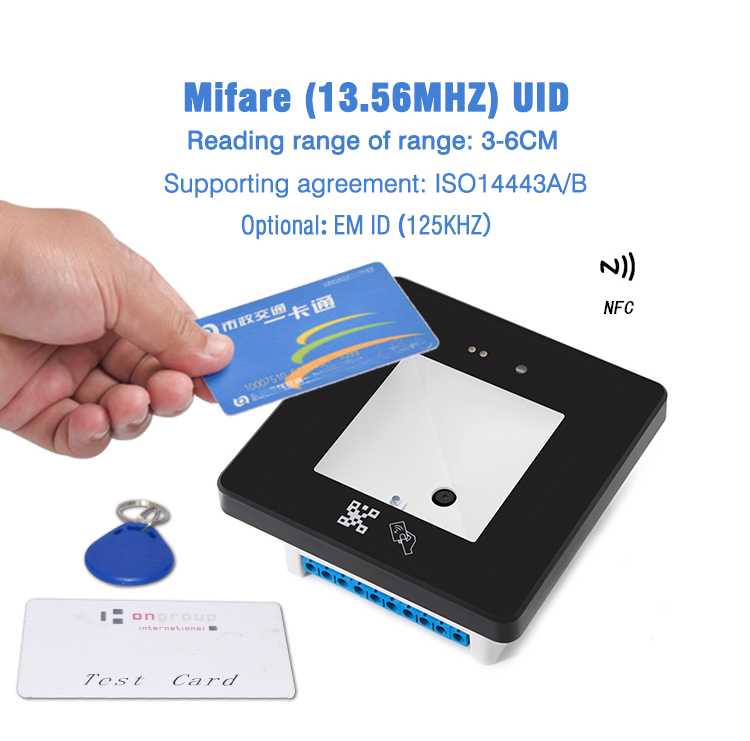

HM20-IC supports QR 2D Barcode+Mifare (13.56MHZ) UID, has Wiegand26/34, RS232, USB, RS485, TTL interface,widely Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
| Quantity: | |
|---|---|
HM20-IC
HCCTG

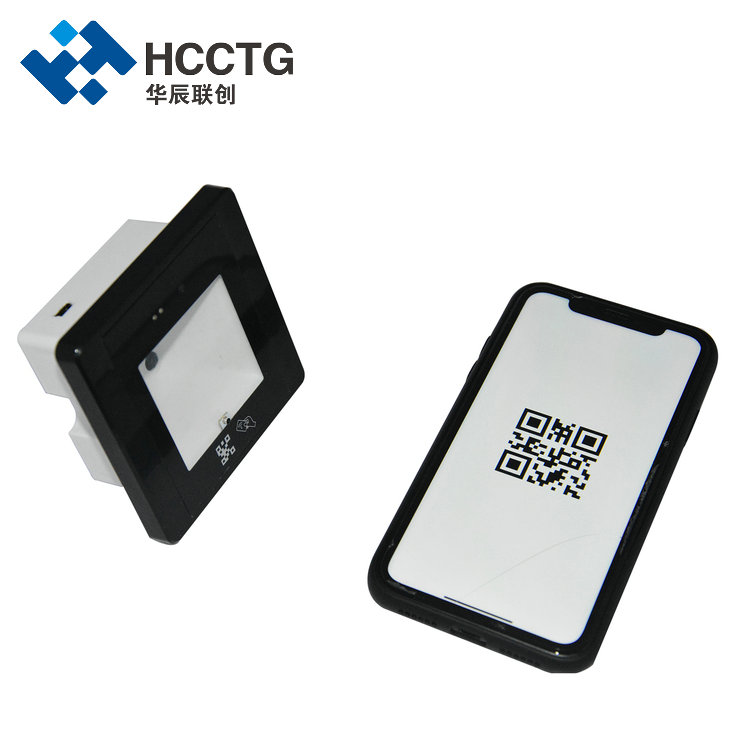

13.56MHz QR Code Embedded Card Reader Module For Windows&Linux HM20-IC
HM20-IC Access Card Reader is built with advanced Wiegand technology, which ensures reliable and accurate card reading. Whether you have a small or large organization, this reader can handle all your access control needs, making it an ideal solution for businesses, government agencies, and educational institutions.
The Mifare QR 2D Code Reader is also designed to be highly flexible, thanks to its Barcode Scanner Module. With this feature, you can easily integrate the reader with your existing access control system and customize it to meet your specific needs.

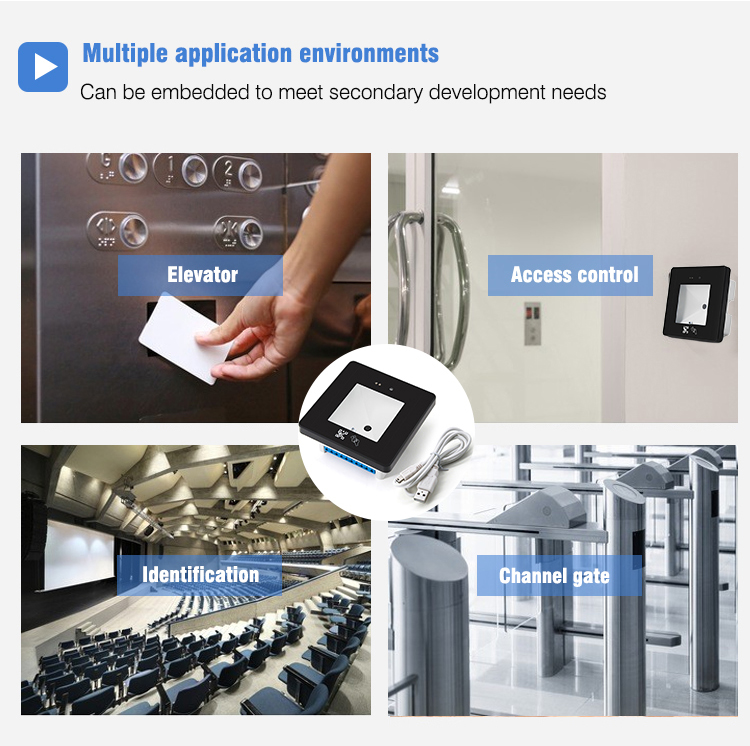

HM20-IC has features of fast reading speed, high recognition rate, strong compatibility, can connect to any Wiegand input contronller, widely used in Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home, Upgrade old access control systems etc.
Specification
Card type | EM or Mifare |
Code Type | QR Code,1D |

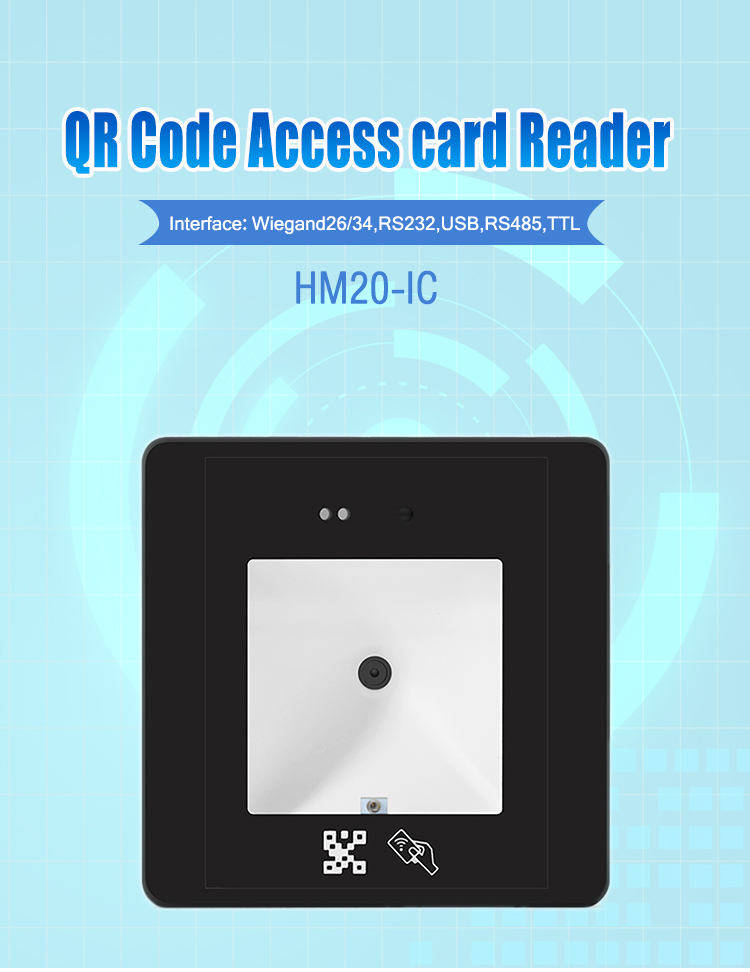

Interface | Wiegand26/34, RS232,USB,RS485,TTL |
Decode mode | Image decoding |
Reading directions | Camera centric slant 45° |
Reading feature | Auto-induction & beeper |
Voltages | 4-12V Wide voltage input |
Current | 800mA |
Reading range of range | 3-6CM |
Reading speed | ＜200ms |
Reading range of QR | 0-20CM |
Materialcase | PC & temperrd glass |
Humidity | 10%~90% |
Temperature | -20℃~70℃ |
Operate system | Windows(XP,7,8,10), Linux |

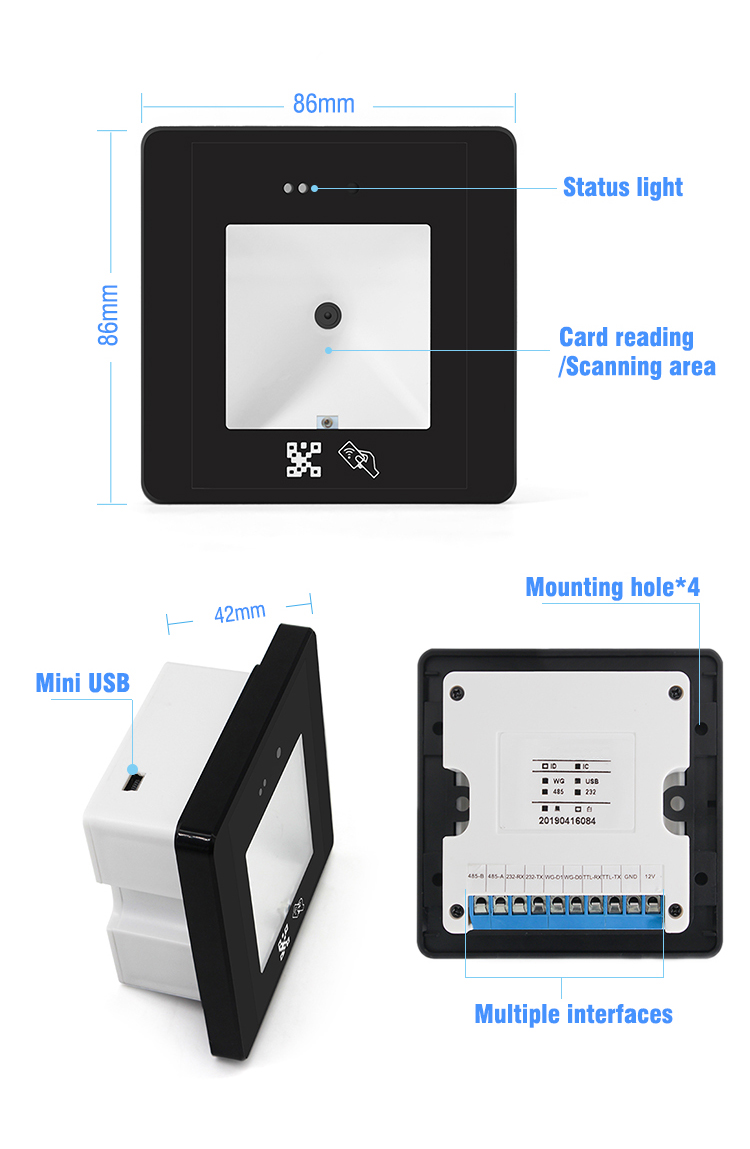

Size | 86mm×86mm×42mm |
Status light | Red-work,Green-feedback,Light Green-internet |
Weight | 150G |
Remark | Use sharp objects inserted into RESET hole of QR code reader backside, release till the QR code reader automatically restarted. |
