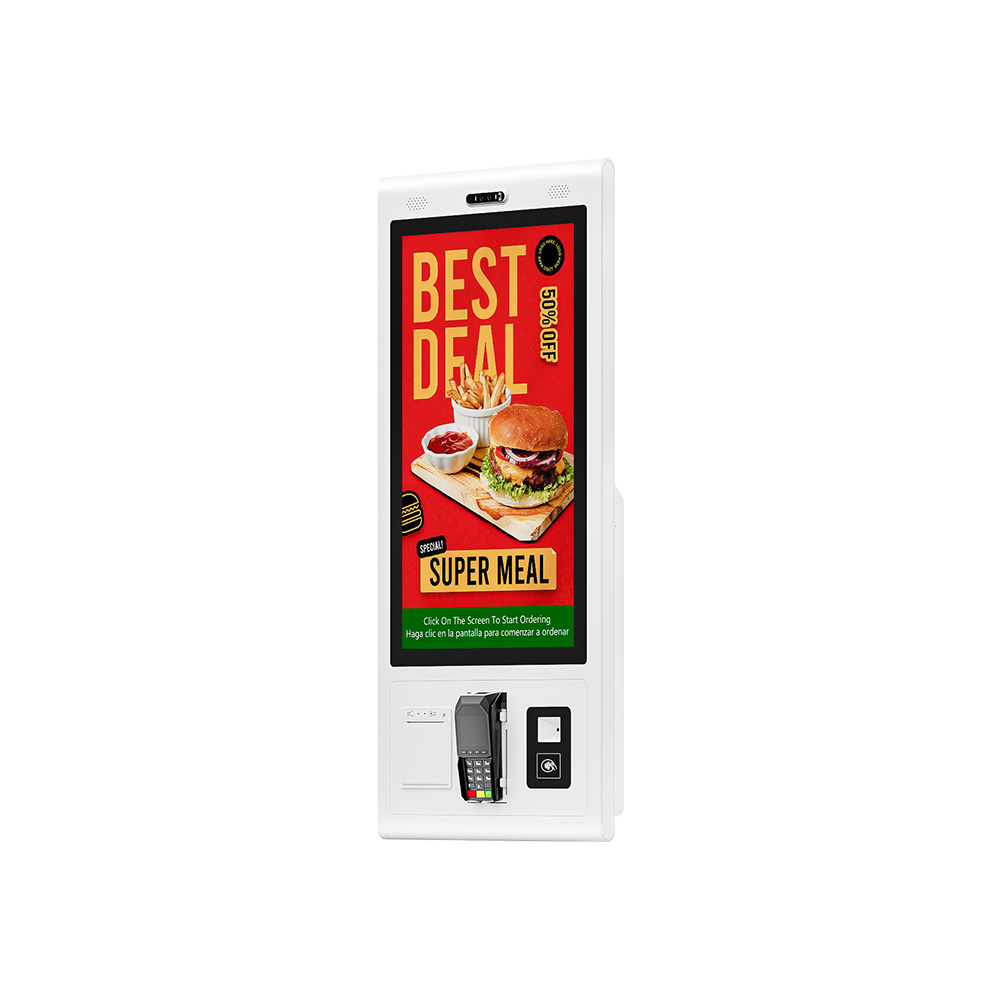

Android/Windows OS Supermarket Terminal Pay Screen Payment Self-Ordering Kiosk HSK-TA21(HSK-TW21)

21.5-inch 27 Inch 32 Inch Android / Windows self-service kiosk with integrated payment and scanning modules, offering fully customizable OEM/ODM desktop or vertical solutions to maximize efficiency for global retail and restaurant chains

OS:	Android 13 (Android 11 at optional) Windows 11
CPU:	RK3568, 4-core, 2.0GHz i5 6th generation (6200U)
RAM:	4GB 8GB
ROM:	32GB 128GB
LCD Screen:	21.5 inch Capacitive touch panel 27 inch 32 inch
Resolution:	1920 * 1080
Interface:	HDMI,USB,RJ45
Availability:

Quantity:



Inquire Add to Basket

Model:
HSK-TA21(HSK-TW21)
Brand:
HCCTG

Product Description

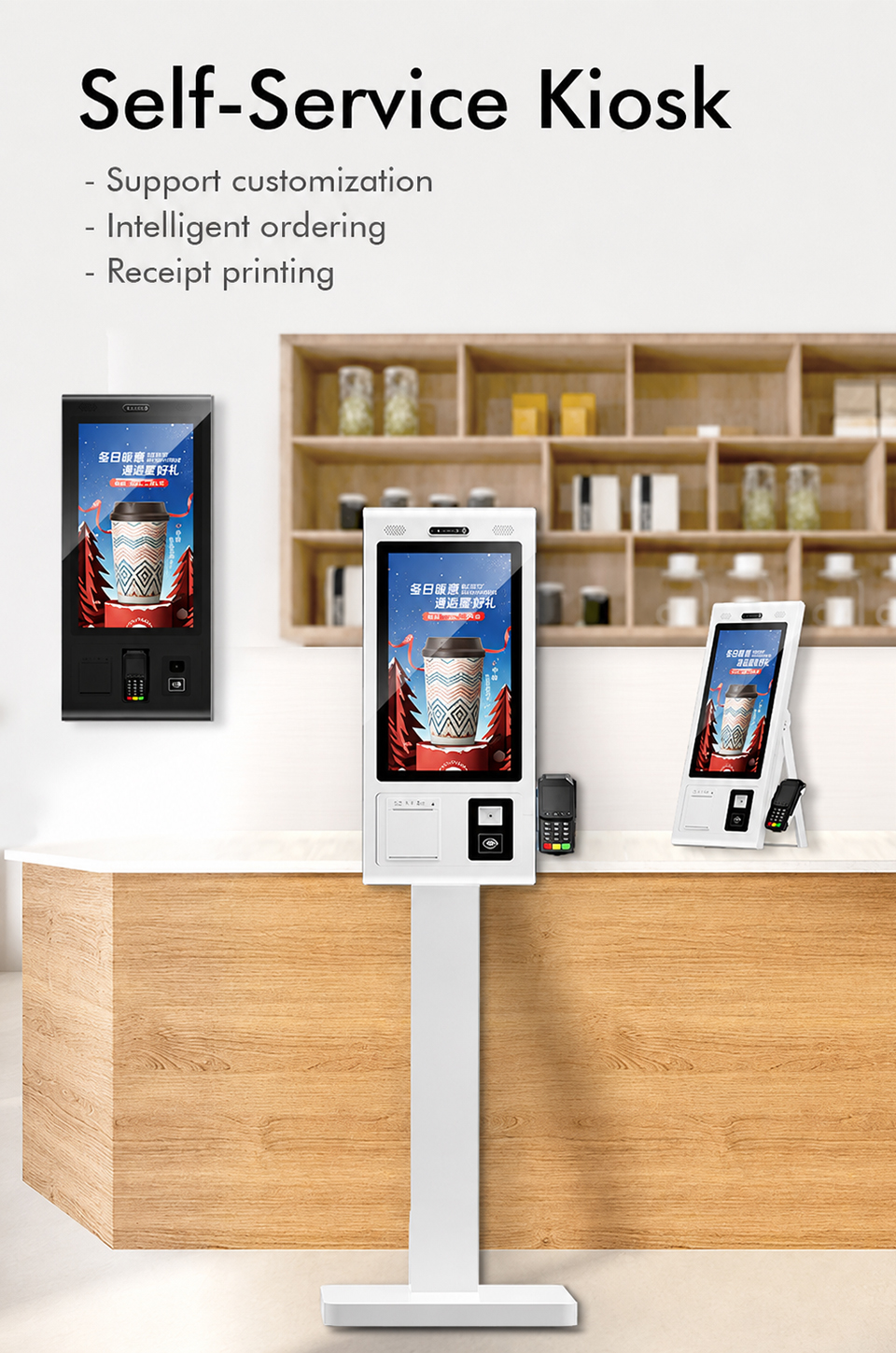

Android/Windows OS Self-service Kiosk

21.5/27/32" Android 13 High-Performance Self-Service Kiosk Machine

Point

Operating System

Powered by Android 13/Windows & RK3568 Quad-Core/i5-6200U Processor

LCD Screen

21.5" Full HD Capacitive Touch Screen (1920*1080)

(27/32 inch at optional)

Payment Module

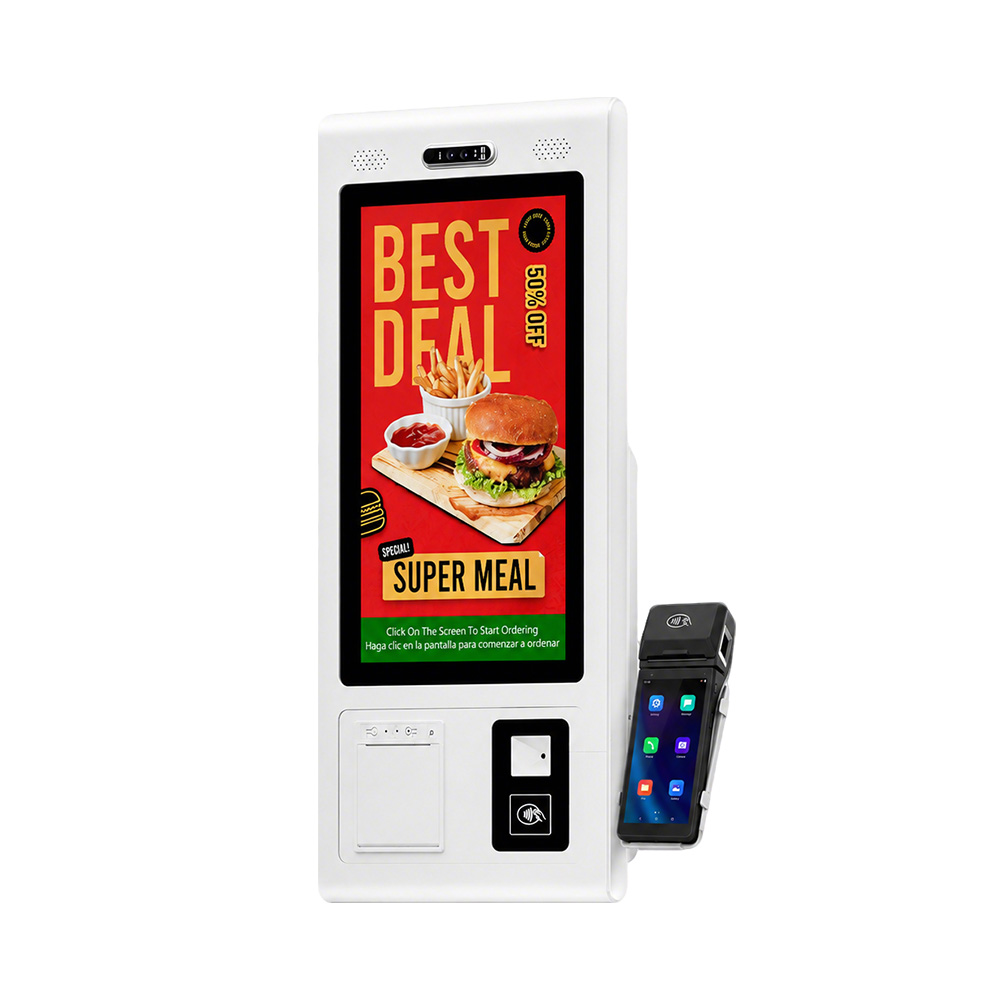

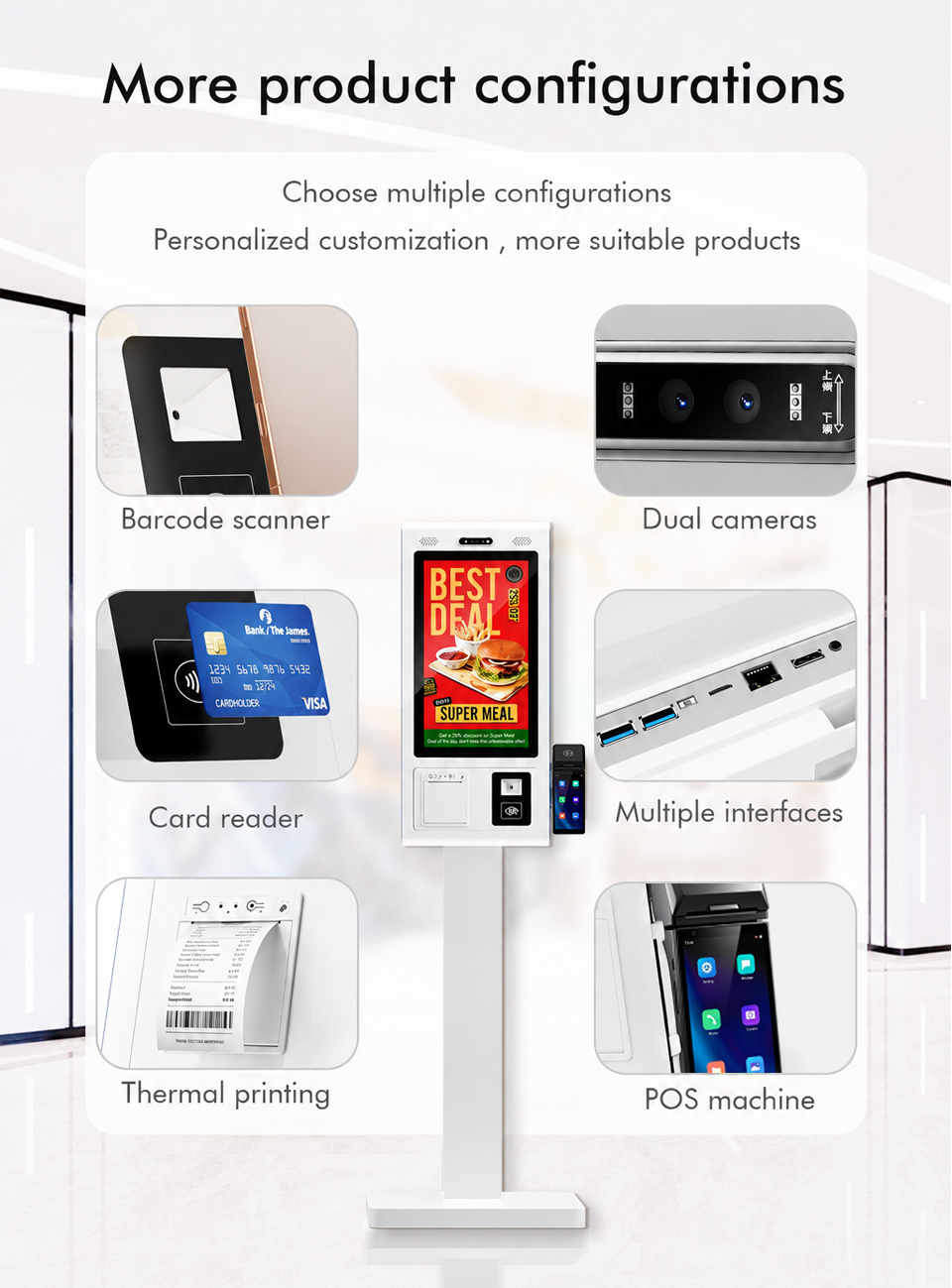

Modular Design: Supports 80mm Printer, 1D/2D Scanner, NFC, & Camera

Installation Types

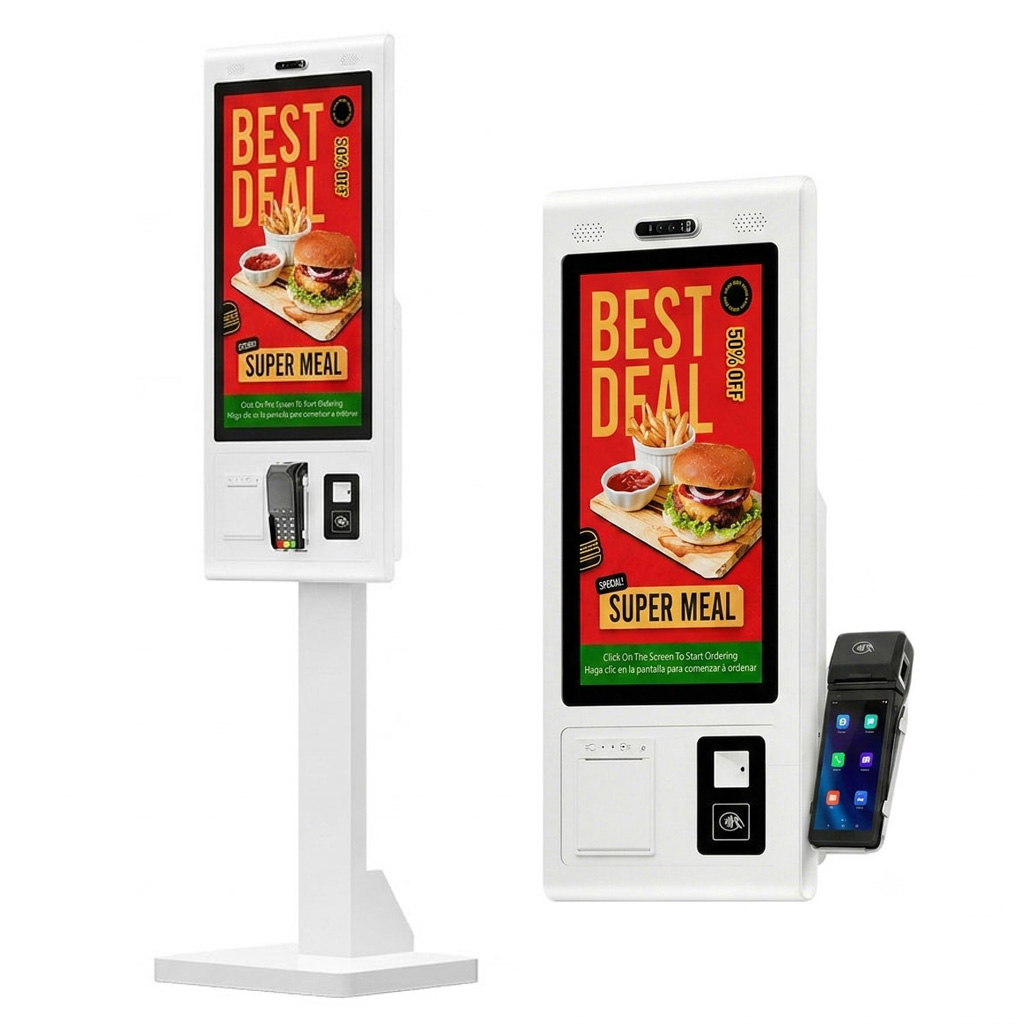

Flexible Installation: Desktop Stand or Vertical Floor-Standing Base

Application Solutions

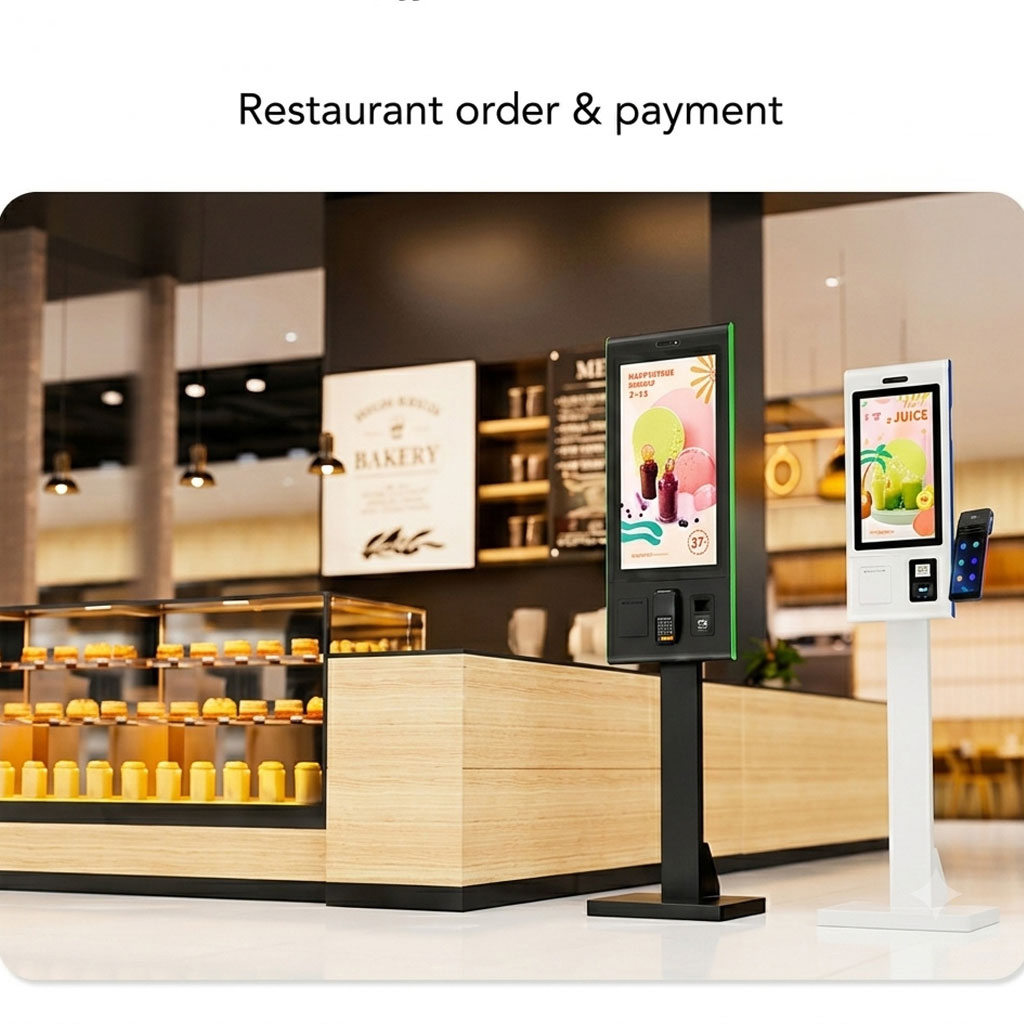

Smart Restaurant Order & Payment Solution

Customers can browse vivid visual menus, customize their orders, and complete secure payments independently

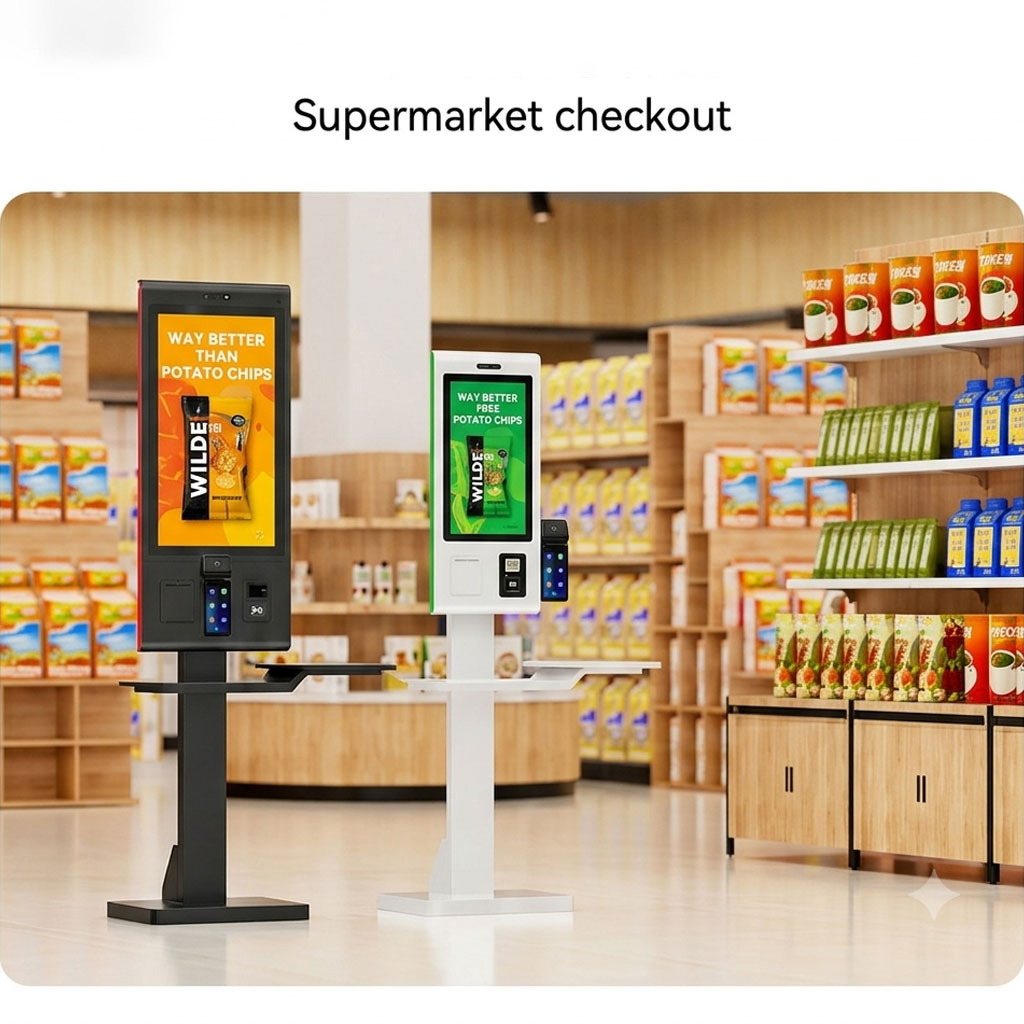

High-Throughput Supermarket Self-Checkout

It optimizes floor space utilization, accelerates daily retail transactions, and lowers operational overhead by allowing a single staff member to oversee multiple self-checkout stations

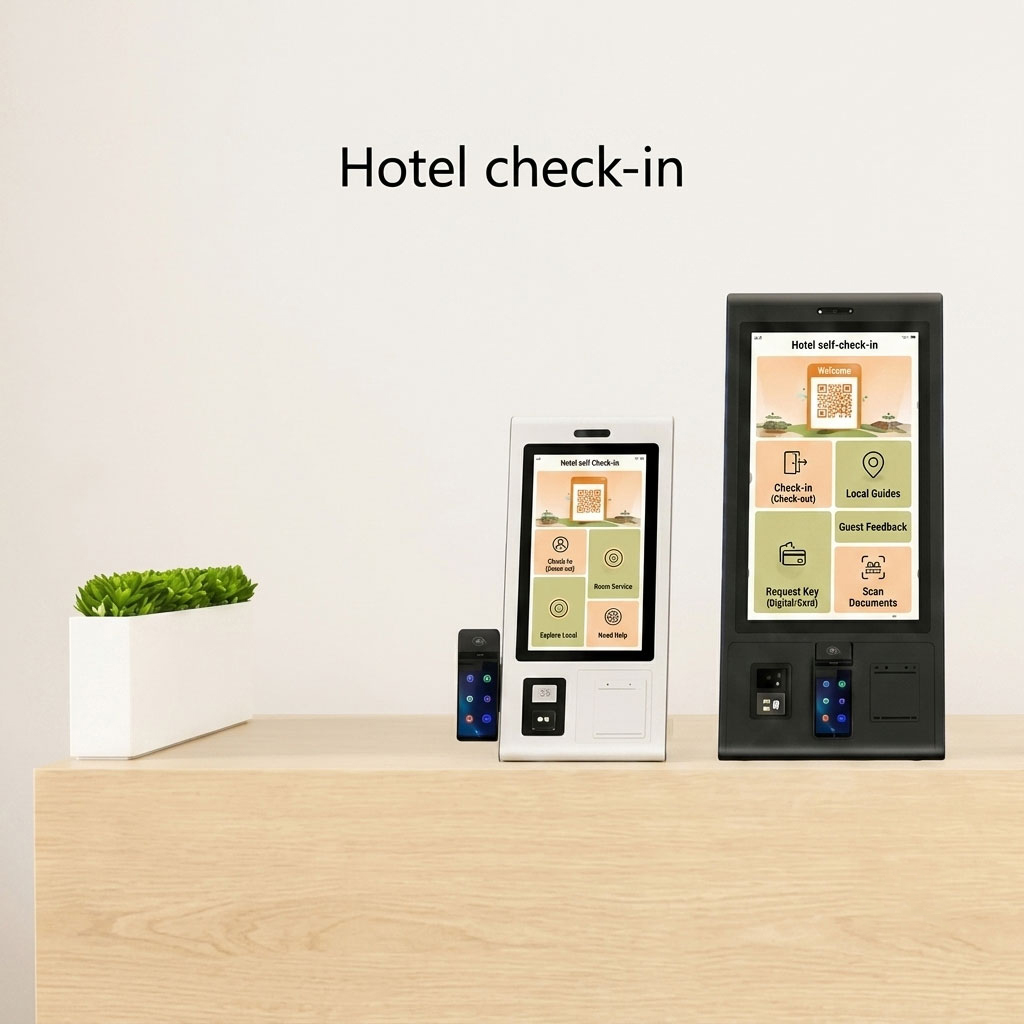

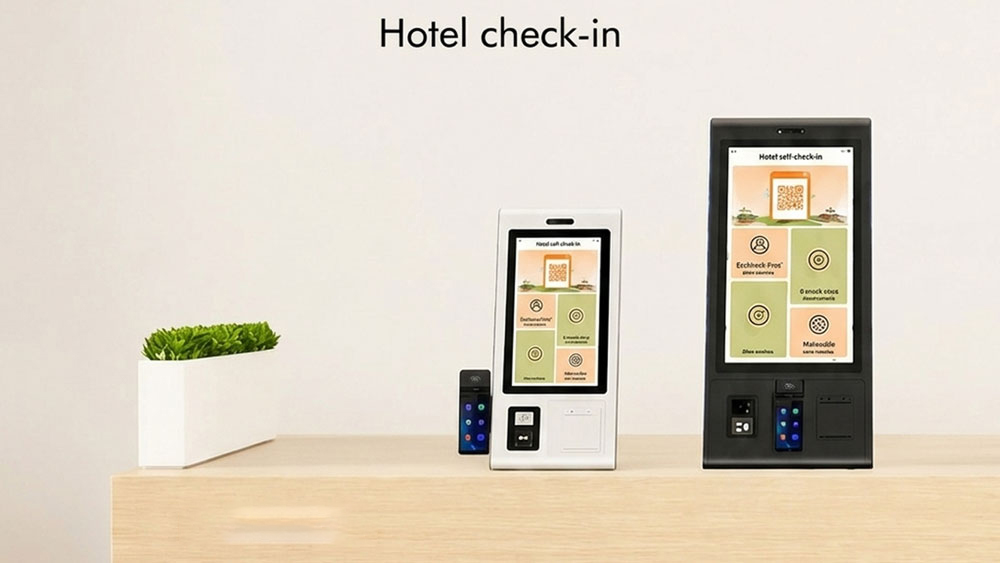

Streamlined Countertop Hotel Check-In

Equipped with an intuitive interface, card reader, and barcode scanner, it allows guests to scan QR booking codes, verify information, and check in or out in seconds

Technical Specifications

	Android	Windows
OS	Android 13 (Android 11 at optional)	Windows 11 (Windows 10, Linux Debian at optional)
CPU	RK3568, 4-core, 2.0GHz	Core i5 6th generation (6200U), 2.0GHz
RAM	DDR3 4G	DDR3 8GB(optional up to 16GB)
ROM	EMMC 32G	MSATA 128GB (default)
Network	802.11 b/g/n (2.4G/5G), 1000M LAN	10/100/1000 Base-T Fast Ethernet, WIFI, Bluetooth

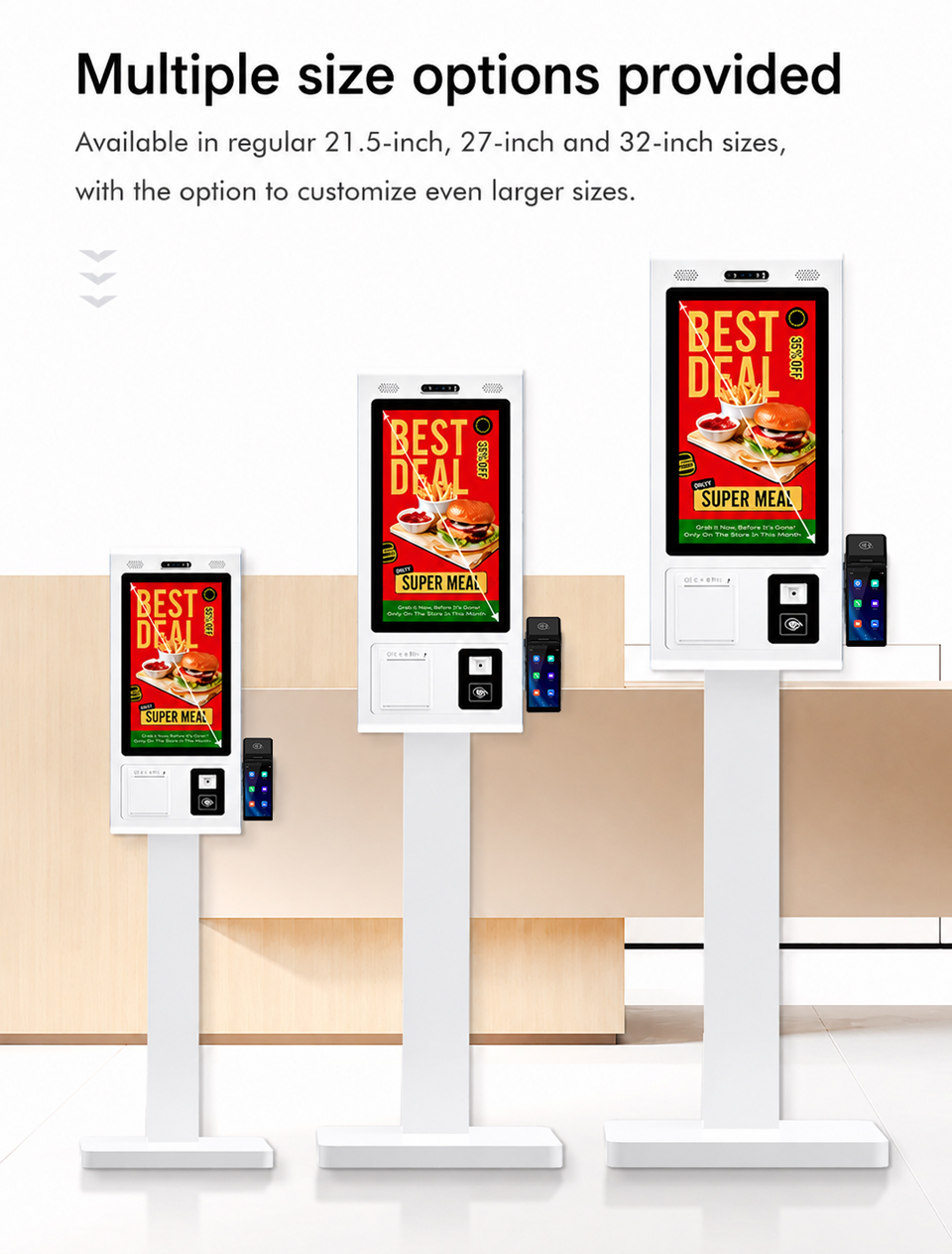

LCD	21.5 inch LCD(27 inch, 32 inch at optional)
Touch Screen	Capacitive touch panel
Resolution	1920 * 1080
Display Brightness	300 cd/m2 (Typ.)
Supported Colors	16.7M, 72% NTSC
Contrast Ratio	4000:1 (Typ.) (Transmission)
Display Mode	AMVA, often black, transparent	IPS, often black, transparent
Network Supports	Gigabit Ethernet, WiFi/BT
Sound Prompt	Built-in 2 * 5W speaker

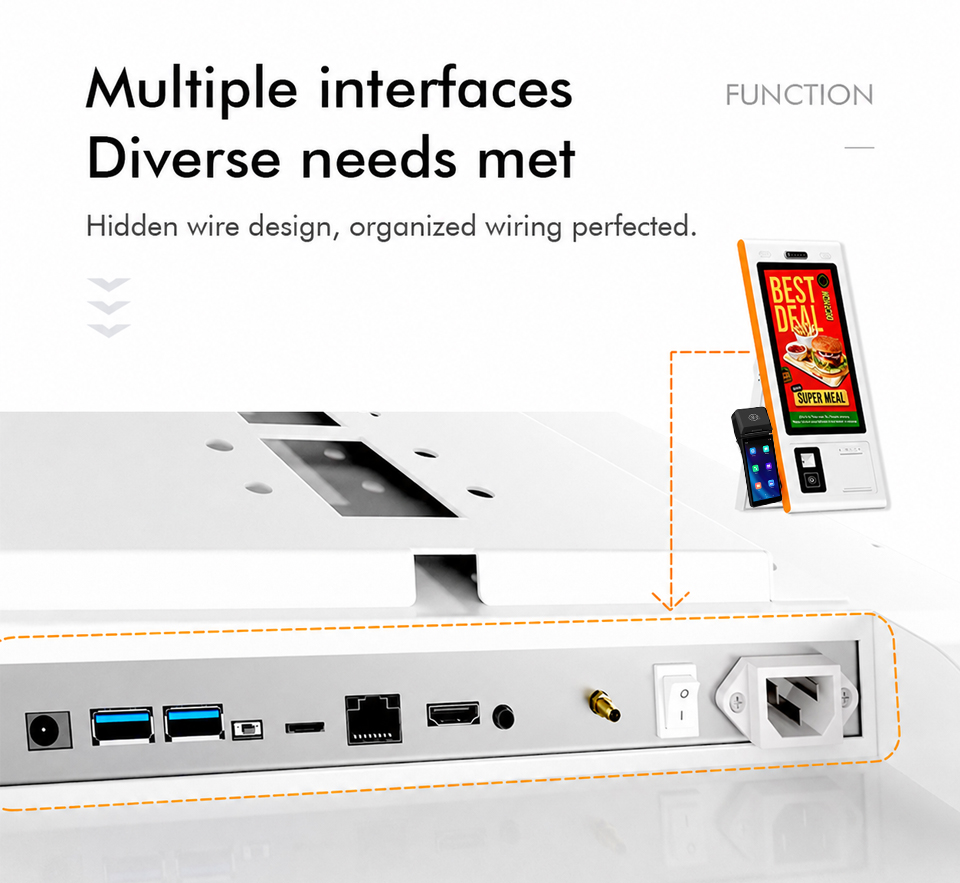

HDMI	1 HDMI interface
USB	1 USB-3.0 port, 1 USB-2.0 port
Color	White and dark or customized
Network Interface	RJ45 10/100M network auto-adaptation

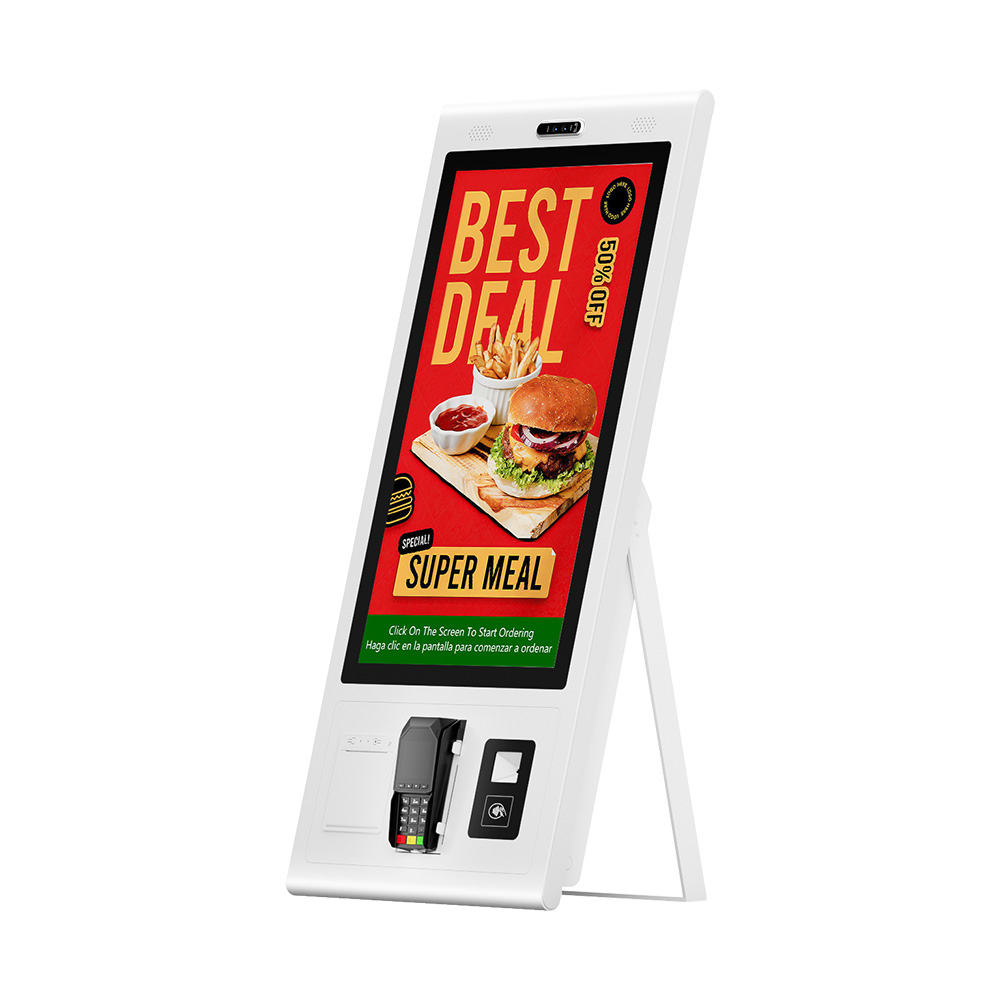

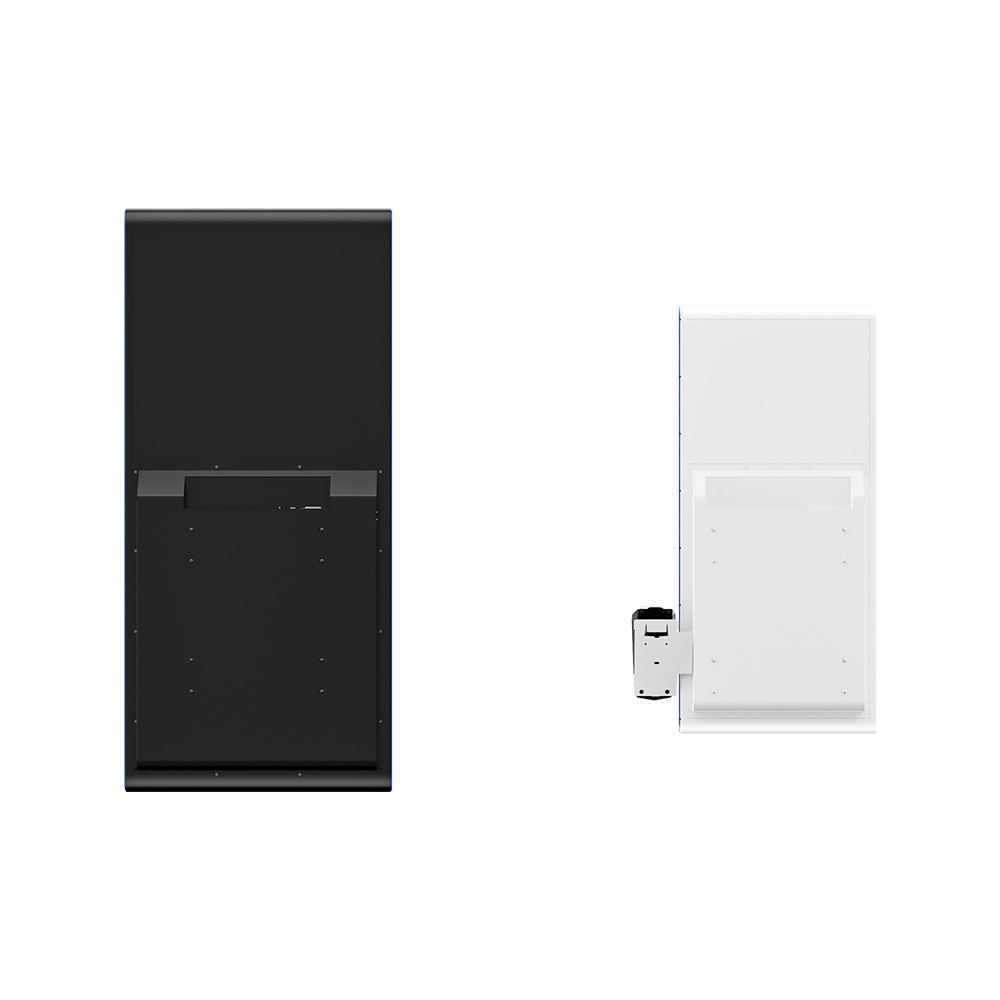

Installation	Desktop stand, Vertical base at optional

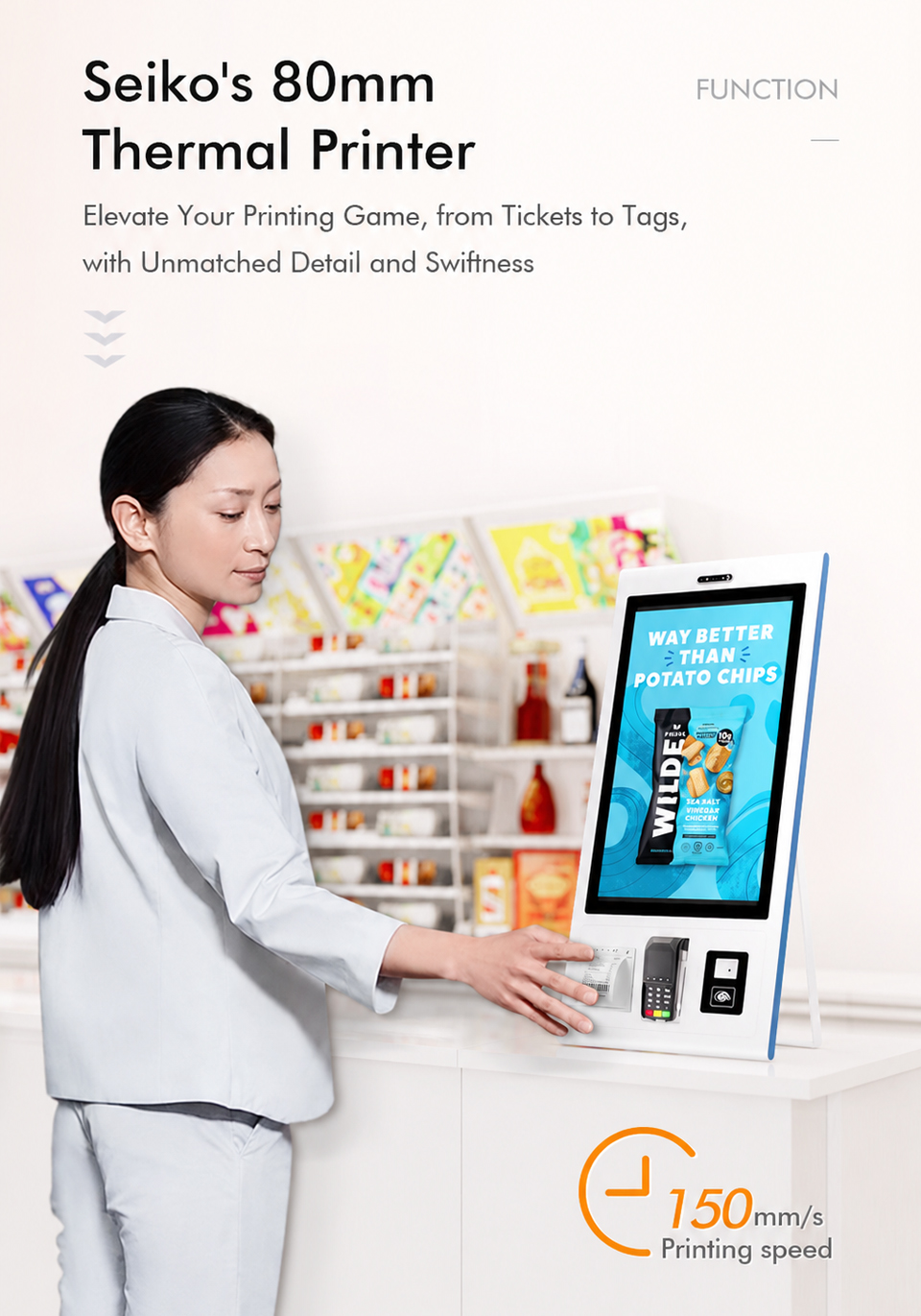

Optional Function	80mm Thermal Printer with Auto Cutter
		1D/2D Barcode scanner
		NFC card reader

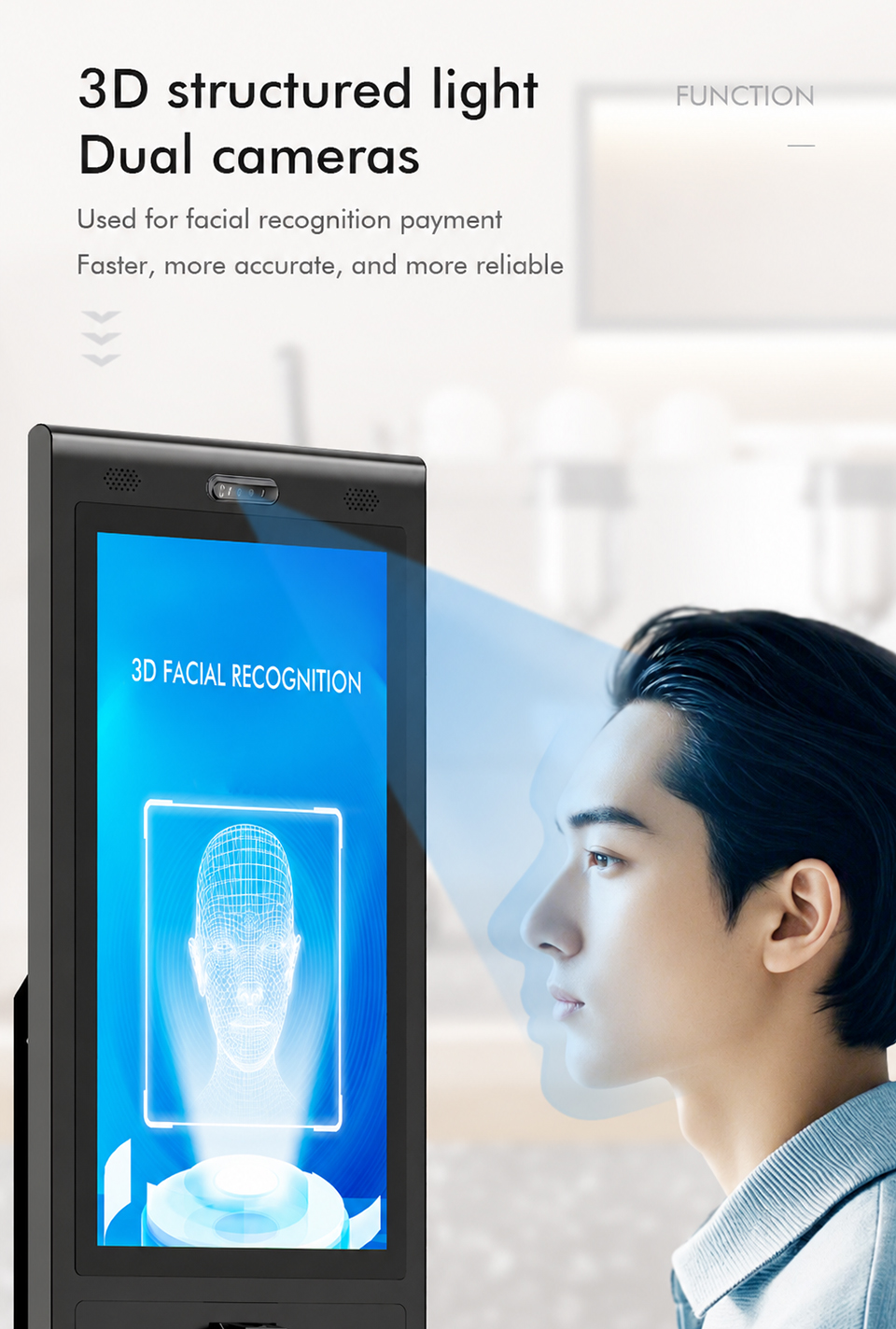

		Binocular camera (2MP)
		Status light
		POS stand
