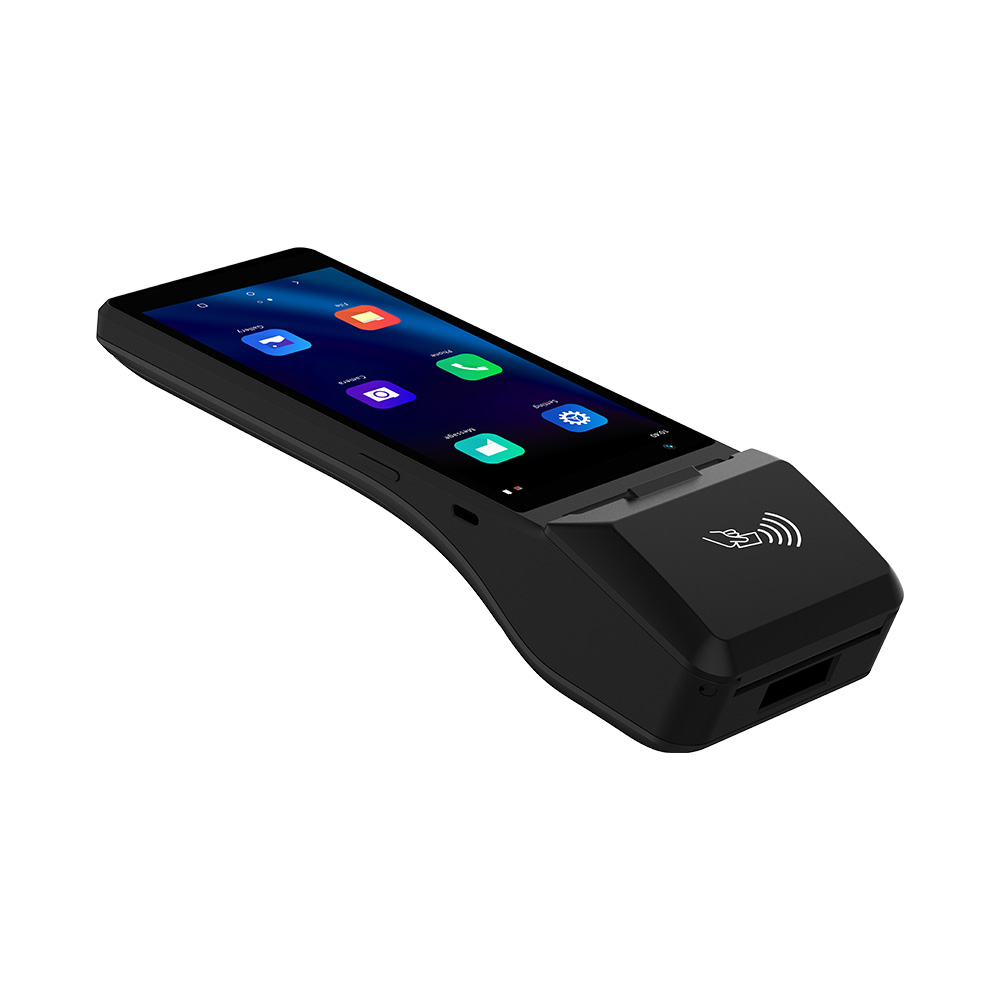

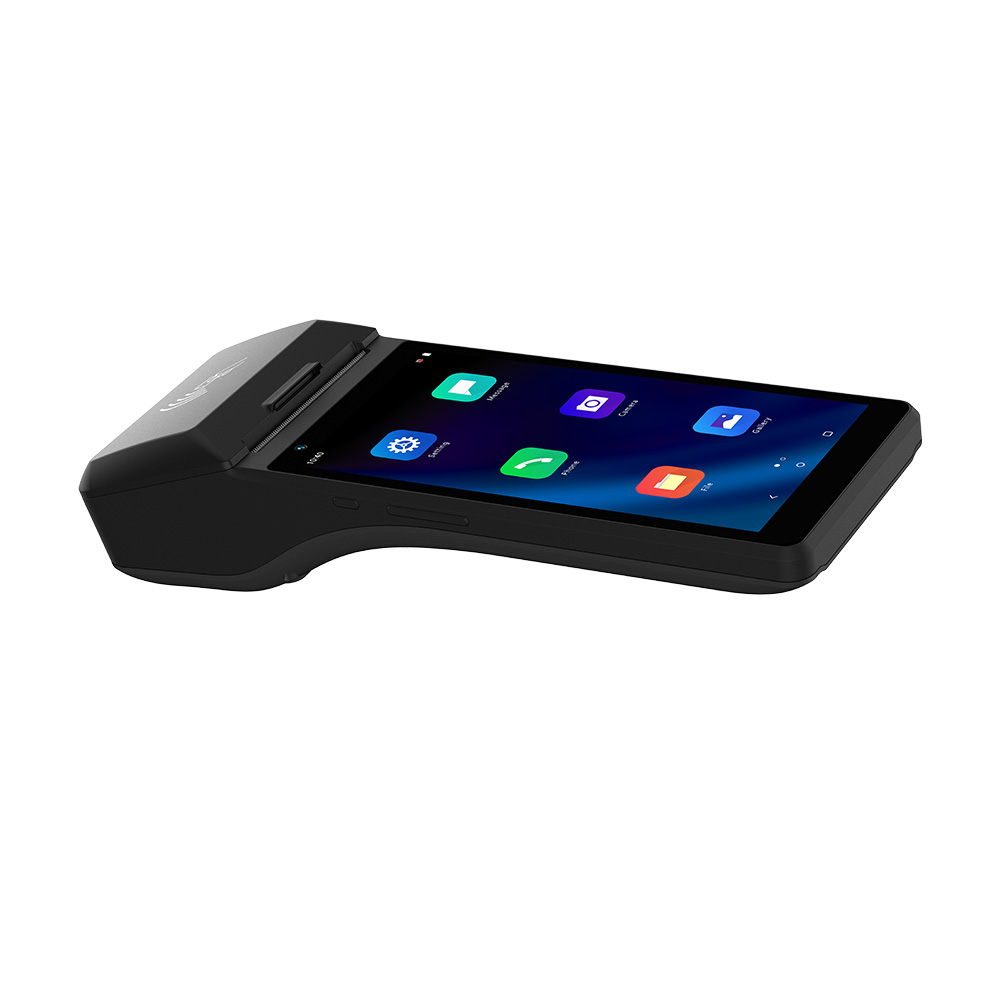

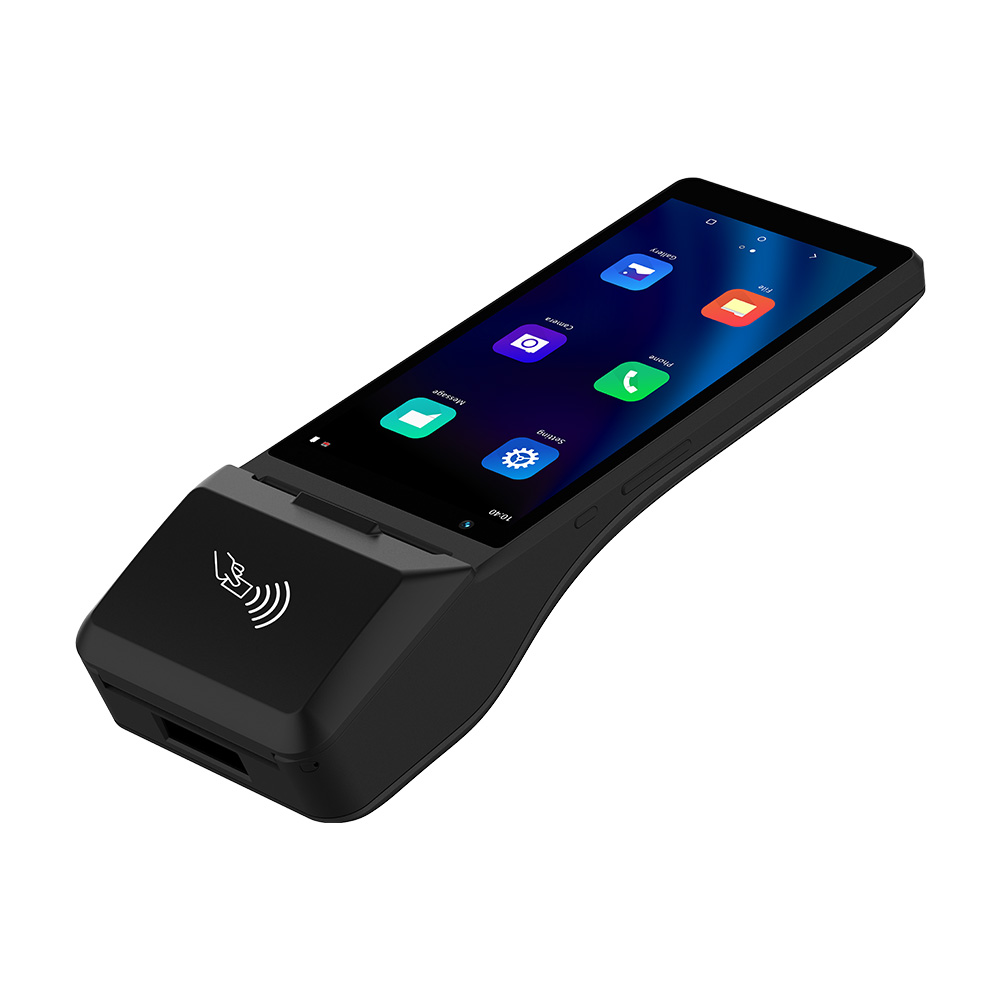

Android 14 6.0 Inch Smart POS Terminal with 128*36 Customer Display Z300C

Android 14 Smart POS Hardware with SDK, Optional Customer Display, 58mm Printer, and 2D Scanner for POS Software Developers and Integrators
OS:
CPU:
ROM:
RAM:
Display:
Communication:
Contactless Card reader:
Availability:
Quantity:
  • Z300C

  • HCCTG

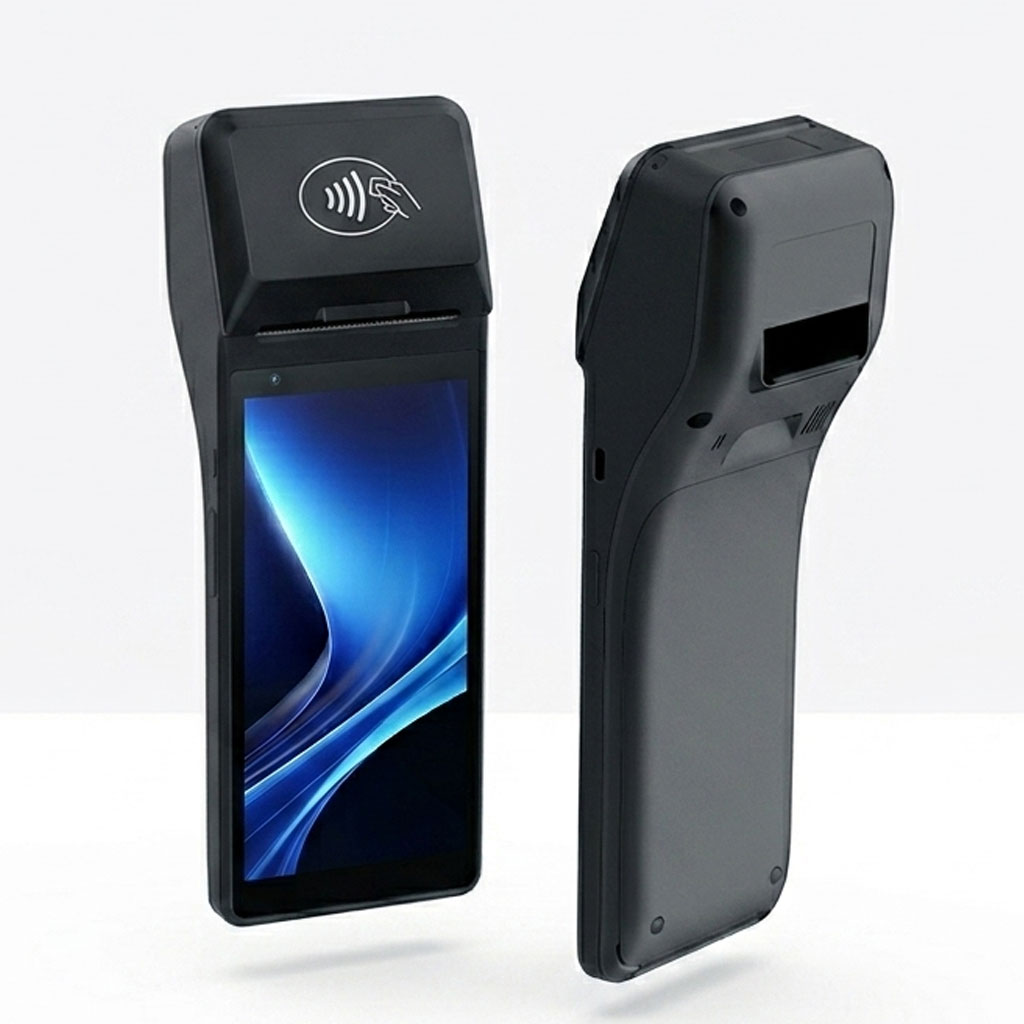

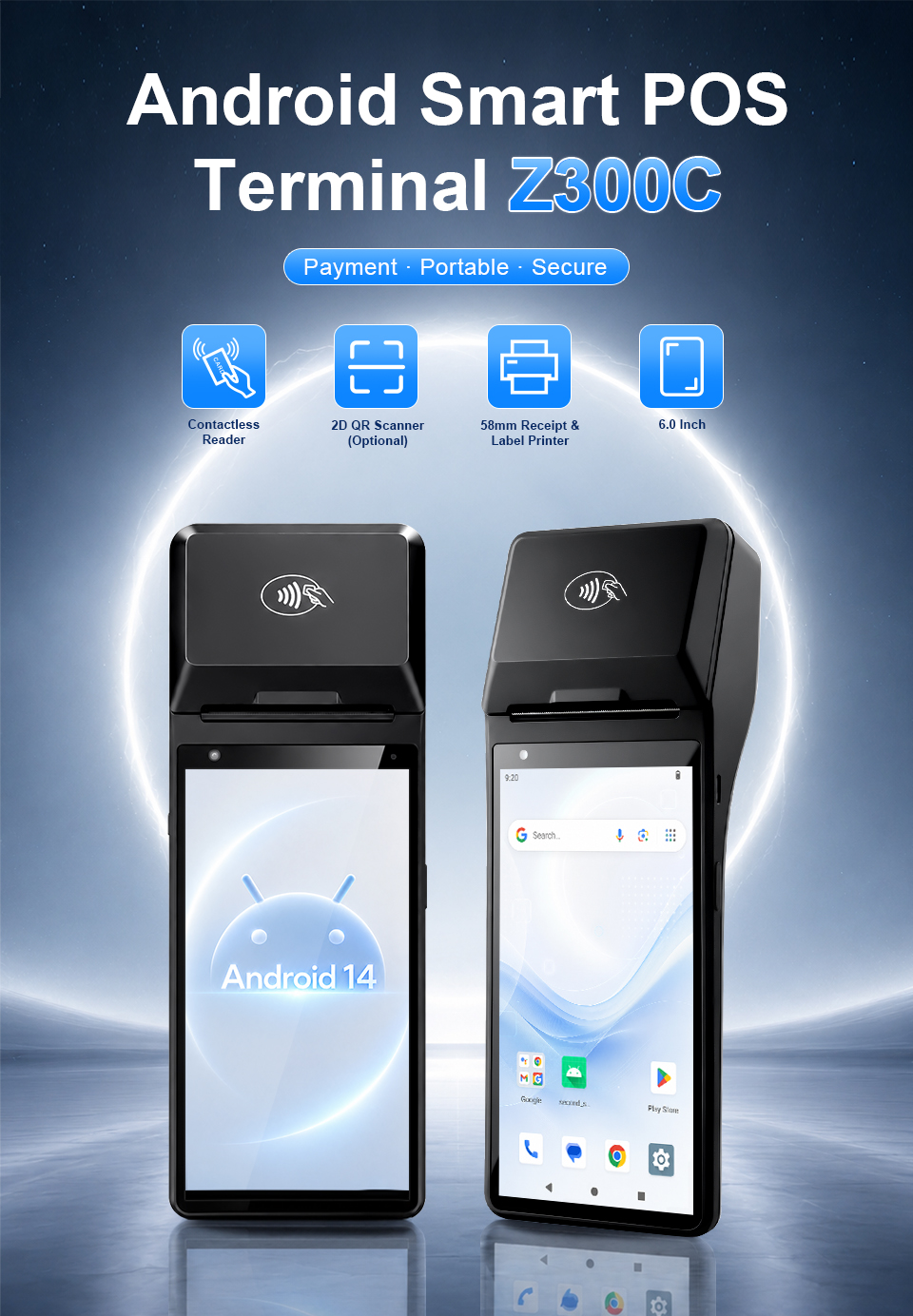

Z300C - Handheld Android POS Payment Terminal Hardware for Inventory System

Z300C-1

Ultimate Performance Upgrade to Power YourSmart Retail & High-Efficiency Checkout

1.2.0GHz Quad-Core ARM Cortex-A53;

2.Android 14.0 Safedroid OS;

3.Massive memory: 2GB RAM + 16GB ROM

4.6.0 inch TFT IPS LCD, resolution 1440 * 720;

5.Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth 5.0, VPN;

6.Dual cameras & Optional Symbol 2D scanner for comprehensive scanning scenarios;

7.58mm Thermal Receipt Printing / Label Printing;

8.Optional Customer Display;

Application Scenarios & Solutions

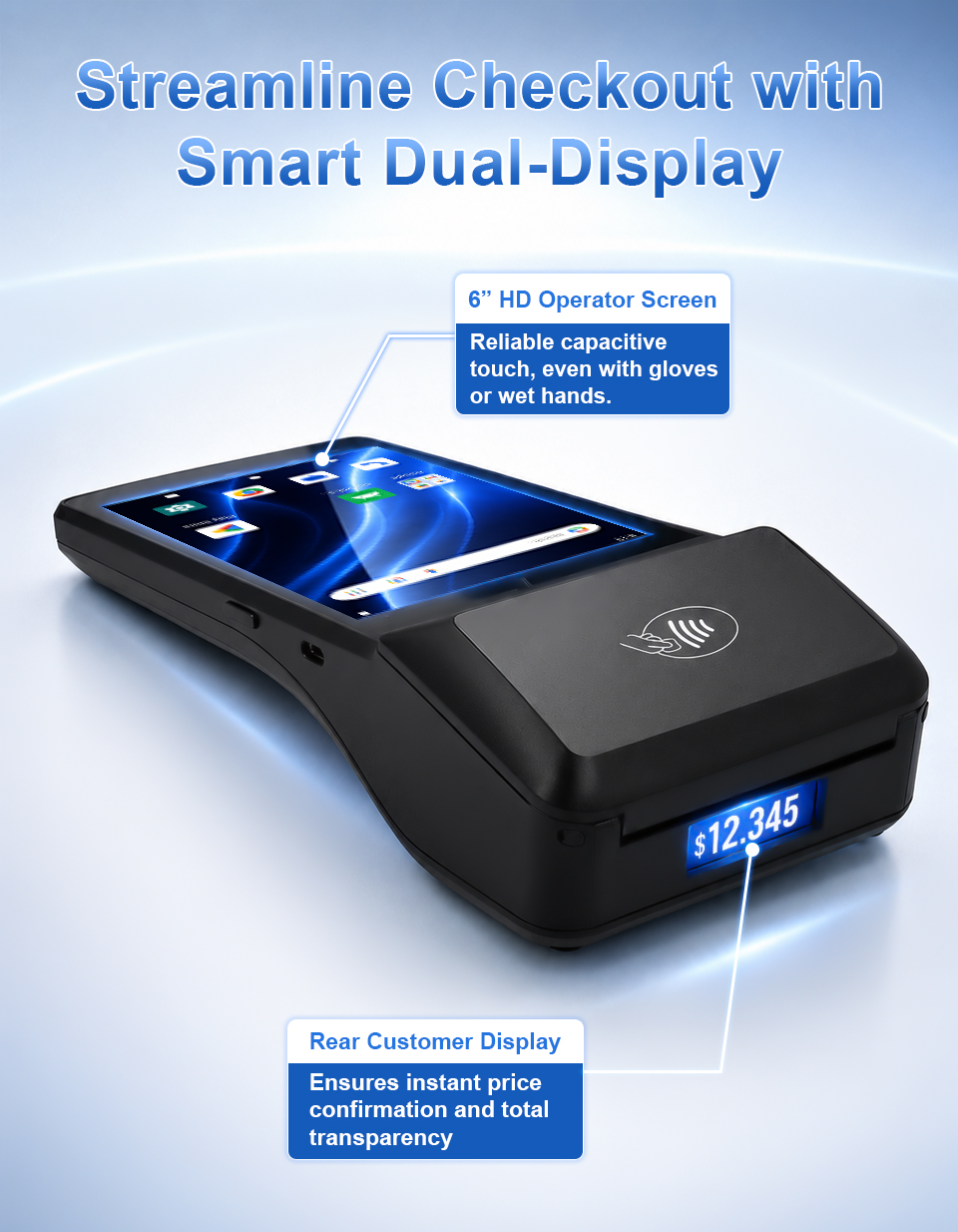

Smart Catering "Dual-Screen Information-Display" Checkout Solution

The cashier manages order entries and billing securely on the main touch screen. Meanwhile, the non-touch customer display is dedicated solely to showing consumption details, transaction amounts, or dynamic payment QR codes. This prevents accidental touches by customers while maintaining complete billing transparency

Omnichannel Retail "Customer-Facing Secure Review" Solution

Ideal for high-traffic retail ERP systems. Store associates use the built-in Symbol 2D scanner for rapid item registration, while the non-touch segment display instantly flashes prices for real-time customer verification, creating a secure, read-only workflow that accelerates checkout lines

Last-Mile Logistics "Tamper-Proof Fare Verification" Solution

Designed for mobile delivery and face-to-face COD (Cash on Delivery). Operating via 4G LTE on Android 14, the courier controls dispatch on the main screen while the rear non-touch display safely exhibits calculated shipping fees to the client, followed by immediate receipt generation via the built-in 58mm printer

Public Transit & Tourism "Read-Only Fare Counter" Solution

Built for outdoor ticketing and NFC verification under harsh weather. The operator utilizes the glove-friendly main touch screen for seamless ticketing, while the non-interactive secondary display purely exhibits transit status (e.g., "Approved" or "Valid") to passengers, significantly extending hardware lifespan

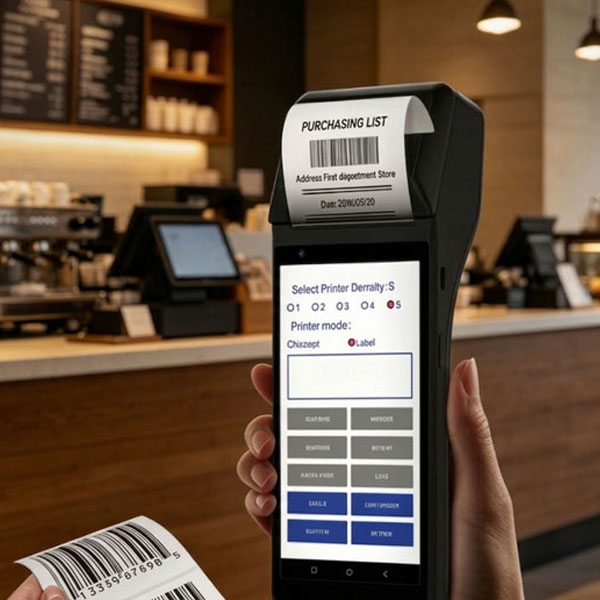

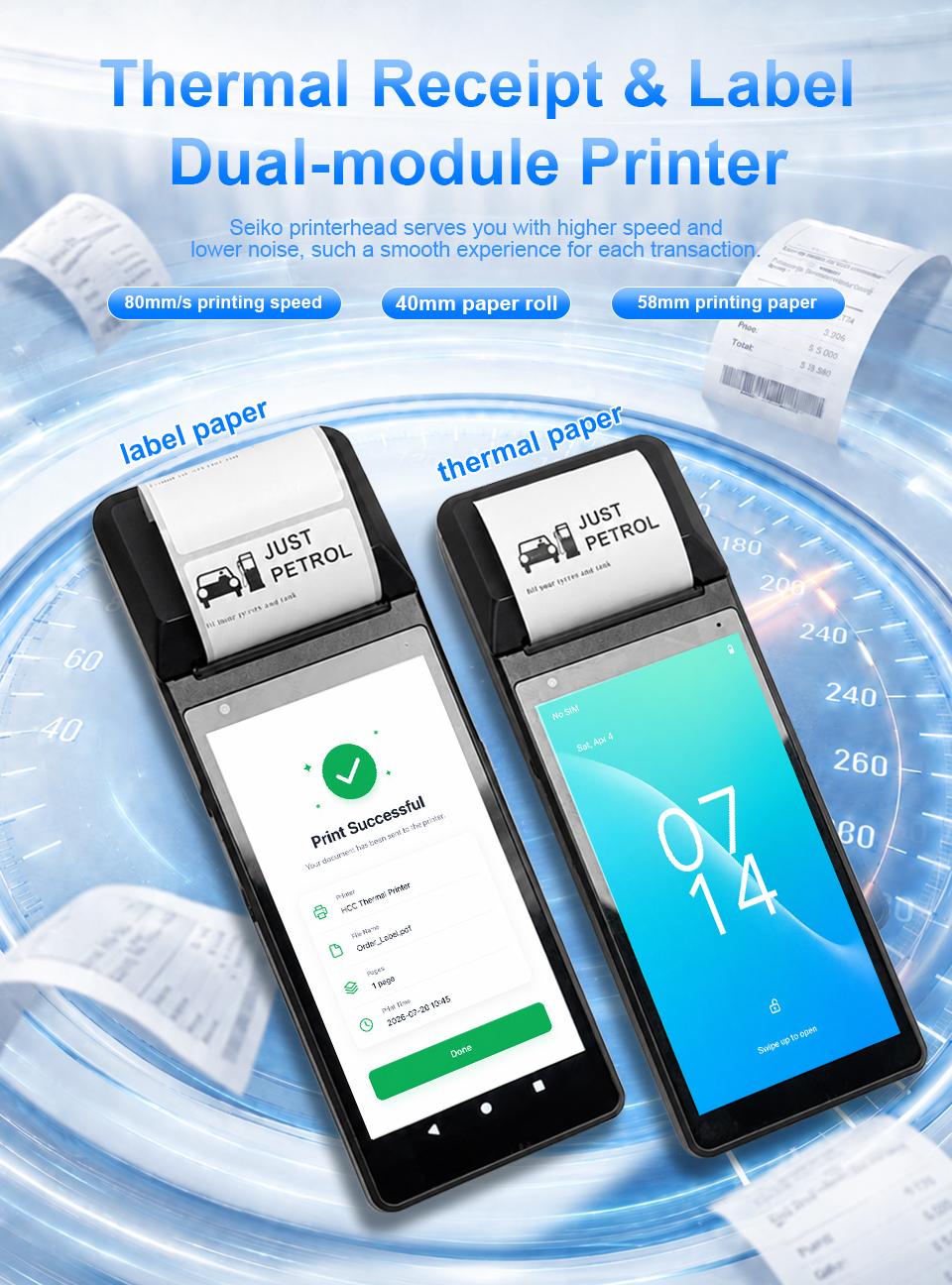

High-Speed 58mm Thermal & Label Printing Engine

An all-in-one commercial printing solution supporting both standard 58mm receipts and adhesive labels, perfect for instant mobile receipt and tag generation

Z300C-4

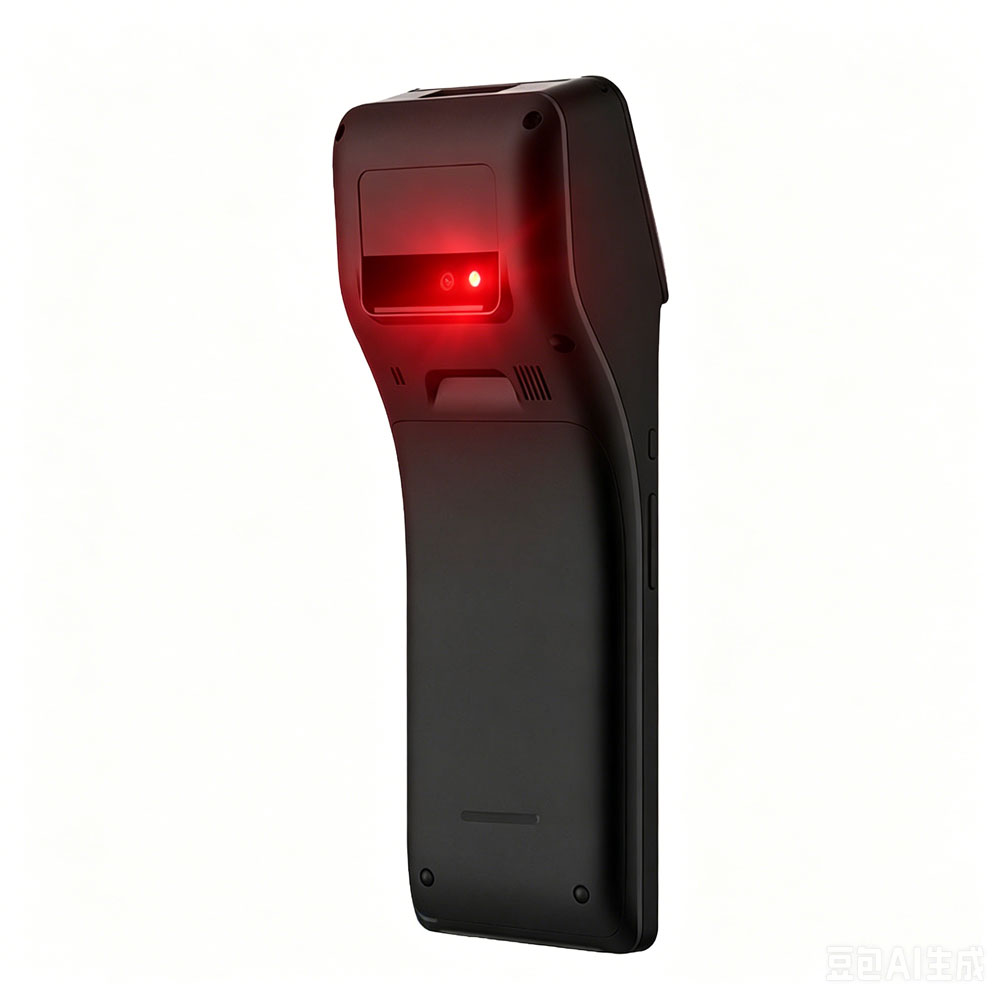

Professional Symbol 2D / QR Barcode Scanner

Integrated with a professional-grade Symbol scanning engine to deliver rapid and flawless 1D and 2D QR code capture across diverse high-traffic environments

Z300C-3

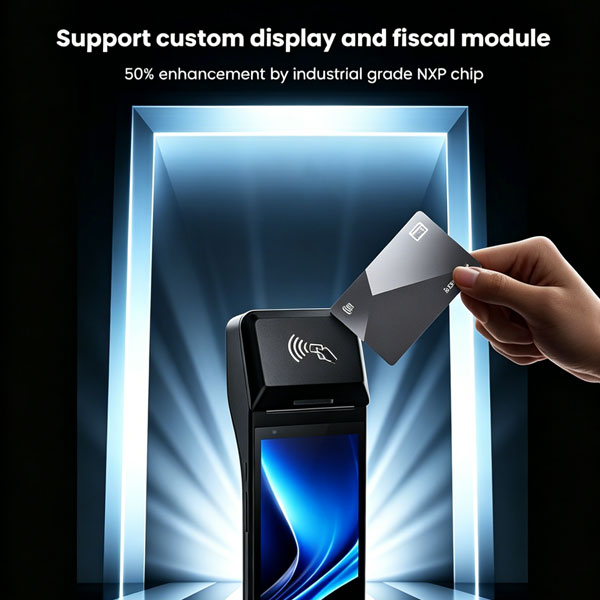

Contactless NFC / IC Card Reader

Equipped with a highly responsive Contactless Card Reader, allowing secure data validation for membership cards, transit passes, and local closed-loop smart cards

Z300C-6
Specifications
Basic Characteristics OS Safedroid OS (based on Android 14.0)
CPU 2.0GHz Quad-Core ARM Cortex-A53
ROM 16GB ROM EMMC
RAM 2GB RAM LPDDR
Display 6.0 inch TFT IPS LCD, resolution 1440*720
Panel Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

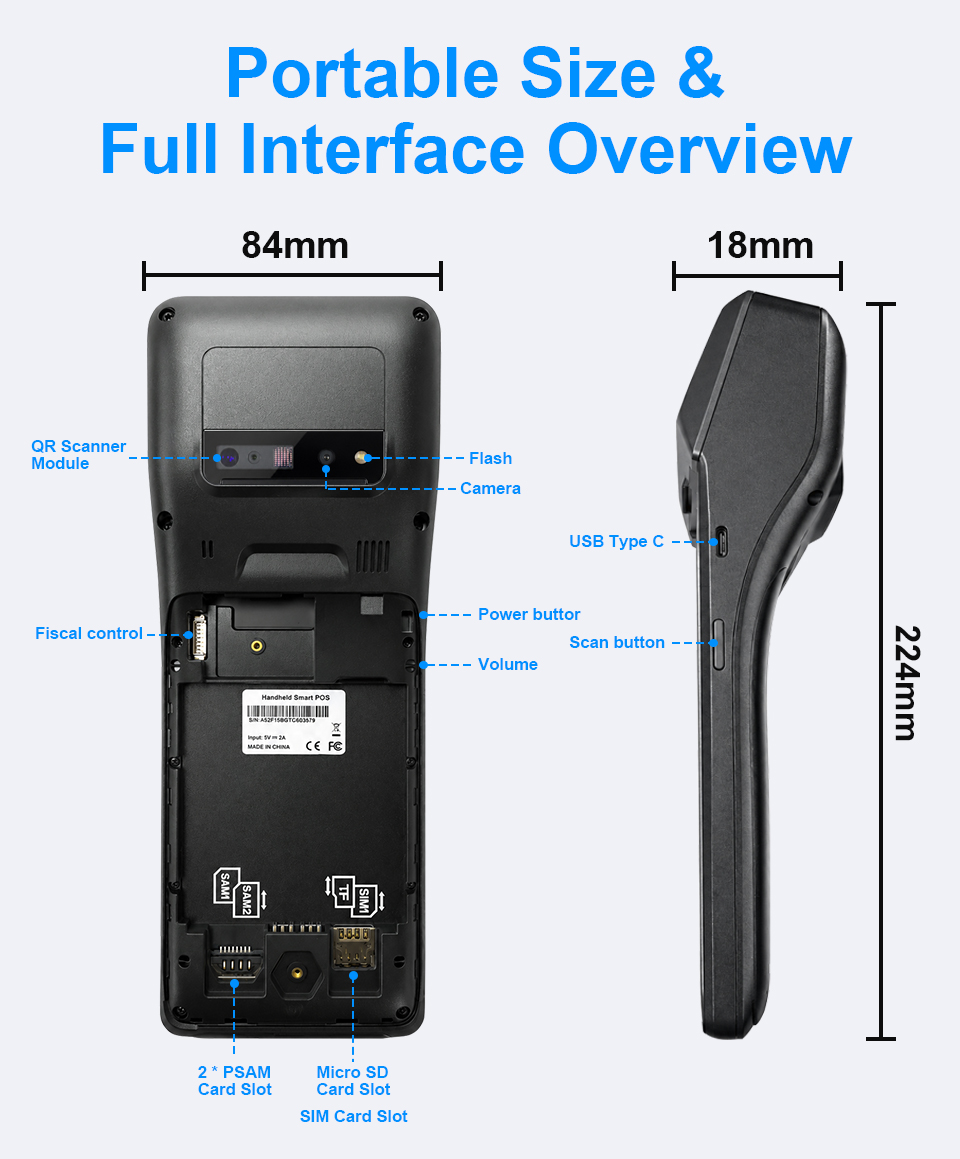

Dimensions 224 * 84 * 18 mm(max 51mm)
Weight 428.3 g
Battery Weight 90.3 g
Keys Physical keys: Power on/off, Volume + /-, Scan
Input Chinese / English, and supports handwriting and soft keyboard
Radio Communication WIFI IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz
Bluetooth Bluetooth 5.0 and earlier
4G European version(Default): FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41
3G European version(Default): WCDMA: B1/B8
2G European version(Default): GSM/GPRS/EDGE: 900/1800MHz
Payment Contactless Card reader Supports 14443A / 14443B
Expansion and peripherals Printer High-Speed Thermal Printer; 58mm printing paper; 40mm paper roll
Rear Camera 5MP AF Camera with LED flash
Satellite Positioning Support GPS(A-GPS) / Bei-Dou / Glonass or Galileo
LEDS 3 colors are used to indicate
Audio Speaker, Microphone
Interfaces Micro SD Card Slot 1 Pcs
SIM Card Slot 1 Pcs Micro SIM
PSAM Card Slot 2 Pcs Conforms to ISO7816 standard
USB Port 1 Pcs Type C USB

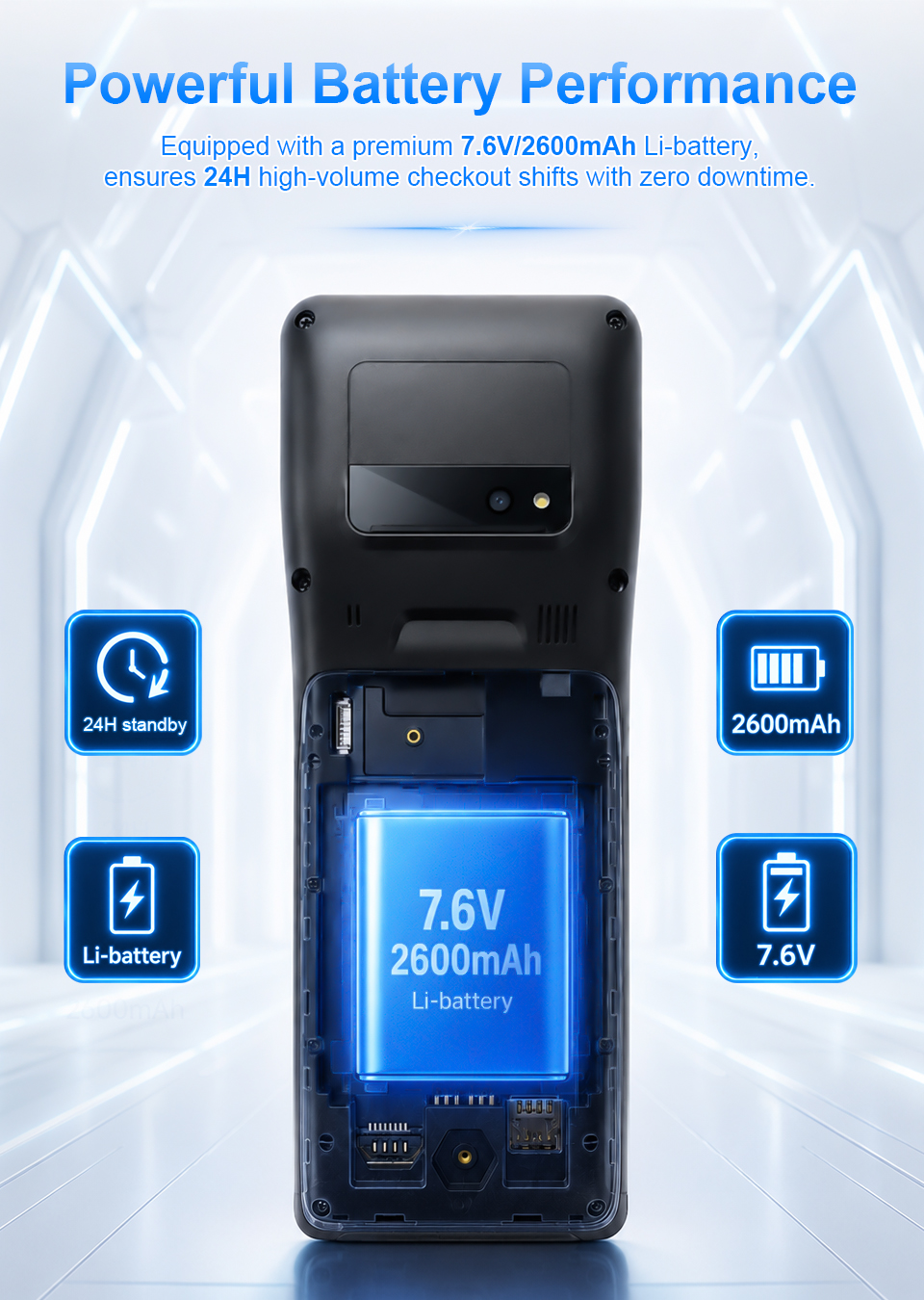

Power Battery Li-ion battery, 7.6V/2600mAh
Charging Port Type C USB Port, 5V DC/2A
Environment Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% to 95% Relative Humidity, Non-Condensing

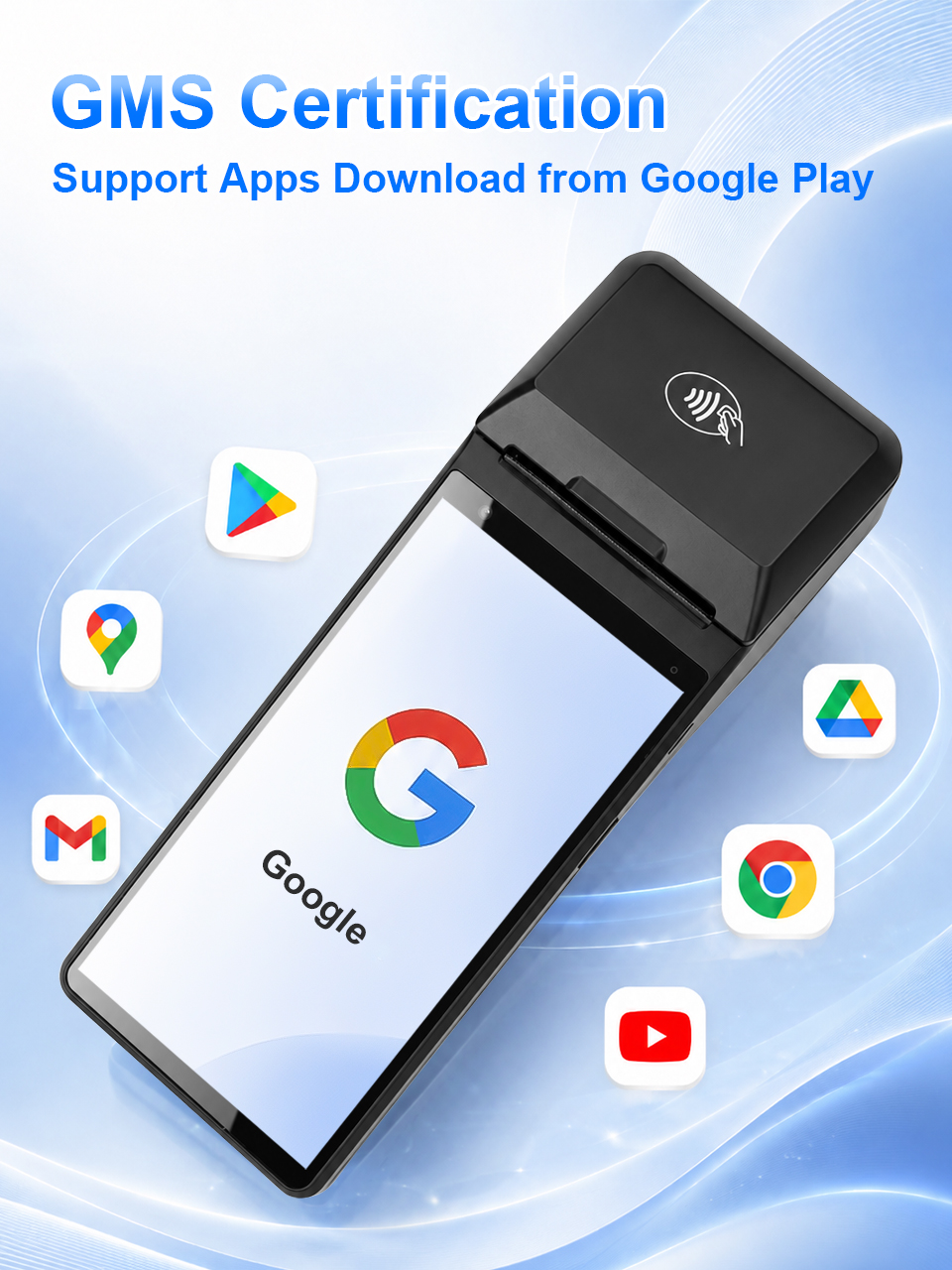

Certification Electromagnetic CE, Rohs, FCC, GMS

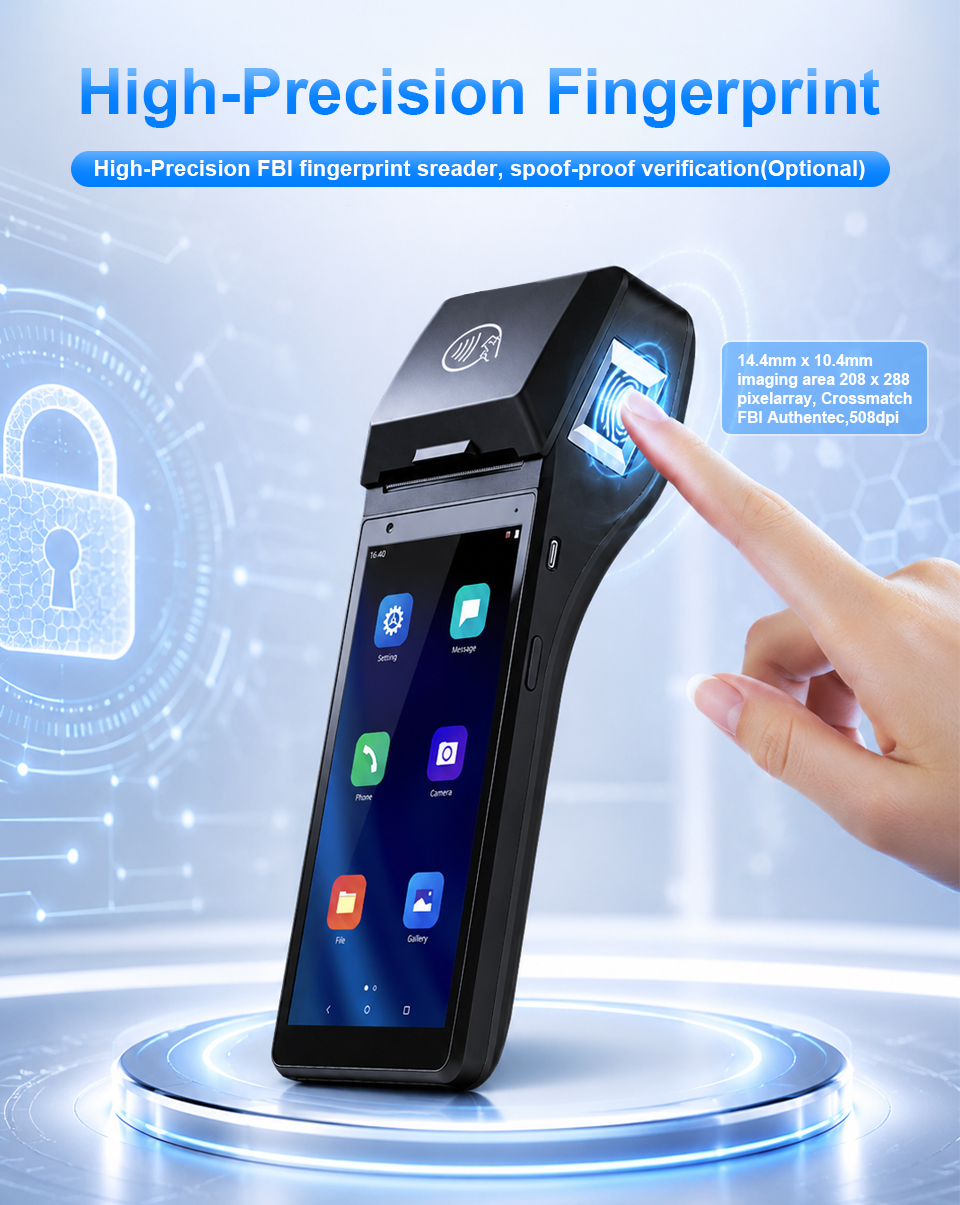

Optional Fingerprint Semiconductor capacitance,18mm * 12.8mm imaging area 256 * 360 pixel array, Crossmatch FBI certified 508dpi
Customer Display Resolution 128 * 36
Barcode Scanner Symbol 4710 2D Image Engine, Support 1D and 2D symbologies
