Z60A
HCCTG
Smart Handheld POS Terminal with Printer Keyboard for Lottery Betting Z60A
Introduce:

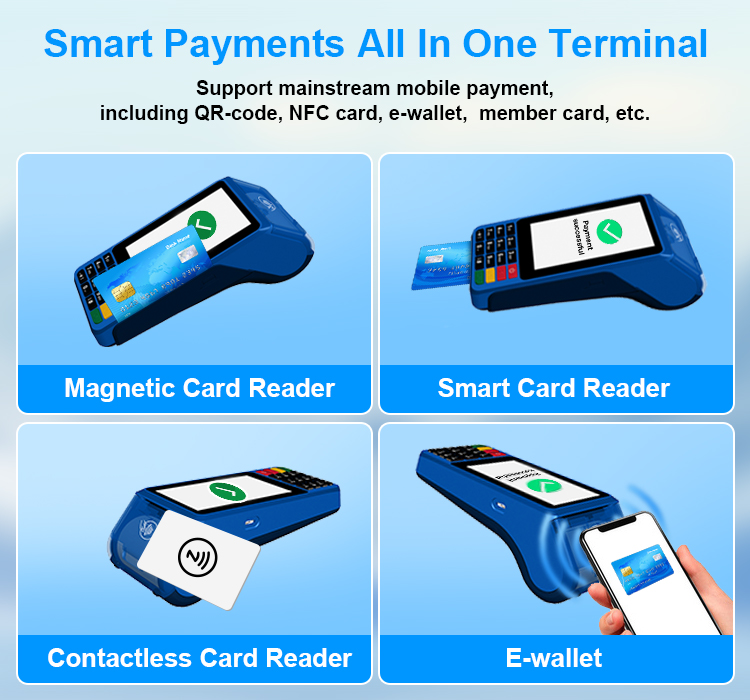

It is light and portable with a 4-inch screen and 16-key keyboard, designed for one-handed use, and transactions are safe and secure because it has passed PCl and EMV certification, can integrate various payment methods such as magnetic stripe cards, LC cards, contactless cards, and QR code payments, and supports multiple communication modes: 4G, Wi-Fi, Bluetooth 4.2 for enhanced connectivity
Features:
Compact smart POS powered by Android 10;
User friendly interface, high speed printer;
Stable performance with a long-lasting battery;
Deliver fast transaction flows and seamless customer experience.
Specifications:
OS | Android 10 |
CPU | Quad-Core ARM Cortex-A53 64 bit processor 1.4 GHz |
Memory | 8GB eMMC+1GB LPDDR3 16GB eMMC+2GB LPDDR3 (optional) |
Display | 4inch lPS color screen.480*800; multi-point capacitive touch screen |
Keypad | Numeric*10 Function*5 |

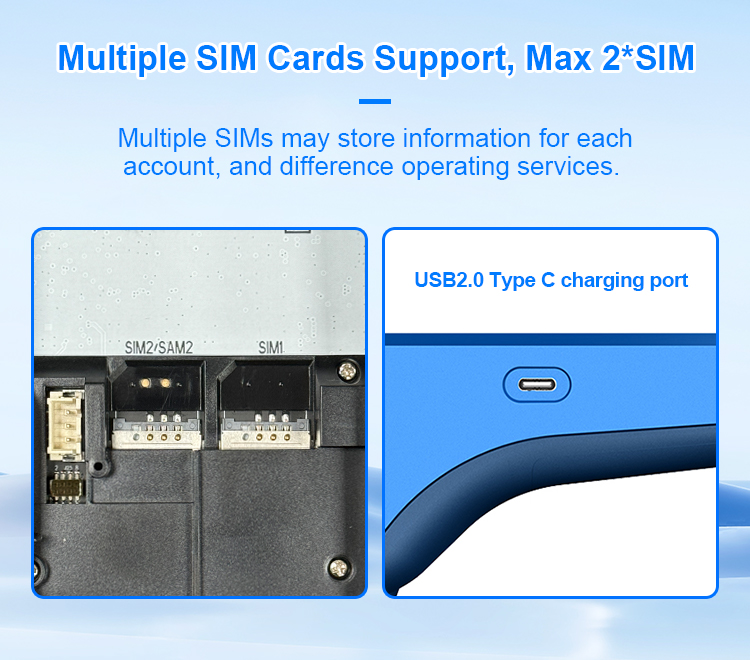

Card Slots | 2*Micro SAM + 1*Micro SIM OR 1*Micro SAM + 2*Micro SIM |
Peripheral Ports | 1*USB2.0 Type C(OTG) |
Magnetic Card Reader | Track 1/2/3, bi-directional |
Smart Card Reader | EMV L1 & L2 |
Contactless Card Reader | MasterCard Contactless Visa Paywave ISO/IEC 14443 Type A/B Mifare® |
Wireless Communication | 4G WCDMA WiFi 2.4G/WiFi 2.4G+5G (optional) Bluetooth 4.2 |
Audio | Speaker or Buzzer |

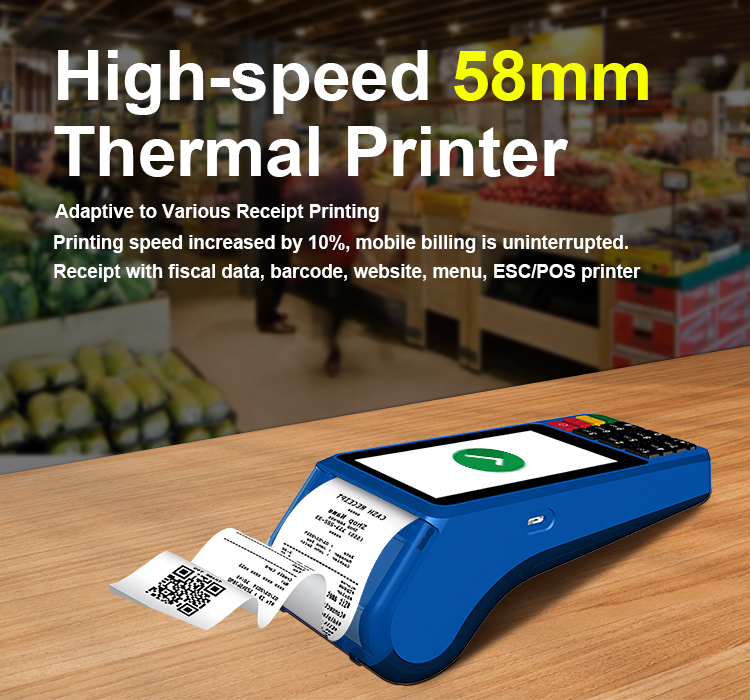

Printer | Medium voltage printer, 100mm/s; Width:58mm; Diameter:40mm |
Camera | Front camera 0.3M pixels, or 2M/5M pixels (optional) |
Battery | 7.2V/2600mAh,19.24wh |

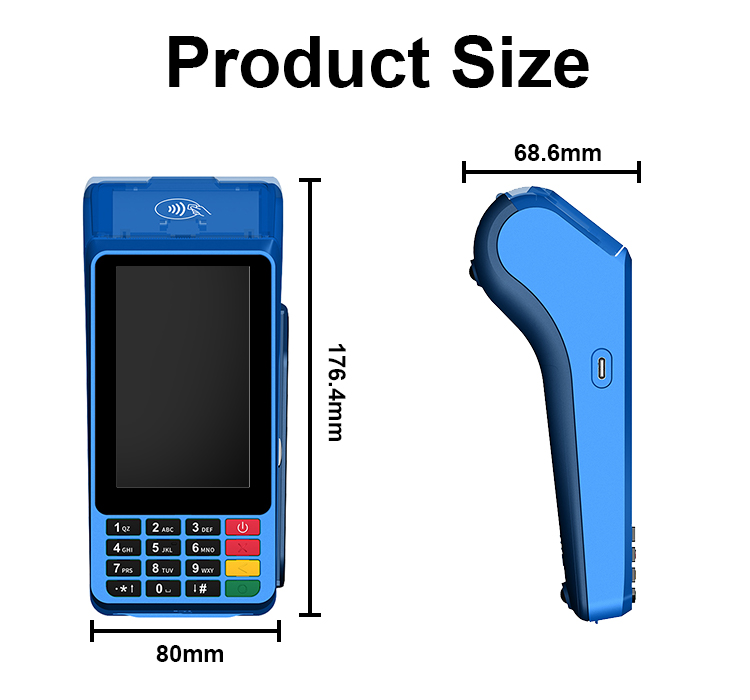

Size | 176.4*80*68.6mm |
Certifications | EMV Contact L1&L2, EMV Contactless L1, Paypass, Paywave, Amex, Rupay, PCI&PTS, MIR, CE, ROHS2.0 |
Power Supply | Input: AC 100-240V,50HZ/60HZ Output: DC 5.0V,2.0A |
Environment | Working temperature:-10°C~50°C Storage temperature:-20°C~70°C Humidity:5%~93% non-condensing |
