The P18-L2C Bus Validator is designed to accommodate a wide range of smart cards, ensuring compatibility with standards such as ISO14443 Type A and B, as well as specific card types like Mifare Classic, DES Fire, and Felice. This comprehensive support enables seamless integration with various card technologies, enhancing the versatility and efficiency of public transportation systems and other applications where secure and efficient card validation is essential.
| Quantity: | |
|---|---|
P18-L2C
HCCTG

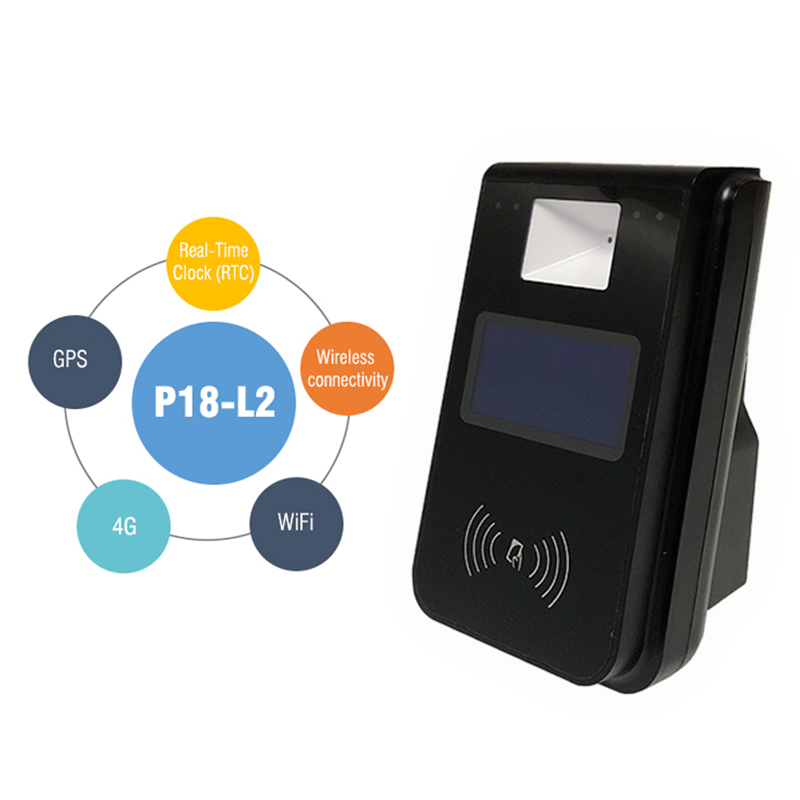

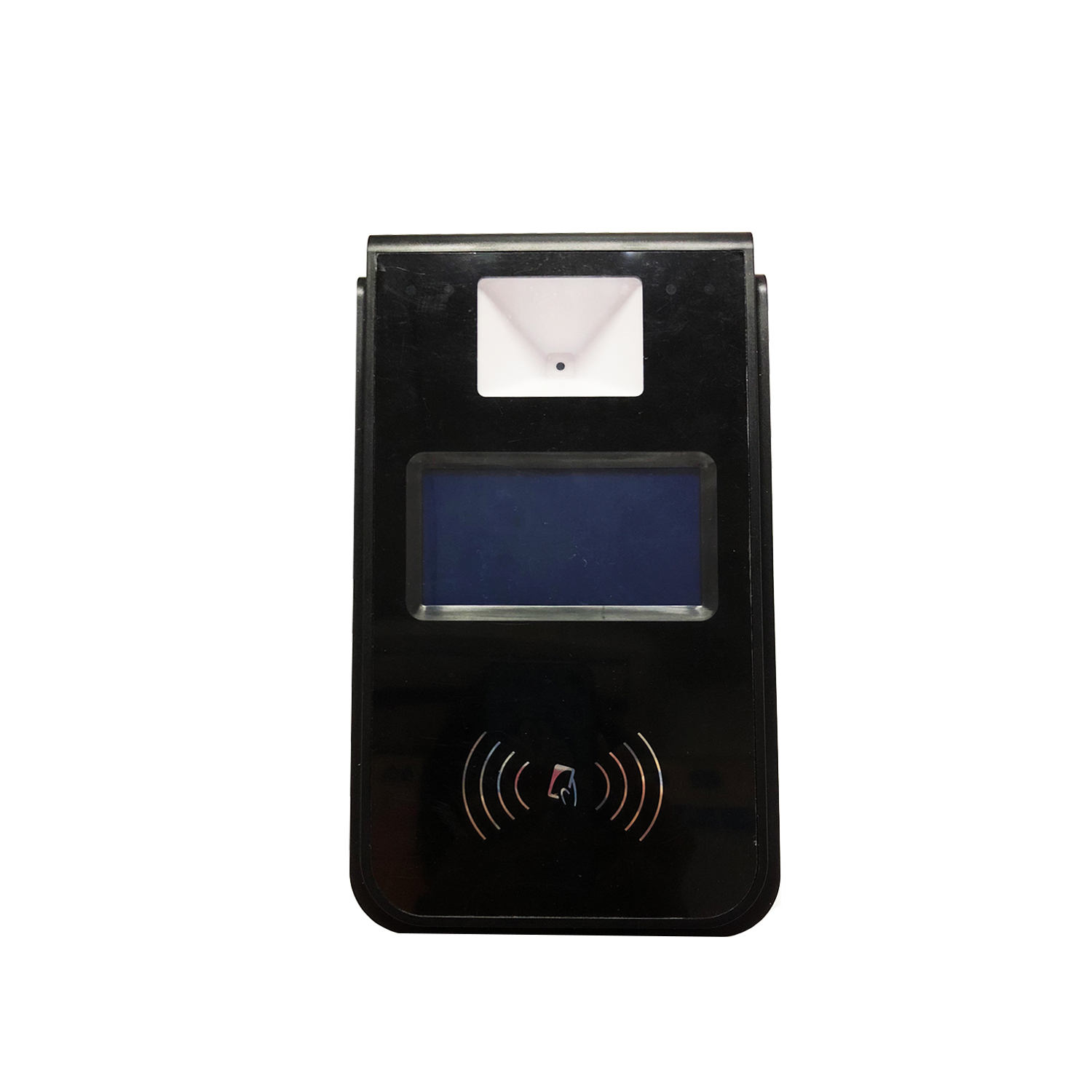

GPS WiFi Parking Terminal ISO14443 4G Smart Bus Fare Validator P18-L2C

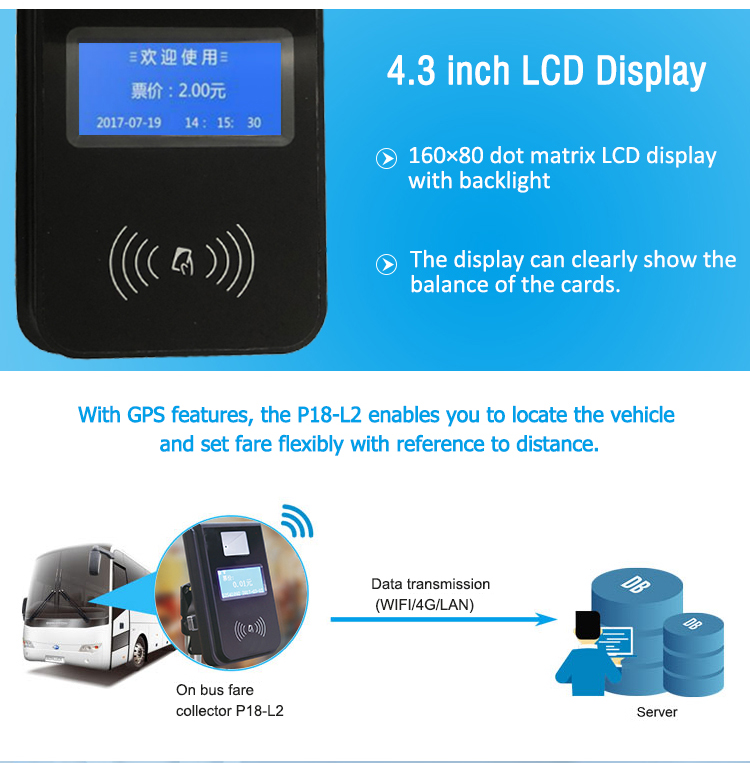

The P18-L2C, designed for seamless integration into automatic fare collection systems, boasts integrated smart card readers, a high-resolution graphical LCD, and audio and LED indicators, enhancing user experience. With its advanced GPS capabilities, this innovative device not only allows you to track the vehicle's precise location but also facilitates dynamic fare adjustments based on distances traveled, providing unparalleled flexibility in fare management. Moreover, its built-in barcode scanner supports a variety of cashless payment methods, ensuring convenient and secure transactions for passengers. Additionally, the P18-L2C is EMV certified, enabling hassle-free bank card payments, making it a comprehensive solution for modern and efficient fare collection systems.
Features:

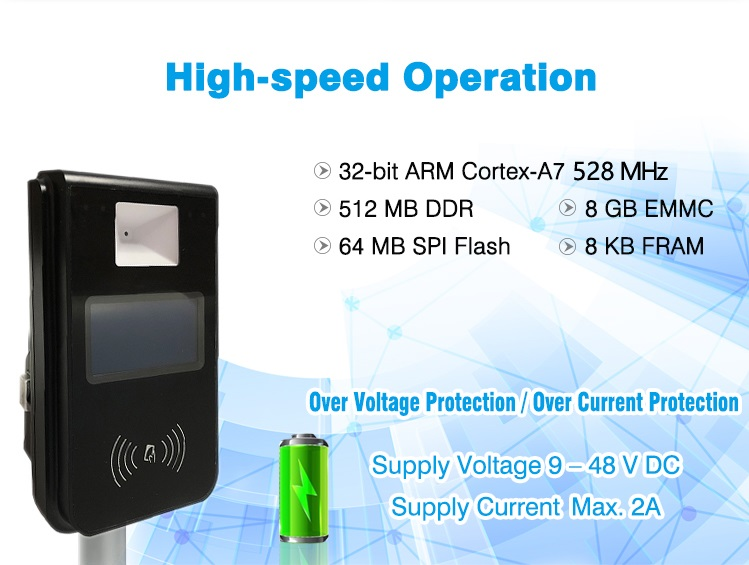

32-bit ARM Cortex-A7 528 MHz
512 MB DDR
8 GB EMMC
External 64 MB SPI Flash
8 KB FRAM
Linux 3.0 OS
160×80 dot matrix LCD display with backlight
4.3 inch
4 LED Status Indicators
2 function keys
Support power switch
Built-in buzzer
Built-in audio speaker
Contactless smart card interface
Specifications
OS | Linux 4.9 |
Processor | 32-bit ARM Cortex-A7 528GHz |
Memory | |
DDR (RAM) | 512 MB |
EMMC (Flash) | 8 GB |
SPI Flash | 64 MB |
FRAM | 8 KB |
Power | |
Supply Voltage | 9 – 48 V DC |
Supply Current | Max. 2A |
Over Voltage Protection | Supported |
Over Current Protection | Supported |
Connectivity | |
RS232 | 3 lines R*D, T*D and GND without flow control |
RS485 | 3 lines A, B and GND |
Ethernet | Built-in 10/100-base-T with RJ45 connector |
USB | USB 2.0 Host Full Speed |
GSM/GPRS/EDGE | 900 MHz/1800 MHz |
Dual Band UMTS/HSDPA/HSPA+ | B1/B8 |
Dual Band TD-SCDMA | B34/B39 |
Four-Band FDD-LTE | B1/B3/B7/B8 |
Four-Band TDD-LTE | B38/B39/B40/B41 |
WiFi | IEEE 802.11 b/g/n |
GPS | Supported |

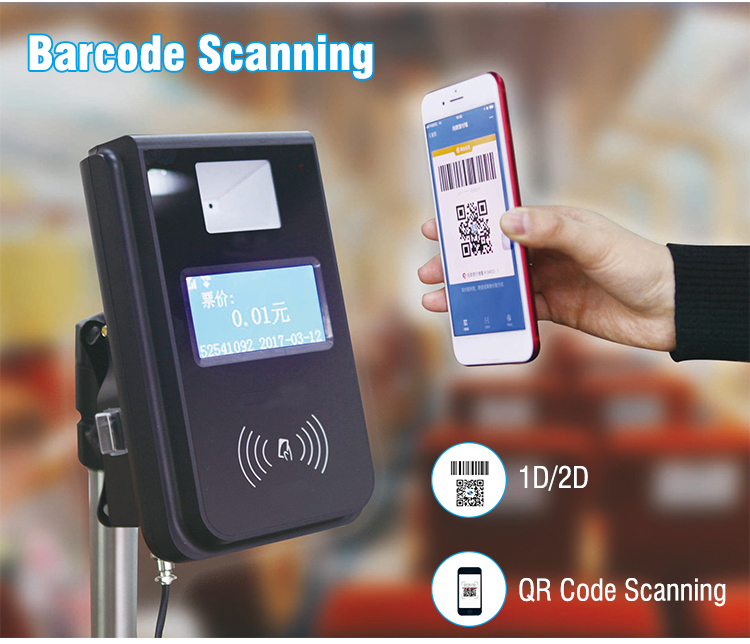

Barcode Scanner | |
1D Barcode Scanning | Supported |
2D Barcode Scanning | Supported |
QR Code Scanning | Supported |

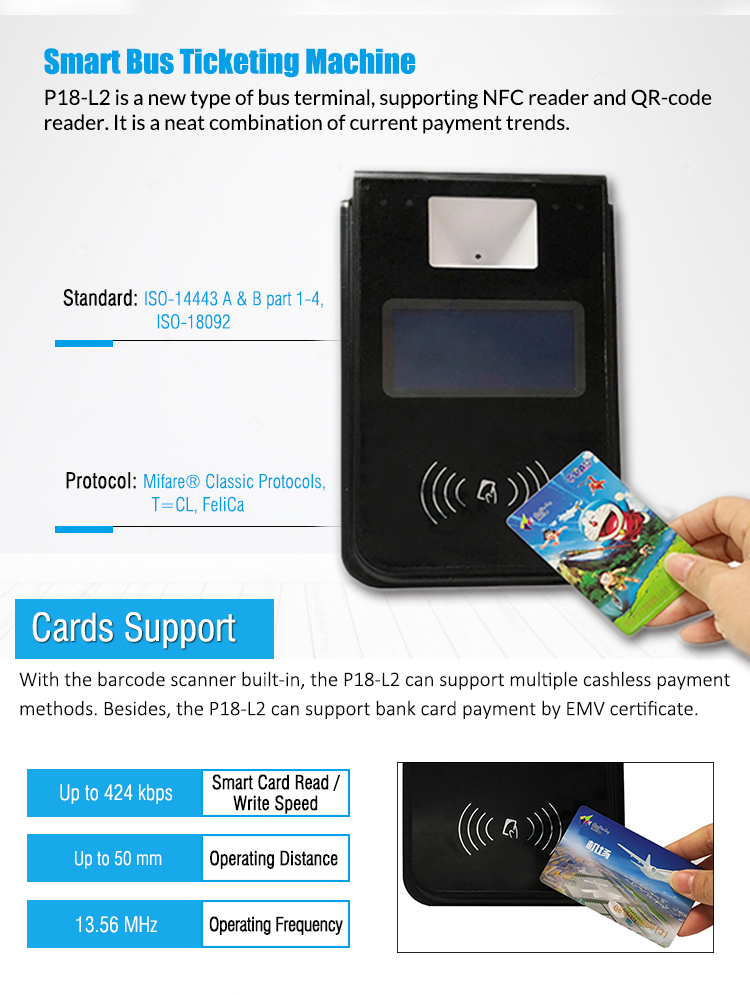

Contactless Smart Card Interface | |
Standard | ISO-14443 A & B part 1-4, ISO-18092 |
Protocol | Mifare Classic Protocols, T=CL, FeliCa |
Smart Card Read /Write Speed | Up to 424 kbps |
Operating Distance | Up to 50 mm |
Operating Frequency | 13.56 MHz |
SAM Card Interface | |
Number of Slots | 4 ID -000 slots |
Card connect slot | Contact |
Standard | ISO/IEC 7816 Class A, B (5V, 3V) |
Protocol | T=0, T=1 |
SmartCardRead /Write Speed | 9,600-115,200 bps |
Firmware UpgradeInterface |
|
Firmware Upgradeable through | RS232 |
Built-in Peripherals | |
LCD Display | 160×80 dot-matrix LCD display with backlight, 4.3 inch |
Speaker | Supported |
Buzzer | Supported |
LED StatusIndicators | 4LEDs for indicating status (from left most: blue, yellow, green, red) |
Other Features | Real Time Clock |
Working environment | Temperature:-20℃～60℃ |
Humidity:5℅～93℅(Non-condensing) | |
Storage environment | Temperature:－30℃～80℃ |
Humidity:5℅～95℅(non-condensing) | |
Physical Specifications | |

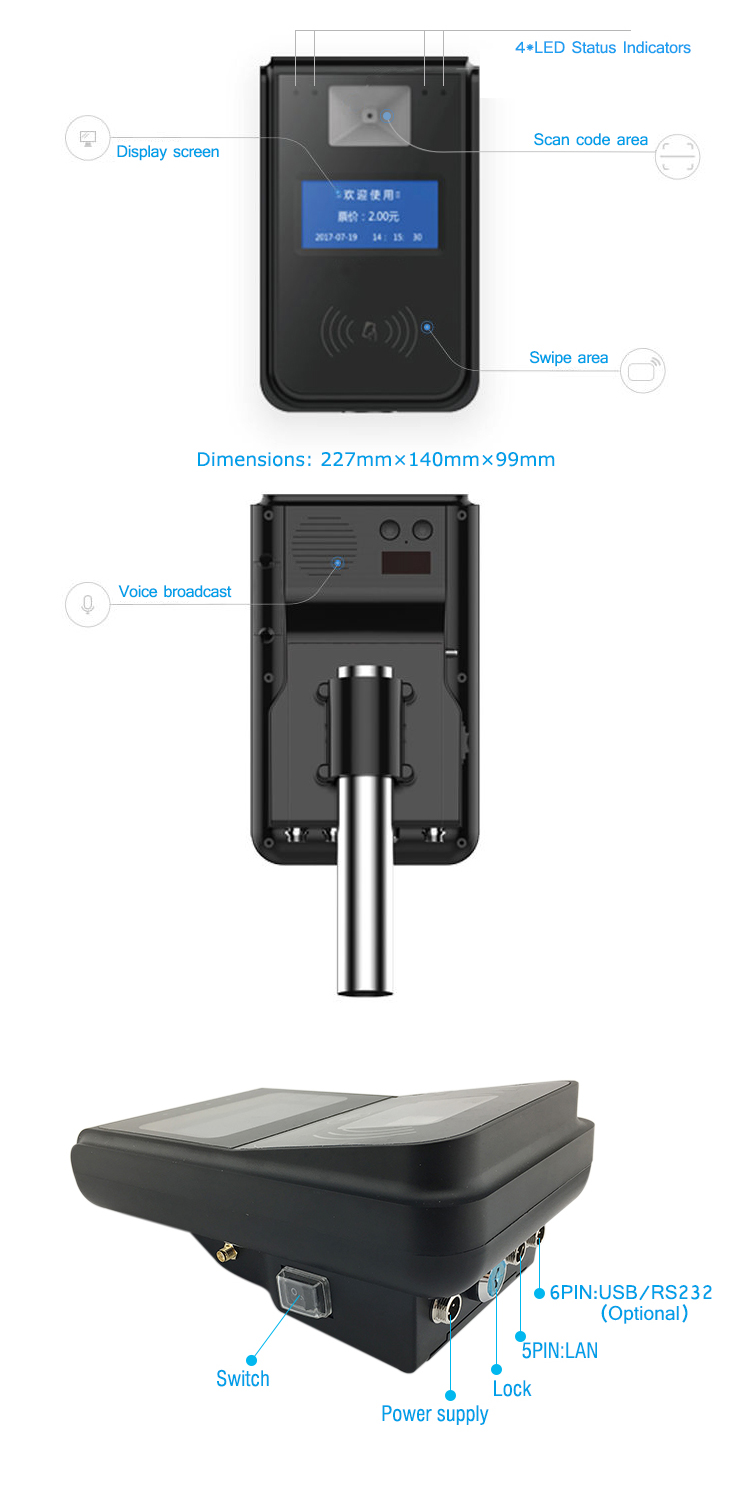

Dimensions | 227mm×140mm×99mm |
Case Color | Black |
Weight | 880g |
Certifications/Compliance | ISO-7816, ISO-14443,QPBOC L1,QPBOC L2, CE, FCC, RoHS, Contactless EMV L1/L2,IK08/EN50155, IP54 |
