HSK-KA21(HSK-KW21)
HCCTG
Android/Windows OS Self-service Kiosk

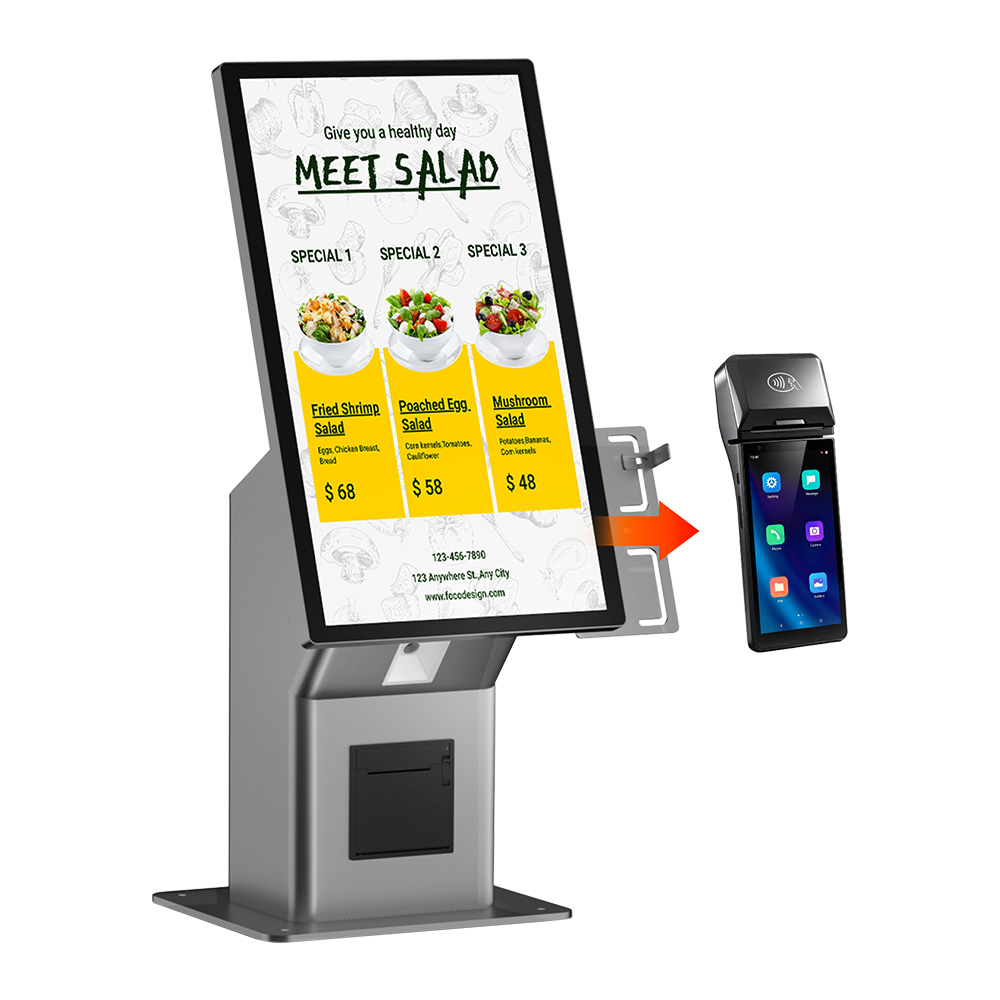

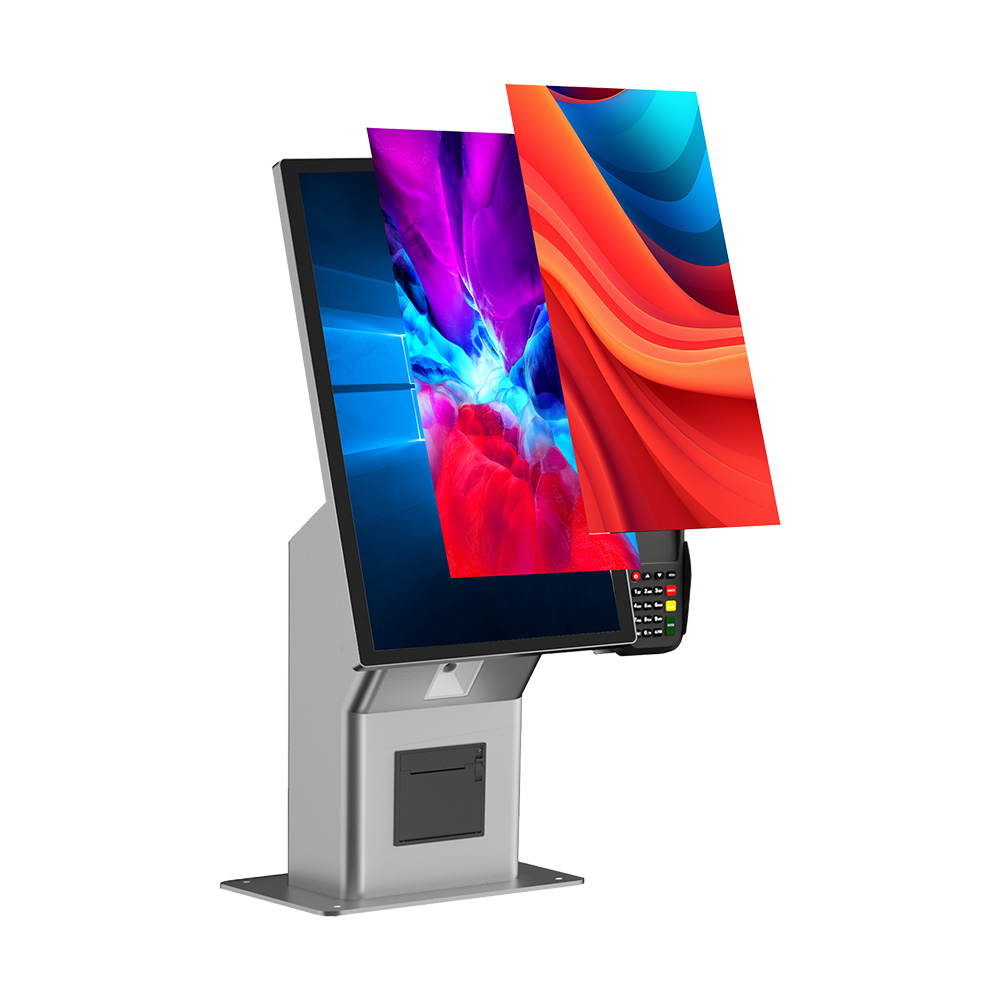

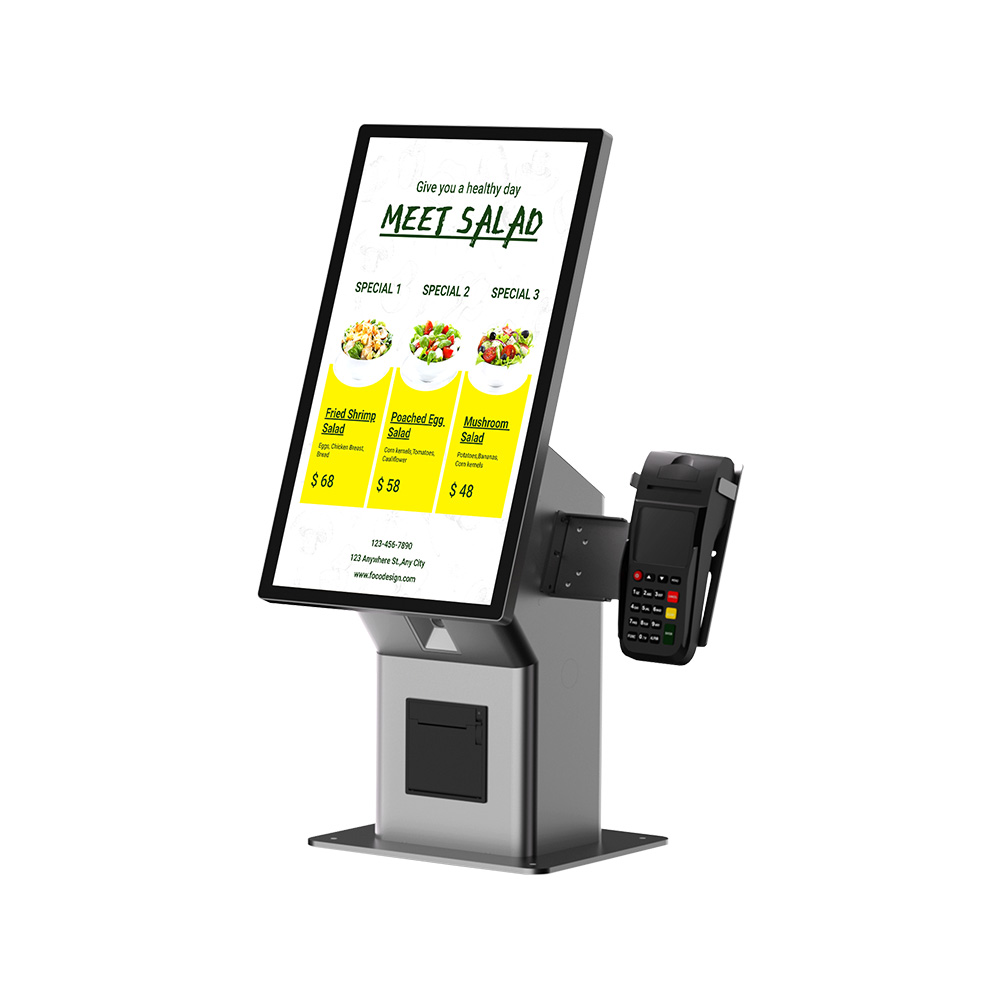

21.5" Android 13 High-Performance Self-Service Kiosk Machine
Powered by Android 13/Windows & RK3568 Quad-Core/i5-6200U Processor

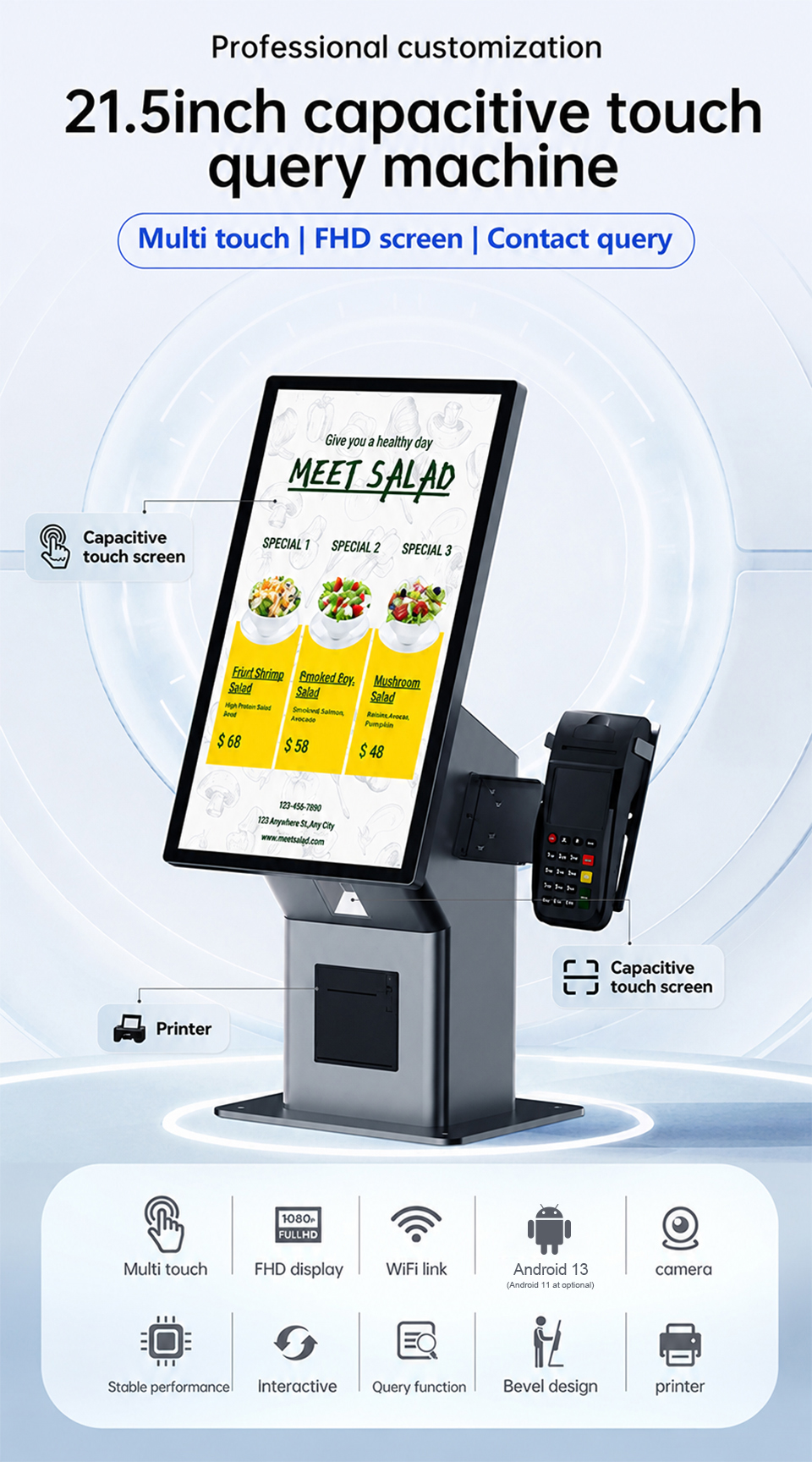

21.5" Full HD Capacitive Touch Screen (1920*1080)

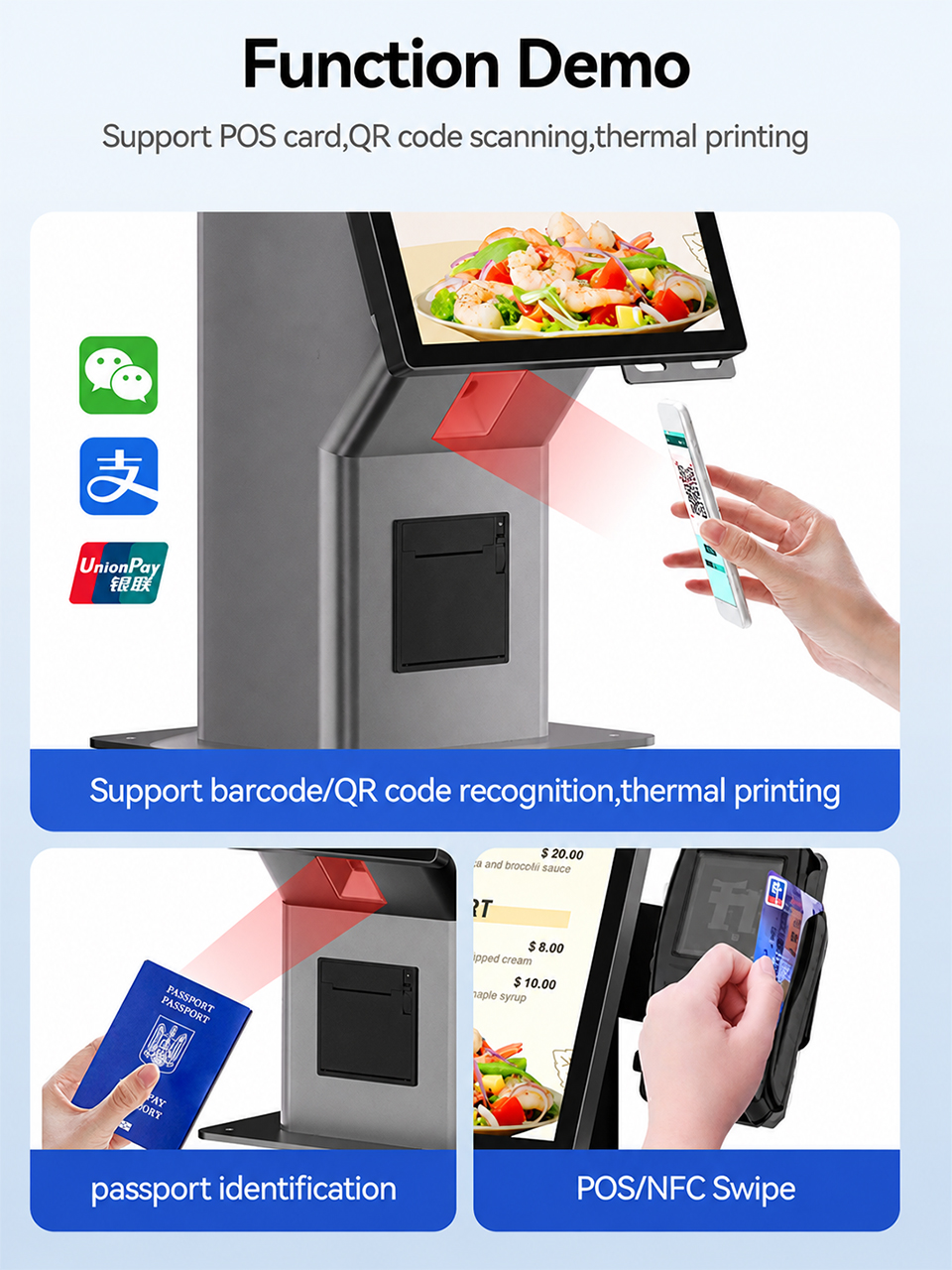

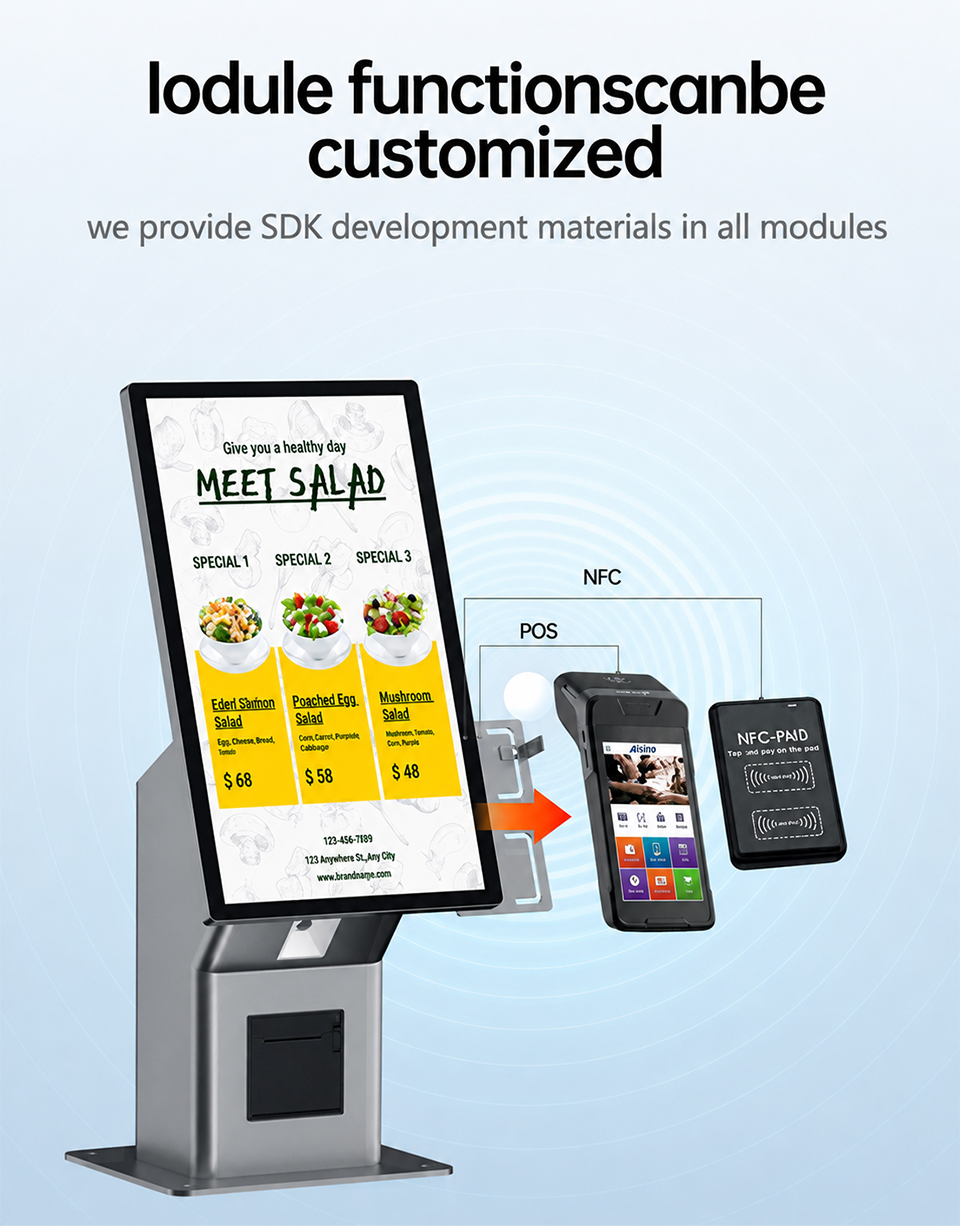

Modular Design: Supports 80mm Printer, 1D/2D Scanner, NFC, & Camera

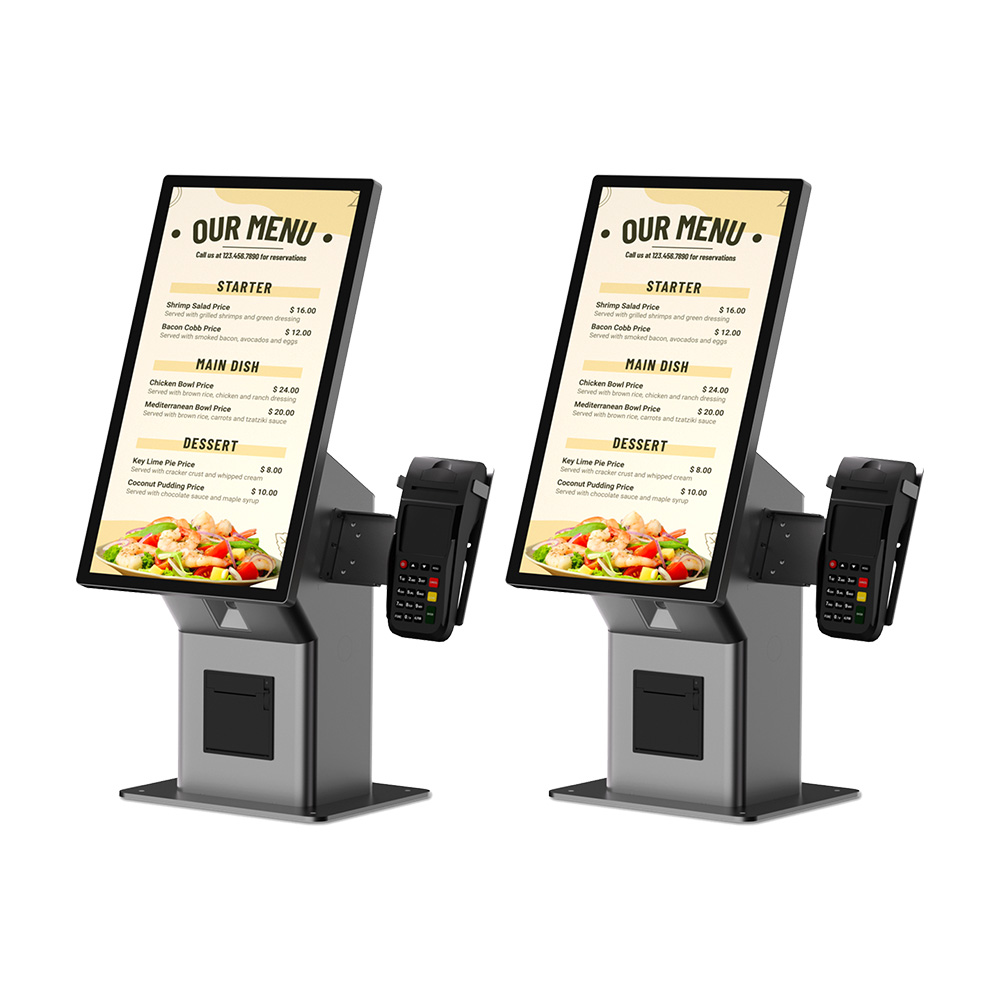

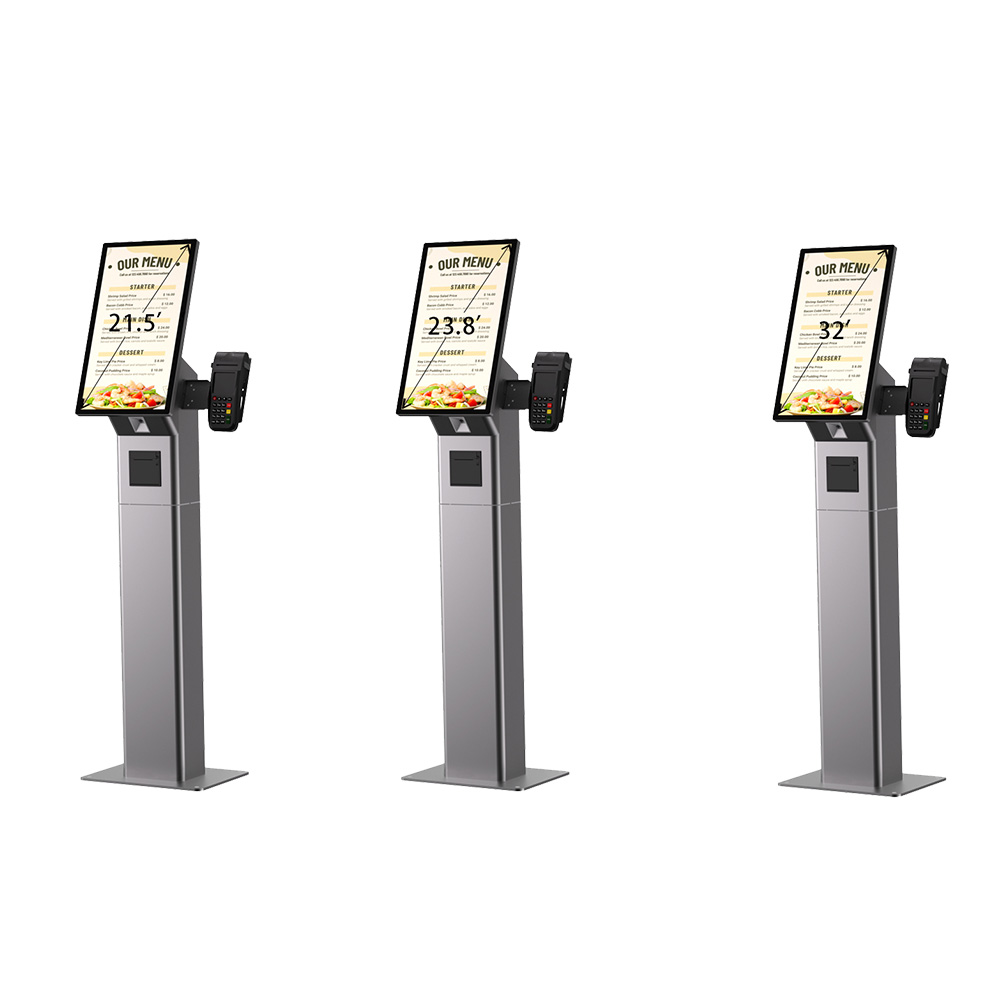

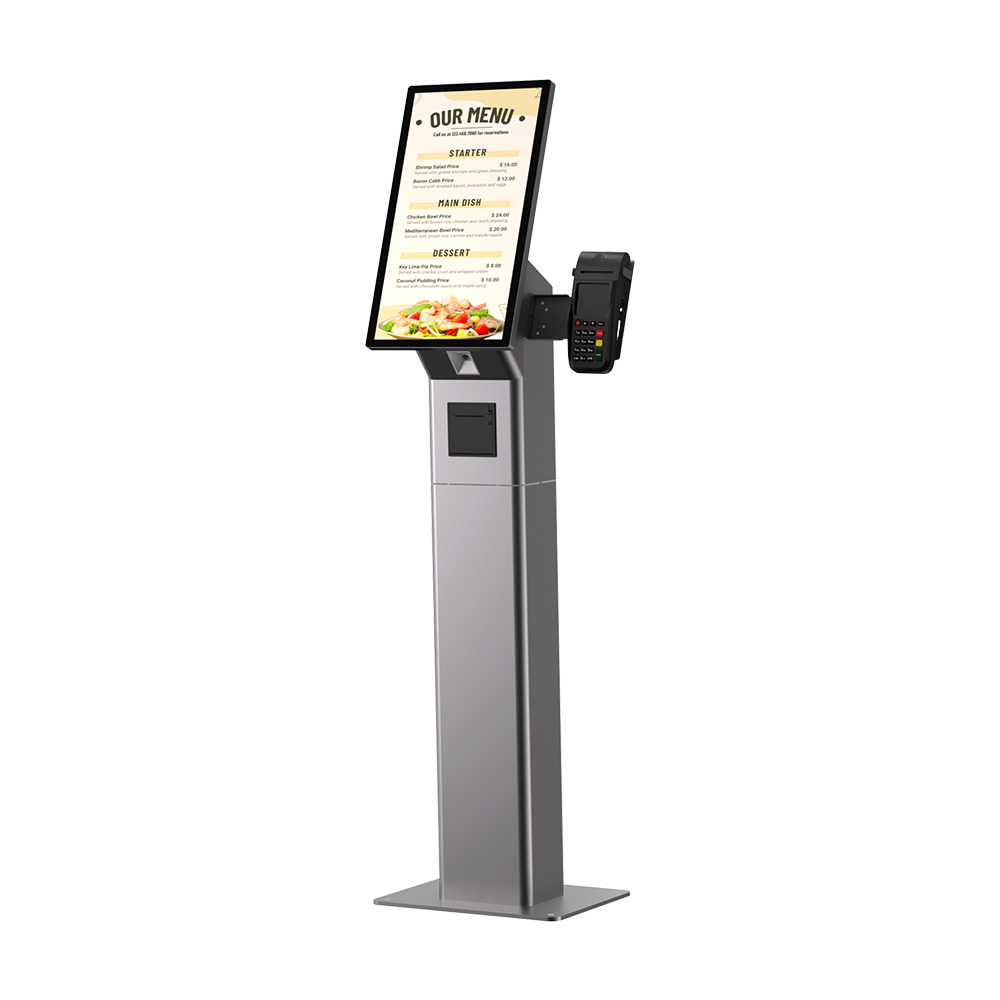

Flexible Installation: Desktop Stand or Vertical Floor-Standing Base

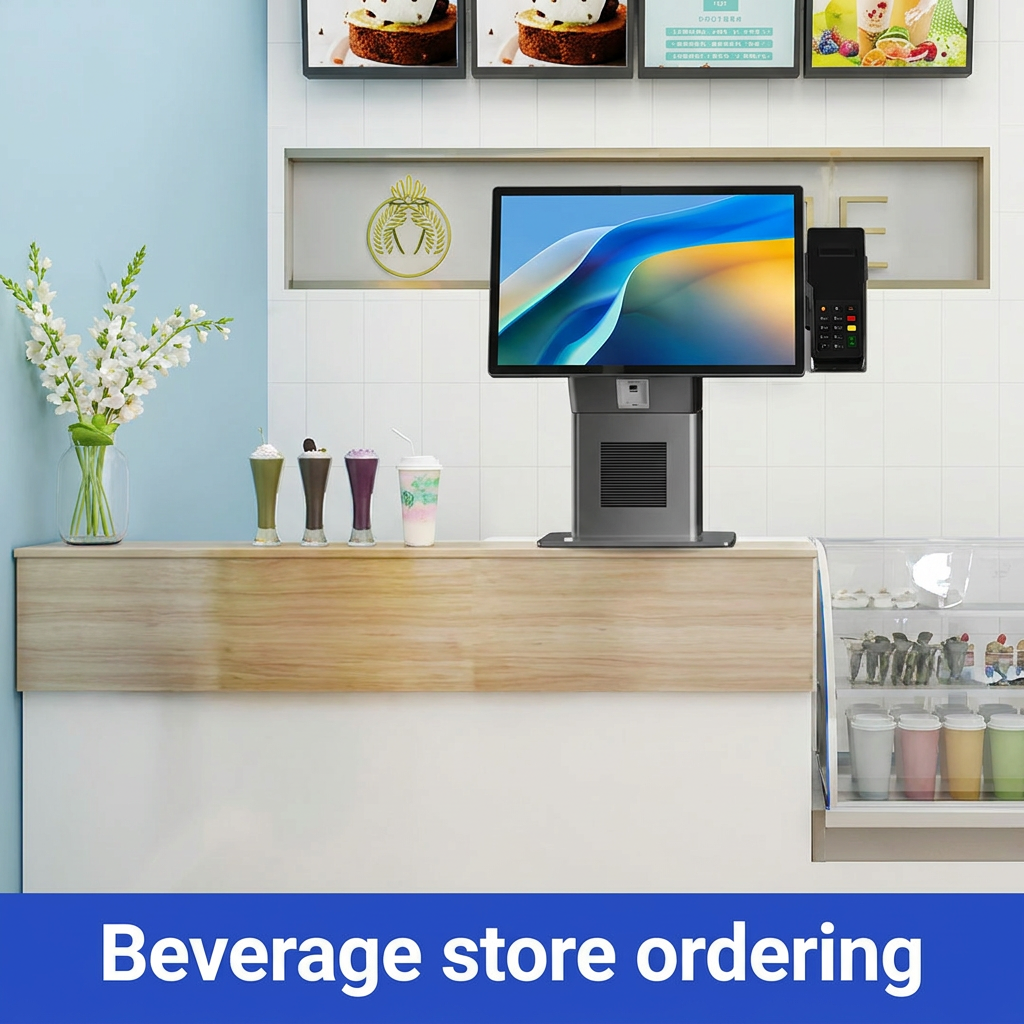

By integrating the landscape/portrait desktop kiosk at the checkout bar, customers can quickly select sugar levels, ice preferences, and add-ons. It accelerates order-taking efficiency and ensures 100% order accuracy

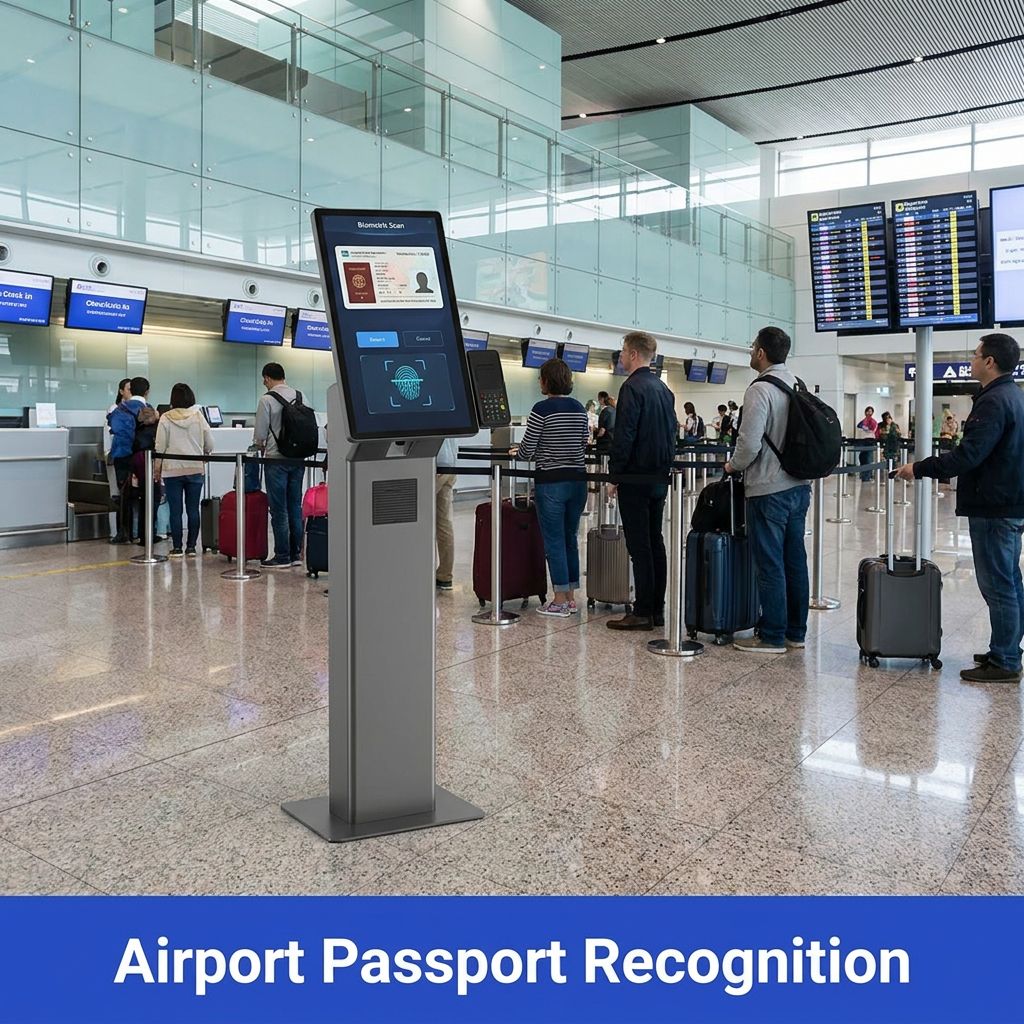

Streamline passenger flow at airports and custom gates. This terminal quickly captures and recognizes passport data and biometric info, providing a secure, fast-track solution for ticketing, check-in, or security clearance

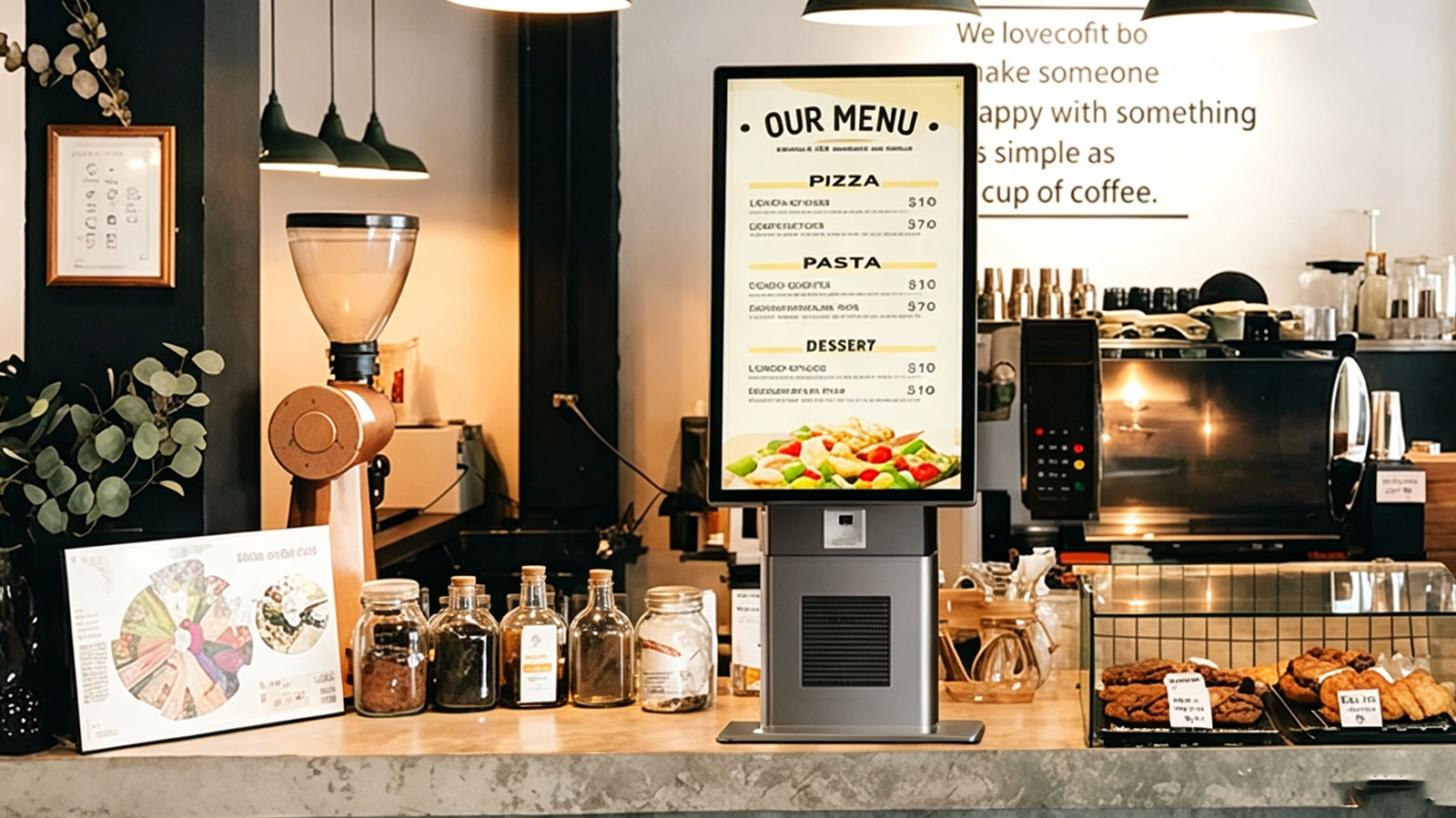

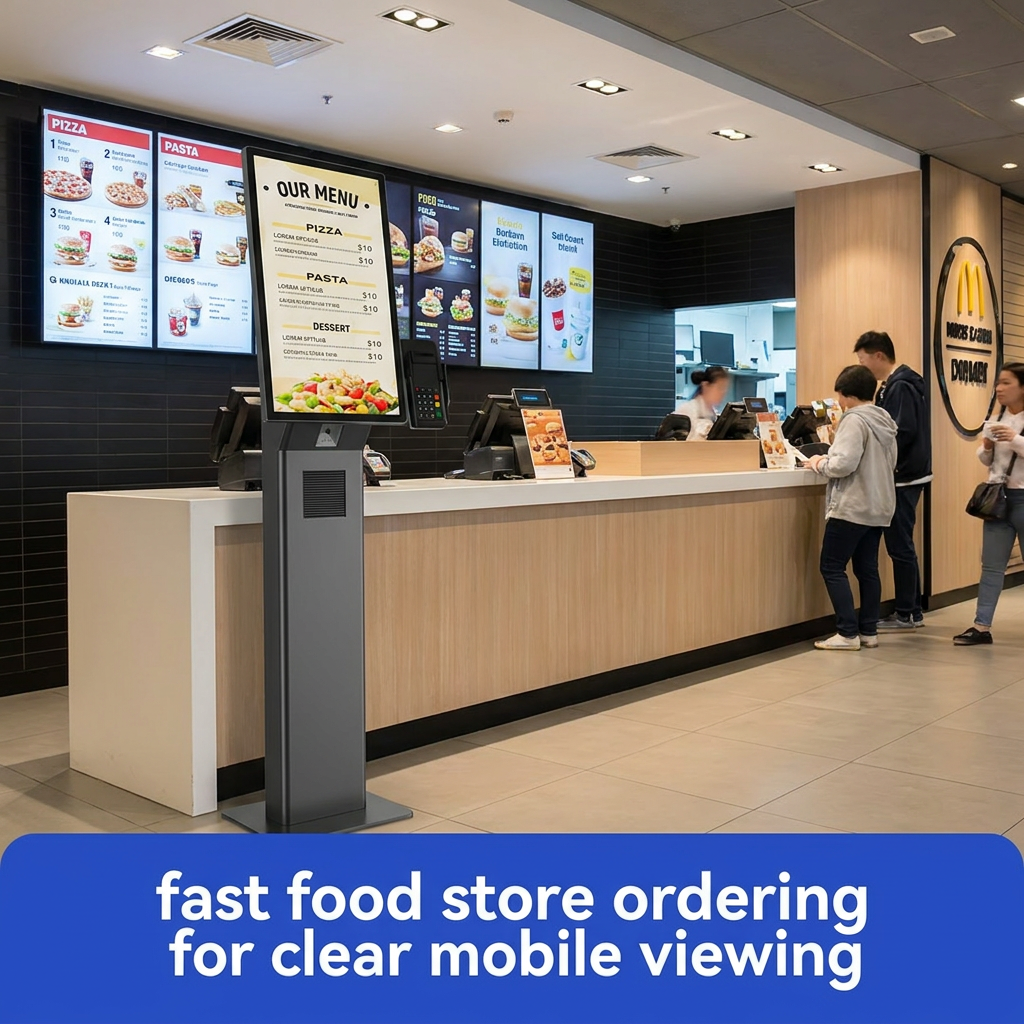

It guides customers through a visual menu with automated upselling prompts, effectively boosting the average ticket size while managing large crowds effortlessly

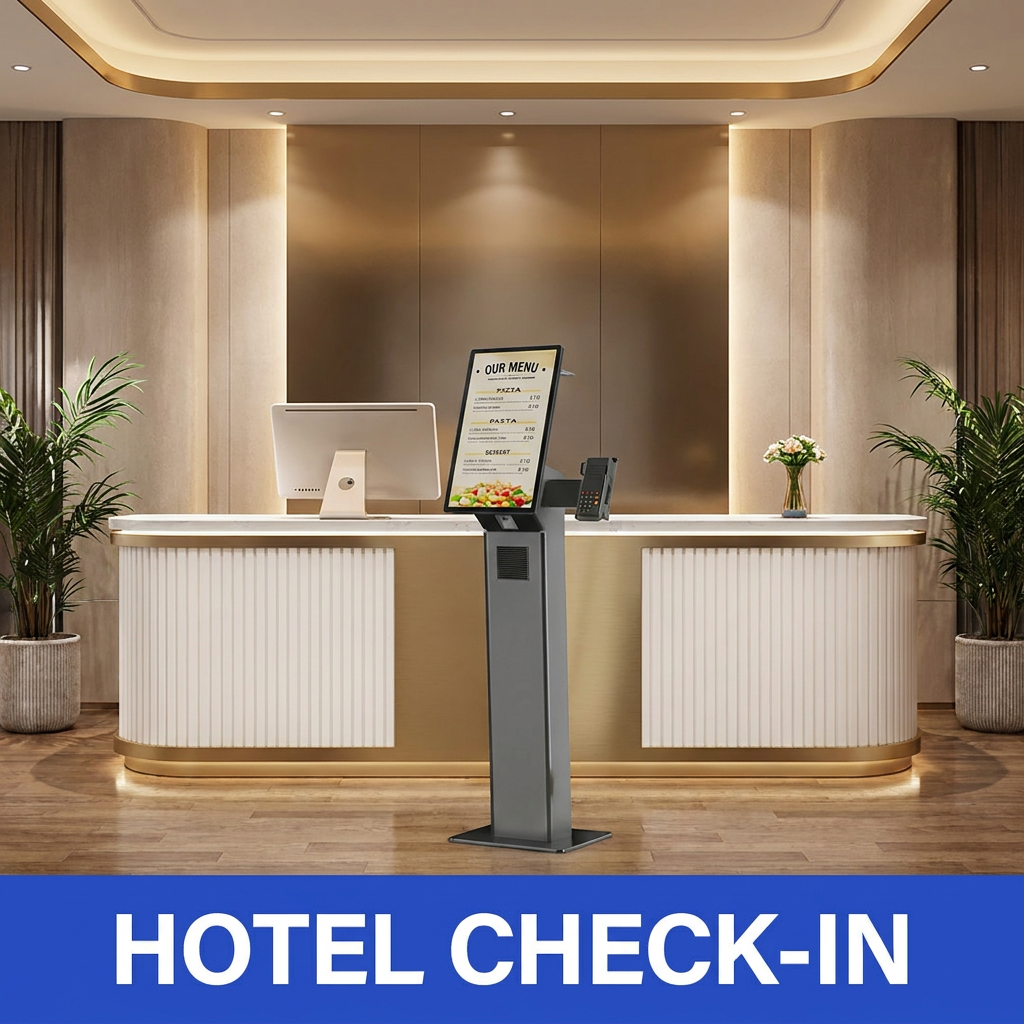

The kiosk enables guests to scan IDs/passports, verify identity, make payments, and complete check-in or check-out independently—any time of day or night
| Android | Windows | ||
| OS | Android 13 (Android 11 at optional) | Windows 11 (Windows 10, Linux Debian at optional) | |
| CPU | RK3568, 4-core, 2.0GHz | Core i5 6th generation (6200U), 2.0GHz | |
| RAM | DDR3 4G | DDR3 8GB(optional up to 16GB) | |
| ROM | EMMC 32G | MSATA 128GB (default) | |

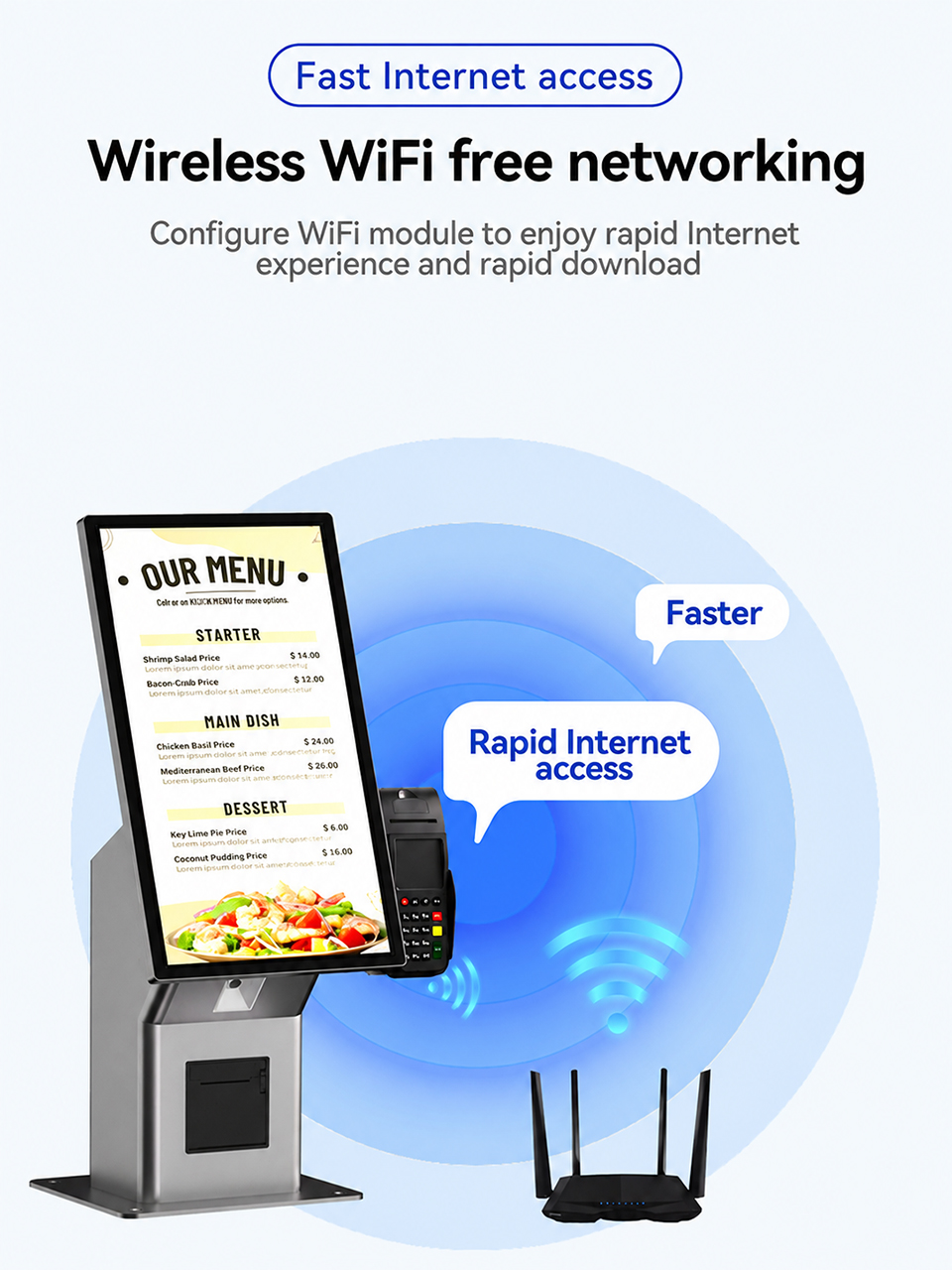

| Network | 802.11 b/g/n (2.4G/5G), 1000M LAN | 10/100/1000 Base-T Fast Ethernet, WIFI, Bluetooth | |
| LCD | 21.5 inch LCD | ||
| Touch Screen | Capacitive touch panel | ||
| Resolution | 1920 * 1080 | ||
| Display Brightness | 300 cd/m2 (Typ.) | ||
| Supported Colors | 16.7M, 72% NTSC | ||
| Contrast Ratio | 4000:1 (Typ.) (Transmission) | ||
| Display Mode | AMVA, often black, transparent | ||
| Network Supports | Gigabit Ethernet, WiFi/BT | ||
| Sound Prompt | Built-in 2 * 5W speaker | ||
| HDMI | 1 HDMI interface | ||
| USB | 1 USB-3.0 port, 1 USB-2.0 port | ||
| Color | White and dark or customized | ||
| Network Interface | RJ45 10/100M network auto-adaptation | ||
| Installation | Desktop stand, Vertical base at optional | ||
| Optional Function | 80mm Thermal Printer with Auto Cutter | ||
| 1D/2D Barcode scanner | |||
| NFC card reader | |||
| Binocular camera (2MP) | |||
| Status light | |||
| POS stand | |||
