HS-7301HD can easily capture barcodes 1D, 2D/QR on labels, paper, and mobile phone or computer displays, sensitive and accurately
| Quantity: | |
|---|---|
HS-7301HD
HCCTG

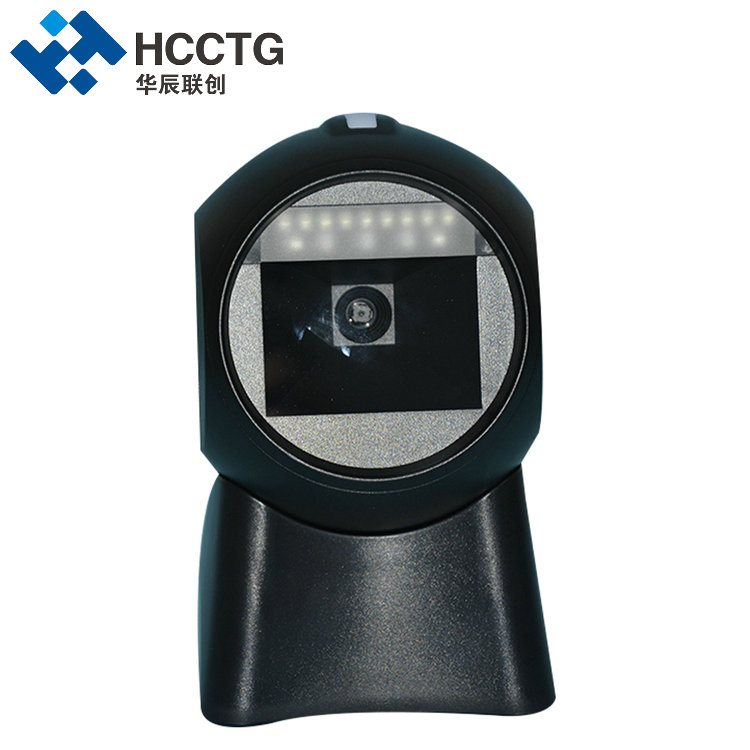

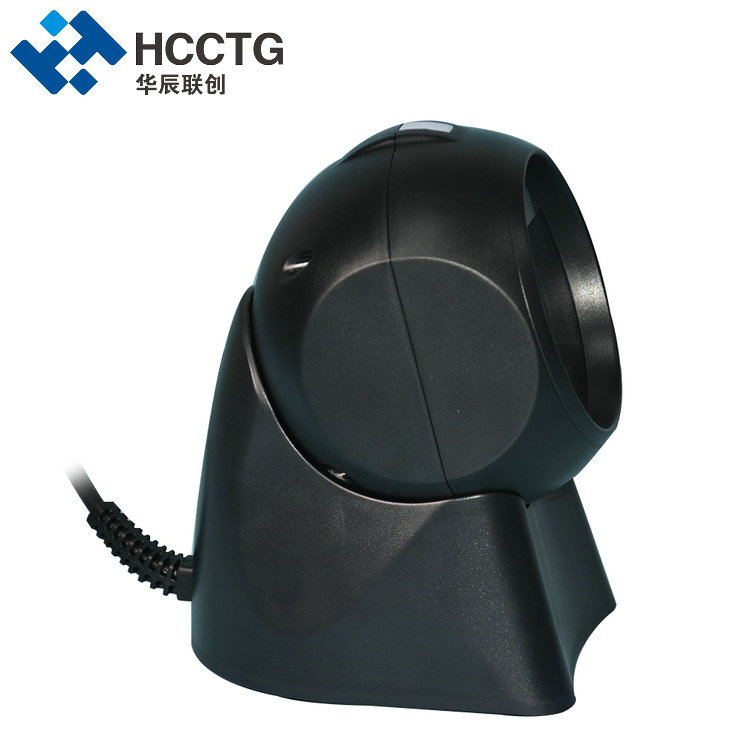

The First Multi-Megapixel 1D/2D Desktop Barcode Scanner in China HS-7301HD

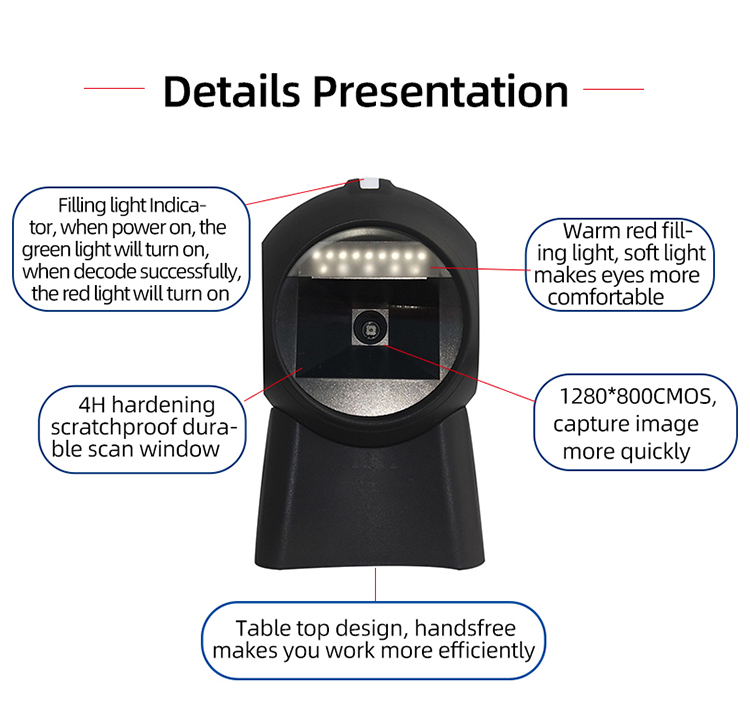

Our newly product HS-7301HD scanning platform supports Infrared auto-sensing scanning: specially equipped infrared induction trigger, this desktop barcode scanner supports auto-sensing scanning, barcode recognition more intelligent. Even when handsfree barcode scanner in sleeping mode, once the barcode close to window it will be automatically scanned.
Specification
Performance parameters | |
Image sensor | CMOS |

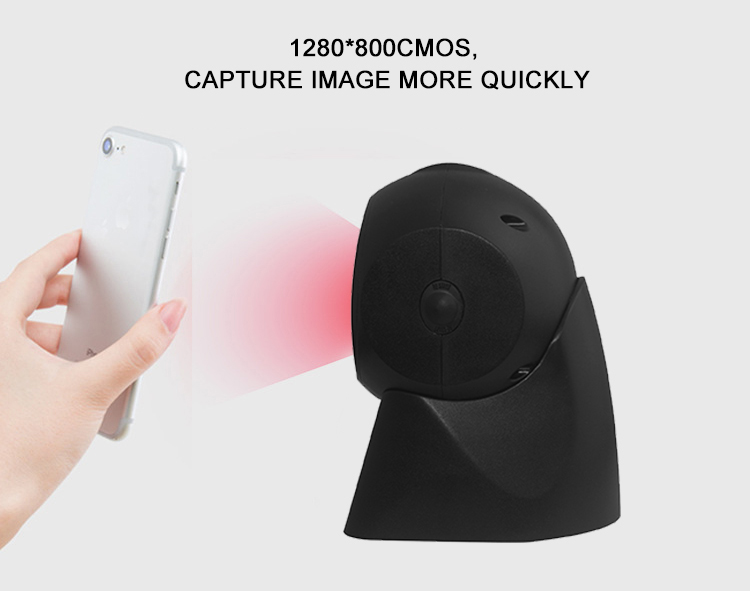

DPI(W*H) | 1280px*800px |
Floodlight | Red LED |
Read code system | 1D:UPC A , UPC E , EAN 8 , EAN 13,Code 128 , Code 39 , Code 93，Codabar , Plessey , MSI，Interleaved 2 of 5 ,Pharmacode |
2D:PDF 417, Micro PDF 417,Data Matrix , QR Code , Micro QR,Aztec,DotCode | |
Accuracy | 1D ≥3mil 2D ≥9mil |
Contrast ratio | ≥20% |
Sensitivity | Tilt ±60° |
Rotate 360° | |
Deflection ±60° | |
Typical reading accuracy | |
1D EAN 13 | 5mil 0-60mm |
13mil 0-180mm | |
2D QR Code | 15mil 0-140mm |
30mil 0-230mm | |
Field of view angle | Level:58° Vvertical:45° |
Prompt mode | BEEP,LED |

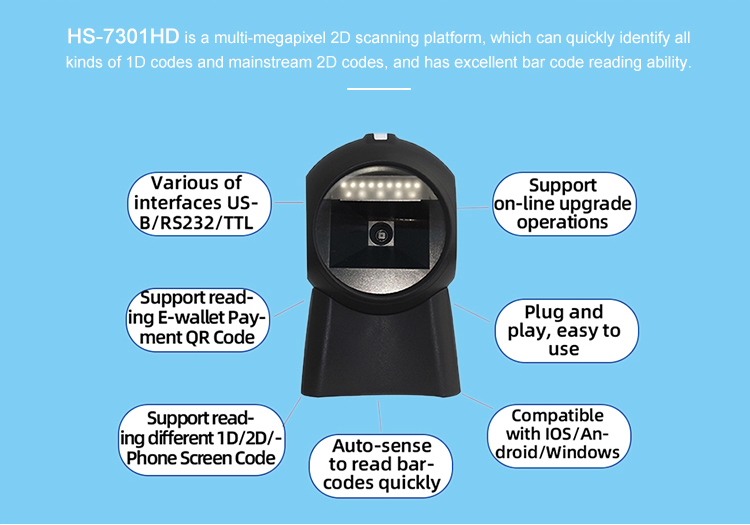

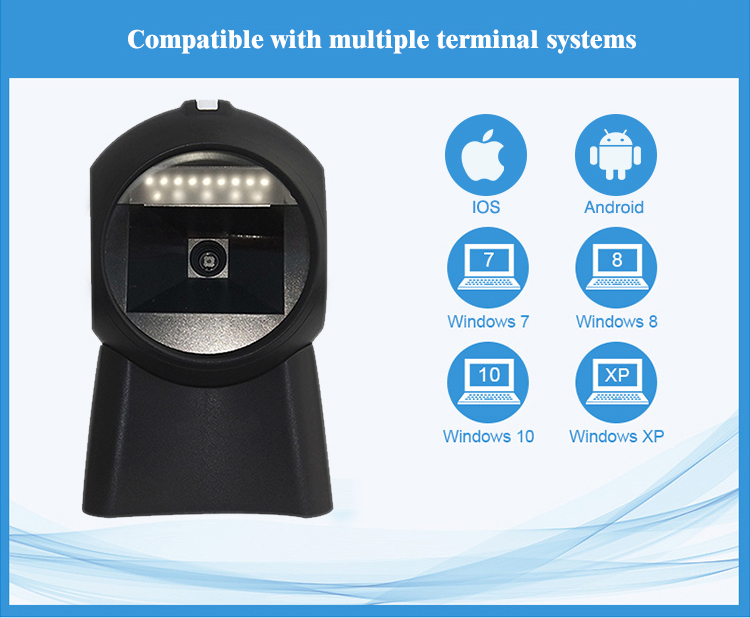

Data interface | USB KBW,USB CDC,USB HID POS,RS232,TTL 232 |
Electrical parameters | |
Working voltage | 5V±3% |
Working current | 210mA |
Standby current | 145mA |
Sleep current | 120mA |
Environmental parameters | |
Working temperature | 0℃ ~ +50℃ |
Storage temperature | -40℃ ~ +70℃ |
Relative humidity | 5% ~ 95%(RH) |
Ambient lighting | 0~86,000Lux |
Physical parameters | |
Cable standards | USB,RS 232,TTL |

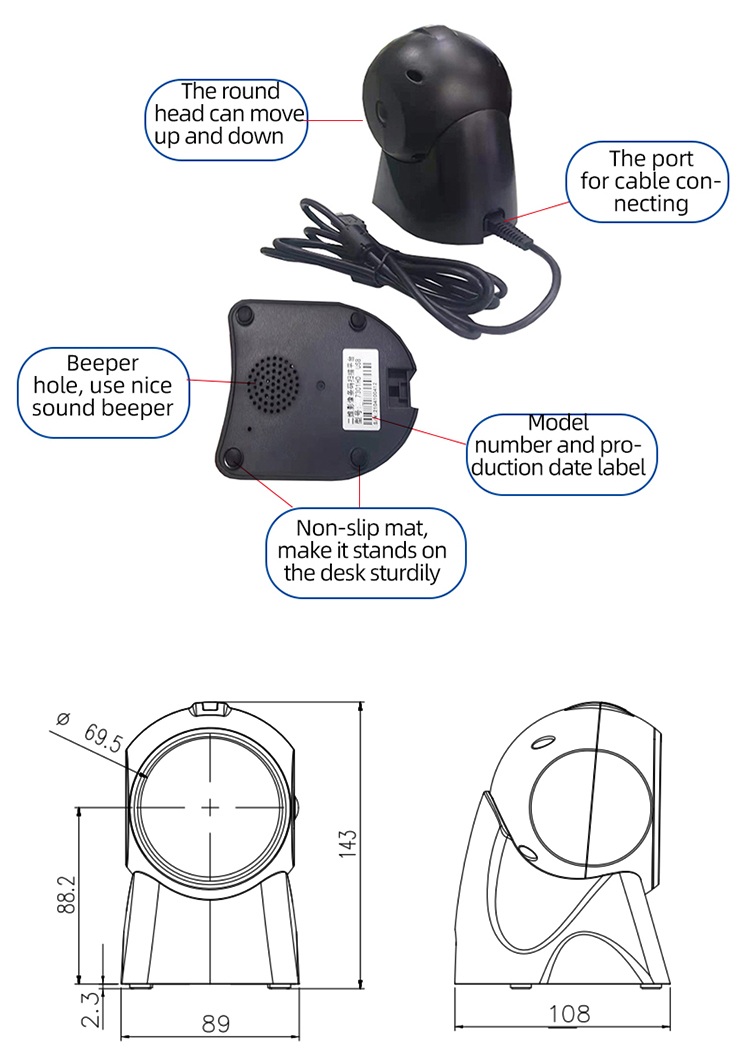

Product size | 89(W)*108(D)*143(H)mm |
Weight | 242g |
