HS-2011 supports 1D&2D barcode scanning, and it's compatible with multiple systems
| Quantity: | |
|---|---|
HS-2011
HCCTG

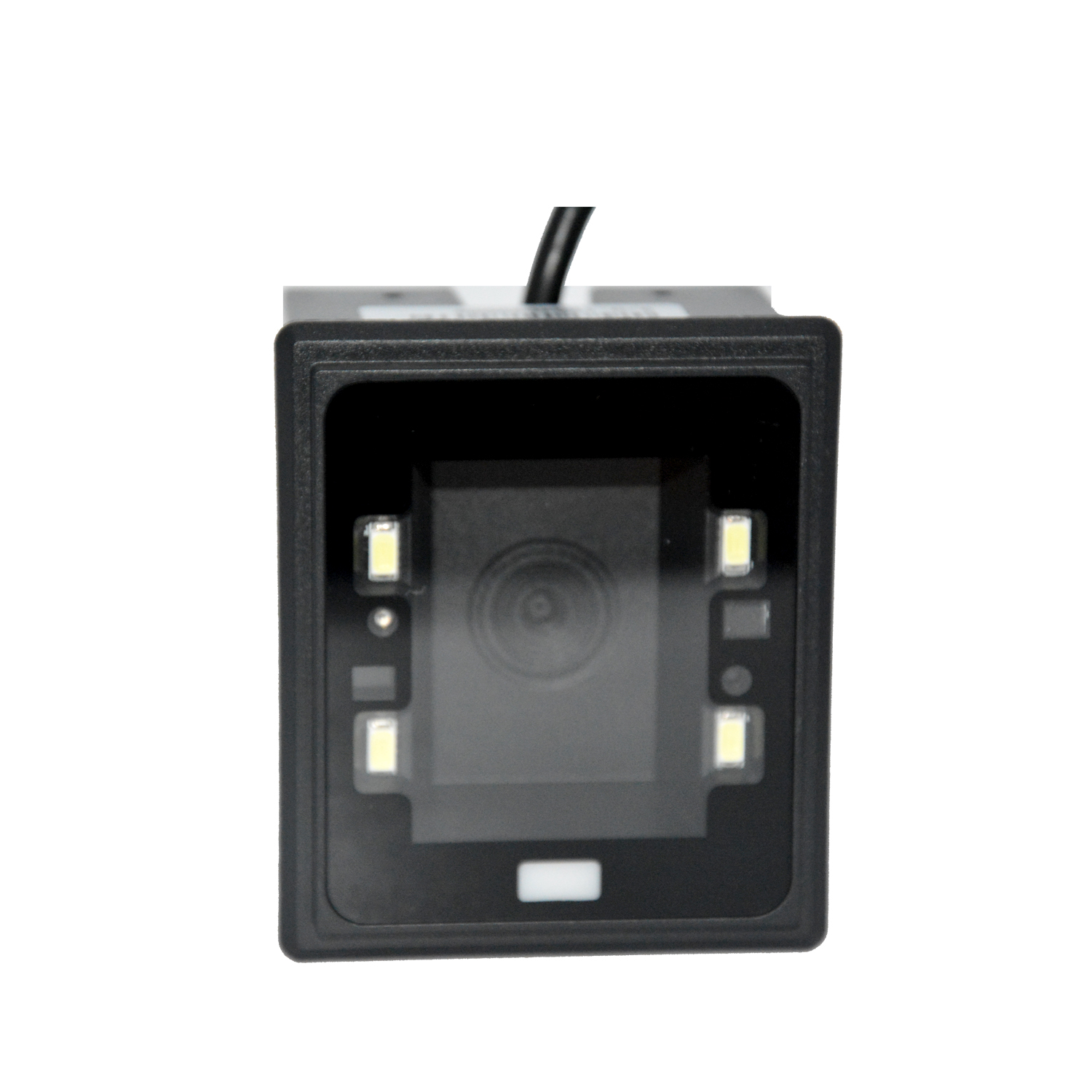

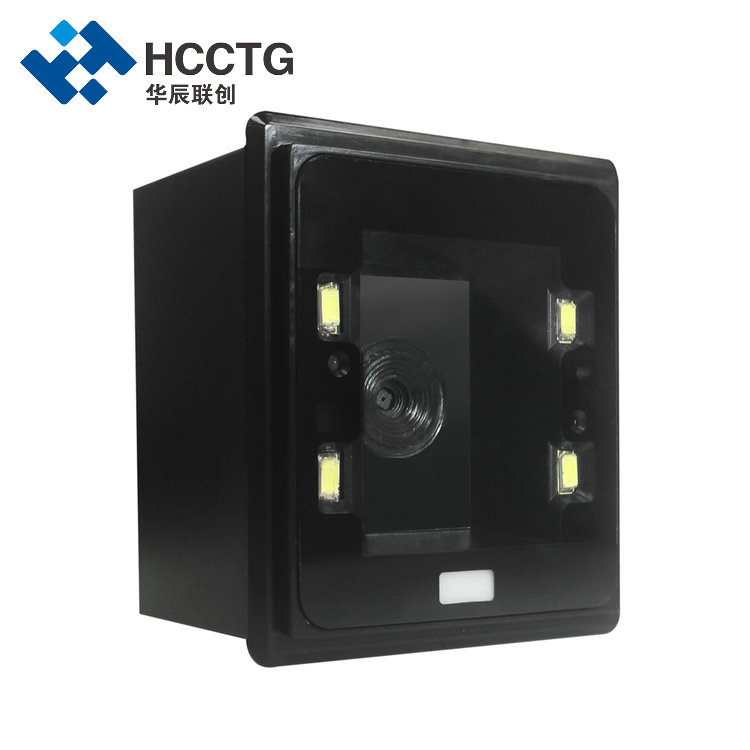

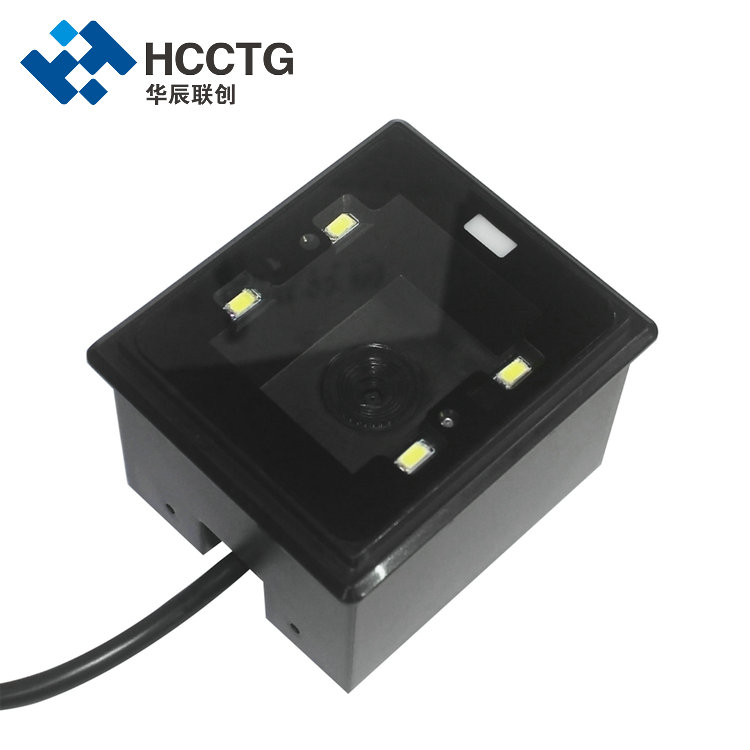

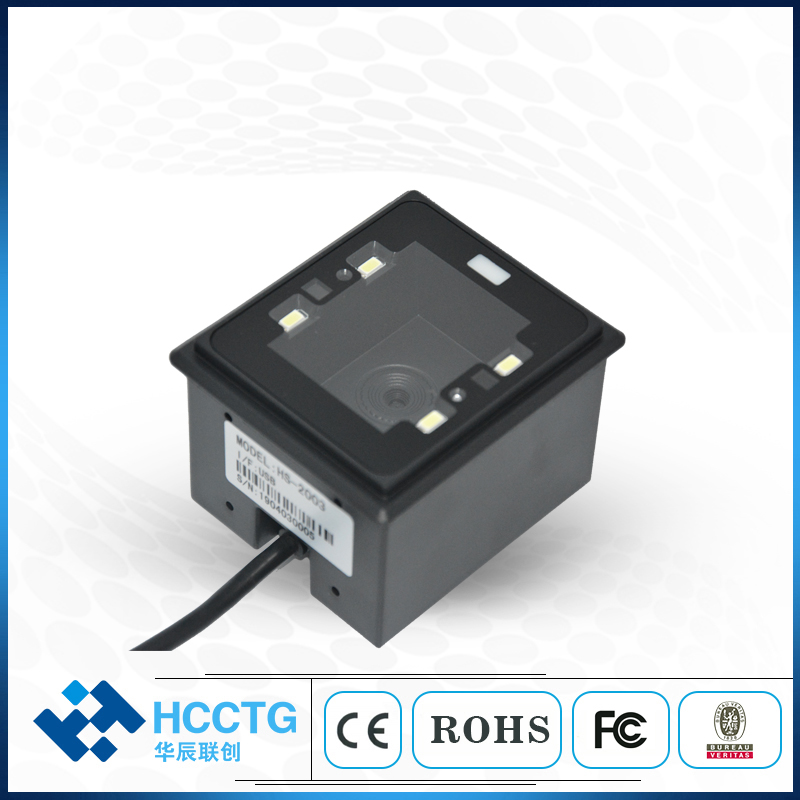

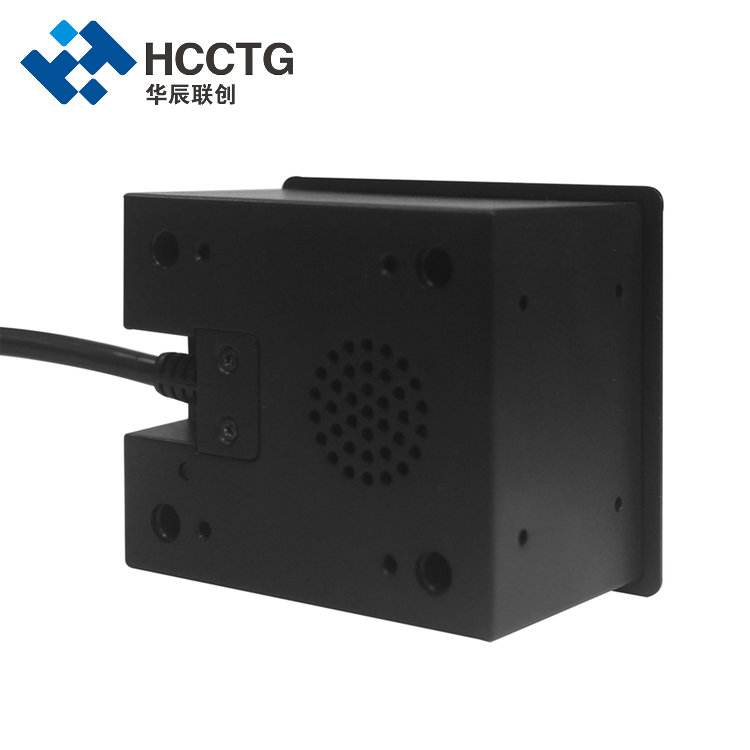

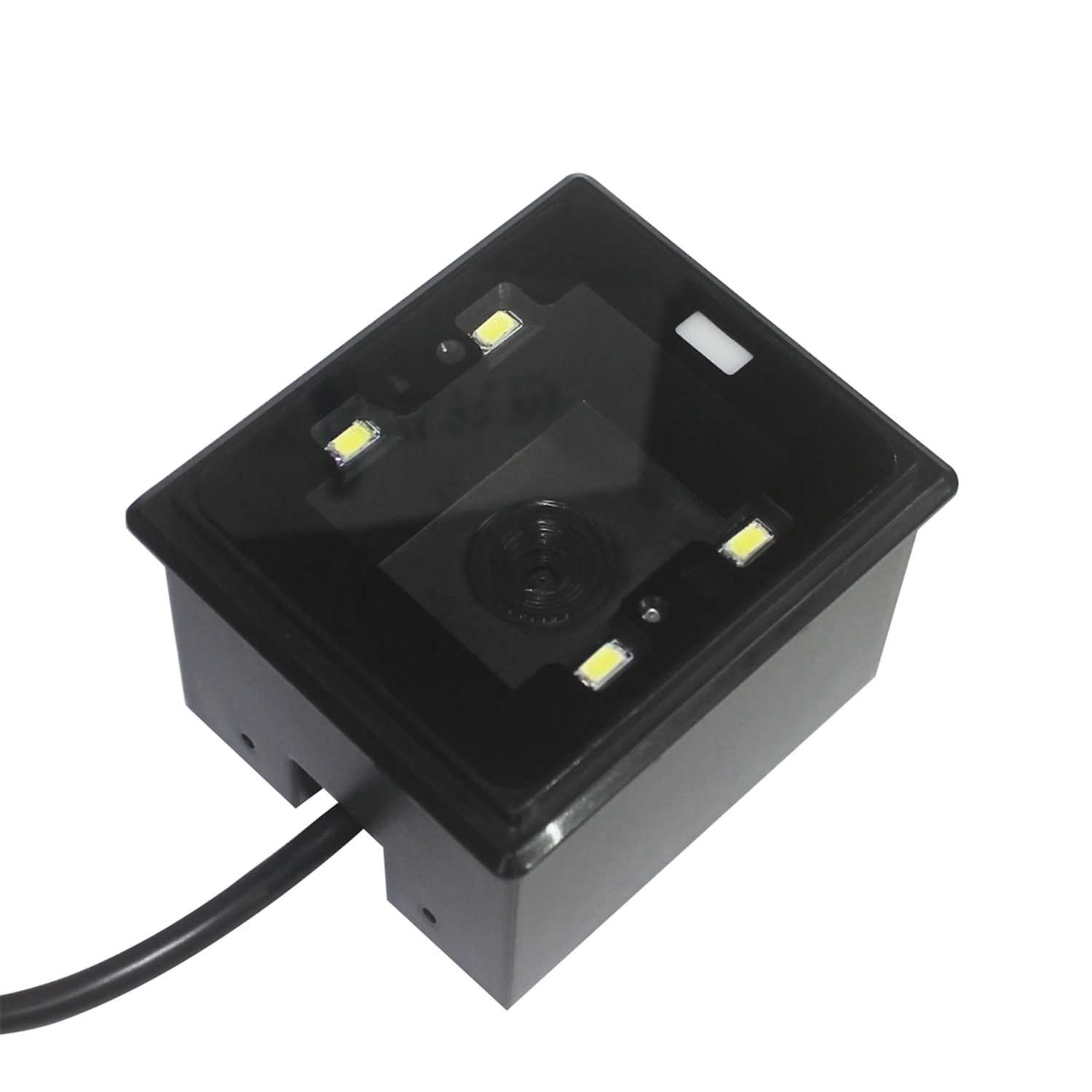

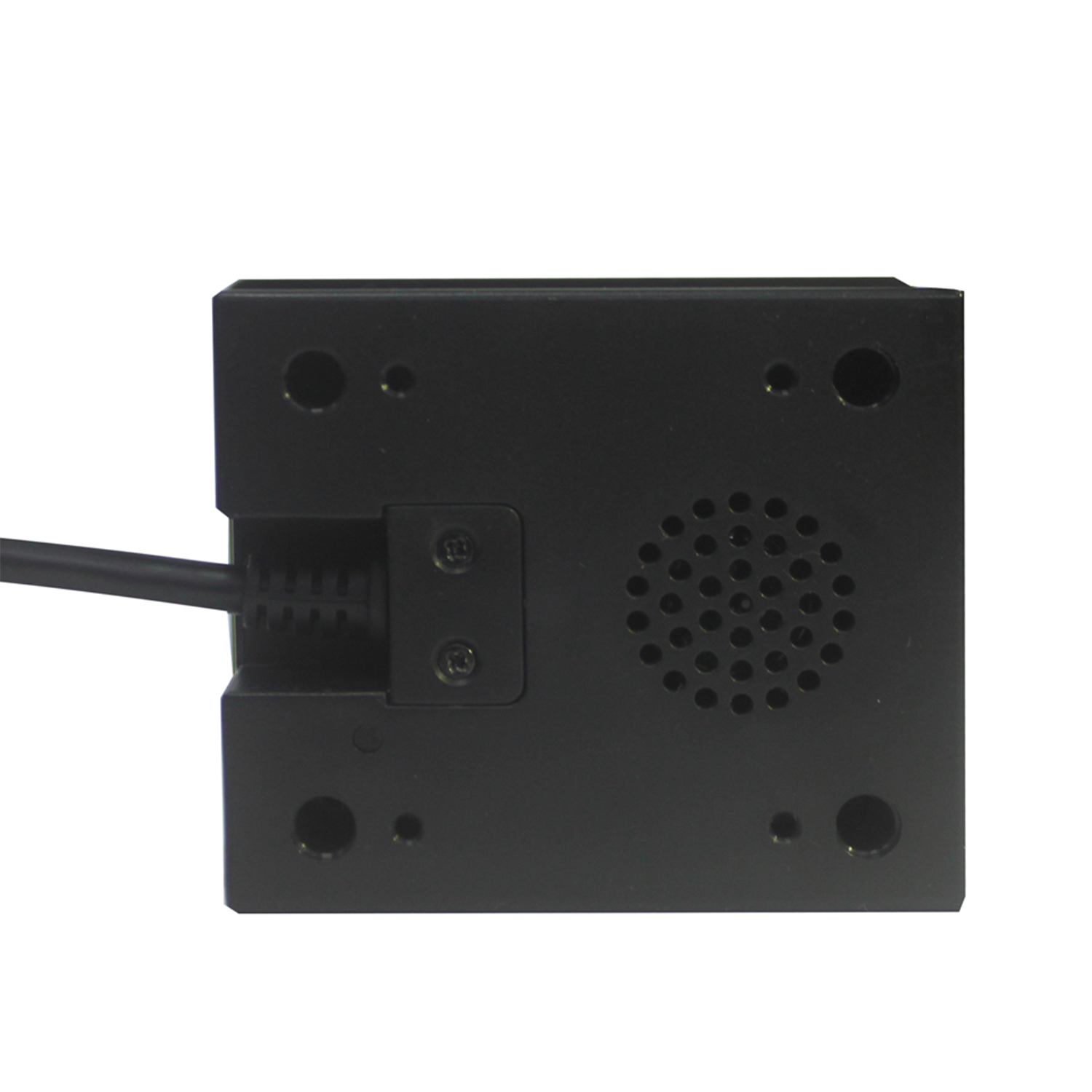

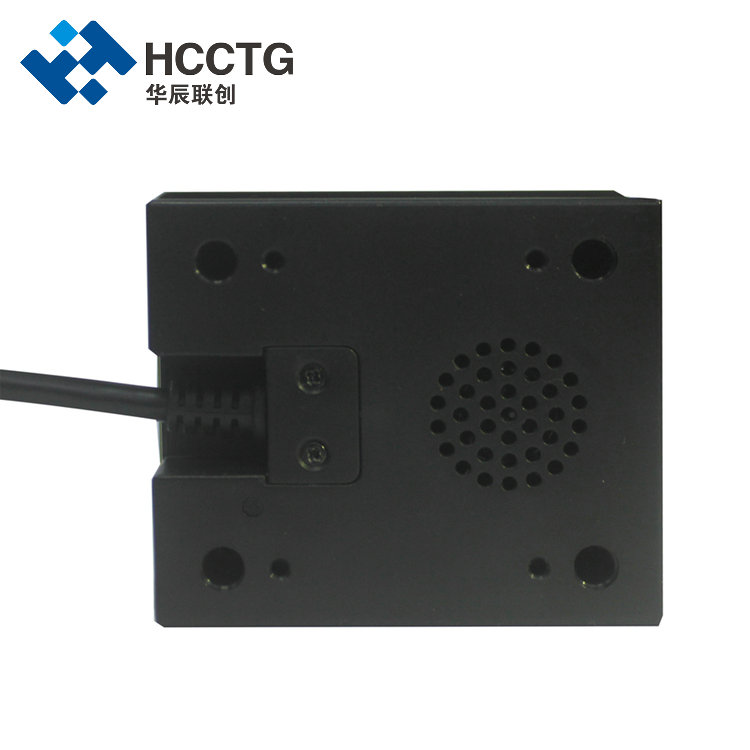

USB/RS232 Desktop Embedded Barocde Scanner Module HS-2011
HS-2011 has a very high scanning rate for linear barcodes. For paper barcodes and barcodes on the display, HS-2011 can also easily scan and handle various scanning applications.
HS-2011 desktop barcode scanner is an embedded design 2d barcode reader for all kinds of kiosk, self-service and ticketing terminals, it detects and reads bar code automatically, and it's suitable for all kinds of Kiosk, ATM, ticket terminal, turnstile and medical devices.
Feature
Quickly and accurately identify 1D code and QR code
Green low power consumption
Rich application scenarios
Ergonomic design
Stable, precise, convenient, practical, and efficient
Specification
Performance parameter | |
Image Sensor | CMOS |
Pixel | 648*488 CMOS |
Illumination | White light led |
Reading code system | 2D:PDF417,QR Code,Data Matrix |
1D:Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar | |
Reading accuracy |
|
Bar code sensitivity | Tilt:±65°@ 0°Roll and 0° Skew |
Rotate:±360°@ 0°Pitch and 0° Skew | |
Deflection:±60°@ 0°Roll and 0° Pitch | |
Data interface | USB HID/KBW interface，USB virtual serial port interface,RS-232 interface |
Field of view | 28° horizontal and 21.5° vertical |
Typical reading depth of field | Code 39 5mil 6-8cm 15mil 4-15cm |
Physical parameter | |
Size (length * width * height) | 78.4*67.2*53.2mm |
Weight | 185.9g (including USB cable) |
Prompt mode | Buzzer,LED indicator |
Electrical parameters | |
Voltage | Operating 5VDC ± 5% |
Current | Working current 210mA Stand-by current 70mA |
Environmental parameters | |
Operating temperature | -20℃ ~ +50℃ (-4°F~122°F) |
Storage temperature | -40℃ ~ +70℃ (-40°F~176°F) |
Relative humidity | 5%~95% (no condensation) |
Accessories list | |
Data line | Cable (2m) USB(HID-KBW,Virtual serial port) and RS232 interface at optional |
