HS-7308D can quickly identify the screen 1D/2D code, and with no plugins, lightning billing.
| Quantity: | |
|---|---|
HS-7308D
HCCTG

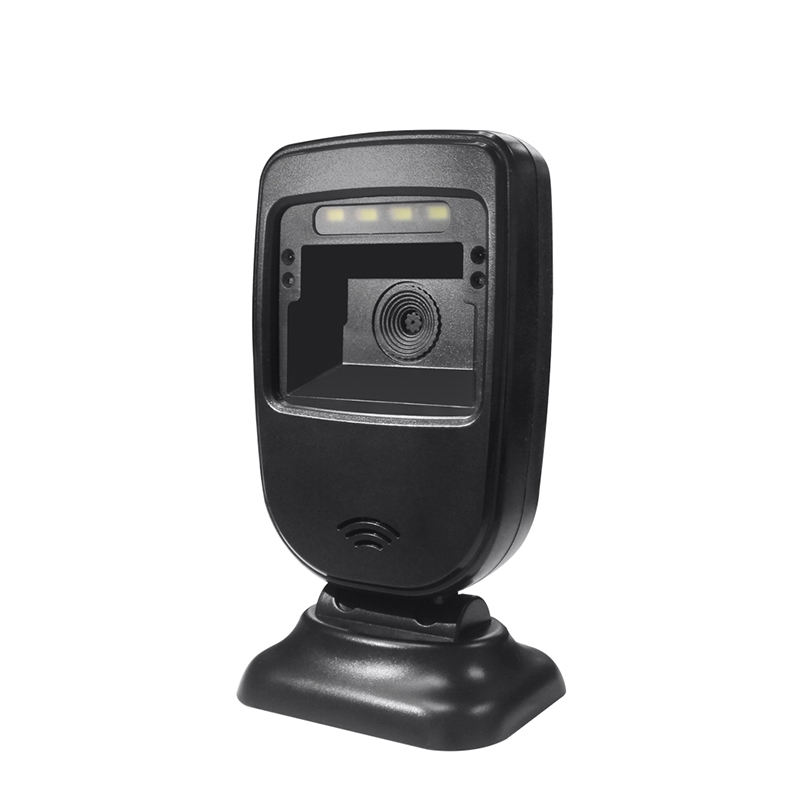

Desktop 2D Payment Box Data Matrix Scanner Wired Scanning Platform HS-7308D
HS-7308D has non-slip drop design, with very large reading window. Beside, it's also body and data line integration design and compatible with a variety of systems.
Specification
Performance | Image Sensor | 640*480CMOS |
Ambient light intensity | 0~100000 Lux | |
Floodlight | No lighting mode, reading light mode, regular pattern | |
symbologies | 1D | Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-14, Matrix 2 of 5,Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,Plessey, MSI-Plessey, GS1-DataBar (RSS), (RSS-14, RSS- Limited,RSS-Expand) |
2D | PDF417,Data Matrix,QR,Micro QR | |
Resolution | ≥5mil | |
Typical Depth of Field | QR CODE( 30MIL) 0-15CM | |
CODE 128 (10MIL) 0-12CM | ||
Scan Angle | Pich | ±50°@ 0°Roll and 0° Skew |
Roll | ±360°@ 0°Pitch and 0° Skew | |
Skew | ±60°@ 0°Roll and 0° Pitch | |
Symbol Contrast | ≥30% | |
Interface | USB/RS-232 | |
Physical | Dimensions | 80*36*149.5mm |
Weight | USB:228g RS232: 261g | |
Packing size | Packingcasesize | 463*220*440 |
Box size | 105*90*210 | |
Notification | Beep,LED indicator | |
Voltage | Operating | 5VDC±5% |
Current | Maximum | 150mA±15mA |
Operating | 80mA±2mA | |
Standby | <200mA | |
Environmental | Operating Temperature | -20℃~+50℃ |
StorageTemperature | -40℃~+70℃ | |
Humidity | 5%~95% (non-condensing) | |
