HCC-EC80 panel mount printers offer the easiest way to integrate a mini printer into your equipment
| Quantity: | |
|---|---|
HCC-EC80
HCCTG

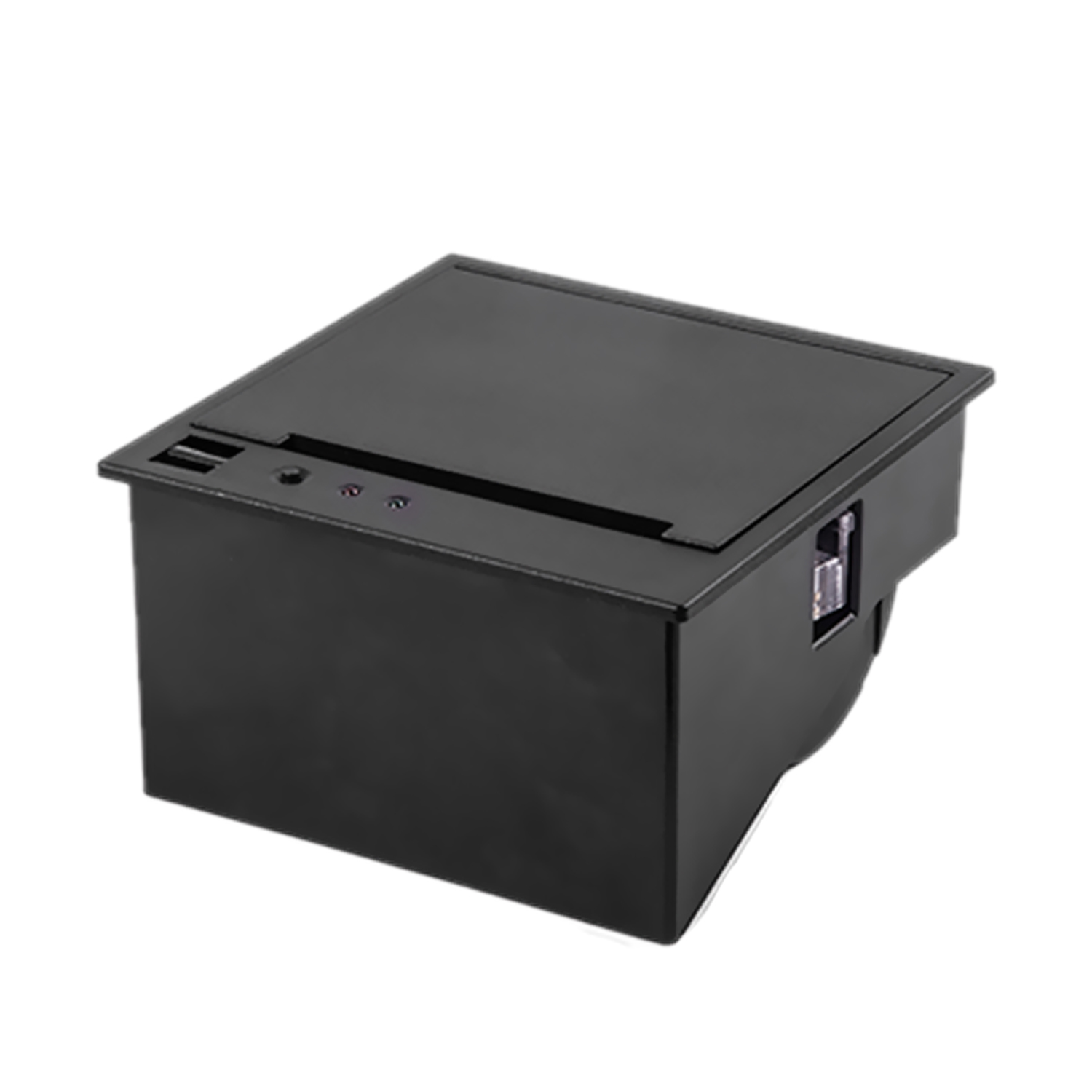

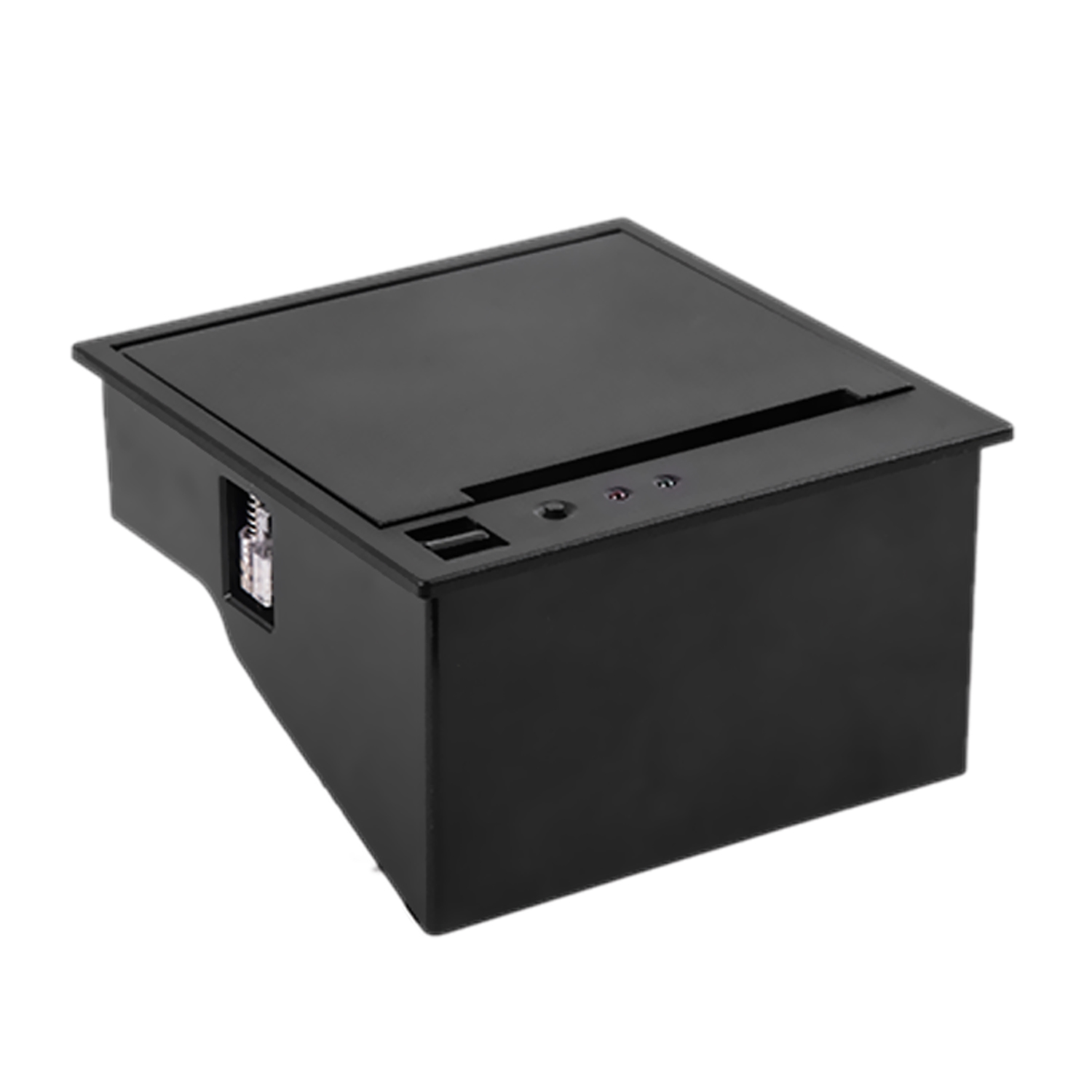

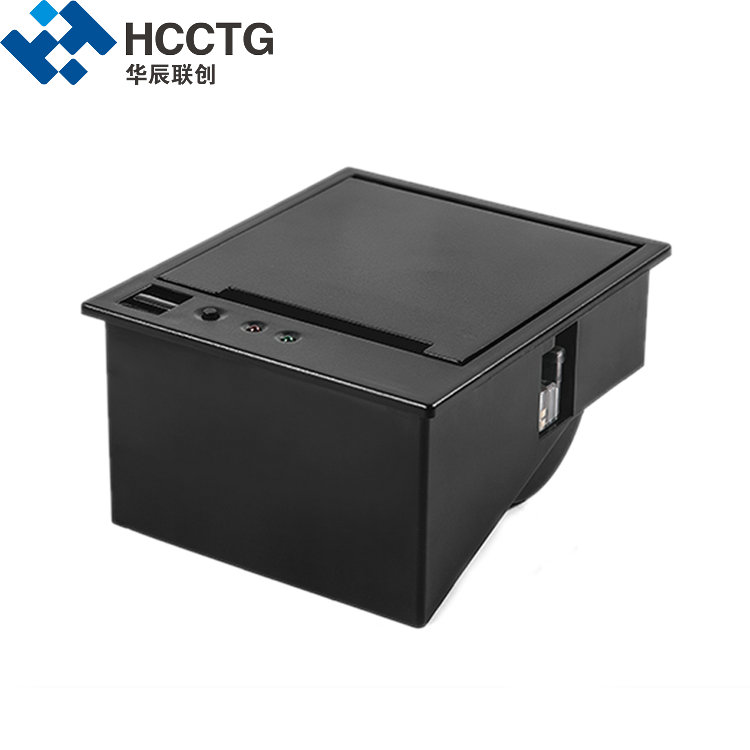

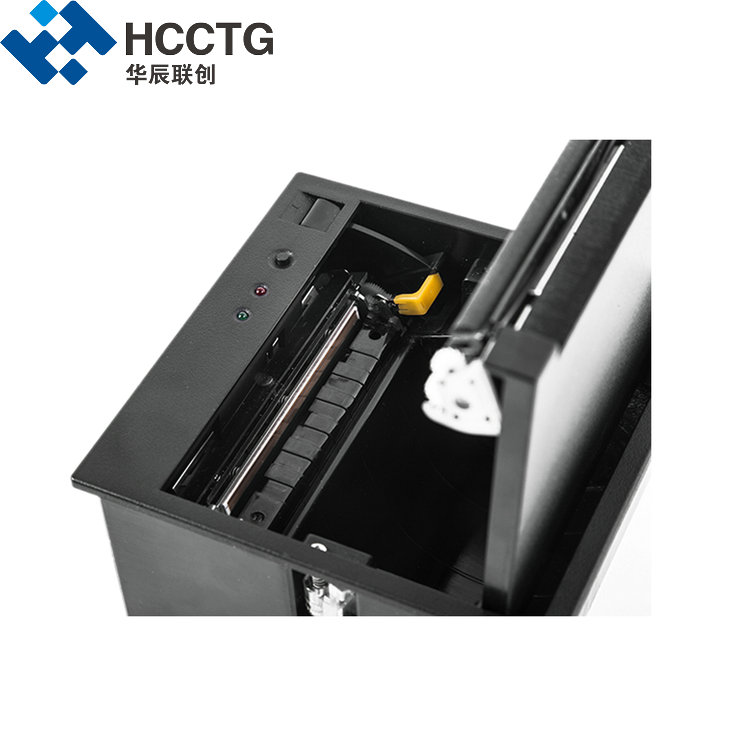

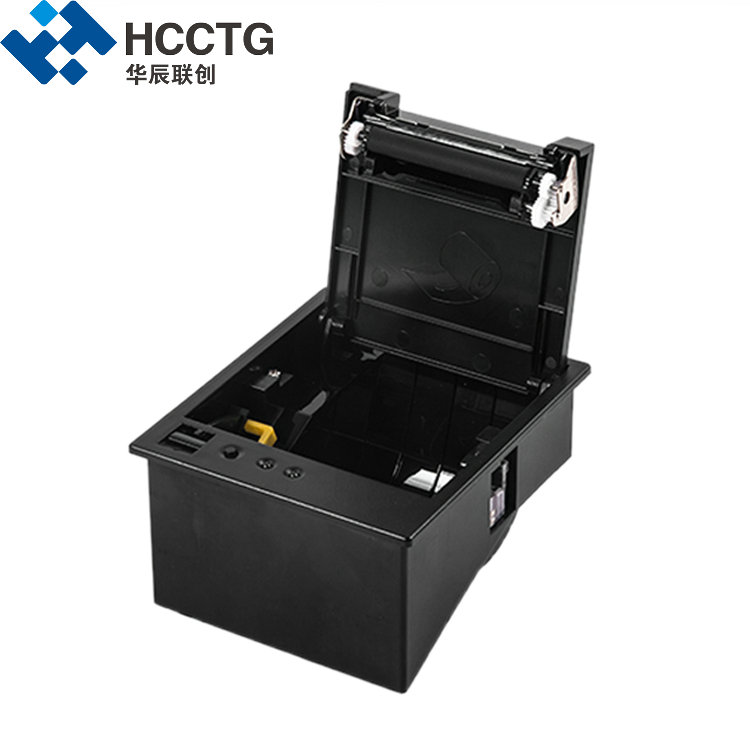

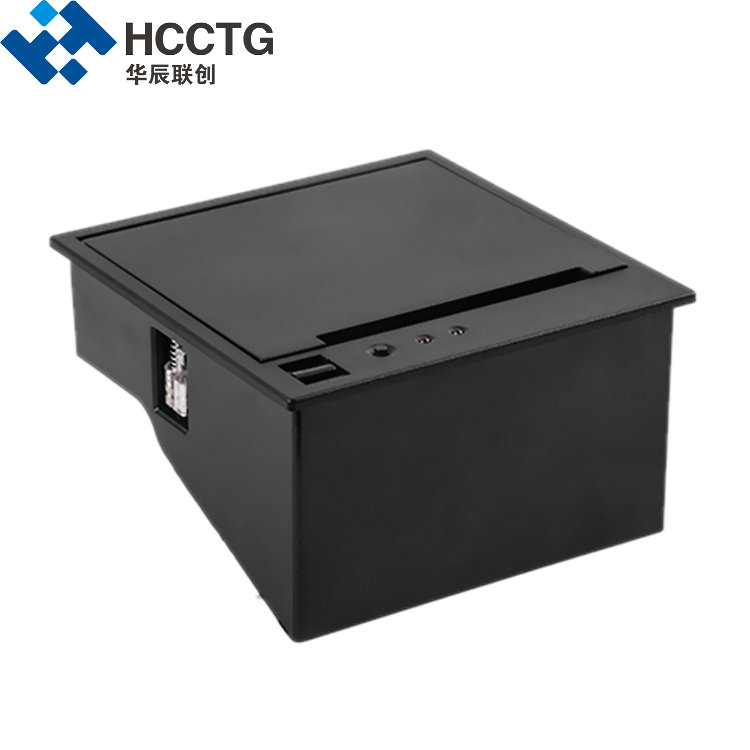

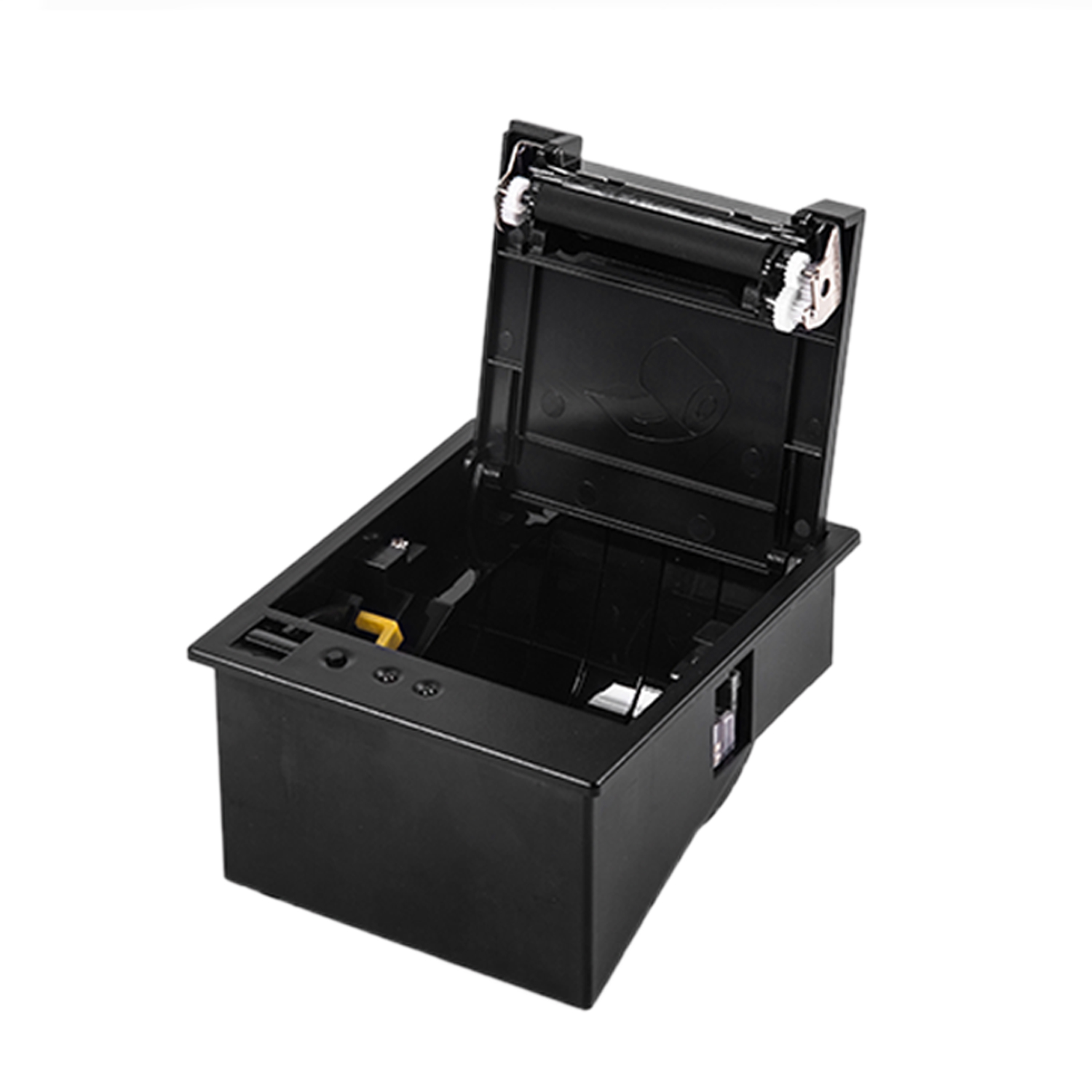

USB 80mm Thermal Embedded Panel Printer For Kiosk/Parking System
HCC-EC80 is the Panel Printer with high printing quality, all language fonts and energy-efficient functionality that reduces power consumption.
Feature:
High Printing Speed up to 130mm/second
Feed paper automatically
Support Windows2000/XP/7/8/10/11, Linux
Good price and Short delivery lead time
Factory/Manufacture with engineer team, able to do OEM&ODM
Support Big diameter roller paper more than the 50mm
Support cash drawer control interface
Support paper take away the detection function
Support detection the paper end function
Support Control Lock opening cover (Optional)
Applications
KIOSK & vending machine
queuing machine
Promotion coupon printing machine
Parking system
Gas station filling machine
Game machine & vote machine
Specifications
Printing Method | Thermal |
Dots/line | 640dots/line |
Resolution | 203DPI |
Printing Width(mm) | 72mm |
Paper Width(mm) | 80mm |
Paper Thickness(um) | 56-100 |
Printing speed | 130mm/s |
Paperdiameter | MAX (50MM) |
Feed Resolution(mm) | 0.125 |
Interface | USB+RS232/USB+TTL |
W x D x H(mm) | 124.8x125x70.5mm(L*W*H) |
Installed size | 117mm*117mm(L*W) |
Weight(g) | 532 |
Head temperature detection | Thermistor |
Paper detection | Transmission photo electricity switch |
Black mark detection | Reflecting photo electricity pipe |
Platen position detection | Light touchswath |
Operation voltage (V) | 12V±10% |
Graph Printing | Support different density Graph, raster bitmap and download bitmap |
Language | Simplified Chinese, Traditional Chinese, English and other 45 kinds of international characters |
Barcode | 1DBarcode UPC-A, UPC-E, EAN-8, CODE39, ITF; CODE128, CODE93, QRCODE |
Logical voltage(V) | 5±0.25 |
Form feeding motor voltage(V) | 24±10% |
Auto cutting motor voltage(V) | 24±10% |
Detection voltage (V) | 5±0.25 |
Abrasion resistance | 100km |
Auto cutting frequency | 1 million times |
Operating temperature(°C) | 0 to 50 (no condensation) |
Operating humidity(RH) | 10% to 80% (no condensation) |
Storage temperature(°C) | -25 to 70 (no condensation) |
Storage humidity(RH) | 5% to 95% (no condensation) |
