Product Description

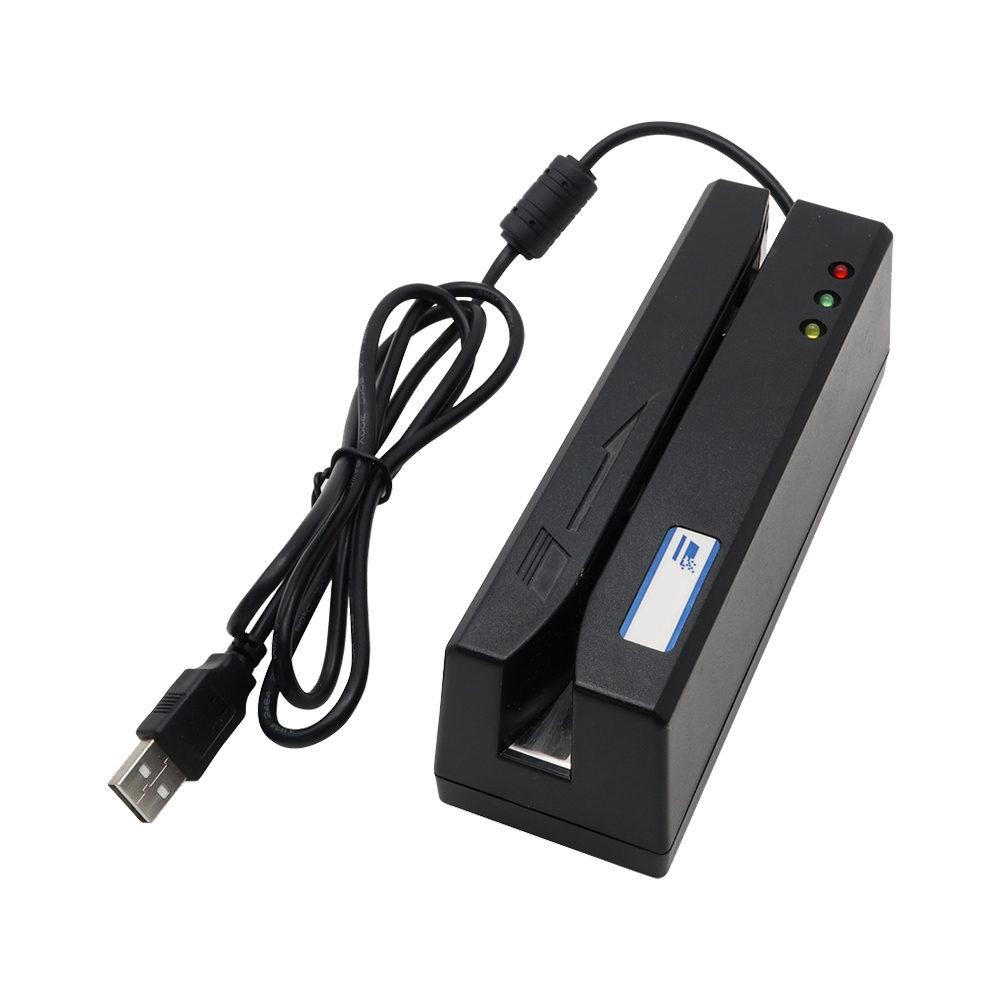

1）HCC900S Magnetic Card Reader & Writer is a device designed to read and write data on magnetic stripe cards, commonly used in various applications such as credit cards, identification cards, and access control systems. It is essential in industries like banking, retail, and security;
2）HCC900S play a crucial role in modern payment systems and security protocols. Their ability to efficiently read and write data makes them indispensable tools across various sectors, enhancing convenience and security in transactions and access management.
|

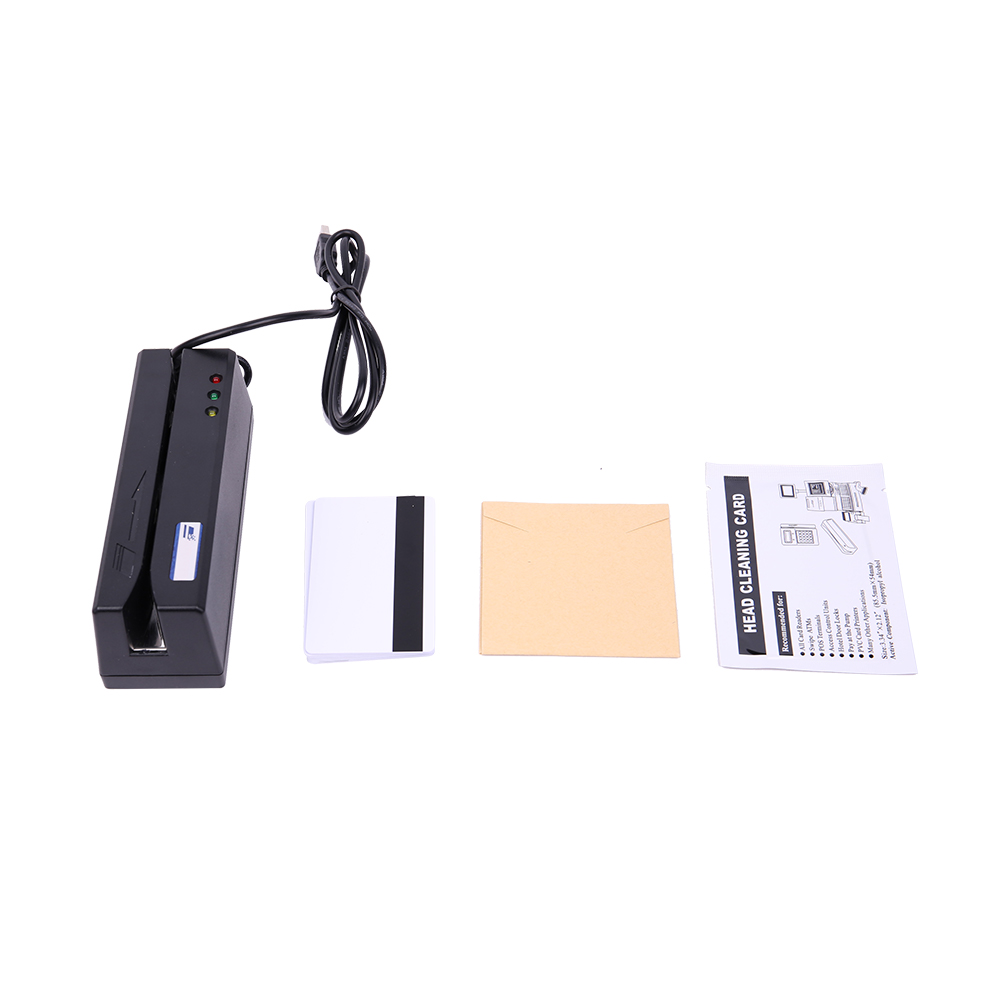

Product Packaging
|
Features
1. Compatible with Instructions
100% compatible with MSR206 instruction set..
2. Easy&Convenience
The built-in battery without external power supply, do not need to install the driver.
3. Read-write Functions
For high / low magnetic stripe (300-4000 OE) all three rail to read and write function
4. Read-write Format
Support ISO, AAMVA DMV custom and so on the many kinds of magnetic recording format, speaking, reading and writing.
5. Blind Read Function
Reading card / deposit book which can realize the different standard of the blind to read
6. Stability
Applicability, the machine is stable and reliable, error rate < 0.5
7. Working Life
1 million times life read/write head
8. Protocol Commands
Simple file command protocol instructions, speaking, reading and writing
9. Systems
Supports Windows 98/XP/WISTA/Win7/win8/win10, to provide convenient DLL secondary development
|
Specifications
Performance |
Track | 1/2/3 tracks |
Recording Density | 1, 3 track: 210BPI 2 track: 75/210BPI optional |
Coercive Force | Read / Write 300-4000 oe Mag card |
Operating Speed | Read speed: 6.3~250cm/s Write speed: 10~100cm/s |
Card Thickness | PVC 0.76±0.08mm |
Error Rate | Read < 0.5% Writer < 0.8% |
Head Life | About 1,000,000 times |
Electrical |
Power Supply | 5V |
Build-in Battery Capacity | 600mAh |
Consumption | Read: 50mA±15% Write: 2800mA±15% |
Communication | USB HID, USB virtual COM（at optional） |
Mechanical |
Material | ABS 94V |
Size | 150mm(L) * 50mm(W) * 53mm(H) |
Environment |
Operation | Temperature: -10℃ ~ 55 ℃ Humidity: 10%~85% relative humidity |
Storage | 10%~90% relative humidity |
Safety Approval |
Rating | CE, FCC, ROHS |
